Pioneer HTZ808BD User manual

ENGLISH
繁體中文
P/NO: MFL65220813
HTZ808BD
XV-BD707
S-BD808T
S-BD808SW
HTZ606BD
XV-BD707
S-BD606
Blu-ray Disc surround system | 藍光家庭影院組

Blu-ray Disc surround system | 藍光家庭影院組

Blu-ray Disc receiver | 藍光接收器
Blu-ray Disc receiver | 藍光接收器
Speaker System | 揚聲器系統
Speaker System | 揚聲器系統
操作手冊
Speaker System (only subwoofer) | 揚聲器系統
HB985-FB.BSGPPPK_ENG.indd 1HB985-FB.BSGPPPK_ENG.indd 1 2010-06-14  3:45:402010-06-14  3:45:40

2Safety Information
Safety Information
1

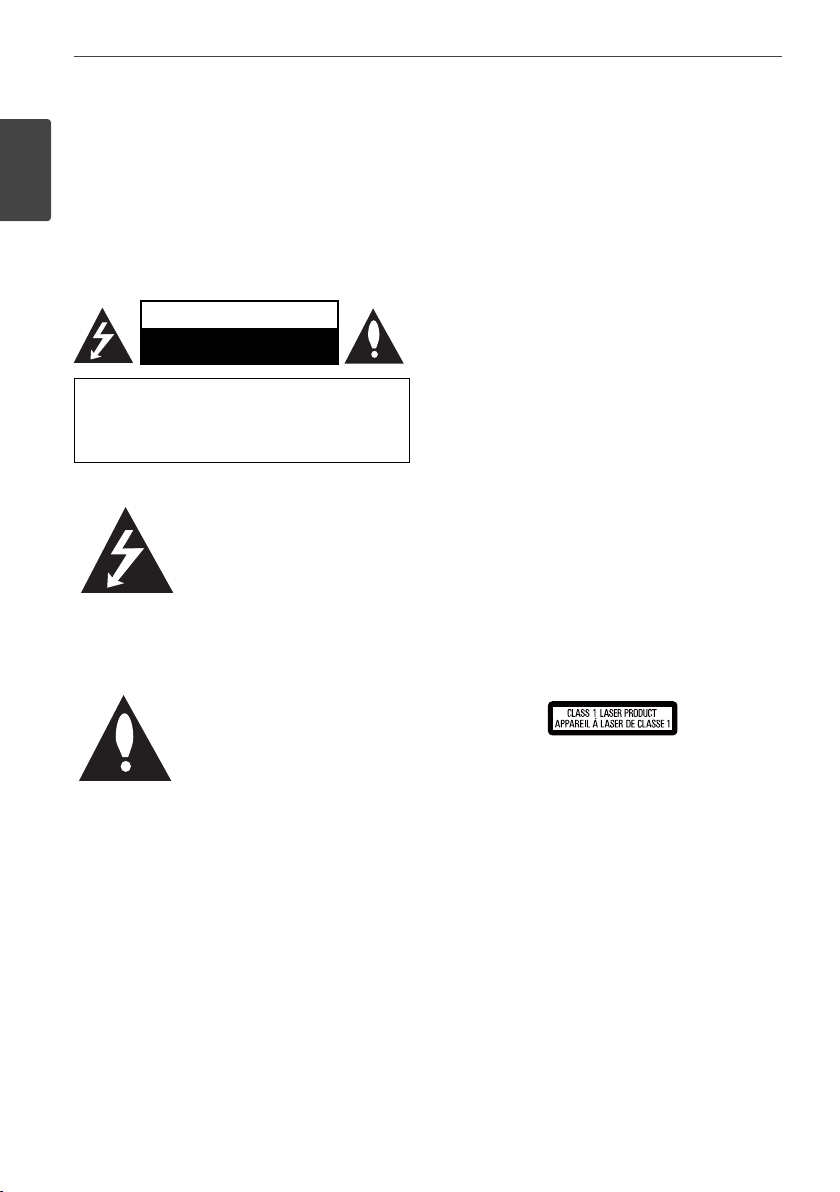

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be of
sucient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
Cautions and Warnings
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION: This product is a class 1 laser product
classied under the Safety of laser products,
IEC60825-1:2007. To ensure proper use of this
product, please read this owner’s manual carefully
and retain it for future reference. Shall the unit
require maintenance, contact an authorized service
center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try
to open the enclosure. Visible laser radiation when
open. DO NOT STARE INTO BEAM.
1
Safety Information
HB985-FB.BSGPPPK_ENG.indd 2HB985-FB.BSGPPPK_ENG.indd 2 2010-06-14  3:45:442010-06-14  3:45:44

Safety Information
3Safety Information
1
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a
dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an exact
replacement part by an authorized service center.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where the cord
exits the appliance. To disconnect power from the
mains, pull out the mains cord plug. When installing
the product, ensure that the plug is easily accessible.
WARNING: To prevent a re hazard, do not place any
naked ame sources (such as a lighted candle) on
the equipment.
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the battery
from the equipment: Remove the old battery
or battery pack, follow the steps in reverse order
than the assembly. To prevent contamination of
the environment and bring on possible threat
to human and animal health, the old battery or
the battery put it in the appropriate container at
designated collection points. Do not dispose of
batteries or battery together with other waste.
It is recommended that you use local, free
reimbursement systems batteries and accumulators.
The battery shall not be exposed to excessive heat
such as sunshine, re or the like.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.
HB985-FB.BSGPPPK_ENG.indd 3HB985-FB.BSGPPPK_ENG.indd 3 2010-06-14  3:45:442010-06-14  3:45:44

4Safety Information
Safety Information
1
Notes on Copyrights
• Because AACS (Advanced Access Content System)
is approved as content protection system for BD
format, similar to use of CSS (Content Scramble
System) for DVD format, certain restrictions are
imposed on playback, analogue signal output,
etc., of AACS protected contents. The operation of
this product and restrictions on this product may
vary depending on your time of purchase as those
restrictions may be adopted and/or changed by
AACS after the production of this product.
• Furthermore, BD-ROM Mark and BD+ are
additionally used as content protection systems
for BD format, which imposes certain restrictions
including playback restrictions for BD-ROM
Mark and/or BD+ protected contents. To obtain
additional information on AACS, BD-ROM Mark,
BD+, or this product, please contact an authorized
Customer Service Center.
• Many BD-ROM/DVD discs are encoded with
copy protection. Because of this, you should only
connect your player directly to your TV, not to a
VCR. Connecting to a VCR results in a distorted
picture from copy-protected discs.
• This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Rovi Corporation, and is intended
for home and other limited viewing uses only
unless otherwise authorized by Rovi Corporation.
Reverse engineering or disassembly is prohibited.
• Under the U.S. Copyright laws and Copyright
laws of other countries, unauthorized recording,
use, display, distribution, or revision of television
programmes, videotapes, BD-ROM discs, DVDs,
CDs and other materials may subject you to civil
and/or criminal liability.
When disposing of used batteries, please comply
with governmental regulations or environmental
public institution’s rules that apply in your
country / area.
HB985-FB.BSGPPPK_ENG.indd 4HB985-FB.BSGPPPK_ENG.indd 4 2010-06-14  3:45:442010-06-14  3:45:44

Safety Information
5Safety Information
1
Important Notice for TV color system
The color system of this player diers according to
currently playing discs.
For example, when the player plays the disc recorded
in the NTSC color system, the image is output as an
NTSC signal.
Only the multi system color TV can receive all signals
output from the player.
• If you have a PAL color system TV, you will see
just distorted images when using discs or video
contents recorded in NTSC.
• The multi system color TV changes the color
system automatically according to input signals.
In case that the color system is not changed
automatically, turn it o and then on to see
normal images on screen.
• Even if the disc recorded in NTSC color system
are well displayed on your TV, these may not be
recorded correctly on your recorder.
Notice for Indonesian users
This product contains a certied wireless module,
type MB0502C0.
15250/POSTEL/2010
2879
HB985-FB.BSGPPPK_ENG.indd 5HB985-FB.BSGPPPK_ENG.indd 5 2010-06-14  3:45:452010-06-14  3:45:45

6
Contents
1
Safety Information
2 Cautions and Warnings
2
Preparation
8 Introduction
8 About the “ ” Symbol
Display
8 Symbols Used in this Manual
9 Supplied Accessories
10 Playable Discs
11 File compatibility
12 Regional Code
12 AVCHD (Advanced Video
Codec High Denition)
12 Certain System Requirements
12 Compatibility Notes
13 Remote control
14 Front panel

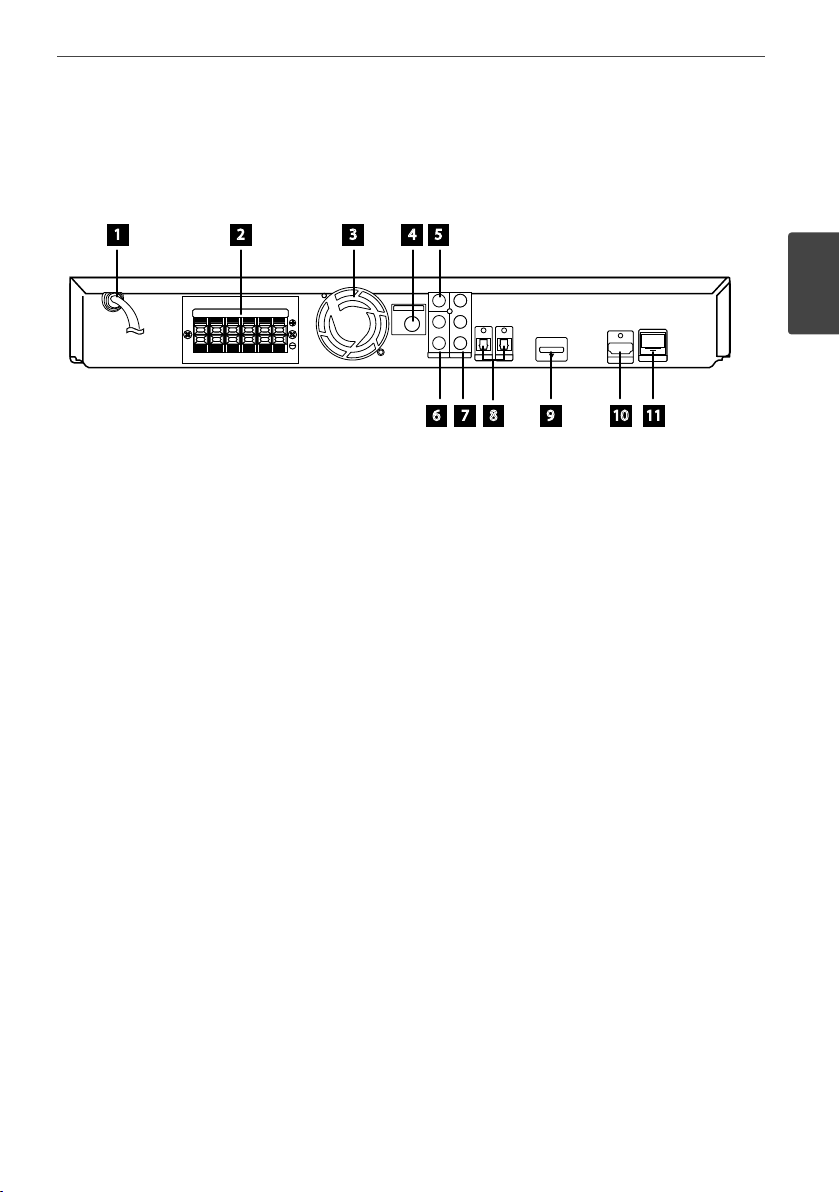

15 Rear panel
3
Installation

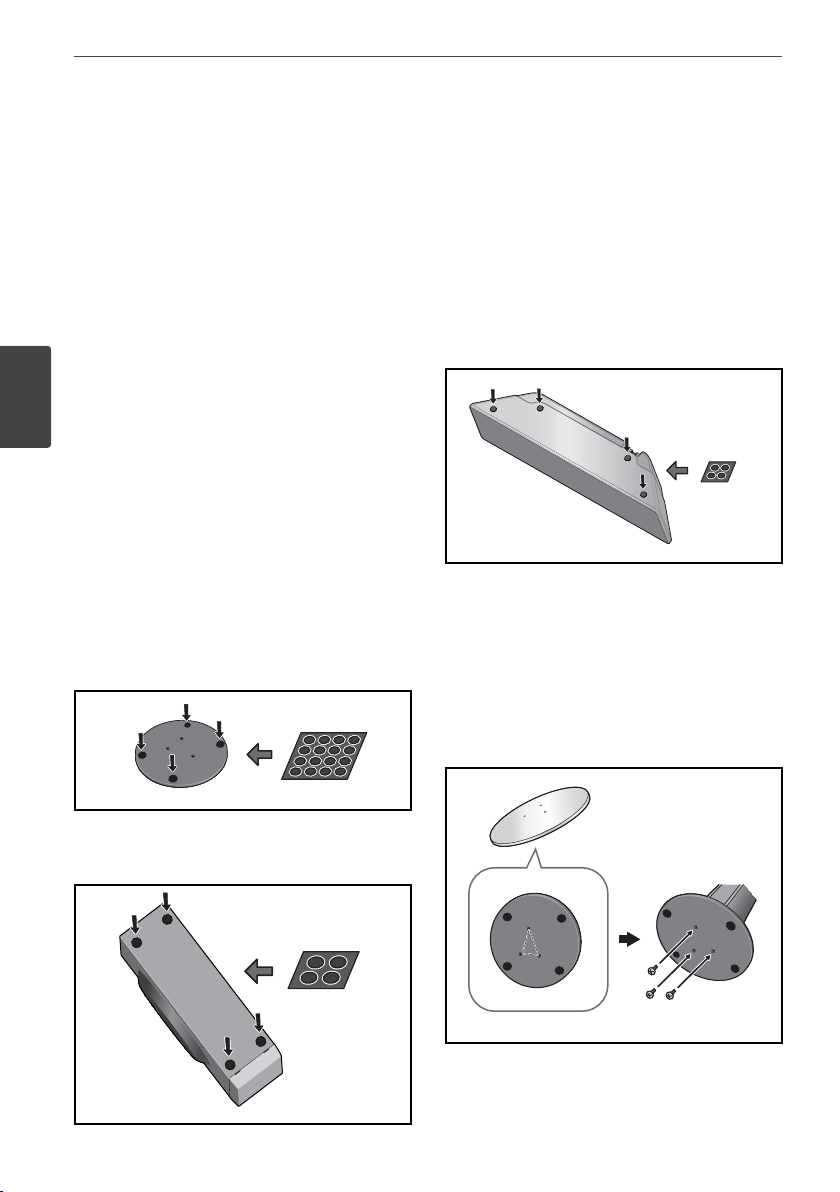

16 Assemble the speakers

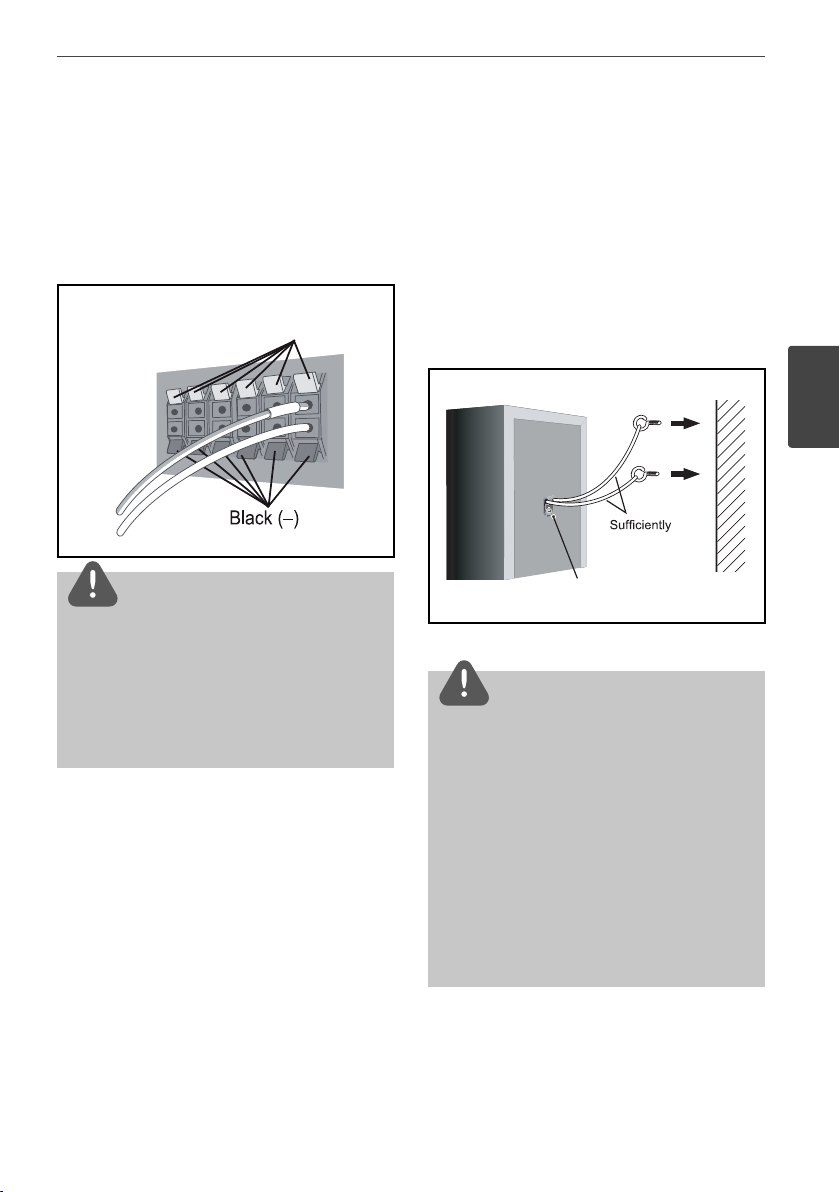

16 Speaker Setup for HTZ808BD
18 Speaker Setup for HTZ606BD

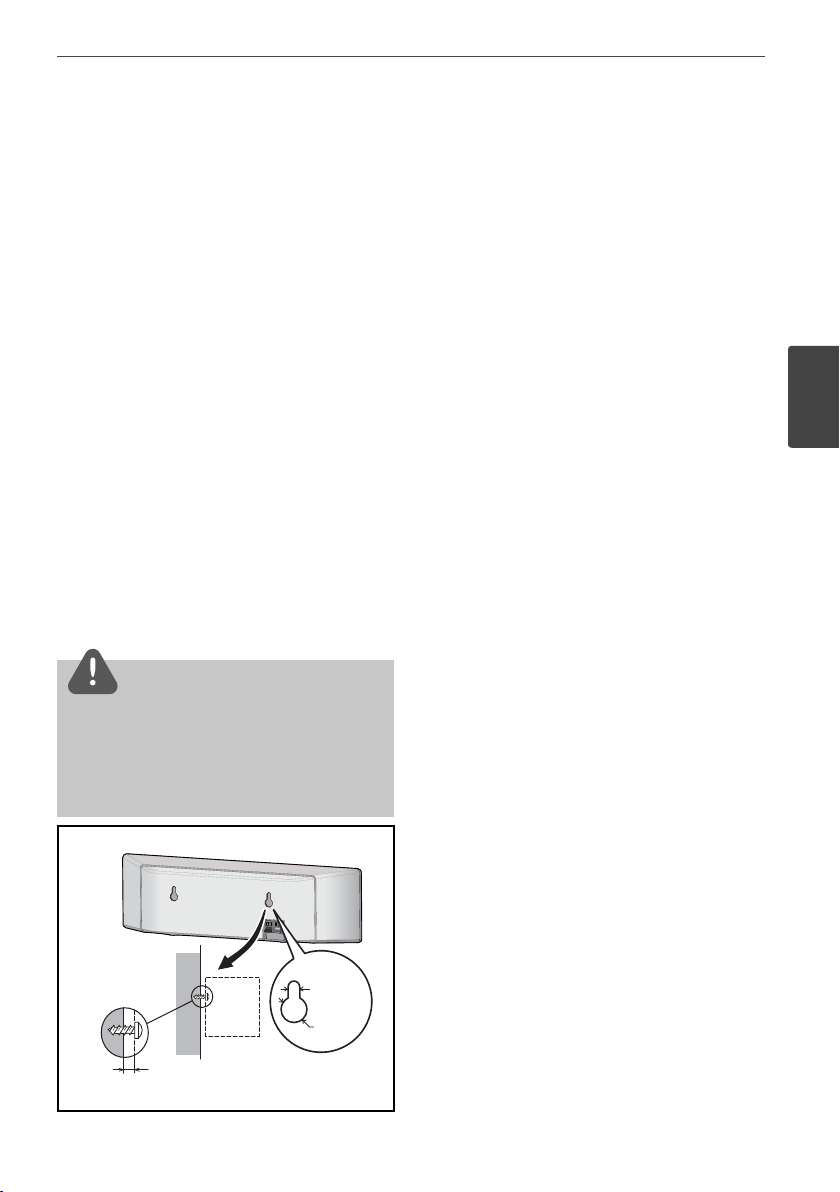

19 Wall mounting the center speaker
19 Additional notes on speaker
20 Positioning the system
21 Connecting to Your TV
21 HDMI Connection
22 Component Video
Connection
23 Video Connection
23 Resolution Setting
24 Antenna connection
24 Connections with external device
24 AUX Connection
25 PORTABLE IN connection
25 OPTICAL IN 1/2 connection
26 Bluetooth®connection
28 Connecting to your Home Network
29 Network Setup
31 USB device connection
32 Settings
32 Adjust the Setup Settings
33 [DISPLAY] Menu
34 [LANGUAGE] Menu
35 [AUDIO] Menu
36 [LOCK] Menu
37 [NETWORK] Menu
37 [OTHERS] Menu
39 Sound Eect
HB985-FB.BSGPPPK_ENG.indd 6HB985-FB.BSGPPPK_ENG.indd 6 2010-06-14  3:45:452010-06-14  3:45:45

7
1
2
3
4
5
6
7
8
4
Operation
40 General Playback
42 Advanced Playback
44 On-Screen display
48 Enjoying BD-LIVE
49 Playing movie le and VR discs
51 Viewing a photo
53 Listening to music
56 Playing the iPod
58 Radio Operations
59 Playing content via your home
network
5
Maintenance
63 Notes on Discs
63 Handling the Unit
6
Troubleshooting
64 General
65 Picture
65 Sound
66 Network
7
Appendix
67 Controlling a TV with the Supplied
Remote Control
68 Area Code List
69 Language code List
70 Video output resolution
71 Trademarks and Licences
73 Specications
75 Open source software notice
HB985-FB.BSGPPPK_ENG.indd 7HB985-FB.BSGPPPK_ENG.indd 7 2010-06-14  3:45:452010-06-14  3:45:45

8Preparation
Preparation
2
2
Preparation
Introduction
About the “ ” Symbol Display
“ ”may appear on your TV display during
operation and indicates that the function
explained in this owner’s manual is not
available on that specic media.
Symbols Used in this Manual
NOTE
Indicates special notes and operating features.
CAUTION
Indicate cautions for preventing possible
damages from abuse.
A section whose title has one of the following
symbols are applicable only to the disc
represented by the symbol.
BD
BD-ROM disc
DVD
DVD-Video, DVD±R/RW in
Video mode or VR mode
and nalized
AVCHD
DVD±R/RW in AVCHD
format
ACD
Audio CDs
MOVIE
Movie les
MUSIC
Music les
Photo les
HB985-FB.BSGPPPK_ENG.indd 8HB985-FB.BSGPPPK_ENG.indd 8 2010-06-14  3:45:452010-06-14  3:45:45

9Preparation
2
Preparation

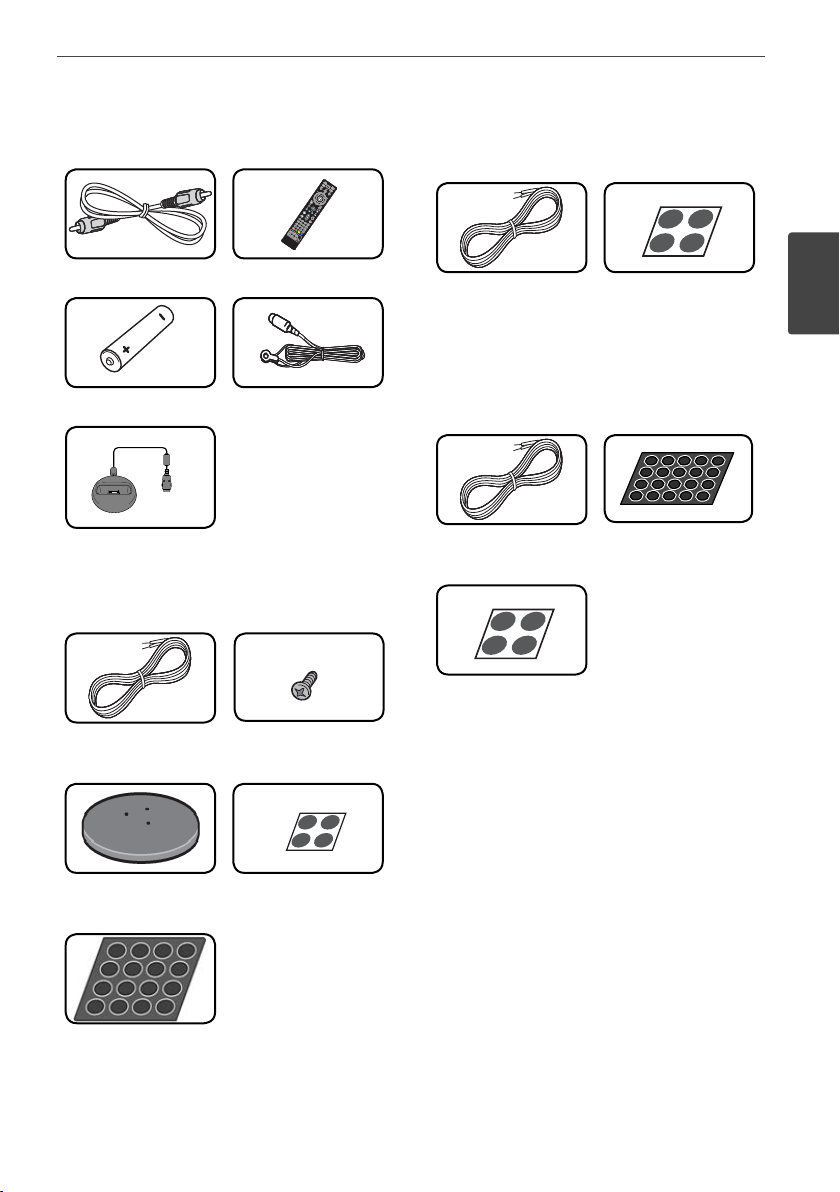

Supplied Accessories
Video cable (1) Remote control (1)
Battery (1) FM antenna (1)
iPod cradle (1)
Accessaries of speaker box
(S-BD808T)
Color-coded Speaker
cables (5)
Screws (12)
Speaker stand bases
(4)
Small non-skid pads
(1)
Middle non-skid
pads (1)
Accessaries of speaker box
(S-BD808SW)
Speaker cable (1) Large non-skid pads
(1)
Accessaries of speaker box
(S-BD606)
Color-coded Speaker
cables (6)
Small non-skid pads
(1)
Large non-skid pads
(1)
HB985-FB.BSGPPPK_ENG.indd 9HB985-FB.BSGPPPK_ENG.indd 9 2010-06-14  3:45:462010-06-14  3:45:46

10 Preparation
Preparation
2
Playable Discs
Blu-ray Disc
-Discs such as movies that can
be purchased or rented.
-BD-R/RE discs that contain
Movie, Music or Photo 
les.
DVD-VIDEO
8 / 12 cm disc
Discs such as movies that can be
purchased or rented.
DVD±R
8 / 12 cm disc
-Video mode and nalized only
-Supports the dual layer disc
also
-Finalized AVCHD format
-DVD±R discs that contain
Movie, Music or Photo les
DVD-RW
8 / 12 cm disc
-VR mode, Video mode and
nalized only
-Finalized AVCHD format
-DVD-RW discs that contain
Movie, Music or Photo les.
DVD+RW
8 / 12 cm disc
-Video mode and nalized only
-AVCHD format
-Finalized AVCHD format
-DVD+RW discs that contain
Movie, Music or Photo les.
Audio CD
8 / 12 cm disc
CD-R/RW
8 / 12 cm disc
-CD-R/RW discs that contain
audio titles, Movie, Music or
Photo les.
NOTE
• Depending on the conditions of the recording
equipment or the CD-R/RW (or DVD±R/RW)
disc itself, some CD-R/RW (or DVD±R/RW) discs
cannot be played on the unit.
• Depending on the recording software & the
nalization, some recorded discs (CD-R/RW,
DVD±R/RW, BD-R/RE) may not be playable.
• BD-R/RE, DVD±R/RW and CD-R/RW discs
recorded using a personal computer or a DVD or
CD Recorder may not play if the disc is damaged
or dirty, or if there is dirt or condensation on the
player’s lens.
• If you record a disc using a personal computer,
even if it is recorded in a compatible format,
there are cases in which it may not play because
of the settings of the application software used
to create the disc. (Check with the software
publisher for more detailed information.)
• This player requires discs and recordings to meet
certain technical standards in order to achieve
optimal playback quality.
• Pre-recorded DVDs are automatically set to
these standards. There are many dierent
types of recordable disc formats (including
CD-R containing MP3 or WMA les) and these
require certain pre-existing conditions to ensure
compatible playback.
• Customers should note that permission is
required in order to download MP3 / WMA les
and music from the Internet. Our company has
no right to grant such permission. Permission
should always be sought from the copyright
owner.
HB985-FB.BSGPPPK_ENG.indd 10HB985-FB.BSGPPPK_ENG.indd 10 2010-06-14  3:45:462010-06-14  3:45:46

11Preparation
2
Preparation
File compatibility
Overall
Available File extensions:
“.jpg”, “.jpeg”, “.png”, “.avi”, “.divx”, “.mpg”, “.mpeg”,
“.mkv”, “.mp4”, “.mp3”, “.wma”, “.wav”
• Available le extensions dier depending
on the DLNA servers.
• Some “.wav” les are not supported on this
player.
• The le name is limited to 180 characters.
• Depending on the size and number of the
les, it may take several minutes to read the
contents on the media.
Maximum Files/Folder: Less than 2 000 (total
number of les and folders)
CD-R/RW, DVD±R/RW, BD-R/RE Format:
ISO 9660+JOLIET, UDF and UDF Bridge format
MOVIE
Available resolution size:
1 920 x 1 080 (W x H) pixels
Playable subtitle: SubRip (.srt / .txt), SAMI
(.smi), SubStation Alpha (.ssa/.txt), MicroDVD
(.sub/.txt), VobSub (.sub), SubViewer 1.0 (.sub),
SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD
Subtitle System (.txt)
• VobSub (.sub) is not available in the
[Home Link] feature.
Playable Codec format: “DIVX3.xx”, “DIVX4.
xx”, “DIVX5.xx”, “XVID”, “DIVX6.xx” (Standard
playback only), H.264/MPEG-4 AVC, MPEG1 SS,
MPEG2 PS, MPEG2 TS
Playable Audio format: “Dolby Digital”, “DTS”,
“MP3”, “WMA”, “AAC”, “AC3”
• Not all the WMA and AAC Audio formats are
compatible with this unit.
Sampling frequency:
between 32 kHz to 48 kHz (WMA),
between 16 kHz to 48 kHz (MP3)
Bit rate:
between 20 kbps to 320 kbps (WMA),
between 32 kbps to 320 kbps (MP3)
NOTE
• HD movie les contained on the CD or USB
1.0/1.1 may not played properly. BD, DVD or USB
2.0 are recommended to play back HD movie
les.
• This player supports H.264/MPEG-4 AVC prole
Main, High at Level 4.1. For a le with higher
level, the warning message will appear on the
screen.
• This player does not support the les that are
recorded with GMC*1or Qpel*2. Those are video
encoding techniques in MPEG4 standard, like
DivX or XVID have.
*1 GMC – Global Motion Compensation
*2 Qpel – Quarter pixel
MUSIC
Sampling frequency:
between 8 kHz to 48 KHz (WMA),
between 11 kHz to 48 kHz (MP3)
Bit rate:
between 8 kbps to 320 kbps (WMA, MP3),
NOTE
• This unit cannot support the ID3 Tag embedded
MP3 le.
• The total playback time indicated on the screen
may not be correct for VBR les.
Recommended size:
Less than 4,000 x 3,000 x 24 bit/pixel
Less than 3,000 x 3,000 x 32 bit/pixel
Less than 4 MByte/le
• Progressive and lossless compression photo
image les are not supported.
HB985-FB.BSGPPPK_ENG.indd 11HB985-FB.BSGPPPK_ENG.indd 11 2010-06-14  3:45:462010-06-14  3:45:46

12 Preparation
Preparation
2
Regional Code
This unit has a regional code printed on the
rear of the unit. This unit can play only BD-ROM
or DVD discs labeled same as the rear of the
unit or “ALL”.
AVCHD (Advanced Video Codec
High Denition)
• This player can playback AVCHD format
discs. These discs are normally recorded and
used in camcorders.
• The AVCHD format is a high denition
digital video camera format.
• The MPEG-4 AVC/H.264 format is capable
of compressing images at higher eciency
than that of the conventional image
compressing format.
• Some AVCHD discs use the “x.v.Color”
format.
• This player can playback AVCHD discs using
“x.v.Color”format.
• Some AVCHD format discs may not play,
depending on the recording condition.
• AVCHD format discs need to be nalized.
• “x.v.Color”oers a wider color range than
normal DVD camcorder discs.
Certain System Requirements
For high denition video playback:
• High denition display that has
COMPONENT or HDMI input jacks.
• BD-ROM disc with high denition content.
• HDMI or HDCP capable DVI input on your
display device is required for some content
(as specied by disc authors).
• For up-conversion of standard denition
DVD, a HDMI or HDCP capable DVI input
on your display device is required for copy
protected content.
Compatibility Notes
• Because BD-ROM is a new format,
certain disc, digital connection and other
compatibility issues are possible. If you
experience compatibility problems, please
contact an authorized Customer Service
Center.
• Viewing high-denition content and up-
converting standard DVD content may
require a HDMI-capable input or HDCP-
capable DVI input on your display device.
• Some BD-ROM and DVD discs may restrict
the use of some operation commands or
features.
• You can use a USB device that is used
to store some disc related information,
including downloaded on-line content. The
disc you are using will control how long this
information is retained.
HB985-FB.BSGPPPK_ENG.indd 12HB985-FB.BSGPPPK_ENG.indd 12 2010-06-14  3:45:472010-06-14  3:45:47

13Preparation
2
Preparation
Remote control
1
2
3
• • • • • • • • • a• • • • • • • • •
1 (STANDBY/ON): Switches the
player ON or OFF.
ZOPEN/CLOSE: Opens and closes
the disc tray.
INPUT/TUNER: Changes input
mode.
BT AUDIO: Changes input mode to
BT AUDIO directly.
OPTICAL: Changes input mode to
optical directly.
DISPLAY: Displays or exits On-
Screen Display.
HOME MENU: Displays or exits
the [Home Menu].
MENU: Accesses the menu on a
disc.
Direction buttons: Selects an
option in the menu.
ENTER: Acknowledges menu
selection.
TUNE (+/-): Tunes in the desired
radio station.
PRESET: Selects programme of
Radio.
• • • • • • • • • b• • • • • • • • •
O RETURN: Exits the menu or
resumes playback.
POPUP/ TOP MENU: Displays the
DVD title menu or BD-ROM’s pop-
up menu, if available.
xSTOP: Stops playback.
BPLAY: Starts playback.
XPAUSE/STEP: Pauses playback
./>SKIP: Goes to the next
or previous chapter / track / le.
m/MSCAN: Searches
backward or forward.
SPK LEVEL: Sets the sound level of
desired speaker.
z USB REC: Records an audio CD.
MUTE: Mute the unit.
SOUND: Selects a sound eect
mode.
VOL +/- : Adjusts speaker volume.
• • • • • • • • • c• • • • • • • • •
0-9 numerical buttons: Selects
numbered options in a menu.
MARKER: Marks any point during
playback.
SEARCH: Displays or exits the
search menu.
REPEAT: Repeats a desired
section or sequence.
CLEAR: Removes a mark on the
search menu or a number when
setting the password.
DIMMER: Dims the light on the
unit.
ZOOM: Accesses the zoom menu.
Colored (A, B, C, D) buttons: Use
to navigate on menus.
- D button: Selects MONO or
STEREO in FM mode.
TV Control Buttons: See page 67.
SLEEP: Sets a certain period of time
after which the unit will switch to
o.
Battery Installation
Remove the battery cover
on the rear of the Remote
Control, and insert a R03 (size
AAA) battery with and
matched correctly.
HB985-FB.BSGPPPK_ENG.indd 13HB985-FB.BSGPPPK_ENG.indd 13 2010-06-14  3:45:472010-06-14  3:45:47

14 Preparation
Preparation
2
Front panel
aDisc Tray
bOperation buttons
1STANDBY/ON Button
Z (OPEN/CLOSE)
FUNCTION
Changes the input source or function
B/X(PLAY / PAUSE)
x(STOP)
./>(SKIP)
- TUNE + (Radio tuning)
c
Remote sensor
d
Display window
ePORTABLE IN
f
USB Port
g Volume control
1
2
3 4 5 6 7
HB985-FB.BSGPPPK_ENG.indd 14HB985-FB.BSGPPPK_ENG.indd 14 2010-06-14  3:45:472010-06-14  3:45:47

15Preparation
2
Preparation
aAC Power cord
Plug into the power source.
b
Speakers connectors
c
Cooling Fan
d
Antenna Connector
e
VIDEO OUT
f
AUX (L/R) INPUT
g
COMPONENT VIDEO (Y PBPR)
OUTPUT (PROGRESSIVE SCAN)
h
OPTICAL IN 1(TV) / 2
i
iPod (24 pin)
Connect to the furnished iPod cradle.
j
HDMI OUT (type A, Version 1.3)
Connect to TV with HDMI inputs.
k
LAN port
Rear panel
1 2 3 4 5
6 7 8 9 10 11
HB985-FB.BSGPPPK_ENG.indd 15HB985-FB.BSGPPPK_ENG.indd 15 2010-06-14  3:45:472010-06-14  3:45:47

16 Installation
Installation
3
Assemble the
speakers
Speaker Setup for HTZ808BD
Preparing the speakers
1. Attach the non-skid pads to the base of
each speaker stand bases, the subwoofer
and the center speaker.
For speaker stand bases:
Use the supplied adhesive to attach four
middle pads to the base (bottom) of each
speaker stand base.
middle non-skid pads
For subwoofer:
Use the supplied adhesive to attach four
large pads to the base of subwoofer.
large non-skid pads
For center speaker:
Use the supplied adhesive to attach four
small pads to the base of center speaker.
small non-skid pads
2. Attach the speaker stand bases to the stems
using the screws provided.
Once you have aligned the stem and base,
secure with the small screws at the points
shown below. Note that the speaker should
face in the direction of the base of the
isosceles triangle.
Rear
Front
3
Installation
HB985-FB.BSGPPPK_ENG.indd 16HB985-FB.BSGPPPK_ENG.indd 16 2010-06-14  3:45:472010-06-14  3:45:47

17Installation
3
Installation
3. Connect the wires to the player.
Connect the white wire with gray line into
(+) side and the other wire into (–) side. To
connect the cable to the player, press each
plastic nger pad to open the connection
terminal. Insert the wire and release the
nger pad.
CAUTION
• Do not connect any speakers other than those
supplied to this system.
• Do not connect the supplied speakers to any
amplier other than the one supplied with this
system. Connection to any other amplier may
result in malfunction or re.
Securing your front and surround
speakers
Secure each of the front and surround speakers
using the plastic catch provided. Screw two
supporting hooks into the wall behind the
speaker. Pass a thick cord around the hooks
and through the plastic catch so that the
speaker is stabilized (make sure to test that
it supports the weight of the speaker). After
installing, make sure the speaker is securely
xed.
thick cord
Plastic catch
CAUTION
• The plastic catch is not a mounting xture, and
the speaker should not be hung directly from
the wall using this catch. Always use a cord
when stabilizing the speaker.
• Pioneer disclaims all responsibility for any
losses or damage resulting from improper
assembly, installation, insucient strength of the
installation materials, misuse, or natural disasters.
• When placing this unit, ensure that it is rmly
secured and avoid areas where it may be likely
to fall and cause injury in the event of a natural
disaster (such as an earthquake).
Colored (+)
HB985-FB.BSGPPPK_ENG.indd 17HB985-FB.BSGPPPK_ENG.indd 17 2010-06-14  3:45:482010-06-14  3:45:48

18 Installation
Installation
3
Speaker Setup for HTZ606BD
Preparing the speakers
1. Attach the non-skid pads to the base of
each speaker.
For speaker stand bases:
Use the supplied adhesive to attach four
small pads to the base (bottom) of each
speaker stand base.
small non-skid pads
For subwoofer:
Use the supplied adhesive to attach four
large pads to the base of subwoofer.
large non-skid pads
For center speaker:
Use the supplied adhesive to attach four
small pads to the base of center speaker.
small non-skid pads
2. Connect the wires to the player.
Connect the white wire with gray line into
(+) side and the other wire into (–) side. To
connect the cable to the player, press each
plastic nger pad to open the connection
terminal. Insert the wire and release the
nger pad.
HB985-FB.BSGPPPK_ENG.indd 18HB985-FB.BSGPPPK_ENG.indd 18 2010-06-14  3:45:482010-06-14  3:45:48

19Installation
3
Installation
Wall mounting the
center speaker
The center speaker have a mounting hole
which can be used to mount the speaker on
the wall.
Before mounting
Remember that the speaker system is heavy
and that its weight could cause the screws
to work loose, or the wall material to fail to
support it, resulting in the speaker falling. Make
sure that the wall you intend to mount the
speakers on is strong enough to support them.
Do not mount on plywood or soft surface
walls.
Mounting screws are not supplied. Use screws
suitable for the wall material and support the
weight of the speaker.
CAUTION
• If you are unsure of the qualities and strength of
the wall, consult a professional for advice.
• Pioneer is not responsible for any accidents or
damage that result from improper installation.
5 mm
10 mm
5 mm to 7 mm
Mounting screw
(not supplied)
Additional notes on
speaker
Install the main front left and right speakers at
an equal distance from the TV.
Precautions:
Make sure that all the bare speaker wire is
twisted together and inserted fully into the
speaker terminal. If any of the bare speaker
wire touches the back panel it may cause the
power to cut o as a safety measure.
The front, center and surround speakers
supplied with this system are magnetically
shielded. However, depending on the
installation location, color distortion may occur
if the speaker is installed extremely close to the
screen of a television set. If this case happens,
turn the power switch of the television set
OFF, and turn it ON after 15 min. to 30 min. If
the problem persists, place the speaker system
away from the television set.
The subwoofer is not magnetically shielded
and so should not be placed near a TV or
monitor. Magnetic storage media (such as
oppy discs and tape or video cassettes)
should also not be kept close to the subwoofer.
Do not attach the front/surround speakers and
subwoofer to a wall or ceiling. They may fall o
and cause injury.
HB985-FB.BSGPPPK_ENG.indd 19HB985-FB.BSGPPPK_ENG.indd 19 2010-06-14  3:45:482010-06-14  3:45:48

20 Installation
Installation
3
Positioning the system
The following illustration shows an example
of positioning the system. Note that the
illustrations in these instructions dier from the
actual unit for explanation purposes.
For the best possible surround sound, all the
speakers other than the subwoofer should be
placed at the same distance from the listening
position (
A
).
A
B
D
E
F
AAA
A
A
G
C
A
Front left speaker (L)/
B
Front right speaker (R):
Place the front speakers to the sides of the
monitor or screen and as ush with the screen
surface as possible.
C
Center speaker:
Place the center speaker above or below the
monitor or screen.
D
Surround left speaker (L)/
E
Surround right speaker (R):
Place these speakers behind your listening
position, facing slightly inwards.
F
Subwoofer:
The position of the subwoofer is not so
critical, because low bass sounds are not
highly directional. But it is better to place
the subwoofer near the front speakers. Turn
it slightly toward the center of the room to
reduce the wall reections.
G
Unit
CAUTION
• Be careful to make sure children do not put their
hands or any objects into the *subwoofer duct.
*subwoofer duct: A hole for plentiful bass sound
on subwoofer cabinet (enclosure).
• Place the center speaker at a safe distance from
the child’s reach.
Otherwise it may result in the speaker falling
down and causing personal injury and/or
property damage.
• The speakers contain magnet parts, so color
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers away
from the TV screen or PC monitor screen.
