Pioneer XW-NAC1-K User manual

Operating Instructions
Mode d’emploi
Manual de instrucciones
Register your product at:
http://www.pioneerelectronics.com (US)
http://www.pioneerelectronics.ca (Canada)
http://www.pioneerelectronics.com (US)
http://www.pioneerelectronics.ca (Canada)
• Protect your new investment
The details of your purchase will be on file for reference in the event of an insurance claim such as loss or theft.
• Improve product development
Your input helps us continue to design products that meet your needs.
• Receive a free Pioneer newsletter
Registered customers can opt in to receive a monthly newsletter.
• Receive free tips, updates and service bulletins on your new product
XW-NAC1-K
Digital Speaker System for iPod
Station d’accueil audio numérique pour iPod
Sistema digital de parlantes para iPod
XW-NAC1_CUXZTSM.book 1 ページ ２０１０年３月１６日 火曜日 午後２時４分

WARNING: Handling the cord on this product or
cords associated with accessories sold with the
product may expose you to chemicals listed on
proposition 65 known to the State of California and
other governmental entities to cause cancer and
birth defect or other reproductive harm.
D36-P4_A_En
Wash hands after handling.
IMPORTANT NOTICE
THE SERIAL NUMBER FOR THIS EQUIPMENT IS LOCATED IN THE BOTTOM.
PLEASE WRITE THIS SERIAL NUMBER ON YOUR ENCLOSED WARRANTY CARD AND KEEP IN A SECURE AREA.
THIS IS FOR YOUR SECURITY.
D1-4-2-6-1*_A1_En
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
D8-10-1-2_A1_En
This Class B digital apparatus complies with
Canadian ICES-003.
D8-10-1-3_A1_En
Information to User
Alterations or modifications carried out without
appropriate authorization may invalidate the user’s
right to operate the equipment.
D8-10-2_A1_En
CAUTION
This product satisfies FCC regulations when shielded
cables and connectors are used to connect the unit
to other equipment. To prevent electromagnetic
interference with electric appliances such as radios
and televisions, use shielded cables and connectors
for connections.
D8-10-3a_A1_En
WARNING
This equipment is not waterproof. To prevent a fire or
shock hazard, do not place any container filled with
liquid near this equipment (such as a vase or flower
pot) or expose it to dripping, splashing, rain or
moisture.
D3-4-2-1-3_A1_En
WARNING
To prevent a fire hazard, do not place any naked flame
sources (such as a lighted candle) on the equipment.
D3-4-2-1-7a_A1_En
WARNING
Before plugging in for the first time, read the following
section carefully.
The voltage of the available power supply differs
according to country or region. Be sure that the
power supply voltage of the area where this unit
will be used meets the required voltage (e.g., 230 V
or 120 V) written on the rear panel.
D3-4-2-1-4*_A1_En

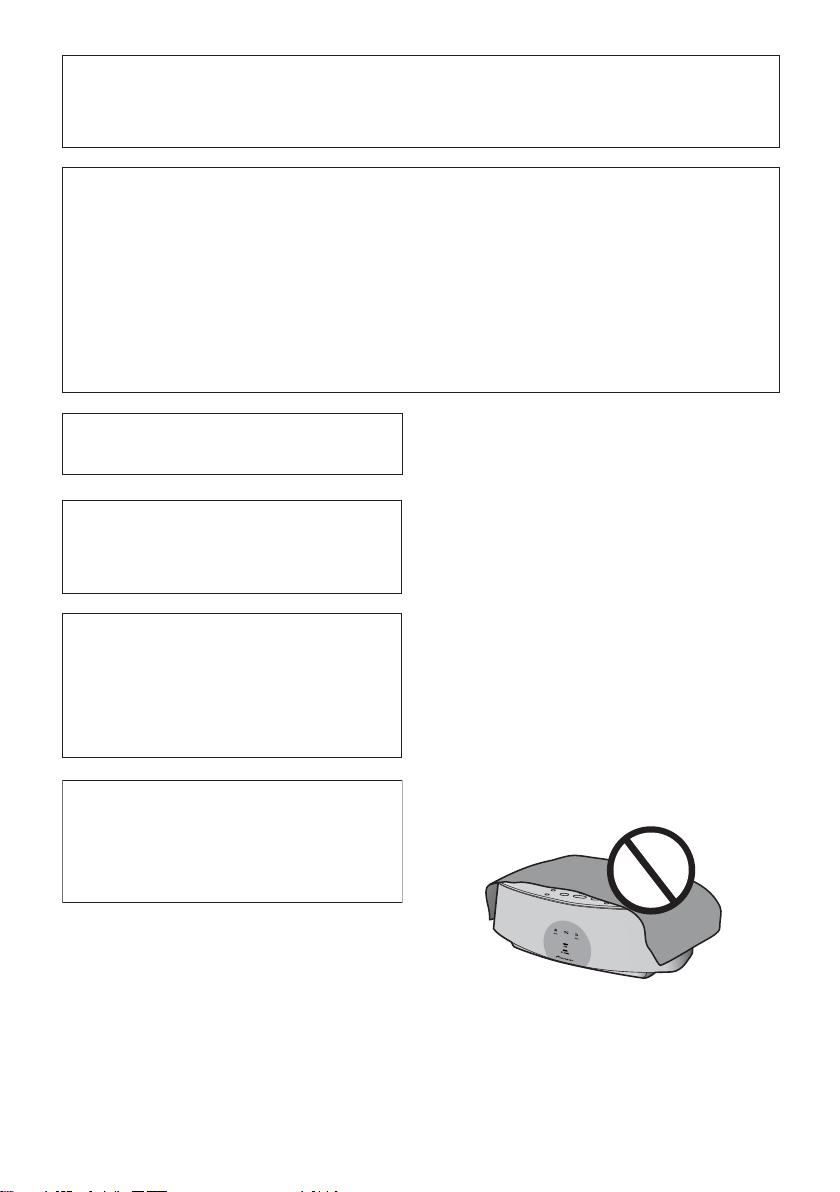

VENTILATION CAUTION
When installing this unit, make sure to leave space
around the unit for ventilation to improve heat radiation
(at least 10 cm at top, 10 cm at rear, and 10 cm at each
side).
WARNING
Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the product,
and to protect it from overheating. To prevent fire
hazard, the openings should never be blocked or
covered with items (such as newspapers, table-cloths,
curtains) or by operating the equipment on thick carpet
or a bed.
D3-4-2-1-7b*_A1_En
Operating Environment
Operating environment temperature and humidity:
+5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH
(cooling vents not blocked)
Do not install this unit in a poorly ventilated area, or in
locations exposed to high humidity or direct sunlight (or
strong artificial light)
D3-4-2-1-7c*_A1_En
XW-NAC1_CUXZTSM.book 2 ページ ２０１０年３月１６日 火曜日 午後２時４分

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT
D3-4-2-1-1_A1_En
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
Only use attachments/accessories specified by
the manufacturer.
Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
Unplug this apparatus during lightning storms
or when unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
D3-7-13-69_En
11)
12)
13)
14)
CAUTION
The STANDBY/ON switch on this unit will not
completely shut off all power from the AC outlet.
Since the power cord serves as the main disconnect
device for the unit, you will need to unplug it from the
AC outlet to shut down all power. Therefore, make
sure the unit has been installed so that the power
cord can be easily unplugged from the AC outlet in
case of an accident. To avoid fire hazard, the power
cord should also be unplugged from the AC outlet
when left unused for a long period of time (for
example, when on vacation). D3-4-2-2-2a*_A1_En
This product is for general household purposes. Any
failure due to use for other than household purposes
(such as long-term use for business purposes in a
restaurant or use in a car or ship) and which requires
repair will be charged for even during the warranty
period. K041_A1_En
If the AC plug of this unit does not match the AC
outlet you want to use, the plug must be removed
and appropriate one fitted. Replacement and
mounting of an AC plug on the power supply cord of
this unit should be performed only by qualified
service personnel. If connected to an AC outlet, the
cut-off plug can cause severe electrical shock. Make
sure it is properly disposed of after removal.
The equipment should be disconnected by removing
the mains plug from the wall socket when left unused
for a long period of time (for example, when on
vacation). D3-4-2-2-1a_A1_En
These symbols are only valid
in the European Union.
K058c_A1_En
(Symbol examples for batteries)
Pb
NOTE: THE NO USER-SERVICEABLE PARTS COMPARTMENT WARNING IS LOCATED ON THE APPLIANCE BOTTOM.
XW-NAC1_CUXZTSM.book 3 ページ ２０１０年３月１６日 火曜日 午後２時４分

This product contains mercury. Disposal of this
material may be regulated due to environmental
considerations. For disposal or recycling
information, please contact your local authorities or
the Electronics Industries Alliance : www.eiae.org.
K057_A1_En
S001_A1_En
Selecting fine audio equipment such as the unit
you’ve just purchased is only the start of your
musical enjoyment. Now it’s time to consider how
you can maximize the fun and excitement your
equipment offers. This manufacturer and the
Electronic Industries Association’s Consumer
Electronics Group want you to get the most out of
your equipment by playing it at a safe level. One that
lets the sound come through loud and clear without
annoying blaring or distortion-and, most importantly,
without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing
“comfort level” adapts to higher volumes of sound.
So what sounds “normal” can actually be loud and
harmful to your hearing. Guard against this by
setting your equipment at a safe level BEFORE your
hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it
comfortably and clearly, and without distortion.
Once you have established a comfortable sound
level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent
hearing damage or loss in the future. After all, we
want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will
provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often
undetectable until it is too late, this manufacturer
and the Electronic Industries Association’s
Consumer Electronics Group recommend you avoid
prolonged exposure to excessive noise. This list of
sound levels is included for your protection.
Decibel
Level Example
30 Quiet library, soft whispers
40
Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock
at two feet.
THE FOLLOWING NOISES CAN BE DANGEROUS
UNDER CONSTANT EXPOSURE
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers,
thunderclap
140 Gunshot blast, jet plane
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
POWER-CORD CAUTION
Handle the power cord by the plug. Do not pull out the
plug by tugging the cord and never touch the power
cord when your hands are wet as this could cause a
short circuit or electric shock. Do not place the unit, a
piece of furniture, etc., on the power cord, or pinch the
cord. Never make a knot in the cord or tie it with other
cords. The power cords should be routed such that they
are not likely to be stepped on. A damaged power cord
can cause a fire or give you an electrical shock. Check
the power cord once in a while. When you find it
damaged, ask your nearest PIONEER authorized
service center or your dealer for a replacement.
S002*_A1_En
When using this product, confirm the safety
information shown on the bottom of the unit.
D3-4-2-2-4_B1_En
WARNING
Store small parts out of the reach of children and
infants. If accidentally swallowed, contact a doctor
immediately.
XW-NAC1_CUXZTSM.book 4 ページ ２０１０年３月１６日 火曜日 午後２時４分

5
En
English Français Español
Thank you for buying this Pioneer product.
Please read through these operating instructions so that you will know how to operate your model
properly. After you have finished reading the instructions, put them in a safe place for future
reference.
Contents
01 Before you start
What’s in the box . . . . . . . . . . . . . . . . . . . . . . .6
Before using the remote control . . . . . . . . . . . .6
Replace the battery. . . . . . . . . . . . . . . . . . . . .6
Using the remote control . . . . . . . . . . . . . . . .7
Installing the unit . . . . . . . . . . . . . . . . . . . . . . .7
Plugging in . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
02 Controls and displays
Remote control . . . . . . . . . . . . . . . . . . . . . . . . .8
Front/top panel . . . . . . . . . . . . . . . . . . . . . . . . .9
03 iPod/iPhone playback
Confirm what iPod/iPhone models are supported
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Connecting your iPod/iPhone . . . . . . . . . . . . .10
Connecting your TV. . . . . . . . . . . . . . . . . . . .11
Playing your iPod/iPhone . . . . . . . . . . . . . . . .11
SHUFFLE2. . . . . . . . . . . . . . . . . . . . . . . . . . .12
HI-LITE Scan . . . . . . . . . . . . . . . . . . . . . . . . .13
04 Bluetooth ® AUDIO for Wireless
Enjoyment of Music
Wireless music play . . . . . . . . . . . . . . . . . . . .14
Remote control operation . . . . . . . . . . . . . . .14
About Bluetooth wireless technology . . . . . .14
Setting the PIN code . . . . . . . . . . . . . . . . . . . .15
Pairing this unit and Bluetooth wireless
technology device . . . . . . . . . . . . . . . . . . . . . .15
Listening to Music Contents of Bluetooth wireless
technology device with Your System . . . . . . . .16
Radio wave caution . . . . . . . . . . . . . . . . . . . . .16
Scope of operation . . . . . . . . . . . . . . . . . . . .17
Radio wave reflections . . . . . . . . . . . . . . . . .17
Precautions regarding connections to products
supported by this unit . . . . . . . . . . . . . . . . . .17
05 Other connections
Connecting auxiliary components . . . . . . . . . .18
06 Using the timer
Using the sleep timer . . . . . . . . . . . . . . . . . . .19
07 Additional information
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . 20
Resetting the system . . . . . . . . . . . . . . . . . . . 21
About Sound Retriever. . . . . . . . . . . . . . . . . . 21
About iPod/iPhone. . . . . . . . . . . . . . . . . . . . . 21
Specifications . . . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning the unit . . . . . . . . . . . . . . . . . . . . . . 22
XW-NAC1_CUXZTSM.book 5 ページ ２０１０年３月１６日 火曜日 午後２時４分

Before you start01
6
En
Chapter 1:
Before you start
What’s in the box
Please confirm that the following accessories
are in the box when you open it.
•Remotecontrol
• Lithium battery (CR2025)
(The lithium battery has been factory
installed in the remote control unit.)
•Powercord
• Operating instructions (This document)

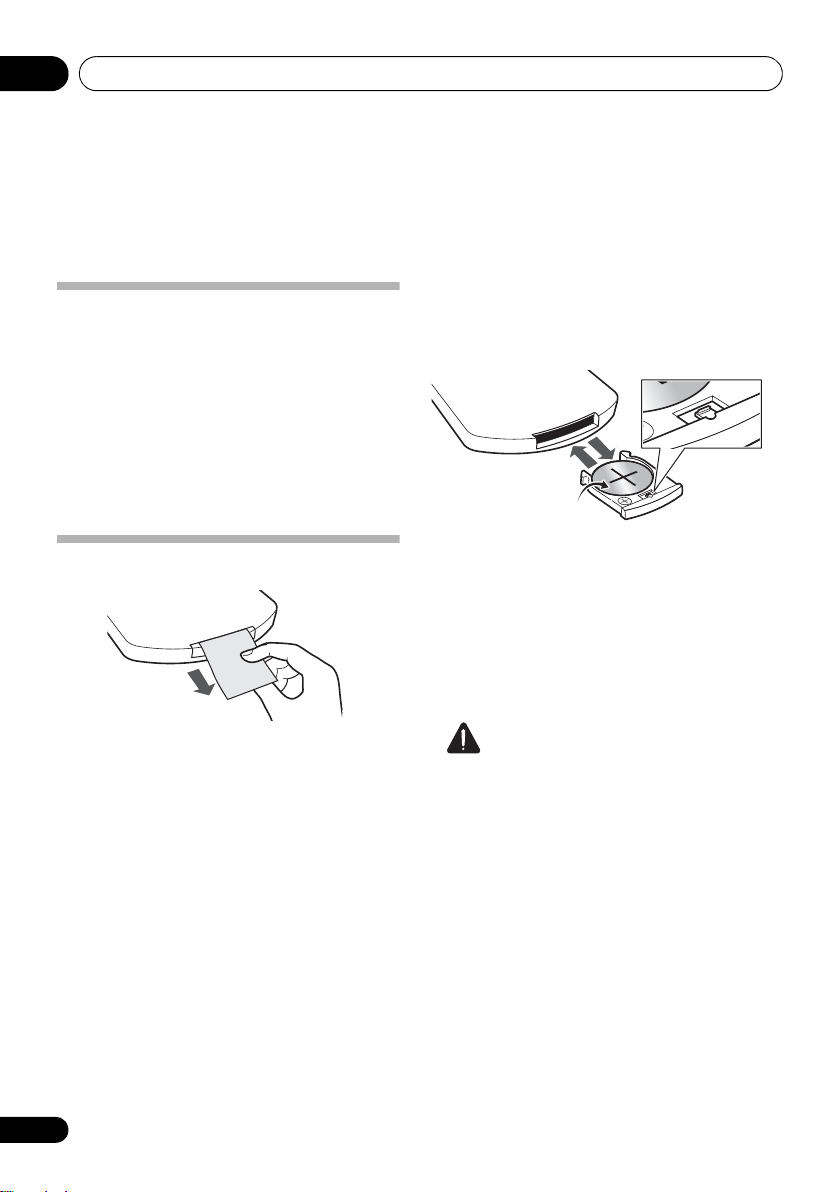

Before using the remote control
The battery supplied with this unit is stored in
the battery casing.
• Remove the protective seal from the
battery casing.
When you notice a decrease in the operating
range, replace the battery (see below).
Replace the battery
When replacing the battery, use a
commercially available Lithium CR2025
battery.
1 While pushing the release tab, pull out
the battery casing.
2 Remove the battery from the casing.
3 Place a new battery in the casing.
Make sure the side of the battery is facing up
when you place it in the space provided.
Caution
When using lithium batteries, please observe
the following:
• There is danger of explosion if the battery is
incorrectly replaced. Make sure to replace
only with the same or equivalent type
recommended by the manufacturer.
• Dispose of used battery cells immediately
after replacement. Keep away from
children.
• Store lithium batteries, out of the reach of
children and infants. If accidentally
swallowed, contact a doctor immediately.
• Lithium batteries may present a fire or
chemical burn hazard if misused. Do not
disassemble, heat above 100 °C, or
incinerate.
1
1
3
2
XW-NAC1_CUXZTSM.book 6 ページ ２０１０年３月１６日 火曜日 午後２時４分

Before you start 01
7
En
English Français Español
• Remove the battery if the unit isn’t going to
be used for a month or more.
• When disposing of used batteries, please
comply with governmental regulations or
environmental public instruction’s rules
that apply in your country or area.
•WARNING
Do not use or store batteries in direct
sunlight or other excessively hot place,
such as inside a car or near a heater. This
can cause batteries to leak, overheat,
explode or catch fire. It can also reduce the
life or performance of batteries.
“Perchlorate Material – special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate. (Applicable to California, U.S.A.) ”

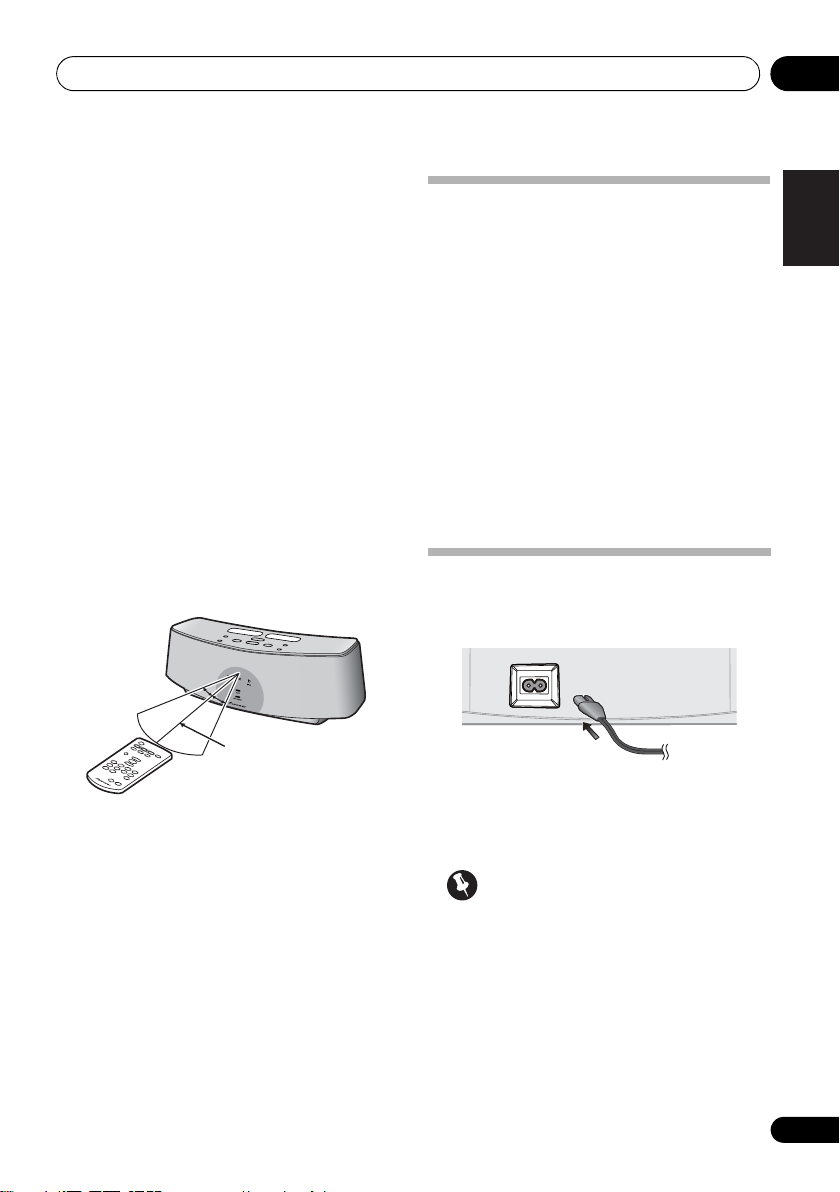

Using the remote control
The remote has a range of about 7 m (23 ft.) at
an angle of about 30º from the remote sensor.
Keep in mind the following when using the
remote control:
• Make sure that there are no obstacles
between the remote and the remote sensor
on the unit.
• Remote operation may become unreliable
if strong sunlight or fluorescent light is
shining on the unit’s remote sensor.
• Remote controllers for different devices
can interfere with each other. Avoid using
remotes for other equipment located close
to this unit.
• Replace the batteries when you notice a fall
off in the operating range of the remote.
Installing the unit
• When installing this unit, make sure to put
it on a level and stable surface.
Don’t install it on the following places:
– on a color TV (the screen may distort)
– near a cassette deck (or close to a device that
gives off a magnetic field). This may interfere
with the sound.
– in direct sunlight
– in damp or wet areas
– in extremely hot or cold areas
– in places where there is vibration or other
movement
– in places that are very dusty
– in places that have hot fumes or oils (such as
a kitchen)
Plugging in
After you’ve finished making all connections,
plug the unit into an AC outlet.
1 Plug the supplied power cord into the AC
IN
socket on the back of the unit.
2 Plug the other end into a power outlet.
Important
• Before making or changing any
connections, switch off the power and
disconnect the power cord from the AC
outlet.
7 m (23 ft.)
30° 30°
AC IN
AC IN
XW-NAC1_CUXZTSM.book 7 ページ ２０１０年３月１６日 火曜日 午後２時４分

Controls and displays02
8
En
Chapter 2:
Controls and displays

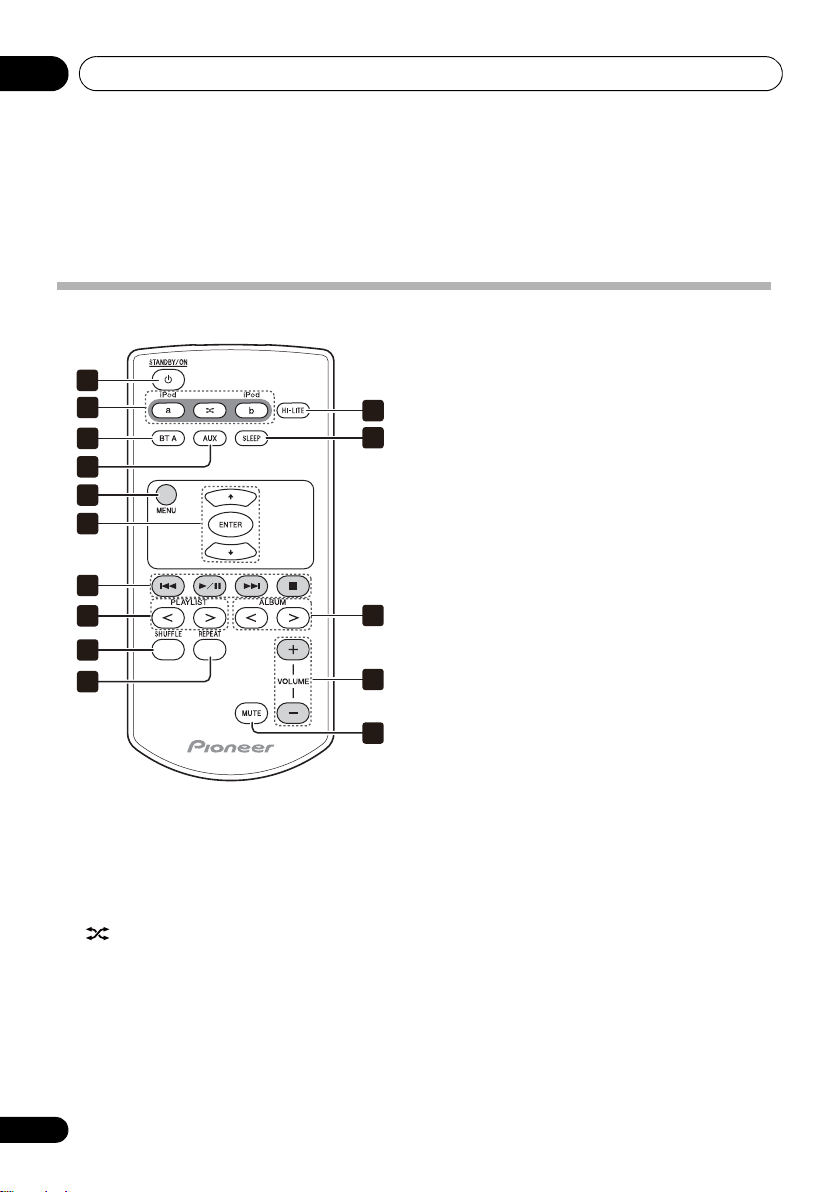

Remote control
1STANDBY/ON
Switches the unit between standby and on.
2 iPod a
Switches the input to the iPod/iPhone
connected to the iPod aconnector port.
When iPod/iPhone are connected to both
connector ports iPod aand iPod b, the
SHUFFLE2function can be used to
alternately play tracks on iPod aand iPod
b(page 12).
iPod b
Switches the input to the iPod/iPhone
connected to the iPod bconnector port.
3BTA
Switches the input to Bluetooth AUDIO.
4 AUX
Switches the input to external input.
5 MENU
Use to access the iPod/iPhone menu.
6 // ENTER
Use to control the iPod/iPhone menu.
7 Playback control buttons
Use when operating an iPod/iPhone or
Bluetooth wireless technology device with this
remote control (page 11, 16).
8PLAYLIST</>
Use these to select the playlists to be played on
iPod/iPhone.
9 SHUFFLE
Perform shuffle play of tracks on the selected
iPod/iPhone (page 12).
10 REPEAT
Perform repeat play of tracks on the selected
iPod/iPhone (page 12).
11 HI-LITE
If an iPod/iPhone is connected to the
connector port, the HI-LITE function can be
used to playback part of the track (page 13).
12 SLEEP
Use to put the unit in sleep mode (page 19).
13 ALBUM < / >
Use these to select albums to play on iPod/
iPhone.
14 VOLUME +/ -
Use to set the listening volume.
15 MUTE
Press to temporarily silence the sound.
11
12
13
14
1
2
3
5
4
7
6
9
10
8
15
XW-NAC1_CUXZTSM.book 8 ページ ２０１０年３月１６日 火曜日 午後２時４分

Controls and displays 02
9
En
English Français Español
Front/top panel
1 Power Indicator
Lights when the power is on.
2STANDBY/ON
Switches the unit between standby and on.
3 SLEEP indicator
Lights when the sleep timer is set to on.
4 INPUT SELECTOR
Use to select an input source. Press repeatedly
to switch between iPod a, iPod b, Bluetooth
AUDIO and external input (AUX).
5a
Switches the input to the iPod/iPhone
connected to the iPod aconnector port.
When iPod/iPhone are connected to both
connector ports iPod aand iPod b, the
SHUFFLE2function can be used to
alternately play tracks on iPod aand iPod
b(page 12).
b
Switches the input to the iPod/iPhone
connected to the iPod bconnector port.
6 VOLUME +/–
Use to set the listening volume.
7 iPod/iPhone connector ports
8 Speaker units
9 iPod a indicator
Lights when the iPod ainput is selected.
10 SHUFFLE
2
indicator
Lights when the SHUFFLE2function is on.
11 BT AUDIO indicator
Lights when the BT AUDIO input is selected.
12 AUX indicator
Lights when the AUX input is selected.
13 iPod b indicator
Lights when the iPod binput is selected.
14 Remote control sensor
ab
iPod
AUX
BT AUDIO
iPod
STANDBY/ON
SLEEP VOLUME
a
INPUT
SELECTOR
ba
3 4 5
12
7
14
9 13121110
8
6
XW-NAC1_CUXZTSM.book 9 ページ ２０１０年３月１６日 火曜日 午後２時４分

iPod/iPhone playback03
10
En
Chapter 3:
iPod/iPhone playback
Merely by connecting your iPod/iPhone to this
speaker system, you can enjoy high-quality
sound from your iPod/iPhone. This unit can
also be connected to a television set, letting
you view images from your iPod/iPhone.
Playback and volume level setting for iPod/
iPhone music and images can be performed
from this unit or the iPod/iPhone itself.
Confirm what iPod/iPhone
models are supported
The iPod/iPhone playable on this unit are
shown below.1
Always use the most recent version of iPod/
iPhone software available. Operation
compatibility may vary depending on the
version of the software used. You can confirm
your software version by operating your iPod/
iPhone as follows:
1 Select ‘Settings’ from the top menu.
When using iPod touch or iPhone, select
‘General’ after selecting ‘Settings’.
2 Select ‘About’.
The software version will be displayed.
• Consult the Apple website regarding the
newest software versions and instructions
on how to update your version.
Tip

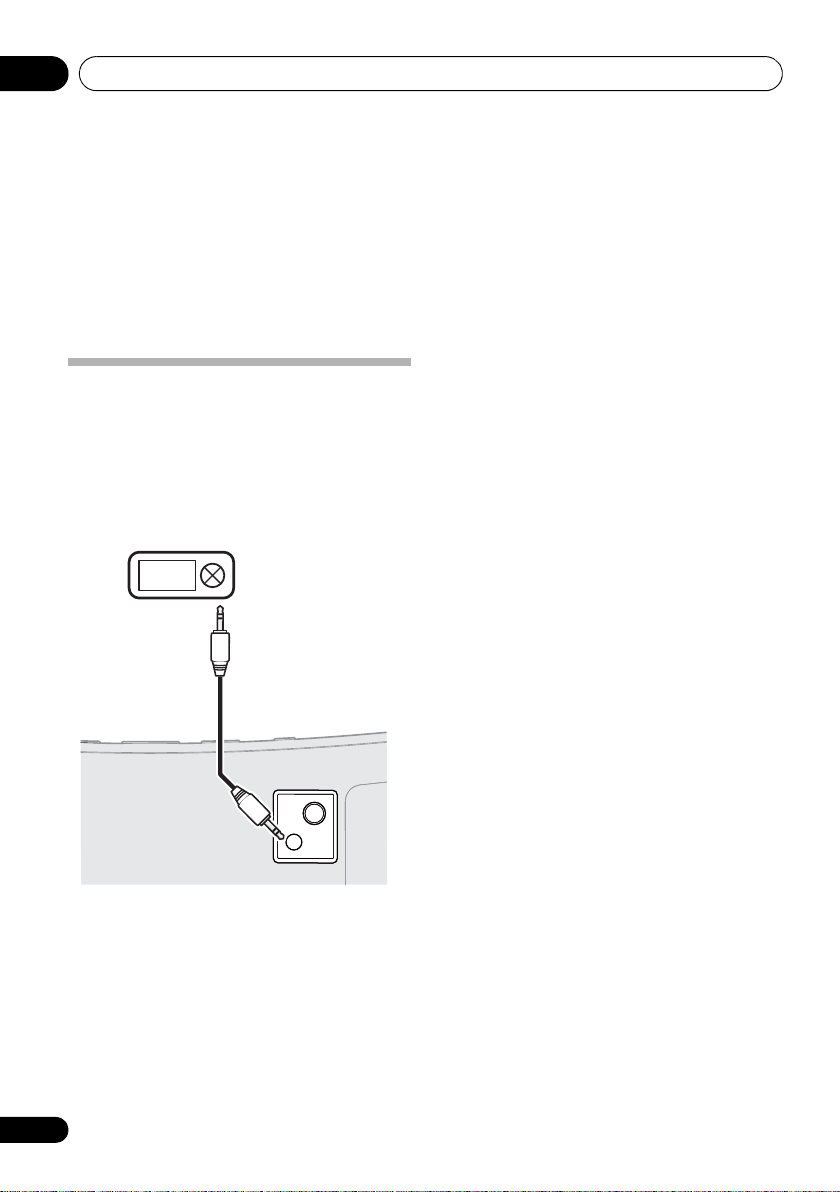

• When using an iPod/iPhone not supported
by this unit, use a commercially available
cable to connect the iPod/iPhone to the
AUX IN connector of this unit.
Connecting your iPod/iPhone
Caution
• When connecting one or two iPod/iPhone
units, always use the dock adapter
provided with your iPod/iPhone, or a
commercially adapter designed to support
iPod/iPhone. The iPod/iPhone cannot be
connected without a dock adapter;
attempting to connect an iPod/iPhone
without a dock adapter will cause damage
or malfunction.
iPod/iPhone Audio Control Video
iPod nano 1/2G
iPod nano 3/4/5G
iPod 5G
iPod classic 2007
iPod classic 2008
iPod classic 2009
iPod touch 1G
iPod touch 2G
iPod touch 2G 2009
iPhone
iPhone 3G/3GS
Note
1 • Pioneer does not guarantee that this unit plays iPod/iPhone other than the ones specified.
• Some functions may be restricted depending on the model or software version.
• iPod/iPhone is licensed for reproduction of non-copyrighted materials or materials the user is legally permitted to reproduce.
• Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before
connecting.
• Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience
or loss of recorded material resulting from the iPod/iPhone failure.
• For detailed instructions on using the iPod/iPhone, please refer to the manual supplied with the iPod/iPhone.
XW-NAC1_CUXZTSM.book 10 ページ ２０１０年３月１６日 火曜日 午後２時４分

iPod/iPhone playback 03
11
En
English Français Español

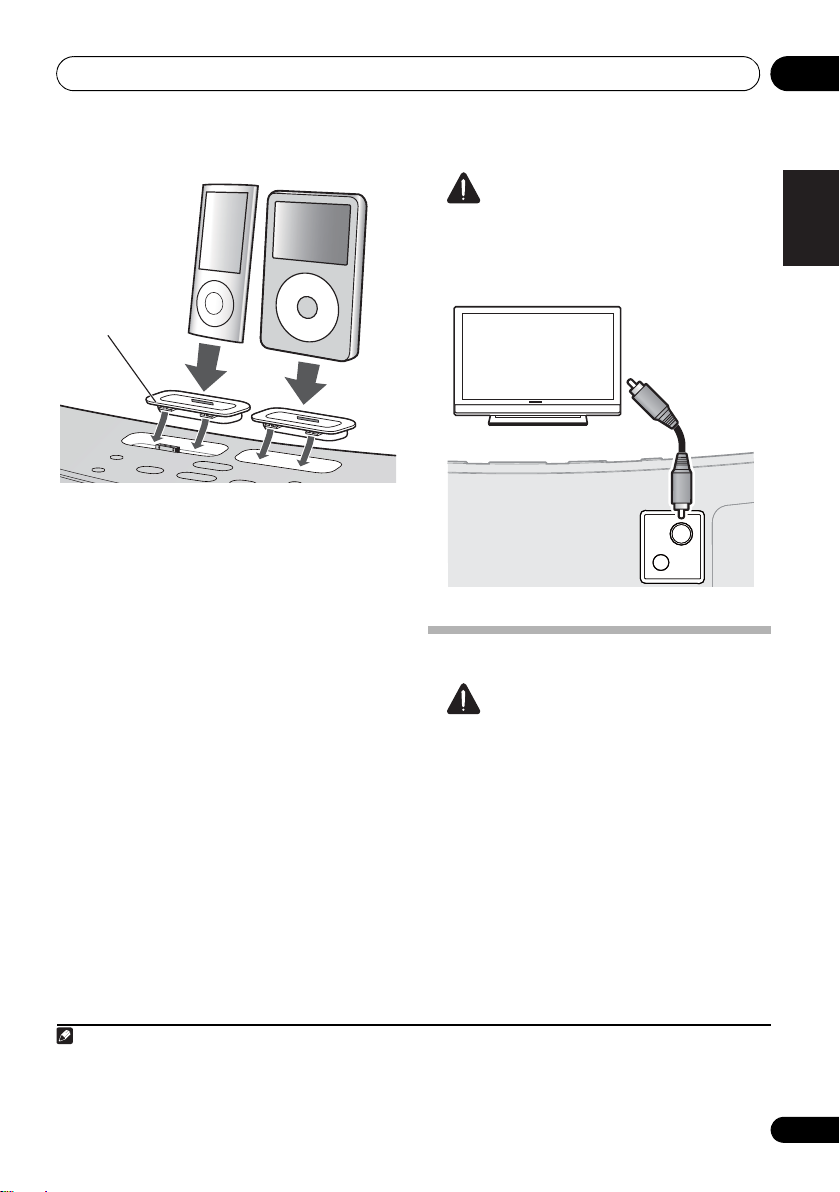

1 Attach the Dock adapter to iPod/iPhone
connector port on the top panel of this unit.
• An iPod/iPhone Dock adapter is not
supplied with this unit.
When attaching the Dock adapter, be sure to
orient the front-back directions of the Dock
adapter correctly. To attach, first place the
protruding tabs on the front side of the adapter
into the depressions on the iPod/iPhone
connector port and press into position. When
attaching the adapter, be careful not to strike
the connectors.
2 Connect your iPod/iPhone.
Connecting your TV
To watch iPod/iPhone images on a television,
perform connections using a composite video
cable.
• When an iPod/iPhone is connected to this
unit, the iPod/iPhone’s TV output setting is
automatically set to ON.1
Caution
• Before making or changing the
connections, switch off the power and
disconnect the power cord from the power
outlet. Plugging in should be the final step.
Playing your iPod/iPhone
Caution
• When your iPod/iPhone is connected to
this unit and you wish to operate the iPod/
iPhone by touching it directly, be sure to
hold the iPod/iPhone steady with the other
hand to prevent malfunctions due to faulty
contacts.
When the iPod function is selected, if an iPod/
iPhone is connected to the connector port iPod
aor b, the respective indicator will flash while
the device is being confirmed.2
Playback and volume level setting for iPod/
iPhone music and images can be performed
from this unit or the iPod/iPhone itself.
Note
1• Some iPods allow the TV output setting to be changed while connected.
• When the iPod/iPhone is disconnected from this unit, the iPod/iPhone’s TV output setting returns to its original state.
MENU



MENU


iPod nano/
iPod classic/
iPod touch/
iPhone
Dock adapter
2 If an iPod/iPhone is connected when the iPod/iPhone is in playback mode and this unit is in standby mode, the power will turn on
and playback of the iPod/iPhone will begin.
VIDEO
OUT
AUX
IN
VIDEO
OUT
AUX
IN
TV
Composite video cable
(commercially available)
XW-NAC1_CUXZTSM.book 11 ページ ２０１０年３月１６日 火曜日 午後２時４分

iPod/iPhone playback03
12
En
• When using the iPod/iPhone to adjust
sound volume, the adjustment will be
applied only to the sound produced from
this unit’s speakers.1If the iPod/iPhone is
disconnected from this unit, the iPod’s
sound volume will return to its original
setting.
When playing a single iPod/iPhone, press
iPod a or iPod b to switch to the respective
mode.
The following operations are possible for iPod/
iPhone, using the remote control.
When no device is connected to the selected
iPod/iPhone connector ports (iPod aor iPod b)
and this unit is not operated for 30 minutes or
more after the respective function is selected,
power will automatically turn OFF.
When playing two iPod/iPhone units
alternately, press
to perform SHUFFLE2
play.
SHUFFLE
2
Two iPod/iPhone units can be played
alternately with no break in sound (SHUFFLE2).
A bit before the currently playing iPod/iPhone
track ends, playback begins on the other iPod/
iPhone track and the volume is gradually
raised to fade in seamlessly (Cross fade).
During the SHUFFLE2operation, the order of
track playback is set by the shuffle function.
1 Connect two iPod/iPhone units to the
iPod/iPhone connector ports (iPod a, iPod b),
then press iPod a or iPod b.
2 Press MENU to access the iPod/iPhone
menu.
3 Select the track area that you want to
play back, then press ENTER.
4 Press .
The SHUFFLE2mode is set, and the SHUFFLE2
indicator lights; the unit connected to the iPod
aconnector port will playback.
A bit before the currently playing iPod/iPhone
track ends, the other iPod/iPhone unit begins
cross fade playback. The same operation is
repeated thereafter until all tracks on both
units have been played.2
•TocanceltheSHUFFLE2mode, press either
once again, or .
•TheSHUFFLE2mode will also be canceled
if the function is switched to any another
input (including iPod aor iPod b).
Note
1 These adjustments are applied to all inputs to the unit.
Button What it does
/
Starts normal playback and pauses/
unpauses playback.
 Pauses playback.
 Press to skip to the start of the current
file, then previous files. Press and hold
to start fast reverse scanning.
 Press to skip to the next file. Press and
hold to start fast forward scanning.
VOLUME
+/–
Use to set the listening volume.
SHUFFLE
The currently selected iPod/iPhone
tracks are played back in random
order (shuffle play).
REPEAT
The currently selected iPod/iPhone
tracks are played back repeatedly.
MENU
Use to access the iPod/iPhone
menu.
//
ENTER
Use to control the iPod/iPhone
menu.
2 During Cross Fade operation, /, and / are deactivated.
XW-NAC1_CUXZTSM.book 12 ページ ２０１０年３月１６日 火曜日 午後２時４分

iPod/iPhone playback 03
13
En
English Français Español
HI-LITE Scan
Each track is played back for a few seconds at
a certain time from the track beginning, thus
allowing desired tracks to be found quickly.
1 Connect two iPod/iPhone units to the
iPod/iPhone connector ports (iPod a, iPod b),
then press iPod a or iPod b.
2 Press MENU to access the iPod/iPhone
menu.
3 Select the track area that you want to
play back, then press ENTER.
4 Press HI-LITE.
HI-LITE scan function will begin from the first
track on the selected iPod/iPhone.
If playback was already underway, the HI-LITE
scan will begin from the currently playing
track.
After a track is played for a few seconds, the
next track will be found and a certain time1
from the track beginning will be played for a
few seconds.
When two iPod/iPhone units are connected
simultaneously, the first track on the alternate
iPod/iPhone will be found and a certain time
from the track beginning will be played for a
few seconds.
Thereafter, the same process will be repeated
until all tracks have been found and played for
a few seconds each.
• To cancel the HI-LITE Scan operation,
press HI-LITE once more.
• The HI-LITE Scan mode will also be
canceled if the function is switched to any
another input (including iPod a or iPod b).
Important
If the power indicator and iPod/iPhone
indicator flash simultaneously, a connection
fault is indicated. Perform the following
troubleshooting checks:
• Check whether the iPod/iPhone was
supported by this unit.
• Reconnect the iPod/iPhone to the unit. If
this doesn’t seem to work, try resetting
your iPod/iPhone.
• Update the iPod/iPhone software to the
latest version.
If the iPod/iPhone cannot be operated, check
the following items:
• Is the iPod/iPhone connected correctly?
Reconnect the iPod/iPhone to the unit.
• Is the iPod/iPhone experiencing a
hangup? Try resetting the iPod/iPhone,
and reconnect it to the unit.
Tip
• iPod/iPhone recharging occurs whenever
an iPod/iPhone is connected to this unit.
(This function is supported in standby
mode as well.)
• If an iPod/iPhone unit is connected to this
unit when it is already in play mode,
turning the unit’s power ON or switching
input to iPod will cause iPod/iPhone
playback to automatically begin.
• When this unit’s power is turned ON with
another function is selected, even if an
iPod/iPhone in play mode is connected,
playback will not automatically begin.
• When input is switched from iPod to
another function, the iPod/iPhone’s power
will be turned OFF automatically.
• If the unit is set to standby when an iPod/
iPhone is connected, the iPod/iPhone’s
power will be turned OFF automatically.
Note
1 If a track’s total length is too short, the track will be played back from the track beginning for a few seconds.
XW-NAC1_CUXZTSM.book 13 ページ ２０１０年３月１６日 火曜日 午後２時４分

Bluetooth ® AUDIO for Wireless Enjoyment of Music04
14
En
Chapter 4:
Bluetooth
®
AUDIO for Wireless
Enjoyment of Music
Wireless music play
This unit is furnished with a built-in Bluetooth®
ADAPTER (Pioneer Model No. AS-BT100); as a
result, any product equipped with Bluetooth
wireless technology (portable cell phone,
digital music player, etc.) can be used to listen
to music wirelessly.1Also, by using a
commercially available transmitter supporting
Bluetooth wireless technology, you can listen to
music on a device not equipped with Bluetooth
wireless technology. This unit supports SCMS-
T contents protection, so music can also be
enjoyed on devices equipped with SCMS-T type
Bluetooth wireless technology.
Remote control operation
The remote control supplied with this unit
allows you to play and stop media, and perform
other operations.2
About Bluetooth wireless
technology
The Bluetooth word mark and logos are owned
by the Bluetooth SIG, Inc. and any use of such
marks by Pioneer Corporation is under license.
Other trademarks and trade names are those
of their respective owners.
Remote control operation
This unit
Device not equipped with
Bluetooth wireless technology:
Digital music player
+
Bluetooth audio transmitter
(sold commercially)
Bluetooth wireless technology
enabled device:
Digital music player
Bluetooth wireless
technology enabled device:
Cell phone
Note
1 • It must be necessary that the Bluetooth wireless technology enabled device supports A2DP profiles.
• Pioneer does not guarantee proper connection and operation of this unit with all Bluetooth wireless technology enabled devices.
2 • It must be necessary that the Bluetooth wireless technology enabled device supports AVRCP profiles.
• Remote control operations cannot be guaranteed for all Bluetooth wireless technology enabled devices.
XW-NAC1_CUXZTSM.book 14 ページ ２０１０年３月１６日 火曜日 午後２時４分

Bluetooth ® AUDIO for Wireless Enjoyment of Music 04
15
En
English Français Español
Setting the PIN code
Set this unit’s PIN code to the same setting as
that for the Bluetooth wireless technology
device used. Supported PIN code setting
values include 0000, 1234 or 8888.
• Default setting: 0000
1 Press BT A.
When the Bluetooth wireless technology device
is not connected, the BT AUDIO indicator
flashes. If the Bluetooth wireless technology
device is connected, disconnect it.

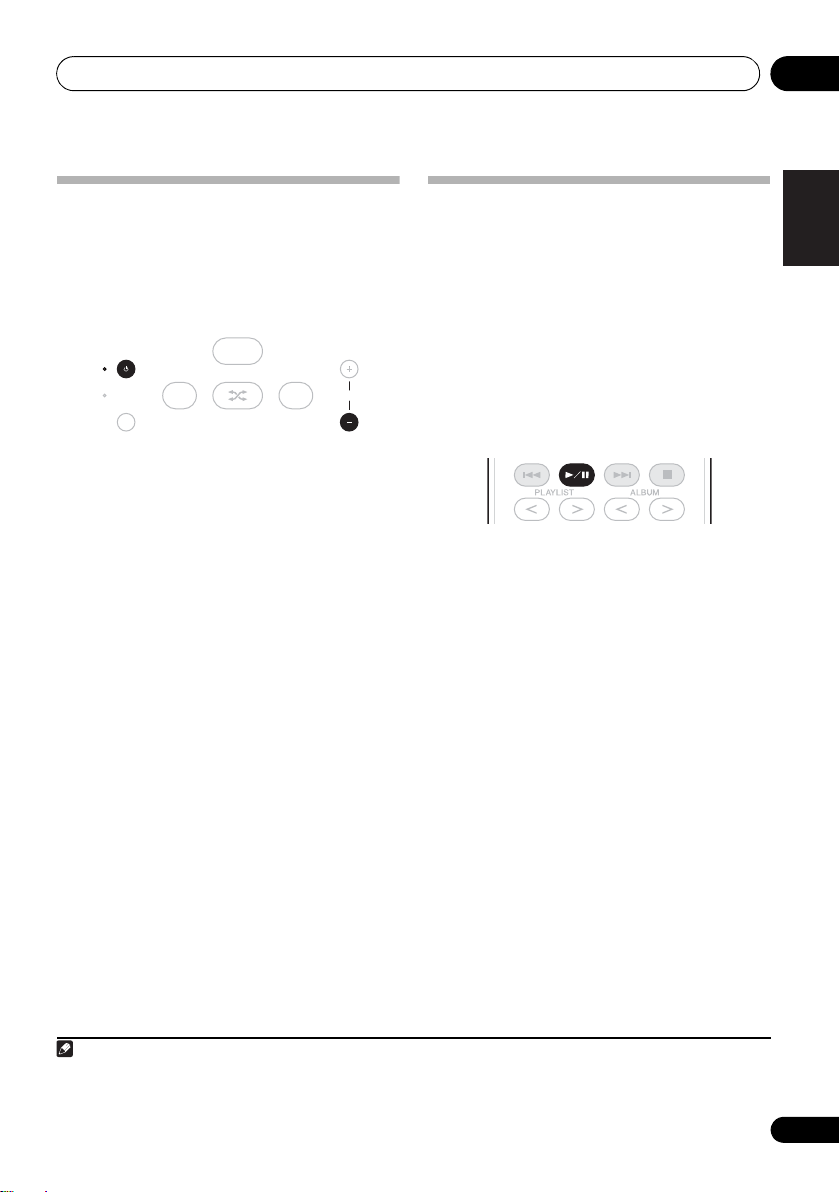

2 When the BT AUDIO indicator flashes,
press and hold
VOLUME – on the top panel,
and then press and hold
STANDBY/ON for
three seconds.
The SHUFFLE2indicator will flash, and the PIN
code will be changed. The number of flashes
corresponds to the newly set PIN code as
follows:
•1flash:0000
• 2 flashes: 1234
• 3 flashes: 8888
Repeat step 2 until the PIN code is reset to the
value desired.
These settings are preserved in memory even
when the power is turned OFF. When resetting
the PIN code, turn the power ON, and perform
step 2 without any unit connected.
Pairing this unit and Bluetooth
wireless technology device
“Pairing” must be done before you start
playback of Bluetooth wireless technology
content using Bluetooth AUDIO. Make sure to
perform pairing first time you operate the
system or any time pairing data is cleared.
“Pairing” is the step necessary to register
Bluetooth wireless technology device to enable
Bluetooth communications.1For more details,
see also the operating instructions of your
Bluetooth wireless technology device.
1PressBTA.
When the Bluetooth wireless technology device
is not connected, the BT AUDIO indicator
flashes. If the Bluetooth wireless technology
device is connected, disconnect it.
2 When the BT AUDIO indicator flashes,
press
 .
The BT AUDIO indicator will flash fast, and the
unit will enter the pairing standby mode.
3 Switch on the Bluetooth wireless
technology device that you want to perform
pairing with, place the device within 1 meter
of the system, and set it to the pairing mode.
Pairing begins.
4 Check to see that the Bluetooth AUDIO is
detected by the
Bluetooth wireless
technology device.
The BT AUDIO indicator lights when Bluetooth
wireless technology device is connected.
STANDBY/ON
SLEEP VOLU ME
a
INPUT
SELECTOR
ba
Note
1 • Pairing is required when you first use Bluetooth wireless technology device and this unit.
• To enable Bluetooth communication, pairing should be done with both of your system and Bluetooth wireless technology
device.
XW-NAC1_CUXZTSM.book 15 ページ ２０１０年３月１６日 火曜日 午後２時４分

Bluetooth ® AUDIO for Wireless Enjoyment of Music04
16
En
The BT AUDIO indicator flashes slowly when
Bluetooth wireless technology device is not
connected. In this case, perform the
connection operation from the side of the
Bluetooth wireless technology device.
Listening to Music Contents of
Bluetooth wireless technology
device with Your System
1 Press BT A to switch to Bluetooth AUDIO
input mode.
The BT AUDIO indicator flashes.
2 Connect the Bluetooth wireless
technology device to the
Bluetooth AUDIO.
3 Start playback of music contents stored in
Bluetooth wireless technology device.
The following operations are now possible for
Bluetooth wireless technology devices, using
the remote control.1
When no Bluetooth wireless technology device
is connected and this unit is not operated for
30 minutes or more after the Bluetooth AUDIO
function is selected, power will automatically
turn OFF.
Radio wave caution
This unit uses a 2.4 GHz radio wave frequency,
which is a band used by other wireless systems
(see list below). To prevent noise or interrupted
communication, do not use this unit nearby
such devices, or make sure these devices are
switched off during use.
• Cordless phones
• Cordless facsimiles
•Microwaveovens
• Wireless LAN devices (IEEE802.11b/g)
• Wireless AV equipment
• Wireless controllers for game systems
• Microwave-based health aids
• Some baby monitors
Other, less common, equipment that may
operate on the same frequency:
•Anti-theftsystems
• Amateur radio stations (HAM)
• Warehouse logistic management systems
• Discrimination systems for train or
emergency vehicles
Note
• In the event noise appears in your
television image, there is the possibility
that a Bluetooth wireless technology
enabled device or this unit (including
products supported by this unit) are
causing signal interference with the
antenna input connector of your television,
video, BS tuner, CS tuner, etc.
In this event, increase the distance
between the antenna input connector and
the Bluetooth wireless technology enabled
device or this unit (including products
supported by this unit).
Button What it does
/
Starts normal playback and pauses/
unpauses playback.
 Stops playback.
 Press to skip to the start of the current
file, then previous files. Press and hold
to start fast reverse scanning.
 Press to skip to the next file. Press and
hold to start fast forward scanning.
VOLUME
+/–
Use to set the listening volume.
Note
1•Bluetooth wireless technology device should be compatible with AVRCP profile.
• Depending on Bluetooth wireless technology device you use, operation may differ from what is shown in this table.
XW-NAC1_CUXZTSM.book 16 ページ ２０１０年３月１６日 火曜日 午後２時４分

Bluetooth ® AUDIO for Wireless Enjoyment of Music 04
17
En
English Français Español
• If there is something obstructing the path
between this unit (including devices
supported by this unit) and the device
equipped with Bluetooth wireless
technology (such as a metal door, concrete
wall, or insulation containing tinfoil), you
may need to change the location of your
system to prevent signal noise and
interruptions.
Scope of operation
Use of this unit is limited to home use.
(Transmission distances may be reduced
depending on communication environment).
In the following locations, poor condition or
inability to receive radio waves may cause the
audio to be interrupted or stopped:
• In reinforced concrete buildings or steel
framed or iron-framed buildings.
• Near large metallic furniture.
• In a crowd of people or near a building or
obstacle.
• In a location exposed to the magnetic field,
static electricity or radio wave interference
from radio communication equipment
using the same frequency band (2.4 GHz)
as this unit, such as a 2.4 GHz wireless LAN
device (IEEE802.11b/g) or microwave oven.
• If you live in a heavily populated residential
area (apartment, townhouse, etc.) and if
your neighbor’s microwave is placed near
your system, you may experience radio
wave interference. If this occurs, move your
unit to a different place. When the
microwave is not in use, there will be no
radio wave interference.
Radio wave reflections
The radio waves received by this unit include
the radio wave coming directly from the device
equipped with Bluetooth wireless technology
(direct wave) and waves coming from various
directions due to reflections by walls, furniture
and building (reflected waves). The reflected
waves (due to obstacles and reflecting objects)
further produce a variety of reflected waves as
well as variation in reception condition
depending on locations. If the audio cannot be
received properly due to this phenomenon, try
moving the location of the device equipped
with Bluetooth wireless technology a little. Also
note that audio may be interrupted due to the
reflected waves when a person crosses or
approaches the space between this unit and
the device equipped with Bluetooth wireless
technology.
Precautions regarding connections
to products supported by this unit
• Complete connections for all devices
supported by this unit, including all audio
cords and power cables before connecting
them to this unit.
• After completing connections to this unit,
check the audio and power cables to
confirm that they not twisted together.
• When disconnecting this unit, confirm that
you have sufficient working space in the
surrounding area.
• When changing connections of audio or
other cables for products supported by this
unit, confirm that you have sufficient
working space in the surrounding area.
XW-NAC1_CUXZTSM.book 17 ページ ２０１０年３月１６日 火曜日 午後２時４分

Other connections05
18
En
Chapter 5:
Other connections
• Before making or changing the
connections, switch off the power and
disconnect the power cord from the AC
outlet.
Connecting auxiliary
components
Connect the rear panel AUX IN mini-plug jack
to your auxiliary playback component.
• This method can be used to play music on
this unit from iPod/iPhones that do not
support use of an iPod Dock.
• Press AUX to switch to AUX input mode.
The AUX indicator lights.
When no device is connected to the AUX IN
connector and this unit is not operated for 30
minutes or more after the AUX function is
selected, power will automatically turn OFF.
VIDEO
OUT
AUX
IN
VIDEO
OUT
AUX
IN
Digital audio
player, etc.
Stereo mini-plug cable
(commercially available)
XW-NAC1_CUXZTSM.book 18 ページ ２０１０年３月１６日 火曜日 午後２時４分

Using the timer 06
19
En
English Français Español
Chapter 6:
Using the timer
Using the sleep timer
The sleep timer switches off the unit after 60
minutes so you can fall asleep without
worrying about it.
• Press SLEEP repeatedly to switch the sleep
timer between on and off.
During operation of the sleep timer, the SLEEP
indicator will light.1
Note
1 The sleep timer can be reset by pressing SLEEP while the sleep timer is operating.
XW-NAC1_CUXZTSM.book 19 ページ ２０１０年３月１６日 火曜日 午後２時４分

Additional information07
20
En
Chapter 7:
Additional information
Troubleshooting
Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is
something wrong with this component, check the points below. Sometimes the trouble may lie in
another component. Investigate the other components and electrical appliances being used. If the
trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer
authorized service center or your dealer to carry out repair work.
• If the unit does not operate normally due to external effects such as static electricity disconnect
the power plug from the outlet and insert again to return to normal operating conditions.
Problem Remedy
The power does not turn on. • Disconnect the power plug from the outlet, and insert again.
• If the power shuts off automatically, take the unit to your nearest Pioneer
authorized service center or your dealer for servicing.
Power automatically switches to
standby without user action.
• When no device is connected to the selected iPod/iPhone connector
ports (iPod a or iPod b ), the built-in Bluetooth ADAPTER or the AUX IN
connector and this unit is not operated for 30 minutes or more after the
respective function is selected, power will automatically turn OFF.
No sound is output when a
function is selected.
• Make sure the component is connected correctly (refer to Connecting
auxiliary components on page 18).
Can’t operate the remote control. • Replace the battery (refer to page 6).
• Operate within 7 m (23 ft.), 30° of the remote sensor on the front panel
(refer to page 7).
• Remove the obstacle or operate from another position.
• Avoid exposing the remote sensor on the front panel to direct light.
• Make sure the iPod/iPhone is connected correctly (refer to Connecting
your iPod/iPhone on page 10).
Can’t operate the iPod/iPhone. • Make sure the iPod/iPhone is connected correctly (refer to
Connecting
your iPod/iPhone
on page 10).
• If the iPod/iPhone is experiencing a hangup, try resetting the iPod/
iPhone, and reconnect it to the unit.
XW-NAC1_CUXZTSM.book 20 ページ ２０１０年３月１６日 火曜日 午後２時４分
