IMPORTANT INFORMATION
ABOUT YOUR NEW MOBILE NAVIGATION SYSTEM AND THIS MANUAL……
• The Pioneer Mobile Navigation System is intended solely as an aid to you in the
operation of your vehicle. It is not a substitute for your attentiveness, judgement
and care while driving.
• Do not use your navigation system to route you to emergency services such as
hospitals or police stations. Not all emergency service facilities are contained in
the map data.
•Do not operate the mobile navigation system if doing so will divert your attention
from the safe operation of your vehicle. Always observe safe driving rules and
follow all existing traffic regulations.
• Use our navigation system in the area only where PIONEER permitted.
• This manual explains how to install this mobile navigation unit in your vehicle.
Operation of this mobile navigation system is explained in the separate Owner’s
Manual that also came with this system.

IMPORTANT SAFEGUARDS .................... 3
PLEASE READ ALL OF THESE
INSTRUCTIONS REGARDING
YOUR MOBILE NAVIGATION
SYSTEM AND RETAIN THEM
FOR FUTURE REFERENCE. .................. 3
Connecting the system .............................. 5
CAUTION ........................................................ 5
Before installing the unit .................................. 6
To prevent damage ............................................ 6
Parts supplied .................................................... 6
Connecting the system ...................................... 7
Connecting the power cord (1) .......................... 8
Connecting the power cord (2) .......................... 9
Installation ................................................ 11
CAUTION ...................................................... 11
To guard against electromagnetic
interference ................................................12
Before installing and fixing ............................ 12
Before using the adhesive tape ........................ 12

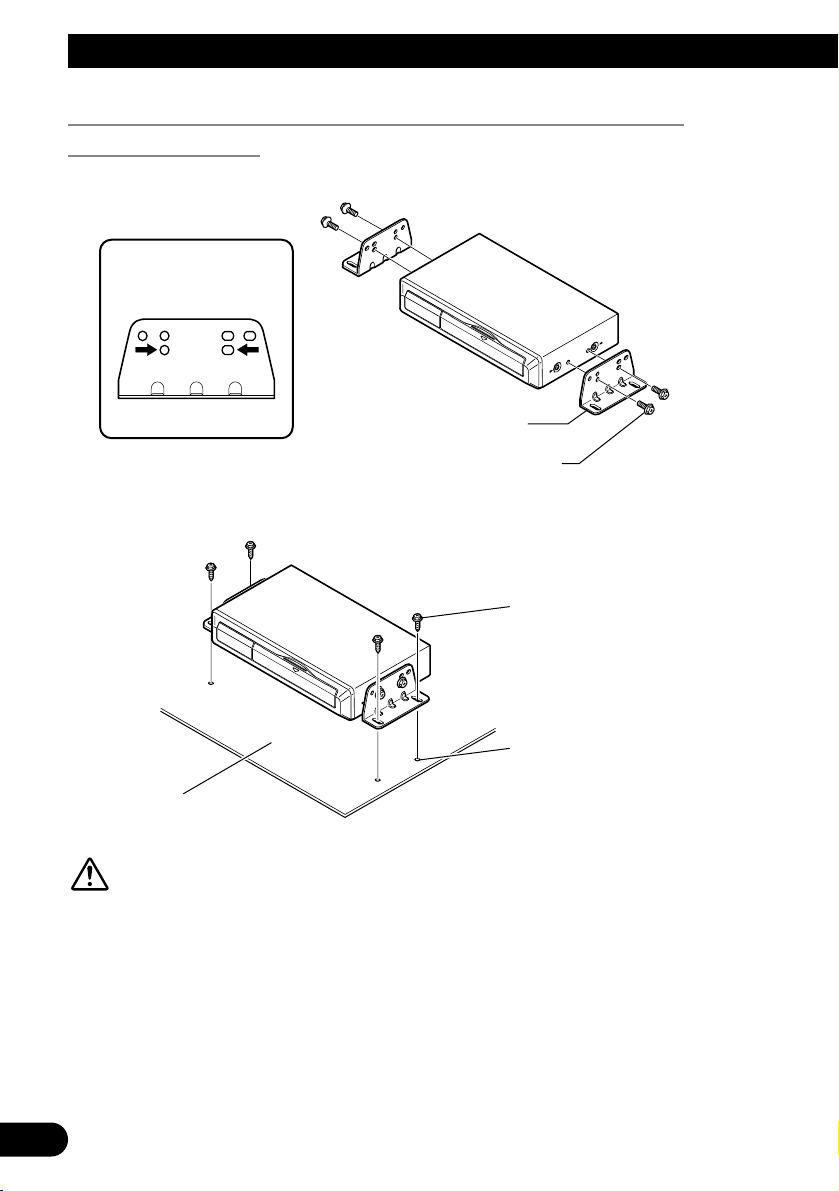

Installing the main unit .................................... 13
-Installation notes
-Parts supplied
-Installing the main unit inside the boot,
on the floor under a seat, etc.,
using tapping screws

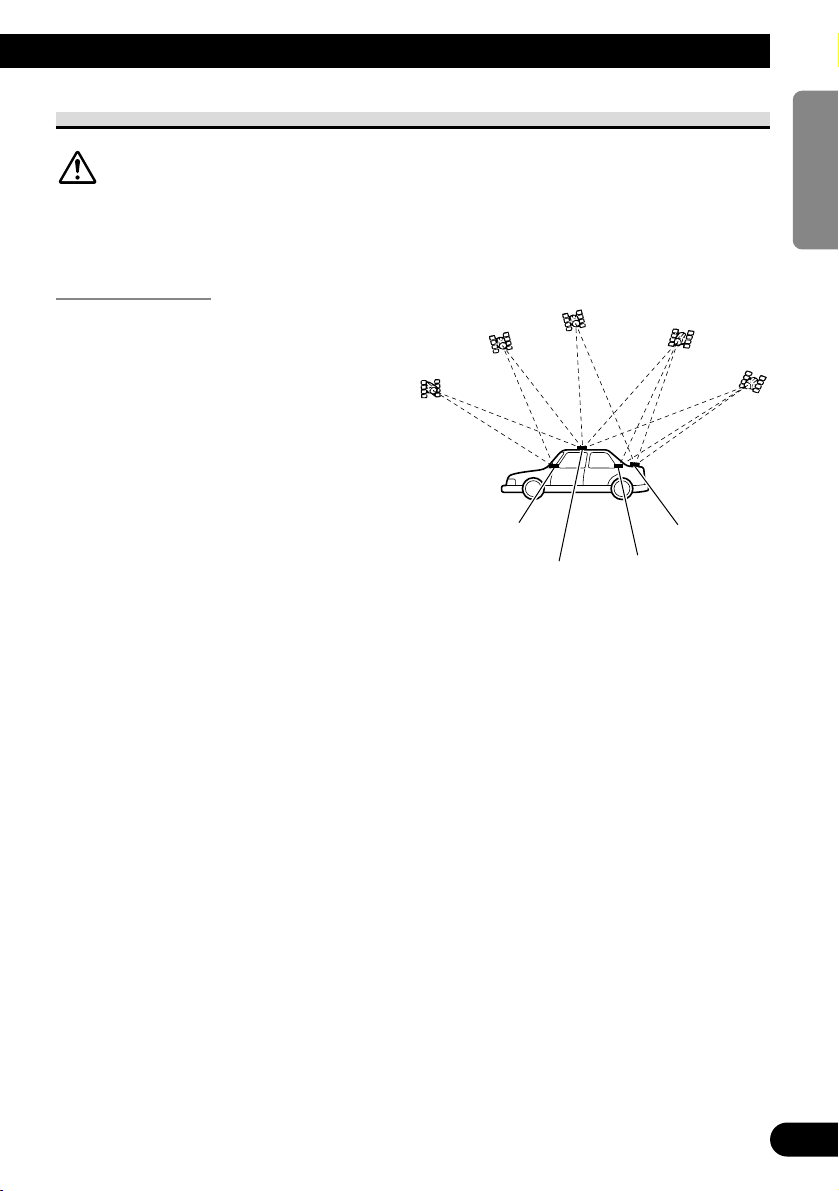

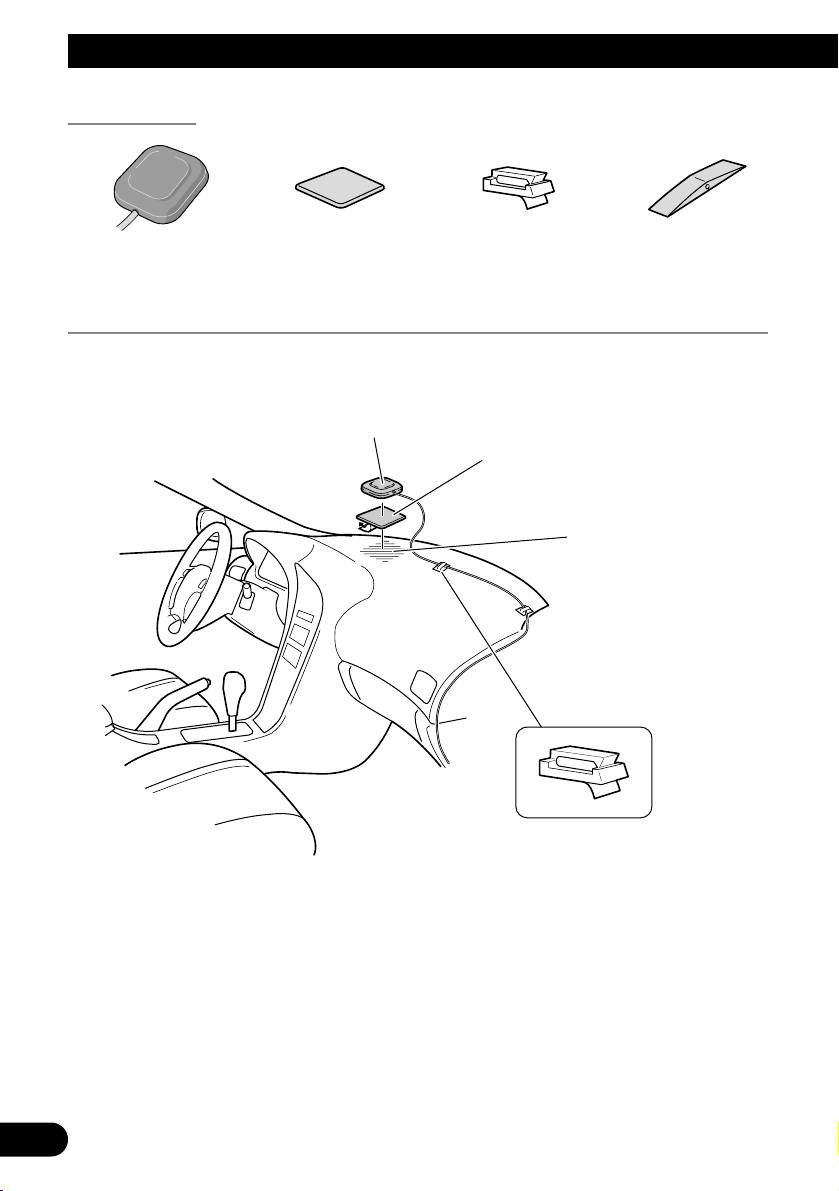

Installing the GPS antenna .............................. 16
-CAUTION
-Installation notes
-Parts supplied
-When installing the antenna inside the
vehicle (on the dashboard or rear shelf)
-When installing the antenna outside the
vehicle (on the body)
Installing the commander ................................ 19
-Parts supplied
-Loading the batteries
-Battery notes
-Installing the commander with velcro tape
-Commander handling notes
Installing the microphone ................................ 21
-Installation notes
-Parts supplied
-When installing the microphone on the
sun visor
-When installing the microphone on the
steering column
After installing the unit .......................... 24
2
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
Contents

IMPORTANT SAFEGUARDS
3
PLEASE READ ALL OF THESE INSTRUCTIONS REGARDING YOUR MOBILE
NAVIGATION SYSTEM AND RETAIN THEM FOR FUTURE REFERENCE.
1. Read this manual fully and carefully before installing your mobile navigation sys-
tem.
2. Keep this manual handy for future reference.
3. Pay close attention to all warnings in this manual and follow the instructions care-
fully.
4. This navigation system is intended solely as an aid to you in the operation of your
vehicle. It is not a substitute for your attentiveness, judgement and care while dri-
ving. Do not operate your navigation system if doing so will divert your attention
from the safe operation of your vehicle. Always observe safe driving rules and
follow all existing traffic regulations.
5. This navigation system may in certain circumstances display erroneous informa-
tion regarding the position of your vehicle, the distance of objects shown on the
screen, and compass directions. In addition, the system has certain limitations,
including the inability to identify one-way streets, temporary traffic restrictions
and potentially unsafe driving areas. Please exercise your own judgement in light
of actual driving conditions.

4
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
6. As with any accessory in your vehicle’s interior, the navigation system should not
divert your attention from the safe operation of your vehicle. If you experience
difficulty in operating the system or reading the display, please make adjustments
while safely parked.
7. Do not attempt to install or service your mobile navigation unit by yourself.
Installation or servicing of the Mobile Navigation Unit by persons without train-
ing and experience in electronic equipment and automotive accessories may be
dangerous and could expose you to the risk of electric shock or other hazards.
8. Please remember to wear your seat belt at all times while operating your vehicle.
If you are ever in an accident, your injuries can be considerably more severe if
your seat belt is not properly fastened.

5
Connecting the System
CAUTION
• Pioneer does not recommend that you install or service your navigation unit
yourself. Installing or servicing of the product may expose you to risk of elec-
tric shock or other hazards. Refer all installation and servicing of your navi-
gation unit to authorised Pioneer service personnel.
• Secure all wiring with cable clamps or electrical tape. Do not allow any bare
wiring to remain exposed.
• Do not drill a hole into the engine compartment to connect the orange lead of
the unit to the vehicle battery. Engine vibration may eventually cause the
insulation to fail at the point where the wire passes from the passenger com-
partment into the engine compartment. Take extra care in securing the wire
at this point.
• It is extremely dangerous to allow the GPS antenna lead or microphone lead
to become wound around the steering column or gearstick. Be sure to install
the unit in such a way that it will not obstruct driving.
• Make sure that wires will not interfere with moving parts of the vehicle, such
as the gearstick, hand brake or seat sliding mechanism.
• Do not route wires where they will be exposed to high temperatures. If the
insulation heats up, wires may become damaged, resulting in a short circuit
or malfunction.
• Do not cut the GPS antenna lead to shorten it or use an extension to make it
longer. Altering the antenna cable could result in a short circuit or malfunc-
tion.
• Do not shorten any leads. If you do, the protection circuit may fail to work
properly.
• Never feed power to other electronic products by cutting the insulation of the
power supply lead of the navigation unit and tapping into the lead. The cur-
rent capacity of the lead will be exceeded, causing overheating.

Before installing the unit
• This unit is designed for vehicles with a 12-volt battery and negative grounding. Before
installing the system (especially in a recreational vehicle, lorry, or bus), check the bat-
tery voltage.
To prevent damage
• When disconnecting a connector, pull the connector itself. Do not pull the lead, as you
may pull it out of the connector.

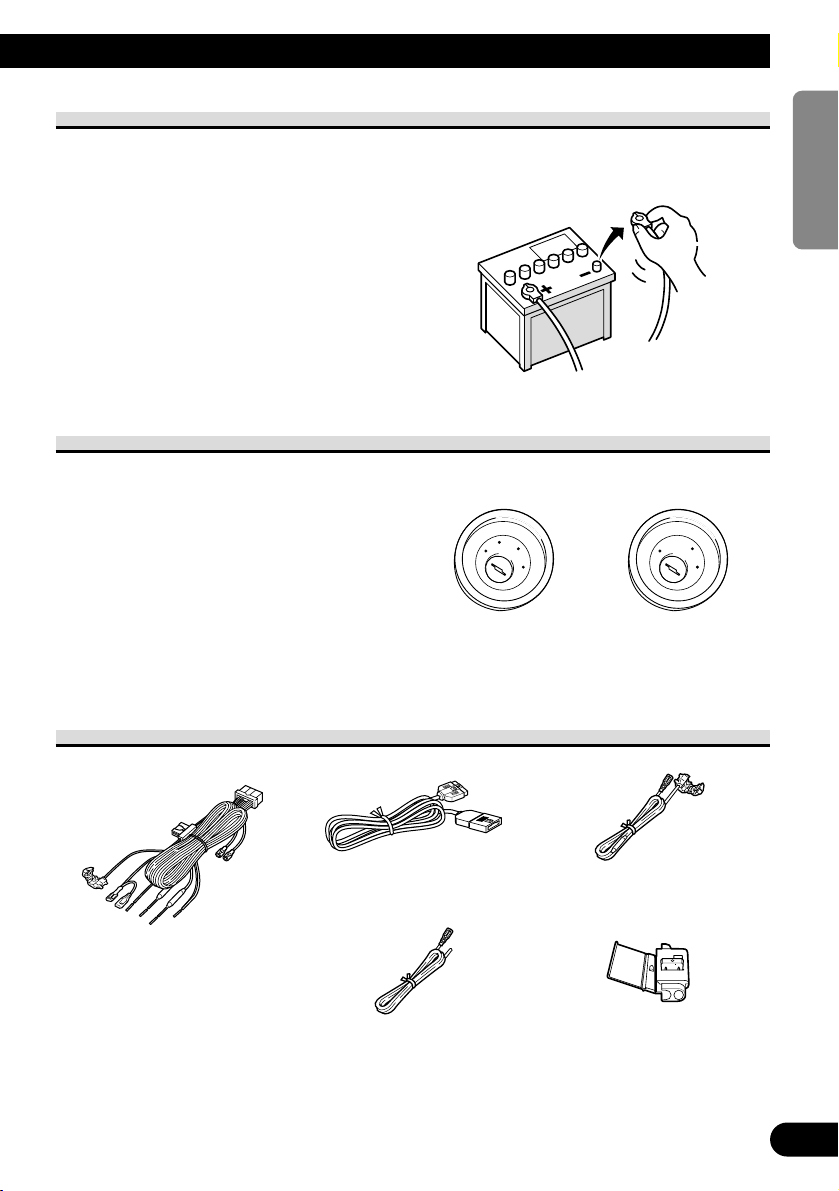

Parts supplied
ConnectorPink lead extension cord
Power cord
Purple lead extension cordRGB cable
No ACC position
Fig. 2
ACC position
Fig. 1
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
• When the unit is installed in vehicles
that do not have an ACC (accessory)
position on the ignition (as shown in
Fig. 2), be sure to connect the red lead
of the unit to the terminal controlled by
the ignition switch ON/OFF position. If
you do not, the vehicle battery may be
drained.
• Disconnect the negative (–) terminal of
the battery to avoid the risk of a short
circuit.
6
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

7
Connecting the System

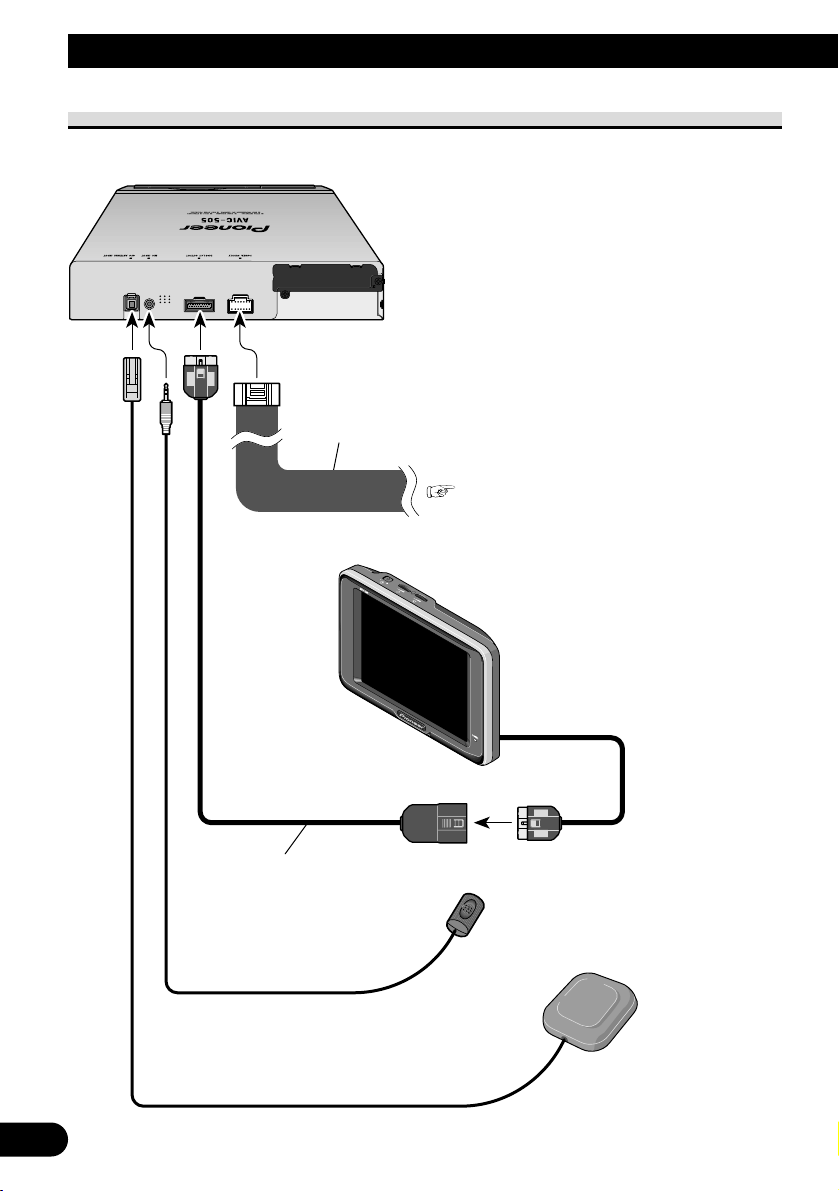

Connecting the system
Mobile Navigation Unit
AVIC-505
RGB cable (supplied)
Color Display
AVD-505
Microphone
GPS antenna
Power cord
See Pages 8-10.
COLORDISPLAY

8
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

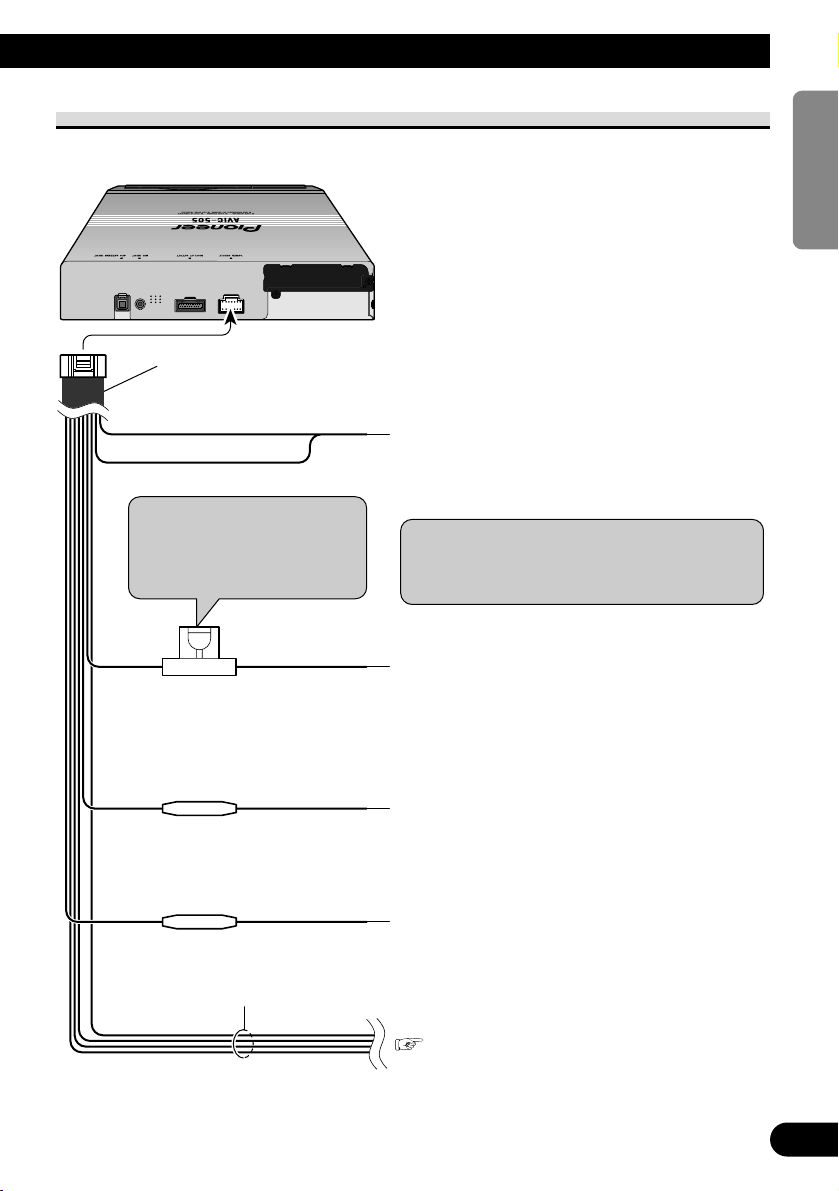

Connecting the power cord (1)
Mobile Navigation Unit
AVIC-505
+ Battery
To the terminal always supplied with power regardless of
ignition switch position.
Fuse holder (6 A)
ACC
To the electric terminal controlled by the ignition switch
(12 V DC) ON/OFF.
Do not connect this lead to power source terminals to
which power is continuously supplied. If the lead is
connected to such terminals, the battery may be drained.
ILL
To lighting switch terminal.
GROUND
To vehicle (metal) body. To keep electromagnetic noise
from the vehicle body out of the mobile navigation system,
attach this lead near the main unit.
Black
Fuse resistor
Orange
Fuse resistor
Red
Yellow
Note: The orange, red, and yellow leads should be
connected to the opposite side of the fusebox terminals
from the battery.
Yellow/Black, Purple, Pink, Blue/Yellow
Note: When replacing the fuse, be
sure to use only a fuse of the rating
prescribed on the fuse holder.
Power cord
See next page.

9
Connecting the System
Connecting the power cord (2)

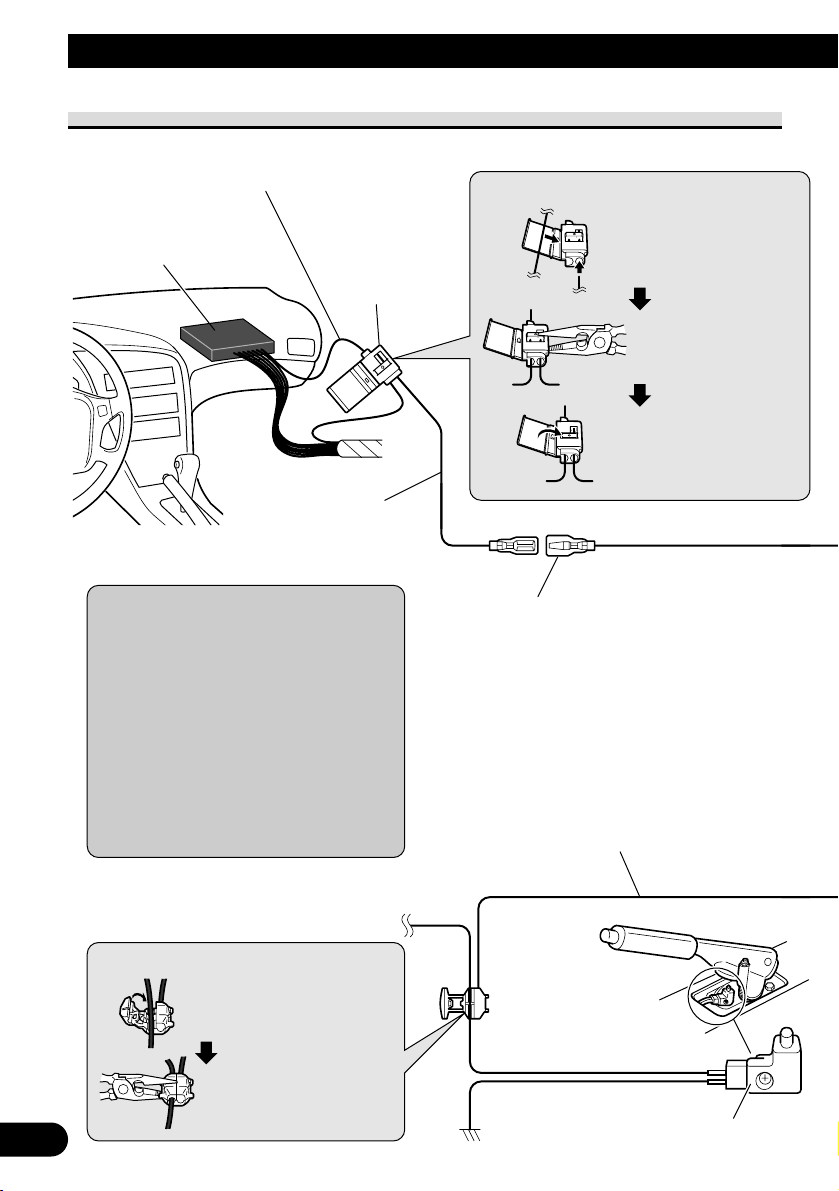

PARKING BRAKE
Used to detect the ON/OFF status of the parking brake.
This lead must be connected to the power supply side of
the parking brake swich. If this connection is made
incorrectly or omitted, certain functions of your
navigation system will be unusable.
Clamp firmly with
needle-nosed pliers.
Close the cover.
Pass the extension cord
and the lead for the
speed detection circuit
through this hole.
Connection method
Connection method
Clamp firmly with
needle-nosed pliers.
Clamp the parking brake
switch power supply side
lead.
Pink lead extension
cord
Connector
CAR SPEED SIGNAL INPUT
The mobile navigation system is connected here to detect
the distance the vehicle travels. Always connect the
vehicle's speed detection circuit or the ND-PG1 speed
pulse generator, sold separately. Failure to make this
connection will increase errors in the location display.
Vehicle injection computer
Speed detection circuit lead
Pink Pink
Power supply side
Ground side
Parking brake switch
Blue/Yellow
Note: The position of the speed detection circuit
depends on the vehicle model. For details,
consult the relevant documents from Pioneer.
When making connections for a model not listed
in those documents or for which connection to
the speed detection circuit is too difficult,
connect the separately sold ND-PG1 speed pulse
generator to the pink lead.
Note: The position of the parking brake switch
depends on the vehicle model. For details,
consult the vehicle owner's manual or dealer.

10
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
Mobile Navigation Unit
AVIC-505
Power cord
Black, Orange, Red, Yellow
See Page 8.
Check the position of your vehicle's reversing
lamp (the one that lights up when the gearstick
is in reverse [R]) and find the reversing lamp
+ side lead in the trunk.
GUIDE ON
When combining this mobile navigation unit with a Pioneer vehicle
stereo, if the vehicle stereo has yellow/black leads (MUTE), connect
them to those leads. This way when the guidance audio is output and
when you operate the system by voice, the vehicle stereo is
automatically muted to reduce the vehicle stereo volume.
Yellow/Black
Note: On some model's reverse the + and -
leads for the backup lamp are reversed. Connect
the purple lead to the lead whose voltage
changes when the reverse gear is engaged.
REVERSEGEAR SIGNAL INPUT
This is connected so that the mobile navigation
system can detect whether the vehicle is moving
forwards or backwards. Always connect to the
reversing lamp primary lead.
Purple
Reversing lamp +
side lead.
Purple lead extension cord
Fuse resistor
Purple
Connection method
Clamp firmly with
needle-nosed pliers.
Clamp the reversing lamp
+ side lead.

11
Installation
CAUTION
•Pioneer does not recommend that you install or service your navigation unit
yourself. Installing or servicing the product may expose you to risk of elec-
tric shock or other hazards. Refer all installation and servicing of your navi-
gation unit to authorised Pioneer service personnel.
•Never install the unit in places where:
* It could injure the driver or passengers if the vehicle stops suddenly.
* It may interfere with the driver’s operation of the vehicle, such as on the
floor in front of the driver’s seat.
•Make sure there is nothing behind the dashboard or panelling when drilling
holes in them. Be careful not to damage fuel lines, brake lines or power
cables.
•When using screws, do not allow them to come into contact with any electri-
cal lead. Vibration may damage wires, leading to a short circuit or other
damage to the vehicle.
•To ensure proper installation, use the supplied parts in the manner specified.
If any parts other than the supplied ones are used, they may damage internal
parts of the unit or they may work loose and the unit may become detached.

CAUTION
•It is extremely dangerous to allow the GPS antenna lead or microphone lead
to become wound around the steering column or gearstick. Be sure to install
the unit in such a way that it will not obstruct driving.
•Make sure that leads cannot get caught in a door or the sliding mechanism of
a seat, resulting in a short circuit.
•Please confirm the proper function of your vehicle’s other equipment follow-
ing installation of the navigation unit.
To guard against electromagnetic interference
•To keep electromagnetic noise out of the mobile navigation system, do not install the
main unit or GPS antenna near the vehicle stereo FM/MW/LW antenna or the
FM/MW/LW antenna cord. Such electromagnetic noise would increase the error for the
location display.
Before installing and fixing
•Make temporary connections first to check that the unit and system are working properly.
Before using the adhesive tape
•Make sure the surface is free of moisture, dust, grime, oil, etc. before affixing the tape.
12
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

13
Installation
Installing the main unit
Installation notes
•Do not install the main unit in places where it may become subject to high temperatures
or humidity, such as:
* Places close to a heater outlet.
* Places exposed to direct sunlight, such as on top of the dashboard or the rear shelf.
•Places that may be splashed by rain, for example close to the door.
•The installation strength will depend on the vehicle model and the installation position.
Choose a position where the main unit can be firmly installed, and install it securely.
If the main unit is not securely fastened, the errors in location display will be greater.
•Do not install the main unit on the board covering the spare tyre or other places which
are subject to vibration.
•When the main unit is installed under a front seat, ensure that it does not obstruct the
sliding action of the seat.
•Do not install the main unit where it will be under luggage. Strong mechanical shock to
the main unit would increase the errors in location display.
•Avoid installing the main unit in places where it will interfere with loading and unload-
ing of the spare tyre, jack, tools, etc.
•Check that a CD-ROM can be ejected with the main unit installed.
•If you use the mobile navigation system out of areas where PIONEER is permitted, your
position is not shown properly.

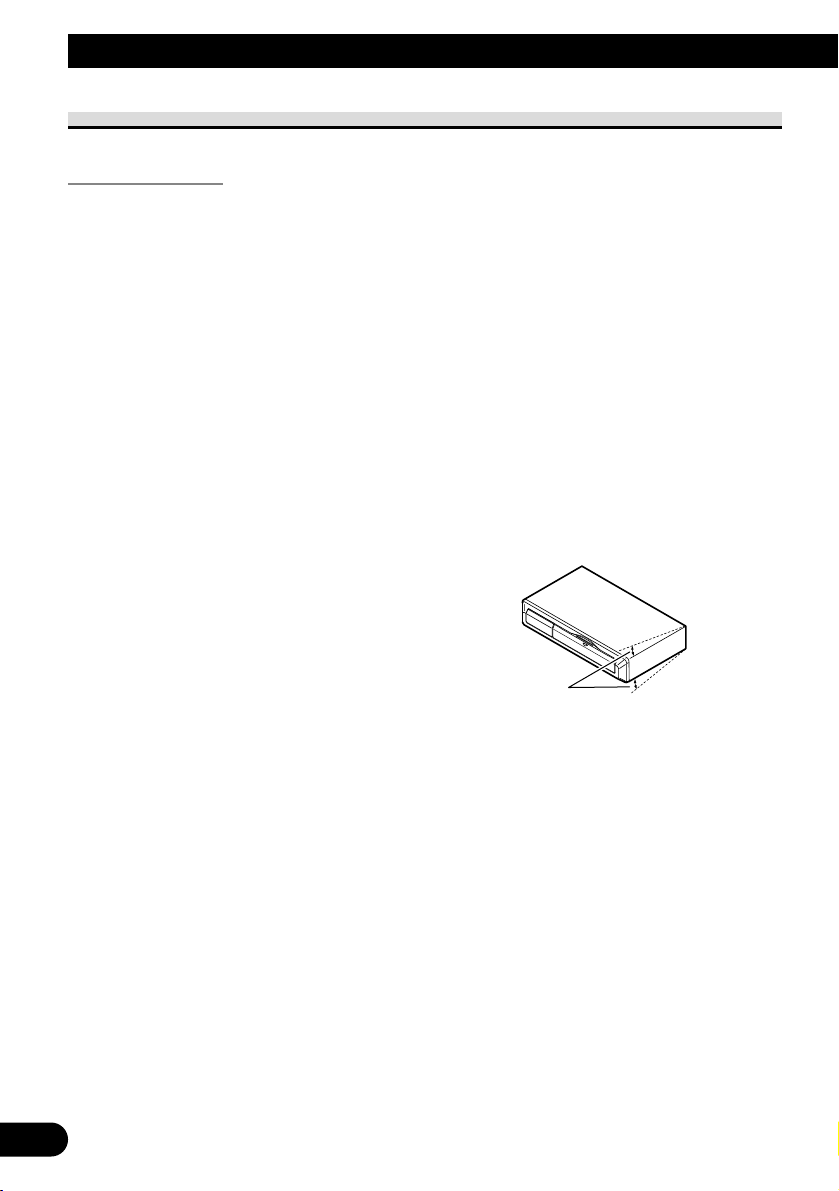

10˚
•Install the main unit on a surface with-
in 10ºtolerance. A surface tilted more
than this would increase the errors in
location display.

Parts supplied
Tapping screw
(6 ×16 mm)
(4 pcs.)
Screw
(5 ×8 mm)
(4 pcs.)
Mounting angle
(2 pcs.)
Main unit
•Do not install the main unit vertically.
Installing it this way can cause it to
function improperly.
14
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

15
Installation
Installing the main unit inside the boot, on the floor under a seat, etc.,
using tapping screws
1. Fit the mounting brackets to the sides of the main unit.
2. Fix to the floor with tapping screws.
CAUTION
•Before drilling any mounting holes, confirm that the screws will not interfere
with any of the vehicle’s operating systems (such as the fuel line, brake lines,
electrical wiring, etc.).
Tapping screws
(6 ×16 mm)
Floor
Drill 4 to 4.5 mm
diameter holes.
Use the following holes on
the mounting brackets.
Mounting bracket
Screws (5 ×8 mm)

Installing the GPS antenna
CAUTION
•Do not cut the GPS antenna lead to shorten it or use an extension to make it
longer. Altering the antenna cable could result in a short circuit.
Installation notes
•When installing the GPS antenna inside the vehicle, be sure to use the metal sheet pro-
vided with your system. If this is not used, the reception sensitivity will be poor.
•Do not cut the accessory metal sheet. This would reduce the sensitivity of the GPS
antenna.
•Take care not to pull the antenna lead when removing the GPS antenna. The magnet
attached to the antenna is very powerful, and the lead may become detached.
•The GPS antenna is installed with a magnet. When installing the GPS antenna, be care-
ful not to scratch the vehicle body.
•When installing the GPS antenna on the outside of the vehicle, always put it in the vehi-
cle when going through an automatic vehicle wash. If it is left on the outside it may be
knocked off and scratch the vehicle body.
•Do not paint the GPS antenna, as this may affect its performance.
Dashboard
Roof Rear shelf
boot lid
•The antenna should be installed on a
level surface where radio waves will
be blocked as little as possible. Radio
waves cannot be received by the anten-
na if reception from the satellite is
blocked.
Installation on the vehicle roof or boot
lid is recommended to enable best
reception.
16
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

17
Installation
Parts supplied
When installing the antenna inside the vehicle (on the dashboard or rear shelf)
Affix the metal sheet on as level a surface as possible where the GPS antenna faces outside
the window. Place the GPS antenna on the metal sheet. (The GPS antenna is fastened
with its magnet.)
Note:
•Some models use window glass that does not allow signals from GPS satellites to pass through. On
such models, install the GPS antenna on the outside of the vehicle.
GPS antenna
Make sure the surface is
free of moisture, dust,
grime, oil, etc., before
affixing the metal sheet.
Note: The metal sheet
contains a strong adhesive
and may leave a mark on
the dashboard if it is
removed.
Clamps
Use clamps to secure the
lead where necessary inside
the vehicle.
Metal Sheet
Peel off the protective sheet
on the rear.
Waterproof padClamp (5 pcs.)Metal sheetGPS antenna

When installing the antenna outside the vehicle (on the body)
Put the GPS antenna in a position as level as possible, such as on the roof or boot lid. (The
GPS antenna is fastened with a magnet.)
Clamps
Use clamps to secure
the lead where
necessary inside the
vehicle.
Clamps
Use clamps to secure the
lead where necessary inside
the vehicle.
GPS antenna
When routing the lead in from the top of the
door
Make a U-shaped loop in the lead
on the outside to prevent rainwater
from flowing along the lead into the
interior of the vehicle.
When routing the lead in from inside the boot
Waterproof pad
Make sure the waterproof pad
contacts the top of the rubber
packing.
Make a U-shaped loop in the
lead outside the rubber
packing to prevent rainwater
from flowing along the lead
into the interior of the vehicle.
Rubber packing
18
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

19
Installation
Installing the commander
Parts supplied
Loading the batteries
Battery notes
•Be sure that the batteries are loaded with the positive (+) and negative (–) terminals in
their correct positions.
•Do not mix new and old batteries.
•Do not mix different types of batteries. Even if the shape is the same, the voltage may be
different.
•Remove the batteries from the commander when it will not be used for a long period of
time.
•If leakage has occurred, completely wipe off any liquid from the battery compartment,
before loading new batteries.
•These batteries can not be recharged.
•When you replace the batteries, we recommend alkaline batteries.
Supplied alkaline batteries
(UM-4, LR03 1.5 V)
Velcro tape (small)
(Rough side)
(2 pcs.)
Velcro tape (large)
(Soft side)
Alkaline battery
(UM-4, LR03 1.5 V)
(2 pcs.)
Commander
NAVIGATIONCOMMANDER
