Enter the next generation of Pioneer KURO™, where a picture is worth more than a
thousand words. Awaken your senses and discover there is more to this television
than meets the eye. Deeper black levels that pave the way to breathtaking detail,
added dimension and more vibrant color are just the beginning.
kuro Technology
Exclusive cell structure with crystal emissive layer for a more intense ›
black with added detail
Improved › lter for enhanced contrast in bright environments
Improved ›ASIC video processing and scaling for the ultimate in
Standard-Denition and High-Denition video performance
Detachable bottom speaker with fully integrated digital amplier for ›
pristine clarity and accuracy of sound
kuro FeaTures
New, Improved ›Optimum Mode. Automatically analyzes and adjusts
audio and video settings according to specic room light conditions
and type of light and color. Program content is also monitored
and nely adjusted so movies, sports and news are all faithfully
reproduced. Includes OSD with status.
Smooth Film mode to eliminate motion judder in 3:2 Pulldown (60Hz) ›
providing natural even playback of content created by lm
4 Independent HDMI 1.3 inputs with HDMI-CEC control and the ability ›
to accept 1080p 24/60Hz signal
Room Light Sensor for automatic picture adjustment ›
Standard 3:2 (60Hz) and Advanced PureCinema with 3:3 Pulldown ›
(72Hz) for accurate playback of lm content
Fully Integrated ATSC and NTSC Tuner with Clear QAM ›
V-Chip Parental Control ›
Remote Control – Glow in the dark / Preset Mode ›
PicTure seTTings
A/V Selection Memory – 7 options for viewing preferences: ›
Optimum / Dynamic / Performance / Movie / Sports / Game /
Standard (PC input: only for Standard)
Aspect Ratio Control – 9 positions: Auto* / Full / “Dot by Dot” / ›
Zoom* / Cinema* / 4:3 / Wide* (only for SD) / Wide1* (only for HD) /
Wide2* (only for HD)
*Except PC signal
Advanced Picture-in-Picture (4 positions), Picture-side-Picture ›
(3 positions) and Still Picture capability
After-Image Reduction Function ›
Orbiter (Off / Mode 1 / Mode 2) –
Auto Size (Off/ Natural / Wide-Zoom) –
Side Mask Detection (Mode 1 – for black side masks / –
Mode 2 – for black & illustrated side masks)
Side Mask Brightness Sync (Fixed / Auto) –
Video Pattern (White Bar) –
Game Control Preference (AV Selection: only Game) (Off / On) ›
Room Light Sensor (Off / Mode 1 / Mode 2) ›
Video Processing
Technology
Picture Detail Settings* – DRE Picture, Black Level, ACL, ›
Enhancer Mode, Gamma and CTI
*No menu items for these functions
Noise Reduction Settings* – 3 DNR, Field NR, Block NR, Mosquito NR ›
*No menu items for these functions
Tuner Noise Reduction (Off / On for each channel) ›
High-Denition 1080p Resolution ›
(1920 x 1080p)
50” Diagonal Class / 16:9 Wide-Screen ›
Aspect Ratio (49.85” Screen)
New Deeper Intense Blacks ›
for Unmatched Contrast
(5x Previous Generation)
New Thinner Cosmetic Design ›
New Home Media Gallery ›
Home Network Connectivity
4 Independent HDMI ›® 1.3 Inputs
Anti-Reective Filter ›
Subwoofer Output ›
PDP-5020FD
50-Inch Class High-Definition
1080p Flat Panel Television

High-Definition Television (HDTV): HDTV refers to a complete product/system with the following
minimum performance attributes:
Receiver: Receives ATSC terrestrial digital transmissions and decodes all ATSC Table 3 video
formats.
Display Scanning Format: Has active vertical scanning lines of 720 progressive (720p), 1080
interlaced (1080i) or higher.
Aspect Ratio: Capable of displaying a 16:9 image.
Audio: Receives and reproduces, and/or outputs Dolby Digital audio (Consumer Electronics Associa-
tion, August 2000).
Plasma Display Systems display images consisting of hundreds of thousands of minute pixels (light
emitting cells), and there is a possibility that some pixels may be inactive, flashing or continually
illuminated.
Plasma Display Systems are made of glass; be sure to secure it from damage from impact.
Plasma Display Systems, while in use, may generate some functional sounds, for example: fan motor
noise, and electrical circuit humming/glass panel buzzing.
All phosphor-based display systems (CRT Television Systems—both direct view and projection televi-
sions—as well as plasma display systems) may develop image retention, sometimes called burn-in if
permanent. Recommended guidelines are as follows:
Do not display still images for long periods (such as fixed images from PC or TV game equipment,
and/or time of day indicator or channel logo display).
Do not display content in the 4:3 aspect ratio (black or gray bars on left and right side of content)
or letter-box content (black bars above and below of content) for extended periods of time, or use
either of these viewing modes repeatedly within a short period of time. This Plasma Display System
is equipped with multiple wide-screen viewing modes; use one of these screen modes to fill the
entire screen with content.
Displaying dark images after displaying still images for a period of time may cause image retention.
In most cases, the image retention can be corrected by displaying bright images for a similar period
of time. However, if your Plasma Display System displays still images for additional long periods of
time, image retention may be irreparable.
Plasma Display Systems emit slight amounts of IR (Infrared) emission through luminous discharge
technology. This IR emission is not harmful to living organisms, but may interfere with the operation
of remote controls for other equipment, or cause static in equipment using IR signals (such as cord-
less headphones or cordless microphones).
PIONEER and the Pioneer logo are registered trademarks of Pioneer Corporation.
HDMI and the HDMI logo are registered trademarks of HDMI Licensing, LLC.
DLNA, DLNA CERTIFIED and the DLNA logo are trademarks and/or service marks of Digital Living
Network Alliance.
WOW, SRS, and the symbol are trademarks of SRS Labs, Inc.
In the United States, TV Guide and other related marks are registered marks of Gemstar-TV Guide
International, Inc. and/or one of its affiliates.
Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.
© 2008 Pioneer Electronics (USA) Inc.
carTon dimensions
(W x H x D): 52-7/8” x 20” x 38-3/8” ›
Weight: 114 lbs. ›
ProducT dimensions
Panel (W x H x D): 48-17/32” x 28-15/32” x 3-21/32” ›
Panel w/Speaker (W x H x D): 48-17/32” x 31-5/8” x 3-21/32” ›
Panel Weight: 74 lbs. 1 oz. ›
Panel Weight w/Speaker and Stand: 86 lbs. ›
inTegraTed Technologies
Specications and design subject to modication without notice.
Inputs ›
4 Independent HDMI 1.3 –
(1 side, 3 rear) (w/PC
support, 2 w/ analog audio)
1 Component –
3 Composite –
1 S-Video –
Antenna –
USB (Mass Storage Class) –
LAN (10/100 Base-T –
Ethernet)
PC –
Outputs ›
Optical Digital Audio –
(Dolby Digital/PCM)
Audio LR –
Subwoofer –
SR –
Headphone –
PDP-5020FD
50-Inch Class High-Definition
1080p Flat Panel Television

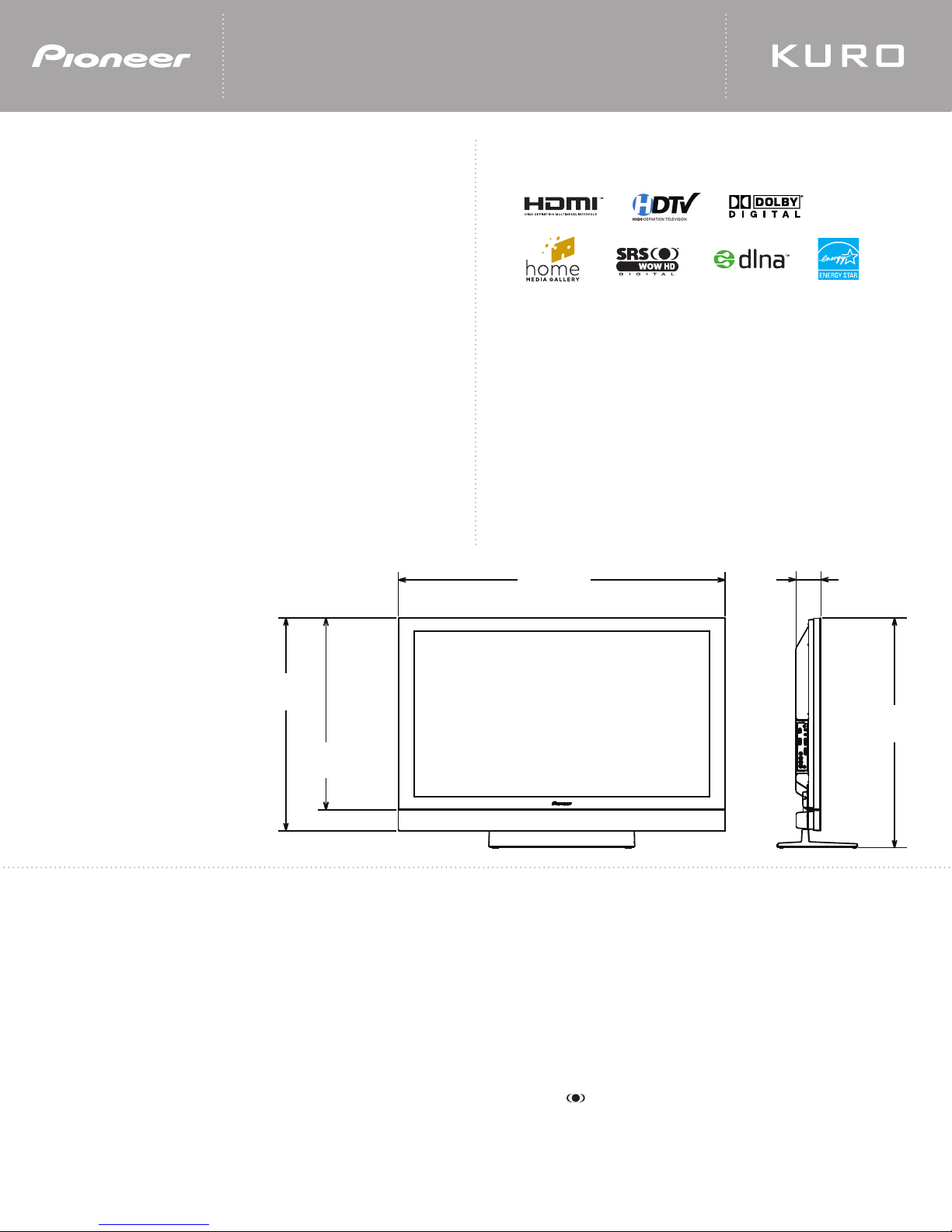

48-17/32”
31-5/8”
3-21/32”
34-1/8”
28-15/32”
sound
Technology
Improved ›18-Watt Stereo Digital
Amplier w/2-Way Stereo
Speakers
SRS ›® WOW HD / SRS FOCUS /
SRS TruBass / SRS Denition®
uPc
012562887098 ›
home media gallery
IP Network Compatibility Designed to DLNA Guidelines: Enables a ›
link with a networked PC to share content via Ethernet connection,
including movies (even HD movie content), music and photos.
Microsoft PlaysForSure™ Protected Content: No-hassle playback of ›
Microsoft PlaysForSure audio or video content downloaded from the
web and stored on personal computers, via an existing home network
system.
2
Supported Formats: ›
Video: WMV9, MPEG1, MPEG2-PS, MPEG2-TS, MPEG4 (SP/ASP), –
MPEG4 (H.264/AVC)
Audio: WMA9, MP3, Linear PCM (WAV), HE-AAC, MPEG-4 AAC –
Photos: JPG, PNG, GIF, TIFF, BMP –
Video & audio connecTiViTy
