Pioneer Kuro PDP-LX6090 User manual

<ARE1492-A> Printed in UK Imprimé au Royaume-Uni
Published by Pioneer Corporation.
Copyright © 2008 Pioneer Corporation.
All rights reserved.
Publication de Pioneer Corporation.
© 2008 Pioneer Corporation.
Tous droits de reproduction et de traduction réservés.
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC.
P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]
PIONEER ELECTRONICS OF CANADA, INC.
300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: [phone]
PIONEER EUROPE NV
Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]
PIONEER ELECTRONICS ASIACENTRE PTE. LTD.
253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]
PIONEER ELECTRONICS AUSTRALIA PTY. LTD.
178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [phone]
PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.
Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]
K002_B_En
Discover the benefits of registering your product online at
http://www.pioneer.co.uk (or http://www.pioneer.eu).
Découvrez les nombreux avantages offerts en enregistrant votre produit en ligne
maintenant sur
http://www.pioneer.fr (ou http://www.pioneer.eu).
Bitte nutzen Sie die Möglichkeit zur Registrierung Ihres Produktes unter
http://www.pioneer.de (oder http://www.pioneer.eu)
*Voir et Entendre n’a jamais eu autant de sens
Downloaded From TV-Manual.com Manuals

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT
D3-4-2-1-1_En-A
Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified
service personnel.
IMPORTANT: THE MOULDED PLUG
This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the
fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark or the BSI mark on the body of the fuse.
If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug
must not be used until a replacement cover is obtained. A replacement fuse cover can be obtained from your local dealer.
If the fitted moulded plug is unsuitable for your socket outlet, then the fuse shall be removed and the plug cut off and disposed of
safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.
If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.
WARNING : THIS APPARATUS MUST BE EARTHED.
IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:
Green & Yellow : Earth Blue : Neutral Brown : Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in
your plug, proceed as follows ;
The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked with the letter Eor
by the earth symbol or coloured GREEN or GREEN-AND-YELLOW.
The wire which is coloured BLUE must be connected to the terminal which is marked with the
letter Nor coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the
letter Lor coloured RED.
How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.
D3-4-2-1-2-1_B_En
If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used
electronic products in accordance with legislation that requires proper treatment, recovery and recycling.
Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to
designated collection facilities or to a retailer (if you purchase a similar new one).
For countries not mentioned above, please contact your local authorities for the correct method of disposal.
By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential
negative effects on the environment and human health. K058_A_En
PDP-LX6090.book Page 2 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

English
The following symbols are found on labels attached
to the product. They alert the operators and service
personnel of this equipment to any potentially
dangerous conditions.
WARNING
This product equipped with a three-wire grounding
(earthed) plug - a plug that has a third (grounding)
pin. This plug only fits a grounding-type power
outlet. If you are unable to insert the plug into an
outlet, contact a licensed electrician to replace the
outlet with a properly grounded one. Do not
defeat the safety purpose of the grounding plug.
D3-4-2-1-6_A_En
CAUTION
The switch on this unit will not completely shut off
all power from the AC outlet. Since the power cord
serves as the main disconnect device for the unit,
you will need to unplug it from the AC outlet to shut
down all power. Therefore, make sure the unit has
been installed so that the power cord can be easily
unplugged from the AC outlet in case of an
accident. To avoid fire hazard, the power cord should
also be unplugged from the AC outlet when left
unused for a long period of time (for example, when
on vacation).
D3-4-2-2-2a_A_En
WARNING
CAUTION
This symbol refers to a hazard or unsafe practice
which can result in personal injury or property
damage.
This symbol refers to a hazard or unsafe practice
which can result in severe personal injury or death.

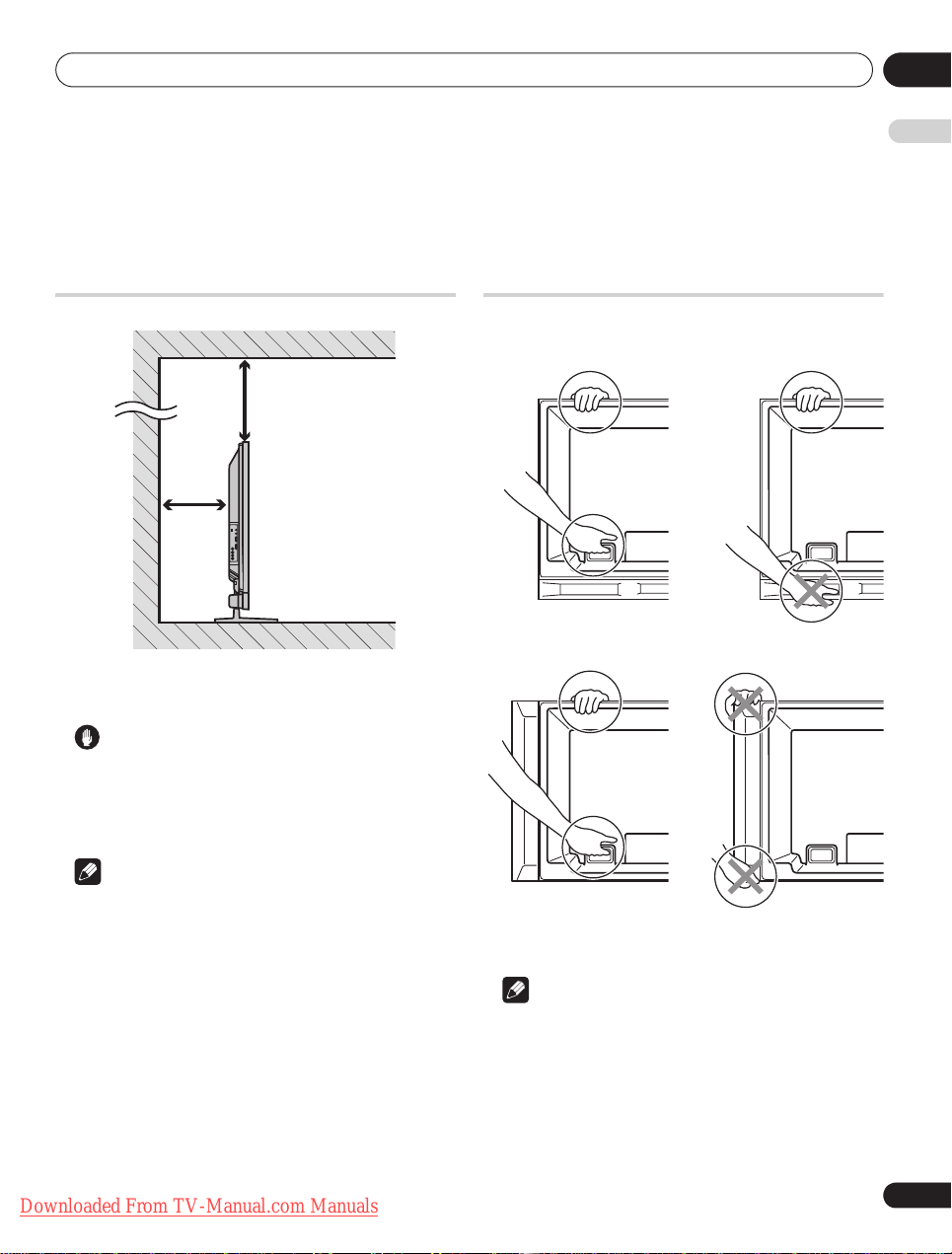

VENTILATION CAUTION
When installing this unit, make sure to leave space
around the unit for ventilation to improve heat
radiation. For the minimum space required, see
page 15.
WARNING
Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the
product, and to protect it from overheating. To
prevent fire hazard, the openings should never be
blocked or covered with items (such as
newspapers, table-cloths, curtains) or by operating
the equipment on thick carpet or a bed.
Operating Environment
Operating environment temperature and humidity:
+0 ˚C to +40 ˚C (+32 ˚F to +104 ˚F); less than 85 %RH
(cooling vents not blocked)
Do not install this unit in a poorly ventilated area, or in
locations exposed to high humidity or direct sunlight (or
strong artificial light)
D3-4-2-1-7c_A_En
WARNING
To prevent a fire hazard, do not place any naked
flame sources (such as a lighted candle) on the
equipment.
D3-4-2-1-7a_A_En
This product complies with the Low Voltage Directive
2006/95/EC and EMC Directive 2004/108/EC.
D3-4-2-1-9a_A_En
WARNING
This equipment is not waterproof. To prevent a fire
or shock hazard, do not place any container filled
with liquid near this equipment (such as a vase or
flower pot) or expose it to dripping, splashing, rain
or moisture.
D3-4-2-1-3_B_En
PDP-LX6090.book Page 3 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Contents
4
En
Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to operate your model properly. After you
have finished reading the instructions, put them away in a safe place for future reference.
In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown
in the explanatory drawings. However the method of connecting and operating the unit are the same.
Contents
01 Important user information . . . . . . . . . 6
02 Safety precautions . . . . . . . . . . . . . . . . . 9
Installation precautions. . . . . . . . . . . . . . . . . . . . . . . . .10
03 Supplied accessories . . . . . . . . . . . . . . 11
04 Part names . . . . . . . . . . . . . . . . . . . . . . 12
Flat screen TV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Remote control unit. . . . . . . . . . . . . . . . . . . . . . . . . . . .14
05 Preparation . . . . . . . . . . . . . . . . . . . . . . 15
Installing the flat screen TV. . . . . . . . . . . . . . . . . . . . . .15
Moving the flat screen TV . . . . . . . . . . . . . . . . . . . . . . .15
Preventing the flat screen TV from falling over . . . . . .16
Basic connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Preparing the remote control unit . . . . . . . . . . . . . . . .19
Operating range of the remote control unit . . . . . . . .19
06 Watching TV . . . . . . . . . . . . . . . . . . . . . 20
Turning the power on . . . . . . . . . . . . . . . . . . . . . . . . . .20
Placing the system into standby . . . . . . . . . . . . . . . . .20
Changing channels . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Tuning to your favourite (analogue) channels. . . . . . .22
Changing the volume and sound . . . . . . . . . . . . . . . . .22
Switching the broadcast audio channel . . . . . . . . . . .23
Using the multiscreen functions . . . . . . . . . . . . . . . . .23
Freezing images. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
07 The HOME MENU . . . . . . . . . . . . . . . . . 25
HOME MENU overview . . . . . . . . . . . . . . . . . . . . . . . . .25
Using the HOME MENU . . . . . . . . . . . . . . . . . . . . . . . .26
08 Setting up. . . . . . . . . . . . . . . . . . . . . . . 27
Setting up TV channels . . . . . . . . . . . . . . . . . . . . . . . . .27
Setting up analogue TV channels manually . . . . . . . .27
Reducing video noise . . . . . . . . . . . . . . . . . . . . . . . . . .28
Setting Channel Lock . . . . . . . . . . . . . . . . . . . . . . . . . .28
Selecting a decoder input terminal . . . . . . . . . . . . . . .28
Labeling TV channels . . . . . . . . . . . . . . . . . . . . . . . . . .29
Sorting preset TV channels. . . . . . . . . . . . . . . . . . . . . .29
Language setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
AV Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Basic picture adjustments . . . . . . . . . . . . . . . . . . . . . .31
Advanced picture adjustments . . . . . . . . . . . . . . . . . .32
Comparing picture adjustments on the screen . . . . .35
Sound adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Using AVC (Auto Volume Control) . . . . . . . . . . . . . . . .37
Power Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
09 Enjoying DTV broadcasts . . . . . . . . . . 39
Watching DTV programmes . . . . . . . . . . . . . . . . . . . . .39
Reconfiguring the DTV channel settings. . . . . . . . . . .40
Customizing channel related settings . . . . . . . . . . . . .41
Selecting a digital audio format . . . . . . . . . . . . . . . . . .43
Selecting languages for audio, subtitles, and
teletext. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Using Software Update . . . . . . . . . . . . . . . . . . . . . . . . .43
Screen Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Common Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Illustrations shown in this manual are for the PDP-LX5090 unless otherwise specified.
PDP-LX6090.book Page 4 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Contents
5
En
English
10 Using the Electronic Programme Guide
(EPG)(for DTV only). . . . . . . . . . . . . . . . 46
EPG display format. . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Using the EPG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Presetting TV programmes using the EPG . . . . . . . . 47
Using other useful EPG functions . . . . . . . . . . . . . . . 50
11 Useful adjustment settings . . . . . . . . . 51
Switching the vertical drive mode
(AV source only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Adjusting image positions
(AV source only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Adjusting image positions and clock automatically
(PC source only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Adjusting image positions and clock manually
(PC source only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Selecting an input signal type. . . . . . . . . . . . . . . . . . . 52
Colour system setting . . . . . . . . . . . . . . . . . . . . . . . . . 53
Selecting a game mode. . . . . . . . . . . . . . . . . . . . . . . . 53
Selecting a screen size manually . . . . . . . . . . . . . . . . 53
Selecting a screen size automatically . . . . . . . . . . . . 54
Detecting side masks. . . . . . . . . . . . . . . . . . . . . . . . . . 54
Changing the brightness at both sides of the screen
(Side Mask) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Room Light Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Blue LED Dimmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Orbiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Video Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Screen Protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Using a password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
12 Using with other equipment . . . . . . . 58
Connecting a DVD player . . . . . . . . . . . . . . . . . . . . . . 58
Connecting a decoder . . . . . . . . . . . . . . . . . . . . . . . . . 58
Connecting a VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Using the SCART output function . . . . . . . . . . . . . . . 59
Switching the SCART output. . . . . . . . . . . . . . . . . . . . 60
Connecting a game console or camcorder . . . . . . . . 60
Connecting a personal computer . . . . . . . . . . . . . . . . 61
Connecting an amplifier/AV receiver . . . . . . . . . . . . . 61
Using the HDMI Input . . . . . . . . . . . . . . . . . . . . . . . . . 62
Connecting control cords . . . . . . . . . . . . . . . . . . . . . . 64
Using i/o link.A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Enjoying through USB interface (Home Gallery
function) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Controlling other equipment using the supplied
remote control unit. . . . . . . . . . . . . . . . . . . . . . . . . . 69
13 Using the HDMI Control . . . . . . . . . . . 74
Using the HDMI Control functions . . . . . . . . . . . . . . . 74
Making the HDMI Control connections . . . . . . . . . . . 75
Setting the HDMI Control . . . . . . . . . . . . . . . . . . . . . . 77
Using the HDMI Control menus . . . . . . . . . . . . . . . . . 79
14 Using Teletext . . . . . . . . . . . . . . . . . . . 80
Using the Teletext functions . . . . . . . . . . . . . . . . . . . . 80
Operating the Teletext basics . . . . . . . . . . . . . . . . . . . 80
15 Additional information. . . . . . . . . . . . 82
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Signal names for 15-pin mini D-sub connecter. . . . . 84
SCART pin assignments . . . . . . . . . . . . . . . . . . . . . . . 85
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
PDP-LX6090.book Page 5 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Important user information01
6
En
Chapter 1
Important user information
In order to obtain maximum enjoyment from this Pioneer
PDP-LX6090/PDP-LX5090 flat screen TV, please first read this
information carefully.
With the Pioneer PDP-LX6090/PDP-LX5090, you can be assured of
a high quality flat screen TV with long-life and high reliability. To
achieve images of exceptional quality, this Pioneer flat screen TV
incorporates state-of-the-art design and construction, as well as
very precise and highly advanced technology.
The Pioneer PDP-LX6090/PDP-LX5090 flat screen TV incorporates
the latest in colour filter technology: Direct Colour Filter. This
improves the colour /picture reproduction of these models as
compared to previous models. It also eliminates the need for a
physical glass panel to be placed in front of the plasma display,
which furthers Pioneer’s continued goal of reducing environmental
waste in consumer electronics, now during the manufacturing
process and in the future during the recycling process.
Over the course of its lifetime, the luminosity of the Pioneer
PDP-LX6090/PDP-LX5090 flat screen TV will diminish very slowly,
such as with all phosphor-based screens (for example, a traditional
tube-type television). To enjoy beautiful and bright images on your
Pioneer flat screen TV for a long time, please carefully read and
follow the usage guidelines below:
Usage guidelines
All phosphor-based screens (including conventional tube-type
televisions) can be affected by displaying static images for a
prolonged period. Flat screen TVs are no exception to this rule.
After-image and permanent effects on the screen can be avoided by
taking some basic precautions. By following the recommendations
listed below, you can ensure longer and satisfactory results from
your flat screen TV:
• Whenever possible, avoid frequently displaying the same image
or virtually still moving pictures (e.g. closed-captioned images
or video game images which have static portions).
• Do not display Teletext for a prolonged period of time.
• Avoid viewing the on-screen display for extended periods, from
a decoder, DVD player, VCR and all other components.
• Do not leave the same picture freeze-framed or paused
continuously over a long period of time, when using the still
picture mode from a TV, VCR, DVD player or any other
component.
• Images which have both very bright areas and very dark areas
side by side should not be displayed for a prolonged period of
time.
• When playing a video game, the “GAME” mode setting within
“AV Selection” is strongly recommended. However, please do
not use this mode for long periods of time.
• After playing a game or displaying any still image, it is best to
view a normal moving picture in the “WIDE” or “FULL” screen
setting for more than three times the length of the previous still/
moving image.
• After using the flat screen TV, always switch the display to
“STANDBY” mode.
Installation guidelines
The Pioneer PDP-LX6090/PDP-LX5090 flat screen TV incorporates a
very thin design. To ensure safety, please take the proper measures
to mount or install the flat screen TV, in order to prevent the unit
from tipping over in the event of vibration or accidental movement.
This product should be installed by using only parts and
accessories designed by Pioneer. Use of accessories other than the
Pioneer stand or installation bracket may result in instability, and
could cause injury. For custom installation, please consult the
dealer where the unit was purchased. To ensure correct installation,
experienced and qualified experts must install the unit.
Pioneer will not be responsible for accident or damage caused by
the use of parts and accessories manufactured by other
companies, inadequate installation or stabilization, erroneous
operation, remodeling or natural disasters.
To avoid malfunction and overheating, make sure that the vents on
the main unit are not blocked when installing to ensure proper heat
emission:
• Distance the unit slightly from other equipment, walls, etc. For
the minimum space required around the unit, see page 15.
• Do not fit the unit inside narrow spaces where ventilation is
poor.
• Do not cover with a cloth, etc.
• Clean the vents on the sides and rear of the unit to remove dust
build-up, by using a vacuum cleaner set to its lowest suction
setting.
• Do not place the product on a carpet or blanket.
• Do not leave the product tilted over.
• Do not turn the product upside down.
Using the unit without proper ventilation may cause the internal
temperature to rise, and could result in possible malfunction. When
the surrounding or internal temperature exceeds a certain degree,
the display will automatically power off in order to cool the internal
electronics and prevent hazardous occurrences.
Any malfunction may occur due to: an inappropriate installation
site, improper assembly, installation, mounting, or operation of this
product, modifications made to the product. However, Pioneer
cannot be held responsible for such accidents or malfunction.
Note
The following are typical effects and characteristics of a
phosphor-based matrix display and as such, are not covered by
the manufacturer’s limited warranties:
• Permanent residual images upon the phosphors of the panel.
• The existence of a minute number of inactive light cells.
• Panel generated sounds, examples: Fan motor noise, and
electrical circuit humming/glass panel buzzing
PDP-LX6090.book Page 6 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Important user information 01
7
En
English
Caution
• Pioneer bears no responsibility for any damage arising from
incorrect use of the product by you or other people,
malfunctions when in use, other product related problems, and
use of the product except in cases where the company must be
liable.
Flat screen TV protection function
When still images (such as photos and computer images) stay on
the screen for an extended period of time, the screen will be slightly
dimmed. This is because the protection function of the flat screen
TV automatically adjusts the brightness to protect the screen when
detecting still images; so this does not designate malfunction. The
screen is dimmed when a still image is detected for about three
minutes.
Information of pixel defect
Plasma TVs displays information using pixels. Pioneer flat screen TV
panels contain a very large number of pixels. (Depending on the
panel size; over 3.1 million pixels for a 50 inch/60 inch display). All
Pioneer display panels are manufactured using a very high level of
ultra-precision technology and undergo individual quality control.
In rare cases, some pixels can be permanently switched off, or on,
resulting in either a black or coloured pixel permanently fixed on the
screen.
This effect is common to all plasma TVs because it is a
consequence of the technology.
If the defective pixels are visible at a normal viewing distance of
between 2.5 meters and 3.5 meters whilst viewing a normal
broadcast (i.e. not a test card, still image or single colour display)
please contact the supplying dealer.
If, however, they can only be seen close up or during single colour
displays then this is considered normal for this technology.
Infrared rays
The flat screen TV releases infrared rays because of its
characteristics. Depending on how the flat screen TV is used, the
remote controls of nearby equipment may be adversely affected or
wireless headphones using infrared rays are interfered by noise. If
this is the case, place that equipment at a location where its remote
control sensor is not affected.
Radio interference
While this product meets the required specifications, it emits a
small amount of noise. If you place such equipment as an AM radio,
personal computer, and VCR close to this product, that equipment
may be interfered. If this happens, place that equipment far enough
from this product.
Flat screen TV driving sound
The screen of the flat screen TV is composed of extremely fine pixels
and these pixels emit light according to received video signals. This
principle may make you hear buzz sound or electrical circuit
humming from the flat screen TV.
Do not attach such items as labels and tape to the
product
This may result in the discolouration or scratch of the cabinet.
When not using the product for a long period of time
If you do not use the product for a long period of time, the functions
of the product may be adversely affected. Switch on and run the
product occasionally.
Condensation
Condensation may take place on the surface or inside of the
product when the product is rapidly moved from a cold place to a
warm place or just after a heater is switched on in winter morning,
for example. When condensation takes place, do not switch on the
product and wait until condensation disappears. Using the product
with condensation may result in malfunction.
Cleaning the surface of the screen
When cleaning the screen surface, gently wipe it with the supplied
dry cleaning cloth.
Caution
Rubbing hard on the screen can scratch the special film coating the
surface. If cleaning gently with the dry cloth is not enough to
remove grime, unplug the power cord from the outlet and follow the
procedure below.
1. Soak a piece of soft, untreated cloth in distilled water.
A “treated” cloth contains polish or other chemicals, such as in a
commercially available eyeglass cleaning towelette.
2. Wring out the cloth so that it is slightly damp, not wet.
Make sure to wring out the cloth completely. Cleaning the surface
with a wet cloth can allow water to seep into the unit, causing
damage.
3. Gently wipe the surface of the screen with the damp cloth.
4. Wipe the surface again using the dry cloth included with your
panel to remove any remaining dampness and to prevent
streaks.
Cleaning the glossy surface of the front cabinet
When cleaning the glossy surface of the front cabinet, gently wipe
it with a dry soft cloth; the supplied cleaning cloth or other similar
cloths (e.g., cotton and flannel). If you use a dusty or hard cloth, the
surface of the product will be scratched.
Cleaning the cabinet
When cleaning the cabinet of this product, gently wipe it with a
clean soft cloth (e.g., cotton and flannel). If you use a dusty or hard
cloth or if you rub the cabinet hard, the surface of the cabinet will
be scratched.
The cabinet of this product is mostly composed of plastic. Do not
use chemicals such as benzene or thinner to clean the cabinet.
Using these chemicals may result in quality deterioration or coating
removal.
Do not expose the product to volatile gas or fluid such as pesticide.
Do not make the product contact with rubber or vinyl products for a
long period of time. The effect of plasticizer in the plastic may result
in quality deterioration or coating removal.
If you clean the surface of the cabinet with a wet cloth, water
droplets on the surface may enter into the product, resulting in
malfunction.
PDP-LX6090.book Page 7 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Important user information01
8
En
Handles at the rear of the flat screen TV
Do not remove the handles from the rear of the flat screen TV.
When moving the flat screen TV, ask another person for help and
use the handles attached to the rear of the flat screen TV. Do not
move the flat screen TV by holding only a single handle.
Do not use the handles to hang the product when installing or
carrying the product, for example. Do not use the handles for the
purpose of preventing the product from tilting over.
Fan motor noise
The rotation speed of the cooling fan motor increases when the
ambient temperature of the flat screen TV becomes high. You may
hear the sound of the fan motor at that time.
To use this product for a long period of time
The Energy Save function can maintain efficiency of the screen for
a long period of time. Setting the Energy Save function to “Mode1”
is recommended in order to maintain the efficiency of the screen for
a long period of time.
Caution
Panel sticking and after-image lag
Displaying the same images such as still images for a long time
may cause after-image lagging. This may occur in the following two
cases.
After-image lagging due to remaining electrical load
When image patterns with very high peak luminance are displayed
for more than one minute, after-image lagging may occur due to the
remaining electric load. The after-images remaining on the screen
will disappear when moving images are displayed. The time for the
after-images to disappear depends on the luminance of the still
images and the time they had been displayed.
After-image (lag image) due to burning
Avoid displaying the same image on the flat screen TV continuously
over a long period of time.
If the same image is displayed continuously for a long period, or for
shorter periods of time over several days, a permanent after-image
may remain on the screen due to burning of the fluorescent
materials. Such images may become less noticeable if moving
images are later displayed, but they will not disappear completely.
Note
• To prevent damage from screen burning this flat screen TV will
automatically - after a display time of 5 to 10 minutes - turn off
those still images generated by the system itself: the Home
Gallery function and Graphical User Interface elements such as
HOME MENU and the Electronic Programme Guide.
• To prevent screen burning, the display position is automatically
changed imperceptibly when watching flat screen TV (see
Orbiter on page 55).
Preventing damage from screen burning
• We recommend that you enjoy watching images displayed in
full screen, except when doing so may result in copyright
infringement (see page 53).
• Set the Side Mask detection function to “On”, the High
Definition 16:9 aspect ratio images containing side masks will
be detected and the side masks will be added automatically or
the image displayed in full screen, leading to more effective
countermeasures taken for the screen burning (see Detecting
side masks on page 54).
PDP-LX6090.book Page 8 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Safety precautions 02
9
En
English
Chapter 2
Safety precautions
Electricity is used to perform many useful functions, but it can also
cause personal injuries and property damage if improperly handled.
This product has been engineered and manufactured with the
highest priority on safety. However, improper use can result in
electric shock and/or fire. In order to prevent potential danger,
please observe the following instructions wheninstalling, operating
and cleaning the product. To ensure your safety and prolong the
service life of your product, please read the following precautions
carefully before using the product.
1. Read instructions - All operating instructions must be read and
understood before the product is operated.
2. Keep this manual in a safe place - These safety and operating
instructions must be kept in a safe place for future reference.
3. Observe warnings - All warnings on the product and in the
instructions must be observed closely.
4. Follow instructions - All operating instructions must be
followed.
5. Cleaning - Unplug the power cord from the AC outlet before
cleaning the product. To clean the product, use the supplied
cleaning cloth or other soft clothes (e.g., cotton, flannel). Do
not use liquid cleaners or aerosol cleaners.
6. Attachments - Do not use attachments not recommended by
the manufacturer. Use of inadequate attachments can result
in accidents.
7. Water and moisture - Do not use the product near water, such
as bathtub, washbasin, kitchen sink and laundry tub,
swimming pool and in a wet basement.
8. Stand - Do not place the product on an unstable cart, stand,
tripod or table. Placing the product on an unstable base can
cause the product to fall, resulting in serious personal injuries
as well as damage to the product. Use only a cart, stand, tripod,
bracket or table recommended by the manufacturer or sold
with the product. When mounting the product on a wall, be
sure to follow the manufacturer’s instructions. Use only the
mounting hardware recommended by the manufacturer.
9. When relocating the product placed on a cart, it must be
moved with utmost care. Sudden stops, excessive force and
uneven floor surface can cause the product to fall from the
cart.
10. Ventilation - The vents and other openings in the cabinet are
designed for ventilation. Do not cover or block these vents and
openings since insufficient ventilation can cause overheating
and/or shorten the life of the product. Do not place the product
on a bed, sofa, rug or other similar surface, since they can
block ventilation openings. This product is not designed for
built-in installation; do not place the product in an enclosed
place such as a bookcase or rack, unless proper ventilation is
provided or the manufacturer’s instructions are followed.
11. Power source - This product must operate on a power source
specified on the specification label. If you are not sure of the
type of power supply used in your home, consult your dealer or
local power company.
12. Power cord protection - The power cords must be routed
properly to prevent people from stepping on them or objects
from resting on them. Check the cords at the plugs and product.
13. The plasma display panel used in this product is made of glass.
Therefore, it can break when the product is dropped or applied
with impact. Be careful not to be injured by broken glass pieces
in case the plasma display panel breaks.
14. Overloading - Do not overload AC outlets or extension cords.
Overloading can cause fire or electric shock.
15. Entering of objects and liquids - Never insert an object into the
product through vents or openings. High voltage flows in the
product, and inserting an object can cause electric shock and/
or short internal parts. For the same reason, do not spill water
or liquid on the product.
16. Servicing - Do not attempt to service the product yourself.
Removing covers can expose you to high voltage and other
dangerous conditions. Request a qualified service person to
perform servicing.
17. Repair - If any of the following conditions occurs, unplug the
power cord from the AC outlet, and request a qualified service
person to perform repairs.
a. When the power cord or plug is damaged.
b. When a liquid was spilled on the product or when objects
have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described
in the operating instructions.
Do not touch the controls other than those described in the
operating instructions. Improper adjustment of controls not
described in the instructions can cause damage, which often
requires extensive adjustment work by a qualified technician.
e. When the product has been dropped or damaged.
f. When the product displays an abnormal condition. Any
noticeable abnormality in the product indicates that the
product needs servicing.
18. Replacement parts - In case the product needs replacement
parts, make sure that the service person uses replacement
parts specified by the manufacturer, or those with the same
characteristics and performance as the original parts. Use of
unauthorized parts can result in fire, electric shock and/or
other danger.
19. Safety checks - Upon completion of service or repair work,
request the service technician to perform safety checks to
ensure that the product is in proper operating condition.
20. Wall or ceiling mounting - When mounting the product on a
wall or ceiling, be sure to install the product according to the
method recommended by the manufacturer.
21. Heat sources - Keep the product away from heat sources such
as radiators, heaters, stoves and other heat-generating
products (including amplifiers).
22. Unplug the power cord from the AC outlet before installing the
speakers.
23. Never expose the screen of the flat screen TV to a strong
impact, for example, by hitting it. The screen may be broken,
resulting in fire or personal injury.
24. Do not expose the flat screen TV to direct sunlight for a long
period of time. The optical characteristics of the front
protection panel changes, resulting in discoloration or warp.
25. The flat screen TV weighs about 50.8 kg (112.0 lbs.) for the PDP-
LX6090 and about 33.5 kg (73.9 lbs.) for the PDP-LX5090.
Because it has small depth and is unstable, unpack, carry, and
install the product with one more person at least and use the
handles.
PDP-LX6090.book Page 9 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Safety precautions02
10
En
Installation precautions
Observe the following precautions when installing with any items
such as the optional stand.
When using the optional stand, brackets, or equivalent
items
• Ask your dealer to perform the installation.
• Be sure to use the supplied bolts.
• For details, see the instruction manual that comes with the
optional stand (or equivalent items).
When using other items
• Consult your dealer.
• The following mounting holes can be used for the installation:
Rear view
(PDP-LX6090)
(PDP-LX5090)
Caution
• Use M8 screws, which go 12 mm to 18 mm in depth from the
mounting surface of the flat screen TV. See the side view
shown to the right.
• Be careful not to block the ventilation opening at the rear of the
flat screen TV.
• Be sure to install the flat screen TV on a flat surface because it
contains glass.
• The screw holes other than the illustrations on the left are to be
used only for the specified products. Never use them for
mounting non-specified products.
• Do not mount or remove the flat screen TV to or from the stand,
with speakers attached.
Note
• It is strongly recommended to use the optional Pioneer
mounting products.
• Pioneer shall not be liable for any personal injury or product
damage that results from the use of mounting items other than
the optional Pioneer products.
Side view
Mounting
holes
Mounting
holes
T
W
W
W
T
W
W
W
Mounting holes
Mounting
holes
Mounting surface
Flat screen TV
M8 screw
12 mm to 18 mm
Mounting bracket
(or equivalent item)
PDP-LX6090.book Page 10 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Supplied accessories 03
11
En
English
Chapter 3
Supplied accessories
Check that all of the following accessories are supplied in the box.
Power cable
Only the power cable appropriate for your country or region is
supplied:
Remote control unit
AA size battery x 2
(for remote control unit)
Ferrite core
Cable tie (for ferrite core)
Cable clamp x 4
Cleaning cloth
Warranty card
Operating instructions x 2
For Europe,except UK and Republic of Ireland
For UK and Republic of Ireland
PDP-LX6090.book Page 11 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Part names04
12
En
Chapter 4
Part names
Flat screen TV
(Front)
1button (This button is located at the bottom on the rear
panel. (See on page 13.) If the button is off, the power will
not turn on even when , 0to 9on the remote control unit or
STANDBY/ON on the flat screen TV is pressed. To turn on the
power, press .)
2POWER ON indicator
3STANDBY indicator
4TIMER indicator
• The TIMER indicator lights up when one or more DTV
programmes are preset for watching or recording (see pages
47 to 49).
5Room Light Sensor
6Remote control sensor
7USB port
8 STANDBY/ON button
9INPUTbutton
10 VOLUME +/– buttons
11 CHANNEL +/– buttons
12 PHONES output terminal
13 INPUT 5 terminal (VIDEO)
14 INPUT 5 terminals (AUDIO)
8
1 2 4356
8
9
7
11
12
13
14
8
10
1
The terminals on side panels are common to the PDP-LX6090 and PDP-LX5090.
(PDP-LX5090)
(
PDP-LX6090
)
Side
1
PDP-LX6090.book Page 12 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Part names 04
13
En
English
Flat screen TV
(Rear)
1button
2ANT (Antenna) input terminal
• Power can be supplied through this terminal
3COMMON INTERFACE slot
• For a CA Module with a smart card
4PC INPUT terminal (Analogue RGB)
5AC IN terminal
6INPUT 1 terminal (HDMI)
7INPUT 3 terminal (HDMI)
8INPUT 4 terminal (HDMI)
9RS-232C terminal (used for factory setup)
10 INPUT 1 terminal (SCART)
11 INPUT 2 terminal (SCART)
12 INPUT 3 terminal (SCART)
13 INPUT 2 terminals (Audio)
14 INPUT 2 terminals (COMPONENT VIDEO: Y, PB, PR)
15 AUDIO OUT terminals
16 PC INPUT terminal (Audio)
17 DIGITAL OUT terminal (OPTICAL)
18 SUB WOOFER OUT terminal
19 CONTROL OUT terminal (supports SR+)
20 SPEAKERS terminals (right/left)
• Do not connect any devices to the speaker terminals other than
the speakers specified.
• Do not leave speaker cable wires bare and exposed at the
terminals. Exposed wires can result in an electrical short
causing malfunction or damage to the system.
T
W
W
W
T
W
W
W
5432
11
16
13 15
17
18
6 7 8 9 10 11 12 20
14
19
The terminals on the rear panel are common to the PDP-LX6090 and PDP-LX5090.
*For exact terminal positions, refer to the terminal
position sheet located near the terminal compartment.
(
PDP-LX5090
)
(PDP-LX6090)
Terminals in upper bank
Terminals in middle bank
PDP-LX6090.book Page 13 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Part names04
14
En
Remote control unit
This section describes the functions of the buttons available when
the TV mode has been selected by using the SELECT button. For the
buttons controlling other equipment, see Controlling other
equipment using the supplied remote control unit starting from
page 69.
1TV: Turns on the power to the flat screen TV or places it into
the standby mode.
2 INPUT: Selects an input source of the flat screen TV. (“INPUT
1”, “INPUT 2”, “INPUT 3”, “INPUT 4”, “INPUT 5”)
3c: Switches the screen mode among 2-screen, picture-in-
picture, and single-screen.
4PC:Selects the PC terminal as an input source.
5:Switches between the two screens when in the 2-screen
or picture-in-picture mode.
60to9:TV/External input mode: Selects a channel.
Teletext mode: Selects a page.
Turns the power on when the STANDBY indicator lights red.
7P+/P–:TV/External input mode: Selects a channel.
w/x: Teletext mode: Selects a page.
8e: Mutes the sound.
9EXIT:Returns to the normal screen in one step.
10 ///: Selects a desired item on the setting screen.
ENTER: Executes a command.
11 HOME MENU: Displays the HOME MENU screen.
12 Colour (RED/GREEN/YELLOW/BLUE):
Teletext mode: Selects a page.
13 [: Jumps to Teletext subtitle page.
Turns subtitle on and off in DTV input mode depending on the
broadcast.
14 k: Displays hidden characters.
15 g: Sets the sound multiplex mode.
16 d: TV/External input mode: Freezes a frame from a moving
image. Press again to cancel the function.
: Teletext mode: Stops updating Teletext pages. Press
again to release the hold mode.
17 TV, STB, DVD/DVR, VCR: These indicators show the
current selection and status when you control other connected
equipment, using the supplied remote control unit.
18 HDMI CONTROL: Displays the HDMI Control menu.
19 pyINFO: Displays the channel information.
Displays the banner information in DTV input mode.
20 TV/DTV: Switches between the TV and DTV input modes.
21 : Moves the location of the small screen when in the
picture-in-picture mode.
22 i+/i–: Sets the volume.
23 EPG: Displays the Electronic Programme Guide in DTV input
mode.
24 RETURN: Restores the previous menu screen.
25 m: Selects the Teletext mode (all TV image, all TEXT image,
TV/TEXT image).
26 l: Displays an Index page for the CEEFAX/FLOF format.
Displays a TOP Over View page for the TOP format.
27 f: Selects the screen size.
28 SELECT: Switches the selection among TV, STB, DVD/DVR,
and VCR, so that you can control other connected equipment,
using the supplied remote control unit.
Note
• When using the remote control unit, point it at the flat screen
TV.
SOURCE
TV
STB DVR VCR
SELECT
DVDTOOLS HDD
HOME
MENU
RETURN
EXIT
EPG
P
456
789
0
123
TV/DTV
HDMI
CTRL
INFO
PC
1234
5
TV
INPUT
ENTER
DVD
TOPMENU
/GUIDE
DVD
MENU
1
2
3
6
20
21
18
19
22
24
28
23
25
26
27
4
5
7
10
11
9
12
13
14
15
16
17
8
PDP-LX6090.book Page 14 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Preparation 05
15
En
English
Chapter 5
Preparation
Installing the flat screen TV
Location
• Avoid direct sunlight. Maintain adequate ventilation.
Caution
• If you do not leave sufficient space above the flat screen TV, it
will not receive enough ventilation and will not operate properly.
• Pioneer will not be responsible for accident or damage caused
by inadequate installation or stabilization, erroneous operation,
remodeling or natural disasters.
Note
• Allow enough space around the upper and back parts when
installing to ensure adequate ventilation of the rear of the unit.
• Be sure to install the flat screen TV in a flat, stable location.
Using the optional Pioneer stand
For details on installation, refer to the instruction manual supplied
with the stand.
Using the optional Pioneer speakers
For details on installation, refer to the instruction manual supplied
with the speakers.
Moving the flat screen TV
When installing on a rack, etc., hold the flat screen TV as shown
below. Because the flat screen TV is heavy, be sure to have someone
help you when moving it.
The instructions are for both PDP-LX5090 and PDP-LX6090
(illustrations shown are for PDP-LX5090).
Note
• Do not use the speaker to support the weight of the flat screen
TV.
• Do not hold the flat screen TV by the speaker mounting fittings.
Over 50 cm
Over
10 cm
(Under speaker)
(Side speaker)
PDP-LX6090.book Page 15 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Preparation05
16
En
Preventing the flat screen TV from
falling over
After installing the stand, be sure to take special care to ensure that
the flat screen TV will not fall over and is stabilized to both the wall
and rack.
Stabilizing on a table or rack
Stabilize the flat screen TV as shown in the diagram using the metal
fittings and screws supplied with the optional stand.
Note
• Before stabilizing the flat screen TV on a stand or rack, make
sure that the metal fittings are attached to the stand.
• To stabilize the flat screen TV on a table or rack, also use
commercially available wood screws that have a nominal
diameter of 4 mm and that are at least 20 mm long.
Drill a hole in the middle at the rear of the tabletop panel before
using a wood screw. Perform this work the same way on the left and
right sides.
Drill a hole in the middle at the rear of the tabletop panel before
using a wood screw. Perform this work the same way on the left and
right sides.
Using a wall for stabilization
1 Attach falling prevention bolts (hooks) to the flat screen TV.
2 Use strong cords to stabilize it appropriately and firmly to a
wall, pillar, or other sturdy element.
Perform this work in the same way on the left and right sides.
Use hooks, cords and fittings that are available on the market.
Recommended hook: Nominal diameter 8 mm, length 12 mm to
18 mm
(PDP-LX6090)
Wood screw
(commerciallyavailable,
4 mm x 20 mm min.)
20 mm min
4 mm
8 mm to 15 mm
(PDP-LX5090)
Wood screw
(commerciallyavailable,
4 mm x 20 mm min.)
20 mm min
4 mm
8 mm to 15 mm
M8
12 mm to 18 mm
1.Hook
2.Cord
Fitting
PDP-LX6090.book Page 16 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Preparation 05
17
En
English
Caution
• A table or rack with adequate strength should always be used to
support the flat screen TV. Failure to do so could result in
personal injury and physical damage.
• When installing the flat screen TV, please take the necessary
safety measures to prevent it from falling or overturning in case
of emergencies, such as earthquakes, or of accidents.
• If you do not take these precautions, the flat screen TV could fall
down and cause injury.
• The screws, hooks, cords and other fittings that you use to
secure the flat screen TV to prevent it from overturning will vary
according to the composition and thickness of the surface to
which it will be attached.
• Select the appropriate screws, hooks, cords, and other fittings
after first inspecting the surface carefully to determine its
thickness and composition and after consulting a professional
installer if necessary.
Basic connections
Connecting the antenna
To enjoy a clearer picture, use an outdoor antenna. The following is
a brief explanation of the types of connections that are used for a
coaxial cable.
Caution
• When the “Aerial Power” setting is on, directly connect the
aerial to the ANT input terminal at the rear of the flat screen TV.
Connecting any device between the aerial and flat screen TV
may cause damage to the device.
• Connect a 75-ohm coaxial cable (commercially available) to the
ANT terminal.
• If “Aerial Power” setting is enabled, use an indoor antenna with
signal amplifier, 5 V 30 mA.
Antenna cable (commercially available)
If your outdoor antenna uses a 75-ohm coaxial cable with a
standard DIN45325 plug (IEC169-2), plug it into the antenna
terminal at the rear of the flat screen TV.
Note
• If the antenna is not connected correctly, the quality of
reception may be impaired. If images are not displaying
correctly, check whether the antenna connection is correct or
not.
Routing cables
When the speaker is mounted to the flat screen TV panel:
Note
• Use the supplied cable clamps as necessary.
• When tidying up your speaker cables, make sure to bundle them
so that they are not subjected to any pressure.
T
W
T
W
Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable)
(commercially available)
Rear view
Speaker cable
(Side speaker)
Cable clamp
(PDP-LX6090)
T
W
T
W
(PDP-LX5090) Speaker cable
(Side speaker)
Cable clamp
Speaker cable
(Under speaker
)
Cable clamp
(PDP-LX6090)
Speaker cable
(Under speaker)
Cable clamp
(PDP-LX5090)
PDP-LX6090.book Page 17 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Preparation05
18
En
Attaching cable clamps to the main unit
Use the cable clamps as necessary to route the connecting cables.
The diagrams below show the location of the holes on the rear of the
flat screen TV.
(PDP-LX6090)
(PDP-LX5090)
Attaching and removing a cable clamp
Thread the clamp band through the holder [1] and bundle the
cable(s) in the cable clamp. Push and hold the levers then insert the
hook into an appropriate hole [2] on the rear of the flat screen TV.
Pull up the clamp band to lock.
• Confirm that the cable clamp is seated firmly in the panel.
To remove the clamp band, pull and hold the latch to release.
To remove the cable clamp, push and hold the levers then pull it out
from the hole.
Note
• Avoid pinching or creating pressure points when routing or
bundling cables.
• The longer a clamp is in place, the better chance of
deterioration. An older clamp is more easily damaged while
being removed and may not be reusable.
• Use the cable clamps as necessary.
• Be careful not to subject any connecting cables to strain.
Attaching the ferrite core
Attach the accessory ferrite core to the end of the power cord as
shown in the accompanying illustration. Use the provided cable tie
to prevent the ferrite core from slipping on the cable.
If you do not do this, the flat screen TV will not conform to
mandatory CE standards.
Connecting the power cord
Note
• Disconnect the power cord from the power outlet when the flat
screen TV is not going to be used for a long period of time.
• Insert the power plug in the AC outlet, after all other
components are connected.
T
W
T
W
1
2Cable clamp
Latch Lever
Lever
1
2
34
Ferrite core
Cable tie
AC power cord
To power outlet
As close as possible
T
W
T
W
Rear view
Europe,except UK and
Republic of Ireland
UK and Republic of Ireland
Power code
PDP-LX6090.book Page 18 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Preparation 05
19
En
English
Preparing the remote control unit
Inserting batteries
1 To open push and slide the battery cover in the direction of
the arrows.
2 Load the supplied two AA size batteries while inserting
their respective negative polarity (–) ends first.
Place batteries with their terminals corresponding to the (+) and (–)
indicators in the battery compartment.
3 Close the battery cover.
Caution
Improper use of batteries can result in chemical leakage or an
explosion. Be sure to follow the instructions below.
• When you replace the batteries, use manganese or alkaline
ones.
• Place the batteries with their terminals corresponding to the (+)
and (–) indicators.
• Do not mix batteries of different types. Different types of
batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new batteries
can shorten the life of new batteries or cause chemical leakage
in old batteries.
• Remove batteries as soon as they have worn out. Chemicals
that leak from batteries can cause a rash. If you find any
chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life
expectancy due to storage conditions.
• If you will not use the remote control unit for an extended period
of time, remove the batteries from it.
•WHEN DISPOSING OF USED BATTERIES, PLEASE COMPLY
WITH GOVERNMENTAL REGULATIONS OR
ENVIRONMENTAL PUBLIC INSTITUTION’S RULES THAT
APPLY IN YOUR COUNTRY/AREA.
Operating range of the remote control
unit
Operate the remote control unit while pointing it toward the remote
control sensor located at the bottom right of the front panel of the
flat screen TV. The distance from the remote control sensor must be
within 7 m and the angle relative to the sensor must be within 30
degrees in the right, left, upward, or downward direction.
Note
• For remote control sensor locations, see Part names on page 12.
Caution
• Do not expose the remote control unit to shock. In addition, do
not expose the remote control unit to liquids, and do not place
in an area with high humidity.
• Do not install or place the remote control unit under direct
sunlight. The heat may cause deformation of the unit.
• The remote control unit may not work properly if the remote
control sensor of the flat screen TV is under direct sunlight or
strong lighting. In such case, change the angle ofthe lighting or
flat screen TV, or operate the remote control unit closer to the
remote control sensor.
• When any obstacle exists between the remote control unit and the
remote control sensor, the remote control unit may not function.
• As the batteries become empty, the remote control unit can
function within a shorter distance from the remote control
sensor. Replace the batteries with new ones early enough.
• The flat screen TV emits very weak infrared rays from its screen.
If you place such equipment operated through infrared remote
control as a VCR nearby, that equipment may not receive
commands from its remote control unit properly or entirely. If
this is the case, place that equipment at a location far enough
from the flat screen TV.
• Depending on the installation environment, infrared rays from
the flat screen TV may not allow this system to properly receive
commands from the remote control unit or may shorten
allowable distances between the remote control unit and the
remote control sensor. The strength of infrared rays emitted
from the screen differs, depending on images displayed on the
screen.
PDP-LX6090.book Page 19 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals

Watching TV06
20
En
Chapter 6
Watching TV
Important
• Before watching broadcast channels, the built-in TV tuner must
be set up. See Setting up TV channels on page 27 for how to do
this.
Turning the power on
•Turn a on on the flat screen TV when the POWER ON and
STANDBY indicators are off (see
Part names on pages 12 and
13).
• The system is on.
• The POWER ON indicator lights up blue.
• Press a or 0 to 9 on the remote control unit or STANDBY/ON
on the flat screen TV if the STANDBY indicator lights red.
• The POWER ON indicator lights up blue.
•Ifyoupress0on the remote control unit, images from “INPUT 1”
will be displayed.
• If you press 1to 9, TV images will be displayed.
Placing the system into standby
Press a on the remote control unit or STANDBY/ON on the flat
screen TV.
• The STANDBY indicator lights up red.
• The system enters the standby mode and the image on the
screen disappears.
Note
•When a on the flat screen TV is off, you cannot turn the power on
by pressing
a or 0 to 9 on the remote control unit or STANDBY/
ON
on the flat screen TV.
• It is recommended not to unplug the flat screen TV from a power
outlet when it is not in use. When in the standby mode, the flat
screen TV automatically receives Electronic Programme Guide
and DTV Auto Update signals.
• When the system is placed into standby mode, the main power
flow is cut and the system is no longer fully operational. A minute
flow of power feeds the system to maintain operational readiness.
• If you are not going to use the flat screen TV for a long period of
time, be sure to remove the power cord from the power outlet.
• If you unplug the flat screen TV from a power outlet, the clock
inside the flat screen TV will reset with certain functions, such as
timer recording, are disabled. After plugging in the flat screen TV
again, clock information is automatically obtained as you tune in
a DTV programme.
If you unplug the flat screen TV from a power outlet when a timer
recording programme(s) has been registered, the flat screen TV
may automatically tune in to the DTV programme in order to
obtain clock information when you turn the power on the next
time.
It may take a short while until the clock information is obtained.
An alert will appear when you try to tune in an analogue
programme before obtaining the clock information.
Flat screen TV status indicators
The table below shows the operational status of the flat screen TV.
You can check the current status of the system with the indicators
on the flat screen TV.
For other than the above, see Troubleshooting on page 82.
456
789
0
123
TV/DTV
HDMI
CTRL
INFO
PC
1234
5
TV
INPUT
456
789
0
123
TV
Indicator status System status
POWER ON STANDBY
The power cord of the flat screen TV
has been disconnected. Or, the power
cord of the flat screen TV has been
connected but the
a button of the flat
screen TV is off.
Power to the system is on
The system is in the standby mode
PDP-LX6090.book Page 20 Monday, February 25, 2008 10:08 AM
Downloaded From TV-Manual.com Manuals
