E-1
Built-In Milk -Ice Cream Dispenser
R21 - BI (two compartment) (MILK)
RF21-BI (dual temperature)
(MILK & ICE CREAM)
Models R10-Bl thru RF21-BI refrigerated, built-in type dispensers for
cartoned milk, packaged ice cream, or both.
FRAME AND BODY
The frame is constructed of all welded heavy gauge stainless steel.
The exterior of the body is 18 ga. galvanized steel. The interior liner is
all welded 22 ga. stainless steel, watertight and fitted with a 1/2" I.P.S.
chrome plated bronze drain trap at the bottom. The liner is separated
from the top by full perimeter breaker strips. The entire cabinet is
insulated with 2-1/2" thick poured-inplace polyurethane.
REFRIGERATION SYSTEM
The cabinet is fitted with four-wall copper refrigerant coils to hold
temperatures of 38°F for milk or 0° to -10°F for ice cream. The system
includes an accessible thermostatic expansion valve. The liquid line
connection has a 1/4" flare fitting and the suction line connection has
a 3/8" flare fitting. Two independent systems are included with dual
temperature units (note that two condensing units will be required).
DISPENSING MECHANISM
The cabinet is fitted with one or more removable self-leveling dispensers,
each consisting of an all welded 16 ga. stainless steel frame and a 14 ga.
stainless steel pan-type carrier for the product. The frame and carrier are
connected by a suspension system consisting of a series of stainless steel
coil springs and ball bearing guides designed to keep the carrier level
at all times. Adjustment of the dispensing height for varying weights is
accomplished by engaging or disengaging individual springs. All models
include aluminum trays which function as separators for layers of product.
SELF-CONTAINED MODELS
Self-contained models include an air cooled, hermetically sealed
condensing unit (two with dual temperature units) mounted on an integral
steel frame. The system operates on 120 volts single phase. It includes
a pressure control and is charged with refrigerant ready for use. Final
electrical connections are made by others to a junction box mounted on
the protectivehousing which covers the condensing unit.
OPTIONAL ITEMS
Removable stainless steel plug-type insulated cover(s)
with vinyl perimeter gasket and lift handles.
Additional aluminum trays, 10" x 20" or 20" x 20".
Removable stainless steel adapter collar(s) to fit between
the top opening of the cabinet and the counter top.
Tubular locking device for the cover(s).
PROJECT QUANTITY ITEM NO:
PAGE
REV. 3/04
SPECIFICATIONS
Models R10-Bl thru RF21-BI refrigerated, built-in type dispensers for cartoned milk, packaged ice cream, or both.
FRAME AND BODY: The frame is constructed of all welded heavy gauge stainless steel. The exterior of the body is 18 ga. galvanized
steel. The interior liner is all welded 22 ga. stainless steel, watertight and fitted with a 1/2" I.P.S. chrome plated bronze drain trap at the
bottom. The liner is separated from the top by full perimeter breaker strips. The entire cabinet is insulated with 2-1/2" thick poured-in-
place polyurethane.
REFRIGERATION SYSTEM: The cabinet is fitted with four-wall copper refrigerant coils to hold temperatures of 380F for milk or 00to -100F
for ice cream. The system includes an accessible thermostatic expansion valve. The liquid line connection has a 1/4" flare fitting and
the suction line connection has a 3/8" flare fitting. Two independent systems are included with dual temperature units (note that two
condensing units will be required).
DISPENSING MECHANISM: The cabinet is fitted with one or more removable self-leveling dispensers, each consisting of an all welded
16 ga. stainless steel frame and a 14 ga. stainless steel pan-type carrier for the product. The frame and carrier are connected by a
suspension system consisting of a series of stainless steel coil springs and ball bearing guides designed to keep the carrier level at
all times. Adjustment of the dispensing height for varying weights is accomplished by engaging or disengaging individual springs. All
models include aluminum trays which function as separators for layers of product.
SELF-CONTAINED MODELS: Self-contained models include an air cooled, hermetically sealed condensing unit (two with dual tempera-
ture units) mounted on an integral steel frame. The system operates on 120 volts single phase. It includes a pressure control and is
charged with refrigerant ready for use. Final electrical connections are made by others to a junction box mounted on the protective
housing which covers the condensing unit.
OPTIONAL ITEMS
MILK - ICE CREAM
DISPENSERS

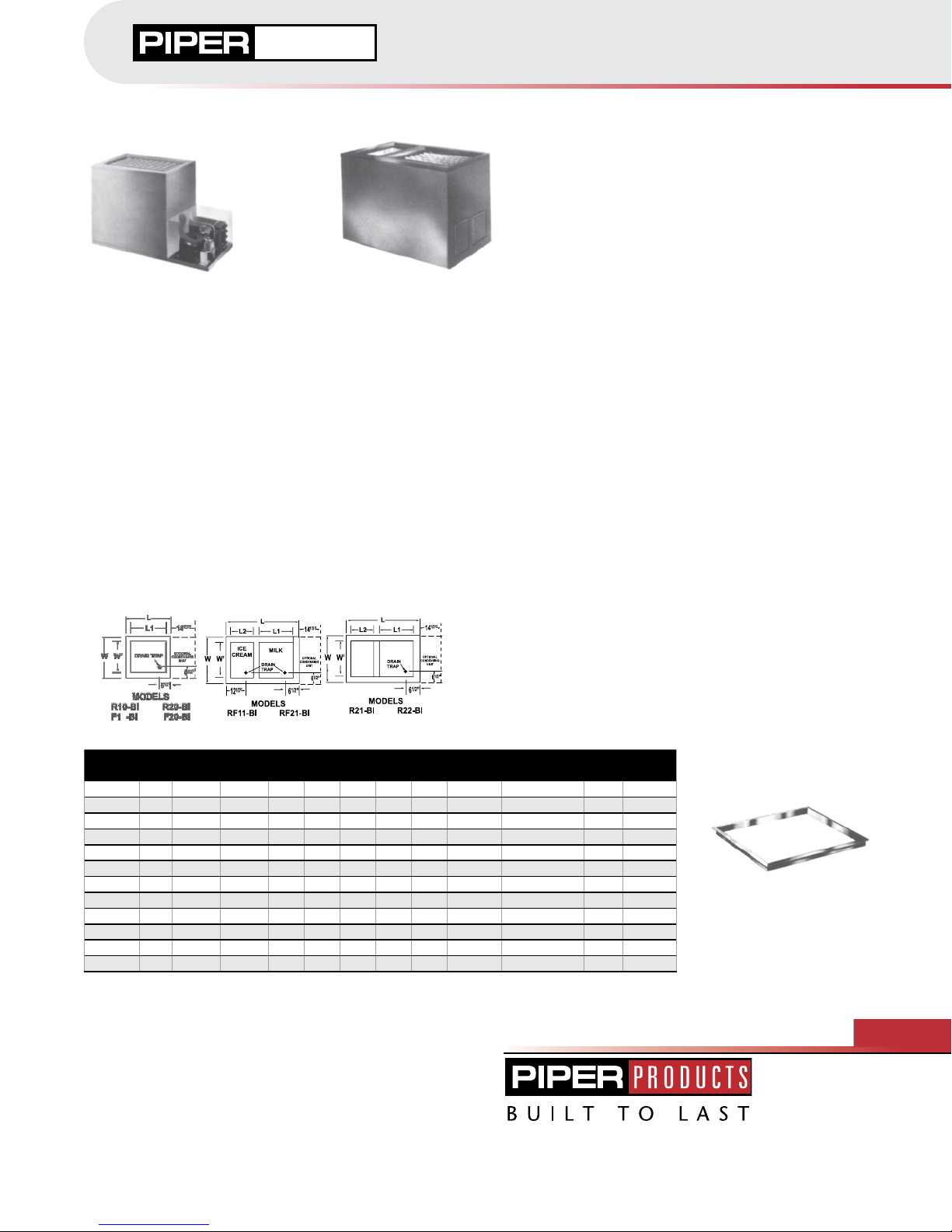

REFRIGERATED, BUILT-IN TYPE
SINGLE OR DUAL TEMPERATURE
MODEL NO. F20-BI-C
(self-contained)
(ICE CREAM)
MODEL NO. R21 - BI
(two compartment)
(MILK)
OR
MODEL NO. RF21-BI
(dual temperature)
(MILK & ICE CREAM)
DIMENSIONS AND CAPACITY
Optional removable
adapter collar
for easier installation
*Milk disp. capacity is for standard 1/2 pint flat top cartons 2-1/4'' square,
3-3/8'' high. For peak top cartons capacity is approx. 2/3 of that indicated.
Ice cream dispenser capacity is for 3 ounce cartons 3" diameter, 1-3/4" high.
Add ''-C" to model number for attached condensing unit. Example: No.
R10-B1-C. Add 75 lbs. to shipping weight. The collar opening is 1/4"
less than unit opening dimensions. The counter cutout dimension(s)
should be the same as the unit opening dimension(s).
A - 24
0
3-1/4
3-1/4
ALL UNITS - 28”HIGH
�Removable stainless steel plug-type insulated
cover(s) with vinyl perimeter gasket and lift
handles.
�Additional aluminum trays, 10" x 20" or 20" x 20".
�Removable stainless steel adapter collar(s) to fit
between the top opening of the cabinet and the
counter top.
�Tubular locking device for the cover(s).
DIMENSIONS
MODEL NO. TYPE
CAP.
IN
CTNS.*
ALUM.
TRAYS L W L1 W' L2
SHIPPING
WEIGHT
REFRIGE-
RANT H.P. AMPS@
120V
R10-BI Milk to 180 5-10x20 18 28 13.25 23.25 180 R-134A 1/4 5.3
R20-BI Milk to 405 5-20x20 28 28 23.25 23.25 240 R-134A 1/4 5.3
R21-Bl Milk to 585 5-20x20 44.5 28 23.25 23.25 360 R-134A 1/3 7.2
5-10x20 23.25 13.25 R-134A
R22-BI Milk to 810 5-20x20 54.5 28 23.25 23.25 380 R-404A 1/3 7.2
5-20x20 23.25 23.25 R-404A
F10-Bl IC to 264 10-10x20 18 28 13.25 23.25 180 R-404A 1/4 5.6
F20-BI IC to 528 10-20x20 28 28 23.25 23.25 240 R-404A 1/3 5.9
RF11-BI Milk to 180 5-10x20 34.5 28 13.25 23.25 340 R-404A 1/4 10.9
(DUAL) IC to 264 10-10x20 23.25 13.25 R-404A 1/4 total
RF21-BI Milk to 405 5-20x20 44.5 28 23.25 23.25 360 R-404A 1/4 10.9
(DUAL) IC to 264 10-10x20 23.25 13.25 R-404A 1/4 total
PROJECT QUANTITY ITEM NO:
PAGE
REV. 3/04
SPECIFICATIONS
Models R10-Bl thru RF21-BI refrigerated, built-in type dispensers for cartoned milk, packaged ice cream, or both.
FRAME AND BODY: The frame is constructed of all welded heavy gauge stainless steel. The exterior of the body is 18 ga. galvanized
steel. The interior liner is all welded 22 ga. stainless steel, watertight and fitted with a 1/2" I.P.S. chrome plated bronze drain trap at the
bottom. The liner is separated from the top by full perimeter breaker strips. The entire cabinet is insulated with 2-1/2" thick poured-in-
place polyurethane.
REFRIGERATION SYSTEM: The cabinet is fitted with four-wall copper refrigerant coils to hold temperatures of 380F for milk or 00to -100F
for ice cream. The system includes an accessible thermostatic expansion valve. The liquid line connection has a 1/4" flare fitting and
the suction line connection has a 3/8" flare fitting. Two independent systems are included with dual temperature units (note that two
condensing units will be required).
DISPENSING MECHANISM: The cabinet is fitted with one or more removable self-leveling dispensers, each consisting of an all welded
16 ga. stainless steel frame and a 14 ga. stainless steel pan-type carrier for the product. The frame and carrier are connected by a
suspension system consisting of a series of stainless steel coil springs and ball bearing guides designed to keep the carrier level at
all times. Adjustment of the dispensing height for varying weights is accomplished by engaging or disengaging individual springs. All
models include aluminum trays which function as separators for layers of product.
SELF-CONTAINED MODELS: Self-contained models include an air cooled, hermetically sealed condensing unit (two with dual tempera-
ture units) mounted on an integral steel frame. The system operates on 120 volts single phase. It includes a pressure control and is
charged with refrigerant ready for use. Final electrical connections are made by others to a junction box mounted on the protective
housing which covers the condensing unit.
OPTIONAL ITEMS
MILK - ICE CREAM
DISPENSERS
REFRIGERATED, BUILT-IN TYPE
SINGLE OR DUAL TEMPERATURE
MODEL NO. F20-BI-C
(self-contained)
(ICE CREAM)
MODEL NO. R21 - BI
(two compartment)
(MILK)
OR
MODEL NO. RF21-BI
(dual temperature)
(MILK & ICE CREAM)
DIMENSIONS AND CAPACITY
Optional removable
adapter collar
for easier installation
*Milk disp. capacity is for standard 1/2 pint flat top cartons 2-1/4'' square,
3-3/8'' high. For peak top cartons capacity is approx. 2/3 of that indicated.
Ice cream dispenser capacity is for 3 ounce cartons 3" diameter, 1-3/4" high.
Add ''-C" to model number for attached condensing unit. Example: No.
R10-B1-C. Add 75 lbs. to shipping weight. The collar opening is 1/4"
less than unit opening dimensions. The counter cutout dimension(s)
should be the same as the unit opening dimension(s).
A - 24
0
3-1/4
3-1/4
ALL UNITS - 28”HIGH
�Removable stainless steel plug-type insulated
cover(s) with vinyl perimeter gasket and lift
handles.
�Additional aluminum trays, 10" x 20" or 20" x 20".
�Removable stainless steel adapter collar(s) to fit
between the top opening of the cabinet and the
counter top.
�Tubular locking device for the cover(s).
DIMENSIONS
MODEL NO. TYPE
CAP.
IN
CTNS.*
ALUM.
TRAYS L W L1 W' L2
SHIPPING
WEIGHT
REFRIGE-
RANT H.P. AMPS@
120V
R10-BI Milk to 180 5-10x20 18 28 13.25 23.25 180 R-134A 1/4 5.3
R20-BI Milk to 405 5-20x20 28 28 23.25 23.25 240 R-134A 1/4 5.3
R21-Bl Milk to 585 5-20x20 44.5 28 23.25 23.25 360 R-134A 1/3 7.2
5-10x20 23.25 13.25 R-134A
R22-BI Milk to 810 5-20x20 54.5 28 23.25 23.25 380 R-404A 1/3 7.2
5-20x20 23.25 23.25 R-404A
F10-Bl IC to 264 10-10x20 18 28 13.25 23.25 180 R-404A 1/4 5.6
F20-BI IC to 528 10-20x20 28 28 23.25 23.25 240 R-404A 1/3 5.9
RF11-BI Milk to 180 5-10x20 34.5 28 13.25 23.25 340 R-404A 1/4 10.9
(DUAL) IC to 264 10-10x20 23.25 13.25 R-404A 1/4 total
RF21-BI Milk to 405 5-20x20 44.5 28 23.25 23.25 360 R-404A 1/4 10.9
(DUAL) IC to 264 10-10x20 23.25 13.25 R-404A 1/4 total
MODEL NO. TYPE CAP. IN
CTNS.*
ALUM.
TRAYS
DIMENSIONS SHIPPING
WEIGHT REFRIGERANT H.P. AMPS@
120V
L W L1 W' L2
R10-BI Milk to 180 5-10x20 18 28 13.25 23.13 180 R-134A 1/4 5.3
R20-BI Milk to 405 5-20x20 28 28 23.25 23.13 240 R-134A 1/4 5.3
R21-Bl Milk to 585 5-20x20 44.5 28 23.25 23.13 360 R-134A 1/3 7.2
5-10x20 23.13 13.25 R-134A
R22-BI Milk to 810 5-20x20 54.5 28 23.25 28.13 380 R-404A 1/3 7.2
5-20x20 28.13 23.25 R-404A
F10-Bl IC to 264 10-10x20 18 28 13.25 28.13 180 R-404A 1/4 5.6
F20-BI IC to 528 10-20x20 28 28 23.25 28.13 240 R-404A 1/3 5.9
RF11-BI Milk to 180 5-10x20 34.5 28 13.25 28.13 340 R-404A 1/4 10.9
(DUAL) IC to 264 10-10x20 28.13 13.25 R-404A 1/4 total
RF21-BI Milk to 405 5-20x20 44.5 28 23.25 28.13 360 R-404A 1/4 10.9
(DUAL) IC to 264 10-10x20 28.13 13.25 R-404A 1/4 total
*Milk disp. capacity is for standard 1/2 pint flat top cartons 2-1/4'' square, 3-3/8'' high.
For peak top cartons capacity is approx. 2/3 of that indicated. Ice cream dispenser
capacity is for 3 ounce cartons 3" diameter, 1-3/4" high. Add ''-C" to model number for
attached condensing unit. Example: No. R10-B1-C. Add 75 lbs. to shipping weight. The
collar opening is 1/4" less than unit opening dimensions. The counter cutout dimension(s)
should be the same as the unit opening dimension(s). These are cold wall units, for
models listed, refrigerated system not included.
PROJECT QUANTITY ITEM NO:
PAGE
REV. 3/04
SPECIFICATIONS
Models R10-Bl thru RF21-BI refrigerated, built-in type dispensers for cartoned milk, packaged ice cream, or both.
FRAME AND BODY: The frame is constructed of all welded heavy gauge stainless steel. The exterior of the body is 18 ga. galvanized
steel. The interior liner is all welded 22 ga. stainless steel, watertight and fitted with a 1/2" I.P.S. chrome plated bronze drain trap at the
bottom. The liner is separated from the top by full perimeter breaker strips. The entire cabinet is insulated with 2-1/2" thick poured-in-
place polyurethane.
REFRIGERATION SYSTEM: The cabinet is fitted with four-wall copper refrigerant coils to hold temperatures of 380F for milk or 00to -100F
for ice cream. The system includes an accessible thermostatic expansion valve. The liquid line connection has a 1/4" flare fitting and
the suction line connection has a 3/8" flare fitting. Two independent systems are included with dual temperature units (note that two
condensing units will be required).
DISPENSING MECHANISM: The cabinet is fitted with one or more removable self-leveling dispensers, each consisting of an all welded
16 ga. stainless steel frame and a 14 ga. stainless steel pan-type carrier for the product. The frame and carrier are connected by a
suspension system consisting of a series of stainless steel coil springs and ball bearing guides designed to keep the carrier level at
all times. Adjustment of the dispensing height for varying weights is accomplished by engaging or disengaging individual springs. All
models include aluminum trays which function as separators for layers of product.
SELF-CONTAINED MODELS: Self-contained models include an air cooled, hermetically sealed condensing unit (two with dual tempera-
ture units) mounted on an integral steel frame. The system operates on 120 volts single phase. It includes a pressure control and is
charged with refrigerant ready for use. Final electrical connections are made by others to a junction box mounted on the protective
housing which covers the condensing unit.
OPTIONAL ITEMS
MILK - ICE CREAM
DISPENSERS
REFRIGERATED, BUILT-IN TYPE
SINGLE OR DUAL TEMPERATURE
MODEL NO. F20-BI-C
(self-contained)
(ICE CREAM)
MODEL NO. R21 - BI
(two compartment)
(MILK)
OR
MODEL NO. RF21-BI
(dual temperature)
(MILK & ICE CREAM)
DIMENSIONS AND CAPACITY
Optional removable
adapter collar
for easier installation
*Milk disp. capacity is for standard 1/2 pint flat top cartons 2-1/4'' square,
3-3/8'' high. For peak top cartons capacity is approx. 2/3 of that indicated.
Ice cream dispenser capacity is for 3 ounce cartons 3" diameter, 1-3/4" high.
Add ''-C" to model number for attached condensing unit. Example: No.
R10-B1-C. Add 75 lbs. to shipping weight. The collar opening is 1/4"
less than unit opening dimensions. The counter cutout dimension(s)
should be the same as the unit opening dimension(s).
A - 24
0
3-1/4
3-1/4
ALL UNITS - 28”HIGH
�Removable stainless steel plug-type insulated
cover(s) with vinyl perimeter gasket and lift
handles.
�Additional aluminum trays, 10" x 20" or 20" x 20".
�Removable stainless steel adapter collar(s) to fit
between the top opening of the cabinet and the
counter top.
�Tubular locking device for the cover(s).
DIMENSIONS
MODEL NO. TYPE
CAP.
IN
CTNS.*
ALUM.
TRAYS L W L1 W' L2
SHIPPING
WEIGHT
REFRIGE-
RANT H.P. AMPS@
120V
R10-BI Milk to 180 5-10x20 18 28 13.25 23.25 180 R-134A 1/4 5.3
R20-BI Milk to 405 5-20x20 28 28 23.25 23.25 240 R-134A 1/4 5.3
R21-Bl Milk to 585 5-20x20 44.5 28 23.25 23.25 360 R-134A 1/3 7.2
5-10x20 23.25 13.25 R-134A
R22-BI Milk to 810 5-20x20 54.5 28 23.25 23.25 380 R-404A 1/3 7.2
5-20x20 23.25 23.25 R-404A
F10-Bl IC to 264 10-10x20 18 28 13.25 23.25 180 R-404A 1/4 5.6
F20-BI IC to 528 10-20x20 28 28 23.25 23.25 240 R-404A 1/3 5.9
RF11-BI Milk to 180 5-10x20 34.5 28 13.25 23.25 340 R-404A 1/4 10.9
(DUAL) IC to 264 10-10x20 23.25 13.25 R-404A 1/4 total
RF21-BI Milk to 405 5-20x20 44.5 28 23.25 23.25 360 R-404A 1/4 10.9
(DUAL) IC to 264 10-10x20 23.25 13.25 R-404A 1/4 total
Optional removable adapter collar
for easier installation
ALL UNITS - 28” HIGH
SPECIFICATIONS
Models R10-Bl thru RF21-BI refrigerated, built-in type dispensers for cartoned milk, packaged ice cream, or both.
FRAME AND BODY: The frame is constructed of all welded heavy gauge stainless steel. The exterior of the body is 18 ga. galvanized
steel. The interior liner is all welded 22 ga. stainless steel, watertight and fitted with a 1/2" I.P.S. chrome plated bronze drain trap at the
bottom. The liner is separated from the top by full perimeter breaker strips. The entire cabinet is insulated with 2-1/2" thick poured-in-
place polyurethane.
REFRIGERATION SYSTEM: The cabinet is fitted with four-wall copper refrigerant coils to hold temperatures of 380 F for milk or 00 to -100F
for ice cream. The system includes an accessible thermostatic expansion valve. The liquid line connection has a 1/4" flare fitting and
the suction line connection has a 3/8" flare fitting. Two independent systems are included with dual temperature units (note that two
condensing units will be required).
DISPENSING MECHANISM: The cabinet is fitted with one or more removable self-leveling dispensers, each consisting of an all welded
16 ga. stainless steel frame and a 14 ga. stainless steel pan-type carrier for the product. The frame and carrier are connected by a
suspension system consisting of a series of stainless steel coil springs and ball bearing guides designed to keep the carrier level at
all times. Adjustment of the dispensing height for varying weights is accomplished by engaging or disengaging individual springs. All
models include aluminum trays which function as separators for layers of product.
SELF-CONTAINED MODELS: Self-contained models include an air cooled, hermetically sealed condensing unit (two with dual tempera-
ture units) mounted on an integral steel frame. The system operates on 120 volts single phase. It includes a pressure control and is
charged with refrigerant ready for use. Final electrical connections are made by others to a junction box mounted on the protective
housing which covers the condensing unit.
OPTIONAL ITEMS
REFRIGERATED, BUILT-IN TYPE
SINGLE OR DUAL TEMPERATURE
MODEL NO. F20-BI-C
(self-contained)
(ICE CREAM)
MODEL NO. R21 - BI
(two compartment)
(MILK)
OR
MODEL NO. RF21-BI
(dual temperature)
(MILK & ICE CREAM)
DIMENSIONS AND CAPACITY
Optional removable
adapter collar
for easier installation
*Milk disp. capacity is for standard 1/2 pint flat top cartons 2-1/4'' square,
3-3/8'' high. For peak top cartons capacity is approx. 2/3 of that indicated.
Ice cream dispenser capacity is for 3 ounce cartons 3" diameter, 1-3/4" high.
Add ''-C" to model number for attached condensing unit. Example: No.
R10-B1-C. Add 75 lbs. to shipping weight. The collar opening is 1/4"
less than unit opening dimensions. The counter cutout dimension(s)
should be the same as the unit opening dimension(s).
0
3-1/4
3-1/4
ALL UNITS - 28” HIGH
Removable stainless steel plug-type insulated
cover(s) with vinyl perimeter gasket and lift
handles.
Additional aluminum trays, 10" x 20" or 20" x 20".
Removable stainless steel adapter collar(s) to fit
between the top opening of the cabinet and the
counter top.
Tubular locking device for the cover(s).
DIMENSIONS
MODEL NO. TYPE
CAP.
IN
CTNS.*
ALUM.
TRAYS L W L1 W' L2
SHIPPING
WEIGHT
REFRIGE-
RANT H.P. AMPS@
120V
R10-BI Milk to 180 5-10x20 18 28 13.25 23.25 180 R-134A 1/4 5.3
R20-BI Milk to 405 5-20x20 28 28 23.25 23.25 240 R-134A 1/4 5.3
R21-Bl Milk to 585 5-20x20 44.5 28 23.25 23.25 360 R-134A 1/3 7.2
5-10x20 23.25 13.25 R-134A
R22-BI Milk to 810 5-20x20 54.5 28 23.25 23.25 380 R-404A 1/3 7.2
5-20x20 23.25 23.25 R-404A
F10-Bl IC to 264 10-10x20 18 28 13.25 23.25 180 R-404A 1/4 5.6
F20-BI IC to 528 10-20x20 28 28 23.25 23.25 240 R-404A 1/3 5.9
RF11-BI Milk to 180 5-10x20 34.5 28 13.25 23.25 340 R-404A 1/4 10.9
(DUAL) IC to 264 10-10x20 23.25 13.25 R-404A 1/4 total
RF21-BI Milk to 405 5-20x20 44.5 28 23.25 23.25 360 R-404A 1/4 10.9
(DUAL) IC to 264 10-10x20 23.25 13.25 R-404A 1/4 total
Built-In Milk -Ice Cream Dispenser
JOB___________ ITEM # _____________ QTY _______
LIMITED WARRANTY
PIPER PRODUCTS warrants to the original purchaser parts and labor for a period of twelve (12)
months from the date of purchase. See manufacturer’s complete warranty for details.
CSA, UL, NSF. It is our policy to build equipment which is design certified by companies that
have been accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and ANSI
as a National Recognized Testing Laboratory. These companies include CSA International, Underwriters
Laboratories, and the National Sanitation Foundation. However, a continuing program of product
improvement makes it necessary to submit new models to the agencies as they are developed.
Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions do not
entitle buyer to corresponding changes, improvements, additions or replacements for previously purchased
equipment. Information is not for design purposes.
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
715-842-2724
Fax: 715-842-3125
www.piperonline.net
E-1
E_1.qxd 11/27/06 9:53 AM Page 1
R10-BI
R20-BI
R21-Bl
R22-BI
F10-Bl
F20-BI
RF11-BI
RF21-BI
REFRIGERATED, BUILT-IN TYPE
SINGLE OR DUAL TEMPERATURE
MODEL NO. F20-BI-C
(self-contained)
(ICE CREAM)
120
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-2
Built-In Rack Dispensers
PR/B SERIES
Piper’s Self-leveling Built-in Style Rack Dispensers
can be found in line-ups, back-of-the-house, or
any place your needs require.
STANDARD FEATURES
Equipped with self-lubricating delrin wheels
and stainless steel extension springs that can
be easily disconnected to adjust the lifting rate
Self-leveling mechanism lifts out for easy cleaning
Field adjustable to accommodate different weights
Removable stainless steel carrier tray provides
bottom support for the racks being dispensed
Consists of two lifting mechanisms attached
to the inside walls of a stainless steel enclosure
Stainless steel enclosure is designed for a
bottom mount application under the countertop
WARRANTY
One year parts and labor. Warranty is detailed on
inside front cover of the price list.
BUILT-IN SELF-LEVELING RACK DISPENSERS SPECIFICATIONS
Model# Rack Size Inside X Opening Y (A) Width (B) Length Height Ship Wt.
(lbs)
PR/1020B 10” x 20” 20-5/16” x 14-1/4” 23-1/8” 16-5/16” 28-7/8” 75
PR/2020B 20” x 20” 20-7/8” x 24-7/16” 23-1/16” 26-1/2” 28-7/8” 105
PR/1020B
PR/2020B
PR/B
121
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-3
STANDARD FEATURES
Equipped with self-lubricating delrin wheels and stainless
steel extension springs that can be easily disconnected to
adjust the lifting rate
Self-leveling mechanism lifts out for easy cleaning
Field adjustable to accommodate different weights
Removable stainless steel carrier tray provides bottom
support for trays being dispensed
Base is fabricated of stainless steel and reinforced with
stainless steel angles
Tubular frames are fabricated from stainless steel tubing
and securely welded to stainless steel angles on underside
of base
Tubular frames are reinforced by horizontal stainless steel
rods welded to each vertical frame
Non-marking bumper attached at each corner
Four 4” heavy-duty non-marking swivel casters that are
securely mounted to the base
WARRANTY
One year parts and labor. Warranty is detailed on inside front
cover of the price list.
PT/MO AND PT/MO2 SERIES
Piper’s Self-leveling Mobile Tray Dispensers are offered
in two styles; single or double stack, tubular frame with
solid bottom. These Selfleveling Tray Dispensers can be
found in tray lines, front- or back-of-the-house, or any
place your needs require.
Mobile Tray Dispensers
122
OPTIONAL EQUIPMENT
(WB) Two (2) Locking Casters
(PB) Perimeter Bumper
(Y4) 4" Polyurethane Casters
(Y5) 5" Polyurethane Casters
NOTE: For bumpers add 1-1/2”
MOBILE TRAY DISPENSERS SPECIFICATIONS
Model# Max. Tray Size (A) Length (B) Width Height Ship
Wt.(lbs)
SINGLE
PT/915MO 10-3/4” x 15-1/8” 18-1/2” 14-15/16” 36-1/4” 58
PT/1014MO 10-3/4” x 15-1/8” 18-1/2” 14-15/16” 36-1/4” 58
PT/1216MO 12-3/8” x 16-3/4” 16-11/16” 19-7/8” 36-1/4” 58
PT/1222MO 12-3/8” x 22-3/4” 16-11/16” 25-7/8” 36-1/4” 65
PT/1418MO 14-3/8” x 18-3/4” 18-11/16” 21-7/8” 36-1/4” 68
PT/1520MO 15-3/8” x 20-3/4” 19-11/16” 23-7/8” 36-1/4” 68
PT/1622MO 16-3/8” x 22-3/4” 20-11/16” 25-7/8” 36-1/4” 80
DOUBLE
PT/915MO2 10-3/8” x 15-1/4” 19-3/8” 25-1/8” 36-1/4” 80
PT/1014MO2 10-3/8” x 15-1/4” 19-3/8” 25-1/8” 36-1/4” 80
PT/1216MO2 12-3/8” x 16-3/4” 19-7/8” 32-9/16” 36-1/4” 98
PT/1222MO2 12-3/8” x 22-3/4” 25-7/8” 32-9/16” 36-1/4” 105
PT/1418MO2 14-3/8” x 18-3/4” 21-7/8” 36-9/16” 36-1/4” 87
PT/1520MO2 15-3/8” x 20-3/4” 23-7/8” 38-9/16” 36-1/4” 105
PT/1622MO2 16-3/8” x 22-3/4” 25-7/8” 40-9/16” 36-1/4” 109
PT/MO PT/MO2
PT/MO PT/MO2
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-4
123
Enclosed Tray Dispenser
Capacity Approx. 90-150 trays
SPECIFICATIONS
Model AT-ST compact, cabinet style, mobile tray
dispenser.
FRAME AND BODY
The unit is constructed of heavy guage stainless steel.
DISPENSER
The unit is fitted with a model ADIF adjustable drop-in
dispenser.
CASTERS
The unit is mounted on four 4" diameter heavy duty,
double ball bearing, swivel casters with non-marking
rubber tires.
OPTIONAL EQUIPMENT
(WB) Two (2) Locking Casters
(PB) Perimeter Bumper
(B) Corner Bumper
(Y4) 4" Polyurethane Casters
(Y5) 5" Polyurethane Casters
NOTE-Sample napkin must be furnished.
Model# Tray Size Length Width Height
AT-ST-915 9 X15 1713/16 217/8 36
AT-ST-I014 10 X14 1713/16 217/8 36
AT-ST-1216 12 X16 195/8 235/8 36
AT-ST-1222 12 X22 191/8 291/8 36
AT-ST-1418 14 X18 211/8 251/8 36
AT-ST-1520 15 X20 221/8 28 36
AT-ST-1721 17 X21 241/2 281/8 36
AT-ST-1622 16 X22 235/8 295/8 36
AT-ST2-915 9 X15 331/4 217/8 36
AT-ST2-1014 10 X14 331/4 217/8 36
AT-ST2-1216 12 X16 367/8 235/8 36
AT-ST2-1222 12 X22 357/8 291/8 36
AT-ST2-1418 14 X18 397/8 251/8 36
AT-ST2-1520 15 X20 417/8 28 36
AT-ST2-1721 17 X21 465/8 281/8 36
AT-ST2-1622 16 X22 447/8 295/8 36
AT-ST-915
AT-ST-I014
AT-ST-1216
AT-ST-1222
AT-ST-1418
AT-ST-1520
AT-ST-1721
AT-ST-1622
AT-ST2-915
AT-ST2-1014
AT-ST2-1216
AT-ST2-1222
AT-ST2-1418
AT-ST2-1520
AT-ST2-1721
AT-ST2-1622
Mobile Adjustable
AT-ST
AT-ST-2
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net

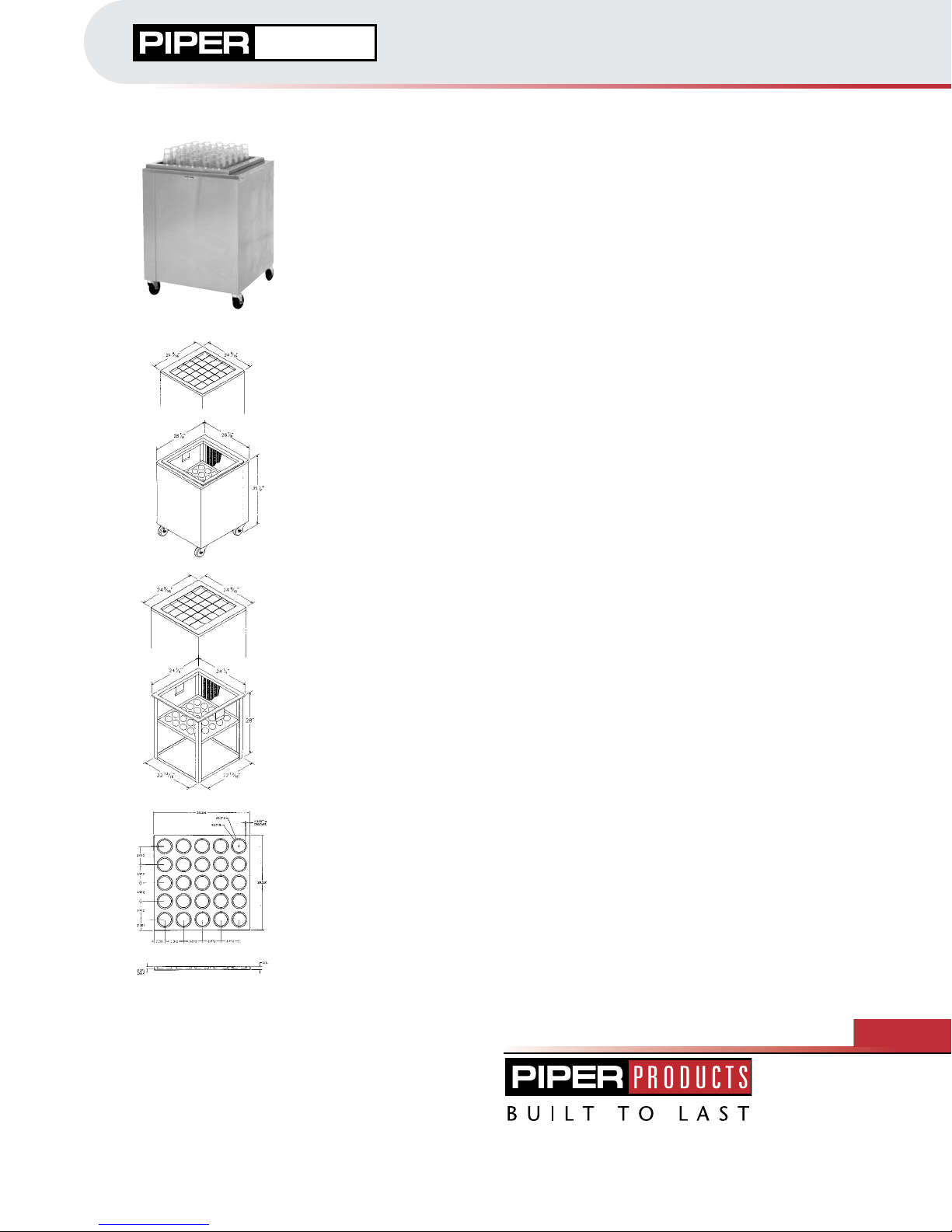

E-5
FRAME AND BODY:
The unit is constructed of all heavy guage stainless steel.
Bodies on AC-STH models are insulated on sides and top
and lined with zinc coated steel.
DISPENSER:
The unit is fitted with a model ADIF adjustable drop-in
cup dispenser (see catalog for specifications).
HEATING SYSTEM:
The model AC-STH heating system consists of heating
elements of 1500 watt total capacity, thermostatically
regulated and wired for 120 or 208 volt (as specified) single
phase power supply. A recessed control panel is complete
with on-off switch, neon pilot light, adjustable thermostat and
a receptacle for a cord set. A 4' long three wire cord set fitted
with NEMA 5-15P plug for 120 volt or NEMA 6-15P plug for
208 volt is provided.
CASTERS:
The unit is mounted on four 4'' diameter heavy duty, double
ball-bearing, swivel casters with non-marking rubber tires.
124
PROJECT QUANTITY ITEM NO:
PAGE
REV. 3/04
CUP AND GLASS
DISPENSER
COMPACT CABINET STYLE, MOBILE
��
��
�MODEL AC-ST
CAPACITY-Up to 192 glasses
or 175 cups
Model AC-ST compact, cabinet style,
mobile cup and glass dispenser.
SPECIFICATIONS
FRAME AND BODY: The frame is constructed of all welded heavy gauge stainless steel. The body sides are 20 ga. stainless steel
and top is 18 ga. stainless steel. Bodies on AC-STH models are insulated on sides and top and lined with zinc coated steel.
DISPENSER: The unit is fitted with a model ADIF adjustable drop-in cup dispenser (see catalog page A-14 for specifications).
HEATING SYSTEM: The model AC-STH heating system consists of heating elements of 1500 watt total capacity, thermostatically
regulated and wired for 120 or 208 volt (as specified) single phase power supply. A recessed control panel is complete with on-off
switch, neon pilot light, adjustable thermostat and a receptacle for a cord set. A 4' long three wire cord set fitted with NEMA 5-15P
plug for 120 volt or NEMA 6-15P plug for 208 volt is provided.
CASTERS: The unit is mounted on four 4'' diameter heavy duty, double ball-bearing, swivel casters with non-marking rubber tires.
OPTIONAL ITEMS
�One piece, wrap-around, non-marking vinyl bumper. (Add 2" to length and width.)
�12'' vertical bumpers. (Add 1" to length and width.)
�Side panels in laminated plastic in lieu of stainless steel.
�2 rigid casters in lieu of swivel.
�2 casters with brakes.
�5" diameter casters. (Increase height by 1”.)
�Casters with polyurethane tires.
�6" high stainless steel adjustable sanitary bullet feet. (Increase height 1”.)
CUP AND GLASS
DISPENSER
COMPACT CABINET STYLE, MOBILE, HEATED
��
��
�MODEL AC-STH
CAPACITY-Up to 192 glasses
or 175 cups
Model AC-STH compact, cabinet style, mobile,
heated cup and glass dispenser.
HEIGHT 36"-
Other heights available
Add 1”- to length and width for
vertical bumpers.
Add 2'' to length and width for
wrap-around bumpers.
Shipping weight-120
HEIGHT 36"-
Other heights available.
Add 1" to length and width
for vertical bumpers.
Add 2" to length and width
for wrap-around bumpers.
Shipping weight-150
UNHEATED
WL
36”
HEATED
WL
36”
A - 16
Shown with optional wrap-around bumper.
CABINET
DIMENSIONS
RACK
SIZE
W L
10 x 20 18 28
14 x 20 26 28
20 x 20 26 28
VOLTAGE
SINGLE PH.
TOTAL
WATTAGE AMPS
120 1500 12.5
208 1500 7.2
Mobile Cup & Glass Dispensers
OPTIONAL EQUIPMENT
(WB) Two (2) Locking Casters
(PB) Perimeter Bumpers
(B) Corner Bumpers
(Y4) 4" Polyurethane Casters
(Y5) 5" Polyurethane Casters
MODEL AC-ST
CAPACITY-Up to 192 glasses
or 175 cups
Model AC-ST compact,
cabinet style, mobile cup
and glass dispenser.
PROJECT QUANTITY ITEM NO:
PAGE
REV. 3/04
CUP AND GLASS
DISPENSER
COMPACT CABINET STYLE, MOBILE
��
��
�MODEL AC-ST
CAPACITY-Up to 192 glasses
or 175 cups
Model AC-ST compact, cabinet style,
mobile cup and glass dispenser.
SPECIFICATIONS
FRAME AND BODY: The frame is constructed of all welded heavy gauge stainless steel. The body sides are 20 ga. stainless steel
and top is 18 ga. stainless steel. Bodies on AC-STH models are insulated on sides and top and lined with zinc coated steel.
DISPENSER: The unit is fitted with a model ADIF adjustable drop-in cup dispenser (see catalog page A-14 for specifications).
HEATING SYSTEM: The model AC-STH heating system consists of heating elements of 1500 watt total capacity, thermostatically
regulated and wired for 120 or 208 volt (as specified) single phase power supply. A recessed control panel is complete with on-off
switch, neon pilot light, adjustable thermostat and a receptacle for a cord set. A 4' long three wire cord set fitted with NEMA 5-15P
plug for 120 volt or NEMA 6-15P plug for 208 volt is provided.
CASTERS: The unit is mounted on four 4'' diameter heavy duty, double ball-bearing, swivel casters with non-marking rubber tires.
OPTIONAL ITEMS
�One piece, wrap-around, non-marking vinyl bumper. (Add 2" to length and width.)
�12'' vertical bumpers. (Add 1" to length and width.)
�Side panels in laminated plastic in lieu of stainless steel.
�2 rigid casters in lieu of swivel.
�2 casters with brakes.
�5" diameter casters. (Increase height by 1”.)
�Casters with polyurethane tires.
�6" high stainless steel adjustable sanitary bullet feet. (Increase height 1”.)
CUP AND GLASS
DISPENSER
COMPACT CABINET STYLE, MOBILE, HEATED
��
��
�MODEL AC-STH
CAPACITY-Up to 192 glasses
or 175 cups
Model AC-STH compact, cabinet style, mobile,
heated cup and glass dispenser.
HEIGHT 36"-
Other heights available
Add 1”- to length and width for
vertical bumpers.
Add 2'' to length and width for
wrap-around bumpers.
Shipping weight-120
HEIGHT 36"-
Other heights available.
Add 1" to length and width
for vertical bumpers.
Add 2" to length and width
for wrap-around bumpers.
Shipping weight-150
UNHEATED
WL
36”
HEATED
WL
36”
A - 16
Shown with optional wrap-around bumper.
CABINET
DIMENSIONS
RACK
SIZE
W L
10 x 20 18 28
14 x 20 26 28
20 x 20 26 28
VOLTAGE
SINGLE PH.
TOTAL
WATTAGE AMPS
120 1500 12.5
208 1500 7.2

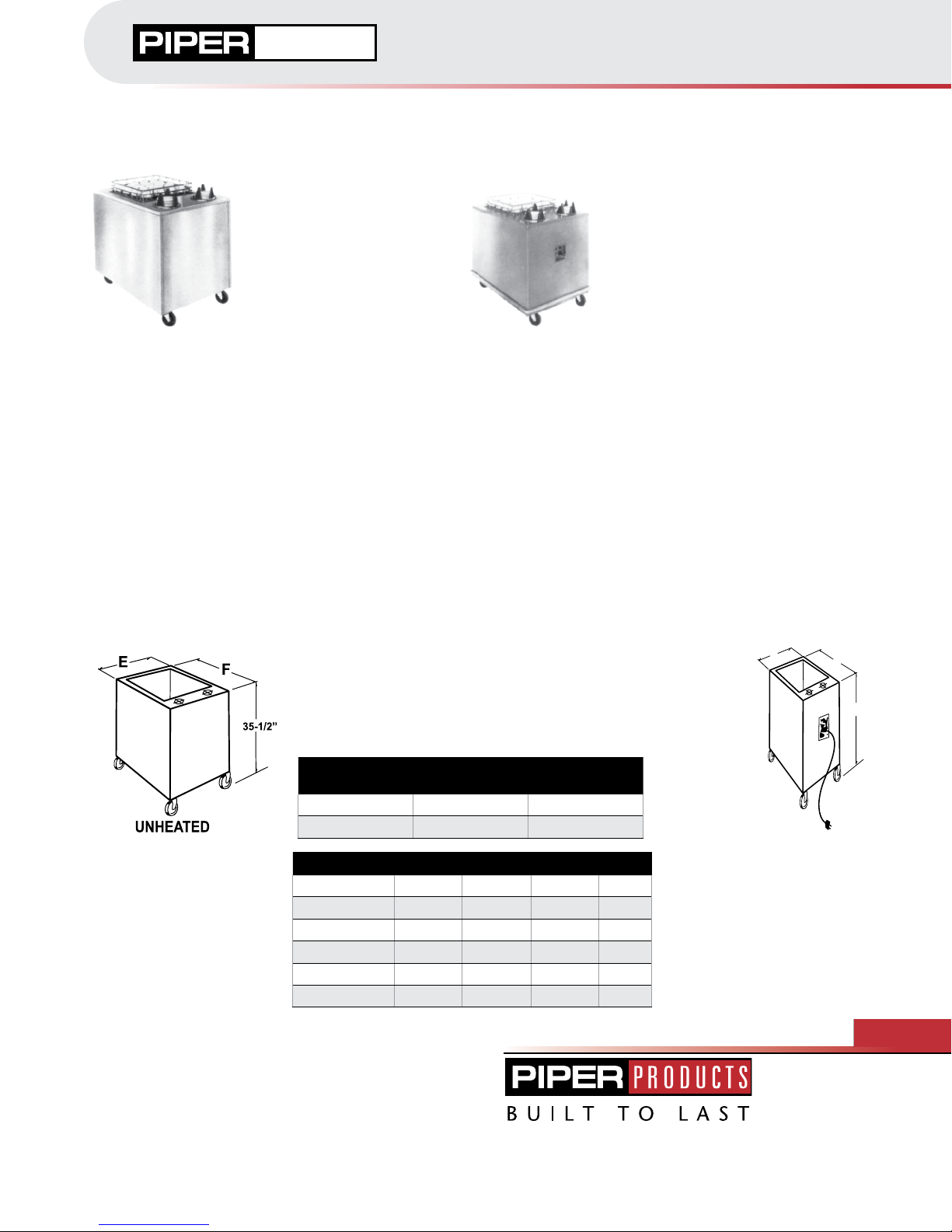

MODEL AC-STH
CAPACITY-Up to 192 glasses
or 175 cups
Model AC-STH compact, cabinet
style, mobile, heated cup and
glass dispenser.
Shown with optional wrap-
around bumper.
HEIGHT 36"-
Other heights available
Add 2'' to length and width for
wrap-around bumpers.
Shipping weight-120
PROJECT QUANTITY ITEM NO:
PAGE
REV. 3/04
CUP AND GLASS
DISPENSER
COMPACT CABINET STYLE, MOBILE
��
��
�MODEL AC-ST
CAPACITY-Up to 192 glasses
or 175 cups
Model AC-ST compact, cabinet style,
mobile cup and glass dispenser.
SPECIFICATIONS
FRAME AND BODY: The frame is constructed of all welded heavy gauge stainless steel. The body sides are 20 ga. stainless steel
and top is 18 ga. stainless steel. Bodies on AC-STH models are insulated on sides and top and lined with zinc coated steel.
DISPENSER: The unit is fitted with a model ADIF adjustable drop-in cup dispenser (see catalog page A-14 for specifications).
HEATING SYSTEM: The model AC-STH heating system consists of heating elements of 1500 watt total capacity, thermostatically
regulated and wired for 120 or 208 volt (as specified) single phase power supply. A recessed control panel is complete with on-off
switch, neon pilot light, adjustable thermostat and a receptacle for a cord set. A 4' long three wire cord set fitted with NEMA 5-15P
plug for 120 volt or NEMA 6-15P plug for 208 volt is provided.
CASTERS: The unit is mounted on four 4'' diameter heavy duty, double ball-bearing, swivel casters with non-marking rubber tires.
OPTIONAL ITEMS
�One piece, wrap-around, non-marking vinyl bumper. (Add 2" to length and width.)
�12'' vertical bumpers. (Add 1" to length and width.)
�Side panels in laminated plastic in lieu of stainless steel.
�2 rigid casters in lieu of swivel.
�2 casters with brakes.
�5" diameter casters. (Increase height by 1”.)
�Casters with polyurethane tires.
�6" high stainless steel adjustable sanitary bullet feet. (Increase height 1”.)
CUP AND GLASS
DISPENSER
COMPACT CABINET STYLE, MOBILE, HEATED
��
��
�MODEL AC-STH
CAPACITY-Up to 192 glasses
or 175 cups
Model AC-STH compact, cabinet style, mobile,
heated cup and glass dispenser.
HEIGHT 36"-
Other heights available
Add 1”- to length and width for
vertical bumpers.
Add 2'' to length and width for
wrap-around bumpers.
Shipping weight-120
HEIGHT 36"-
Other heights available.
Add 1" to length and width
for vertical bumpers.
Add 2" to length and width
for wrap-around bumpers.
Shipping weight-150
UNHEATED
WL
36”
HEATED
WL
36”
A - 16
Shown with optional wrap-around bumper.
CABINET
DIMENSIONS
RACK
SIZE
W L
10 x 20 18 28
14 x 20 26 28
20 x 20 26 28
VOLTAGE
SINGLE PH.
TOTAL
WATTAGE AMPS
120 1500 12.5
208 1500 7.2
PROJECT QUANTITY ITEM NO:
PAGE
REV. 3/04
CUP AND GLASS
DISPENSER
COMPACT CABINET STYLE, MOBILE
��
��
�MODEL AC-ST
CAPACITY-Up to 192 glasses
or 175 cups
Model AC-ST compact, cabinet style,
mobile cup and glass dispenser.
SPECIFICATIONS
FRAME AND BODY: The frame is constructed of all welded heavy gauge stainless steel. The body sides are 20 ga. stainless steel
and top is 18 ga. stainless steel. Bodies on AC-STH models are insulated on sides and top and lined with zinc coated steel.
DISPENSER: The unit is fitted with a model ADIF adjustable drop-in cup dispenser (see catalog page A-14 for specifications).
HEATING SYSTEM: The model AC-STH heating system consists of heating elements of 1500 watt total capacity, thermostatically
regulated and wired for 120 or 208 volt (as specified) single phase power supply. A recessed control panel is complete with on-off
switch, neon pilot light, adjustable thermostat and a receptacle for a cord set. A 4' long three wire cord set fitted with NEMA 5-15P
plug for 120 volt or NEMA 6-15P plug for 208 volt is provided.
CASTERS: The unit is mounted on four 4'' diameter heavy duty, double ball-bearing, swivel casters with non-marking rubber tires.
OPTIONAL ITEMS
�One piece, wrap-around, non-marking vinyl bumper. (Add 2" to length and width.)
�12'' vertical bumpers. (Add 1" to length and width.)
�Side panels in laminated plastic in lieu of stainless steel.
�2 rigid casters in lieu of swivel.
�2 casters with brakes.
�5" diameter casters. (Increase height by 1”.)
�Casters with polyurethane tires.
�6" high stainless steel adjustable sanitary bullet feet. (Increase height 1”.)
CUP AND GLASS
DISPENSER
COMPACT CABINET STYLE, MOBILE, HEATED
��
��
�MODEL AC-STH
CAPACITY-Up to 192 glasses
or 175 cups
Model AC-STH compact, cabinet style, mobile,
heated cup and glass dispenser.
HEIGHT 36"-
Other heights available
Add 1”- to length and width for
vertical bumpers.
Add 2'' to length and width for
wrap-around bumpers.
Shipping weight-120
HEIGHT 36"-
Other heights available.
Add 1" to length and width
for vertical bumpers.
Add 2" to length and width
for wrap-around bumpers.
Shipping weight-150
UNHEATED
WL
36”
HEATED
WL
36”
A - 16
Shown with optional wrap-around bumper.
CABINET
DIMENSIONS
RACK
SIZE
W L
10 x 20 18 28
14 x 20 26 28
20 x 20 26 28
VOLTAGE
SINGLE PH.
TOTAL
WATTAGE AMPS
120 1500 12.5
208 1500 7.2
VOLTAGE SINGLE
PH. TOTAL WATTAGE AMPS
120 750 6.25
208 750 3.6 HEIGHT 36"-
Other heights available.
Add 2" to length and width
for wrap-around bumpers.
Shipping weight-150
Model# Tray Size Length Width Height
AC-ST-1020 10 X 20 26 5/8 17 5/8 36
AC-ST-1420 14 X 20 28 21 11/16 36
AC-ST-2020 20 X 20 27 1/8 27 1/8 36
AC-STH-1020 10 X 20 29 1/8 17 5/8 36
AC-STH-1420 14 X 20 30 1/2 21 11/16 36
AC-STH-2020 20 X 20 29 5/8 27 1/8 36
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-6
125
Tumbler Serve™
NOW THERE IS A UNIQUE WAY TO DISPENSE
HUNDREDS OF TUMBLERS IN A SMALL AREA!
Piper's Tumbler Serve™is well suited for many types of food
operations – and ideal for buffet service. Piper's food focused
approach to equipment design can quadruple your tumbler
storage space while minimizing the footprint – another
dispensing solution from Piper Servolift!
TUMBLER SERVE™ FEATURES
Available as drop-in or mobile cabinet style dispenser
Capacity – (425) plastic tumblers (up to 14 ounce)
Body constructed of all-welded heavy gauge
stainless steel
Eliminates the need for 20" x 20" glass racks
Includes high density polyethylene cup stacking
base board
16 ga. stainless steel top grid with 1/8" welded stainless
steel rods
Mobile cabinet model mounted on four 4" diameter
heavy-duty, swivel casters
UL Listed for Sanitation
OPTIONAL EQUIPMENT
(WB) Two (2) Locking Casters
(PB) Perimeter Bumper
(Y4) 4" Polyurethane Casters
(Y5) 5" Polyurethane Casters
WARRANTY
One year parts and labor. Warranty is detailed on inside
front cover of the price list.
AC-ST-2020-14OZ
26-1/8"W x 28-1/8"D x 35-1/2"H - Mobile Cabinet, 155 lbs,
Capacity (425) Plastic tumblers (up to 14 ounce)
ADIF-2020-14OZ
24-1/4"W x 24-1/4"D x 28"H - Drop-in Counter cutout 23" x 23", 75 lbs
Capacity (425) Plastic tumblers (up to 14 ounce)
JOB____________ ITEM # _______ QTY ______
NOW THERE IS A UNIQUE WAY TO DISPENSE
HUNDREDS OF TUMBLERS IN A SMALL AREA!
Servolift’s Tumbler ServeTM is well suited for many
types of food operations – and ideal for buffet
service. Servolift’s food focused approach to
equipment design can quadruple your tumbler
storage space while minimizing the footprint –
another dispensing solution from Piper Servolift!
TUMBLER SERVE™ FEATURES
Available as drop-in or mobile cabinet style
dispenser
Capacity – (425) plastic tumblers (up to 14 ounce)
Body constructed of all-welded heavy gauge
stainless steel
Eliminates the need for 20" x 20" glass racks
Includes high density polyethylene cup stacking
base board
16 ga. stainless steel top grid with 1/8" welded
stainless steel rods
Available with optional special tumbler storage
dolly and loader
Mobile cabinet model mounted on four 4" diameter
heavy-duty, swivel casters, (2) with brakes
UL Listed for Sanitation
MODEL NUMBER
AC-ST-2020-14OZ -
26-1/8"W x 28-1/8"D x 35-1/2"H
Mobile Cabinet, 155 lbs,
Capacity (425) Plastic tumblers (up to 14 ounce)
ADIF-2020-14OZ -
24-1/4"W x 24-1/4"D x 28"H
Drop-in Counter cutout 23" x 23", 75 lbs
Capacity (425) Plastic tumblers (up to 14 ounce)
OPTIONAL EQUIPMENT
(WB) Two (2) Locking Casters
(WAB) Full Wraparound Bumpers
(Enclosed Dispensers)
(Y4) 4" Polyurethane Casters
(Y5) 5" Polyurethane Casters
WARRANTY
One year parts and labor. Warranty is detailed on inside
front cover of the price list.
Tumbler Serve™
MODEL AC-ST-2020-14OZ
TUMBLER DISPENSER
DROP-IN TUMBLER SERVE™
DISPENSERS
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
715-842-2724
Fax: 715-842-3125
www.piperonline.net
E-7
MOBILE TUMBLER SERVE™
CUP SIZE: 3.02" DIA.
© 2002 Piper. All rights reserved.
Printed in USA. Form MRD - 10/02
CSA, UL, NSF. It is our policy to build equipment which is design certified by companies that
have been accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and ANSI
as a National Recognized Testing Laboratory. These companies include CSA International, Underwriters
Laboratories, and the National Sanitation Foundation. However, a continuing program of product improvement
makes it necessary to submit new models to the agencies as they are developed. Consequently, all models
may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions do not entitle
buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
Information is not for design purposes.
E_7.qxd 11/27/06 9:38 AM Page 1
MODEL AC-ST-2020-14OZ
TUMBLER DISPENSER
MOBILE TUMBLER
SERVE™
DROP-IN TUMBLER
SERVE™
CUP SIZE: 3.02" DIA.
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-7
SPECIFICATIONS
CABINET: The body and top are of unibody design, constructed of heavy gauge stainless steel panels formed to provide
rigidity. Heated models (ACS-STH) are insulated on sides and top.
CUP DISPENSER: The unit is fitted with a model ADIF adjustable drop-in cup dispenser (see catalog page D-13 for
specifications).
SAUCER DISPENSERS: The unit includes two Model AT adjustable, drop-in saucer dispensers. (See page D-9 for
specifications.) Saucer dia. required when ordering. Max. 6-5/8"
HEATING SYSTEM: The model ACS-STH heating system consists of heating elements of 1500 watt total capacity,
thermostatically regulated and wired for 120 or 208 volt (as specified) single phase power supply. A recessed control panel is
complete with on-off switch, neon pilot light, adjustable thermostat and a receptacle for a cord set. A 4' long three wire cord
set fitted with NEMA 5-15P plug for 120 volt or NEMA 6-15P plug for 208 volt is provided.
CASTERS: Unit is mounted on four 4" diameter heavy duty, double ball bearing, swivel casters with non-marking rubber
tires.
126
COMPACT CABINET STYLE, MOBILE
MODEL ACS-ST
CAPACITY
- Up to 175 cups, approx.
100 to 144 saucers.
COMPACT CABINET STYLE, MOBILE, HEATED
MODEL ACS-STH
CAPACITY -
Up to 175 cups, approx. 100 to
144 saucers.
Model ACS-ST mobile cup and saucer dispenser. Model ACS-STH mobile heated cup and saucer dispenser.
Shown with optional wrap-around bumper.
SPECIFICATIONS
CABINET:The body and top are of unibody design, constructed of heavy gauge stainless steel panels formed to provide rigidity.
Heated models (ACS-STH) are insulated on sides and top and lined with zinc coated steel panels.
CUP DISPENSER: The unit is fitted with a model ADIF adjustable drop-in cup dispenser (see catalog page D-13 for specifications).
SAUCER DISPENSERS: The unit includes two Model AT adjustable, drop-in saucer dispensers. (See page D-9 for specifications.)
Saucer dia. required when ordering. Max. 6-5/8"
HEATING SYSTEM:The model ACS-STH heating system consists of heating elements of 1500 watt total capacity, thermostatically
regulated and wired for 120 or 208 volt (as specified) single phase power supply. A recessed control panel is complete with on-off
switch, neon pilot light, adjustable thermostat and a receptacle for a cord set. A 4' long three wire cord set fitted with NEMA 5-15P
plug for 120 volt or NEMA 6-15P plug for 208 volt is provided.
CASTERS: Unit is mounted on four 4" diameter heavy duty, double ball bearing, swivel casters with non-marking rubber tires.
OPTIONAL ITEMS
HEIGHT 35-1/2"- Other heights available.
Dish guides add 4" to height.
Add 1" to length and width for vertical
bumpers.
Add 2” to length and width for wrap-
around bumpers.
Shipping weight-150
HEIGHT 36''- Other heights available.
Dish guides add 4'' to height.
Add 1'' to length and width for
vertical bumpers.
Add 2" to length and width for
wrap-around bumpers.
Shipping weight-200
HEATED
EF
36”
One piece, wrap-around, non-marking vinyl bumper.
(Add 2" to length and width.)
12'' high vertical bumpers. (Add 1" to length and width.)
Side panels in laminated plastic in lieu of stainless steel.
2 rigid casters in lieu of swivel.
2 casters with brakes.
5" diameter casters. (Increase height 1”.)
Casters with polyurethane tires.
6" high stainless steel legs with adjustable bullet feet.
(Add 1” to height.)
CABINET
DIMENSIONS
RACK
SIZE
E F
10 x 20 26-1/8 30-1/8
14 x 20 26-1/8 30-1/8
20 x 20 26-1/8 36-1/8
VOLTAGE
SINGLE PH.
TOTAL
WATTAGE AMPS
120 1500 12.5
208 1500 7.2
Mobile Cup & Glass Dispensers
OPTIONAL EQUIPMENT
(WB) Two (2) Locking Casters
(PB) Perimeter Bumpers (Enclosed Dispensers)
(B) Corner Bumper
(Y4) 4" Polyurethane Casters
(Y5) 5" Polyurethane Casters
MODEL ACS-ST
CAPACITY
Up to 175 cups, approx.
100 to 144 saucers.
MODEL ACS-STH
CAPACITY
Up to 175 cups, approx. 100 to
144 saucers.
HEIGHT 36"- Other heights
available.
Dish guides add 4" to height.
Add 2” to length and width for
wraparound bumpers.
Shipping weight-150
COMPACT CABINET STYLE, MOBILE
MODEL ACS-ST
CAPACITY
- Up to 175 cups, approx.
100 to 144 saucers.
COMPACT CABINET STYLE, MOBILE, HEATED
MODEL ACS-STH
CAPACITY -
Up to 175 cups, approx. 100 to
144 saucers.
Model ACS-ST mobile cup and saucer dispenser. Model ACS-STH mobile heated cup and saucer dispenser.
Shown with optional wrap-around bumper.
SPECIFICATIONS
CABINET:The body and top are of unibody design, constructed of heavy gauge stainless steel panels formed to provide rigidity.
Heated models (ACS-STH) are insulated on sides and top and lined with zinc coated steel panels.
CUP DISPENSER: The unit is fitted with a model ADIF adjustable drop-in cup dispenser (see catalog page D-13 for specifications).
SAUCER DISPENSERS: The unit includes two Model AT adjustable, drop-in saucer dispensers. (See page D-9 for specifications.)
Saucer dia. required when ordering. Max. 6-5/8"
HEATING SYSTEM:The model ACS-STH heating system consists of heating elements of 1500 watt total capacity, thermostatically
regulated and wired for 120 or 208 volt (as specified) single phase power supply. A recessed control panel is complete with on-off
switch, neon pilot light, adjustable thermostat and a receptacle for a cord set. A 4' long three wire cord set fitted with NEMA 5-15P
plug for 120 volt or NEMA 6-15P plug for 208 volt is provided.
CASTERS: Unit is mounted on four 4" diameter heavy duty, double ball bearing, swivel casters with non-marking rubber tires.
OPTIONAL ITEMS
HEIGHT 35-1/2"- Other heights available.
Dish guides add 4" to height.
Add 1" to length and width for vertical
bumpers.
Add 2” to length and width for wrap-
around bumpers.
Shipping weight-150
HEIGHT 36''- Other heights available.
Dish guides add 4'' to height.
Add 1'' to length and width for
vertical bumpers.
Add 2" to length and width for
wrap-around bumpers.
Shipping weight-200
HEATED
EF
36”
One piece, wrap-around, non-marking vinyl bumper.
(Add 2" to length and width.)
12'' high vertical bumpers. (Add 1" to length and width.)
Side panels in laminated plastic in lieu of stainless steel.
2 rigid casters in lieu of swivel.
2 casters with brakes.
5" diameter casters. (Increase height 1”.)
Casters with polyurethane tires.
6" high stainless steel legs with adjustable bullet feet.
(Add 1” to height.)
CABINET
DIMENSIONS
RACK
SIZE
E F
10 x 20 26-1/8 30-1/8
14 x 20 26-1/8 30-1/8
20 x 20 26-1/8 36-1/8
VOLTAGE
SINGLE PH.
TOTAL
WATTAGE AMPS
120 1500 12.5
208 1500 7.2
VOLTAGE SINGLE
PH. TOTAL WATTAGE AMPS
120 1500 12.5
208 1500 7.2
HEIGHT 36''- Other heights available.
Dish guides add 4'' to height.
Add 2" to length and width for
wrap-around bumpers.
Shipping weight-200
COMPACT CABINET STYLE, MOBILE
MODEL ACS-ST
CAPACITY
- Up to 175 cups, approx.
100 to 144 saucers.
COMPACT CABINET STYLE, MOBILE, HEATED
MODEL ACS-STH
CAPACITY -
Up to 175 cups, approx. 100 to
144 saucers.
Model ACS-ST mobile cup and saucer dispenser. Model ACS-STH mobile heated cup and saucer dispenser.
Shown with optional wrap-around bumper.
SPECIFICATIONS
CABINET:The body and top are of unibody design, constructed of heavy gauge stainless steel panels formed to provide rigidity.
Heated models (ACS-STH) are insulated on sides and top and lined with zinc coated steel panels.
CUP DISPENSER: The unit is fitted with a model ADIF adjustable drop-in cup dispenser (see catalog page D-13 for specifications).
SAUCER DISPENSERS: The unit includes two Model AT adjustable, drop-in saucer dispensers. (See page D-9 for specifications.)
Saucer dia. required when ordering. Max. 6-5/8"
HEATING SYSTEM:The model ACS-STH heating system consists of heating elements of 1500 watt total capacity, thermostatically
regulated and wired for 120 or 208 volt (as specified) single phase power supply. A recessed control panel is complete with on-off
switch, neon pilot light, adjustable thermostat and a receptacle for a cord set. A 4' long three wire cord set fitted with NEMA 5-15P
plug for 120 volt or NEMA 6-15P plug for 208 volt is provided.
CASTERS: Unit is mounted on four 4" diameter heavy duty, double ball bearing, swivel casters with non-marking rubber tires.
OPTIONAL ITEMS
HEIGHT 35-1/2"- Other heights available.
Dish guides add 4" to height.
Add 1" to length and width for vertical
bumpers.
Add 2” to length and width for wrap-
around bumpers.
Shipping weight-150
HEIGHT 36''- Other heights available.
Dish guides add 4'' to height.
Add 1'' to length and width for
vertical bumpers.
Add 2" to length and width for
wrap-around bumpers.
Shipping weight-200
HEATED
EF
36”
One piece, wrap-around, non-marking vinyl bumper.
(Add 2" to length and width.)
12'' high vertical bumpers. (Add 1" to length and width.)
Side panels in laminated plastic in lieu of stainless steel.
2 rigid casters in lieu of swivel.
2 casters with brakes.
5" diameter casters. (Increase height 1”.)
Casters with polyurethane tires.
6" high stainless steel legs with adjustable bullet feet.
(Add 1” to height.)
CABINET
DIMENSIONS
RACK
SIZE
E F
10 x 20 26-1/8 30-1/8
14 x 20 26-1/8 30-1/8
20 x 20 26-1/8 36-1/8
VOLTAGE
SINGLE PH.
TOTAL
WATTAGE AMPS
120 1500 12.5
208 1500 7.2
Model ACS-ST mobile cup and saucer dispenser. Model ACS-STH mobile heated cup and saucer dispenser.
Shown with optional wrap-around bumper.
COMPACT CABINET STYLE, MOBILE
MODEL ACS-ST
CAPACITY
- Up to 175 cups, approx.
100 to 144 saucers.
COMPACT CABINET STYLE, MOBILE, HEATED
MODEL ACS-STH
CAPACITY -
Up to 175 cups, approx. 100 to
144 saucers.
Model ACS-ST mobile cup and saucer dispenser. Model ACS-STH mobile heated cup and saucer dispenser.
Shown with optional wrap-around bumper.
SPECIFICATIONS
CABINET:The body and top are of unibody design, constructed of heavy gauge stainless steel panels formed to provide rigidity.
Heated models (ACS-STH) are insulated on sides and top and lined with zinc coated steel panels.
CUP DISPENSER: The unit is fitted with a model ADIF adjustable drop-in cup dispenser (see catalog page D-13 for specifications).
SAUCER DISPENSERS: The unit includes two Model AT adjustable, drop-in saucer dispensers. (See page D-9 for specifications.)
Saucer dia. required when ordering. Max. 6-5/8"
HEATING SYSTEM:The model ACS-STH heating system consists of heating elements of 1500 watt total capacity, thermostatically
regulated and wired for 120 or 208 volt (as specified) single phase power supply. A recessed control panel is complete with on-off
switch, neon pilot light, adjustable thermostat and a receptacle for a cord set. A 4' long three wire cord set fitted with NEMA 5-15P
plug for 120 volt or NEMA 6-15P plug for 208 volt is provided.
CASTERS: Unit is mounted on four 4" diameter heavy duty, double ball bearing, swivel casters with non-marking rubber tires.
OPTIONAL ITEMS
HEIGHT 35-1/2"- Other heights available.
Dish guides add 4" to height.
Add 1" to length and width for vertical
bumpers.
Add 2” to length and width for wrap-
around bumpers.
Shipping weight-150
HEIGHT 36''- Other heights available.
Dish guides add 4'' to height.
Add 1'' to length and width for
vertical bumpers.
Add 2" to length and width for
wrap-around bumpers.
Shipping weight-200
HEATED
EF
36”
One piece, wrap-around, non-marking vinyl bumper.
(Add 2" to length and width.)
12'' high vertical bumpers. (Add 1" to length and width.)
Side panels in laminated plastic in lieu of stainless steel.
2 rigid casters in lieu of swivel.
2 casters with brakes.
5" diameter casters. (Increase height 1”.)
Casters with polyurethane tires.
6" high stainless steel legs with adjustable bullet feet.
(Add 1” to height.)
CABINET
DIMENSIONS
RACK
SIZE
E F
10 x 20 26-1/8 30-1/8
14 x 20 26-1/8 30-1/8
20 x 20 26-1/8 36-1/8
VOLTAGE
SINGLE PH.
TOTAL
WATTAGE AMPS
120 1500 12.5
208 1500 7.2
ACS-ST ACS-STH
Model# Tray Size Length (F) Width (E) Height
ACS-ST-1020 10 X 20 27 15/16 26 5/8 36
ACS-ST-1420 14 X 20 32 28 36
ACS-ST-2020 20 X 20 37 7/16 27 1/8 36
AC-STH-1020 10 X 20 27 15/16 26 5/8 36
ACS-STH-1420 14 X 20 32 28 36
ACS-STH-2020 20 X 20 37 7/16 27 1/8 36
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-8
JOB__________ ITEM # __________ QTY # __________
The Silver and Tray Cart manufactured by Piper can stand
up to the many demands of every day use. This unit is
constructed of heavy-duty stainless steel and is available
in two different heights with cylinder or pan style
silverware holders.
STANDARD FEATURES
18-gauge stainless steel shelf (20” x 32-1/4”) mounted
10” from the floor
Top shall be either cylinder style (3482) or pan style
(3467) specifications on top styles as noted to the
right
OPTIONS
159-2701 - Silverware Cylinder, plastic (each)
011-3842 - Silverware Cylinder, stainless steel (each)
341-3483 - Napkin Dispenser, folded napkin 3-1/2" x 7"
I (For Carts) - Silverware, identity plates (knives, forks,
spoons)
341-3482 - All stainless steel construction with twelve
4” diameter silver holder openings. Stainless steel
clip on each end to hold napkin dispenser. Open
bottom for easy cleaning. Furnished with rubber feet
when ordered for counter top use. (Does not include
cylinders Model 159-2701)
341-3467 - All stainless steel construction with four
each one-third size series pans and plastic hinged
cover to keep silver sanitary. Stainless steel clip on
each end to hold napkin dispenser. Open bottom
for easy cleaning. Furnished with rubber feet when
ordered for counter top use.
Model Desc. D W L Ship
Wt.
Ship Cu.
Ft.
341-3482 ** Cylinder
Style
9" 11 3/4" 33 1/3" 18 2.1
341-3467 ***Pan Style 10" 14" 33 1/3" 29 2.9
**Price does not include cylinders or napkin dispensers.
***Includes 4-326 Pans with steel hinged plexiglass cover.
Model Cylinder
Openings D W L Ship
Wt.
A-8 8 9" 11 1/2" 34" 30
A-10 10 9" 11 1/2" 34" 30
A-12 12 9" 11 1/2" 34" 30
Model No. Of Pans D W L Ship
Wt.
P-4 4 9" 11 1/2" 34" 40
P-5 5 9" 11 1/2" 34" 82
P-8 8 18" 11 1/2" 34" 70
P-10 10 18" 11 1/2" 34" 80
MODEL NUMBER
A-8
A-10
A-12
P-4
P-5
P-8
P-10
127
Silver & Tray Carts
A-8
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-9
SPECIFICATIONS
Model 716-1-A6 tray and silverware cart for silverware in cylinders.
FRAME: The frame is constructed of 1" O.D. 16ga.
stainless steel tubing with the A6 acting as an integral
cross braces welded across the top for rigidity.
SHELF: The shelf is formed of 18 ga. stainless steel. All
sides are flanged down 1-1/4" and hemmed for rigidity.
SILVERWARE DISPENSER: The dispenser is constructed
of 18 ga. stainless steel and is securely welded to the top
of the cart. The top is canted and has six round openings
to accommodate plastic or stainless steel silverware
cylinders.
CASTERS: The unit is mounted on four 4" diameter heavy
duty, double ball bearing swivel casters.
OPTIONS
159-2701 - Silverware Cylinder, plastic (each)
011-3842 - Silverware Cylinder, stainless steel (each)
341-3483 - Napkin Dispenser, folded napkin 3-1/2" x 7"
Y4 - Polyurethane 4" casters, set of 4, with ball bearing seals
Y5 - Polyurethane 5" casters, set of 4, with ball bearing seals
R - Rotating bumpers
WB - Two locking casters
I (for carts) - Silverware, identity plates, stainless steel
(knives, forks, t-spoons)
CAPACITY: Up to 100 14" x 18" trays and 210 to 240 pieces of silverware.
OVERALL DIMENSIONS: 18" long, 21 3/8" wide, 45" high.
Shipping weight: 60
Tray & Silverware Multi-Purpose Carts
SPECIFICATIONS
Model 715 series multi-purpose carts.
FRAME: The frame is constructed of 1" O.D. 16 ga. stainless
steel tubing formed to serve as push handles at both ends.
SHELVES: Each shelf is press formed from a single sheet of
18 ga. stainless steel. It is flanged down 1-5/16" on all four
sides and formed back at a 30º angle for rigidity. Each inside
corner is fitted with an ABS black plastic bracket and sleeve to
accommodate an upright. The bottom shelf on all models is
set 8" above the floor.
CASTERS: The unit is mounted on four 4" diameter heavy
duty,double ball bearing swivel casters.
MODELS 715-2 through 715-5: All carts are the same size
and construction. The model number suffix indicates number
of shelves.
OPTIONS
Y4 - Polyurethane 4" casters, set of 4, with ball bearing seals
Y5 - Polyurethane 5" casters, set of 4, with ball bearing seals
R - Rotating bumpers
WB - Two locking casters
MODEL NO. LENGTH WIDTH HEIGHT NO. OF
SHELVES
CLEARENCE
BETWEEN
SHELVES
SHIPPING
WEIGHT
715-2 36" 21 3/8" 36" 2 22-3/4" 65
715-3 36" 21 3/8" 36" 3 10-3/4" 75
715-4 36" 21 3/8" 45" 4 9-3/4" 100
715-5 36" 21 3/8" 45" 5 7" 120
SILVERWARE IN CYLINDERS
CAPACITY: Two stacks of trays or dish boxes, 15-1/4'' x 20-1/2" maximum size - or
one stack of racks, 20" x 20" maximum size on each shelf; or suitable combination.
Add 3" to overall length and width for rotating bumpers.
FOR TRAYS, RACKS, TRANSPORTING,
BUSSING
MODEL 715-3
Cart shown with
optional rotating
bumpers.
Shown with optional silverware cylinders and rotating bumpers.
MODEL 716-1-A6
128
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-9B

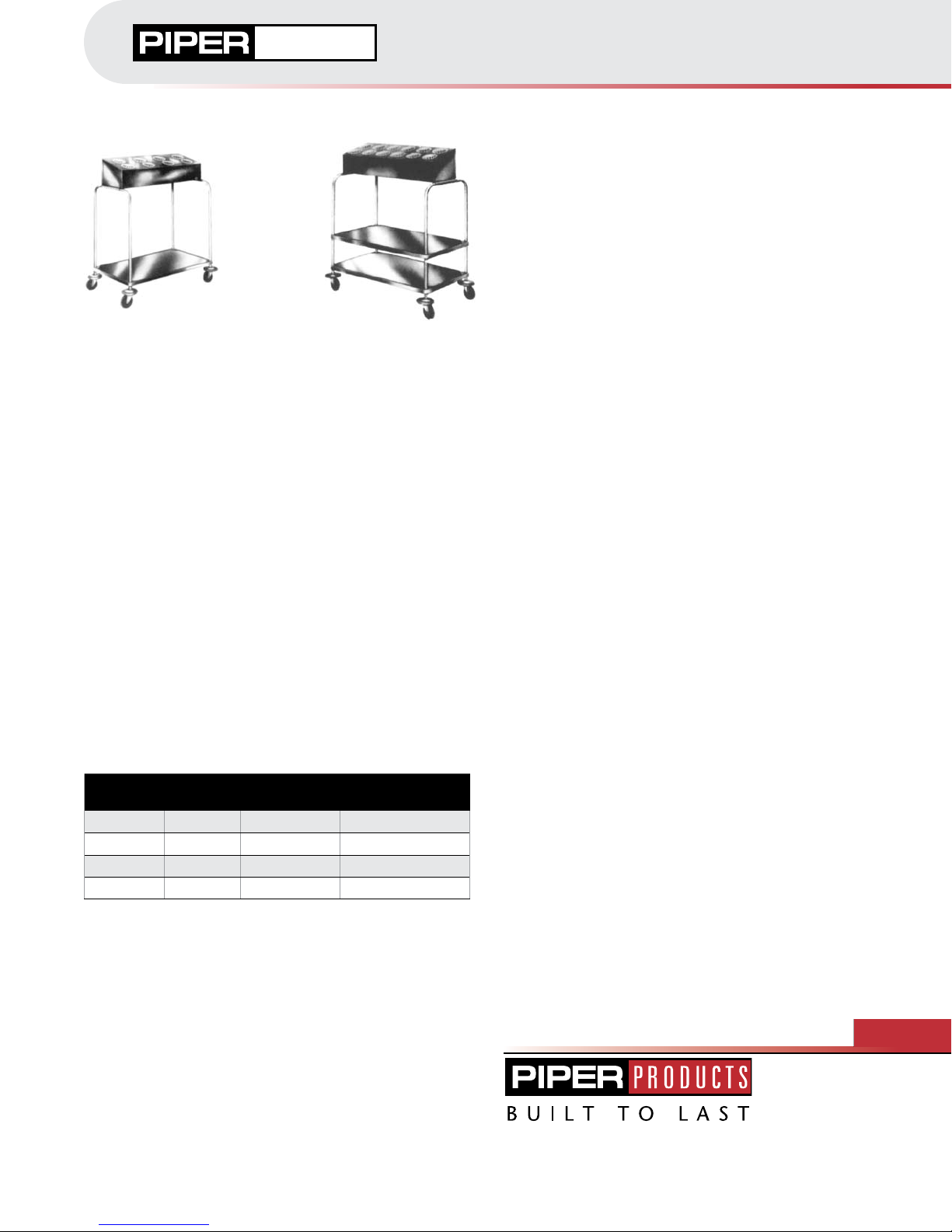

SPECIFICATIONS
715 Series tray and silverware carts for silverware in
cylinders.
FRAME: The frame is constructed of 1" O.D. 16 ga.
stainless steel tubing formed to support an overhead
silverware dispenser and to serve as push handles at both
ends.
SHELVES: The shelves are formed of 18 ga. stainless
steel. All sides are turned down 1-1/4" and hemmed for
rigidity. All corners are fitted with adjustable brackets
to accommodate the uprights. The bottom shelf on
all models is set 8" above the floor, with 10" clearance
between shelves on 2 shelf models.
SILVERWARE DISPENSER: The dispenser is constructed
of all welded 18 ga. stainless steel and is securely
fastened to the top of the tubular frame. The top is
canted and has round openings to accommodate plastic
or stainless steel silverware cylinders. (Cylinders not
included).
CASTERS: The units are mounted on four 4" diameter
heavy duty, double ball bearing swivel casters.
Tray & Silverware Carts
MODEL 715-1-A8: The unit has one bottom shelf and
openings for eight silverware cylinders.
MODEL 715-1-A10: The unit has one bottom shelf and
openings for ten silverware cylinders.
MODEL 715-1-A12: The unit has one bottom shelf and
openings for twelve silverware cylinders.
MODEL 715-1-A15: The unit has one bottom shelf and
openings for fifteen silverware cylinders.
MODEL 715-2-A8: The unit has two shelves and openings for
eight silverware cylinders.
MODEL 715-2-A10: The unit has two shelves and openings
for ten silverware cylinders.
MODEL 715-2-A12: The unit has two shelves and openings
for twelve silverware cylinders.
MODEL 715-2-A15: The unit has two shelves and openings
for fifteen silverware cylinders.
OPTIONS
159-2701 - Silverware Cylinder, plastic (each)
011-3842 - Silverware Cylinder, stainless steel (each)
341-3483 - Napkin Dispenser, folded napkin 3-1/2" x 7"
Y4 - Polyurethane 4" casters, set of 4, with ball bearing
seals
Y5 - Polyurethane 5" casters, set of 4, with ball bearing
seals
R - Rotating bumpers
WB - Two locking casters
I (for carts) - Silverware, identity plates (knives, forks,
t-spoons)
CAPACITY: Up to 200 trays, 15-1/4" x 20-1/2" maximum size; 35-40 pieces of silver-
ware in each cylinder.
OVERALL DIMENSIONS: 36" long, 31 3/8" wide, 45" high.
NOTE: Add 3" to length and width for rotating bumpers.
Shown with optional silverware cylinders and rotating bumpers.
MODEL NO. SHIPPING
WEIGHT MODEL NO. SHIPPING WEIGHT
715-1-A8 60 715-2-A8 70
715-1-A10 60 715-2-A10 70
715-1-A12 60 715-2-A12 70
715-1-A15 70 715-2-A15 90
SILVERWARE IN CYLINDERS
MODEL NUMBER
715-1-A8
715-1-A10
715-1-A12
715-1-A15
715-2-A8
715-2-A10
715-2-A12
715-2-A15
MODEL 715-1-A8 MODEL 715-2-A12
129
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-10
130

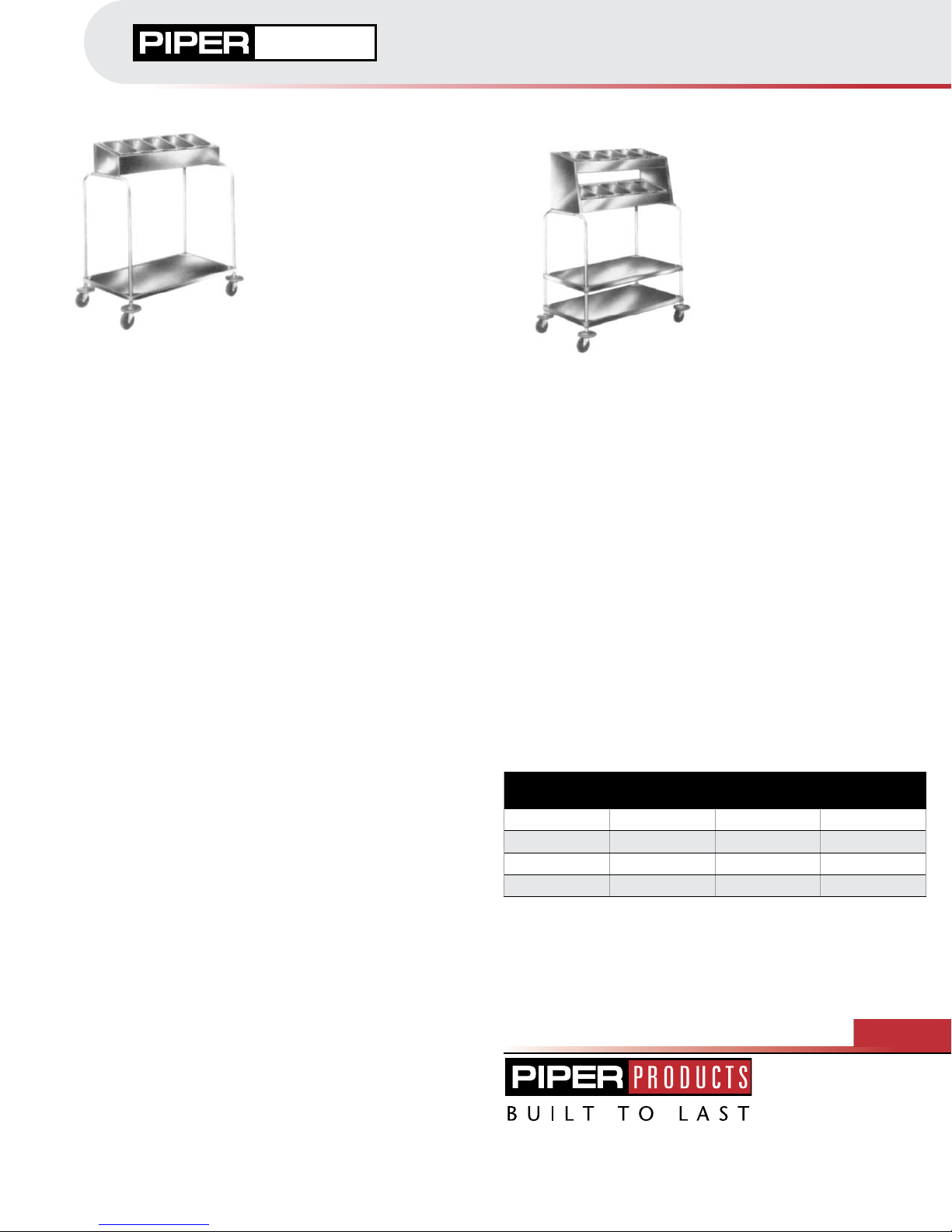

SPECIFICATIONS
715 Series tray and silverware carts for silverware in pans.
FRAME: The frame is constructed of 1" O.D. 16 ga. stainless steel tubing formed to support an overhead silverware dispenser
and to serve as push handles at both ends.
SHELVES: The shelves are formed of 18 ga. stainless steel. All sides are turned down 1-1/4" for rigidity. All corners are fitted
with cast aluminum brackets to accommodate the uprights. The bottom shelf on all models is set 8" above the floor, with 10"
clearance between shelves on 2 shelf models.
SILVERWARE DISPENSER: The dispenser is constructed of all welded 18 ga. stainless steel and is securely welded to
the top of the tubular frame. The tops are canted and are cut out to accommodate 6-3/8" x 10-3/8" x 4" deep stainless steel
silverware pans.On eight and ten pan capacity models, the silverware dispenser is two tiers high. The silverware pans are
furnished as standard.
CASTERS: The units are mounted on four 4" diameter heavy duty, double ball bearing swivel casters.
MODEL 715-1-P4: The unit has one bottom shelf and is supplied with four silverware pans on one level.
MODEL 715-1-P5: The unit has one bottom shelf and is supplied with five silverware pans on one level.
MODEL 715-1-P8: The unit has one bottom shelf and is supplied with eight silverware pans on two tiers.
MODEL 715-1-P10: The unit has one bottom shelf and is supplied with ten silverware pans on two tiers.
MODEL 715-2-P4: The unit has two shelves and is supplied with four silverware pans on one level.
MODEL 715-2-P5: The unit has two shelves and is supplied with five silverware pans on one level.
MODEL 715-2-P8: The unit has two shelves and is supplied with eight silverware pans on two tiers.
MODEL 715-2-P10: The unit has two shelves and is supplied with ten silverware pans on two tiers.
OPTIONS
341-3483 - Napkin Dispenser, folded napkin 3-1/2" x 7"
Y4 - Polyurethane 4" casters, set of 4, with ball bearing
seals
Y5 - Polyurethane 5" casters, set of 4, with ball bearing
seals
R - Rotating bumpers
WB - Two locking casters
I (for carts) - Silverware, identity plates, stainless steel
(knives, forks, t-spoons)
CAPACITY: Up to 200 trays, 15-1/4" x 20-1/2" maximum size;
100 pieces of silverware in each pan.
OVERALL DIMENSIONS:
Model Nos. 715-1-P4, 715-1-P5, 715-2-P4, 715-2-P5: 36" long x 21 3/8" wide x 45" high.
Model Nos. 715-1-P8, 715-1-P10, 715-2-P8, 715-2-P10: 36" long x 21 3/8" wide x 55" high.
NOTE: Add 3" to length and width for rotating bumpers.
MODEL NO. SHIPPING
WEIGHT MODEL NO. SHIPPING
WEIGHT
715-1-P4 85 715-2-P4 95
715-1-P5 90 715-2-P5 100
715-1-P8 125 715-2-P8 135
715-1-P10 130 715-2-P10 140
Tray & Silverware Carts
SILVERWARE IN PANS
715-1-P4
715-1-P5
715-1-P8
715-1-P10
Carts shown with optional
rotating bumpers.
715-2-P4
715-2-P5
715-2-P8
715-2-P10
715-2-P10
715-1-P5
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-11
131
Tray & Silverware Carts
PTS/MO AND PTS/MO2 SERIES
Piper’s Self-leveling Mobile Tray and Silver Dispensers
are offered in two styles; single or double stack. Each
stack holds 150 trays. These Self-leveling Tray and Silver
Dispensers can be found in tray lines, front- or back-of-
the-house, or any place your needs require.
STANDARD FEATURES
Equipped with self-lubricating delrin wheels and stainless steel
extension springs that can be easily disconnected to adjust the
lifting rate
Self-leveling mechanism lifts out for easy cleaning
Field adjustable to accommodate different weights
Removable stainless steel carrier tray provides bottom support
for trays being dispensed
Base is fabricated from stainless steel and reinforced with
stainless steel angles
Tubular frames are fabricated from stainless steel tubing and
securely welded to stainless steel angles on underside of base
Frames are reinforced by horizontal stainless steel rods welded
to each vertical frame
Top-mounted stainless steel silverware holder includes plastic
silverware cylinders
Non-marking bumper attached at each corner
Four 4” heavy-duty non-marking swivel casters that are securely
mounted to the base
WARRANTY
One year parts and labor. Warranty is detailed on inside front cover
of the price list.
Model# Max. Tray Size (A) Length (B) Width Height No. of
Cylinders
Ship
Wt.
(lbs)
SINGLE
PTS/915MO 10-3/4” x 15-1/8” 18-1/2” 14-1/2” 52-5/8” 6 73
PTS/1014MO 10-3/4” x 15-1/8” 18-1/2” 14-1/2” 52-5/8” 6 73
PTS/1216MO 12-3/8” x 16-3/4” 16-11/16” 19-7/8” 52-5/8” 6 73
PTS/1222MO 12-3/8” x 22-3/4” 16-11/16” 25-7/8” 52-5/8” 6 80
PTS/1418MO 14-3/8” x 18-3/4” 18-11/16” 21-7/8” 52-5/8” 8 78
PTS/1520MO 15-3/8” x 20-3/4” 19-11/16” 23-7/8” 52-5/8” 8 84
PTS/1622MO 16-3/8” x 22-3/4” 20-11/16” 25-7/8” 52-5/8” 8 84
DOUBLE
PTS/915MO2 10-3/8” x 15-1/4” 19-3/8” 25-1/8” 52-5/8” 8 90
PTS/1014MO2 10-3/8” x 15-1/4” 19-3/8” 25-1/8” 52-5/8” 8 90
PTS/1216MO2 12-3/8” x 16-3/4” 19-7/8” 32-9/16” 52-5/8” 10 108
PTS/1222MO2 12-3/8” x 22-3/4” 25-7/8” 32-9/16” 52-5/8” 10 115
PTS/1418MO2 14-3/8” x 18-3/4” 21-7/8” 36-9/16” 52-5/8” 10 97
PTS/1520MO2 15-3/8” x 20-3/4” 23-7/8” 38-9/16” 52-5/8” 10 115
PTS/1622MO2 16-3/8” x 22-3/4” 25-7/8” 40-9/16” 52-5/8” 10 119
OPTIONS
WB - Two locking casters
PB - Perimeter bumper
Y4 - Polyurethane 4" casters,
set of 4, with ball bearing
seals
Y5 - Polyurethane 5" casters,
set of 4, with ball bearing
seals
159-2701 - Silverware
Cylinder, plastic (each)
011-3842 - Silverware
Cylinder, stainless steel
(each)
341-3483 - Napkin Dispenser,
folded napkin 3-1/2" x 7"
I (for carts) - Silverware,
identity plates (knives, forks,
t-spoons)
MOBILE TRAY & SILVER DISPENSERS SPECIFICATIONS
PTS/MO PTS/MO2
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-12
132
W
L
50”
COMPACT CABINET STYLE, MOBILE
MODEL AT-ST-OSW8
CAPACITY-Approx. 100 to 150 trays
and 35-40 pieces of silverware in each
cylinder.
Dispenser shown with optional silverware
cylinders.
SPECIFICATIONS
Model AT-ST-OSW8 compact, cabinet style, mobile tray and
silverware dispenser.
FRAME AND BODY:The frame is constructed of all welded
heavy gauge stainless steel. The body sides are 20 ga.
stainless steel and top is 18 ga. stainless steel.
DISPENSER: The unit is fitted with a model ADIF adjustable
drop-in tray dispenser (see catalog page D-14 for specifications).
CASTERS: Unit is mounted on four 4" diameter heavy duty,
double ball bearing swivel casters with non-marking rubber
tires.
OPTIONAL ITEMS
One piece, wrap-around, non-marking vinyl bumper.
(Add 2" to length and width.)
12" vertical bumpers. (Add 1” to length and width.)
Side panels in laminated plastic in lieu of stainless steel.
2 rigid casters in lieu of swivel.
2 casters with brakes.
5" diameter casters. (Increases height 1”.)
Casters with polyurethane tires.
Nylon silverware cylinders.
Stainless steel cylinders.
Stainless steel silverware identity plates at each opening.
Add 1" to length and width for
vertical corner bumpers.
Add 2" to length and width for
wrap-around bumpers.
Shipping weight-135
HEIGHT 50''
- Other heights available.
CANTILEVER STYLE, MOBILE
ADJUSTABLE
MODEL ATCA-ST-OSW8
CAPACITY-Approx. 100 to 150 trays
and 35-40 pieces of silverware in
each cylinder.
Dispenser shown with optional silverware
cylinders and wrap-around bumper.
SPECIFICATIONS
Model ATCA-ST-OSW8 cantilever style, mobile tray and
silverware dispenser.
FRAME AND BODY:The frame is constructed of all welded
heavy gauge stainless steel and mounted on a 12 ga.
stainless steel "Z" section base. The body is 20 ga. stainless
steel on all sides and top. The front panel is removable for
adjustment access. The top is fitted with a stainless steel
sloped overhead-type silverware dispenser, enclosed on all
four sides and provided with eight openings for insertion of
round silverware cylinders.
DISPENSING MECHANISM:The tray carrier, constructed of all
welded 16 ga. stainless steel, is raised by a series of coil
springs attached to the frame. Ball bearing guides and a single
stainless steel aircraft type cable keep the carrier level in all
directions, even with an unbalanced load. The cable runs over
pre-lubricated plated steel pulleys.
ADJUSTMENT: Adjustment for various tray weights is easily
accomplished by removing the front panel, then engaging or
disengaging individual springs as required.
CASTERS: The unit is mounted on four 4" diameter, heavy
duty, double ball bearing casters with non-marking rubber
tires. OPTIONAL ITEMS
One piece, wrap-around, non-marking, vinyl bumper.
(Add 2" to length and width).
2 rigid casters in lieu of swivel.
2 casters with brakes.
5" diameter casters in lieu of 4". (Increase height by 1")
Casters with polyurethane tires.
Nylon silverware cylinders.
Stainless steel silverware cylinders.
Stainless steel silverware identity plates at each opening.
Tray guides.
A
50”
B
HEIGHT 50"- Other heights available. Shipping weight-175
TRAY SIZE W L
10 x 14 18 28
12-1/4 x 16-1/2 18 28
14 x 18 22-1/2 28
15-1/4 x 20-1/2 22-1/2 28
17-1/2 x 21 22-1/2 28
22 x 16 22-1/2 28
TRAY SIZE A B
10 x 14 25 20
12-1/4 x 16-1/2 14 25-1/2
14 x 18 15 27
15-1/4 x 20-1/2 17 29-1/2
17-1/2 x 21 19 30
16 x 22 17 31

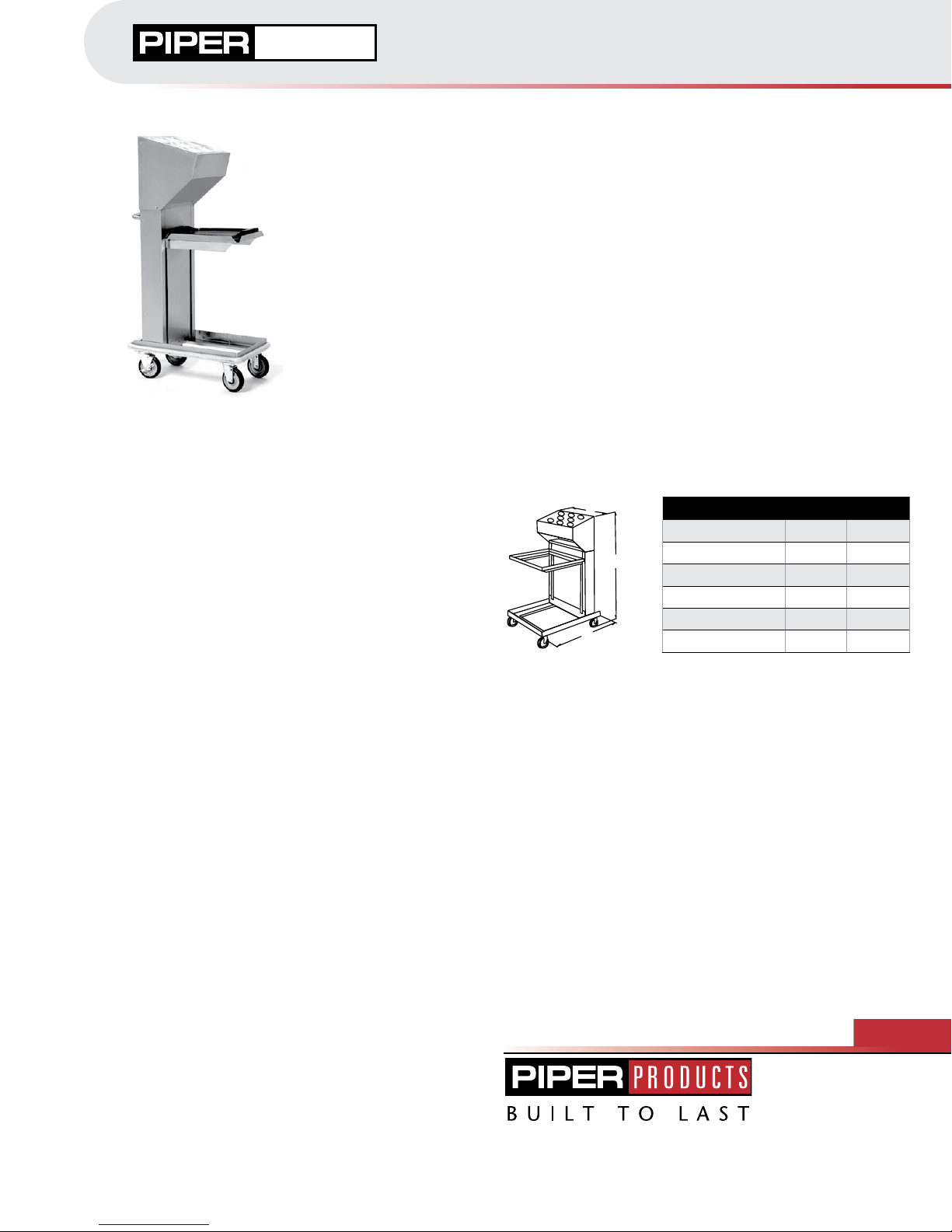

Tray & Silverware Dispensers
SPECIFICATIONS
Model ATCA-ST-OSW8 cantilever style, mobile tray and silverware
dispenser.
FRAME AND BODY:
The unit is constructed of all heavy gauge stainless steel and mounted
on a 12 ga. stainless steel. The body is 20 ga. stainless steel on all
sides and top. The front panel is removable for adjustment access.
The top is fitted with a stainless steel sloped overhead-type silverware
dispenser, enclosed on all four sides and provided with eight openings
for insertion of round silverware cylinders.
DISPENSING MECHANISM
The tray carrier, constructed of all welded 16 ga. stainless steel, is raised
by a series of coil springs attached to the frame. Ball bearing guides
and a single stainless steel aircraft type cable keep the carrier level in
all directions, even with an unbalanced load. The cable runs over pre-
lubricated plated steel pulleys.
ADJUSTMENT
Adjustment for various tray weights is easily accomplished by removing the
front panel, then engaging or disengaging individual springs as required.
CASTERS
The unit is mounted on four 4" diameter, heavy duty, double ball bearing
casters with non-marking rubber tires.
CANTILEVER STYLE,
MOBILE ADJUSTABLE
CAPACITY-Approx. 100 to
150 trays and 35-40 pieces of
silverware in each cylinder.
Dispenser shown with optional
silverware cylinders and wrap-
around bumper.
W
L
50”
COMPACT CABINET STYLE, MOBILE
MODEL AT-ST-OSW8
CAPACITY-Approx. 100 to 150 trays
and 35-40 pieces of silverware in each
cylinder.
Dispenser shown with optional silverware
cylinders.
SPECIFICATIONS
Model AT-ST-OSW8 compact, cabinet style, mobile tray and
silverware dispenser.
FRAME AND BODY:The frame is constructed of all welded
heavy gauge stainless steel. The body sides are 20 ga.
stainless steel and top is 18 ga. stainless steel.
DISPENSER: The unit is fitted with a model ADIF adjustable
drop-in tray dispenser (see catalog page D-14 for specifications).
CASTERS: Unit is mounted on four 4" diameter heavy duty,
double ball bearing swivel casters with non-marking rubber
tires.
OPTIONAL ITEMS
One piece, wrap-around, non-marking vinyl bumper.
(Add 2" to length and width.)
12" vertical bumpers. (Add 1” to length and width.)
Side panels in laminated plastic in lieu of stainless steel.
2 rigid casters in lieu of swivel.
2 casters with brakes.
5" diameter casters. (Increases height 1”.)
Casters with polyurethane tires.
Nylon silverware cylinders.
Stainless steel cylinders.
Stainless steel silverware identity plates at each opening.
Add 1" to length and width for
vertical corner bumpers.
Add 2" to length and width for
wrap-around bumpers.
Shipping weight-135
HEIGHT 50''
- Other heights available.
CANTILEVER STYLE, MOBILE
ADJUSTABLE
MODEL ATCA-ST-OSW8
CAPACITY-Approx. 100 to 150 trays
and 35-40 pieces of silverware in
each cylinder.
Dispenser shown with optional silverware
cylinders and wrap-around bumper.
SPECIFICATIONS
Model ATCA-ST-OSW8 cantilever style, mobile tray and
silverware dispenser.
FRAME AND BODY:The frame is constructed of all welded
heavy gauge stainless steel and mounted on a 12 ga.
stainless steel "Z" section base. The body is 20 ga. stainless
steel on all sides and top. The front panel is removable for
adjustment access. The top is fitted with a stainless steel
sloped overhead-type silverware dispenser, enclosed on all
four sides and provided with eight openings for insertion of
round silverware cylinders.
DISPENSING MECHANISM:The tray carrier, constructed of all
welded 16 ga. stainless steel, is raised by a series of coil
springs attached to the frame. Ball bearing guides and a single
stainless steel aircraft type cable keep the carrier level in all
directions, even with an unbalanced load. The cable runs over
pre-lubricated plated steel pulleys.
ADJUSTMENT: Adjustment for various tray weights is easily
accomplished by removing the front panel, then engaging or
disengaging individual springs as required.
CASTERS: The unit is mounted on four 4" diameter, heavy
duty, double ball bearing casters with non-marking rubber
tires. OPTIONAL ITEMS
One piece, wrap-around, non-marking, vinyl bumper.
(Add 2" to length and width).
2 rigid casters in lieu of swivel.
2 casters with brakes.
5" diameter casters in lieu of 4". (Increase height by 1")
Casters with polyurethane tires.
Nylon silverware cylinders.
Stainless steel silverware cylinders.
Stainless steel silverware identity plates at each opening.
Tray guides.
A
50”
B
HEIGHT 50"- Other heights available. Shipping weight-175
TRAY SIZE W L
10 x 14 18 28
12-1/4 x 16-1/2 18 28
14 x 18 22-1/2 28
15-1/4 x 20-1/2 22-1/2 28
17-1/2 x 21 22-1/2 28
22 x 16 22-1/2 28
TRAY SIZE A B
10 x 14 25 20
12-1/4 x 16-1/2 14 25-1/2
14 x 18 15 27
15-1/4 x 20-1/2 17 29-1/2
17-1/2 x 21 19 30
16 x 22 17 31
Tray Size A B
10 x 14 25 20
12-1/4 x 16-1/2 14 25-1/2
14 x 18 15 27
15-1/4 x 20-1/2 17 29-1/2
17-1/2 x 21 19 30
16 x 22 17 31
HEIGHT 50'' - Other heights available. Shipping weight-175
OPTIONS
WB - Two locking casters
PB - Perimeter bumper
Y4 - Polyurethane 4" casters, set of 4, with ball bearing
seals
Y5 - Polyurethane 5" casters, set of 4, with ball bearing
seals
159-2701 - Silverware Cylinder, plastic (each)
011-3842 - Silverware Cylinder, stainless steel (each)
341-3483 - Napkin Dispenser, folded napkin 3-1/2" x 7"
I (for carts) - Silverware, identity plates (knives, forks,
t-spoons)
ATCA-ST-OSW8
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-13
133
Tray & Silverware Carts
SPECIFICATIONS
Models 717 and 718 tray and silverware carts for silverware in pans.
FRAME: The frame is constructed of all welded 1" O.D. 16 ga. stainless
steel tubing, with integrally welded 3/4" O.D. cross rails for rigidity. The
frame is formed to serve as push handles at both ends.
SHELVES: The shelves are formed of 14 ga. stainless steel with the
sides turned down 1-1/2" and flanged in 1/2" for rigidity. The corners are
notched to the contour of, and welded to the tubular frame to form a
unitized assembly. The shelves are cut out to accommodate four 6-3/8"
x 10-3/8" x 6" deep silverware containers per shelf. Pans are furnished as
part of this unit.
The bottom shelf is set 14" above the floor, with 12" between shelves.
CASTERS: The unit is mounted on four 4" diameter heavy duty, double
ball bearing swivel casters with non-marking rubber tires.
MODEL 717: The shelves are cut out for and supplied with a total of
eight silverware pans.
MODEL 718: Same as Model 717, except the bottom shelf is solid,
without opening, and is constructed of 16 ga. stainless steel with
raised die-formed "V" edges on all sides. Four silverware pans only are
supplied.
OPTIONS
341-3483 - Napkin Dispenser, folded napkin 3-1/2" x 7"
Y4 - Polyurethane 4" casters, set of 4, with ball bearing seals
Y5 - Polyurethane 5" casters, set of 4, with ball bearing seals
R - Rotating bumpers
WB - Two locking casters
CAPACITY: Approximately 100 pieces of silverware in each pan.
OVERALL DIMENSIONS: 31" long, 16" wide, 31" high.
Approximate shipping weight: 80
SILVERWARE IN PANS
MODEL 717
MODEL 718
SPECIFICATIONS
Models 719 and 719-1 tray and silverware carts for silverware in cylinders.
FRAME: The frame is constructed of all welded 1" O.D. 16 ga. stainless steel
tubing, with integrally welded 3/4" O.D. cross rails for rigidity. The frame is
formed to serve as push handles at both ends.
SHELVES: The shelves are formed of 14 ga. stainless steel with the sides
turned down 1-1/2" and flanged in 1/2" for rigidity. The corners are notched to
the contour of, and welded to the tubular frame to form a unitized assembly.
The shelves have round openings to accommodate fifteen silverware cylinders
per shelf. The bottom shelf is set 14" above the floor, with 18" clearance
between shelves.
CASTERS: The unit is mounted on four 4" diameter heavy duty, double ball
bearing swivel casters with non-marking rubber tires.
MODEL 719: Each shelf has openings to accommodate 15 silverware
cylinders.
MODEL 719-1: Same as Model 719, except that the bottom shelf is solid
without openings, and is constructed of 16 ga. stainless steel with raised die-
formed "V" edges on all sides.
OPTIONS
159-2701 - Silverware Cylinder, plastic (each)
011-3842 - Silverware Cylinder, stainless steel (each)
341-3483 - Napkin Dispenser, folded napkin 3-1/2" x 7"
Y4 - Polyurethane 4" casters, set of 4, with ball bearing seals
Y5 - Polyurethane 5" casters, set of 4, with ball bearing seals
R - Rotating bumpers
WB - Two locking casters
CAPACITY: Approximately 35-40 pieces of silverware in each cylinder.
OVERALL DIMENSIONS: 33" long, 21" wide, 36" high.
Approximate shipping weight: 80
MODEL 717 MODEL 719
SILVERWARE IN CYLINDERS
MODEL 719
MODEL 719-1
Shown with optional silverware cylinders
and rotating bumpers.
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-14
OPTIONS
WB - Two (2) Locking Casters
PB - Perimeter Bumper
B - Corner Bumper
Y4 - Polyurethane 4" casters, set of 4,
with ball bearing seals
Y5 - Polyurethane 5" casters, set of 4,
with ball bearing seals
159-2701 - Silverware Cylinder,
plastic (each)
011-3842 - Silverware Cylinder,
stainless steel (each)
341-3483 - Napkin Dispenser, folded
napkin 3-1/2" x 7"
I (for carts) - Silverware, identity
plates, stainless steel (knives, forks,
t-spoons)
Other heaights available, contact factory for details.
134

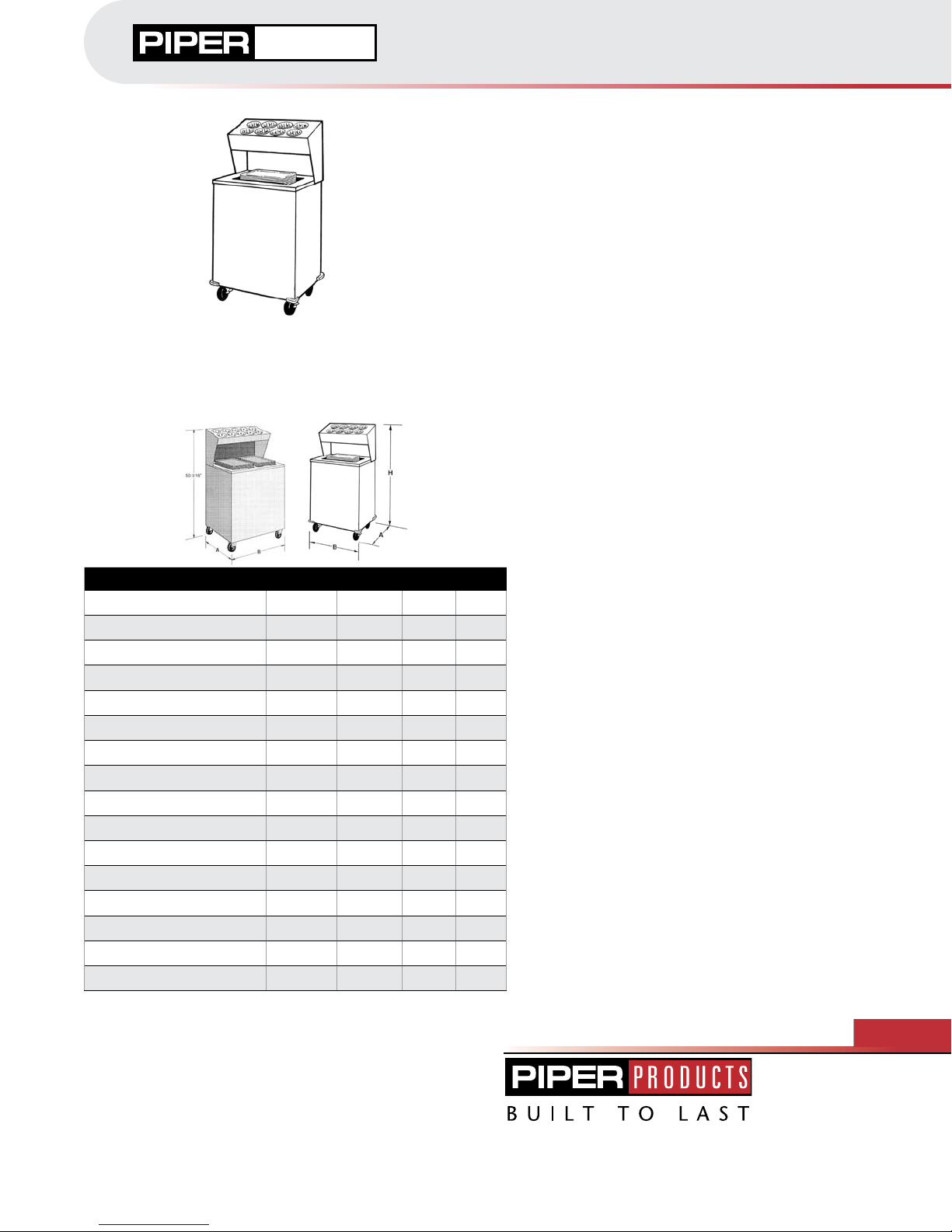

Enclosed Tray & Silver Dispensers
AT-ST-OSW8 AND AT-ST2-OSW8 SERIES
Piper’s Self-leveling Mobile Enclosed Style Tray and Silver
Dispensers are offered in two styles; single stack models
or double stack, both include enclosed base with solid
bottom. The Piper Mobile Tray and Silver Dispensers can
be found in tray lines or any place your needs require.
STANDARD FEATURES
Equipped with self-lubricating delrin wheels and stainless
steel extension springs that can be easily disconnected to
adjust the lifting rate
Self-leveling mechanism lifts out for easy cleaning
Field adjustable to accommodate different weights
Removable stainless steel carrier tray provides bottom
support for trays being dispensed
Cabinet base is fabricated of stainless steel with lower
edges double folded and reinforced with heavy gauge
stainless steel gusset plates at each corner
Top-mounted stainless steel silverware holder includes
plastic silverware cylinders
Non-marking bumper attached at each corner
Four 4” heavy-duty non-marking swivel casters are securely
mounted to the base
WARRANTY
One year parts and labor. Warranty is detailed on inside front
cover of the price list.
AT-ST-OSW8
AT-ST-OSW8
AT-ST2-OSW8
Model# Tray Size Length Width Height
AT-ST-915-OSW8 9 X 15 17 13/16 21 7/8 50
AT-ST-1014-OSW8 10 X 14 17 13/16 21 7/8 50
AT-ST-1216-OSW8 12 X 16 19 5/8 23 5/8 50
AT-ST-1222-OSW8 12 X 22 19 1/8 29 1/8 50
AT-ST-1418-OSW8 14 X 18 21 1/8 25 1/8 50
AT-ST-1520-OSW8 15 X 20 22 1/8 28 50
AT-ST-1721-OSW8 17 X 21 24 1/2 28 1/8 50
AT-ST-1622-OSW8 16 X 22 23 5/8 29 5/8 50
AT-ST2-915-OSW8 9 X 15 33 1/4 21 7/8 50
AT-ST2-1014-OSW8 10 X 14 33 1/4 21 7/8 50
AT-ST2-1216-OSW8 12 X 16 36 7/8 23 5/8 50
AT-ST2-1222-OSW8 12 X 22 35 7/8 29 1/8 50
AT-ST2-1418-OSW8 14 X 18 39 7/8 25 1/8 50
AT-ST2-1520-OSW8 15 X 20 41 7/8 28 50
AT-ST2-1721-OSW8 17 X 21 46 5/8 28 1/8 50
AT-ST2-1622-OSW8 16 X 22 44 7/8 29 5/8 50
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-15

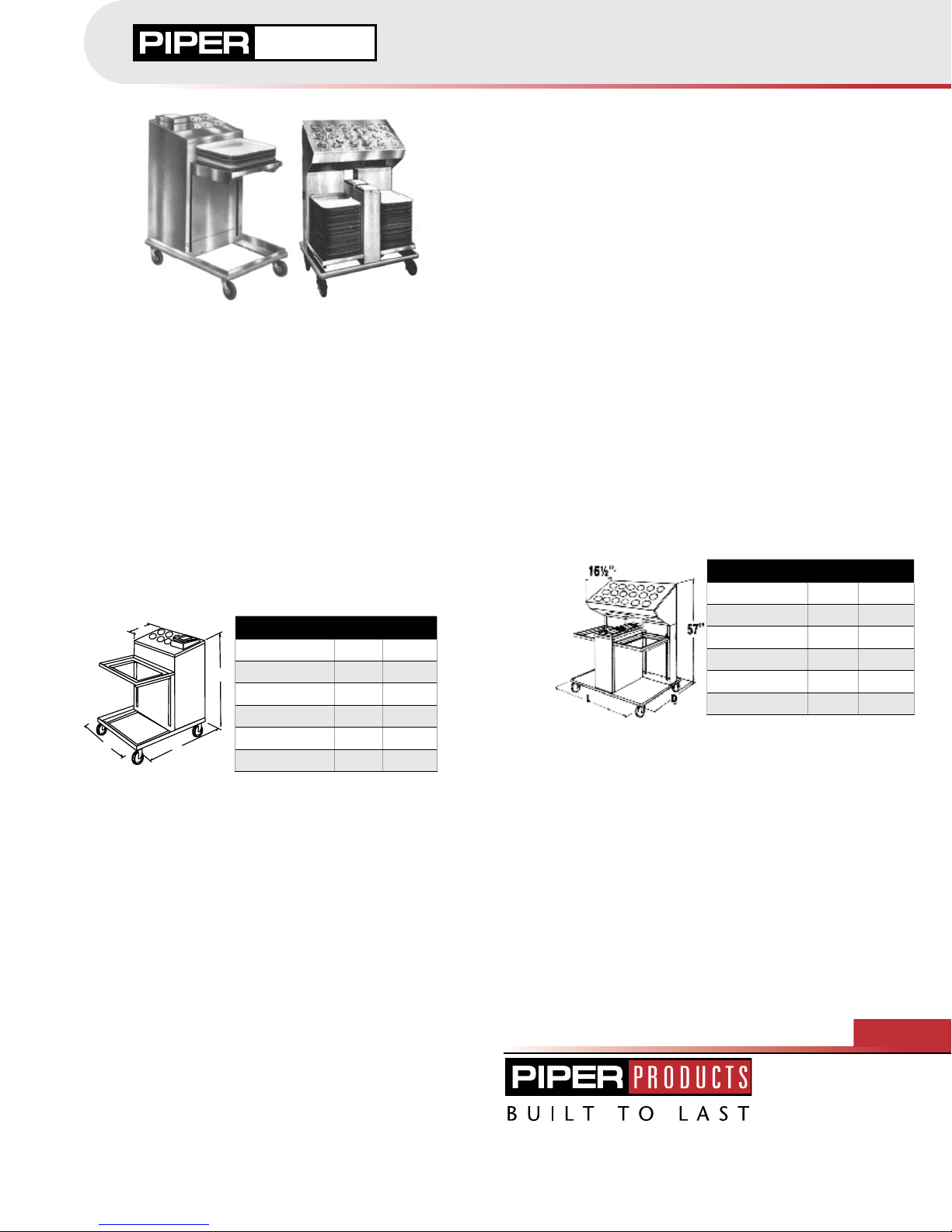

1ATCA-SN-B CANTILEVER STYLE, MOBILE TRAY AND
SILVERWARE AND NAPKIN DISPENSER.
CAPACITY:
Approx. 100-150 trays, 500 napkins, 35-40 pieces of silverware in each
cylinder.
FRAME AND BODY:
The frame is constructed of all welded heavy gauge stainless
steel. The body sides are 20 ga. stainless steel. The sloped top is 18 ga. stainless
steel, cut out to accommodate six optional round silverware cylinders and one
furnished napkin dispenser (see specification on Page D-11). The base is fitted
with a corner bumper as standard. The front panel is removable for adjustment
access.
DISPENSING MECHANISM:
The tray carrier, constructed of all welded 16 ga.
stainless steel, is raised by a series of coil springs attached to the frame. Ball
bearing guides and a single stainless steel aircraft type cable keep the carrier level
in all directions, even with an unbalanced load. The cable runs over pre-lubricated
plated steel pulleys.
ADJUSTMENT:
Adjustment for various tray weights is easily accomplished by
removing the front panel, then engaging or disengaging individual springs as
required.
CASTERS:
The unit is mounted on four 4" diameter, heavy duty, double ball
bearing casters.
TRAY SIZE A B
10 x 14 23 29-1/4
12-1/4 x 16-1/2 23 30-1/2
14 x 18 23 32-1/4
15-1/4 x 20-1/2 23 33-1/2
17-1/2 x 21 26 35-3/4
16 x 22 26 34-1/4
NOTE - With six cylinders, the napkin maximum width is 5-5/8. With greater width napkin,
capacity is four silverware cylinders. HEIGHT 41" - Other heights available.
Shipping weight-225
OPTIONS
WB - Two (2) Locking Casters
PB - Perimeter Bumper
Y4 - Polyurethane 4" casters, set of 4, with ball bearing seals
Y5 - Polyurethane 5" casters, set of 4, with ball bearing seals
159-2701 - Silverware Cylinder, plastic (each)
011-3842 - Silverware Cylinder, stainless steel (each)
341-3483 - Napkin Dispenser, folded napkin 3-1/2" x 7"
I (for carts) - Silverware, identity plates, (knives, forks, t-spoons)
B - Corner Bumpers
2ATCA-SN-B CANTILEVER STYLE, MOBILE TRAY,
SILVERWARE AND NAPKIN DISPENSER.
CAPACITY:
Approx. 200 to 300 trays, 1000 paper napkins, 35-40
pieces of silverware in each cylinder.
FRAME AND BODY:
The frame is constructed of all welded heavy
gauge stainless steel. The body is 20 ga. stainless steel on all sides
and top. The top is fitted with an 18 ga. stainless steel sloped
overhead-type silverware dispenser, enclosed on all four sides
and provided with eighteen openings for insertion of silverware
cylinders. Two napkin dispensers are furnished, mounted in the
center compartment between the tray dispensers (see specification
on Page D-11). The base is fitted with a corner bumper as standard.
The front panel is removable for adjustment access.
DISPENSING MECHANISM:
The tray carriers, constructed of all
welded 16 ga. stainless steel, are each raised independently by a
series of coil springs attached to the frame. Ball bearing guides
and a single stainless steel aircraft type cable keep each carrier
level in all directions, even with an unbalanced load. The cables
runs over pre-lubricated plated steel pulleys.
ADJUSTMENT:
Adjustment for various tray weights is easily
accomplished by removing the appropriate front panel, then
engaging or disengaging individual springs as required.
CASTERS:
The unit is mounted on four 4" diameter, extra heavy
duty, double ball bearing swivel casters.
TRAY SIZE L D
10x14 40 26
12-1/4 x 16-1/2 40 27-1/2
14x18 42 29
15-1/4 x 20-1/2 46 31-1/2
17-1/2 x 21 50 32
16 x 22 46 33
NOTE-if the napkin width is greater than 7-1/2", add to the length ("L")
the difference between the napkin width and 7-1/2.
HEIGHT 57"-Other heights available.
Shipping weight-500
OPTIONS
WB - Two (2) Locking Casters
PB - Perimeter Bumper
Y4 - Polyurethane 4" casters, set of 4, with ball bearing seals
Y5 - Polyurethane 5" casters, set of 4, with ball bearing seals
159-2701 - Silverware Cylinder, plastic (each)
011-3842 - Silverware Cylinder, stainless steel (each)
341-3483 - Napkin Dispenser, folded napkin 3-1/2" x 7"
I (for carts) - Silverware, identity plates, (knives, forks,
t-spoons)
B - Corner Bumpers
AB
41"
15-1/4"
AB
41"
15-1/4"
1ATCA-SN-B
Dispenser
shown with
optional
silverware
cylinders.
2ATCA-SN-B
Dispenser
shown with
optional
silverware
cylinders and
silverware
identity plates.
1ATCA-SN-B 2ATCA-SN-B
135
Cantilever Style
Tray, Silverware & Napkin Dispensers
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-16

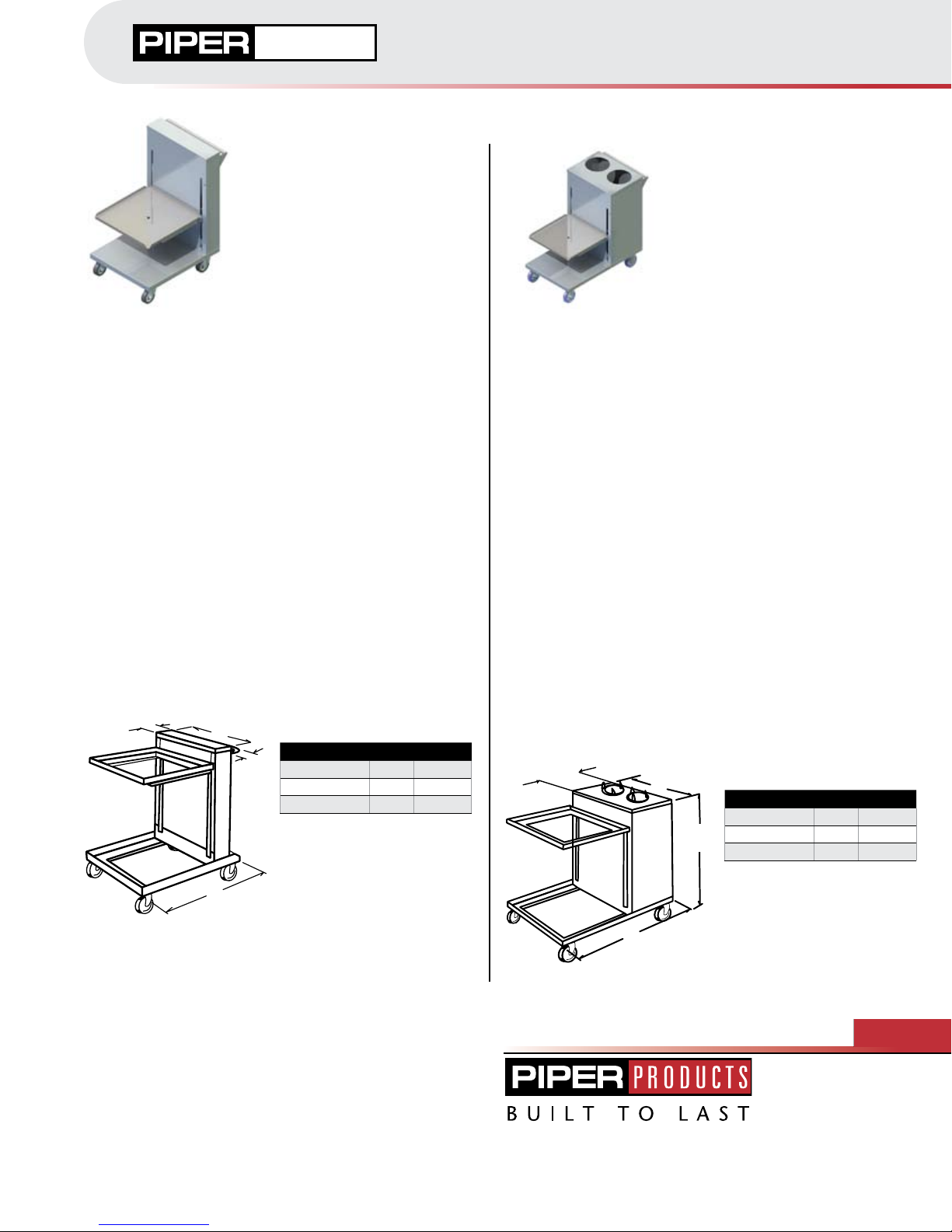

SPECIFICATIONS
Model ACCA-ST mobile dispenser for cups or glasses in racks.
FRAME AND BODY: The frame is constructed of all welded heavy gauge
stainless steel. The body is 20 ga. stainless steel on all sides and top,
and is fitted with a stainless steel tubular push handle. The front panel
is removable for adjustment access.
DISPENSING MECHANISM: The rack carrier, constructed of all welded
16 ga. stainless steel, is raised by a series of coil springs attached to the
frame. Ball bearing guides and a single stainless steel aircraft type cable
keep the carrier level in all directions, even with an unbalanced load.
The cable runs over pre-lubricated plated steel pulleys.
ADJUSTMENT: Adjustment for various weights is easily accomplished
by removing the front panel, then engaging or disengaging individual
springs as required.
OPTIONS
WB - Two (2) Locking Casters
PB - Perimeter Bumpers
Y4 - Polyurethane 4" casters, set of 4, with ball bearing seals
Y5 - Polyurethane 5" casters, set of 4, with ball bearing seals
SPECIFICATIONS
Model ACSCA-ST mobile cup and saucer dispenser.
FRAME AND BODY: The frame is constructed of all welded heavy gauge
stainless steel. The body is 20 ga. stainless steel on all sides and top, and is
fitted with a stainless steel tubular push handle. The front panel is removable
for adjustment access.
CUP DISPENSING MECHANISM: The rack carrier, constructed of all welded
16 ga. stainless steel, is raised by a series of coil springs attached to the
frame. Ball bearing guides and a single stainless steel aircraft type cable
keep the carrier level in all directions, even with an unbalanced load. The
cable runs over pre-lubricated plated steel pulleys. Adjustment for varying
weights is easily accomplished by removing the front panel, then engaging or
disengaging individual springs as required.
SAUCER DISPENSERS: The unit includes two Model AT adjustable, drop-
in saucer dispensers (see Page D-9 for specifications). The saucer diameter
(6-1/2" maximum) is required when ordering.
CASTERS: The unit is mounted on four 4" diameter, heavy duty, double ball
bearing casters.
OPTIONS
WB - Two (2) Locking Casters
PB - Perimeter Bumper
Y4 - Polyurethane 4" casters, set of 4, with ball bearing seals
Y5 - Polyurethane 5" casters, set of 4, with ball bearing seals
136
3"
5"
B
A
Cantilever Cup, Saucer,
& Glass Dispensers
CANTILEVER STYLE,
MOBILE ADJUSTABLE
MODEL ACCA-ST
CAPACITY
Up to 192 glasses or 175 cups, in racks
CANTILEVER STYLE,
MOBILE ADJUSTABLE
MODEL ACSCA-ST
CAPACITY
Up to 175 cups (in racks) and
approx. 100 to 144 saucers.
RACK SIZE A B
10 x 20 21 19
14 x 20 15 29
20 x 20 21 29
HEIGHT 36"- Other heights available.
Shipping weight-150
RACK SIZE A B
10 x 20 21 26
14 x 20 21 30
20 x 20 21 36
HEIGHT 42"-Other heights available. Dish guides
add 4" to height.
Shipping weight-200
13”
A
36”
B
42"
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and
labor for a period of twelve (12) months from the date of purchase. See manufacturer’s complete
warranty for details.
It is our policy to build equipment which is design certified by companies that have been
accredited at the Federal Level by the Occupational Safety and Health Agency (OSHA) and
ANSI as a National Recognized Testing Laboratory. These companies include CSA International,
Underwriters Laboratories, and the National Sanitation Foundation. However, a continuing
program of product improvement makes it necessary to submit new models to the agencies as
they are developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions
do not entitle buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment. Information is not for design purposes.
SPEC
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-17
137
ATCA-ST
2ATCA-ST
ASCA-ST
Model ATCA-ST, 2ATCA-ST or ASCA-ST cantilever style
mobile tray and silverware dispensers.
FRAME AND BODY
The frame is constructed of all welded heavy gauge
stainless steel. The body is 20 ga. stainless steel on all
sides and top, and is fitted with a stainless steel tubular
push handle. Model 2ATCA-ST is constructed similarly to
Model ATCA-ST except that it consists of a double size
frame and body and has two independent tray carriers
and dispensing mechanisms to accommodate two stacks
of trays. The front panel is removable for adjustment
access.
DISPENSING MECHANISM
The tray and pan carriers (two on Model 2ATCA-ST),
constructed of all welded 16 ga. stainless steel, are each
raised by a series of coil springs attached to the frame.
Ball bearing guides and a single stainless steel aircraft
type cable keep each carrier level in all directions, even
with an unbalanced load. The cable runs over pre-
lubricated plated steel pulleys.
ADJUSTMENT
Adjustment for various tray or pan weights is easily
accomplished by removing the front panel, then engaging or
disengaging individual springs as required.
CASTERS
Each unit is mounted on four 4" diameter, heavy duty, double
ball bearing casters.
TRAY SIZE
ATCA-ST A2TCA-ST ASCA-ST 1826
A B A B A B
10 x 14 15 20 30 20 - -
12-1/4 x 16-1/2 14 25-1/2 28 25-1/2 - -
14 x 18 15 27 30 27 - -
15-1/4 x 20-1/2 17 29-1/2 34 29-1/2 - -
17-1/2 x 21 19 30 38 30 - -
16 x 22 17 31 34 31 - -
18 x 26 - - - - 19 35
Shipping weight ATCA-ST-150
Shipping weight 2ATCA-ST-280
Shipping weight ASCA-ST-170
HEIGHT 36" - Other heights available.
OPTIONS
WB - Two locking casters
PB - Perimeter bumpers
Y4 - Polyurethane 4" casters, set of 4, with ball bearing
seals
Y5 - Polyurethane 5" casters, set of 4, with ball bearing
seals
341-3483 - Napkin Dispenser, folded napkin 3-1/2" x 7"
ASCA-ST
FOR 18 x 26
SHEET PANS
CAPACITY
Up to 75 pans.
MODEL NUMBER
Cantilever Tray & Sheet Pan Dispensers
ATCA-ST
2ATCA-ST
CAPACITY -
Approx. 100 to
150 trays per
carrier.
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
SPEC
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
E-18
1ATG
2ATG
3ATG
4ATG
1ATGH
2ATGH
3ATGH
4ATGH
138
Mobile Dish Dispensers
SPECIFICATIONS
Models ATG unheated and ATGH heated tubular frame, mobile dish dispensers.
FRAME AND SHELVES: The frame is constructed of all welded 1" O.D. 16 ga. stainless steel tubing, and is welded to the 16
ga. stainless steel shelves - turned down, hemmed and notched to mate with the uprights.
DISPENSERS: ATG models are fitted with model AT adjustable, drop-in dish dispensers. ATGH models are fitted with model
ATH heated, adjustable, drop-in dish dispensers (See page D-9 for specifications of these dispensers). On heated units, the
dispensers plug into a central junction box which is fitted with a 4' long, 3 wire cord set with NEMA 5-15P plug for 120 volt
or NEMA 6-15P for 220 volt.* These units are also available for oval platters, Model ATDO.
CASTERS: Units are mounted on four, 4'' diameter heavy duty, double ball bearing swivel casters with non-marking
rubber tires.
OPTIONS
Y4 - Polyurethane 4" casters, set of 4, with ball bearing seals
Y5 - Polyurethane 5" casters, set of 4, with ball bearing seals
R - Rotating bumpers
SSTC - Stainless Steel Tube Covers
TUBULAR FRAME, MOBILE
UNHEATED OR HEATED,
ADJUSTABLE
Model 1ATG Model 2ATG Model 3ATG Model 4ATG
Model 1ATGH Model 2ATGH Model 3ATGH Model 4ATGH
CAPACITY OF EACH TUBULAR DISPENSER - Approx. 28 to 36 bowls or 50 to 72 plates.
This manual suits for next models
7
Table of contents
Other Piper Products Freezer manuals
