In This Section
Hot Food Unit
B-1.........................................................................................52
Hot Top
B-2.........................................................................................54
Hot/Cold Combo Unit
B-3.........................................................................................56
Cold Food Unit
Ice or Mechanically Refrigerated
B-4.........................................................................................58
Frost Top
Mechanically Refrigerated
B-5.........................................................................................60
Cool Breeze Unit
Listed NSF Standard 7
B-6.........................................................................................62
Solid Top Unit
B-7.........................................................................................64
Beverage Counter
B-8.........................................................................................66
“Cool Pool” Milk Cooler
Air Cooled Refrigeration
B-9.........................................................................................68
“Ice Rink” Ice Cream Freezer
Air Cooled Freezer
B-10.......................................................................................70
Cashier Stand
B-11.......................................................................................72
Corner Unit
B-11-B...................................................................................74
Tray Stand
B-12.......................................................................................76
Beverage Cooler
B-13.......................................................................................78
Bloomington Cold
Extra Deep Cold Pan - Listed NSF Standard 7
B-14.......................................................................................80
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
SPEC
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
B-1
Hot Food Unit
R2-HF
R3-HF
R4-HF
R5-HF
R6-HF
The versatile modular design of the Reflections Hot Food
units allows you to customize either a cafeteria or a buffet
unit to fit your line-up. These hot food serving units
will hold pans up to 6” in depth. Reflections units are
compatible and will interlock with other Reflections units.
Only Piper's equipment has the advantage of
technology and certification. This ensures that your food
is kept "out of the DANGER-ZONE." Food spoilage occurs
mainly because of rapidly accelerated bacteriological
activity within the 40F-140F "DANGER-ZONE."
With hot food stays above 140°F longer and cold
food is kept below 40°F. Both are key factors in HACCP
compliance and the fight against foodborne pathogens.
STANDARD FEATURES
Seamless, molded FRP body with smooth exterior and
rounded corners
14-gauge stainless steel top with fully welded square
turndowns on all sides
Enclosed base
20-gauge stainless steel bottom-mounted wet/dry food
wells with 12” x 20” die-stamped opening and 1/4”
raised beaded edge top centered
2” insulation on sides and between wells, 1-1/2” on
bottom, 1” on the ends and 1/4” fiber frax all around
208VAC/1000W or 240VAC/1330W heating element per
well wired to a thermostat mounted to the control
panel
Wells can be run wet or dry
“Works-in-a-drawer” allows element access without
removal of unit top
4” diameter swivel plate casters with brakes
Interlocking mechanism is provided to interlock with
other Reflections units
Drain option comes with 3/4" FPT ball valve under unit
DIMENSIONS
R2-HF - 36”H x 30”D x 36”L
R3-HF - 36”H x 30”D x 50”L
R4-HF - 36”H x 30”D x 60”L
R5-HF - 36”H x 30”D x 74”L
R6-HF - 36”H x 30”D x 96”L
ELECTRICAL
All units available in 208 or 240 volt, single-phase standard
Seven foot electrical cord and plug
STANDARD COLORS
Wine Red (RAL 3005)
Signal Red (RAL 3001)
Yellow (RAL 1021)
Light Blue (RAL 5012)
Gentiane Blue (RAL 5010)
Water Blue (RAL 5021)
Moss Green (RAL 6005)
Squirrel Gray (RAL 7000)
Black
White
Custom colors available
Optional Graphics Packages available
COMMON OPTIONS
Tray slides
Protector guards
Under storage, hinged doors
Common drains and manifolds
See reverse side for additional options
WARRANTY
One year parts and labor. Warranty is detailed on inside
front cover of the price list.

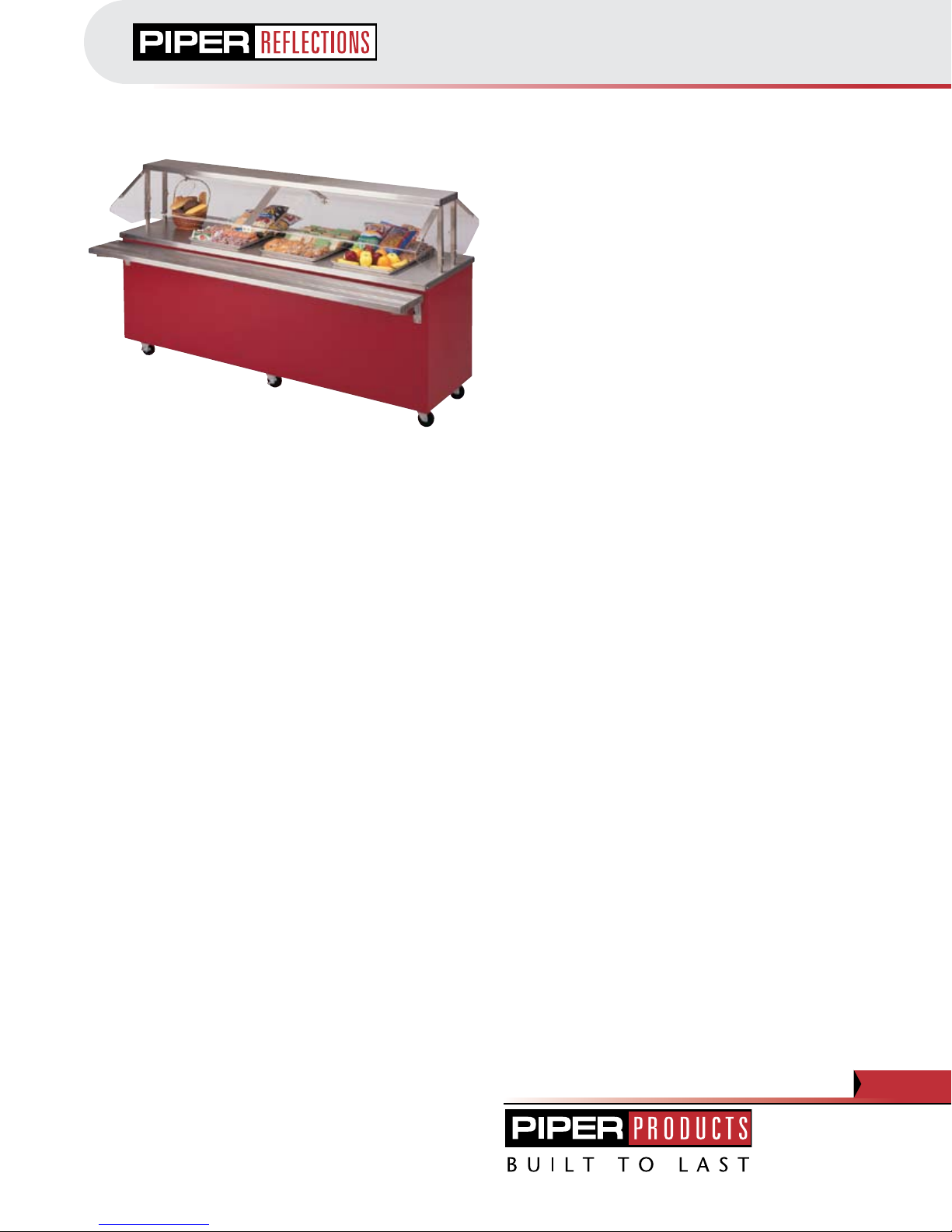

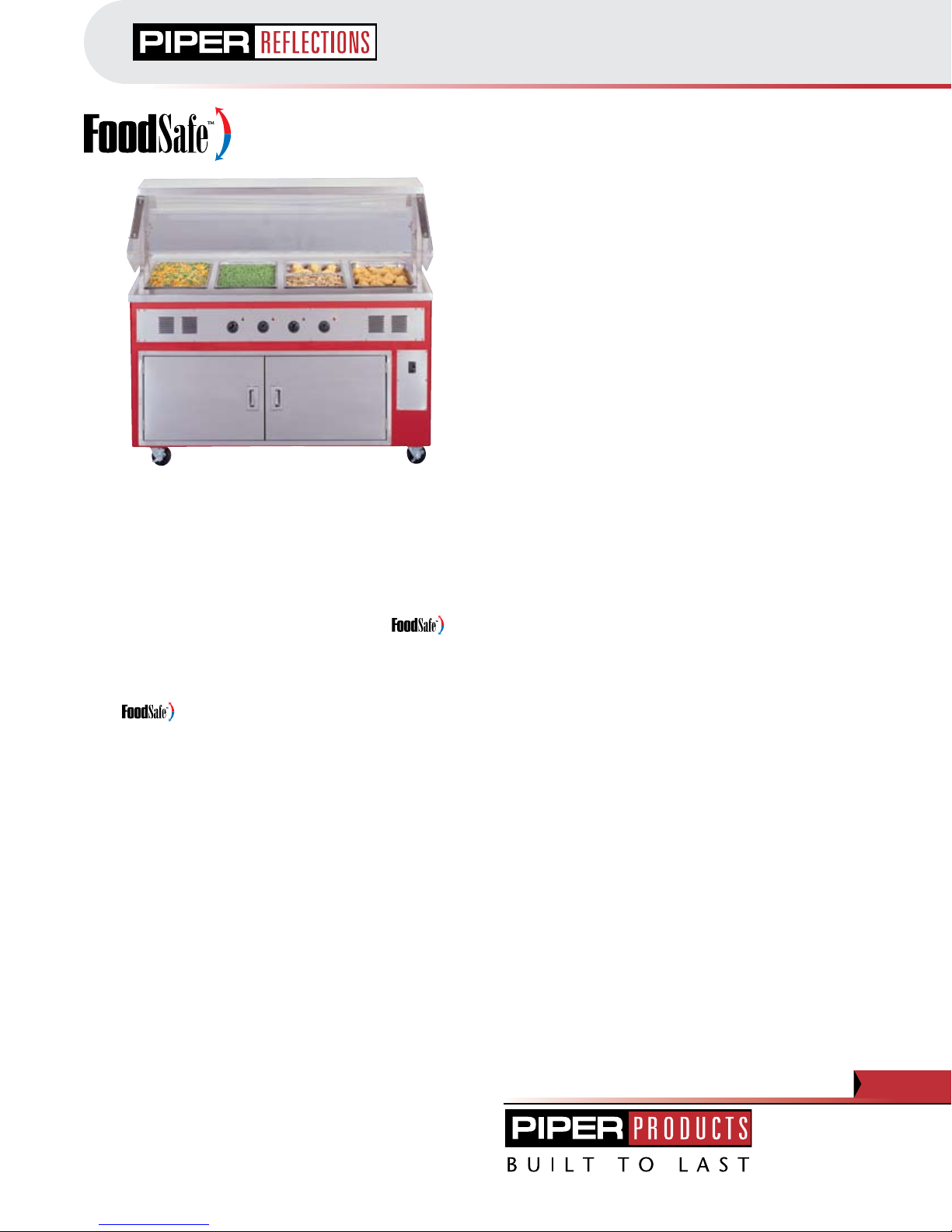

R4-HF Operator’s side shown with optional
RBPG protector guard and open under
storage with hinged doors
FEATURING “WORKS IN A DRAWER.”
QUICKLY REPLACE & REPAIR HEATING ELEMENTS.
52
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and labor for a period of
twelve (12) months from the date of purchase. See manufacturer’s complete warranty for details.
It is our policy to build equipment which is design certified by companies that have been accredited at the Federal Level
by the Occupational Safety and Health Agency (OSHA) and ANSI as a National Recognized Testing Laboratory. These
companies include CSA International, Underwriters Laboratories, and the National Sanitation Foundation. However, a
continuing program of product improvement makes it necessary to submit new models to the agencies as they are
developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions do not entitle buyer to
corresponding changes, improvements, additions or replacements for previously purchased equipment. Information is not
for design purposes.
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
B-1 SPEC
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net

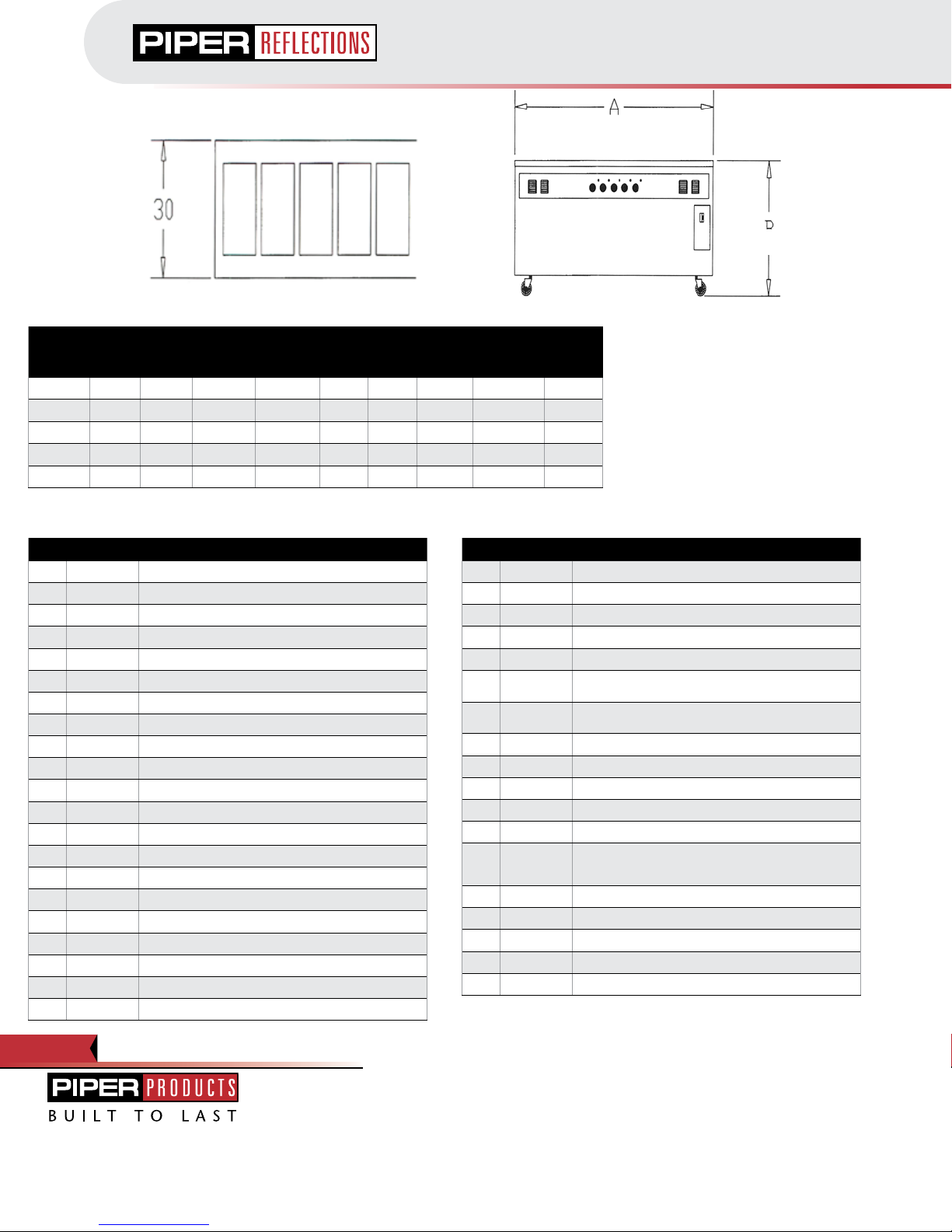

Hot Food Unit
36"
Part # Description
RSCB 8” stainless steel cutting board
RMCB 8” maple cutting board
RSRTS Solid 3-ribbed tray slide, 16-gauge stainless steel
RSFTS Solid flat tray slide, 16-gauge stainless steel
R3BTS 3-bar tray slide
RSES End shelf - drop type
RBHL Heat lamps, bullet-type (buffet only)
RCPG Cafeteria style protector guard
RCPGC Classic tubular glass cafeteria guard
RCPGL Cafeteria style protector guard with incandescent lights
RCPGFL Cafeteria style protector guard with fluorescent lights
RCPGHL Cafeteria style protector guard with heat and light strips
RCPGH Cafeteria style protector guard with heat strips
RCDD Two tier cafeteria protector guard
RCDDC Classic two tier tubular glass cafeteria guard
RCDDL Two tier cafeteria protector guard with fluorescent lights
RCEG Cafeteria end guards (pr)
ROHS Overhead shelf
RSCPGC Cafeteria single tubular vertical glass guard
RBPG Buffet style protector guard
RBPGC Classic tubular glass buffet guard
Part # Description
RBPGIL Buffet style protector guard with incandescent lights
RBPGFL Buffet style protector guard with fluorescent lights
RBPGH Buffet style protector guard with heat strips
RBPG1 Single sided buffet style protector guard
RBPG1C Classic single sided tubular glass buffet guard
RBPG1IL Single sided buffet style protector guard with
incandescent lights
RBPG1FL Single sided buffet style protector guard with fluorescent
lights
RBDD Two tier buffet protector guard
RBDDL Two tier buffet protector guard with fluorescent lights
RBEG Buffet end guards (pr)
ROU Open under storage with shelf
RHD Under storage hinged doors
RHU Heated storage base with doors and pan slides (convert-
ible racks hold 10 - 2” deep 12” x 20” pans or 10 - 18” x
26” bun pans)
RBL Stainless steel 6” adjustable bullet feet
RDOUT Duplex outlet (120V, 15 AMP)
RDRN Drain and manifold with shut-off valve
RBKR Common circuit breaker for well heaters only
FF Fill Faucet
DIMENSION ADDITIONS FOR OPTIONS
Add 23-3/4” to height for buffet protector guard
Add 14” to height for cafeteria protector guard
Add 22-3/4” to height for double display shelf
Add 8” to width for cutting board
Add 12-3/4” to width for solid ribbed tray slide
Add 12-1/2” to width for 3-bar tray slide
Note: Line-up drawing required when ordering
interconnected units.
Model# # of
Wells
(A)
Length
208V
Wattage
240V
Wattage
Amperage NEMA Cap Number Ship
Wt.
(lbs)
208V 240V 208V 240V
R2-HF 2 36” 2000 2660 9.6 11.1 6-15P 6-15P 245
R3-HF 3 50” 3000 3990 14.4 16.6 6-30P 6-30P 270
R4-HF 4 60” 4000 5320 19.2 22.2 6-30P 6-30P 295
R5-HF 5 74” 5000 6650 24.0 27.7 6-50P 6-50P 335
R6-HF 6 96” 6000 7980 28.8 33.3 6-50P 6-50P 360
*Amperage/NEMA plug type may vary with options
Petite Reflections is 30” high-under counter storage is shortened and does not have intermediate shelf
53
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
SPEC
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
B-2
Hot Top
R1-HT
R2-HT
R3-HT
R4-HT
R5-HT
R6-HT
Perfect for holding pizza or other hot entrees, the Hot
Top unit will hold your hot food at just the right serving
temperature. The versatile modular design allows you
either a cafeteria or a buffet unit to fit your line-up.
Reflections units are compatible and will interlock with
other Reflections units.
STANDARD FEATURES
Seamless, molded FRP body with smooth exterior and
rounded corners
14-gauge stainless steel top with fully welded square
turndowns on all sides
Enclosed base
An insulated heat blanket is securely mounted to the
underside of the top.
Surface temperature is controlled by an infinite control
with pilot light
4” diameter swivel plate casters with brakes
Interlocking mechanism is provided to interlock with
other Reflections units
DIMENSIONS
R1-HT - 36”H x 30”D x 28”L
R2-HT - 36”H x 30”D x 36”L
R3-HT - 36”H x 30”D x 50”L
R4-HT - 36”H x 30”D x 60”L
R5-HT - 36”H x 30”D x 74”L
R6-HT - 36”H x 30”D x 96”L
36” height on all standard units
30” height is available on Petite units
ELECTRICAL
All units available 120 volt standard
Six foot electrical cord and plug
STANDARD COLORS
Wine Red (RAL 3005)
Signal Red (RAL 3001)
Yellow (RAL 1021)
Light Blue (RAL 5012)
Gentiane Blue (RAL 5010)
Water Blue (RAL 5021)
Moss Green (RAL 6005)
Squirrel Gray (RAL 7000)
Black
White
Custom colors available
Optional Graphics Packages available
COMMON OPTIONS
Tray slides
Protector guards
Under storage, hinged doors
See reverse side for additional options
WARRANTY
One year parts and labor. Warranty is detailed on inside
front cover of the price list.
R3-HT
54
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and labor for a period of
twelve (12) months from the date of purchase. See manufacturer’s complete warranty for details.
It is our policy to build equipment which is design certified by companies that have been accredited at the Federal Level
by the Occupational Safety and Health Agency (OSHA) and ANSI as a National Recognized Testing Laboratory. These
companies include CSA International, Underwriters Laboratories, and the National Sanitation Foundation. However, a
continuing program of product improvement makes it necessary to submit new models to the agencies as they are
developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions do not entitle buyer to
corresponding changes, improvements, additions or replacements for previously purchased equipment. Information is not
for design purposes.
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
B-2 SPEC
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
Hot Top
Part # Description
RSCB 8” stainless steel cutting board
RMCB 8” maple cutting board
RSRTS Solid 3-ribbed tray slide, 16-gauge stainless steel
RSFTS Solid flat tray slide, 16-gauge stainless steel
R3BTS 3-bar tray slide
RSES End shelf - drop type
RBHL Heat lamps, bullet-type (buffet only)
RCPG Cafeteria style protector guard
RCPGC Classic tubular glass cafeteria guard
RCPGL Cafeteria style protector guard with incandescent lights
RCPGFL Cafeteria style protector guard with fluorescent lights
RCPGHL Cafeteria style protector guard with heat and light strips
RCPGH Cafeteria style protector guard with heat strips
RCDD Two tier cafeteria protector guard
RCDDC Classic two tier tubular glass cafeteria guard
RCDDL Two tier cafeteria protector guard with fluorescent lights
RCEG Cafeteria end guards (pr)
ROHS Overhead shelf
RSCPGC Cafeteria single tubular vertical glass guard
Part # Description
RBPG Buffet style protector guard
RBPGC Classic tubular glass buffet guard
RBPGIL Buffet style protector guard with incandescent lights
RBPGFL Buffet style protector guard with fluorescent lights
RBPGH Buffet style protector guard with heat strips
RBPG1 Single sided buffet style protector guard
RBPG1C Classic single sided tubular glass buffet guard
RBPG1IL Single sided buffet style protector guard with
incandescent lights
RBPG1FL Single sided buffet style protector guard with fluorescent
lights
RBDD Two tier buffet protector guard
RBDDL Two tier buffet protector guard with fluorescent lights
RBEG Buffet end guards (pr)
ROU Open under storage with shelf
RHD Under storage hinged doors
RHU Heated storage base with doors and pan slides (convert-
ible racks hold 10 - 2” deep 12” x 20” pans or 10 - 18” x
26” bun pans)
RBL Stainless steel 6” adjustable bullet feet
RDOUT Duplex outlet (120V, 15 AMP)

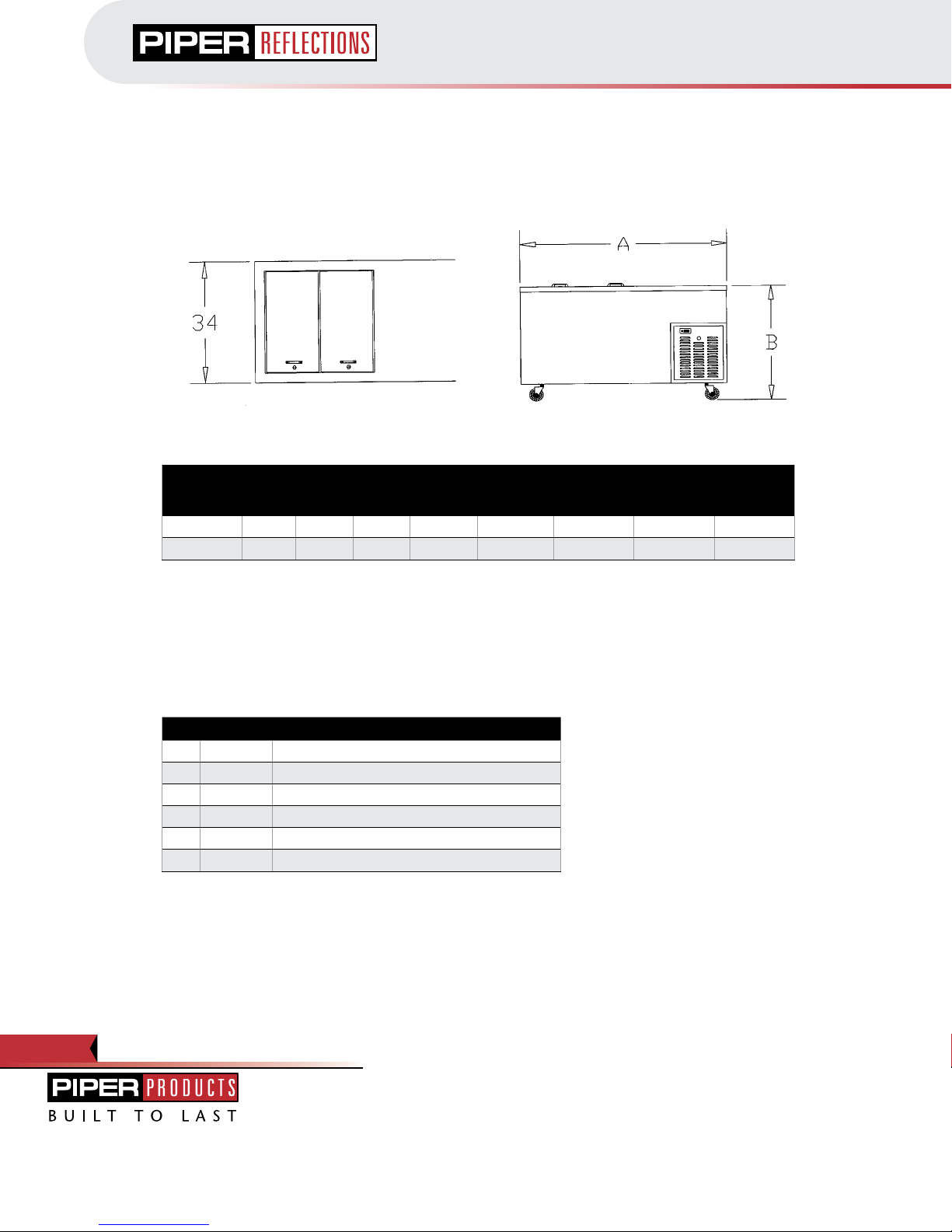

Model# (A)
Length Width (B)
Height
120V
Wattage Amps
NEMA
Cap
Number
Ship
Wt.
(lbs)
Ship
Class
R1-HT 28” 30” 36” 215 1.8 5-15P 140 125
R2-HT 36” 30” 36” 310 2.6 5-15P 180 125
R3-HT 50” 30” 36” 430 3.6 5-15P 200 125
R4-HT 60” 30” 36” 525 4.4 5-15P 240 125
R5-HT 74” 30” 36” 645 5.4 5-15P 280 125
R6-HT 96” 30” 36” 860 7.2 5-15P 310 125

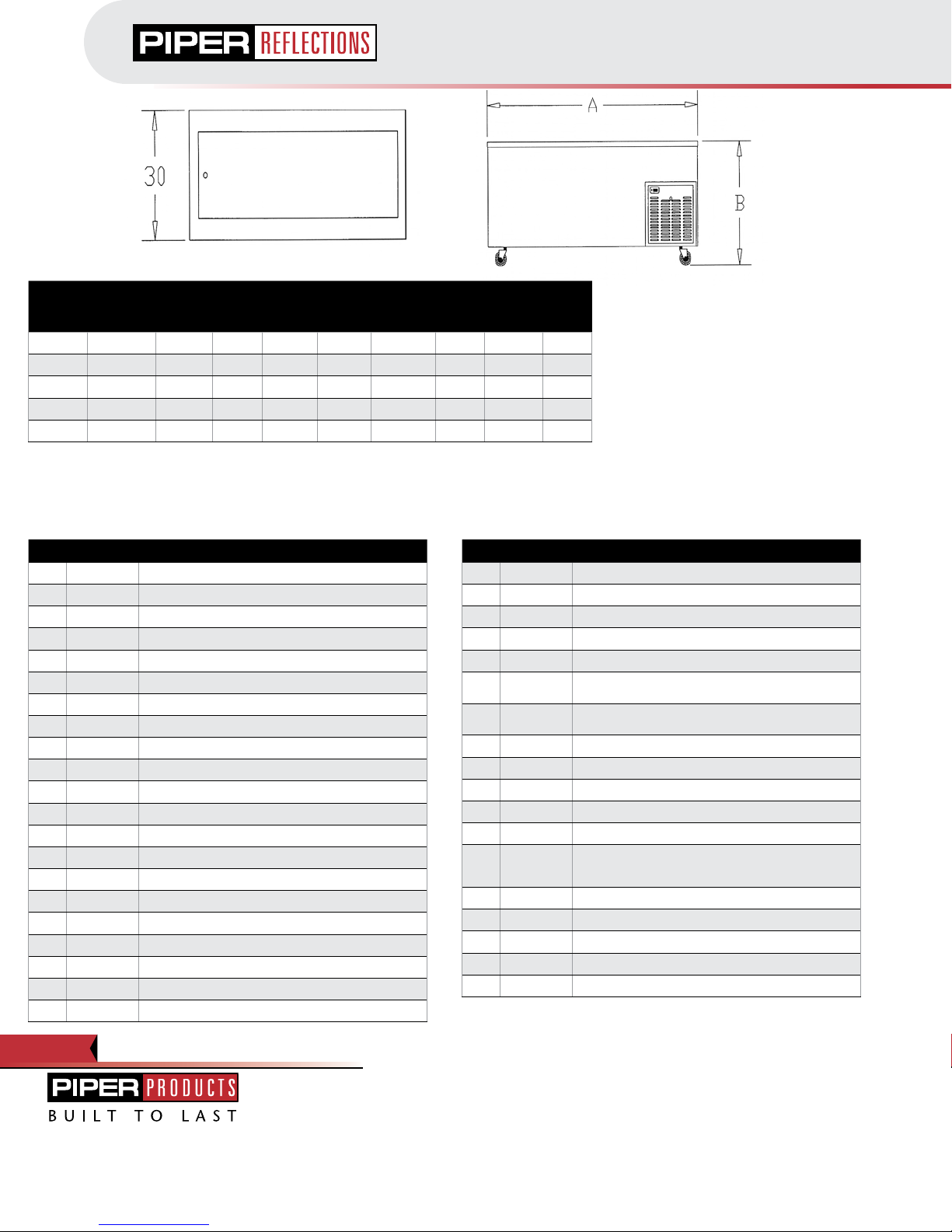

DIMENSION ADDITIONS FOR OPTIONS
Add 23-3/4” to height for buffet protector
guard
Add 14” to height for cafeteria protector
guard
Add 8” to width for cutting board
Add 12-3/4” to width for solid ribbed tray
slide
Add 12-1/2” to width for 3-bar tray slide
Note: Line-up drawing required when ordering
interconnected units.
55
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
SPEC
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
Hot/Cold Combo Unit
B-3
R1H2CM
R1H3CM
R1H4CM
R2H3CM
R3H2CM
R1H5CM
R2H4CM
R3H3CM
R4H2CM
R1H2CI
R1H3CI
R1H4CI
R2H3CI
R3H2CI
The Reflections Hot/Cold Combo units are ideal for use in
cafeteria/buffet lines, school line-ups, hospital cafeterias
and lounges. With “works-in-a-drawer” access, these units
are easy to maintain. The Reflections units are compatible
and will interlock with other Piper Reflections units.
Only Piper's equipment has the advantage of
technology and certification. This ensures that your food
is kept "out of the DANGER-ZONE." Food spoilage occurs
mainly because of rapidly accelerated bacteriological
activity within the 40F-140F "DANGER-ZONE."
With hot food stays above 140°F longer and cold
food is kept below 40°F. Both are key factors in HACCP
compliance and the fight against foodborne pathogens.
STANDARD FEATURES
Seamless, molded FRP body with smooth exterior and
rounded corners
14-gauge stainless steel top with fully welded square
turndowns on all sides
Enclosed base
Patented “Works-in-a-drawer” allows element access
without removal of unit top
4” diameter swivel plate casters, 2 with brakes
Interlocking mechanism is provided to interlock with
other Reflections units
REFRIGERATION SYSTEM (CM UNITS)
Fully hermetic condensing unit located on slide-out
rails behind removable louvered panels for crossflow
ventilation
Welded watertight well 5” deep has a concealed
continuous refrigerated coil bond to the bottom and is
fully insulated
ICE-COOLED COLD PAN (CI UNITS)
5” deep ice-cooled fully welded, watertight pan of
20-gauge stainless steel is fully insulated, 3/4" FPT ball
valve provided under unit.
HOT FOOD UNIT
20-gauge stainless steel bottom-mounted wet/dry food
wells with 12” x 20” die-stamped opening and 1/4” raised
beaded edge
208VAC/1000W or 240VAC/1330W heating element per well
wired to a thermostat mounted to the control panel
DIMENSIONS
R1H2CM or R1H2CI - 36”H x 30”D x 50”L
R1H3CM or R1H3CI - 36”H x 30”D x 60”L
R1H4CM or R1H4CI - 36”H x 30”D x 74”L
R2H3CM or R2H3CI - 36”H x 30”D x 74”L
R3H2CM or R3H2CI - 36”H x 30”D x 74”L
R1H5CM or R1H5CI - 36”H x 30”D x 96”L
R2H4CM or R2H4CI - 36”H x 30”D x 96”L
R3H3CM or R3H3CI - 36”H x 30”D x 96”L
R4H2CM or R4H2CI - 36”H x 30”D x 96”L
ELECTRICAL
All units available in 208 or 240 volt, single-phase standard
Seven foot electrical cord and plug
Some options or accessories may not be available with
certain voltages
STANDARD COLORS
Wine Red (RAL 3005)
Signal Red (RAL 3001)
Yellow (RAL 1021)
Light Blue (RAL 5012)
Gentiane Blue (RAL 5010)
Water Blue (RAL 5021)
Moss Green (RAL 6005)
Squirrel Gray (RAL 7000)
Black
White
Custom colors available
Optional Graphics Packages available
WARRANTY
One year parts and labor. Warranty is detailed on inside
front cover of the price list.
R1H5CI
R2H4CI
R3H3CI
R4H2CI

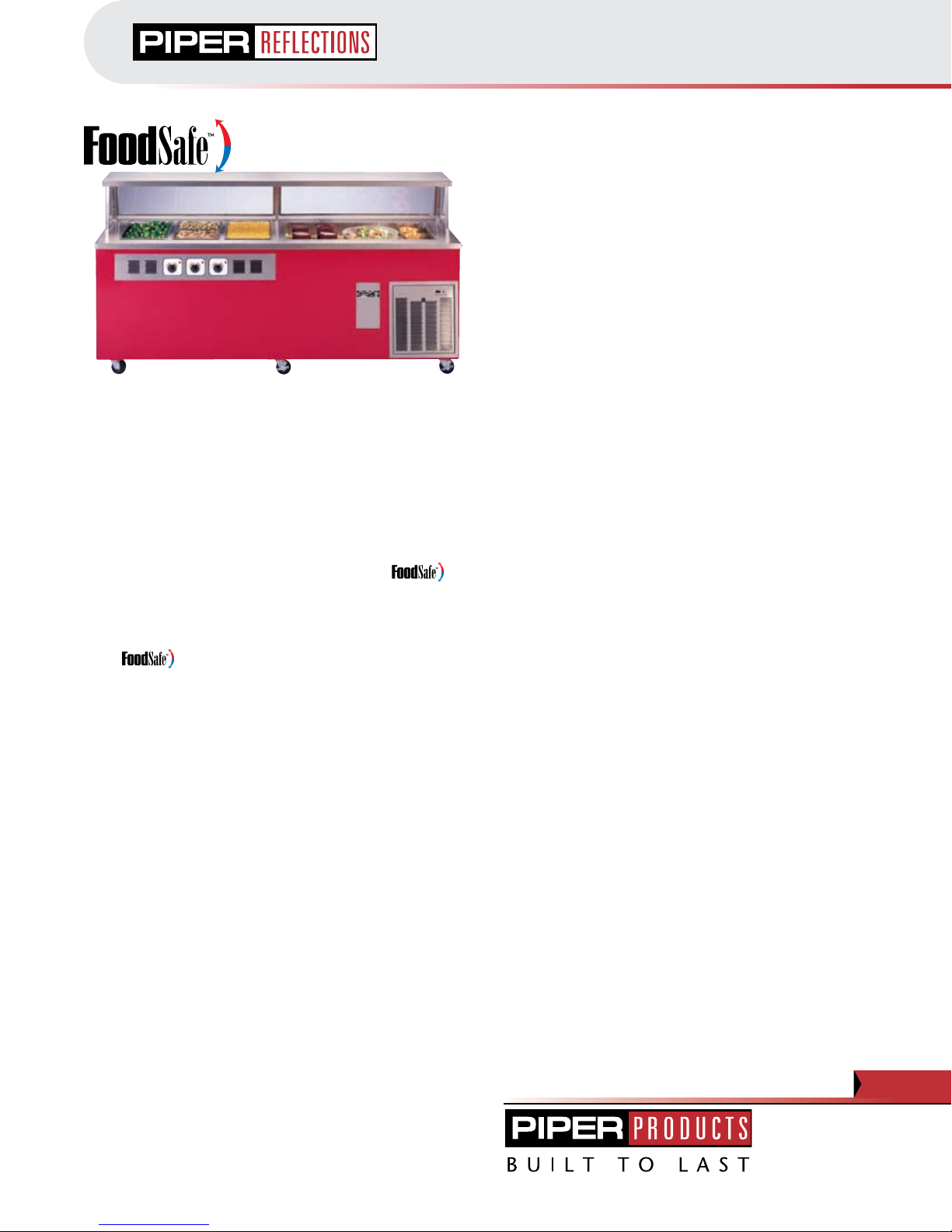

R3H3CM operator’s side shown with
optional CPG protector guard
56
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and labor for a period of
twelve (12) months from the date of purchase. See manufacturer’s complete warranty for details.
It is our policy to build equipment which is design certified by companies that have been accredited at the Federal Level
by the Occupational Safety and Health Agency (OSHA) and ANSI as a National Recognized Testing Laboratory. These
companies include CSA International, Underwriters Laboratories, and the National Sanitation Foundation. However, a
continuing program of product improvement makes it necessary to submit new models to the agencies as they are
developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions do not entitle buyer to
corresponding changes, improvements, additions or replacements for previously purchased equipment. Information is not
for design purposes.
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
B-3 SPEC
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
Hot/Cold Combo Unit
Part # Description
RSCB 8” stainless steel cutting board
RMCB 8” maple cutting board
RSRTS Solid 3-ribbed tray slide, 16-gauge stainless steel
RSFTS Solid flat tray slide, 16-gauge stainless steel
R3BTS 3-bar tray slide
RSES End shelf - drop type
RBHL Heat lamps, bullet-type (buffet only)
RCPG Cafeteria style protector guard
RCPGC Classic tubular glass cafeteria guard
RCPGL Cafeteria style protector guard with incandescent lights
RCPGFL Cafeteria style protector guard with fluorescent lights
RCPGHL Cafeteria style protector guard with heat and light strips
RCPGH Cafeteria style protector guard with heat strips
RCDD Two tier cafeteria protector guard
RCDDC Classic two tier tubular glass cafeteria guard
RCDDL Two tier cafeteria protector guard with fluorescent lights
RCEG Cafeteria end guards (pr)
ROHS Overhead shelf
RSCPGC Cafeteria single tubular vertical glass guard
RBPG Buffet style protector guard
RBPGC Classic tubular glass buffet guard
Part # Description
RBPGIL Buffet style protector guard with incandescent lights
RBPGFL Buffet style protector guard with fluorescent lights
RBPGH Buffet style protector guard with heat strips
RBPG1 Single sided buffet style protector guard
RBPG1C Classic single sided tubular glass buffet guard
RBPG1IL Single sided buffet style protector guard with incandes-
cent lights
RBPG1FL Single sided buffet style protector guard with fluorescent
lights
RBDD Two tier buffet protector guard
RBDDL Two tier buffet protector guard with fluorescent lights
RBEG Buffet end guards (pr)
ROU Open under storage with shelf
RHD Under storage hinged doors
RHU Heated storage base with doors and pan slides (convert-
ible racks hold 10 - 2” deep 12” x 20” pans or 10 - 18” x
26” bun pans)
RBL Stainless steel 6” adjustable bullet feet
RDOUT Duplex outlet (120V, 15 AMP)
RDRN Drain and manifold with shut-off valve
RBKR Common circuit breaker for well heaters only
FF Fill Faucet

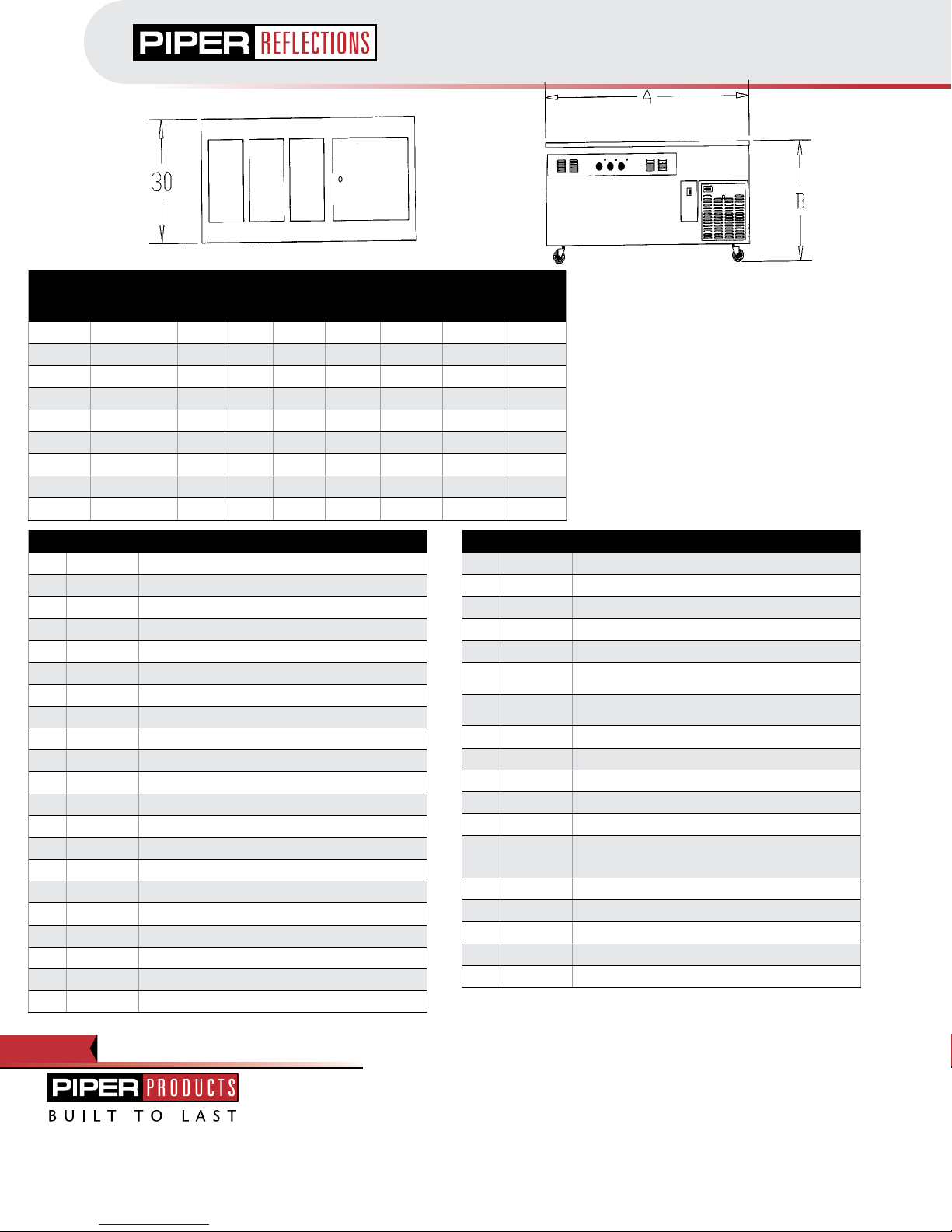

Ice
Cooled Refrig. Hot
Wells
Cold
Wells Length *Amps
120/208
Nema
Plug
Type
CI Ship
Wt.
CM Ship
Wt.
R1H2CI R1H2CM 1 2 50” 12.8 14-20P 285 380
R1H3CI R1H3CM 1 3 60” 12.8 14-20P 340 405
R1H4CI R1H4CM 1 4 74” 12.8 14-20P 340 445
R2H3CI R2H3CM 2 3 74” 17.6 14-30P 340 445
R3H2CI R3H2CM 3 2 74” 22.4 14-20P 340 445
R1H5CI R1H5CM 1 5 96” 12.8 14-20P 365 470
R2H4CI R2H4CM 2 4 96” 17.6 14-20P 365 470
R3H3CI R3H3CM 3 3 96” 22.4 14-20P 365 470
R4H2CI R4H2CM 4 2 96” 27.2 14-20P 400 470
*Petite Reflections is 30” high
- under counter storage is
shortened and does not have
intermediate shelf.
*Amperage/NEMA plug type
may vary with options.
*Specify voltage 208/60/1 or
240/60/1.
57
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
SPEC
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
B-4
R2-CI
R3-CI
R4-CI
R5-CI
R6-CI
R2-CM
R3-CM
R4-CM

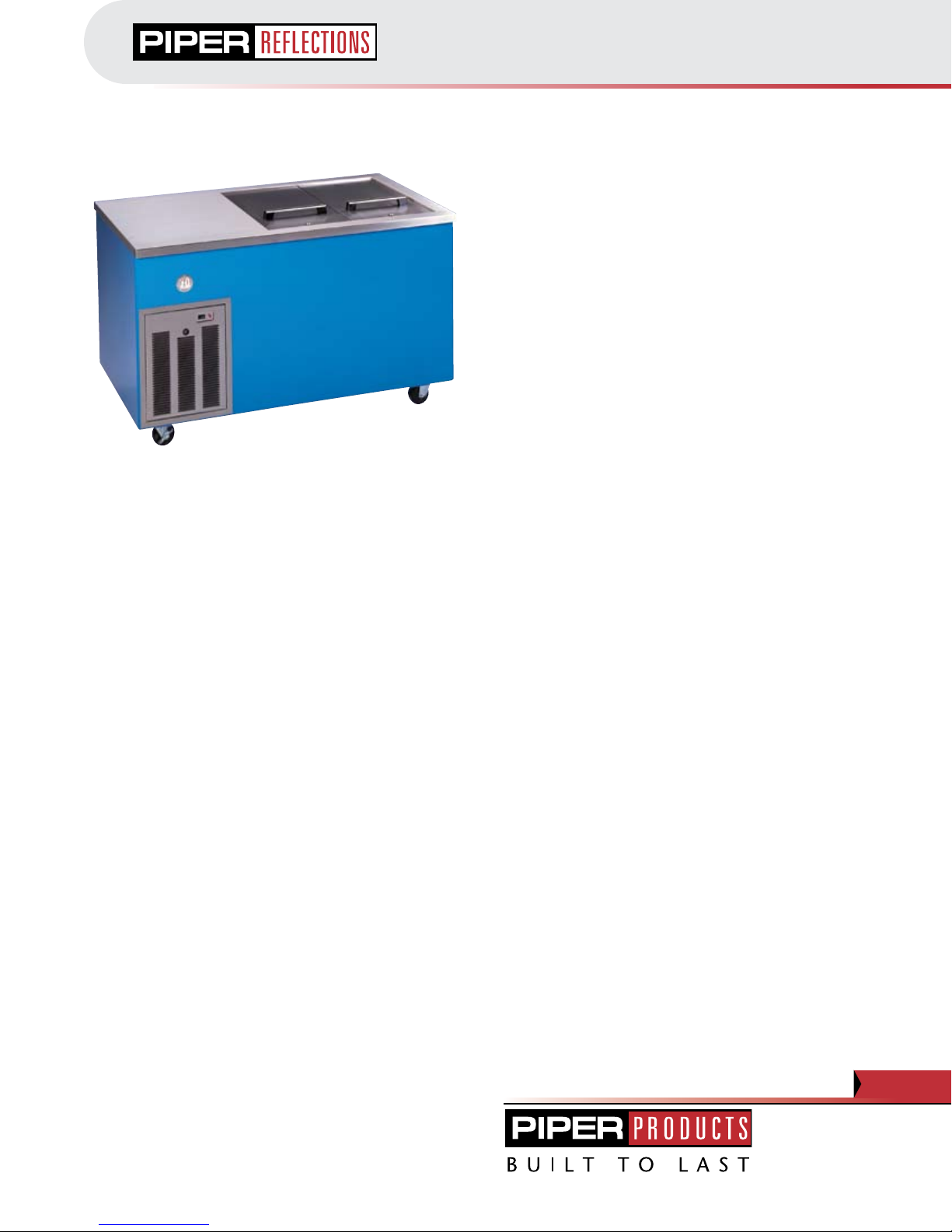

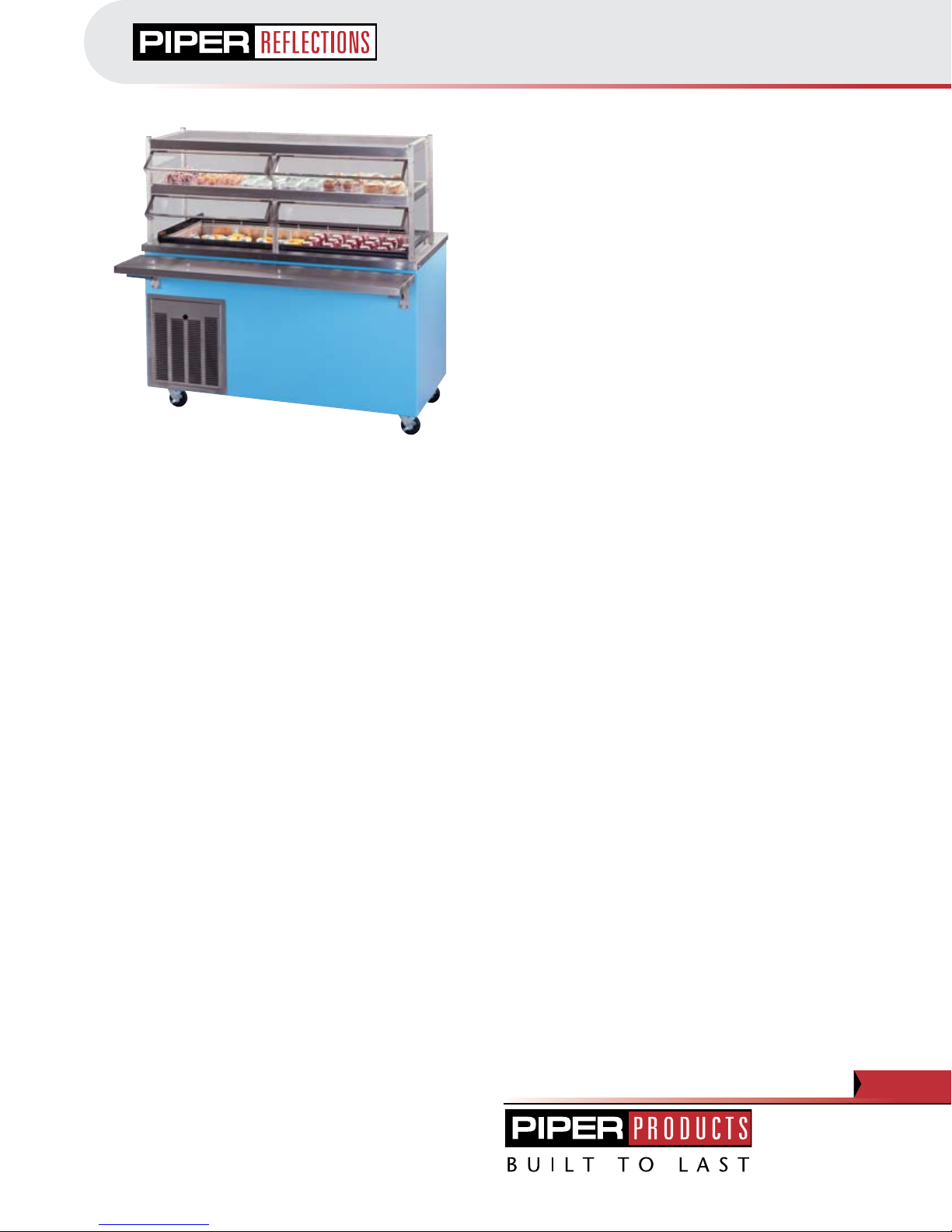

The Piper Cold Food Units are available mechanically
cooled (R-CM) or ice only (R-CI). These units are designed
to serve a variety of refrigerated food products and are
ideal as a salad bar merchandiser. The versatile modular
design allows you either a cafeteria or a buffet unit to fit
your line-up. Reflections units are compatible and will
interlock with other Reflections units.
STANDARD FEATURES
Seamless, molded FRP body with smooth exterior and
rounded corners
14-gauge stainless steel top with fully welded square
turndowns on all sides
Enclosed base
20-gauge stainless steel fully welded 5” deep cold pan
The welded, watertight well has a concealed
continuous refrigeration coil bonded to the underside
and is fully insulated on R-CM
Cold pan has a 3/4" FPT ball valve located below the
unit
4” diameter swivel plate casters with brakes
Interlocking mechanism is provided to interlock with
other Reflections units
ELECTRICAL - R-CM UNITS ONLY
Units available in 120 volt standard
Seven foot electrical cord and plug

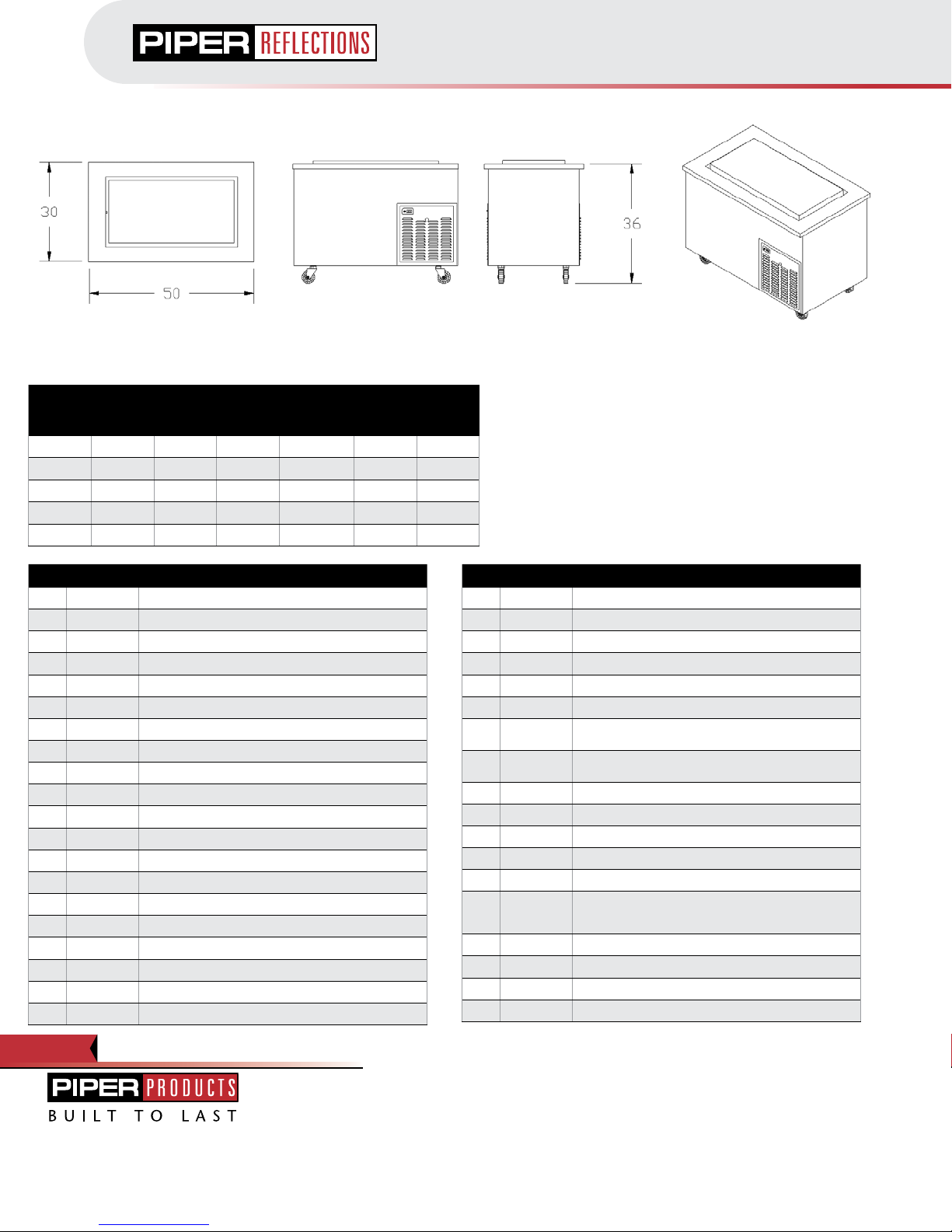

DIMENSIONS
R2-CI - 36”H x 30”D x 36”L
R3-CI - 36”H x 30”D x 50”L
R4-CI - 36”H x 30”D x 60”L
R5-CI - 36”H x 30”D x 74”L
R6-CI - 36”H x 30”D x 96”L
R2-CM - 36”H x 30”D x 36”L
R3-CM - 36”H x 30”D x 50”L
R4-CM - 36”H x 30”D x 60”L
R5-CM - 36”H x 30”D x 74”L
R6-CM - 36”H x 30”D x 96”L
36” height on all standard units
REFRIGERATION - R-CM UNITS ONLY
1/3 horsepower compressor
Fully hermetic condensing unit, located on slide-out
rails behind removable louvered panels for cross-flow
ventilation
Fan-cooled condensing unit with an expansion valve
pressure control switch
Refrigerant coils shall be of copper tubing attached to the
bottom of the well
STANDARD COLORS
Wine Red (RAL 3005)
Signal Red (RAL 3001)
Yellow (RAL 1021)
Light Blue (RAL 5012)
Gentiane Blue (RAL 5010)
Water Blue (RAL 5021)
Moss Green (RAL 6005)
Squirrel Gray (RAL 7000)
Black
White
Custom colors available
Optional Graphics Packages available
COMMON OPTIONS
Tray slides
Protector guards
See reverse side for additional options
Cold Food Unit
Ice or Mechanically Refrigerated
R5-CM
R6-CM
R5-CM shown with optional
3-ribbed tray slide
58
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and labor for a period of
twelve (12) months from the date of purchase. See manufacturer’s complete warranty for details.
It is our policy to build equipment which is design certified by companies that have been accredited at the Federal Level
by the Occupational Safety and Health Agency (OSHA) and ANSI as a National Recognized Testing Laboratory. These
companies include CSA International, Underwriters Laboratories, and the National Sanitation Foundation. However, a
continuing program of product improvement makes it necessary to submit new models to the agencies as they are
developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions do not entitle buyer to
corresponding changes, improvements, additions or replacements for previously purchased equipment. Information is not
for design purposes.
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
B-4 SPEC
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
Cold Food Unit
Ice or Mechanically Refrigerated
Part # Description
RSCB 8” stainless steel cutting board
RMCB 8” maple cutting board
RSRTS Solid 3-ribbed tray slide, 16-gauge stainless steel
RSFTS Solid flat tray slide, 16-gauge stainless steel
R3BTS 3-bar tray slide
RSES End shelf - drop type
RBHL Heat lamps, bullet-type (buffet only)
RCPG Cafeteria style protector guard
RCPGC Classic tubular glass cafeteria guard
RCPGL Cafeteria style protector guard with incandescent lights
RCPGFL Cafeteria style protector guard with fluorescent lights
RCPGHL Cafeteria style protector guard with heat and light strips
RCPGH Cafeteria style protector guard with heat strips
RCDD Two tier cafeteria protector guard
RCDDC Classic two tier tubular glass cafeteria guard
RCDDL Two tier cafeteria protector guard with fluorescent lights
RCEG Cafeteria end guards (pr)
ROHS Overhead shelf
RSCPGC Cafeteria single tubular vertical glass guard
RBPG Buffet style protector guard
RBPGC Classic tubular glass buffet guard
Part # Description
RBPGIL Buffet style protector guard with incandescent lights
RBPGFL Buffet style protector guard with fluorescent lights
RBPGH Buffet style protector guard with heat strips
RBPG1 Single sided buffet style protector guard
RBPG1C Classic single sided tubular glass buffet guard
RBPG1IL Single sided buffet style protector guard with incandes-
cent lights
RBPG1FL Single sided buffet style protector guard with fluorescent
lights
RBDD Two tier buffet protector guard
RBDDL Two tier buffet protector guard with fluorescent lights
RBEG Buffet end guards (pr)
ROU Open under storage with shelf
RHD Under storage hinged doors
RHU Heated storage base with doors and pan slides (convert-
ible racks hold 10 - 2” deep 12” x 20” pans or 10 - 18” x
26” bun pans)
RBL Stainless steel 6” adjustable bullet feet
RDOUT Duplex outlet (120V, 15 AMP)
RDRN Drain and manifold with shut-off valve
RBKR Common circuit breaker for well heaters only
RMRCE Extended compressor warranty
DIMENSION ADDITIONS FOR OPTIONS
Add 23-3/4” to height for buffet protector
guard
Add 14” to height for cafeteria protector
guard
Add 22-3/4” to height for 2-tier display
stand
Add 8” to width for cutting board
Add 12-3/4” to width for solid ribbed tray
slide
Add 12-1/2” to width for 3-bar tray slide
Note: Line-up drawing required when ordering false front,
cashier stand or interconnected units.
Model#
12x20
Pan
Capacity
(A)
Length Width (B)
Height
*Amps
120V
*NEMA
Cap No.
Ship
Wt.
(lbs)
Model#
Ship
Wt.
(lbs)
R2-CM 2 36” 30” 36” 6.3 5-15P 350 R2-CI 200
R3-CM 3 50” 30” 36” 6.3 5-15P 485 R3-CI 245
R4-CM 4 60” 30” 36” 6.3 5-15P 500 R4-CI 280
R5-CM 5 74” 30” 36” 6.3 5-15P 580 R5-CI 330
R6-CM 6 96” 30” 36” 6.3 5-15P 640 R6-CI 390
*Amperage/NEMA plug type may vary with options
Petite Reflections is 30” high-under counter storage is shortened and does not have
intermediate shelf
59
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
SPEC
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
B-5
R2-FT
R3-FT
R4-FT
R5-FT
R6-FT
Frost Top units are perfect for dessert and salad
merchandising such as parfaits, pastry, jello and a variety
of salads. The versatile modular design allows you either
a cafeteria or a buffet unit to fit your line-up. Reflections
units are compatible and will interlock with other
Reflections units.
STANDARD FEATURES
Seamless, molded FRP body with smooth exterior and
rounded corners
14-gauge stainless steel top with fully welded square
turndowns on all sides
Enclosed base
Mechanically cooled and thermostatically controlled
top of 14-gauge stainless steel
The welded, watertight well has a concealed
continuous refrigeration coil bonded to the underside
and is fully insulated
Cross-flow ventilation has two stainless steel exterior
frames with removable stainless steel louvers for easy
access
Fully hermatic condensing unit shall be connected to
the frost top and controls, sized to the evaporator load
Condensing unit on slide-out rails for ease of service
Full perimeter drain trough has a 3/4" FPT drain valve
below the base
4” diameter swivel plate casters, 2 with brakes
Interlocking mechanism is provided to interlock with
other Reflections units
DIMENSIONS
R2-FT - 36”H x 30”D x 36”L
R3-FT - 36”H x 30”D x 50”L
R4-FT - 36”H x 30”D x 60”L
R5-FT - 36”H x 30”D x 74”L
R6-FT - 36”H x 30”D x 96”L
36” height on all standard units
30” height is available on Petite Elite units
ELECTRICAL
All units available in 120 volt, single-phase standard
Six foot electrical cord and plug
STANDARD COLORS
Wine Red (RAL 3005)
Signal Red (RAL 3001)
Yellow (RAL 1021)
Light Blue (RAL 5012)
Gentiane Blue (RAL 5010)
Water Blue (RAL 5021)
Moss Green (RAL 6005)
Squirrel Gray (RAL 7000)
Black
White
Custom colors available
Optional Graphics Packages available
COMMON OPTIONS
Tray slides, cutting boards
Protector guards
Under storage, hinged doors
Common drains and manifolds
See reverse side for additional options
WARRANTY
One year parts and labor. Warranty is detailed on inside
front cover of the price list.
Frost Top
Mechanically Refrigerated
R4-FT
60
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and labor for a period of
twelve (12) months from the date of purchase. See manufacturer’s complete warranty for details.
It is our policy to build equipment which is design certified by companies that have been accredited at the Federal Level
by the Occupational Safety and Health Agency (OSHA) and ANSI as a National Recognized Testing Laboratory. These
companies include CSA International, Underwriters Laboratories, and the National Sanitation Foundation. However, a
continuing program of product improvement makes it necessary to submit new models to the agencies as they are
developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions do not entitle buyer to
corresponding changes, improvements, additions or replacements for previously purchased equipment. Information is not
for design purposes.
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
B-5 SPEC
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
Frost Top
Mechanically Refrigerated
Part # Description
RSCB 8” stainless steel cutting board
RMCB 8” maple cutting board
RSRTS Solid 3-ribbed tray slide, 16-gauge stainless steel
RSFTS Solid flat tray slide, 16-gauge stainless steel
R3BTS 3-bar tray slide
RSES End shelf - drop type
RBHL Heat lamps, bullet-type (buffet only)
RCPG Cafeteria style protector guard
RCPGC Classic tubular glass cafeteria guard
RCPGL Cafeteria style protector guard with incandescent lights
RCPGFL Cafeteria style protector guard with fluorescent lights
RCPGHL Cafeteria style protector guard with heat and light strips
RCPGH Cafeteria style protector guard with heat strips
RCDD Two tier cafeteria protector guard
RCDDC Classic two tier tubular glass cafeteria guard
RCDDL Two tier cafeteria protector guard with fluorescent lights
RCEG Cafeteria end guards (pr)
ROHS Overhead shelf
RSCPGC Cafeteria single tubular vertical glass guard
RBPG Buffet style protector guard
Part # Description
RBPGC Classic tubular glass buffet guard
RBPGIL Buffet style protector guard with incandescent lights
RBPGFL Buffet style protector guard with fluorescent lights
RBPGH Buffet style protector guard with heat strips
RBPG1 Single sided buffet style protector guard
RBPG1C Classic single sided tubular glass buffet guard
RBPG1IL Single sided buffet style protector guard with incandes-
cent lights
RBPG1FL Single sided buffet style protector guard with fluorescent
lights
RBDD Two tier buffet protector guard
RBDDL Two tier buffet protector guard with fluorescent lights
RBEG Buffet end guards (pr)
ROU Open under storage with shelf
RHD Under storage hinged doors
RHU Heated storage base with doors and pan slides (convert-
ible racks hold 10 - 2” deep 12” x 20” pans or 10 - 18” x
26” bun pans)
RBL Stainless steel 6” adjustable bullet feet
RDOUT Duplex outlet (120V, 15 AMP)
RDRN Drain and manifold with shut-off valve
RBKR Common circuit breaker for well heaters only
DIMENSION ADDITIONS FOR OPTIONS
Add 23-3/4” to height for buffet protector guard
Add 14” to height for cafeteria protector guard
Add 8” to width for cutting board
Add 12-3/4” to width for solid ribbed tray slide
Add 12-1/2” to width for 3-bar tray slide
Note: Line-up drawing required when ordering
interconnected units.
Model# (A)
Length
(B)
Height
120V
Wattage
Amperage
120V
NEMA
Plug
Type
Ship Wt.
(lbs)
R2-FT 36” 36” 310 6.3 5-15P 380
R3-FT 50” 36” 430 6.3 5-15P 460
R4-FT 60” 36” 525 6.3 -15P 550
R5-FT 74” 36” 645 6.3 5-15P 620
R6-FT 96” 36” 860 6.3 5-15P 690
61
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
SPEC
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
B-6
R3-CB
R4-CB
R5-CB
R6-CB
The Cool Breeze unit is ideal for the front-of-the house for
salad bars and kiosks and is the perfect product for cook-
chill tray lines where cold food temperature maintenance
is a must.
The Cool Breeze system maintains a cold flow of
air moving over the product while not drying it out
or allowing it to freezer burn. Reflections units are
compatible and will interlock with other Reflections units.
STANDARD FEATURES
Seamless, molded FRP body with smooth exterior and
rounded corners
14-gauge stainless steel top with fully welded square
turndowns on all sides
Enclosed base
Fully enclosed and insulated 4-3/4” deep well with
electronic thermostat
Fan cooled refrigeration unit located on slide-out
interior housing behind removable louvered panels for
cross-flow ventilation
Heated condensate pan
Adaptable for up to 4” deep pans or custom displays
4” diameter swivel plate casters with brakes
Interlocking mechanism is provided to interlock with
other Reflections units
Drain provided with 3/4" FPT ball valve under unit.
ELECTRICAL
Units available in 120 volt standard
Seven foot electrical cord and plug
DIMENSIONS
R3-CB - 36”H x 30”D x 50”L
R4-CB - 36”H x 30”D x 60”L
R5-CB - 36”H x 30”D x 74”L
R6-CB - 36”H x 30”D x 96”L
36” height on all standard units
NSF STANDARD 7
This unit is listed with NSF in Standard 7 for design and
construction and has been performance tested for the storage
of potentially hazardous foods. The NSF performance test
criteria is holding a food-like media at or below 41° F without
any freezing for four hours at 86° F ambient temperature.
REFRIGERATION SYSTEM
1/3 horsepower compressor
Fan-cooled condensing unit with an expansion valve
pressure control switch
Refrigerant coils shall be of copper tubing attached to the
bottom of the well
STANDARD COLORS
Wine Red (RAL 3005)
Signal Red (RAL 3001)
Yellow (RAL 1021)
Light Blue (RAL 5012)
Gentiane Blue (RAL 5010)
Water Blue (RAL 5021)
Moss Green (RAL 6005)
Squirrel Gray (RAL 7000)
Black
White
Custom colors available
Optional Graphics Packages available
COMMON OPTIONS
Tray slides
Protector guards
See reverse side for additional options
WARRANTY
One year parts and labor. Warranty is detailed on inside
front cover of the price list.
Cool Breeze Unit
Listed NSF Standard 7
R4-CB shown with optional 3-ribbed
tray slide and 2-tier display stand
62
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and labor for a period of
twelve (12) months from the date of purchase. See manufacturer’s complete warranty for details.
It is our policy to build equipment which is design certified by companies that have been accredited at the Federal Level
by the Occupational Safety and Health Agency (OSHA) and ANSI as a National Recognized Testing Laboratory. These
companies include CSA International, Underwriters Laboratories, and the National Sanitation Foundation. However, a
continuing program of product improvement makes it necessary to submit new models to the agencies as they are
developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions do not entitle buyer to
corresponding changes, improvements, additions or replacements for previously purchased equipment. Information is not
for design purposes.
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
B-6 SPEC
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
Cool Breeze Unit
Listed NSF Standard 7
Part # Description
RSCB 8” stainless steel cutting board
RMCB 8” maple cutting board
RSRTS Solid 3-ribbed tray slide, 16-gauge stainless steel
RSFTS Solid flat tray slide, 16-gauge stainless steel
R3BTS 3-bar tray slide
RSES End shelf - drop type
RBHL Heat lamps, bullet-type (buffet only)
RCPG Cafeteria style protector guard
RCPGC Classic tubular glass cafeteria guard
RCPGL Cafeteria style protector guard with incandescent lights
RCPGFL Cafeteria style protector guard with fluorescent lights
RCPGHL Cafeteria style protector guard with heat and light strips
RCPGH Cafeteria style protector guard with heat strips
RCDD Two tier cafeteria protector guard
RCDDC Classic two tier tubular glass cafeteria guard
RCDDL Two tier cafeteria protector guard with fluorescent lights
RCEG Cafeteria end guards (pr)
ROHS Overhead shelf
RSCPGC Cafeteria single tubular vertical glass guard
RBPG Buffet style protector guard
RBPGC Classic tubular glass buffet guard
RBPGIL Buffet style protector guard with incandescent lights
Part # Description
RBPGFL Buffet style protector guard with fluorescent lights
RBPGH Buffet style protector guard with heat strips
RBPG1 Single sided buffet style protector guard
RBPG1C Classic single sided tubular glass buffet guard
RBPG1IL Single sided buffet style protector guard with incandes-
cent lights
RBPG1FL Single sided buffet style protector guard with fluorescent
lights
RBDD Two tier buffet protector guard
RBDDL Two tier buffet protector guard with fluorescent lights
RBEG Buffet end guards (pr)
ROU Open under storage with shelf
RHD Under storage hinged doors
RHU Heated storage base with doors and pan slides (convert-
ible racks hold 10 - 2” deep 12” x 20” pans or 10 - 18” x
26” bun pans)
RBL Stainless steel 6” adjustable bullet feet
RDOUT Duplex outlet (120V, 15 AMP)
RDRN Drain and manifold with shut-off valve
RBKR Common circuit breaker for well heaters only
RMRCE Extended compressor warranty
RRU Refrigerated storage base with doors and pan slides:
holds 8-2" deep 12"x20" pans
Model# (A)
Length Width (B)
Height
120V
Wattage
Amps.
120V
NEMA
Cap
No.
Ship
Wt.
(lbs)
R3-CB 50” 30” 36” 960 8.0 5-15P 520
R4-CB 60” 30” 36” 960 8.0 5-15P 548
R5-CB 74” 30” 36” 960 8.0 5-15P 625
R6-CB 96” 30” 36” 960 8.0 5-15P 640
Petite Reflections is 30” high - under counter storage is shortened
and does not have intermediate shelf
DIMENSION ADDITIONS FOR OPTIONS
Add 23-3/4” to height for buffet protector guard
Add 14” to height for cafeteria protector guard
Add 8” to width for cutting board
Add 12-3/4” to width for solid ribbed tray slide
Add 12-1/2” to width for 3-bar tray slide
Add 22-3/4” to height for 2-tier display stand
Add 32-1/4” to height for 3-tier display stand
Note: Line-up drawing required when ordering
interconnected units.
63
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
SPEC
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
B-7
R1-ST
R2-ST
R3-ST
R4-ST
R5-ST
R6-ST
The Reflections Solid Top units are ideal for use as
worktops, for plating and for sandwich and salad
preparation. This unit can also be used as a counter for
other serving and merchandising needs.
The design allows it to be used in a cafeteria or buffet
line-up, choosing the options and accessories that
you need. All Reflections units are compatible and will
interlock with other Reflections units.
STANDARD FEATURES
Seamless, molded FRP body with smooth exterior and
rounded corners
14-gauge stainless steel top with fully welded square
turndowns on all sides
Enclosed base
Underbracing for heavier loads
4” diameter swivel plate casters with brakes
Interlocking mechanism is provided to interlock with
other Reflections units
DIMENSIONS
R1-ST - 36”H x 30”D x 28”L
R2-ST - 36”H x 30”D x 36”L
R3-ST - 36”H x 30”D x 50”L
R4-ST - 36”H x 30”D x 60”L
R5-ST - 36”H x 30”D x 74”L
R6-ST - 36”H x 30”D x 96”L
36” height on all standard units
STANDARD COLORS
Wine Red (RAL 3005)
Signal Red (RAL 3001)
Yellow (RAL 1021)
Light Blue (RAL 5012)
Gentiane Blue (RAL 5010)
Water Blue (RAL 5021)
Moss Green (RAL 6005)
Squirrel Gray (RAL 7000)
Black
White
Custom colors available
Optional Graphics Packages available
COMMON OPTIONS
Tray slides
Protector guards
Under storage, hinged doors
See reverse side for additional options
WARRANTY
One year parts and labor. Warranty is detailed on inside
front cover of the price list.
Solid Top Unit
R5-ST shown with optional 3-ribbed
tray slide and BPG protector guard
64
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and labor for a period of
twelve (12) months from the date of purchase. See manufacturer’s complete warranty for details.
It is our policy to build equipment which is design certified by companies that have been accredited at the Federal Level
by the Occupational Safety and Health Agency (OSHA) and ANSI as a National Recognized Testing Laboratory. These
companies include CSA International, Underwriters Laboratories, and the National Sanitation Foundation. However, a
continuing program of product improvement makes it necessary to submit new models to the agencies as they are
developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions do not entitle buyer to
corresponding changes, improvements, additions or replacements for previously purchased equipment. Information is not
for design purposes.
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
B-7 SPEC
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
Solid Top Unit
Part # Description
RSCB 8” stainless steel cutting board
RMCB 8” maple cutting board
RSRTS Solid 3-ribbed tray slide, 16-gauge stainless steel
RSFTS Solid flat tray slide, 16-gauge stainless steel
R3BTS 3-bar tray slide
RSES End shelf - drop type
RBHL Heat lamps, bullet-type (buffet only)
RCPG Cafeteria style protector guard
RCPGC Classic tubular glass cafeteria guard
RCPGL Cafeteria style protector guard with incandescent lights
RCPGFL Cafeteria style protector guard with fluorescent lights
RCPGHL Cafeteria style protector guard with heat and light strips
RCPGH Cafeteria style protector guard with heat strips
RCDD Two tier cafeteria protector guard
RCDDC Classic two tier tubular glass cafeteria guard
RCDDL Two tier cafeteria protector guard with fluorescent lights
RCEG Cafeteria end guards (pr)
ROHS Overhead shelf
RSCPGC Cafeteria single tubular vertical glass guard
RBPG Buffet style protector guard
RBPGC Classic tubular glass buffet guard
Part # Description
RBPGIL Buffet style protector guard with incandescent lights
RBPGFL Buffet style protector guard with fluorescent lights
RBPGH Buffet style protector guard with heat strips
RBPG1 Single sided buffet style protector guard
RBPG1C Classic single sided tubular glass buffet guard
RBPG1IL Single sided buffet style protector guard with incandes-
cent lights
RBPG1FL Single sided buffet style protector guard with fluorescent
lights
RBDD Two tier buffet protector guard
RBDDL Two tier buffet protector guard with fluorescent lights
RBEG Buffet end guards (pr)
ROU Open under storage with shelf
RHD Under storage hinged doors
RHU Heated storage base with doors and pan slides (convert-
ible racks hold 10 - 2” deep 12” x 20” pans or 10 - 18” x
26” bun pans)
RBL Stainless steel 6” adjustable bullet feet
RDOUT Duplex outlet (120V, 15 AMP)
RDRN Drain and manifold with shut-off valve
RBKR Common circuit breaker for well heaters only
RMRCE Extended compressor warranty
DIMENSION ADDITIONS FOR OPTIONS
Add 14” to height for cafeteria protector guard
Add 22-3/4” to height for 2-tier display stand
Add 32-1/4” to height for 3-tier display stand
Add 8” to width cutting board
Add 12-3/4” to width for solid ribbed tray slide
Add 12-1/2” to width for 3-bar tray slide
Note: Line-up drawing required when ordering
interconnected units.
Model# (A) Length Width (B) Height Ship Wt.
(lbs)
R1-ST 28” 30” 36” 124
R2-ST 36” 30” 36” 165
R3-ST 50” 30” 36” 184
R4-ST 60” 30” 36” 215
R5-ST 74” 30” 36” 244
R6-ST 96” 30” 36” 284
Petite Reflections is 30” high - under counter storage is shortened
and does not have intermediate shelf
65
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
SPEC
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
B-8
R1-BEV1
R2-BEV1
R3-BEV1
R4-BEV1
R5-BEV1
R6-BEV1
R1-BEV2
R2-BEV2
R3-BEV2
R4-BEV2
R5-BEV2
R6-BEV2
Designed to keep your serving area clean and functional,
these Piper Beverage Counters are sure to complete
your line-up. The standard full length drains will keep
hazardous spills from your floors. Units are a full 30” deep
to accommodate nearly all coffee makers.
The versatile modular design allows you to design a
cafeteria or buffet unit to fit your line-up. All Reflections
units are compatible and will interlock with other
Reflections units.
STANDARD FEATURES
Seamless, molded FRP body with smooth exterior and
rounded corners
14-gauge stainless steel top with fully welded square
turndowns on all sides
Enclosed base
Under bracing for heavier loads
4-1/2" wide stainless steel removable grate for easy
access
3/4" FPT ball valve provided under unit
4" diameter swivel plate casters with brakes
Interlocking mechanism is provided to interlock with
other Reflections units
ELECTRICAL
Optional outlet locations must be specified
DIMENSIONS
R1-BEV1 - 36”H x 30”D x 28”L
R2-BEV1 - 36”H x 30”D x 36”L
R3-BEV1 - 36”H x 30”D x 50”L
R4-BEV1 - 36”H x 30”D x 60”L
R5-BEV1 - 36”H x 30”D x 74”L
R6-BEV1 - 36”H x 30”D x 96”L
R1-BEV2 - 36”H x 30”D x 28”L
R2-BEV2 - 36”H x 30”D x 36”L
R3-BEV2 - 36”H x 30”D x 50”L
R4-BEV2 - 36”H x 30”D x 60”L
R5-BEV2 - 36”H x 30”D x 74”L
R6-BEV2 - 36”H x 30”D x 96”L
36” height on all standard units
STANDARD COLORS
Wine Red (RAL 3005)
Signal Red (RAL 3001)
Yellow (RAL 1021)
Light Blue (RAL 5012)
Gentiane Blue (RAL 5010)
Water Blue (RAL 5021)
Moss Green (RAL 6005)
Squirrel Gray (RAL 7000)
Black
White
Custom colors available
Optional Graphics Packages available
COMMON OPTIONS
Tray slides
Cutting boards
Under storage, hinged doors
See reverse side for additional options.
WARRANTY
One year parts and labor. Warranty is detailed on inside
front cover of the price list.
Beverage Counter
R96-BEV1 shown with optional
solid ribbed tray slide
66
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and labor for a period of
twelve (12) months from the date of purchase. See manufacturer’s complete warranty for details.
It is our policy to build equipment which is design certified by companies that have been accredited at the Federal Level
by the Occupational Safety and Health Agency (OSHA) and ANSI as a National Recognized Testing Laboratory. These
companies include CSA International, Underwriters Laboratories, and the National Sanitation Foundation. However, a
continuing program of product improvement makes it necessary to submit new models to the agencies as they are
developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions do not entitle buyer to
corresponding changes, improvements, additions or replacements for previously purchased equipment. Information is not
for design purposes.
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
B-8 SPEC
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
Beverage Counter
Part # Description
RSCB 8” stainless steel cutting board
RMCB 8” maple cutting board
RSRTS Solid 3-ribbed tray slide, 16-gauge stainless steel
RSFTS Solid flat tray slide, 16-gauge stainless steel
R3BTS 3-bar tray slide
RSES End shelf - drop type
ROU Open under storage with shelf
RHD Under storage hinged doors
RBL Stainless steel 6” adjustable bullet feet
RDOUT Duplex outlet (verify electrical requirements)
DIMENSION ADDITIONS FOR OPTIONS
Add 8” to width for cutting board
Add 12-3/4” to width for solid ribbed tray slide
Add 12-1/2” to width for 3-bar tray slide
Note: Line-up drawing required when ordering
interconnected units.
Model# (A) Length Width (B) Height Ship Wt.
(lbs)
R1-BEV1 28” 30” 36” 165
R2-BEV1 36” 30” 36” 175
R3-BEV1 50” 30” 36” 194
R4-BEV1 60” 30” 36” 235
R5-BEV1 74” 30” 36” 265
R6-BEV1 96” 30” 36” 308
R1-BEV2 28” 30” 36” 165
R2-BEV2 36” 30” 36” 175
R3-BEV2 50” 30” 36” 194
R4-BEV2 60” 30” 36” 235
R5-BEV2 74” 30” 36” 265
R6-BEV2 96” 30” 36” 308
BEV1 - single trough
BEV2 - double trough
Petite Reflections is 30” high - under counter storage is shortened and
does not have intermediate shelf
67
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
SPEC
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
B-9
MILK-8
MILK-12
The Piper Milk Cooling unit offers you the latest design
innovation in milk cooling - our patented refrigerated
holding “Cool Pool” system. Designed for “lids-off” use
on tray make-up lines and in cafe/buffet operations, this
unique system establishes a pool of cold air in which
the product is held at 40 degrees Fahrenheit serving
temperature.
One unique feature of this unit is the milk does NOT
have to be transferred back to the main cooler at the end
of the day! It can be stored in this unit without fear of
temperature degradation.
STANDARD FEATURES
Seamless, molded FRP body with smooth exterior and
rounded corners
16-gauge stainless steel top with fully welded square
turndowns on all sides
Enclosed base
Removable lids with key locks
Removable louvered panels on front and rear of
compressor end
Condensing unit on slide-out rails for ease of service
Stainless steel liner with drain and hose connections
Fully insulated
Heated condensate pan
Anti-condensate top heater
Automatic on-demand defrost
4” diameter swivel plate casters with brakes
Interlocking mechanism is provided to interlock with
other Reflections units
DIMENSIONS
MILK-8 - 36”H x 34”D x 60”L
MILK-12 - 36”H x 34”D x 77”L
36” height on all standard units
REFRIGERATION SYSTEM
1/2 horsepower, 60 cycle, 120VAC, single phase
compressor, thermostatically controlled
Dial thermometer
Environmentally safe 134A refrigerant
ELECTRICAL
All units available in 120 volt
Seven foot electrical cord and plug
On/Off switch with indicator light with
thermostat controls located behind louvered access panel
STANDARD COLORS
Wine Red (RAL 3005)
Signal Red (RAL 3001)
Yellow (RAL 1021)
Light Blue (RAL 5012)
Gentiane Blue (RAL 5010)
Water Blue (RAL 5021)
Moss Green (RAL 6005)
Squirrel Gray (RAL 7000)
Black
White
Custom colors available
Optional Graphics Packages available
COMMON OPTIONS
Tray slides
Bullet feet
See reverse side for additional options
WARRANTY
One year parts and labor. Warranty is detailed on inside
front cover of the price list.
“Cool Pool” Milk Cooler
Air Cooled Refrigeration
MILK-8
“LIDS OFF OPERATION” DURING
PEAK SERVING TIMES FOR UP
TO TWO HOURS.
68
LIMITED WARRANTY:
PIPER PRODUCTS warrants to the original purchaser parts and labor for a period of
twelve (12) months from the date of purchase. See manufacturer’s complete warranty for details.
It is our policy to build equipment which is design certified by companies that have been accredited at the Federal Level
by the Occupational Safety and Health Agency (OSHA) and ANSI as a National Recognized Testing Laboratory. These
companies include CSA International, Underwriters Laboratories, and the National Sanitation Foundation. However, a
continuing program of product improvement makes it necessary to submit new models to the agencies as they are
developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions do not entitle buyer to
corresponding changes, improvements, additions or replacements for previously purchased equipment. Information is not
for design purposes.
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
B-9 SPEC
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
“Cool Pool” Milk Cooler
Air Cooled Refrigeration
Model# (A)
Length
(B)
Width Height Capacity
crates
Capacity
1/2 pt
cartons
*Amperage
120V
*NEMA Cap
No.
Ship Wt.
(lbs)
MILK-8 60” 34” 36” 8 400 10.5 5-15P 370
MILK-12 77” 34” 36” 12 600 10.5 5-15P 410
Petite models are not available
DIMENSION ADDITIONS FOR OPTIONS
Add 12-3/4” to width for solid ribbed tray slide
Add 12-1/2” to width for 3-bar tray slide
OPTIONS / ACCESSORIES
Part # Description
RSRTS Solid 3-ribbed tray slide, 16-gauge stainless steel
RSFTS Solid flat tray slide, 16-gauge stainless steel
R3BTS 3-bar tray slide
RBL Stainless steel 6” adjustable bullet feet
RMRCE Extended Compressor Warranty
SLD Self-leveling dispensing unit
69
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
SPEC
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-544-3057
Fax: 715-842-3125
www.piperonline.net
B-10
ICE-60
ICE-74
This Ice Cream Freezer unit offers you the latest design
innovation in freezers. Designed for “lids-off” use on
tray make-up lines and for back-of-thehouse as well as
serving operations, this unique system has a frost-free
compartment where the product is held at 0 degrees
Fahrenheit serving temperature, even in high ambience.
This unit is designed to operate for three hours with the
lids off, making access easy and fast for tray lines and for
self-serving.
STANDARD FEATURES
Seamless, molded FRP body with smooth exterior and
rounded corners
16-gauge stainless steel top with fully welded square
turndowns on all sides
Enclosed base
Removable lids with lid locks
Removable louvered panels to access compressor
Condensing unit on slide-out rails for ease of service
Stainless steel liner with plastic barrier strips around
top
Stainless steel cold well drain
Fully insulated
Anti-condensate heater in top keeps top from
“sweating”
Automatic defrost
4” diameter swivel plate casters with brakes
Interlocking mechanism is provided to interlock with
other Reflections units
DIMENSIONS
ICE-60 - 36”H x 30”D x 60”L
ICE-74 - 36”H x 30”D x 74”L
36” height on all standard units
REFRIGERATION SYSTEM
1/2 horsepower, 60 cycle, 120VAC, single-phase compressor
Dial thermometer
Thermostat controls located behind louvered access panel
Environmentally safe 507 refrigerant
ELECTRICAL
All units available in 120 volt
Seven foot electrical cord and plug
On/Off switch with indicator light
STANDARD COLORS
Wine Red (RAL 3005)
Signal Red (RAL 3001)
Yellow (RAL 1021)
Light Blue (RAL 5012)
Gentiane Blue (RAL 5010)
Water Blue (RAL 5021)
Moss Green (RAL 6005)
Squirrel Gray (RAL 7000)
Black
White
Custom colors available
Optional Graphics Packages available
COMMON OPTIONS
Tray slides
Bullet feet
See reverse side for additional options
WARRANTY
One year parts and labor. Warranty is detailed on inside
front cover of the price list.
“Ice Rink” Ice Cream Freezer
Air Cooled Freezer
“LIDS OFF OPERATION” DURING
PEAK SERVING TIMES FOR UP
TO TWO HOURS.
ICE-60
70
Other manuals for Ice Rink ICE-60
1
This manual suits for next models
64
Table of contents
Other Piper Products Freezer manuals
Popular Freezer manuals by other brands
Beko
Beko HSA40530N Instructions of use
Hoover
Hoover HTZ552W User's operation manual
Frigidaire
Frigidaire FFC0723DW - 7.2 cu. Ft. Chest Freezer Manuel d’utilisation et d’entretien
Hisense
Hisense RB440N4ACD User's operation manual
FUST
FUST Novamatic KS-TF 309-IB user manual
Frigostar
Frigostar FV601G instructions
