Warning & Safety Instructions
IMPORTANT // To ensure best performance, avoid risk of damage, exposure to
microwave energy, burns, electric shock, re or other accidents, please read the
operating instructions carefully prior to rst time use.
To maintain the eiciency and safety of this
appliance, we recommend that you do the
following:
• Only call the Service Centres
authorised by the manufacturer;
• Always use original spare parts;
• If the supply cord is damaged, it must
be replaced by a special cord or
assembly available from the
manufacturer or its service agent.
Do not operate the microwave oven if it is
damaged. It is particularly important that
the oven door closes properly and that
there is no damage to the door, hinges and
latches (broken or loosened).
WARNING // If the door or door seals are
damaged, the oven must not be operated
until it has been repaired by a competent
person.
WARNING // It is hazardous for anyone
other than a competent person to carry
out any service or repair operation that
involves the removal of a cover which gives
protection against exposure to microwave
energy.
Do not store or use this appliance outdoors.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
This appliance is intended to be used in
household and similar applications such
as: sta kitchen areas in shops, oices and
other working environments;
farmhouses; by clients in hotels, motels and
other residential environments; bed and
breakfast type environments.
The microwave oven is intended for heating
food and beverages. Drying of food or
clothing and heating of warming pads,
slippers, sponges, damp cloth and similar
may lead to risk of injury or ignition of re.
If smoke is observed, switch o or unplug
the appliance and keep the door closed in
order to stie any ames.

Microwave Oven User ManualPage 4
Cookware & Utensils Guide
It is important to use the correct containers and utensils when cooking in your microwave
oven. The table below will help you to make the right selection.
Materials that can be used in microwave ovens
Aluminium Shielding only. Small smooth pieces can be used to cover thin parts of meat
or poultry to prevent overcooking. Arcing can occur if foil is too close to
oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the
turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use
cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are
not heat resistant and may break.
Oven cooking bags Follow manufacturer’s instructions. Do not close with metal tie. Make slits
to allow steam to escape.
Paper plates and cups Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a
short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be
labelled “Microwave Safe”. Some plastic containers soen, as the food
inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit,
pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture.
Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Microwave Oven User Manual Page 5
Materials to be avoided in microwave oven
Aluminium tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal
handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed
utensils
Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a re in the oven.
Paper bags May cause a re in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to
high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.
If still in doubt, a test can be performed to conrm that the container or utensil is safe for
microwave oven use. Please follow the instructions below:
• Fill a 1-cup glass measure with cool water and place it in the microwave alongside the
empty container or utensil to be tested;
• Cook on maximum power for 1 minute (do not exceed one minute cooking time);
• If the container or utensil is microwave oven safe, the container should remain
comfortably cool, the water in glass measure should be hot;
• If the container is hot, it has absorbed some microwave energy and should NOT be
used. This test cannot be used for plastic containers.
Product Specications
Dimensions W595 x D400 x H388mm
Voltage / Frequency 220-240V~ / 50Hz
Rated Power 1450W
Microwave Power 900W
Capacity 28L
Turntable diameter Ø315mm
Net weight 18.5kg

Microwave Oven User ManualPage 6
Product Overview
A
BCD
E
F
G
A - Control Panel
B - Turntable Sha
C - Turntable Ring Assembly
D - Glass Tray
E - Glass Window
F - Door Assembly
G - Safety Interlock System

Microwave Oven User Manual Page 7
Control Panel
A1 Pizza
A2 Meat
A3 Vegetable
A4 Pasta
A5 Potato
A6 Fish
A7 Beverage
A8 Popcorn
T
i
m
e
W
e
i
g
h
t
A
u
t
o
M
e
n
u
1
2
3
4
5
6
Power
Level
Clock/
Timer
Defrost
Stop/Reset Start /+30sec
NOTE // When the buttons are pushed, a beep sound is heard. If a button is pushed and no
sound is emitted, the unit does not or cannot accept the command. At the end of the
programme, the oven will beep ve times.
1. Display Window
2. Auto Cooking Menu Options
3. Power Level/Defrost/Clock Timer Buttons
4. Time/Weight/Auto Menu Dial
5. Stop/Reset and Start Buttons
6. Door Release Button

Microwave Oven User ManualPage 8
DUAL FEATURES
T
i
m
e
W
e
i
g
h
t
A
u
t
o
M
e
n
u
TIME CHOICE
When in standby mode, rotate the
dial counter-clockwise to activate the
cooking menu time then rotate the dial
clockwise to increase the cooking time
and rotate the dial counter-clockwise to
decrease the cooking time.
AUTO MENU CHOICE
When in standby mode, rotate the dial
clockwise to activate the auto cooking
menu options then rotate the dial in
either direction to select the Auto
Cooking function desired.
WEIGHT CHOICE
Aer selecting the desired auto cooking
option or defrost function, rotate the dial
clockwise to increase the food weight
and rotate the dial counter-clockwise to
decrease the weight.
DISPLAY WINDOW
1 2 34
98765
10
1. Microwave Function
2. Defrost by Time
3. Defrost by Weight
4 High Power Level (80-100%)
5. Clock
6. Timer
7. Auto Cooking Function
8. Child Lock
9. Weight (grams)
10. Number (Time/Weight/Menu)

Microwave Oven User Manual Page 9
Operating Instructions
WARNING // Do not attempt to operate this microwave oven with the door open as it can
result in harmful exposure to microwave energy. Safety interlocks must not be defeated or
tampered with.
Important Safety Instructions
• Only use utensils that are suitable for
use in microwave ovens. (Guide on page
4)
• Eggs in their shell and whole
hard-boiled eggs, liquids in narrow
neck bottles and other foods in sealed
containers should not be heated in the
microwave ovens since they may
explode, even aer microwave heating
has ended.
• Microwave heating of beverages can
result in delayed eruptive boiling;
therefore handle container with care
Liquids, such as water, coee, or tea
can be overheated beyond the boiling
point without appearing to be boiling.
Visible bubbling when the container
is removed from the microwave oven is
not always present. This could result in
very hot liquids suddenly boiling over
when the container is disturbed or a
utensil is inserted into the liquid.
To reduce this risk of injury to persons:
• Stir the liquid both before and halfway
through the heating process.
• Do not heat water and oil, or fats
together. The lm of oil will trap steam,
and may cause a violent eruption.
• Do not use straight-sided containers
with narrow necks.
• Do not overcook food. When heating
food in plastic or paper containers,
keep an eye on the oven, beware of the
possibility of ignition.
• The contents of feeding bottles and
baby food jars need to be stirred or
shaken and the temperature checked
before consumption, in order to avoid
burns.
• Remove wire twist-ties and metal
handles from paper or plastic bags/
containers before placing them in the
microwave oven.
• Do not cook directly on the turntable.
It can crack, cause injury or damage to
the oven.
• Do not use the oven cavity for storage
purposes.
• Aer heating, allow the container to
rest in the microwave oven for a short
time before removing it.

Microwave Oven User ManualPage 10
• Do not operate the oven empty. The
microwave energy will reect
continuously throughout the oven
causing overheating and damage,
if food or water is not present to
absorb energy.
Operating Instructions
NOTE // If an operation is set but the Start
button is not pressed, aer 1 (one) minute,
microwave oven will automatically cancel
the operation. The display will revert back to
clock or colon mode.
NOTE // Aer using the microwave oven, the
fan may stay on to cool the electric
components. The food can be removed from
the microwave while the fan is operating.
1. Adjusting the Clock
Aer connecting the unit to the power, a
long beep will be emitted and the zero hour
‘0:00’ will be visible on the display.
1. Press ‘Clock/Timer’ twice, the
symbol will appear and the
hour digits will ash.
2. Rotate the Dial to adjust the hour
(24h style).
3. Press ‘Clock/Timer’ once again and,
this time, the minute digits will
ash.
4. Rotate the Dial to adjust the minutes
setting (0-59min).
5. Press ‘Clock/Timer’ to nish setting
the clock. The colon “:” should now
be ashing.
2. Microwave Cooking
1. Push ‘Power Level’, “P100” will be
ashing on the display window
indicating that the cooking power
is currently 100% of the maximum
possible power.
2. Rotate the Dial in either direction
or push ‘Power Level’ multiple times to
select between 100, 80, 50, 30 or 10% of
the maximum possible power.
3. Push ‘Start/+30sec’ to conrm. The
power select will be displayed (not
ashing).
4. Rotate the Dial do adjust the cooking
time (5sec – 95min). E.g., 1min 30sec
(1:30).
5. Press ‘Start/+30sec’ to start the
programme.
NOTE // Time counts up in dierent
increments as the cooking time is being
increased by turning the Dial.
0 – 1 minute time counts up in 5 seconds.
1 – 5 minutes time counts up in 10 seconds.
5 – 10 minutes time counts up in 30 seconds.
10 – 30 minutes time counts up in 1 minute.
30 – 95 minutes time counts up in 5 minutes.
• Do not operate the oven without the
roller ring and the turntable in place.

Microwave Oven User Manual Page 11
3. Quick Start
Using the ‘Start/+30sec’ button:
1. When in standby mode, press
‘Start/+30sec’ to start cooking for 30
seconds with the power level adjusted
to 100%.
2. If desired, the cooking time can be
increased in increments of 30 seconds
by pressing ‘Start/+30sec’ multiple
times.
Using the Dial:
1. When in standby mode, rotate the
Dial counter clockwise to activate
the cooking time settings.
2. Adjust the cooking time by rotating
the Dial in either direction. The
power level is adjusted to 100% by
default.
3. Press ‘Start/+30sec’ to start the
programme.
4. If desired, the cooking time can be
increased in increments of 30 seconds
by pressing ‘Start/+30sec’ during the
cooking process.
4. Defrost by Weight
1. Press ‘Defrost’ once. “dEF1”and the
symbol should be displayed.
2. Rotate the Dial in either direction to
adjust the approximate quantity of
food being cooked (100-2000g).
3. Press ‘Start/+30sec’ to start the
programme.
NOTE // The cooking time for the “Defrost by
weight” function is automatically calculated
based on the information provided and no
extra time can be added during the cooking
programme.
5. Defrost by Time
1. Press ‘Defrost’ twice. “dEF2” and the
symbol should be displayed.
2. Rotate the Dial in either direction
to adjust the defrosting time
(5sec – 95min).
3. Press ‘Start/+30sec’ to start the
programme. The power level for
defrosting mode is 30% by default.
4. If desired, the cooking time can be
increased in increments of 30 seconds
by pressing ‘Start/+30sec’ during the
cooking process.
6. Multi-function Cooking
Defrost and Microwave Cooking functions
can be set to work consecutively. For
example, a defrost programme can be set
for 5 minutes and soon aer it nishes the
microwave cooking programme
automatically starts and operates for 7
minutes.
Setting the multi-function cooking:
1. Press ‘Defrost’ twice. “dEF2” and the
symbol should be displayed.
2. Rotate the Dial in either direction
to adjust the defrosting time
(5sec – 95min).
3. Press ‘Power Level’, “P100” will be
ashing on the display window
indicating that the cooking power
is currently 100% of the maximum
possible power.
4. Rotate the Dial in either direction
or press ‘Power Level’ multiple times to
select between 100, 80, 50, 30 or 10% of
the maximum possible power.

Microwave Oven User ManualPage 12
5. Press ‘Start/+30sec’ to conrm. The
power select will be displayed
(not ashing).
6. Rotate the Dial to adjust the cooking
time (5sec – 95min). E.g., 1min 30sec
(1:30).
7. Press ‘Start/+30sec’ to start the
multi-programme.
NOTE // A short beep will be heard once the
defrosting programme is nished and the
microwave cooking starts.
7. Kitchen Timer
This microwave oven is equipped with a
digital timer that can be used during other
activities in the kitchen. For example, while
boiling eggs on your cooktop.
Setting the timer:
1. Press ‘Clock/Timer’ once, the
symbol will appear and
“00:00” will be displayed.
2. Rotate the Dial to adjust the timer
(5sec - 95min).
3. Press ‘Start/+30sec’ to start the
timer. The symbol “ ” should
now be ashing.
NOTE // The timer will beep 5 times when
the set time is reached and the clock will be
displayed.
NOTE // The timer can be cancelled at any
time by pressing ‘Stop/Reset’.
8. Auto Cooking Function
Auto Cooking allows you to cook foods
without selecting times and power levels.
The Auto Cooking provides dierent pre-set
menus for 8 dierent types of dishes and
foods. (See table A)
Setting the Auto Cooking function:
1. Rotate the Dial clockwise to activate
the Auto Cooking menu.
The symbol should appear
on the display.
2. Rotate the Dial in either direction
to select between 8 dierent cooking
options (A-1 to A-8). Please refer to the
table below for details of each one of
the available pre-set menus.
3. Press ‘Start/+30sec’ to conrm the
selection of the desired pre-set menu.
The menu selected will be displayed
(not ashing).
4. Rotate the Dial in either direction
to select the approximate weight of
the food being cooked.
5. Press ‘Start/+30sec’ to start the
auto-cooking programme.
9. Child Lock
To set the Child Lock:
1. When in standby mode, press and hold
for 3 seconds ‘Stop/Reset’.
2. A long beep will be heard indicating
that the Child Lock has been
activated.
3. The key symbol ‘ ’ should be
visible on the display window.
4. If the time hasn’t been set up, the
following conguration ‘ ’
will be displayed also indicating
that the Child Lock has been
activated.

Microwave Oven User Manual Page 13
To cancel the Child Lock:
1. When in Child Lock mode, press and
hold for the “Stop/Reset button for 3
seconds.
2. A long beep will be heard indicating
that the Child Lock has been
deactivated.
10. Inquiring the Power Level or
the Current Time
During any cooking programme, the power
level set for the ongoing programme or
the time can be displayed for 3 seconds by
pressing ‘Power Level’ or ‘Clock/Timer’,
respectively.
Auto Cooking Function Table
(Table A)
A-1 PIZZA 200g, 400g
A-2 MEAT 250g, 350g, 450g
A-3 VEGETABLE 200g, 300g, 400g
A-4 PASTA 50g, 100g
A-5 POTATO 200g, 400, 600g
A-6 FISH 250g, 350g, 450g
A-7 BEVERAGE 1(approx. 120ml), 2(approx. 240ml), 3(approx. 360ml)
A-7 BEVERAGE 50g, 85g, 100g
Menu Weight

Microwave Oven User ManualPage 14
Maintenance
ATTENTION // Before cleaning your
microwave oven, or performing
maintenance, turn the appliance o and
disconnect it from the power supply.
WARNING // Repairs must be done only by a
qualied service person.
The microwave oven should be cleaned
regularly and any food deposits removed.
Cleaning your oven frequently will extend
its life.
When cleaning your oven:
• Check the condition of the microwave
door on a regular basis. The door
guarantees the great performance of
your appliance and protection against
microwave energy.
• Avoid using abrasive products or
objects that can damage the door
surfaces.
• Should it become damaged, please
contact customer care (contact details
available on the back page of the
cover of this manual.
• Do not use a steam cleaner.
• To protect against the risk of electrical
shock, do not immerse the unit, cord or
plug in water or other liquids.
• Do not clean the appliance while it is
still hot. The internal and external
surfaces of the microwave should
preferably be cleaned by damp cloth
when the oven has cooled down.
• Wash all accessories in hot soapy
water, wipe dry with a paper or cloth
towel before returning them to the
appliance.
• Dry the condensation, which may
be formed when the microwave oven is
used for an extended period of time,
using a so cloth.
IMPORTANT // Failure to maintain the oven
in a clean condition could lead to
deterioration of the surface that could
adversely aect the life of the appliance and
possibly result in a hazardous
situation.
ATTENTION // Aer cleaning your
microwave oven, ensure to replace the
turntable ring assembly and glass tray in the
proper position and press ‘Stop/Reset’ to
clear the display window.

Microwave Oven User Manual Page 15
Maintenance Troubleshooting
BEFORE REQUESTING SERVICE
These occurrences are normal:
Some radio or TV interference might occur
when you cook with the microwave oven.
This interference is similar to the
interference caused by small appliances
such as mixers, vacuums, hair dryers, etc.
It does not indicate a problem with your
appliance.
Microwave oven is interfering TV
reception
Dim microwave oven light In low power level of microwave cooking,
the oven light may be dimmed.
During cooking, steam and warm air are
given o from food. Most of the steam and
warm air is removed from the microwave
oven by the air that circulates in the oven
cavity. However, some steam will condense
on cooler surface such as the oven door.
Steam is accumulating on the oven door
and warm air comes out the oven vents
Running the oven empty for a short time
will not damage the oven. However, we do
not recommend this.
Microwave oven was accidentally set to
operate without any food in it

Microwave Oven User ManualPage 16
Maintenance Troubleshooting
The directions in the table below can be followed to solve simple problems with your
appliance before requesting service.
Problem Possible Cause Action
Microwave oven will not turn on Power cord not plugged
in properly
Unplug the power cord, wait
for 10 seconds and then plug
it again
Circuit breaker or fuse is
tripped or blown
Reset circuit breaker or
replace fuse
Damaged outlet Plug another appliance into
the outlet to check if the
outlet is working
Microwave will not start a
programme
The door is not fully
closed
Ensure the door is securely
closed
Another programme has
already been set
Press ‘Stop/Reset’ to cancel
previous programme and
program microwave oven
again
Turntable makes noises when
microwave oven operates
Dirty turntable ring
assembly or bottom of
microwave oven cavity
Refer to the section on
previous page (Page 13) on
how to clean dirty parts
The symbol shows up
on the display and controls do not
The child lock is activated
and the clock isn’t set up
Deactivate Child Lock by
pressing and holding for 3
seconds ‘Stop/Reset’

Microwave Oven User Manual Page 17

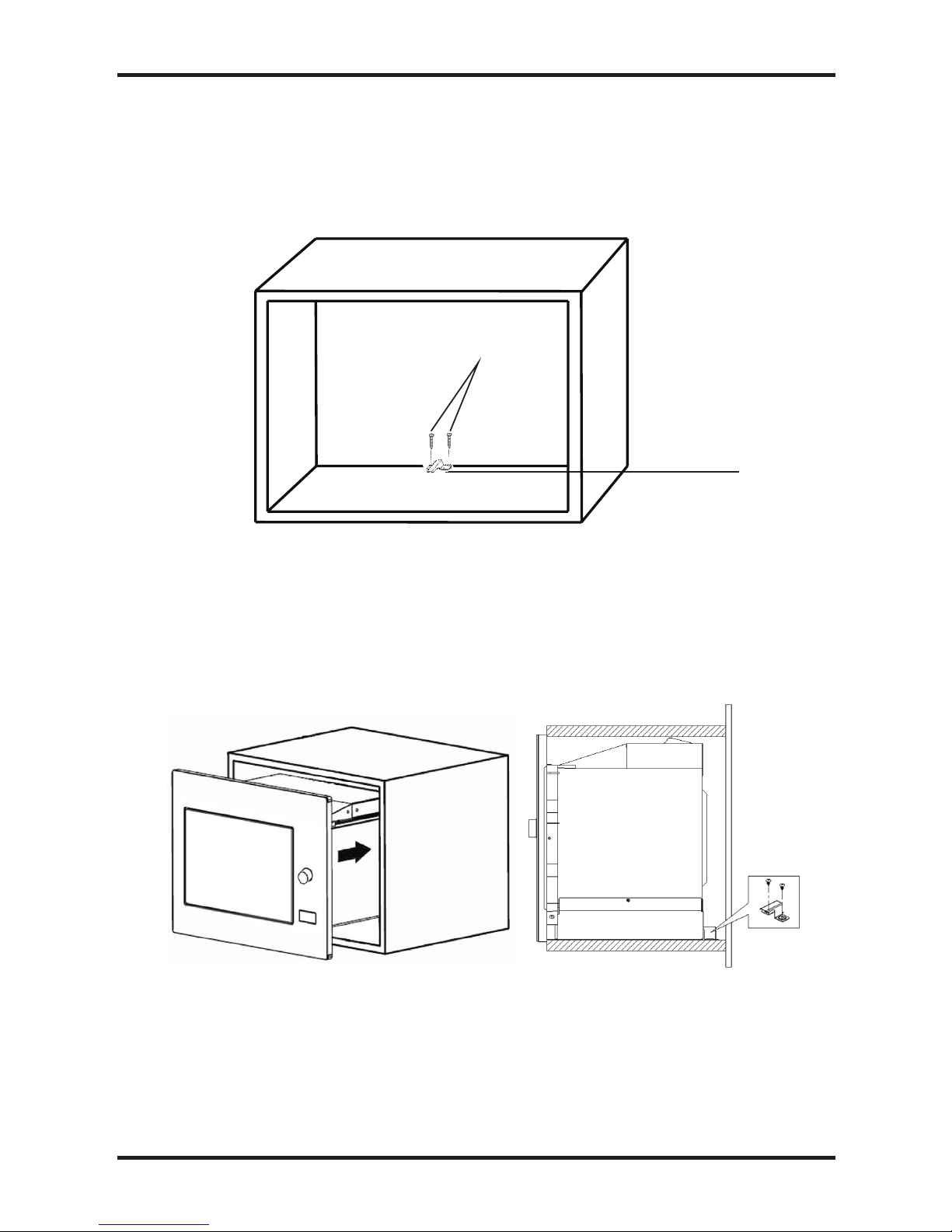

Installation
IMPORTANT // This appliance must be installed by a qualied professional and in
accordance with the instructions presented in the manual, as well as any industry standard
quidelines. The manufacturer will not be held responsible for any damage caused by
incorrect installation.
ATTENTION // Before installing the appliance, ensure that the power supply is turned o.
IMPORTANT // It must be possible to disconnect the microwave from the supply aer
installation. The disconnection may be achieved by having the plug accessible or by
incorporating a switch in the xed wiring in accordance with the wiring rules.
595
388
400
20
378
20
400
4.5
388
595
36 36
4949

Microwave Oven User ManualPage 18
Installation
IMPORTANT // In order to function correctly, the microwave oven requires an adequate
supply of cool air.
There should be a gap of approximately 45mm at the rear of the shelf on which the
microwave oven rests. The shelf should not touch the wall behind it.
45
20
4.54.5
380approx.
45
500min.
4.5
4.5
380approx.
500min.
bench top
air vents
45
560
TOWER CABINET UNDER BENCH
FITTING THE MICROWAVE OVEN INTO THE KITCHEN CABINET
IMPORTANT // This appliance can be installed as an under bench unit or into an oven tower
cabinet. The gures below present the dimensions of the appliance and cabinet cutout for
installation of the built-in microwave.
• This appliance is intended to be used
built-in and must not be placed in a
cabinet with doors.
• This appliance must be grounded.
Connect only to a properly grounded
outlet. Do not cover or block any
ventilation openings of the appliance.

Microwave Oven User Manual Page 19
Installation
Read the instructions on the screw-positioning template provided with the appliance
(‘Bottom Cabinet Template’). This template is used to mark the position of the screws that
will hold the anti-tilting bracket.
"a""seloH
PN:261800316968
Screw A
Bracket
Aer marking the position of the screws (A) as per the template instructions, remove the
template and install the anti-tilting bracket as indicated on the next page.

Bracket
Microwave Oven User ManualPage 20
Installation
Carefully slide the microwave oven into position making sure that the anti-tilting bracket
is locked into the back of the microwave oven. Ensure that the power cord is not taped on
kinked.
Screw A
Bracket
