Plexsound Psychonote BW10 User manual

Plexsound Psychonote BW10
http://www.plexsound.com
Revised: 15 Mar 2015
1
OWENER’S MANUAL
Art: Martyna Bylinka

http://www.plexsound.com
Revised: 15 Mar 2015
2
I m p o r t a n t S a f e t y I n s t r u c t i o n s
This symbol warns the user of dangerous voltage levels localized within the
enclosure.
This symbol advises the user to read all accompanying literature for safe
operation of the unit.
△Read, retain, and follow all instructions. Heed all warnings.
△Only connect the power supply cord to an earth grounded AC receptacle in accordance with
the voltage and frequency ratings listed under INPUT POWER on the rear panel of this product.
△WARNING: To prevent damage, re or shock hazard, do not expose this unit to rain or
moisture.
△Unplug the power supply cord before cleaning the unit exterior (use a damp cloth only).
Wait until the unit is completely dry before reconnecting it to power.
△Maintain at least 6 inches (15.25 cm)of unobstructed air space behind the unit to allow for
proper ventilation and cooling of the unit.
△This product should be located away from heat sources such as radiators, heat registers, or
other products that produce heat.
△This product may be equipped with a polarized plug (one blade wider than the other). This
is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician to
replace your obsolete outlet. Do not defeat the safety purpose of this plug.
△Protect the power supply cord from being pinched or abraded.
△This product should only be used with a cart or stand that is recommended by the
manufacturer.
△The power supply cord of this product should be unplugged from the outlet when left
unused for a long period of time, or during electrical storms.
△This product should be serviced by qualied service personnel when: the power supply cord
or the plug has been damaged; or objects have fallen, or liquid has been spilled onto the
product; or the product has been exposed to rain; or the product does not appear to operate
normally or exhibits a marked change in performance; or the product has been dropped, or the
enclosure damaged.
△Do not drip nor splash liquids, nor place liquid lled containers on the unit.
△CAUTION: No user serviceable parts inside, refer servicing to qualied personnel only.
△Plexsound® ampliers and loudspeaker systems are capable of producing very high sound
pressure levels which may cause temporary or permanent hearing damage. Use care when
setting and adjusting volume levels during use.!

INTRODUCTION
Thank you for purchasing a Plexsound Psychonote BW10 amplier. The Plexsound Psychonote BW10 employs pure and simple, classic 60s British circuits
combined with a xed-bias output section for added punch. Using this classic circuit heritage as a springboard, we have rened and innovated, creating our
own unique blend of circuitry which yields rich, clean tones and chunky, smooth overdrives. You will nd the Plexsound Psychonote BW10 works
exceptionally well with pedals – staying dimensional and bringing out the best from your guitar.
Please take time to familiarize yourself with this manual.

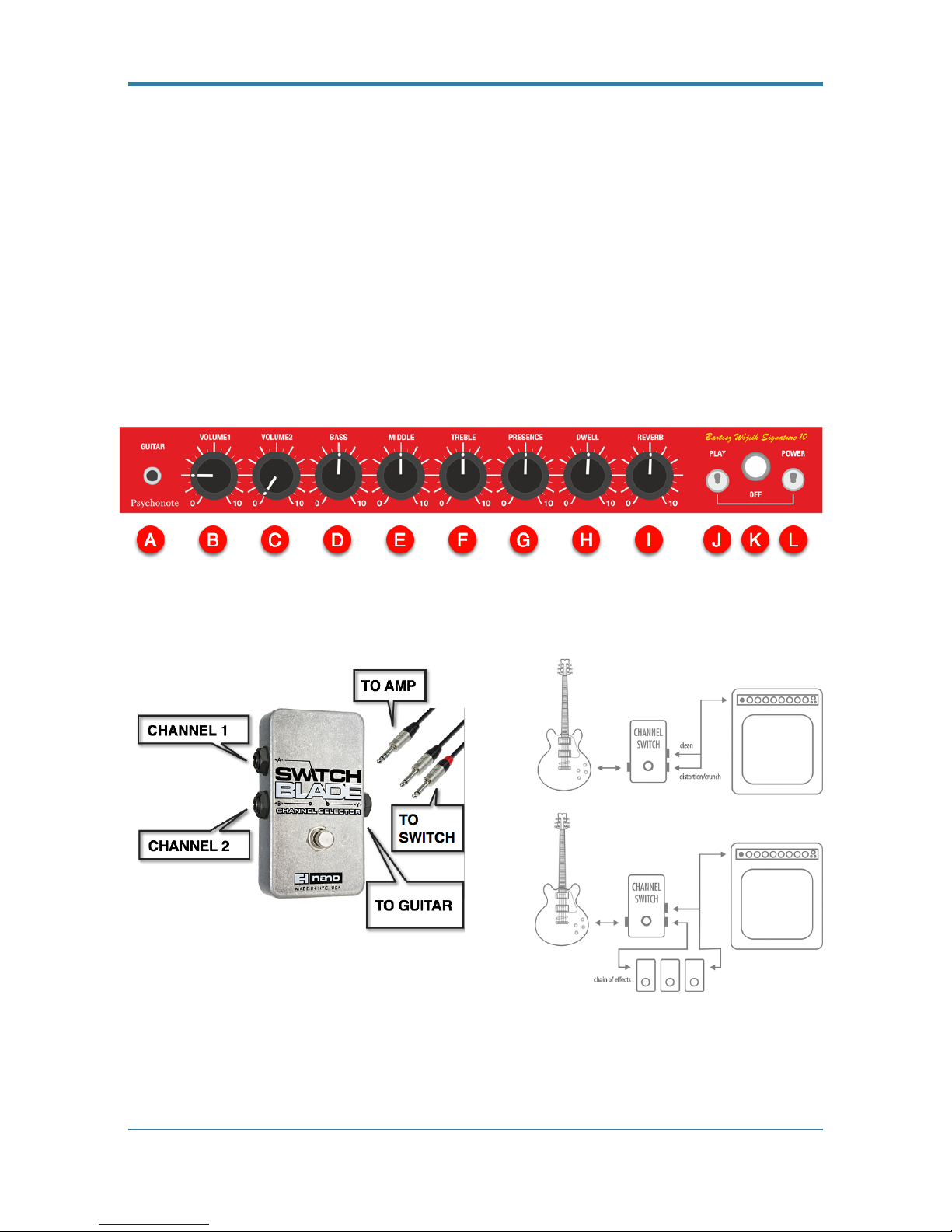

FRONT PANEL
AGuitar Socket
Foot switchable channel input. Footswitch & cables included.
B&C Volume1 & Volume2
Adjusts the loudness and drive of the amplier channels. The Plexsound Psychonote
BW10 has an extended range volume control and you will nd you can sweep from sweet and clean to very distorted.
http://www.plexsound.com
Revised: 15 Mar 2015
3
OWNER’S MANUAL

DBass
Varies low end from lean to full. Generally, the louder the Volume, the less Bass you will need as the amp sounds increasingly full as you turn it up. To retain
clarity, it is best to turn the Bass down at high volumes.
EMiddle
Adjusts the level of the mid-frequencies of your Plexsound Psychonote BW10.
F Treble
Varies the level of high frequencies from dark to bright.
NOTE: Like many vintage ampliers, all tone controls are pre-distortion and adjusting them determines how the amplier will overdrive.
GPresence
The Presence is used to emphasize top end frequencies by removing the output section Negative Feedback from the high end. For at/even tone, set the
presence to 0 (off). For typical shimmer set it to 12 o’clock. To push top end and increase bite use higher settings. This control is very useful in setting your
overall brightness and cut. It is interactive with the treble control and affords a huge range of tones.
Note: If you move the knob quickly you will hear some‘swooshing’which is normal.
HDwell
Adjusts the amount of signal sent to the reverb pan. At low Dwell settings the reverb sounds much like a guitar played into a large room. At high Dwell
settings (above four) the reverb signal will start to sound more“springy”or‘twangy”.
IReverb
The reverb “wet” signal and the “dry” signal are mixed together at this control. The mixer adjusts what percentage of the signal sent to the output stage is
from the reverb pan circuit compared to the dry signal. Higher settings equal more reverb.
JPlay
When the Power switch and this switch are ON, your Plexsound Psychonote BW10 is ready to perform. In the Play position, power is supplied ONLY to the
tube laments and sound will NOT come out of the amp. Using the Play switch during short breaks eliminates tube warm-up time and will increase tube
life.
KPilot Jewel
Illuminates when the Plexsound Psychonote is receiving power. Should this bulb burn out, turn offand unplug the amplier, unscrew the pilot jewel and
replace the lamp with a typeT47 bulb.
LPower
Turns the AC power ON and OFF. When the amplier is in the OFF position, the amplier is completely shut down.
http://www.plexsound.com
Revised: 15 Mar 2015
4
OWNER’S MANUAL

REAR PANEL
AIEC Power Socket & Mains fuse
The line cord must be connected to a grounded AC receptacle in accordance with the voltage and frequency ratings as specied on the rear panel of the unit.
Mains fuse - In the unlikely event that a tube fails, the amp is protected by a 1.5 Amp slow blow fuse for 120v (North America) models or a 0.75 Amp slow
blow fuse for 240v (Europe) models. If the amp repeatedly blows fuses, have the unit tested by an authorized Plexsound service technician.
BPlate Fuse
In the unlikely event that a tube fails, the amp is protected by a 0.150 Amp slow blow fuse.
CSerial No
Displays the serial number of unit.
DExternal Speaker & Attenuator Socket (Disconnects Internal speaker)
Plug in external speakers here. Speakers (internal or external) must always be connected here while operating the unit. The Plexsound Psachonote BW10 is
designed to drive an 8 ohm load, and the speakers in Plexsound Psychonote BW10 combos and extension cabinets are congured to provide an 8 ohm load.
Maximum power and tone will be realized when connected to an 8 ohm speaker or extension cabinet. Use to connect an 8-16 ohm extension cabinet,
please note mismatched impedance will reduce the ampliers performance and in some cases may cause damage to your amplier. Try your Plexsound
Psychonote into Palmer extension cabinet (2 or 4 speakers, 8 ohm) - you will be amazed.
Damage will result from operating the Plexsound Psychonote BW10 without a speaker load.
EAttenuator Socket (internal speaker)
Plug in the silencer output.
FFoot Pedal Reverb
Plug the included footswitch in here. The footswitch enables on/offswitching of the reverb effects.
http://www.plexsound.com
Revised: 15 Mar 2015
5
OWNER’S MANUAL

BIASING YOUR PLEXSOUND PSYCHONOTE BW10
The Plexsound Psychonote BW10 is a xed bias amplier and requires a bias adjustment any time the power
tube is replaced. Any large octal pentode or beam power tube will function in the Plexsound Psychonote BW10
though the amplier has been optimized for the 6L6 tube. The following tube types are compatible with the
Plexsound Psychonote BW10 after bias adjustment: 6L6, 5881, EL-34 and 6V6.
The Plexsound Psychonote BW10 tubes are calibrated to a rating using Orange DIVO tube rating
hardware. This way you can replace power tubes yourself without an expensive tip to tech for a rebias, use
other rating system tubes a you can always order spares directly from us. You can just plug in a new set power
tubes that match the same rating, or experiment with different preamp tubes to even future rene the amp to
your taste.
If you are uncomfortable with the above instructions, please see a qualied electronics technician for bias adjustments.
TECHNICAL SPECIFICATION
http://www.plexsound.com
Revised: 15 Mar 2015
6
OWNER’S MANUAL
Nominal Supply Voltage
∼115V, ∼230V, 50/60Hz
Power Consumption
130W
Output Power Rating
20W
Loudspeaker
CelestionVintage G10 (8 ohm)
Input Impedance
1Mohm
Size (H xW x D)
480mm x 397mm x 235mm
Weight
17kg

PLEXSOUND AMPLIFIERS WARRANTY
All Plexsound ampliers are warranted to be free from defects in
workmanship (solder joints, hardware assembly etc.) for the lifetime
of the original owner, and free from defects in materials (including
cabinet) for three years from the date of purchase by the original
owner, provided that:
▶The owner mails the signed warranty registration card (next page)
and a copy of the original sales receipt to SerwiTECH within thirty
days of purchase.
▶Problems are not the result of misuse, abuse, tampering, circuit modication, improper tube installation (incorrect orientation of tubes can damage the
amp), or spilled beverages, as these will void the warranty.
▶The amplier is shipped to SerwiTECH in the original packing materials with freight paid by the purchaser. We pay the return shipping after the warranty
work is complete.
Tubes, speaker(s), and reverb tanks carry a ninety-day warranty, and are subject to the same terms and conditions as above.
Please call us at [phone] if you have a warranty claim. Be prepared to provide the model and serial number of your amp. We will issue a Return
Merchandise Authorization number (RMA#) before the amplier is shipped for service.
For customers outside of EU, warranty and repair service is provided through the dealer where the amp was purchased.
Shipping address:
SerwiTECH
Wyganowska 14, 03-085 Warsaw
Poland
http://www.plexsound.com
Revised: 15 Mar 2015
7
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO
QUALIFIED PERSONNEL ONLY. THIS UNIT MUST BE EARTH
GROUNDED.
OWNER’S MANUAL

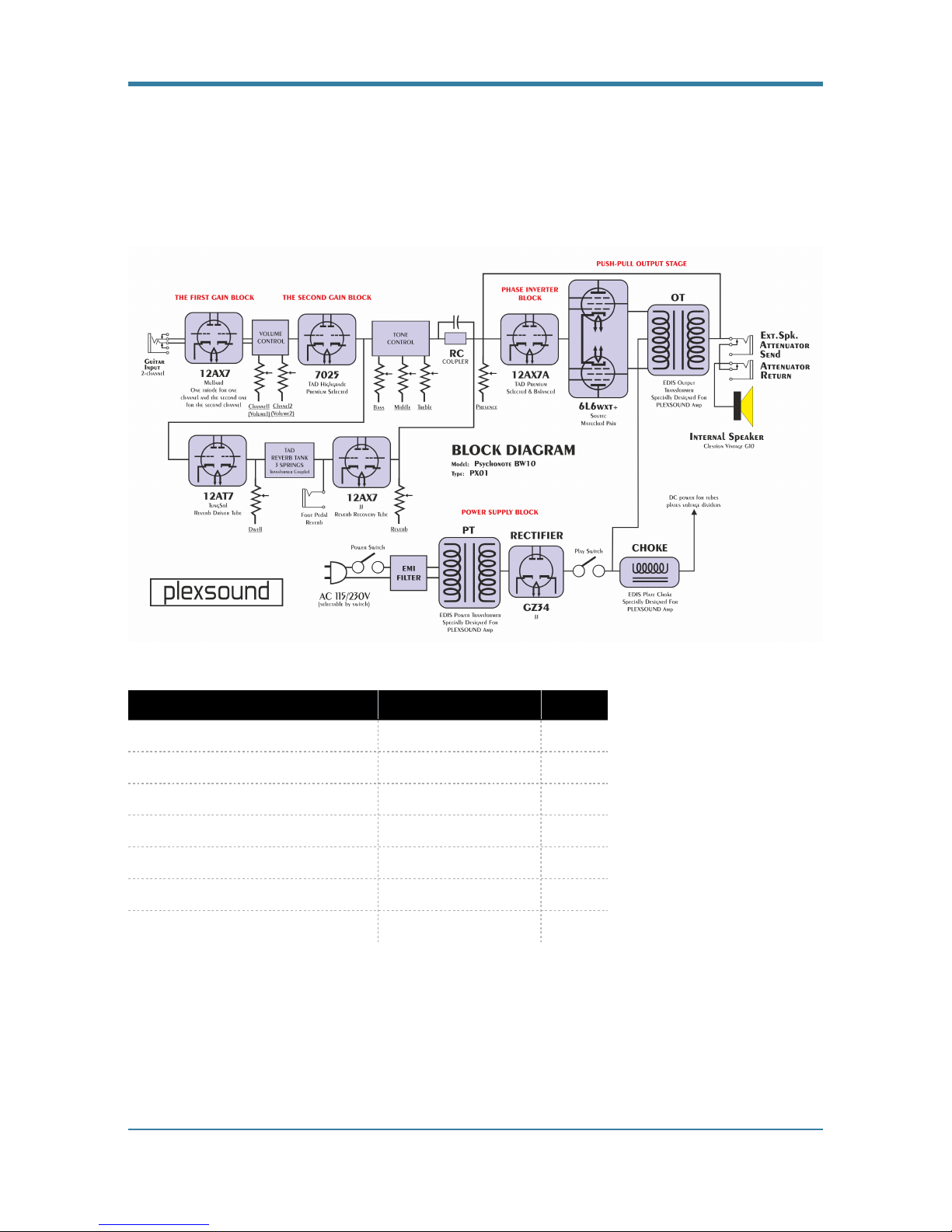

PLEXSOUND PSYCHONOTE BW10 BLOCK DIAGRAM
Tubes
Type
Manufacture
Pcs.
6L6 WXT+ (output stage)
Sovtec
2
12AX7 Selected & Balanced (phase inverter)
TAD
1
7025 Highgrade Premium Selected (premap)
TAD
1
12AX7 (preamp)
Mullard reuses
1
12AT7 (reverb driver)
TungSol
1
12AX7 (reverb recovery)
JJ
1
GZ34 (rectier)
JJ
1
http://www.plexsound.com
Revised: 15 Mar 2015
8
OWNER’S MANUAL

TIPS
http://www.plexsound.com
Revised: 15 Mar 2015
9
In order to reduce environmental damage, at the end of its useful life, this product must not be disposed of along with normal house hold
waste to landll sites. It must be taken to an approved recycling centre according to the recommendations of the WEEE directive applicable in
your country.
This product conforms to the requirements of the following European Regulations, Directives & Rules: CE Mark, Low Voltage, EMC, RoHS,WEEE.
OWNER’S MANUAL
In the interest of continued product development, Serwitech reserves the right to amend product specication without prior
notication.
Plexsound Psychonote BW10 with Power Attenuator (Silencer) ➡
Plexsound Psychonote BW10 with Power Attenuator (Silencer) ➡
and External Cabinet
Plexsound Psychonote BW10 with External Cabinet ➡
