Plusrite PLS-30W User manual

P: F: [email protected] 03 9708 2552 • 03 9708 2553 • www.plusrite.com.au

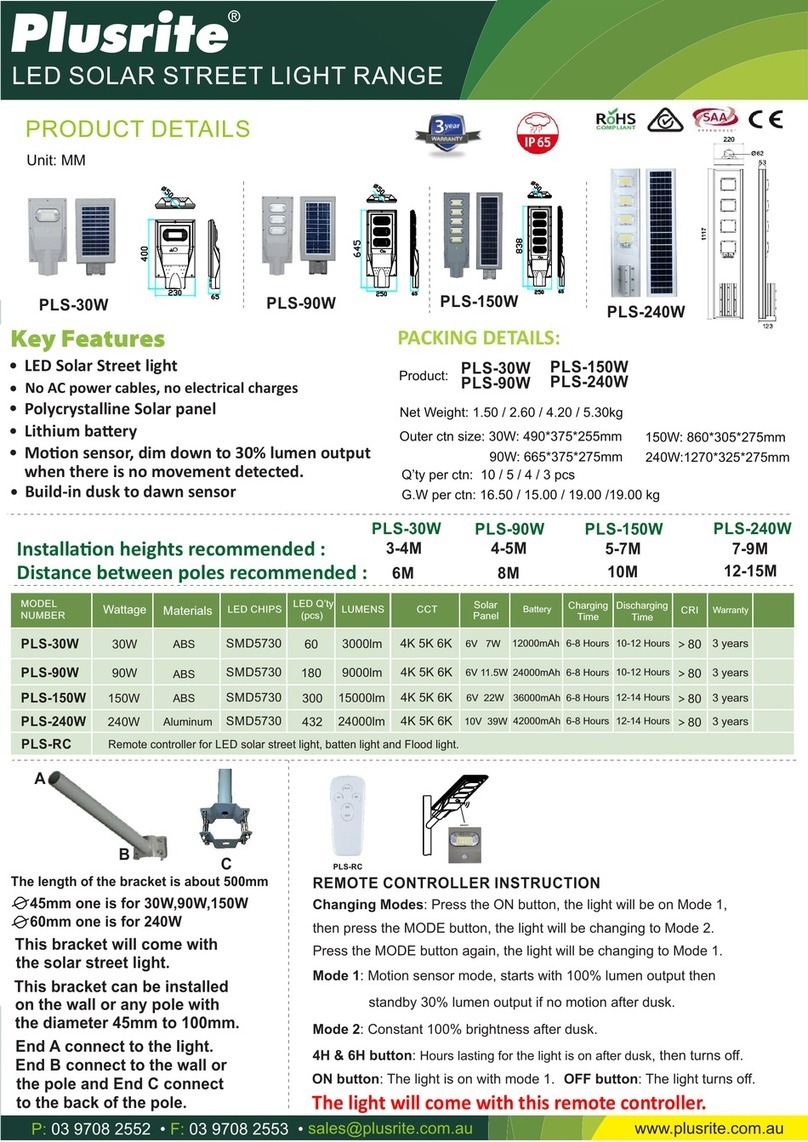

LED SOLAR LIGHT RANGE
PRODUCT DETAILS
PLS-30W PLS-90W PLS-150W
Q20
MODEL
NUMBER Materials LED CHIPS LUMENS CCT Panel
Charging CRI DIMMABLE
30W SMD5730 3000lm 4K 5K 6K ＞80
LED Q’ty
(pcs)
60 6V 7W
Wattage
ABS
Battery
Yes
Warranty
3 year
12000mAh
PLS-30W
Time
Discharging
Time
Solar
6-8 Hours 10-12 Hours
90W SMD5730 9000lm 4K 5K 6K ＞80
180 6V 11.5W
ABS Yes 3 year
24000mAh
PLS-90W
6-8 Hours 10-12 Hours
150W SMD5730 15000lm 4K 5K 6K ＞80
300 6V 22W
ABS Yes 3 year
36000mAh
PLS-150W
6-8 Hours 12-14 Hours
This bracket will come with
the solar street light.
A
B
This bracket can be installed
on the wall or any pole with
45mm
the diameter 45mm to 100mm.
End A connect to the light.
End B connect to the wall or
the pole and End C connect
MOTION SENSOR INSTRUCTION
C
to the back of the pole.
Mode button:
Mode 1: Motion sensor mode, starts with 100% lumen output then
standby 30% lumen output if no motion after dusk.
Mode 2: Constant 100% brightness after dusk.
4H & 6H button: Hours lasting for Mode 1 or Mode 2, then turns off.
ON button: The light is on with mode 1.
OFF button: The light turns off.
PLS-RC
PLS-RC Remote controller for LED solar street light, batten light and Flood light.
1. Press the ON/OFF button once. The light flashes once and works
at motion sensor mode, standby 30% light output if no motion after dusk.
2. Press the ON/OFF button again. The light flashes twice and
works at constant 100% brightness mode after dusk.
3. Hold down the ON/OFF button to turn o ffthe light.
REMOTE CONTROLLER INSTRUCTION
LED Solar Street light
Polycrystalline Solar panel
Lithium batery
No AC power cables, no electrical charges
Moon senso, dim down to 30% lumen output
when there is no movement detected.
Build-in dusk to dawn sensor
Product:
Net Weight: 1.50 / 2.60 / 4.20 / 5.30kg
Outer ctn size: 490*375*255mm
Q’ty per ctn: 10 / 5 / 4 / 3 pcs
G.W per ctn: 16.50 / 15.00 / 19.00 /19.00 kg
PACKING DETAILS:
PLS-30W
PLS-90W
PLS-150W
665*375*275mm
860*305*275mm
PLS-240W
PLS-240W
1270*325*275mm
Unit: MM
240W SMD5730 24000lm 4K 5K 6K ＞80
432 10V 39W
Aluminum Yes 3 year
42000mAh
PLS-240W
6-8 Hours 12-14 Hours

RANGE
P: F: [email protected] 03 9708 2552 • 03 9708 2553 • www.plusrite.com.au
LED SOLAR LIGHT
PRODUCT DETAILS
Q20
MODEL
NUMBER Materials LED CHIPS LUMENS CCT Panel
Charging CRI DIMMABLE
2W SMD2835 200lm 3K ＞80
LED Q’ty
(pcs)
18 3.7V 1W
Wattage Battery
Yes
Warranty
2 year
2W Solar LED Bollard light
Mono-crystalline silicon Solar panel
1200mAh
PLS-B-2W-3K
No AC power cables, no electrical charges
Time
Discharging
Time
Solar
8-10 Hours 10-12 Hours
Lithium batery
PLS-B-2W-4K
PLS-B-2W-3K
PLS-B-2W-4K
2W
Build-in Moon sensor
SMD2835 210lm 4K ＞80
18 Yes 2 year
1200mAh 8-10 Hours 10-12 Hours
3.7V 1W
Aluminium+ABS
Aluminium+ABS
Bracket A
Screws
Bracket B
Screws
123
1234
Unit: MM
It comes with two types of brackets
1. Press the button once: Light automatically turns on at dusk and
remains on with 40% lumen output, then turns o ffafter 5 hours.
2. Press the button twice: Light automatically turns on with 20%
lumen output at dusk when there is no motion detected. It turns
Button
to 100% lumen output when motion is detected within 6 metres.
3. Press the button three times: Light automatically turns on with
100% lumen output at dusk when motion is detected within 6
metres, then turns o ffwhen there is no motion detected.
4. Press the button four times: Turns off.
PRODUCT DETAILS
Q20
MODEL
NUMBER Materials LED CHIPS LUMENS CCT Panel
Charging CRI DIMMABLE
5W SMD2835 450-500lm 3K/5K ＞80
LED Q’ty
(pcs)
30 5.0V 5W
Wattage
Aluminium+ABS
Battery
No
Warranty
3 year
5W Solar LED Bollard light
Aluminium body
Polycrystalline Solar panel
Product:
Net Weight: 2.50 kg
Outer ctn size: 860*430*430mm
Q’ty per ctn: 4 pc
G.W per ctn: 11.60 kg
PACKING DETAILS:
5000mAh
PLS-B-5W-3K/5K-800
No AC power cables, no electrical charges
Unit: MM
PLS-B-5W-3K/5K-800
Time
Discharging
Time
Solar
6-8 Hours 10-12 Hours
Lithium batery
3K or 5K colour changeable
PLS-B-5W-3K/5K-800
Build-in dusk to dawn sensor
Middle--OFF
Left--3K Right--5K
φ10.3mm*4
Build-in dusk to dawn sensor
Product:
Net Weight: 0.50 kg
Outer ctn size: 380*350*900mm
Q’ty per ctn: 8 pc
G.W per ctn: 5.20 kg
PACKING DETAILS:
PLS-B-2W-3K
PLS-B-2W-4K
Bracket A
Bracket B

P: F: [email protected] 03 9708 2552 • 03 9708 2553 • www.plusrite.com.au
LED SOLAR LIGHT RANGE
PRODUCT DETAILS
Q20
MODEL
NUMBER Materials LED CHIPS LUMENS CCT Panel
Charging CRI DIMMABLE
12W SMD5730 1200lm 5K ＞80
LED Q’ty
(pcs)
24 5.5V 9.5W
Wattage
Die-Casting Aluminium
Battery
No
Warranty
3 year
12W Solar LED Flood light
Die-Casng Aluminium body
Polycrystalline Solar panel Product:
Net Weight: 2.50 kg
Outer ctn size: 500*420*230mm
Q’ty per ctn: 5 pc
G.W per ctn: 14.60 kg
PACKING DETAILS:
20000mAh
PLS-FL-12W-5K
No AC power cables, no electrical charges
PLS-FL-12W-5K
Unit: MM
PLS-FL-12W-5K
Time
Discharging
Time
Solar
6-8 Hours 10-12 Hours
Lithium batery
PRODUCT DETAILS
Q20
MODEL
NUMBER Materials LED CHIPS LUMENS CCT Panel
Charging CRI DIMMABLE
5W SMD2835 500lm 3K/5K ＞80
LED Q’ty
(pcs)
30 5V 5W
Wattage
Aluminium+ Acrylic
Battery
No
Warranty
3 year
5W Solar LED Wall light
Aluminium body with Acrylic
Polycrystalline Solar panel
Product:
Net Weight: 3.20 kg
Outer ctn size: 530*440*510mm
Q’ty per ctn: 4 pc
G.W per ctn: 14.60 kg
PACKING DETAILS:
5000mAh
PLS-WL-5W-3K/5K-250
No AC power cables, no electrical charges
PLS-WL-5W-3K/5K-250
Time
Discharging
Time
Solar
6-8 Hours 10-12 Hours
Lithium batery
PLS-WL-5W-3K/5K-250
3K or 5K colour changeable
Build-in dusk to dawn sensor
Build-in dusk to dawn sensor
Middle--OFF
Left--5K Right--3K
35MM
90MM
235MM
195MM 195MM
250MM
PRODUCT DETAILS
Q20
MODEL
NUMBER Materials LED CHIPS LUMENS CCT Panel
Charging CRI DIMMABLE
2W SMD2835 200lm 3K ＞80
LED Q’ty
(pcs)
15 5.5V 0.7W
Wattage
Aluminium+ Acrylic
Battery
No
Warranty
3 year
2W 3K Solar LED Wall light
Aluminium body with Acrylic
Polycrystalline Solar panel
Product:
Net Weight: 0.90 kg
Outer ctn size: 365*365*500mm
Q’ty per ctn: 12 pc
G.W per ctn: 12.30 kg
PACKING DETAILS:
PLS-WL-2W-3K
No AC power cables, no electrical charges
Time
Discharging
Time
Solar
6-8 Hours 10-12 Hours
Lithium batery
PLS-WL-2W-3K
Build-in dusk to dawn sensor
3.7V 2AH
PLS-WL-2W-3K

P: F: [email protected] 03 9708 2552 • 03 9708 2553 • www.plusrite.com.au
LED SOLAR LIGHT RANGE
PRODUCT DETAILS
Q20
MODEL
NUMBER Materials LED CHIPS LUMENS CCT Panel
Charging CRI DIMMABLE
60W SMD2835 6500lm 6K ＞80
LED Q’ty
(pcs)
240 9V 28W
Wattage
Aluminium+PC
Battery
No
Warranty
3 year
PLS-BAT60W-6K
Time
Discharging
Time
Solar
6-8 Hours 10-12 Hours
PLS-BAT60W-6K
6.4V 24AH
Mode button:
Mode 1: Motion sensor mode, starts with 100% lumen output then
standby 30% lumen output if no motion after dusk.
Mode 2: Constant 100% brightness after dusk.
4H & 6H button: Hours lasting for 100% brightness after dusk,
ON button: The light is on with mode 1.
OFF button: The light turns off.
PLS-RC
REMOTE CONTROLLER INSTRUCTION
PRODUCT DETAILS
Q20
MODEL
NUMBER Materials LED CHIPS LUMENS CCT Panel
Charging CRI DIMMABLE
2W SMD5730 180lm 3K ＞80
LED Q’ty
(pcs)
15 2V 0.6W
Wattage
PLASTIC
Battery
No
Warranty
3 year
2W Solar LED Garden light
Polycrystalline Solar panel
Product:
Net Weight: 0.46 kg
Outer ctn size: 380*200*295mm
Q’ty per ctn: 30 pcs
G.W per ctn: 16.50 kg
PACKING DETAILS:
PLS-2W-GL-B
No AC power cables, no electrical charges
PLS-2W-GL-3K/5K/B
PLS-2W-GL-3K
Time
Discharging
Time
Solar
6-8 Hours 10-12 Hours
Lithium batery
Build-in dusk to dawn sensor
PLS-2W-GL-3K PLS-2W-GL-5K
Unit: MM
1.2V 1.8AH
2W SMD5730 200lm 5K ＞80
15 2V 0.6W
PLASTIC No 3 year
PLS-2W-GL-5K
6-8 Hours 10-12 Hours
1.2V 1.8AH
2W SMD5730 N/A Blue ＞80
15 2V 0.6W
PLASTIC No 3 year
PLS-2W-GL-B
6-8 Hours 10-12 Hours
1.2V 1.8AH
820
27
80
210
782
798
Product:
Net Weight: 2.50 kg
Outer ctn size: 850*305*255mm
Q’ty per ctn: 6 pc G.W per ctn: 18.50 kg
PACKING DETAILS:
PLS-BAT60W-6K
60W 6K Solar LED Baen light
Mono-Crystalline Solar panel
No AC power cables
Lithium batery
Power bank for 5V USB Charging
No electrical charges
Build-in dusk to dawn sensor
Unit:MM
then turns off.
Moon Sensor
ON/OFF buon
Power bank USB port
180° adjustable
PLS-RC Remote controller for LED solar street light, batten light and Flood light.
