1. SAFETY INFORMATION
For your own safety and to
ensure proper operation of
the appliance, please read
this manual carefully be-
fore installation and oper-
ation. Keep these instruc-
tions together with the ap-
pliance, even if it is sold or
transferred to third parties.
It is important that users
know all the appliance's
operating and safety char-
acteristics.
The cables must be con-
nected by a trained techni-
cian.
• The manufacturer shall not be
considered responsible for
any injury or damage caused
by improper installation or
use.
• The minimum safety distance
between the hob and the suc-
tion hood is 650 mm (some
models may be fitted at a
lower height; please see the
paragraph relating to working
dimensions and installation).
• If the instructions for installa-
tion of the gas hob specify a
distance greater than the one
indicated, this must be taken
into account.
• Check that the mains power
supply corresponds to the
one indicated on the data
plate affixed inside the hood.
• The cut-out devices must be
installed in the fixed system
according to wiring system
regulations.
• For Class I appliances, check
that the domestic power sup-
ply is adequately earthed.
• Connect the hood to the flue
using a pipe with a minimum
diameter of 120 mm. The
fumes must travel the
shortest distance possible.
• All the air venting regulations
must be complied with.
• Do not connect the ducting
hood to flues that also carry
combustion fumes (e.g. boil-
ers, chimneys, etc.).
• If the hood is used in combina-
tion with non electric appli-
ances (e.g. gas appliances),
a sufficient level of ventilation
must be guaranteed in the
room to prevent any exhaust
backflow. If the kitchen hood
is used in combination with
appliances that are not elec-
trically powered, the negative
pressure in the room must not
exceed 0.04 mbar to avoid
any risk of the fumes being
sucked back into the room by
the hood.
• The air must not be extracted
through a flue that is also used
as an exhaust flue for fumes
from gas or other fuel
powered combustion
devices.
• If it is damaged, the power
cable must be replaced by the
manufacturer or by a service
technician.
• Connect the plug to a socket
that complies with current
regulations and is in an ac-
cessible position.
3

• As regards the technical and
safety measures to be taken
for exhausting of fumes, it is
important that the regulations
set by local authorities be
complied with scrupulously.
CAUTION: remove the
protective films before in-
stalling the hood.
• Only use screws and hard-
ware of a sort suitable for the
hood.
CAUTION: failure to install
the screws or fixing
devices as described in
these instructions may
mean there is a risk of elec-
tric shocks.
• Do not look directly at the light
through optical devices (bin-
oculars, magnifying
glasses…).
• Do not flambé food under the
hood: you might cause a fire.
• This appliance may be used
by children over the age of 8
years and by persons with
limited psycho-physical and
sensory abilities or with insuf-
ficient experience and know-
ledge, provided they are care-
fully supervised and instruc-
ted on how to use the appli-
ance safely and on the
dangers that it involves. Make
sure that children are not al-
lowed to play with the appli-
ance. Cleaning and mainten-
ance to be performed by the
user must not be carried out
by children, unless they are
under supervision.
• Supervise children, to make
sure they do not play with the
appliance.
• The appliance must not be
used by persons (including
children) with limited psycho-
physical or sensory capacit-
ies or with insufficient experi-
ence and knowledge, unless
they are carefully supervised
and instructed.
Accessible parts may be-
come extremely hot during
the use of cooking appli-
ances
• Clean and/or replace the fil-
ters after the period of time in-
dicated (danger of fire). See
the paragraph on Mainten-
ance and cleaning.
• The room must be adequately
ventilated when the hood is
used simultaneously with ap-
pliances that use gas or other
fuels (not applicable to appli-
ances that only discharge air
into the room).
• The symbol on the product
or on its packaging indicates
that the product must not be
disposed of with the normal
domestic waste. The product
must be disposed of at a spe-
cialist re-cycling centre for
electrical and electronic com-
ponents. By making sure that
this product is disposed of
properly, you will help prevent
possible negative con-
sequences for the environ-
ment and for health that might
result from its improper dis-
posal. For more detailed in-
4

formation on how to re-cycle
this product, please contact
your local municipal offices,
local waste disposal service
or the shop in which the
product was purchased.
2. USE
• The suction hood has been designed
exclusively for domestic use, to elim-
inate kitchen odours.
• Never use the hood for purposes
other than those for which it was de-
signed.
• Never leave high flames under the
hood when it is in operation.
• Adjust the intensity of the flame so
that it is directed onto the bottom of
the cooking pan, making sure it does
not wrap around the sides.
• Deep-fryers must be kept under con-
stant supervision when in use: the oil
may catch fire if it gets too hot.
3. CLEANING AND
MAINTENANCE
• The activated charcoal filter cannot
be washed or regenerated, and must
be changed approximately every 4
months of operation, or more fre-
quently in the case of particularly in-
tensive use (W).
• The grease filters must be cleaned
every 2 months of operation, or more
frequently in the case of particularly
intensive use. They can be washed in
a dishwasher (Z).
• Clean the hood using a damp cloth
and neutral liquid detergent.
• For external and internal cleaning of
the hood avoid alcoholic or silicone
products.
If the product or one of its parts is made
of stainless steel, use specific non-ab-
rasive products for cleaning and follow
the lines of the satin finish during clean-
ing.
5

4. CONTROLS

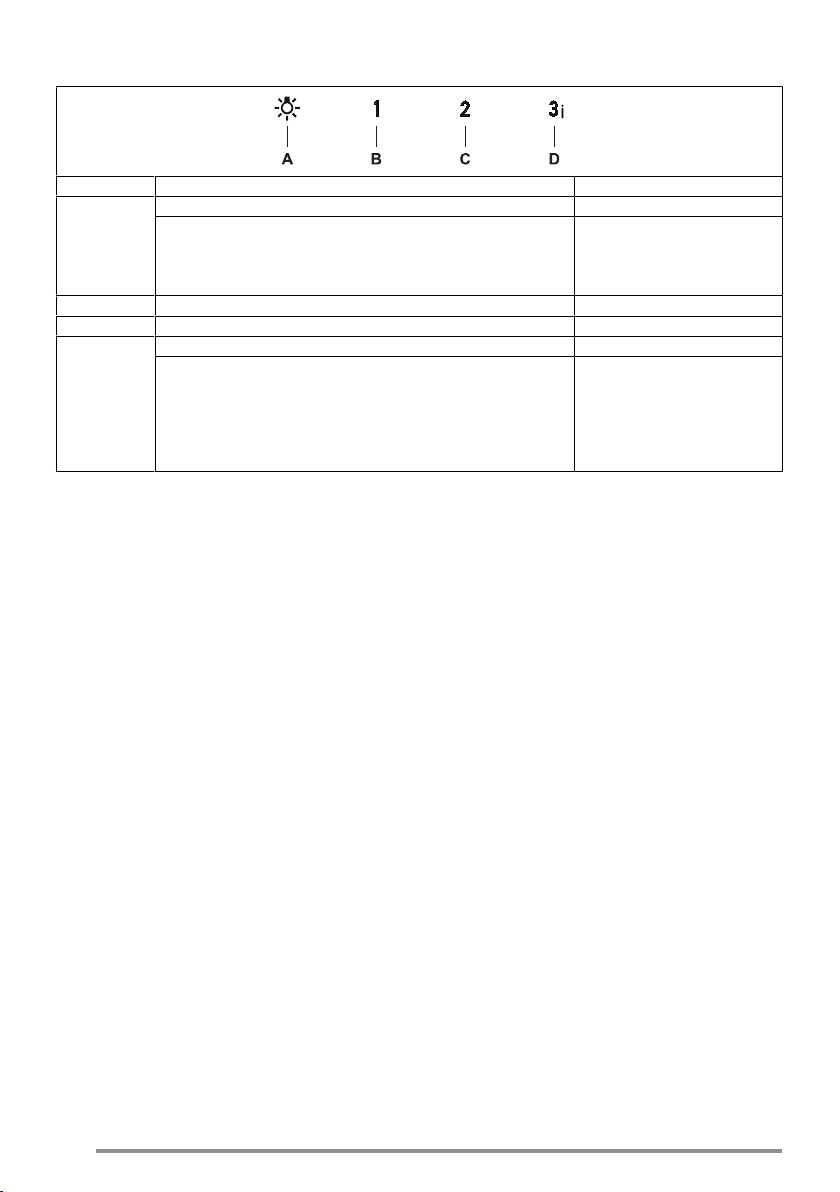

Key Functions LED
ASwitches the lighting system on and off to maximum brightness. On/Off.
The Delay function is activated if the key is pressed for about 2
seconds. Ideal for eliminating any residual odours. Can be activated at
any speed. By pressing the key for a longer time, the automatic switch-
off function with a 5-minute delay is activated.
Press the speed key to disable.
Flashes.
BSwitches the extraction motor on and off to the first speed setting. On/Off.
CSwitches the extraction motor on and off to the second speed setting. On/Off.
DSwitches the extraction motor on to the third speed setting. On/Off.
– Press and hold the speed setting button 3 for 3 seconds to obtain
a high operating speed with a duration of 6 minutes. The LED
flashes.
– Press and hold the switch for 3 seconds before the end of the 6
minutes to return to speed 3. The LED stays on.
– Press briefly before the end of the 6 minutes to switch off the
hood.
On/Off.
5. LIGHTING
• Please contact the Service Depart-
ment to change it ("Please contact
the service department to purchase
it").
