Introduction
TheNOLANWirelessStereoReceiver/Headsetoffersthelatest
innovationinBluetoothtechnology.Itwirelesslyreceivesstereo
audiosound**fromaBluetoothmobilephone,MP3player,
BluetoothstereoplayeroraBluetoothenabledPCwithsuitable
software.
**CompatiblestereoBluetoothdevicesmustsupportthe
Bluetoothprofileknownas‘AdvancedAudioDistributionProfile
(A2DP)’
TheWirelessStereoReceiver/headsetisalsocapableof
simultaneousconnectiontoaBluetoothenabledmobilephone
usingHeadsetorHandsfreeprofile.Youneednevermissacall
whileenjoyingyourmusicwirelessly.
GettingStarted
Removeallcomponentsfromthepackage.Itemsinthepackinclude:
Stereo Receiver, Stereo earpiece, USB Charging cable, and this
User Guide. Pleasecheck the contents carefully and contact your
localdealerimmediatelyifanythingismissingordamaged.
GettingtoKnowYourReceiver/Headset

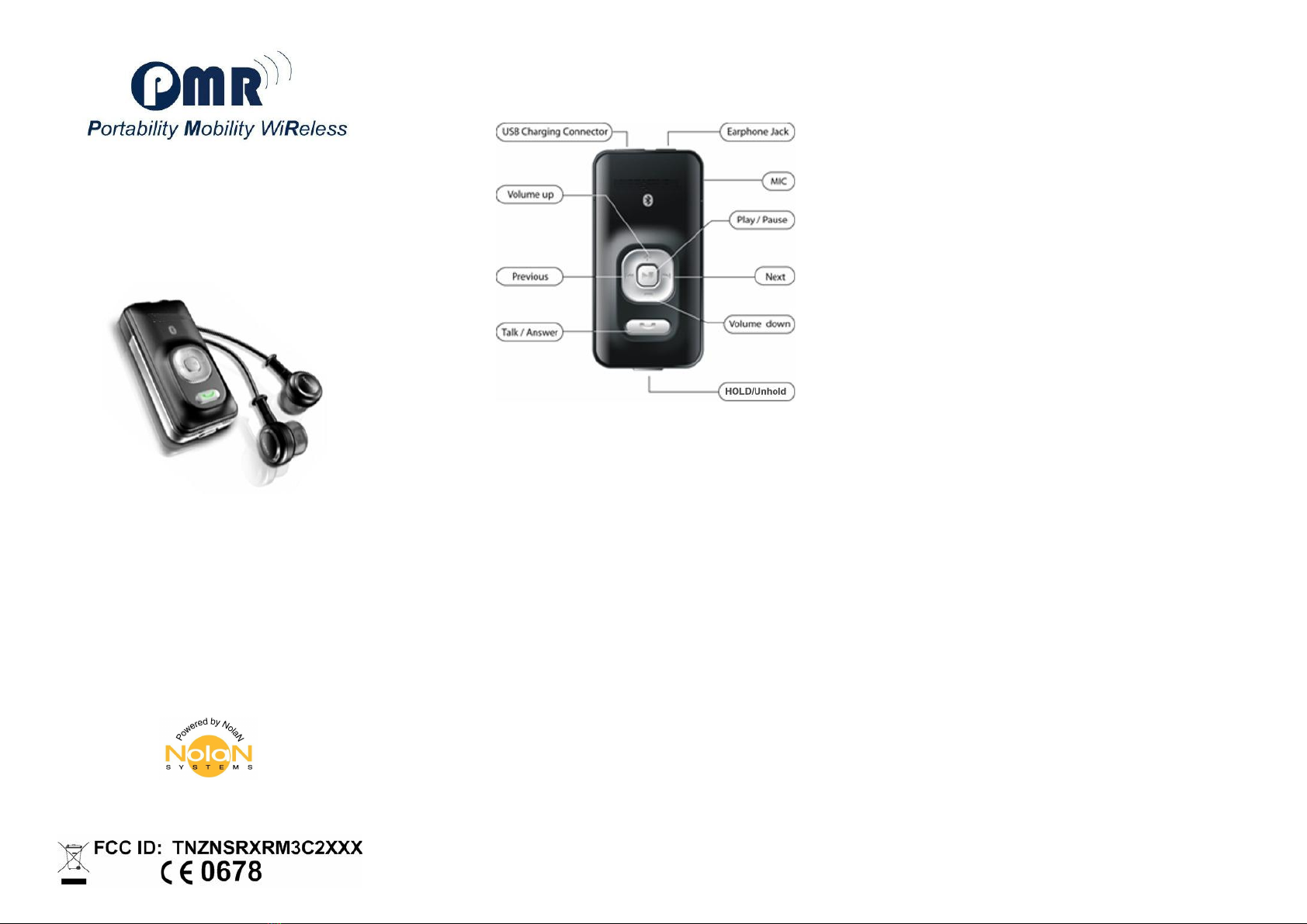

Seeimageabove.Pleasenotesomemodelsofheadsetwilldiffer
slightlyinstyle,colourandthefunctionalitymayvaryaccordingto
theirspecifications.Foruptodateinformationcheckthesupport
sectionoftheNolaNwebsite:www.nolansys.com
ChargingYourReceiver/Headset
BeforeusingtheReceiver/headset,youmustchargeitfor
approximately2hours.Fullycharged,itcanprovideupto5hoursof
playingtimeand100hoursofstandbytime.
Pleasenotethattalktimeisalsoafunctionoftheplayer/mobile
phoneandtheirfactorydeterminedsettings.So,youmayfind
thisfigureisreducedundercertainconditions.
Tochargethereceiver/headset
1.InserttheminiUSBplugofthechargingcableintotheminiUSB
chargersocketonthereceiver/headset.
2.InserttheUSBplugontheotherendoftheUSBchargingcable
intoapoweredUSBsocketonaPCorlaptopcomputer.During
charging,theamberLEDwillbeonconstantly.
3.Whenchargingiscomplete,theamberLEDwillturnoff.
4.UnplugtheUSBchargingcable.
BatteryIndication:TheamberLEDcanturnoffafterlessthan2
hourscharging;thisnormallyindicatesthatthereceiver/headsetcan
beused.
However,fortheinitialcharge,itisrecommendedthatyou
chargethereceiver/headsetforatleast2hoursinordertofully
preparethebatteryfornormaloperation.
Hold/Unholdswitch.Thisswitchpreventsunwantedbuttonpresses
duringplaying.Ensureyouslideitawayfromthe‘HOLD’labelbefore
attemptingtooperatethereceiver.
PairingYourReceiver/HeadsetwithaStereoPlayer
PairingistheBluetoothprocessofinitialisingthewirelesslink
betweentheheadsetandaBluetoothmobilephone**,aBluetooth
stereoplayer**oraBluetoothenabledPC**.Beforeyoucanusethe
receiver/headsetyoumustpairitwithoneofthesedevices.Normally
youonlyhavetodothisonce.Afterpairingiscompletetheunitswill
(providedtheyarewithinrange)findeachotherandreconnect
automaticallyatswitchon.
ImportantNote(1):Thereceiver/headsetwillonlypair
automaticallywithplayersthathavethebuiltinPINcode:‘0000’
TopairyourReceiver/HeadsetwithaStereoPlayer
1. Beforeyoucommencepairingpleaseensurethatbothunitsare
fullycharged.
2. EnsurethatnoothernearbyBluetoothdevicesareactiveorin
pairingmode.
3. MakesurethephoneorplayersupportstheBluetoothA2DP
profile.(ForBluetoothenabledPCsorNotebooksyoumust
haveaBluetoothdriverwhichsupportstheA2DPprofile.)
4. Toturnonthereceiver/headsetpressandholdtheTalkbutton
forabout2secondsuntilboththeblueandamberLEDsbegin
toflashalternately.Thereceiver/headsetisnowturnedonand
inpairingmode.
5. Ensurethereceiver/headsetiswithin10metresofthestereo
player,mobilephone,PCorlaptop.
6. Initiatedevicediscoveryfeatureontheplayer.Refertoyour
player’sUserGuideifyouarenotsurehowtodothis.
7. Theplayershouldfindthereceiver/headsetandpairwithit.
ThisisindicatedbytheLEDsonthereceiver/headset.The
amberLEDwillstopflashingandtheblueLEDwillbeginto
flashslowly(approxonceeverytwoseconds).
TopairyourReceiver/HeadsetwithaMobilePhoneorPC/Laptop
forstereoaudioplaying.
(PleasecheckthephoneorPCsoftwareUserGuidefordetails)
1. Completesteps1through5above
2. Initiatethedevicediscoveryfeatureontheplayer.Referto
yourplayer’sUserGuideifyouarenotsurehowtodothis.
3. ThephoneorPCshouldfindtheheadsetanddisplayits
Bluetoothname‘BTSHS’.Selectthisdevice.
4. WhenpromptedbyPCorphone,enterdefaultpincode‘0000’.
5. WhenpairingiscompletetheamberLEDwillstopflashingand
theblueLEDwillbegintoflashslowly(approxonceeverytwo
seconds).
TocancelpairingmodeWhilethereceiver/headsetisinpairing
mode,youcancancelthepairingprocessandturnoffthe
receiver/headset.PressandholdtheTalkbuttonforabout3
seconds.TheBlueLEDwillswitchonforabout1secondandthen
thereceiver/headsetwillturnoff.ReleasetheTalkbutton.
PairingTips:
+ Pleaserefertoyourphoneorplayer’susermanualforfurther
informationon‘HowtoPair’.Typically,youneedtomakeyour
phone‘Discover’thereceiver/headsetbyusinga‘Bluetooth’,
‘Connect’or‘Setup’menuthenselectinganoptionto‘Discover’
yourreceiver/headset.
+Thereceiver/headset,innormaloperation,shouldmaintainalink
withtheplayeratalltimesoncepairinghasbeensuccessfuland
aconnectionhasbeenestablishedbetweenthetwodevices.
+Ifyoufindthatyoucannotputthereceiver/headsetintopairing
modethentrytemporarilyswitchingoff(ordisablingBluetoothon)
thelastplayerordeviceusedwiththereceiver/headset.
BLUETOOTH
STEREO
RECEIVER/HEADSET
P/NNSRXRM3C2XXX
DeclarationofConformity.
WedeclarethatproductNSRXRM3C2XXX conformsto
theR&TTEDirective1999/5/EC

+Atswitchon,thereceiver/headsetwillnormallytrytoconnectthe
previouslypaireddevice.However,ifthatdeviceisswitchedoffor
outofrangeandanewBluetoothstereoplayerisnearbyandin
pairingmode,thereceiver/headsetmaytrytopairwiththenewone.
+Ifdisconnectionoralostlinkoccurs,itmaybebecause:
a)Therangeisover10metres betweenthereceiver/headsetand
themobilephone.
b)Themobilephonedisconnectedthelinktoconservepoweror
enableanotherfunction.
c)Eitherdevicehasbeenswitchedoff.
SwitchingtheReceiver/headset ONandOFF
ToturnONyourReceiver/headsetPressandholdtheTalkbutton
forabout2seconds,untiltheblueLEDflashes.ReleasetheTalk
button.Thereceiver/headsetisnowturnedonandwillconnecttothe
lastuseddeviceautomatically;theblueLEDwillflashtoindicatethat
thereceiver/headsetisturnedon.
ToturnOFFyourReceiver/headsetPressandholdtheTalkbutton
forabout3seconds,theBlueLEDwillswitchonforabout1second
andthenthereceiver/headsetwillturnoff.ReleasetheTalkbutton.
PlayingMusic
1. Ensurethestereoplayer,phoneorPCisswitchedonandiswithin
10metresofthereceiver/headset.
2. PlugtheStereoearpieceintotheaudiojackofthereceiver.
3. TheblueLEDonthereceiver/headsetwillcontinuetoflashslowly
toindicateitisconnected.
4. Iftheconnectionislosttrymovingthereceiver/headsetcloserto
theplayerandtheywillreconnectautomatically.
5. Iftheaudiobecomesnoisyorbreaksuptrymovingthe
receiver/headsetclosertotheplayer.
AdjustingtheVolume
Toincreasethevolume
WhilelisteningtomusicoronaphonecallclicktheVolumeUP‘+’
buttontoincreasethevolumebyonestep.Repeatthisprocedureuntil
youreachthedesiredlevel.
Todecreasethevolume
Whilelisteningtomusicoronaphonecall,clicktheVolumeDOWN‘’
buttontodecreasethevolumebyonestep.Repeatthis procedureuntil
youreachthedesiredlevel.
RemoteControls
WhenconnectedtoanaudioplayerthatsupportsBluetooth‘AVRCP’
remotecontrolprofileyoucancontroltheplayerremotelyusingthe
buttonsonthereceiver/headset.
Pause/Play
WhileplayingmusicpressthePause/Playbuttonandthemusicwill
pause.Pressagainandthemusicwillstarttoplayagain.
Next/PreviousButtons
PlayNext
WhileplayingmusicpresstheNextbuttontoskiptothebeginningof
thenexttrackintheplaylist.
PlayPrevious
WhileplayingmusicpressthePreviousbuttontoskiptothebeginning
ofprevioustrackintheplaylist.
Usingthereceiver/headsetwithyourMobilePhone
Whileusingthereceiver/headsettolistentomusicyoucanmakeand
receivecallsusingthe receiver/headset’s buildinmicrophone.Thereis
noneedtoremovethereceiver/headsettomakecalls.
Normally,beforeyoucanusethereceiver/headsetwithyour
Bluetoothenabledmobilephoneformakingandreceivingcalls,you
mustpairwiththephoneusingtheHeadsetorHandsfreeprofile.
Note:Ifyoualreadypairedwithyourmobilephoneforstereo
playingthenyoudonotneedtopairwithitagainformakingand
receivingcalls.
Topairthereceiver/headsetwithaMobilePhoneformakingcalls
1.Beforeyoucommencepairingpleaseensurethatbothunitsarefully
charged.
2.TrytoensurethatnoothernearbyBluetoothdevicesareactiveorin
pairingmode.
3.Toturnonthereceiver/headsetpressandholdtheTalkbuttonfor
about3secondsuntilboththeblueandamberLEDsbegintoflash
alternately.Thereceiver/headsetisnowturnedonandinpairing
mode.
4.Ensurethereceiver/headsetiswithin3metresofthemobilephone.
5.Initiatethedevicediscoveryfeatureonthemobilephone.Referto
yourmobilephone’sUserGuideifyouarenotsurehowtodothis.
6.Thephoneshouldfindthe receiver/headsetanddisplayitsBluetooth
name‘BTSHS’.
7.Whenpromptedbythephone,enterthedefaultpincode‘0000’.
8.WhenpairingiscompletetheamberLEDwillstopflashingandthe
blueLEDwillbegintoflashslowly(approxonceeverytwoseconds).
ReceivingCalls
Whenyourmobilephoneringsandyoucanheartheincomingringon
yourreceiver/headset,press(click)theTalkbuttononthe
receiver/headset.Thecallisautomaticallyconnectedtothe
receiver/headsetandyourearpiece.
EndingCalls
Whenyouhavefinishedyourcall,press(click)theTalkbuttononthe
receiver/headset.Thecallwillbedisconnected.
TransferringCallsBetweentheReceiver/headset&MobilePhone
Youcantransfercallsconnectedtoyourreceiver/headsetbacktoyour
mobilephone,orfromyourmobilephonetoyourreceiver/headset.
(Notallphonessupportthisfeature)
Totransfercallsfromyourreceiver/headsettothephonepressand
holdtheTalkbuttonforabout3seconds,thenreleasetheTalkbutton.
Totransferbacktothereceiver/headsetpressandholdtheTalkbutton
again.(Onsomemobilephonesyoumaybeabletosimplyclickthe
Talkbutton)
MakingCalls
TomakecallsfromyourmobilephoneDialthecallfromyourmobile
phone.Thecallisautomaticallyconnectedtothereceiver/headset.
(Youmayneedtoconfigureyourmobilephonetoanswercallsdirectly
onyourBluetoothreceiver/headset)
Tomakecallsusingvoicedialling(Notallphonessupportthis
feature)
Whenphoneandreceiver/headsetareinstandbymode,clicktheTalk
buttononthereceiver/headset.Aftertheprompttonefromthephone,
speakthenameofthepersonyouwishtocall.Thephonewilldialand
thecallwillbeautomaticallyconnectedtoyourmobilephoneand
receiver/headset.
VISUALINDICATORS
Status Indication
Batteryfull AmberLEDisoffordim
Receiver/headsetoff AllLEDsareoff
NotConnected Lowspeedflash,approx.every5
seconds
Connected Mediumspeedflash,approx.every2
seconds
Receiver/headsetin
standbymode,readyto
make&receivecalls
BlueLEDflashesat5secondintervals
(IfmusicisplayingtheBlueLEDwillbe
flashingat2secondintervals)
Receiver/headsetin
pairingmode BlueandamberLEDsflashalternately.
TROUBLESHOOTING
Pleasenotethatyoushouldalsobefamiliarwiththeoperationofyour
player,phoneorotherconnectingBluetoothdevice.Pleasereadthe
UserGuideforyourdevicecarefully.ForoperationwithaPCorlaptop
pleasenotethatthesedevicesshouldalsobeBluetoothenabledwith
appropriatethirdpartysoftwareinordertoenablecorrectoperation.
Problem LikelyCause/Solution
Receiver/headsetdoes
notreconnect.
LostConnection.
BlueLEDflashesat5
secondintervals.
Receiver/headsetandplayerwereout
ofrangeformorethan30seconds.
Switchoffbothreceiver/headsetand
playerandswitchonagainto
reconnect.
Receiver/headsetwillnot
pairwith
player/PC/mobilephone
EnsurethatPINcode‘0000’isused.
Noresponsewhen
buttonsarepressedon
thereceiver/headset.
EnsuretheHOLD/Unholdswitchisin
theunholdposition(i.e.slideitaway
fromthe‘HOLD’label)
CustomerServiceInformation
Inadditiontothetroubleshootingtableonthispageyoucangetfurther
informationonthePMRsupportpagesatthiswebaddress:
http://www.pmrtechnology.com/support.htm.  ForotherPMRBluetooth
productsorsupport,pleaseviewourwebsite–www.pmrtechnology.comor
emailinfo@pmrtechnology.comorcontactyourlocalrepresentative.  A
copyoftheDeclarationofConformityisavailableintheproductssectionon
ourwebsitewww.pmrtechnology.com
Environment
Donotthrowthiselectricaldeviceawaywiththenormal
householdwasteattheendofitslife,buthanditinatan
officialcollectionpointforrecycling.Bydoingthisyouwill
helptopreservetheenvironment.
Disclaimer
Whilsteveryefforthasbeenmadetoensurethattheinformationinthis
manualisaccurateandcomplete,noliabilitywillbeacceptedforanyerrors
and/oromissionsmade.Themanufacturerreservestherighttomake
changesandimprovementstothespecificationsandfeaturesofthe
hardwareandfirmwareoftheproductsdescribedinthisdocumentwithout
priornotice.Reproduction,transfer,distributionorstorageofpartorallof
thecontentsinthisdocumentinanyformisprohibitedwithoutprior
permissionofthemanufacturer.Alltrademarksacknowledged.Theproduct
isBluetoothqualifiedbyNolanSystems.
Version:QSGPMRRxRemoteVer10
