PNH FY 400 G User manual

FYG3/2 0
INSTRUCTION MANUAL
Gas Grilling Plates
FY 400 G FY 600 G FY 800 G
FYG3/REV2 1
Symbols used in this manual
Read the instructions before using the appliance
Important instructions for safety. Danger of imminent accident if they are not
observed
Practical note for the user.
Instructions only for qualified personnel.
Introduction:
Congratulations on the excellent choice you have just made... !
Before using the equipment you have just purchased fully read the instruction manual.
Installation, repair and adaptation to a different kind of gas must be carried out by
accredited technicians.
Never use the appliance for purposes for which it was not intended.
This equipment was designed for professional use and it should be avoided its use by
unprepared people. Never allow children to use it.
For health and safety purposes always keep the equipment clean.
To clarify any doubts keep the instruction manual during the machine's lifetime.
1. Construction:
1. Work plan with anti-stick coating in flat / wavy / mixed, 6mm / 10mm / 14mm steel
(depending on the model purchased).
2. Front panel in stainless steel or coloured: black / copper / gold / chocolate / rainbow /
anthracite (depending on the model purchased).
3. Front fat collector in all length in stainless steel or coloured: black / copper / gold /
chocolate / rainbow / anthracite (depending on the model purchased).
4. Construction in stainless steel.
FYG3/REV2 2
5. Feet with height adjustment.
6. Frontal fats collector along its whole length.
2. Characteristics:
1. Work plan with anti-stick coating in flat / wavy / mixed, 6mm / 10mm / 14mm steel
(depending on the model purchased).
2. front panel in stainless steel or coloured: black / copper / gold / chocolate / rainbow /
anthracite (depending on the model purchased).
3. Front fat collector in all length in stainless steel or coloured: black / copper / gold /
chocolate / rainbow / anthracite (depending on the model purchased).
4. Control valves with safety thermocouple.
5. Lighting by piezoelectric lighter for greater convenience.
6. Side gas inlet (hose port) Interchangeable (left / right)
7. Pressure Socket with access from the outside.
8. Prepared for LPG.
9. Supplied with injectors for natural gas conversion.
FYG3/REV2 3
3. General characteristics table:
Model
Dim.
Placa
(área útil)
LxP (mm)
Dim. Produt
LxPxA (mm)
Power
(Kw)
Nominal Consumption
Dim.
Embalagem
LxPxA (mm)
Weight
Líquido
(Kg)
Weight
Bruto
(Kg)
Butane
30mbar
(g/h)
Propan
e
37mbar
(g/h)
Natural
Gas
20mbar
(l/h)
FY 400G
FLAT PLATE
6MM
390x400
400x455x230
Width with hose
connector
470mm
3.2
1
queimador
240
220
285.5
880x510x280
12
13.5
FY 400G
FLAT/
WAVY/…
PLATE
10MM
360x388
240
240
312
13.5
15
FY 400G
FLAT/
WAVY/…
14MM
360x388
240
240
312
17.8
19.3
FY 600G
FLAT PLATE
6MM
590x400
600x455x230
Width with hose
connector
670mm
6.4
2
queimador
es.
480
440
571
680x510x280
19
21
FY 600G
FLAT/ MIXED
PLATE
10MM
560x388
480
480
624
23.5
25.5
FY 600G
FLAT/ MIXED
PLATE
14MM
560x388
480
480
624
30.3
32.3
FY 800G
FLAT PLATE
6MM
790x400
800x455x230
Width with
hose connector
870mm
6.4
2
queimador
es.
480
440
571
480x510x280
26
28.5
FY 800G
FLAT/ MIXED
PLATE
10MM
760x388
480
480
624
32.6
35.10
FY 800G
FLAT/ MIXED
PLATE
14MM
760x388
480
480
624
41.9
44.4
FYG3/REV2 4
4. Types of gas, injectors and categories:
Type of Gas
Pressure (mbar)
Injector (mm)
Category
G-20 (Natural Gas)
20
1.15
2H/2E+
G-30 (L.P.G.)
30
0.93
3+
G-31 (L.P.G.)
37
0.85
3+
5. Installation:
Authorized technicians only
Carefully unpack the equipment, check if it is in perfect condition.
Remove all plastic packaging materials, adhesives, ...
Check whether the machine is prepared for the type of gas you are going to use.
Change if necessary (See section Conversion to another type of gas).
The equipment installation should be done in a ventilated area under suitable
extraction equipment.
Install the machine on a support surface, and in an environment consisting of
non-combustible materials.
In order to prevent the equipment from sliding, the supporting surface should be
leveled.
Leave space between the equipment and the surrounding (about 100mm).
Check if all equipment valves are closed.
Make the connection of the gas inlet pipe according to the rules in force. Avoid
tensile or torsion stress.
The equipment must be connected to a facility equipped with individual shut-off
valve.
FYG3/REV2 5
6. Use:
After removing all plastic, clean the plate with an appropriate detergent and then
grease the plate.
To start the plate press the knob and turn it counter- clockwise to the maximum
position (large flame print ), then press the lighter one or more times, observe if
the flame lit, if so keep the knob pressed for 10 to 15 seconds more.
Allow the plate to warm, and then you can start to use it.
The regulation of the heating is made with the handle in the range between the
big flame (maximum) and the small flame (minimum).
7. Cleanliness and conservation:
So that cleaning can be done the easiest way, put some water on the plate,
light it up in the minimum position until the water bubbles, this will facilitate the
release of trapped particles. After cooling, use a damp cloth and, if necessary,
some detergent, finish cleaning.
Perform this operation at the end of each use but never with the hot plate!
Remove and clean the grease trimmer periodically so that it does not overflow
on the front panel and on the knobs. To remove the trimmer, lift up a little at the
front and pull out carefully.
FYG3/REV2 6
8. Adapting to a different type of gas :
Authorized technicians only

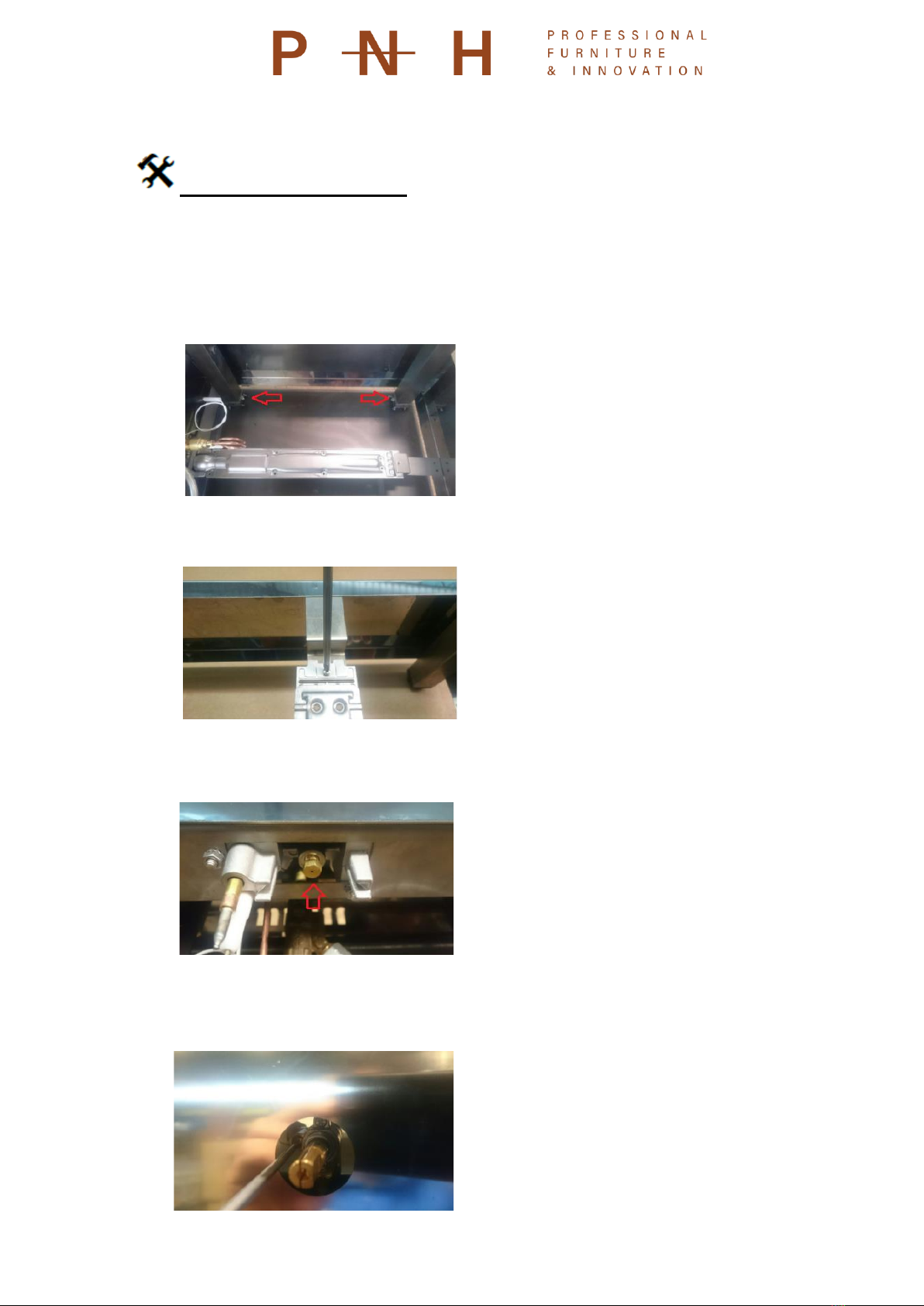

To change the type of gas for which the unit is ready, proceed as follows:
1. Close the gas shut-off valve of the equipment.
2. Turn the fry top with the plate down.
3. Loosen the screws and remove the plate as shown in figure 1.
4. Loosen the screws and remove the burners as shown in Figure2.
5. Unscrew the injectors and replace by appropriate ones as in figure 3
6. Put the burners and the plate back with the respective screws.
FYG3/REV2 7
7. Remove the knobs of the valves with the burners at minimum position, use a
screwdriver to adjust the flame to a minimum so that it has enough size to keep
the thermocouple hot and the tap does not shut down (wait for a few minutes to
make sure that flame is enough).
8. Check the tightness of the equipment (and piping if intervened) before returning
to normal use.
9. Maintenance / Service:
Authorized repairers only
The valves used in this machine do not require lubrication.
The burners used in this equipment do not require inlet adjustment.
When necessary to replace any component use original accessories only.
Always check if the gas pressure is the appropriate for the equipment .
Check that the equipment is adapted to the gas in question.
Check the tightness of the equipment before putting into use.
The equipment should be subject to a health check / tightness once a year by an
authorized technician.
FYG3/REV2 8
10. Possible malfunctions/ solutions :
Malfunctions
Probable causes
Burner (s )
does not light up
Insufficient gas
pressure. (Check
supply)
Lighter
connection cable
loose
(turn cable on)
Lighter
connection cable
damaged
(replace it)
Lighter or
candle
damaged
(replace it)
Burner (s ) lights
but when handle
is released it
goes out
Insufficient gas
pressure. (Check
supply)
Thermocouple
damaged
(replace it)
Thermostatic
element of the
valve damaged
(replace it)
Burner (s ) goes
out at the
minimum position
Insufficient gas
pressure. (Check
supply)
Valve
maladjusted
(Tune minimum
figure 4 )
FYG3/REV2 9
11. Replacement Passive Components
Authorized repairers only
Reference
Designation
1MS0067016
piezo electric lighter (FY)
1MS0067014
ignition electrode (cable included)
1MS0067012
thermocouple 8x1 QPLSBF L400 (FY)
1MS0067013
Tap with sec 1 way with joint EC10 front thread (FY)
1MS0067004
Injector butane gas diam.0.93 (FY)
1MS0067005
Injector natural gas diam. 1.25 (FY)
12. Recycling:
This product and its packaging should not be treated as unsorted municipal
waste. They should rather be placed in an appropriate collection point. By
ensuring that this product is properly deposited you will help prevent potential
negative consequences for the environment and for health. The recycling of
materials will help to a better conservation of natural resources. For more
detailed information about this product, please contact the services of waste
collection in your area or the place of purchase.
