Polar Electro Adapter and Bridge Driver IrDA USB 1.1 User manual

Polar IrDA USB 1.1 Adapter and
Bridge Driver
User manual

Contents
1. GENERAL ................................................................................................................... 3
2. DRIVER INSTALLATION................................................................................................... 3
Driver Installation With Windows Vista Operating System......................................................... 6
3. HARDWARE INSTALLATION.............................................................................................. 9
Hardware Installation With Windows Vista .......................................................................... 9
4. DETECTION................................................................................................................. 9
Detection With Windows Vista ........................................................................................10
5. ESTABLISHING IRDA CONNECTION WITH ANOTHER INFRARED DEVICE .........................................11
6. REMOVE POLAR IRDA 1.1 USB ADAPTER FROM THE COMPUTER ................................................12
7. UNINSTALLATION ........................................................................................................12
Uninstallation With Windows Vista...................................................................................14
8. TROUBLESHOOTING......................................................................................................16
9. TECHNICAL SPECIFICATIONS ..........................................................................................16
10.LIMITED POLAR INTERNATIONAL GUARANTEE ......................................................................16
11.POLAR DISCLAIMER .....................................................................................................17
..............................................................................................................................17
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 2

1. GENERAL
Polar IrDA Adapter is designed for infrared data transfer between Polar heart rate monitors and other
infrared products. No other use is intended or implied.
To use the Polar IrDA 1.1 Adapter and IrDA 1.1 Bridge Driver you need Windows® 98, Windows® ME,
Windows® 2000, Windows® XP or Windows Vista® Operations System on your computer. Make sure
you have also updated to the latest Service Pack of Microsoft Windows®.
2. DRIVER INSTALLATION
We recommend you insert the CD ROM in your PC and start by installing the USB 1.1 IrDA Bridge
Driver.
The Driver installation will start automatically when you select OK.
However, if it does not, open the CD Driver IR778 and select Autorun. On Windows Operation System,
select folder WinDriver and setup.exe file.
The instructions from here on only work under Windows Operation System.
In automatic installation the following popup screen appears briefly indicating the installation has
started:
Click Next to continue:
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 3

To select a folder where setup will install files click Browse or to accept the suggested folder, click
Next:
USB 1.1 IrDA Bridge Driver is being installed:
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 4

To install the software click Next.
Click Finish to complete USB 1.1 IrDA Bridge Driver installation.
You can now safely plug in the USB 1.1 IrDA Adapter.
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 5

Driver Installation With Windows Vista Operating System
For Windows® Vista operating system follow the instructions below.
We recommend you insert the CD in your PC and start by installing the USB 1.1 IrDA Bridge Driver.
However, if it does not, open the CD Driver IR778 and select Autorun. On Windows Operation System,
select folder WinDriver and setup.exe file.

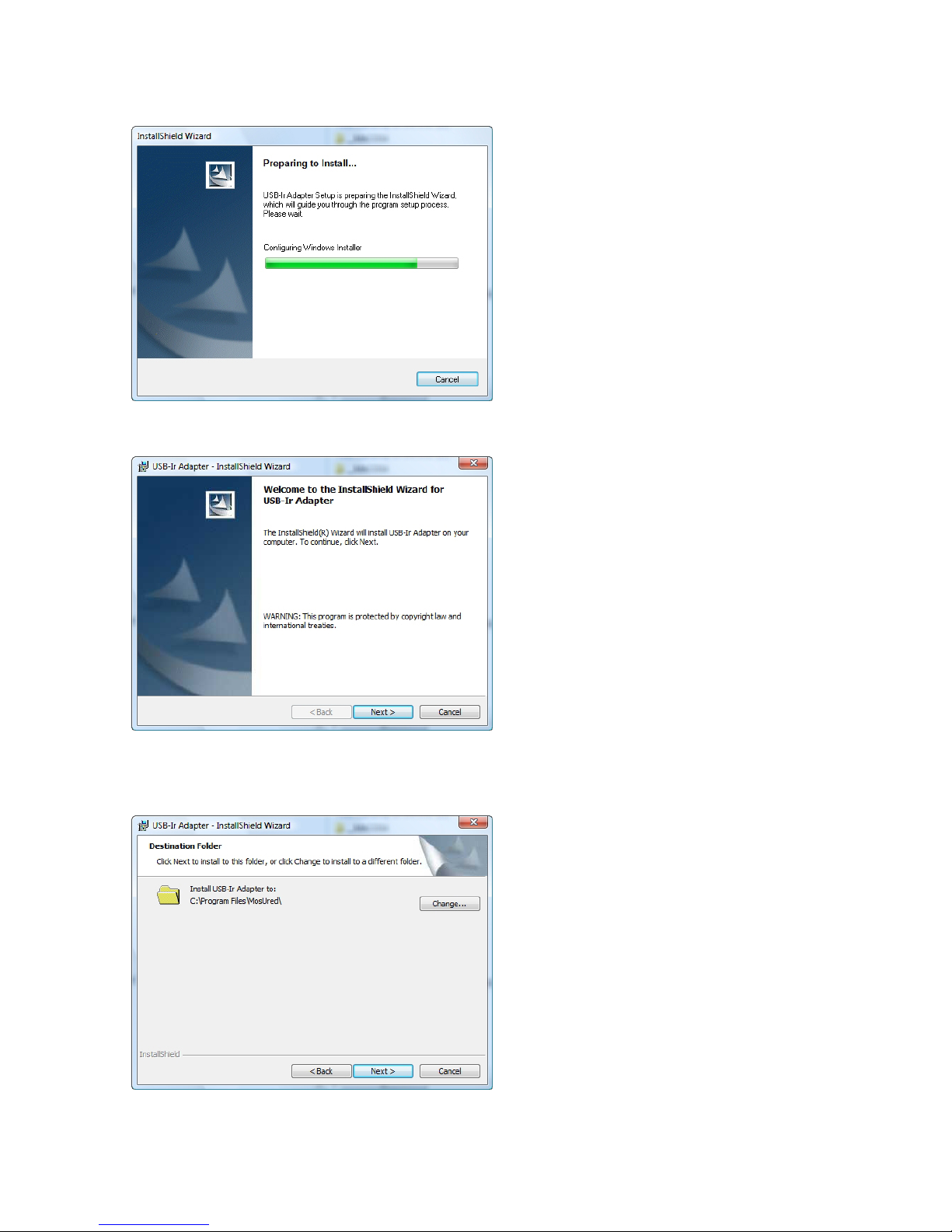

Select Allow to continue with the installation process.
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 6

Click Next to continue with the installation process.
To select a folder where setup will install files click Change or to accept the suggested folder, click
Next.

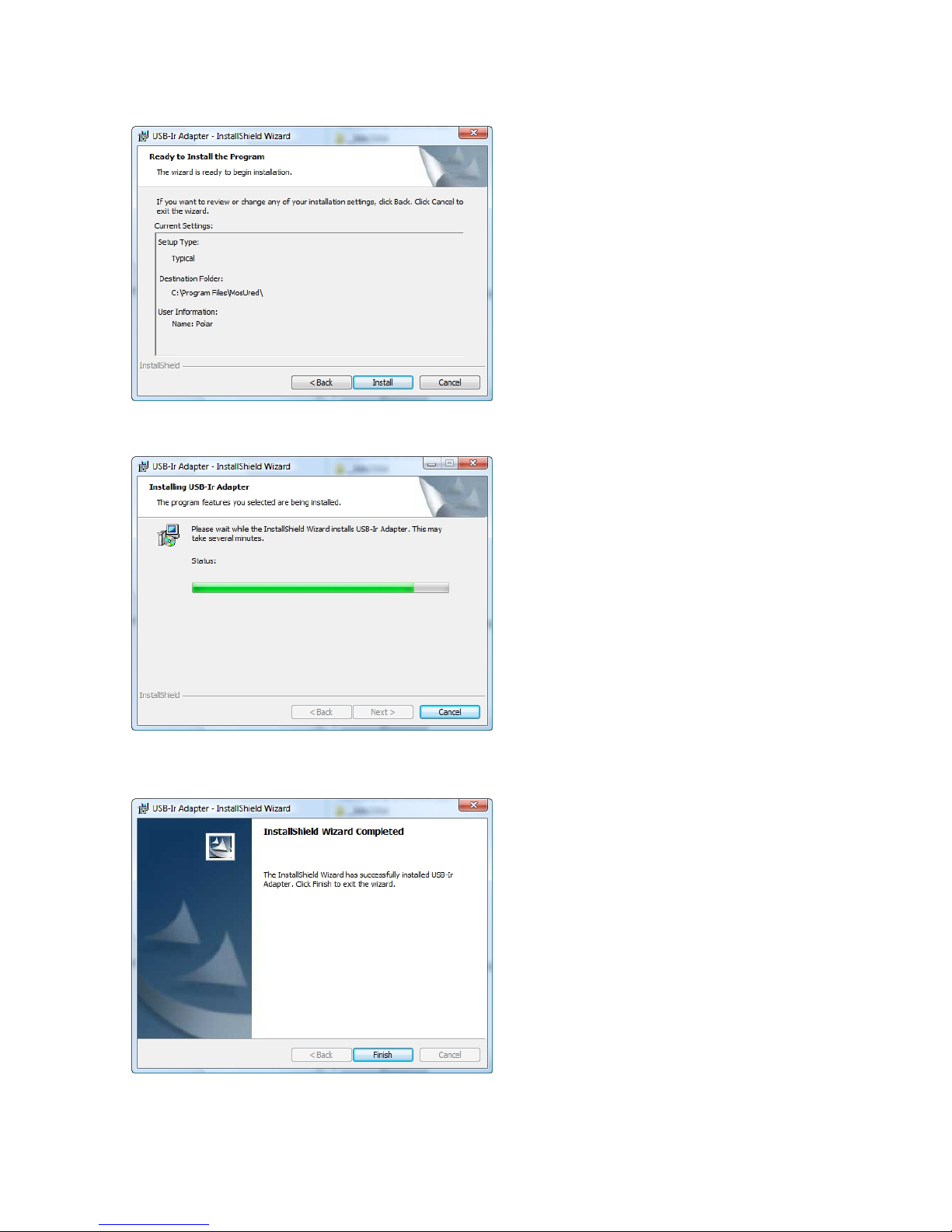

In case you want to review or change any settings, click Back. To continue with the installation click
Install.
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 7

USB 1.1 IrDA Bridge Driver is being installed.
Click Finish to complete USB 1.1 IrDA Bridge Driver installation.
You can now safely plug in the USB 1.1 IrDA Adapter.
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 8

3. HARDWARE INSTALLATION
Plug in the Polar IRDA USB 1.1 Adapter to the USB port of your computer. You will see a few pop-up
screens momentarily as the device is being recognized (no user intervention required).
You can now start using your new Polar IrDA USB 1.1 Adapter and USB 1.1 IrDA Bridge Driver.
Hardware Installation With Windows Vista
For Windows® Vista operating system follow the instructions below.
To install the hardware select the Locate and install driver software (recommended). Follow the
installation guide.
4. DETECTION
The Polar IrDA USB 1.1 Adapter is installed correctly when the red LED light on the end of it starts to
flash.
You can also check the installation by going to Start > Settings > Control Panel > System > Hardware
> Device Manager.
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 9

Provided the driver has been correctly installed, 'Device Manager' contents and 'Infrared Devices' now
include USB 1.1-IrDA-Bridge.
Detection With Windows Vista
For Windows® Vista operating system follow the instructions below.
The Polar IrDA USB 1.1 Adapter is installed correctly when the red LED light on the end of it starts to
flash.
You can also check the installation by going to Start > Settings > Control panel > System > Device
manager.
Provided the driver has been correctly installed, 'Device Manager' contents and 'Infrared Devices' now
include USB 1.1-IrDA-Bridge.
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 10

5. ESTABLISHING IRDA CONNECTION WITH ANOTHER
INFRARED DEVICE
After confirming the detection of USB 1.1 IrDA Adapter, place your Polar infrared device and its IR
window within one meter (39 inches) range from the infrared window at the end of the Adapter. The
Polar device will be detected if it is within a 30 degree angle from the infrared window of the Adapter.
Leave a minimum of 1 cm (0.4 inches) space between the devices.
An icon and a popup message will appear in the Toolbar indicating the Adapter is recognizing another
infrared device within its range:
While the two devices are connected and data transfer is in progress, you will see the Data Transfer
icon in your Toolbar. Moving the cursor onto this icon will display the connection speed of IrDA link.
However, if you see an Infrared Connection icon as pictured below, the two devices are connected but
no data is being transferred:
As Infrared Connetion icon appears on Toolbar, the Wireless Link icon appears on your desktop:
6. REMOVE POLAR IRDA 1.1 USB ADAPTER FROM THE
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 11

COMPUTER

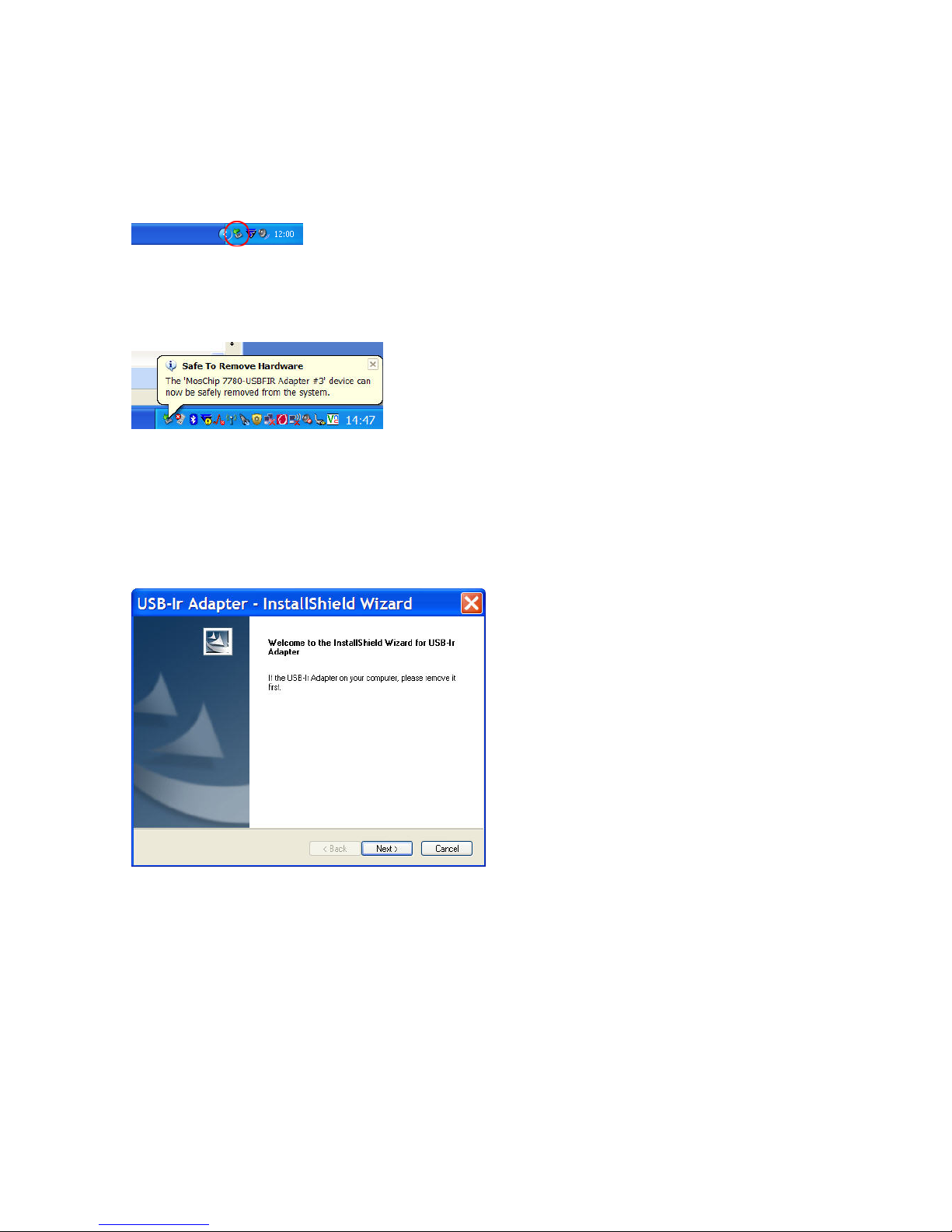

To safely remove the Polar IrDA 1.1 USB Adapter from your PC, click the Safely Remove Hardware
icon:
Then select the Safely remove USB 1.1 IrDA Bridge
Once Safe To remove Hardware is shown you can unplug the Polar IrDA 1.1 USB Adapter from the PC.
7. UNINSTALLATION
To remove the Polar USB 1.1 IrDA Bridge Driver from your PC, just re-install the CD into your PC and
it will automatically launch the uninstallation procedure.
Click Next to proceed:

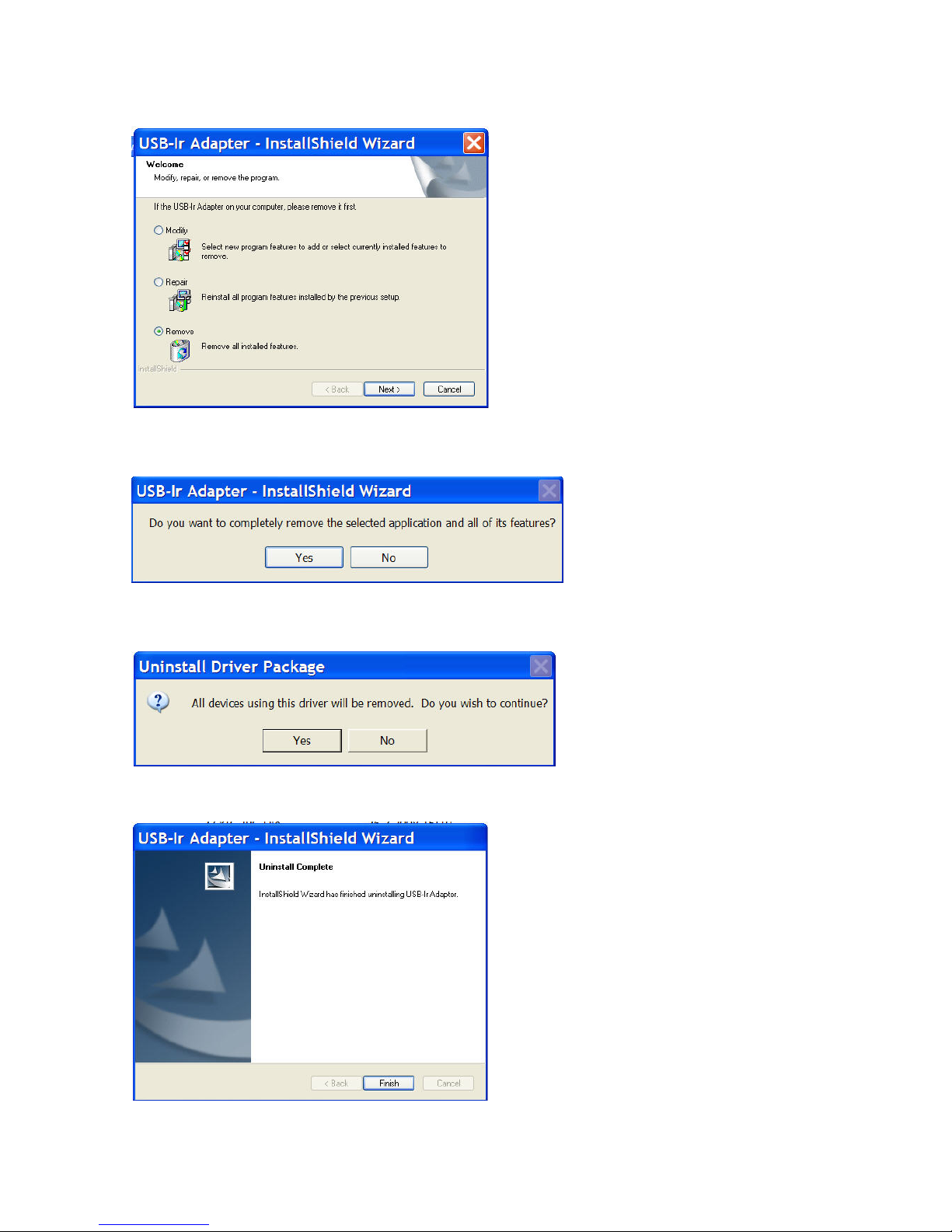

To continue with the uninstallation select Remove and click Next:
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 12

Click Yes to remove the application.
Click Yes to confirm.
Click Finish to complete the uninstallation.
Alternatively, go to Start > Settings > Control Panel > Add/Remove Program and remove Polar USB 1.1
IrDA Bridge Driver.
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 13

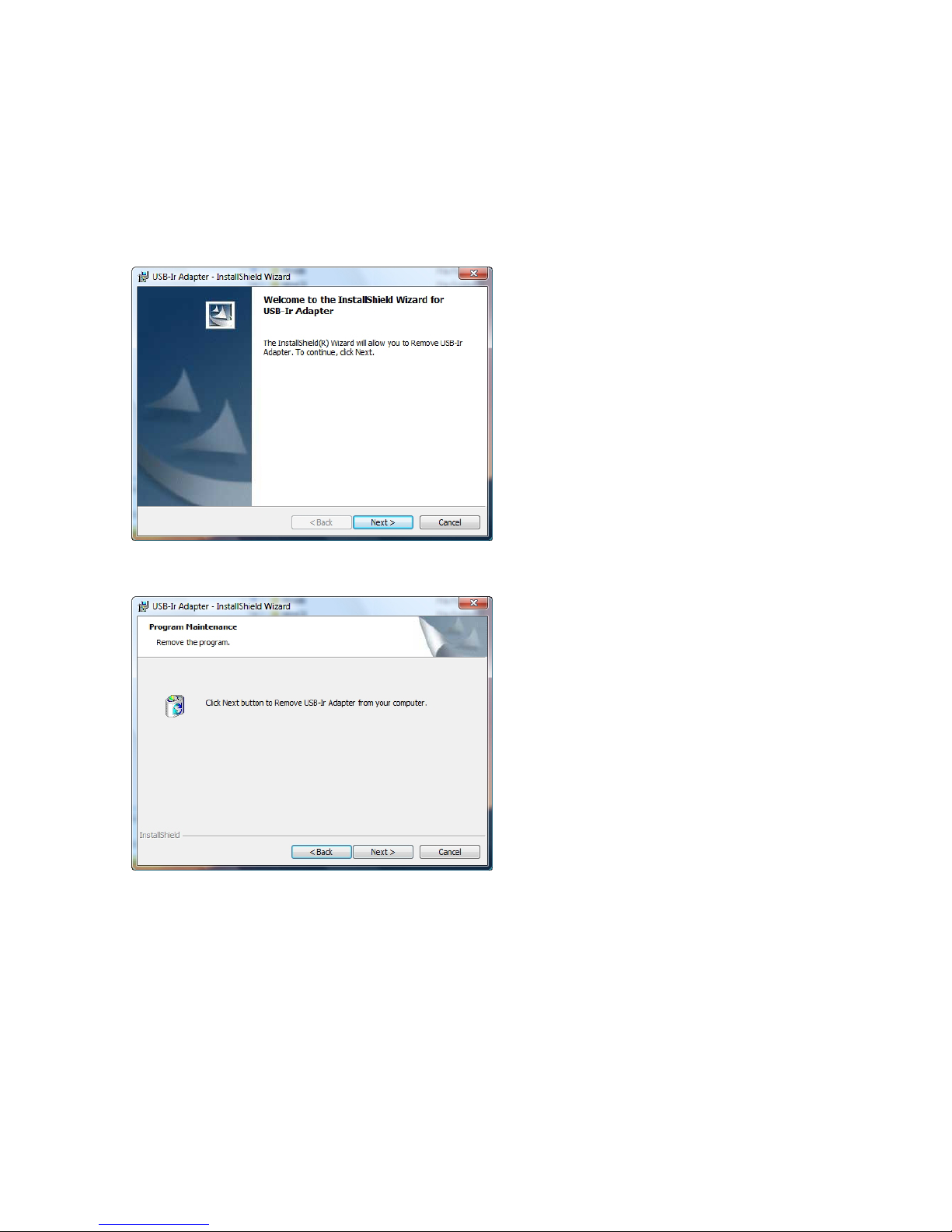

Uninstallation With Windows Vista
For Windows® Vista operating system follow the instructions below.
To remove the Polar USB 1.1 IrDA Bridge Driver from your PC, just re-install the CD into your PC and
it will automatically launch the uninstallation procedure.
Click Next to proceed:
Click Next to remove the program:
Click Remove to remove the program:
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 14

The USB-Ir Adapter in now being uninstalled.
The USB-Ir Adapter has now been succesfully uninstalled. Click Finish to complete the uninstallation
Alternatively, go to Start > Settings > Control Panel > Add/Remove Program and remove Polar USB 1.1
IrDA Bridge Driver.
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 15

8. TROUBLESHOOTING
If the communication fails, check that...:
• ... the infrared devices are positioned correctly. The infrared windows should be within 30 degree
angle, no further than one meter (39 inches) and no closer than 1 cm (0.4 inches) from each
other.
• ...nothing is blocking the path between the infrared windows of the devices.
• ...there is no other infrared device nearby.
• ... your Polar wrist unit is in the connection mode.
• ...the battery of your Polar wrist unit does not need replacing (i.e. low battery symbol on the
display).
9. TECHNICAL SPECIFICATIONS
Polar IrDA USB 1.1 Adapter
Connection Connects directly to standard PC or Notebook USB port
Power Source Direct from USB port, no external power required.
Speed Transmits and receives data speed at 9.6K, 19.2K, 38.4K,
57.6K115.2K, 4Mbps (FIR), 16Mbps (VFIR)
Transmission Angle max. 30 degrees
Transmission Distance 1 - 100 cm (0.4" - 39")
Operation System Compatibility Microsoft Windows® 98SE/ME/2000/XP/Vista. Microsoft
Windows® Service Pack update required before installation.
MAC version 10.X
Compiled for Linux Kernel 2.6.11 & RedHat & Debian
Polar IrDA USB 1.1 Adapter is not
water resistant
Do not expose it to humidity or use it outdoors.
Operating Temperatures: 0°C to 50 °C / 32 °F to 122 °F
This device complies with part 15 Subpart B / Class B of the FCC Rules. Operation is subject to the
following two conditions: 1. This device may not cause harmful interference, and 2. this device must
accept any interference received, including interference that may cause undesired operation.
10. LIMITED POLAR INTERNATIONAL GUARANTEE
• This limited Polar International Guarantee is issued by Polar Electro Inc. for the consumers who
have purchased this product in the USA or Canada. This limited Polar international guarantee is
issued by Polar Electro Oy for the consumers who have purchased this product in other countries.
• Polar Electro Inc. / Polar Electro Oy guarantees to the original consumer/ purchaser of this product
that the product will be free from defects in material or workmanship for two years from the date of
purchase.
•Please keep the receipt and stamped Polar Customer Service Card. The receipt is your proof of
purchase!
• The guarantee does not cover damage due to misuse, abuse, accidents or non-compliance with the
precautions; improper maintenance, commercial use, cracked or broken cases.
• The guarantee does not cover any damage/s, losses, costs or expenses, direct, indirect or
incidential, consequential or special, arising out of, or related to the product. During the guarantee
period the product will be either repaired or replaced at an authorized service center free of charge.
• This guarantee does not affect the consumer’s statutory rights under applicable national or state
laws in force, or the consumer’s rights against the dealer arising from their sales/ purchase
contract.
Polar products are electronic devices and are in the scope of Directive 2002/96/EC of the European
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 16

Parliament and of the Council on waste electrical and electronic equipment (WEEE). These products
should thus be disposed of separately in EU countries. Polar encourages you to minimize possible
effects of waste on the environment and human health also outside the European Union by following
local waste disposal regulations and, where possible, utilize separate collection of electronic devices.
Copyright © 2008 Polar Electro Oy, FIN-90440 KEMPELE, Finland.
Polar Electro Oy is a ISO 9001:2000 certified company. All rights reserved. No part of this manual
may be used or reproduced in any form or by any means without prior written permission of Polar
Electro Oy.
11. POLAR DISCLAIMER
• The content of this manual is for informational purposes only. The products it describes are subject
to change without prior notice, due to the manufacturer’s continuous development program.
• Polar Electro Inc./Polar Electro Oy makes no representations or warranties with respect to this
manual or with respect to the products described herein.
• Polar Electro Inc./Polar Electro Oy shall not be liable for any damages, losses, costs or expenses,
direct, indirect or incidental, consequential or special, arising out of, or related to the use of this
material of the products described herein.
Manufactured by:
Polar Electro Oy, Professorintie 5, 90440 KEMPELE, FINLAND, Tel: [phone], Fax: +358 8
5202 300, www.polar.fi
17936126.00 ENG A
Polar IrDA USB 1.1 Adapter and Bridge Driver User manual 17
