Polaris Hawkeye 300 4X4 User manual

05

A card containing important ATV safety information should be
attached to the owner's manual on the next page. If you cannot
locate this card, or if it has been removed, please call 1-800-342-
3764 for assistance.
WARNING
The engine exhaust from this
product contains chemicals known
to cause cancer, birth defects or
other reproductive harm.

1
WELCOME
Thank you for purchasing a Polaris vehicle, and welcome to our world-
wide family of Polaris owners. We proudly produce an exciting line of
utility and recreational products.
• Snowmobiles
• All-terrain vehicles (ATVs)
•RANGER utility vehicles
• Victory motorcycles
We believe Polaris sets a standard of excellence for all utility and recre-
ational vehicles manufactured in the world today. Many years of experi-
ence have gone into the engineering, design, and development of your
Polaris vehicle, making it the finest machine we’ve ever produced.
For safe and enjoyable operation of your vehicle, be sure to follow the
instructions and recommendations in this owner’s manual. Your manual
contains instructions for minor maintenance, but information about
major repairs is outlined in the Polaris Service Manual and should be
performed only by a Factory Certified Master Service Dealer (MSD)
Technician.
Your Polaris dealer knows your vehicle best and is interested in your
total satisfaction. Be sure to return to your dealership for all of your ser-
vice needs during, and after, the warranty period.
We also take great pride in our complete line of apparel, parts and acces-
sories, available through our online store at www.purepolaris.com. Have
your accessories and clothing delivered right to your door!

2
POLARIS and POLARIS THE WAY OUT are registered trademarks of Polaris Indus-
tries Inc.
Copyright 2006 Polaris Sales Inc. All information contained within this publication is
based on the latest product information at the time of publication. Due to constant
improvements in the design and quality of production components, some minor discrep-
ancies may result between the actual vehicle and the information presented in this publi-
cation. Depictions and/or procedures in this publication are intended for reference use
only. No liability can be accepted for omissions or inaccuracies. Any reprinting or reuse
of the depictions and/or procedures contained within, whether whole or in part, is
expressly prohibited.
Printed in U.S.A.
2007 Hawkeye 2X4/Hawkeye 4X4 ATV Owner’s Manual
P/N 9920787

3
TABLE OF CONTENTS
Know Your Vehicle . . . . . . . . . . . . . . . . . . . . . . . 5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Features and Controls . . . . . . . . . . . . . . . . . . . 34
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Emission Control Systems . . . . . . . . . . . . . . . 67
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Polaris Products. . . . . . . . . . . . . . . . . . . . . . . 119
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 120
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 124
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Maintenance Log . . . . . . . . . . . . . . . . . . . . . . 134
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

4

5
KNOW YOUR VEHICLE
As the operator of the vehicle, you are responsible for your personal
safety, the safety of others, and the protection of our environment. Read
and understand your owner's manual, which includes valuable informa-
tion about all aspects of your vehicle, including safe operating proce-
dures.
Vehicle Identification Numbers
Record your vehicle's identification numbers and key number in the
spaces provided. Remove the spare key and store it in a safe place. An
ignition key can be duplicated only by ordering a Polaris key blank
(using your key number) and mating it with one of your existing keys.
The ignition switch must be replaced if all keys are lost.
Vehicle Model Number: ___________________________________________________
Frame VIN: _____________________________________________________________
Engine Serial Number: ____________________________________________________
Key Number: ___________________________________________________________
####
VIN Engine Serial Number
Key Number

6
SAFETY
Safety Decals and Locations
Warning decals have been placed on the ATV for your protection. Read
and follow the instructions of the decals on the ATV carefully. If any of
the decals depicted in this manual differ from the decals on your ATV,
always read and follow the instructions of the decals on the ATV.
If any decal becomes illegible or comes off, contact your Polaris dealer
to purchase a replacement. Replacement safety decals are provided by
Polaris at no charge. The part number is printed on the decal.

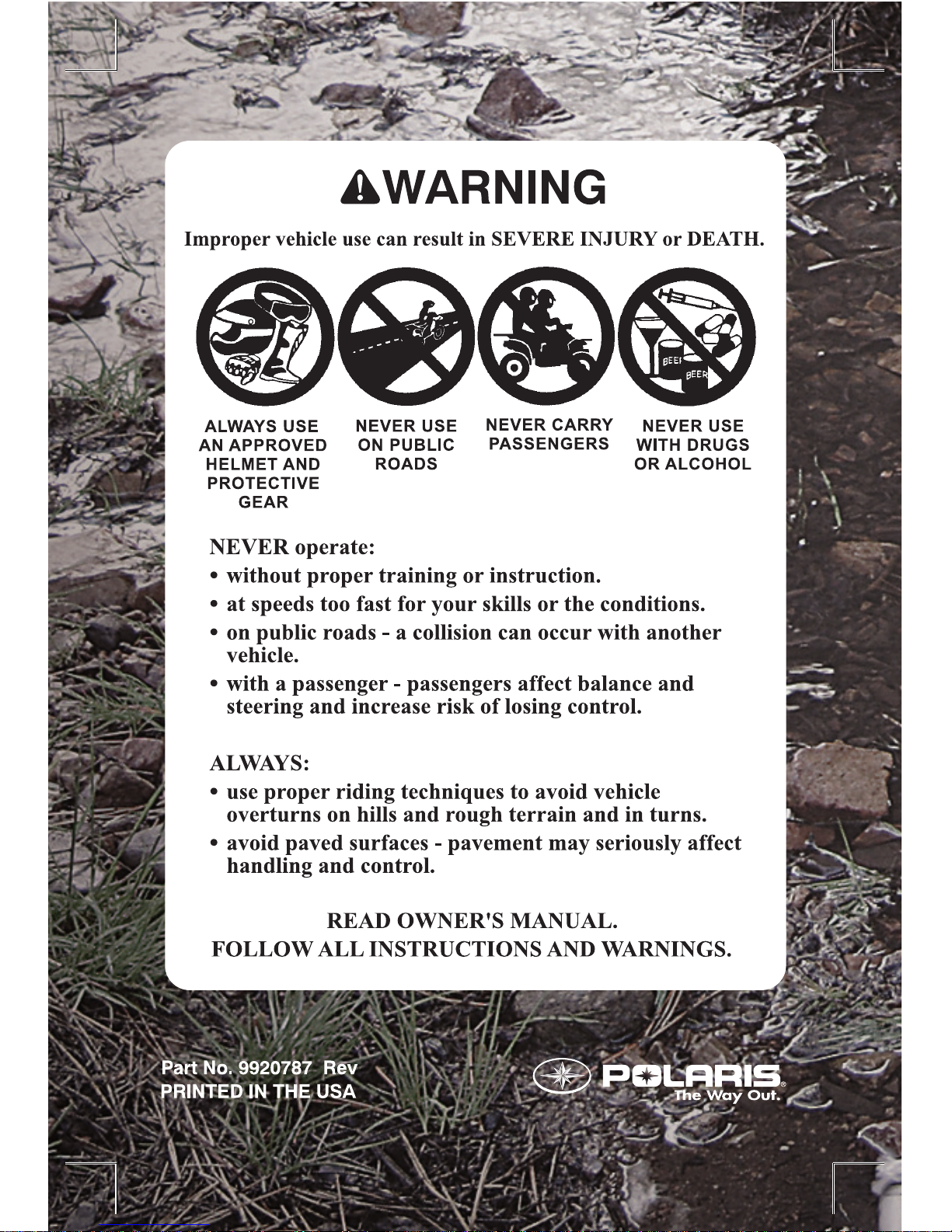

General Warning
WARNING
Improper ATV use can result in
SEVERE INJURY or DEATH
ALWAYS USE AN APPROVED
HELMET AND PROTECTIVE
GEAR
NEVER USE ON PUBLIC ROADS
NEVER CARRY PASSENGERS
NEVER USE WITH DRUGS OR
ALCOHOL
NEVER operate:
• without proper training or instruction
• at speeds too fast for your skills or the conditions
• on public roads - a collision can occur with another vehicle
• with a passenger - passengers affect balance and steering and increase risk
of losing control
ALWAYS:
• use proper riding techniques to avoid vehicle overturns on hills and rough ter-
rain and in turns
• avoid paved surfaces - pavement may seriously affect handling and control
LOCATE AND READ OWNER’S MANUAL.
FOLLOW ALL INSTRUCTIONS AND WARNINGS.
IF OWNER’S MANUAL IS MISSING, CONTACT A POLARIS DEALER FOR A
REPLACEMENT.
+

7
SAFETY
Safety Decals and Locations
Discretionary Warning
WARNING
• Never operate this ATV on
HILLS steeper than 25 degrees
25°. To prevent flip-over on
hilly terrain, when going up or
down, use throttle and brakes
gradually.
• REVERSE operation can be
dangerous even at low speeds.
Steering becomes difficult. To
prevent flipover, avoid sudden
braking or sharp turns.
• Use OVERRIDE for reverse speed limiter with caution. To prevent loss of
control, never activate override button with open throttle.
• PARKING BRAKE may relax when used for more than 5 minutes. When park-
ing on grades, leave shift in forward.
Tire Pressure/Load Warning
WARNING
IMPROPER TIRE PRESSURE OR
OVERLOADING can cause loss of
control resulting in SEVERE INJURY
OR DEATH.
TIRE PRESSURE IN PSI (KPa):
FRONT 5 (34.5) REAR 5 (34.5)
MAXIMUM WEIGHT CAPACITY
(Gross Vehicle Weight) INCLUDING
MACHINE, DRIVER AND CARGO IS
930 LBS. (422 kg).
Reduce speed and allow greater distance for braking when carrying cargo.
Overloading or carrying tall, off-center, or unsecured loads will increase your risk
of losing control. Loads should be centered, carried as low as possible, and
firmly secured to the racks. With dual racks, load distribution 1/3 front 2/3 rear is
best. For stability on rough or hilly terrain, reduce speed and cargo. Do not block
headlight. Be careful if load extends over the side of the rack.
Read Owner's Manual for more detailed loading information
+
+

8
SAFETY
Safety Decals and Locations
“No Passenger” Warning
WARNING
NEVER ride as a passenger.
Passengers can cause a loss of control, resulting in SEVERE INJURY or
DEATH.
Age 16 Warning
WARNING
Operating this ATV if you are under the age of 16 increases your chance of
severe injury or death.
NEVER operate this ATV if you are under age 16.
+
“No Passenger”
Warning
+
Clutch Cover
Warning
+
Age 16 Warning
+
+
Rack
Warning
Rack
Warning

9
SAFETY
Safety Decals and Locations
Clutch Cover Warning
WARNING
NO STEP
• Moving parts hazard under belt-clutch guard. To prevent serious injury, do not
operate vehicle with guard removed.
• Do not modify engine or clutch. Doing so can cause part failure, possible
imbalance, and excessive engine RPM, which can result in serious injury or
death.
Rack Warning, Front and Rear
WARNING
• DO NOT TOW FROM RACK OR BUMPER. Vehicle damage or tipover may
result causing severe injury or death. Tow only from tow hooks or hitch.
• Max Rack Loads: Front 70 lbs. (32 kg) Rear 100 lbs. (46 kg)
Reverse Override Warning (4X4 Models)
WARNING
Pushing reverse override button may cause sudden increases in power and
traction if too much throttle is applied. Loss of control or forward flipover may
result, especially in AWD. See Owner's Manual.
Override Switch (2X4 Models)
Reverse speed is limited. Reverse override is controlled by the override switch.
See your Owner's Manual.
All Wheel Drive Switch (4X4 Models)
Do not push switch to engage AWD if the rear wheels are spinning. This may
cause severe drive shaft and clutch damage. See your Owner's Manual.
Hitch Capacity Label
TRAILER MAX WEIGHT:
750 LBS. (340 KG) ON LEVEL GROUND
HITCH MAX. VERTICAL WEIGHT: 75 LBS. (34 KG)

10
SAFETY
Safe Riding Gear
Always wear appropriate clothing when riding an ATV. Wear protective
clothing for comfort and to reduce the chance of injury.
Helmet
Wearing a helmet can prevent a severe head injury. Whenever riding a
Polaris vehicle, always wear a helmet that meets or exceeds established
safety standards.
Approved helmets in the USA and Canada bear a U.S. Department of
Transportation (DOT) label.
Approved helmets in Europe, Asia and Oceania
bear the ECE 22.05 label. The ECE mark consists
of a circle surrounding the letter E, followed by the
distinguishing number of the country which has
granted approval. The approval number and serial
number will also be displayed on the label.
Helmet
Eye Protection
Gloves
Boots
Long Pants
Long
Sleeves
E
4
051039
0006.31

11
SAFETY
Safe Riding Gear
Eye Protection
Do not depend on eyeglasses or sunglasses for eye protection. When-
ever riding a Polaris vehicle, always wear shatterproof goggles or use a
shatterproof helmet face shield. Polaris recommends wearing approved
Personal Protective Equipment (PPE) bearing markings such as VESC
8, V-8, Z87.1, or CE. Make sure protective eye wear is kept clean.
Gloves
Off-road style gloves with knuckle pads are the best for comfort and
protection.
Boots
The best footwear is a pair of sturdy over-the-calf boots with low heels.
Clothing
Always wear long sleeves and long pants to protect arms and legs.
Riding pants with kneepads and a jersey with shoulder pads provide the
best protection.

12
SAFETY
Operator Safety
Age Restrictions
This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited
for anyone under 16 years of age.
WARNING
Failure to follow the warnings contained in this manual can result in severe
injury or death.
A Polaris ATV is not a toy and can be hazardous to operate. This vehicle han-
dles differently than other vehicles, such as motorcycles and cars. A collision
or rollover can occur quickly, even during routine maneuvers like turning, or
driving on hills or over obstacles, if you fail to take proper precautions.
Read and understand your owner's manual and all warnings before operating
a Polaris ATV.

13
SAFETY
Operator Safety
Safety Training
ATV safety training is a top priority for Polaris. When you purchased
your new ATV, your dealer instructed you on the authorized ATV
RiderCoursesm available to you and your eligible family members. This
training is included in the purchase price of your ATV. Polaris strongly
encourages you and your eligible family members who will be riding
the ATV to take the ATV RiderCoursesm. You were also provided with
printed materials that explain safe operating procedures. You should
review this information on a regular basis.
If you purchased a used Polaris ATV, you can take the ATV
RiderCoursesm by calling ATV Enrollment Express at [phone] or
by visiting www.atvsafety.org. Purchasers of a used Polaris ATV will be
charged for this training.
A Polaris ATV is an off-road vehicle. Familiarize yourself with all laws
and regulations concerning the operation of this vehicle in your area.
We strongly advise you to strictly follow the recommended maintenance
program outlined in your owner's manual. This preventive maintenance
program is designed to ensure that all critical components on your
vehicle are thoroughly inspected at specific intervals.

14
SAFETY
Operator Safety
The following signal words and symbols appear throughout this manual
and on your vehicle. Your safety is involved when these words and sym-
bols are used. Become familiar with their meanings before reading the
manual.
The safety alert symbol, on your vehicle or in this manual, alerts you to the
potential for injury.
WARNING
The safety alert warning indicates a potential hazard that may result in serious
injury or death.
CAUTION
The safety alert caution indicates a potential hazard that may result in minor
injury or damage to the vehicle.
CAUTION
A caution indicates a situation that may result in damage to the vehicle.
NOTE
A note will alert you to important information or instructions.

15
SAFETY
Operator Safety
• Read this manual and all labels carefully, and follow the operating
procedures described.
• Never operate an ATV without proper instruction. Take a training
course. Purchasers of a new Polaris ATV and their eligible family
members are entitled to take the ATV RiderCoursesm. Contact ATV
Enrollment Express at [phone] or visit www.atvsafety.org for
information on enrollment in the ATV RiderCoursesm.
• Never allow anyone under 16 years of age to operate this ATV.
• Never permit a guest to operate the ATV unless the guest has read this
manual and all product labels and has completed a certified safety
training course.
• Always avoid operating an ATV on paved surfaces, including side-
walks, driveways, parking lots, and streets.
• Never operate an ATV on a public street, road or highway, including a
dirt or gravel road.
• Never operate an ATV without wearing an approved helmet that fits
properly. Always wear eye protection (goggles or face shield), gloves,
boots, a long-sleeved shirt or jacket, and long pants.
• Never consume alcohol or drugs before or while operating an ATV.
• Never operate at excessive speeds. Travel at speeds appropriate for
the terrain, visibility and operating conditions, and your experience.
• Never attempt wheelies, jumps or other stunts.
• Always inspect your ATV before each use to make sure it's in safe
operating condition. Always follow the inspection and maintenance
procedures and schedules outlined in your owner's manual.
• Always keep both hands on the handlebars and both feet on the foot-
rests of the ATV during operation.
WARNING
Serious injury or death can result if you do not follow these instructions and
procedures, which are outlined in further detail within your owner's manual.

16
SAFETY
Operator Safety
• Always travel slowly and use extra caution when operating on unfa-
miliar terrain. Be alert to changing terrain conditions.
• Never operate on excessively rough, slippery, or loose terrain.
• Always follow proper turning procedures as described in this manual.
Practice turning at low speeds before attempting to turn at faster
speeds. Do not turn at excessive speeds.
• Always have the ATV inspected by an authorized Polaris dealer if it's
been involved in an accident.
• Never operate on hills too steep for the ATV or for your abilities.
Practice on smaller hills before attempting larger hills.
• Always follow proper procedures for climbing hills. Check the terrain
carefully before ascending a hill. Never climb hills with excessively
slippery or loose surfaces. Shift your weight uphill. Never open the
throttle suddenly or make sudden gear changes. Never go over the top
of a hill at high speed.
• Always follow proper procedures for going downhill and for braking
on hills. Check the terrain carefully before you start down a hill. Shift
your weight uphill. Never go down a hill at high speed. Avoid going
down a hill at an angle, which would cause the vehicle to lean sharply
to one side. Drive straight downhill.
• Always follow proper procedures for crossing the side of a hill. Avoid
hills with excessively slippery or loose surfaces. Shift your weight
uphill. Never attempt to turn the ATV around on any hill until you've
mastered (on level ground) the turning technique outlined in this
manual. Avoid crossing the side of a steep hill when possible.
• Always use proper procedures if you stall or roll backwards while
climbing a hill. To avoid stalling, maintain a steady speed when
climbing a hill. If you stall or roll backwards, follow the special pro-
cedure for braking described in this manual. Always dismount on the
uphill side, or to either side if the ATV is pointed straight uphill. Turn
the ATV around and remount following the procedure described in
this manual.

17
SAFETY
Operator Safety
• Always check for obstacles before operating in a new area. Never
attempt to operate over large obstacles, such as rocks or fallen trees.
Always follow proper procedures when operating over obstacles as
described in this manual.
• Always be careful of skidding or sliding. On slippery surfaces like
ice, travel slowly and use extra caution to reduce the chance of skid-
ding or sliding out of control.
• Avoid operating the ATV through deep or fast-flowing water. If it's
unavoidable, travel slowly, balance your weight carefully, avoid sud-
den movements, and maintain a slow and steady forward motion. Do
not make sudden turns or stops, and do not make sudden throttle
changes.
• Wet brakes may have reduced stopping ability. Test the brakes after
leaving water. If necessary, apply them lightly several times to allow
friction to dry out the pads.
• Always check for obstacles or people behind the ATV before operat-
ing in reverse. When it's safe to proceed in reverse, move slowly and
avoid turning at sharp angles.
• Always use the size and type of tires specified for your ATV, and
always maintain proper tire pressure.
• Never modify an ATV through improper installation or use of acces-
sories.
• Never exceed the stated load capacity for your ATV. Cargo must be
properly distributed and securely attached. Reduce speed and follow
the instructions in this manual for carrying cargo or towing. Allow a
greater distance for braking.
