Polaris Sprotsman 700 Guide

WARNING
The engine exhaust from this
product contains chemicals
known to cause cancer, birth de-
fects or other reproductive harm.

1
We’ve created a web site, just for YOU!!
Technical tips
New product introductions
Event schedules
Parts and Service Manual information
Exciting details about The Way Out
Check it out...
www.polarisindustries.com/owner

2
WELCOME
Thank you for choosing Polaris, and welcome to our world-wide
family of Polaris enthusiasts. Polaris proudly produces an exciting line
of recreational products, including snowmobiles, all-terrain vehicles,
personal watercraft, utility vehicles, and Victory motorcycles.
We believe Polaris sets the standard of excellence for all recreational
vehicles manufactured in the world today. Many years of experience in
engineering, design, and development have gone into making your
Polaris vehicle the finest machine we’ve ever produced.
Follow the instructions and recommendations in this Owner’s Manual
for safe and enjoyable operation of your vehicle. Your Owner’s Manual
contains instructions for minor maintenance. Major repairs are covered
in the Polaris Service Manual and should be performed by a Factory
Certified MSD (Master Service Dealer) Technician.
Your Polaris dealer knows your vehicle best and is interested in your
complete satisfaction. Return to your dealership for all of your service
needs during, and after, the warranty period.
Polaris also takes great pride in our PAA (Parts Apparel and
Accessories) which are available on our online store
www.purepolaris.com. Have your accessories and clothing delivered
right to your door!
Polaris and Polaris The Way Out are registered trademarks of Polaris
Industries Inc.
Copyright 2002
Polaris Industries Inc.
All Rights Reserved Printed in the U.S.A.

3
Age Restrictions
This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited
for anyone under 16 years of age.
Know Your Vehicle
As the operator of the vehicle, you are responsible for your personal
safety, the safety of others, and the protection of our environment.
Read and understand your owner’s manual, which includes valuable
information about all aspects of your vehicle, including safe operating
procedures.
Safety Training
When you purchased your new ATV, your dealer offered a hands-on
safety training course that covers all aspects of vehicle safety. You
were also provided with printed materials that explain safe operating
procedures. You should review this information on a regular basis.
If you purchased a used Polaris ATV from a party other than a Polaris
dealer, you can request this free safety training from any authorized
Polaris dealer.
NOTE: Illustrations used in this manual are for general representation
only. Your model may differ.
WARNING
Failure to follow the warnings contained in this manual can result
in severe injury or death.
A Polaris ATV Pro 500 is not a toy and can be hazardous to
operate. This vehicle handles differently than other vehicles, such
as motorcycles and cars. A collision or rollover can occur quickly,
even during routine maneuvers like turning, or driving on hills or
over obstacles, if you fail to take proper precautions.
Read and understand your owner’s manual and all warnings
before operating a Polaris ATV Pro 500.

4
TABLE OF CONTENTS
Vehicle Identification Numbers 6. . . . . . . . . . . . . .
Vehicle Specifications 7. . . . . . . . . . . . . . . . . . . . . .
Safety 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Understanding Warnings 9. . . . . . . . . . . . . . . . . . . . . . . . .
Key Safety Issues 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Decals and Locations 14. . . . . . . . . . . . . . . . . . . . . . . . . . .
Operator Safety 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Features and Controls 44. . . . . . . . . . . . . . . . . . . . .
Controls 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Features 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation 62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pre Ride Inspection 62. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle Break-In Period 63. . . . . . . . . . . . . . . . . . . . . . . . .
Starting the Engine 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Carrying Loads 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Noise Emission Control System 69. . . . . . . . . . . .
Riding 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pre Ride Inspection 70. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safe Riding Tips 71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5
TABLE OF CONTENTS
Maintenance and Lubrication 82. . . . . . . . . . . . . . .
Periodic Maintenance Schedule 82. . . . . . . . . . . . . . . . . .
Lubrication Recommendations 88. . . . . . . . . . . . . . . . . . .
Maintenance Record 92. . . . . . . . . . . . . . . . . . . . . . . . . . .
Cooling System 93. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lubrication 96. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filter Systems 102. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjustments 104. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lights 115. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spark Plugs 120. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water Immersion 121. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spark Arrestor 122. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PVT 124. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery 127. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side Panel Removal 130. . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning and Storage 131. . . . . . . . . . . . . . . . . . . . . . . . . .
Trouble Shooting 135. . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Diagram 140. . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty 141. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6
VEHICLE IDENTIFICATION NUMBERS
The frame vehicle identification number (VIN) (1) and engine serial
number (2) are important for model identification when registering
your vehicle, when obtaining insurance, and when ordering
replacement parts. If your vehicle is stolen, these numbers are essential
to its recovery and identification.
NOTE: Record your vehicle’s ID numbers in the spaces provided.
Remove the spare key and store it in a safe place. Your key can be
duplicated only by mating a Polaris key blank with an existing key.
NOTE: If both keys are lost, see your dealer for ignition switch
replacement.
2
1
Frame VIN:
Engine Serial Number:
Vehicle Model Number:
Dealer Imprint:

7
VEHICLE SPECIFICATIONS
SPORTSMAN 700
Gross Vehicle Weight 1240 lbs.
Fuel Capacity 4.75 U.S. Gallons
Towing Capacity 1500 lbs
Hitch Tongue Capacity 150 lbs
Overall Length 85”
Overall Width 46”
Overall Height 47”
Wheelbase 50.75
Ground Clearance 11”
Dry Weight 740 lbs
Minimum Turning Radius 71.5”
Engine Oil Capacity 2 Quarts
Coolant Capacity 3.2 Quarts
Engine EH68ALOE1
Displacement 683
Bore x Stroke 80 x 68
Pilot Jet 45
Main Jet 155
Needle Jet P-6(829)
Jet Needle 4HB41-4
Pilot Screw 1.5
Alternator Output 300 Watts @ 3000 rpm
Compression Ratio 9.78:1
Starting System Electric
Carburetor BST 34mm
Ignition System CDI
Ignition Timing 34 BTDC @ 3500 RPM
Spark Plug / Gap RC7YC / 0.9 mm / .035 in
Lubrication System Pressurized Wet Sump
Driving System Type 4 Wheel Independent Shaft

8
VEHICLE SPECIFICATIONS
SPORTSMAN 700
Shift Type Side Lever (High, Low, Neutral, Reverse,
Park)
Gear Reduction - Low 7.5/1
Gear Reduction - Reverse 5.11/1
Gear Reduction - High 2.89/1
Drive Ratio - Front: 3.82/1
Drive Ratio - Final 3.10/1
Tire Size - Front 25 x 8 - 12
Tire Size - Rear 25 x 11 - 12
Front Brake Hydraulic Disc
Rear Brake Hydraulic
Parking Brake Hydraulic lock, all wheel
Headlight (watts) 1 - Single Beam on Handlebar (50)
2 - Single Beam on Grill (27)
Taillights (watts) 8.26
Brake Light (watts) 26.9
Instrument Cluster LCD
Clutching and Jetting Charts
Altitude AMBIENT
TEMPERATURE
Below 40°F
Below 5°C
+40°Fand above
+5°C to & above
Meters
(Feet)
0-1800
(0-6000)
175 162.5
1800-3700
(6000-12000) 150 140
Altitude Shift
Weight Drive Clutch Spring Driven Clutch
Spring
Helix*
Meters
(Feet) 0-1800 (0-6000) 20-56 PN 5631315 Blue/Green PN 7041157 White/Yellow PN 7041635 EBS PN 5132751
1800-3700
(6000-12000) 20-54 PN 5631214 Blue/Green PN 7041157 White/Yellow PN 7041635 EBS PN 5132751
EBS models require no helix / spring adjustment

9
SAFETY
Understanding Warnings
The following two pages identify signal words and symbols that appear
in this manual. Your safety is involved when these words and symbols
are used. Become familiar with their meanings before reading the
manual.
The safety alert symbol, on your vehicle or in this manual, alerts
you to the potential for personal injury.
The safety alert warning indicates a potential hazard that may result
in serious injury or death.
The safety alert caution indicates a potential hazard that may result
in minor personal injury or damage to the vehicle.
CAUTION
NOTE:
A note will alert you to important information or instructions.
A caution indicates a situation that may result in damage to the
vehicle.
CAUTION
WARNING

10
SAFETY
Key Safety Issues
Protect Your Sport
Know all local, state/province riding laws;
Respect your vehicle;
Respect the environment; and
You will gain the respect of others.
We also advise you to strictly follow the recommended maintenance
program as outlined. This preventive maintenance program is designed
to ensure that all critical components on this ATV are thoroughly
inspected at various intervals.
All information in this manual is based upon the latest product data and
specifications available at the time of printing. Polaris Industries Inc.
reserves the right to make product changes and improvements which
may affect illustrations or explanations.
No part of this manual shall be reproduced or used without the written
permission of Polaris Industries Inc.
Illustrations included in this manual are general representations of
parts having a similar function. Your model may differ.
AN ATV IS NOT A TOY AND CAN BE HAZARDOUS TO
OPERATE. An ATV handles differently from other vehicles
including motorcycles and cars. A collision or rollover can occur
quickly, even during routine maneuvers such as turning and driving on
hills or over obstacles, if you fail to take proper precautions.

11
SAFETY
Key Safety Issues
SERIOUS INJURY OR DEATH can result if you do not
follow these instructions:
Read this manual and all labels carefully and follow the operating
procedures described.
Never operate an ATV without proper instruction. Take a training
course. Beginners should receive training from a certified instruc-
tor. Contact an authorized Polaris ATV dealer or call Polaris at
1-800-342-3764 to find out about the training courses nearest you.
Never allow anyone under 16 years of age to operate this ATV.
Never permit a guest to operate this ATV unless the guest has read
this manual and all product labels, and has completed a certified
training course.
Always avoid operating an ATV on any paved surfaces, including
sidewalks, driveways, parking lots and streets.
Never operate an ATV on any public street, road or highway, even a
dirt or gravel one.
Never operate an ATV without wearing an approved helmet that fits
properly. You should also wear eye protection (goggles or face
shield), gloves, boots, long-sleeved shirt or jacket, and long pants.
Never consume alcohol or drugs before or while operating this
ATV.
Never operate at excessive speeds. Always travel at a speed which
is proper for the terrain, visibility and operating conditions, and
your experience.
Never attempt wheelies, jumps or other stunts.
Always inspect your ATV each time you use it to make sure it is in
safe operating condition. Always follow the inspection and main-
tenance procedures and schedules described in this manual.
Always keep both hands on the handlebars and both feet on the
footrests of the ATV during operation.
Always go slowly and be extra careful when operating on unfamil-
iar terrain. Always be alert to changing terrain conditions when
operating the ATV.
Never operate on excessively rough, slippery or loose terrain.
Always follow proper procedures for turning as described in this
manual. Practice turning at low speeds before attempting to turn at
faster speeds. Do not turn at excessive speed.
Always have the ATV checked by an authorized Polaris dealer if it
has been involved in an accident.

12
SAFETY
Key Safety Issues
Never operate the ATV on hills too steep for the ATV or for your
abilities. Practice on smaller hills before attempting larger hills.
Always follow proper procedures for climbing hills as described in
this manual. Check the terrain carefully before you start up any
hill. Never climb hills with excessively slippery or loose surfaces.
Shift your weight forward. Never open the throttle suddenly or
make sudden gear changes. Never go over the top of any hill at
high speed.
Always follow proper procedures for going down hills and for brak-
ing on hills as described in this manual. Check the terrain careful-
ly before you start down any hill. Shift your weight backward.
Never go down a hill at high speed. Avoid going down a hill at an
angle which would cause the vehicle to lean sharply to one side.
Go straight down the hill where possible.
Always follow proper procedures for crossing the side of a hill as
described in this manual. Avoid hills with excessively slippery or
loose surfaces. Shift your weight to the uphill side of the ATV.
Never attempt to turn the ATV around on any hill until you have
mastered the turning technique described in this manual on level
ground. Avoid crossing the side of a steep hill if possible.
Always use proper procedures if you stall or roll backwards when
climbing a hill. To avoid stalling, maintain a steady speed when
climbing a hill. If you stall or roll backwards, follow the special
procedure for braking described in this manual. Dismount on the
uphill side or to either side if pointed straight uphill. Turn the
ATV around and remount, following the procedure described in
this manual.
Always check for obstacles before operating in a new area. Never
attempt to operate over large obstacles, such as large rocks or fallen
trees. Always follow proper procedures when operating over ob-
stacles as described in this manual.
Always be careful of skidding or sliding. On slippery surfaces,
such as ice, go slowly and be very cautious in order to reduce the
chance of skidding or sliding out of control.
Avoid operating the ATV through deep or fast flowing water. If
you cannot avoid water which exceeds the recommended maxi-
mum depth (pg. 78), go slowly, balance your weight carefully
avoiding sudden movements, maintain a slow and steady forward
motion, do not make sudden turns or stops, and do not make sud-
den throttle changes.
Wet brakes may have reduced stopping ability. Test your brakes
after leaving water. If necessary apply them lightly several times
to let friction dry out the pads.

13
SAFETY
Key Safety Issues
Always be sure there are no obstacles or people behind you when
you operate in reverse. When it is safe to proceed in reverse, go
slowly. Avoid turning at sharp angles in reverse.
Always use the size and type tires specified in this manual. Always
maintain proper tire pressure as described in this manual.
Never modify an ATV through improper installation or use of ac-
cessories.
Never exceed the stated load capacity for an ATV. Cargo should be
properly distributed and securely attached. Reduce speed and fol-
low instructions in this manual for carrying cargo or pulling a trail-
er. Allow greater distance for braking.
FOR MORE INFORMATION ABOUT ATV SAFETY, call the
Consumer Product Safety Commission at 1-800-638-2772, or Polaris
at 1-800-342-3764.
Additional Important Information...
Due to our concern for the safety of our customers and the general
public, Polaris hereby strongly recommends and requests that
consumers not have installed on a Polaris ATV any equipment which is
intended to increase the speed or power of the vehicle; or make any
other modifications to the vehicle for these purposes. Any
modifications to the original equipment of the ATV substantially
increase the risk of bodily injury. Please be aware that these
modifications may create a substantial safety hazard.
Polaris hereby informs you that the warranty on your ATV is
terminated if any such equipment has been added to the ATV or any
modifications have been made to the ATV which increase its speed or
power.
We also advise you to strictly follow the recommended maintenance
program outlined in this manual. This preventive maintenance
program is designed to ensure that all critical components on the ATV
are thoroughly inspected by your dealer at various mileage intervals.
NOTE:
The addition of certain accessories including (but not limited to)
mowers, blades, tires, sprayers, or large racks may change the handling
characteristics of the ATV.
Be certain any accessories added to this ATV have been approved by
Polaris.
Familiarize yourself with their function and affect on the ATV.

14
SAFETY

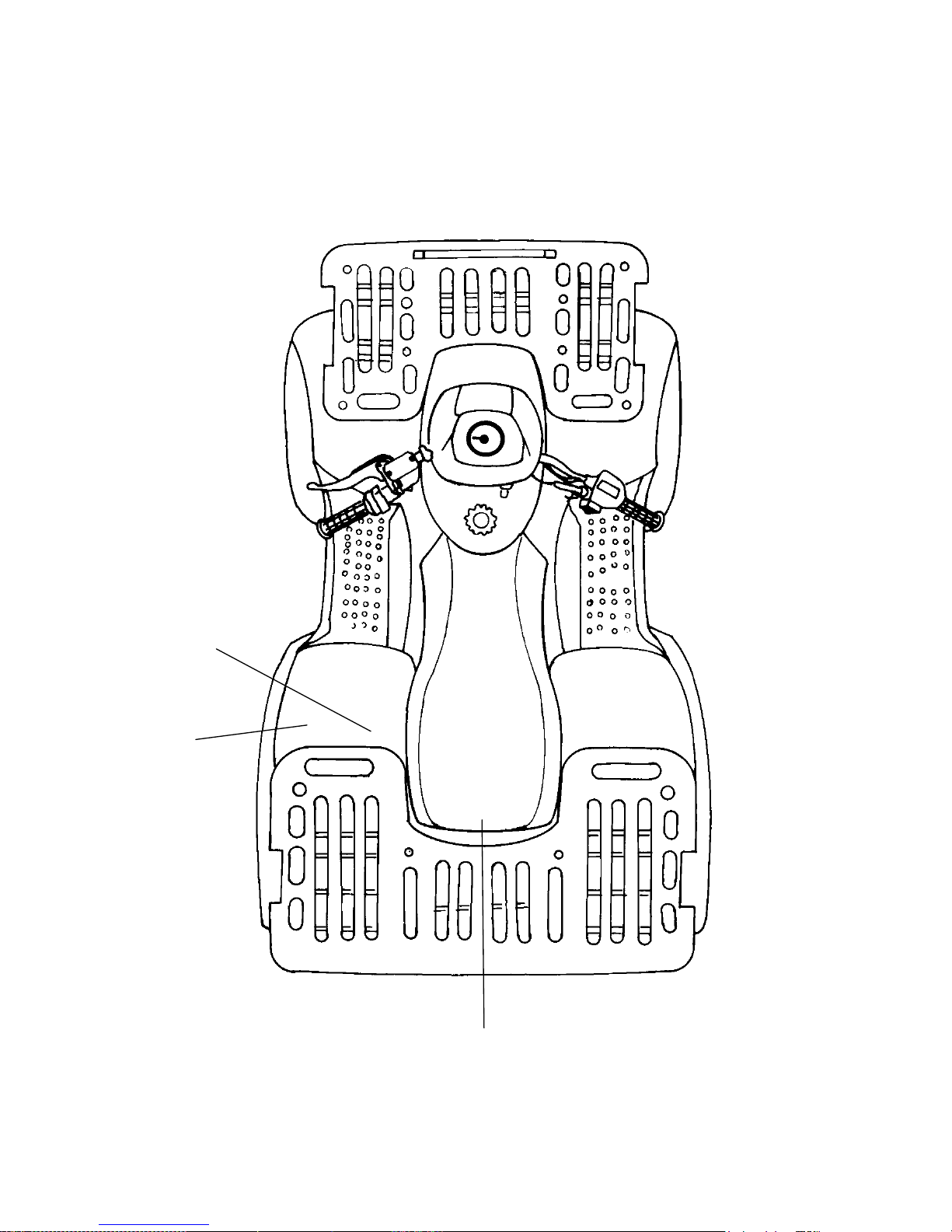

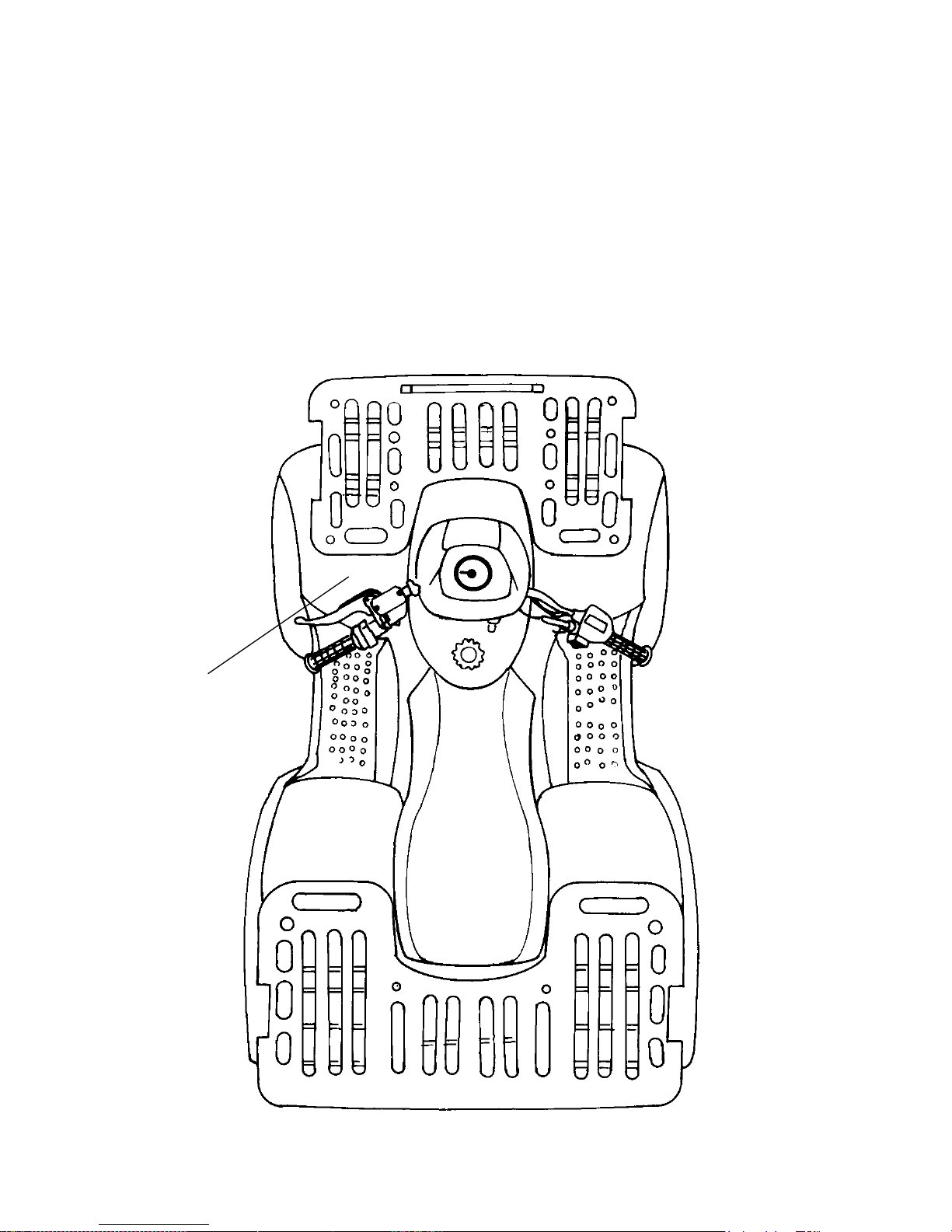

Safety Decals and Locations
NOTE:
Warning decals have been placed on the vehicle for your protection.
Read and follow the instructions on each decal carefully. In the event
any decal becomes illegible or comes off, contact your Polaris dealer
for a replacement. Any safety decal needing replacement will be
provided by Polaris at no charge. The part number is printed on the
decal.
1

15
SAFETY
Safety Decals and Locations
1
7079083
1997, 2000
IF OWNER’S MANUAL IS MISSING, CONTACT
YOUR POLARIS DEALER FOR A REPLACEMENT.
WARNING

16
SAFETY
Safety Decals and Locations
2
3

17
SAFETY
Safety Decals and Locations
Never operate this ATV on HILLS steeper than 25 degrees
To prevent flipover on hilly terrain, when going up or down,
use throttle and brakes gradually.
25°
REVERSE operation can be dangerous even at low speeds.
Steering becomes difficult. To prevent flipover, avoid sudden
braking or sharp turns.
Use OVERRIDE for reverse speed limiter with caution. To prevent
loss of control, never activate override button with open throttle.
PARKING BRAKE may relax when used for more than 5 minutes.
When parking on grades, leave shift in forward.
7079085
Operating this ATV if you are under the age
of 16 increases your chance of severe injury
or death.
NEVER operate this ATV if you are under
age 16. 7078253
UNDER
2
3
WARNING
WARNING

18
SAFETY
Safety Decals and Locations
4
5
6
