poly-planar RD-44 User manual

Poly Planar LLC 520 McCormick Dr. Glen Burnie MD. 21061 410-761-4000
www.polyplanar.com
2
Controls

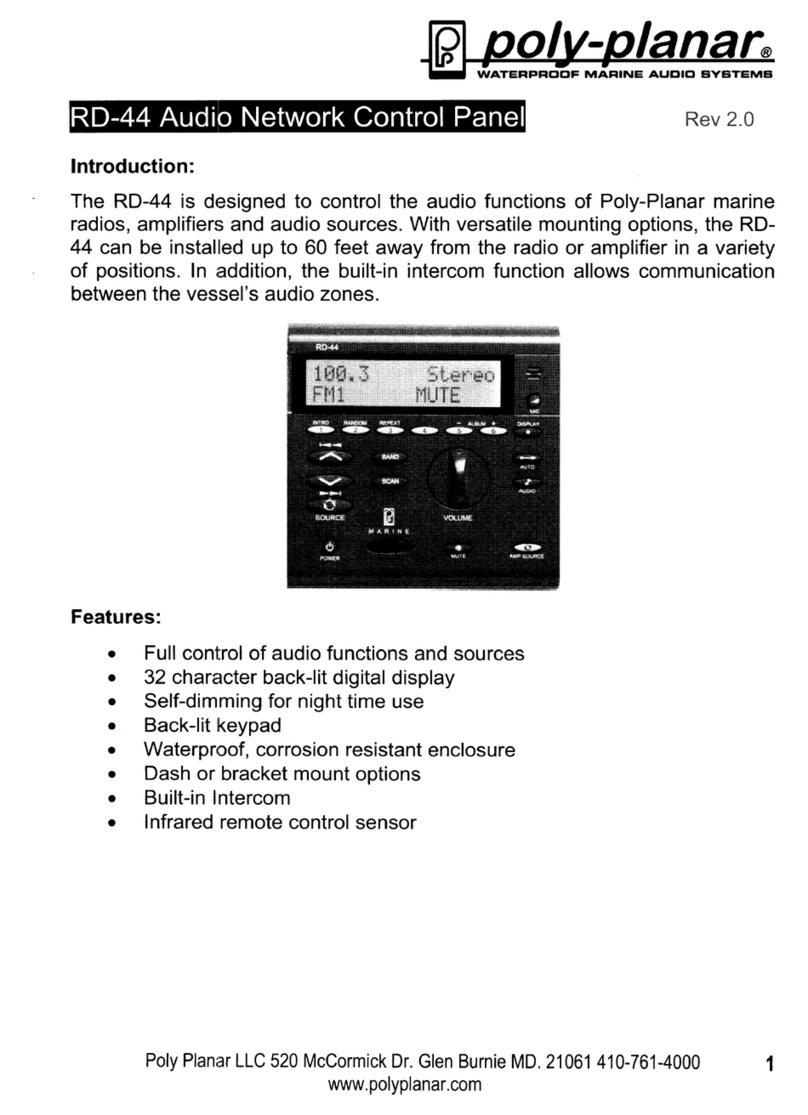

RD-44 Audio Network Control Panel
Introduction:
The RD-44 is designed to control the audio functions of Poly-Planar marine
radios, amplifiers and audio sources. With versatile mounting options, the RD-
44 can be installed up to 60 feet away from the radio or amplifier in a variety
of positions. In addition, the built-in intercom function allows communication
between the vessel’s audio zones.
Features:
1 Microphone 9 Volume Control
•Full control of audio functions and sources
•32 character back-lit digital display 2 Intercom Switch 10 Menu/Category/Preset Scan
•Self-dimming for night time use 3 Presets 11 Audio Controls
•Back-lit keypad 4 Display Options 12 Audio Source Select
•Waterproof, corrosion resistant enclosure
•Dash or bracket mount options 5 Tune/Track Up 13 Power On/Off
•Built-in Intercom 6 Tune/Track Down 14 Mute
•Infrared remote control sensor
7 AM/FM Band/Preset Bank 15 Amplifier Source Select
8 Scan Channels 16 Network Cable
17 Infrared Port, Ambient
light sensor
Poly Planar LLC 520 McCormick Dr. Glen Burnie MD. 21061 410-761-4000
www.polyplanar.com 1

Poly Planar LLC 520 McCormick Dr. Glen Burnie MD. 21061 410-761-4000
www.polyplanar.com
4
Poly Planar LLC 520 McCormick Dr. Glen Burnie MD. 21061 410-761-4000
www.polyplanar.com 3
Control Functions
1 Microphone: Waterproof intercom microphone. 10 Menu/Category/Preset Scan: Menu options for peripheral devices or
Categories for satellite radio programming. When an AM/FM tuner is the
source, press once to scan through the preset stations and press again to
stop the scan. Press and hold to automatically assign presets to the current
bank starting with the next station found.
2 Intercom Switch: Hold down to talk. Release to hear. The intercom will
override the music in the other zones. It will also override a muted RD-44 in
another zone while the switch is pressed.
The volume for each zone with an RD-44 is adjustable. While holding the
“Mic” button (# 2) down , use the Volume knob (9) to toggle the intercom
volume up or down. (See Volume, # 9). The Master zone intercom volume is
set using a potentiometer on the RT-20 Router (See RT-20 Instructions)
11 Audio Controls: Pressing this button will cycle through the audio functions of
the radio. Use the Volume knob (9) to adjust the function up , down or “C”
center. The functions vary slightly between products. After waiting 3 seconds,
the radio will exit the menu.
3 Presets: Tune to a desired AM, FM, or Satellite Radio (optional) station and
hold the desired preset button for at least 2 seconds. The display will change
to show which preset was programmed. 12 Source: Selects a source from those available on the audio network such as
Radio bands, CD/MP3, AUX1, AUX2 and other optional sources.
13 Power: Powers on and off the RD44 display, Radios, Amplifiers and
peripherals.
4 Display: Allows setting of display modes. Times out after 2 seconds. Displays
available information from digital song formats. Pressing the button advances
the display functions.
In MP3/WMA Mode: x1 = Artist x2 = Album x3 = Folder x4 Track /Time
In Satellite Radio Mode: x1 = Artist x2 = Song x3 = Category
14 Mute: Mutes the audio in the local zone.
15 Zone Amplifier Source: Source select for the MZ series amplifiers. When
used with an MZ amplifier, this button will select between the RCA input on
the amplifier and the network audio sources. (see the MZ amplifier manual
for details).
5 Up: Tunes Radio frequencies or changes tracks higher. Press and hold to
manually tune or fast forward a CD track. 16 Network Cable: Connects Poly-Planar audio components.
6 Down: Tunes Radio frequencies and changes tracks lower. Press and hold to
manually tune or fast forward a CD track. 17 Infrared Port & Light Sensor: Receiver for the remote control and ambient
light sensor to automatically adjust backlighting.
7 Band/Bank Select: Choose between FM, AM and optional XM bands as well
as multiple banks of presets for each band. Each bank has six presets. The
banks are FM1, FM2, FM3, AM1, AM2 and XM1, XM2 and XM3 if installed.
8 Scan: AM/FM/XM mode. Tunes and stops at available stations for a few
seconds. Press scan a second time or one of the tune buttons to stop
scanning.
9 Volume: Adjusts volume by toggling the knob right or left. Turn to the left and
hold to decrease volume or right and hold to increase volume. This knob is
self-centering.

Display Descriptions
100.3 Stereo
FM1 P1 Vol 15
Frequency
Band/
Preset Bank
Preset #
Stereo Signal Present
Volume Level
AM/FM Tuner Screen
Trk 07 4m 49s
CD Vol 15
Track # Elapsed Time
Volume Level
CD Player Screen
Channel #
Preset
Bank
Signal strength Preset
Channel/Song Names
Volume Level
1 XM Preview
XM1
\
P1
Vol 15
Satellite Radio Screen
Aux Input 1
Vol 15
Volume Level
Auxiliary Input Screen
Song Title
MP3 Vol 15
Track Info
Encoding
also, Album & Artist
Volume Level
MP3/WMA CD Screen
Poly Planar LLC 520 McCormick Dr. Glen Burnie MD. 21061 410-761-4000
www.polyplanar.com
6
Panel Mounting
(Network connection cable not shown for clarity)
The RD44 can be mounted in a panel using the supplied “U” bracket and
stainless steel stud assembly.
Insert the supplied stud into the threaded rear housing. Use one of the 5mm
nuts to lock the stud in place.
Find a suitable location with enough depth and access for the DIN network
connecting cable and hand access to tighten the nut.
Use the template provided (Pg. 12) and cut a 2 ¼” (57mm) hole for the cup
and a ¼” (6.35mm) for the locating pin. Insert the RD44 and use the bracket
and nut to secure the Display. Do not over tighten the nut.
The “U” bracket has break off sections that can be removed for thick panels.
The RD-44 can also be m
Bracket Mount ounted using the supplied back cover and bracket.
The bracket can be installed for dash or overhead mount.
Make sure that there is adequate clearance and a good viewing angle for the
display. Also, consider the routing of the network cable.
Use either the bracket to mark the position of the fastener holes or the
template on page 11.
Poly Planar LLC 520 McCormick Dr. Glen Burnie MD. 21061 410-761-4000
www.polyplanar.com 5

Poly Planar LLC 520 McCormick Dr. Glen Burnie MD. 21061 410-761-4000
www.polyplanar.com 7
A short (10mm) M5 screw holds the back panel assembly to the body
of the RD-44. Remove the back panel and insert the 8mm hex nuts
supplied into the retaining slots as shown above in the detail. .
Use the 8mm screws and the cover plate provided to attach the
bracket to the rear housing. The rear housing can be rotated 180° for
dash or overhead mounting.
Use the 5mm short screw to attach the rear housing to the RD-44
body.
Bracket Mounting
cont.
Installing the Back Cover
Poly Planar LLC 520 McCormick Dr. Glen Burnie MD. 21061 410-761-4000
www.polyplanar.com
8
The RD-44 connects to the system using a single cable with watertight
ends available in 10ft (3m), 20Ft (6m) and 60ft (18m) lengths. These
cables can be used in any combination to provide the needed connection
length.
Connecting the System DIN Cable
The DIN cable is “Keyed” to prevent
misalignment and all connections are
gender specific
Leave the end caps on when routing to
prevent damage or contamination to the
leads. The cap is designed for pulling
through wire conduits.
The blue connector cap ends can be
discarded if a smaller diameter is
required such as a Pod mount. Use
shrink tube to seal the connections.
(Connector cap ends removed)
Before drilling holes for cable runs be sure there is sufficient room
behind the area. Always disconnect power before drilling around
electrical connections.
Without = ½” (13mm) Ø
With ends = 7/8” (22mm) Ø
Be sure to use Grommets or other types of chafe protection when routing
cables through fiberglass or metal bulkheads or instrument pods.
The hole diameter requirements:
Provide strain relief by securing
cables with proper cable ties

Poly Planar LLC 520 McCormick Dr. Glen Burnie MD. 21061 410-761-4000
www.polyplanar.com
10
System Connections
(continued)
System Connections
Single Zone with MZ-100 DSP AMP
The RD44 can be used in several configurations:
The MZ-100 can be controlled by the RD-44 control panel. Using an ICC 10,
20 or 60 DIN extension cable (not shown) the panel can be up to 60 feet away
from the amplifier. Plug the RD-44 or its extension cable into the CONTROL
PANEL plug on the MZ-100. Be sure to tighten the waterproof connectors.
Basic MRD70 System, Single Zone
Multi Zone System using RT-20 Router (See RT-20, MRD70 Instruction Manual)
The Poly Planar MRR2 Wireless Remote can be
used with the RD44 Display. Simply point the
Remote at the Display and you can activate the
primary functions. The MRR2 requires “Line of
site” to the IR window of the Display and will
operate up to 15 ft away.
The MZ-100 can support 1 Auxiliary input such as an iPOD™ dock or
other media player. (See MZ-100 instruction Manual)
MRR2 Wireless Remote Control
Poly Planar LLC 520 McCormick Dr. Glen Burnie MD. 21061 410-761-4000
www.polyplanar.com 9

Poly Planar LLC 520 McCormick Dr. Glen Burnie MD. 21061 410-761-4000
www.polyplanar.com
12
Panel Mount Template (mm)
Specifications:
Operating Voltage …………………..……… 13.8V (10V – 16V) DC
Dimensions …………………………………. 4.409” x 4.409” x 1.443”
(112mm x 112mm x 37mm )
Immersion Protection………………………………………...Min. IP65
Weight ……………………………………….. ………15 oz (.425 Kg)
WARRANTY
Poly-Planar marine audio systems are warranted to be free of defects in
materials and workmanship for a period of two years. Warranty is subject to
proper installation and operation within published specifications. Poly-Planar
will repair or replace, at its discretion, any unit returned prepaid to its factory
and determined to be defective. Poly-Planar Inc. is not liable for consequential
damages.
