Portwell LEAD-PD-2150 User manual

1
LEAD-PD-2150/LEAD-PD-2360
(LED Backlight)

Safety........................................................................................................................................................................3
National Conventions.........................................................................................................................................3
Power ................................................................................................................................................................4
Installation..........................................................................................................................................................5
Cleaning.............................................................................................................................................................6
Other..................................................................................................................................................................7
Setup ........................................................................................................................................................................8
Content of the Box.............................................................................................................................................8
Setup Stand.......................................................................................................................................................9
Adjusting Viewing Angle...................................................................................................................................10
Connecting the Monitor....................................................................................................................................11
Multi-Touch Screen..........................................................................................................................................12
Wall Mounting..................................................................................................................................................13
Adjusting.................................................................................................................................................................14
Hotkeys............................................................................................................................................................14
How to adjust setting .......................................................................................................................................15
Adjusting the picture settings...........................................................................................................................16
Troubleshoot...........................................................................................................................................................18
Specification............................................................................................................................................................20
General Specification.......................................................................................................................................20
Preset Display Modes......................................................................................................................................22
Pin Assignments ..............................................................................................................................................23
Plug and Play...................................................................................................................................................24
Regulation...............................................................................................................................................................25
FCC Notice......................................................................................................................................................25
WEEE Declaration...........................................................................................................................................26
WEEE Declaration for India.............................................................................................................................26
RoHS Declaration for India..............................................................................................................................26
臺灣 RoHS ......................................................................................................................................................27

3
Safety
National Conventions
The following subsections describe notational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type.
These blocks are notes, cautions, and warnings, and they are used as follows:
NOTE: A NOTE indicates important information that helps you make better use of your computer system.
CAUTION: ACAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
WARNING: AWARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some
warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific
presentation of the warning is mandated by regulatory authority.

4
Power
The monitor should be operated only from the type of power source indicated on the label. If you are not sure
of the type of power supplied to your home, consult your dealer or local power company.
The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will
fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug,
have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the
safety purpose of the grounded plug.
Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the
monitor from damage due to power surges.
Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
The wall socket shall be installed near the equipment and shall be easily accessible.
For use only with the attached power adapter (Only for monitors with power adapter).
Manufacturers:TPV ELECTRONICS(FUJIAN) CO., LTD
model: ADPC2065
Output rating:20Vdc, 3.25A

5
Installation
Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a
person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by
the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and
use mounting accessories recommended by the manufacturer. Aproduct and cart combination should be moved
with care.
Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or
electric shock. Never spill liquids on the monitor.
Do not place the front of the product on the floor.
If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit
instructions.
Remark: Suitable for entertainment purposes at controlled luminous environments, to avoid disturbing
reflections from the screen.
Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence
overheating may cause a fire or damage to the monitor.
See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on
the stand:

6
Cleaning
Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of
strong-detergent which will cauterize the product cabinet.
When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough
as it will scratch the screen surface.
Please disconnect the power cord before cleaning the product.

7
Other
If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and
contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.
For display with glossy bezel the user should consider the placement of the display as the bezel may cause
disturbing reflections from surrounding light and bright surfaces.
Please keep this touch monitor away from any radio equipment such as interphones, the touch function can
be interfered by the radio, if this happened, please pull out the plug and reset the monitor.

8
Setup
Content of the Box
Not all signal cables (Analog , Audio, USB and HDMI cables) will be provided for all countries and
regions. Please check with the local dealer for confirmation.
Monitor
Adapter Power Cable Analog Cable HDMI Cable USB Cable Audio Cable

9
Setup Stand
Please setup or remove the Stand following the steps as below.
Setup
Remove:

10
Adjusting Viewing Angle
For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your
own preference.
Hold the stand so you will not topple the monitor when you change the monitor's angle.
You are able to adjust the monitor's angle from 15°to 57 °.
NOTE:Do not adjust the viewing angle over 57 degrees in order to avoid damage.
NOTE:
Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
Do not put your hand close to the gap between the monitor and the base to avoid the injury when adjusting the
viewing angle.

11
Connecting the Monitor
Cable Connections In Back of Monitor and Computer
1. Power
2. Earphone out
3. Audio in
4. D-Sub
5. HDMI 2
6. HDMI 1
7. USB Downstream
8. USB Upstream
Connect to PC
1. Connect the power cord to the back of the display firmly.
2. Turn off your computer and unplug its power cable.
3. Connect the display signal cable to the video connector on the back of your computer.
4. Plug the power cord of your computer and your display into a nearby outlet.
5. Turn on your computer and display.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.

12
Multi-Touch Screen
User can use Display Multi-touch Function under operating system higher than Window 7 home premium. Before
using Display Multi-touch Function, user need to connect basic wires ( power cable, VGAcable, USB cable). Then
user can fully enjoy Multi-touch Function. Part of specific use, please see the following drawings.

13

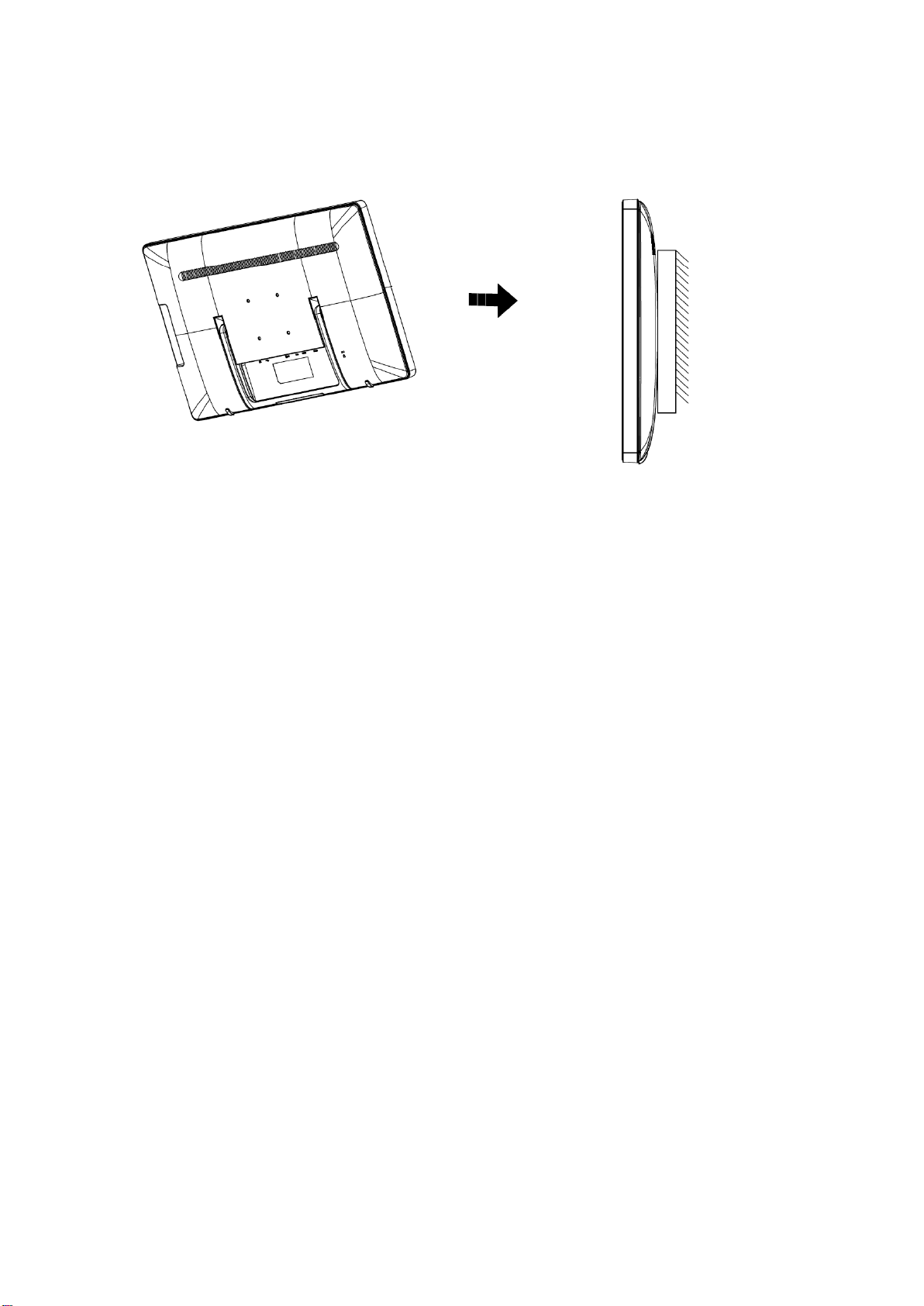

Wall Mounting
Preparing to Install An Optional Wall Mounting Arm.
This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this
procedure. Follow these steps:
1. Fold the stand
2. Follow the manufacturer's instructions to assemble the wall mounting arm.
3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the
back of the monitor.
4. Insert the 4 screws into the holes and tighten.
5. Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for
instructions on attaching it to the wall.

14
Adjusting
Hotkeys
1
Source/Auto/Exit
2
ECO/<
3
Volume/>
4
Menu/Enter
5
Power
Auto / Exit / Source hot key
1. When OSD menu is off, press to activate the Auto Adjustment function.The Auto Adjustment function is used to
optimized the H.Pos, V.Pos, Clock and Focus.
2. Press to select input from external sources
3. When OSD menu is on, press to exit the OSD menu.
ECO/ <
Activates the ECO function when the OSD is OFF, navigate through adjustment icons when OSD is ON, or adjust a
function when function is activated.
Volume/ >
Activates the Volume control when the OSD is OFF, navigate through adjustment icons when OSD is ON, or adjust
a function when function is activated.
Menu/Enter
When there is no OSD, Press to display the OSD or confirm the selection.
Power
Press the Power button to turn on/off the monitor.
Power Indicator
White---Power on mode.
Orange---Standby mode.
LED off---Off mode.

15
How to adjust setting
1. Press the MENU button to display the OSD menu.
2. Press + or - to navigate through the menu items. Once the desired item is highlighted, press the MENU button
to enter.
3. Press + or - again to navigate through the sub-menu. Once the desired item is highlighted, press MENU button
to activate it.
4. Press + or - to adjust the setting.
5. To exit and save, press the MENU button. If you would like to adjust other settings, please repeat steps 2-4.

16
Adjusting the picture settings
The descriptions for function control:
Main Menu
Item
Main Menu
Icon
Sub Menu
Item
Sub Menu
Description
Luminance
Contrast
0-100
Contrast from Digital-register
Brightness
0-100
Backlight Adjustment
Eco Mode
Standard
Standard Mode
Text
Text Mode
Internet
Internet Mode
Game
Game Mode
Movie
Movie Mode
Sports
Sports Mode
DCR
On
Open the DCR function
Off
Close the DCR function
Image Setup
Clock
0-100
Adjust picture Clock to reduce Vertical-Line noise
Phase
0-100
Adjust Picture Phase to reduce Horizontal-Line
noise
H. Position
0-100
Adjust the horizontal position of the picture
V. Position
0-100
Adjust the vertical position of the picture
Image Ratio
Wide
Select Image Aspect Ratio
4:3
OD
On
Adjust the response time
Off
Off
USB
Power/touch
On
USB Power On or Off
(After doing reset, it will pop up the OSD menu to
set the USB Power/Touch on or off, you should
choose by manually, otherwise it will pop up the
OSD menu when next Power on.)
Off

17
Main Menu
Item
Main Menu
Icon
Sub Menu
Item
Sub Menu
Description
Color Temp.
Warm
Recall Warm Color Temperature from EEPROM
Normal
Recall Normal Color Temperature from EEPROM
Cool
Recall Cool Color Temperature from EEPROM
sRGB
Recall sRGB Color Temperature from EEPROM
User
Red
(0-100)
Red Gain from Digital-register
Green
(0-100)
Green Gain from Digital-register
Blue
(0-100)
Blue Gain from Digital-register
OSD Setup
H. Position
0-100
Adjust the horizontal position of OSD
V. Position
0-100
Adjust the vertical position of OSD
Timeout
5-100
Adjust the OSD Timeout
Language
Select the OSD language
Extra
Input Select
Auto
Automatically signal source as input
D-SUB
Select D-SUB signal source as input
HDMI1
Select HDMI1 signal Source as input
HDMI2
Select HDMI2 signal Source as input
DDC/CI
On
Support DDC/CI Function
Off
Unsupported DDC/CI Function
Reset
YES
Clear each old status of Auto-configuration and set
the color temperature to Warm
NO
Do not execute reset, return to main menu
Information
Show the information of the main image source

18
Troubleshoot
Problem & Question
Possible Solutions
Power LED Is Not ON
Make sure the power button is ON and the Power Cord is properly connected
to a grounded power outlet and to the monitor.
o images on the screen
Is the power cord connected properly?
Check the power cord connection and power supply.
Is the signal cable connected correctly?
(Connected using the signal cable)
Check the signal cable connection.
If the power is on, reboot the computer to see the initial screen (the login
screen), which can be seen.
If the initial screen (the login screen) appears, boot the computer in the
applicable mode (the safe mode for Windows 7/8/8.1/10) and then change
the frequency of the video card.
(Refer to the Setting the Optimal Resolution)
If the initial screen (the login screen) does not appear, contact the Service
Center or your dealer.
Can you see "Input Not Supported" on the screen?
You can see this message when the signal from the video card exceeds the
maximum resolution and frequency that the monitor can handle properly.
Adjust the maximum resolution and frequency that the monitor can handle
properly.
Picture Is Fuzzy & Has
Ghosting Shadowing Problem
Adjust the Contrast and Brightness Controls.
Press to auto adjust.
Make sure you are not using an extension cable or switch box. We
recommend plugging the monitor directly to the video card output connector
on the back .
Picture Bounces, Flickers Or
Wave Pattern Appears In The
Move electrical devices that may cause electrical interference as far away
from the monitor as possible.
Use the maximum refresh rate your monitor is capable of at the resolution
your are using.

19
Monitor Is Stuck In Active
Off-Mode"
The Computer Power Switch should be in the ON position.
The Computer Video Card should be snugly fitted in its slot.
Make sure the monitor's video cable is properly connected to the computer.
Inspect the monitor's video cable and make sure no pin is bent.
Make sure your computer is operational by hitting the CAPS LOCK key on
the keyboard while observing the CAPS LOCK LED. The LED should either
turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary
colors (RED, GREEN, or
BLUE)
Inspect the monitor's video cable and make sure that no pin is damaged.
Make sure the monitor's video cable is properly connected to the computer.
Screen image is not centered
or sized properly
Adjust H-Position and V-Position or press hot-key (Power/AUTO).
Picture has color defects
(white does not look white)
Adjust RGB color or select desired color temperature.
Horizontal or vertical
disturbances on the screen
Use Windows 7/8/8.1/10 shut-down mode Adjust CLOCK and FOCUS.
Press to auto-adjust.
Display not on whole screen
in default resolution ration
Select “reset” option to adjust.

20
Specification
General Specification
Panel
Product name
LEAD-PD-2150
Driving system
TFT Color LCD
Viewable Image Size
54.7cm diagonal
Pixel pitch
0.24825mm(H) x 0.24825m(V)
Video
R, G, B Analog lnterface & Digital Interface
Separate Sync.
H/V TTL
Display Color
16.7M Colors
Dot Clock
170MHz
Resolution
Horizontal scan range
30 kHz - 83 kHz
Horizontal scan Size(Maximum)
476.65m
Vertical scan range
50 Hz - 76 Hz
Vertical scan Size(Maximum)
268.11mm
Optimal preset resolution
1920 x 1080 @60 Hz
Plug & Play
VESA DDC2B/CI
Input Connector
D-Sub 15pin; HDMI
Input Video Signal
Analog: 0.7Vp-p(standard), 75 OHM, TMDS
Power Source
100-240V~, 50/60Hz, 1.5A
Power Consumption
Active: 45 W (typical)
Standby ＜0.5W（Touch/USB off ）
Standby＜2W（Touch/USB on）
Off timer
0-24 hrs
Speakers
2W x 2
Physical
Characteristics
Connector Type
D-Sub ; HDMI
Signal Cable Type
Detachable
USB Hub
USB2.0 x 1
Dimensions
521.9(W)*321.4(H)*44.3(D)mm
Weight（only monitor）
4.03kg
Environmental
Temperature:
Operating
0°to 40°
Non-Operating
-25°to 55°
Humidity:
Operating
10% to 85% (non-condensing)
Non-Operating
5% to 93% (non-condensing)
Altitude:
Operating
0~ 3658m (0~ 12000 ft )
Non-Operating
0~ 12192m (0~ 40000 ft )
