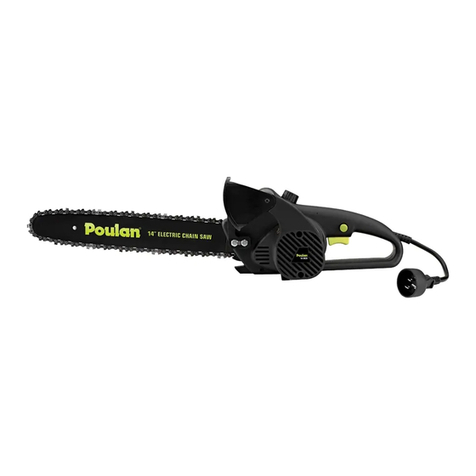

Poulan Pro PLN1514 User manual

952802357
4/27/10 Page:
PARTS LIST
R
PLN 1514
1
Parts List No.
Date
MODEL
NOTE : Illustration may differ from actual model due to design changes.
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
1. 576187501 Handguard - Front
2. 574404101 Kit - Oil Cap
3. Tank - Oil
4. Pad - Anti-Spillage
5. 576187401 Kit - Bar Bolt Hardware
6. 574409801 Kit - Bar Adjusting
7. Screw
8. 966051501 Accy. - Chain - 14”
10. 574399401 Screw
11. 574402101 Cover - Rear
12. Assy. - Motor/Housing
13. Cord - Power
14. Lockout Switch
15. Gear - Motor
16. Roller Bearing
17. Gear - Sprocket
18. 574401101 Support - Sprocket
19. 574399001 Screw
20. 574398901 Nut
21. Housing - Right
22. Screw
23. Assy. - Left Case
24. 574398701 Screw
115367726 Manual
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
Ref. Part No. Description Ref. Part No. Description
Not Shown
10
5
1
2
6
7
21
9
8
3
4
16
11
13
14
15
10
17
22
23
24
18 19
20
10
12
6/1/10 REPLACEMENT OF
576896501
576896601
574401001
9. 966051201 Accy. - Bar - 14”
576896401
574398801
576896901
576896801
574399301
574401401
574401501
576897101
576897201
