WEED EATER PARTS LIST
R
R
POULAN PARTS LIST
R
Replaces

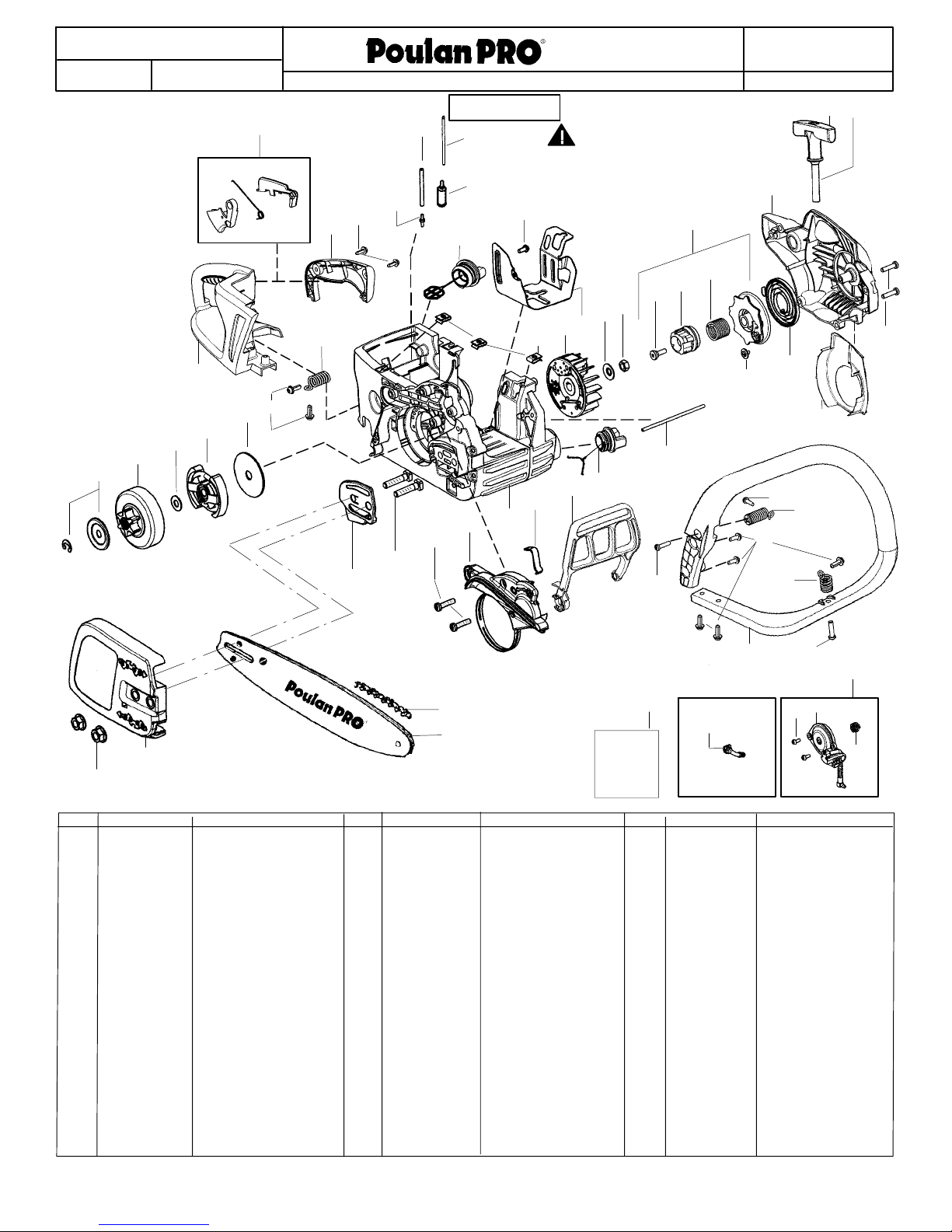

1
Note: Illustration may differ from actual model due to design changes
PARTS L IST NO.
PAGE NO.
CHAIN SAW MODEL(s)
530165649 PP4218AV
DATE
7/03/08
PARTS LIST
530165649 --- 6/06/08
All repairs, adjustments and maintenance
not described in the Operator’s Manual
must be performed by qualified service
personnel.
WARNING
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
45
46
1. 530071927 Kit--Trigger/Lockout
2. 545011903 Cover--Handle
3. 530016433 Screw
4. 530023877 Fitting--Fuel line
5. 530069216 Kit--Fuel Line (Large)
6. 530069247 Kit--Fuel Line (Small)
7. 530095646 Assy--Fuel Pick Up
8. 545012103 Handle--Rear
9. 530059475 Spring--Rear Isolator
10. 530071945 Kit--Clutch Washer
11. 530057905 Assy--Clutch Drum 3/8”
12. 530071945 Kit--Clutch Washer
13. 530057907 Assy--Clutch
14. 530016419 Washer--Large Clutch
15. 530015906 Screw
16. 530047192 Assy--Fuel Cap w/ret
17. 530016064 Screw
18. 530015922 Nut--”U” type speed
19. 530039231 Assy--Flywheel
20. 530057911 Shield--Heat
21. 530015127 Washer--Flywheel
22. 530016134 Nut--Flywheel
23. 530021179 Screw--Shoulder
24. 530059677 Starter Hub--EPS
25. 530021180 Spring--EPS
26. 530071966 Kit-- EPS Starter Pulley
(Incl. 23--25, 32)
27. 545011703 Housing--Fan
28. 530056402 Handle--Starter
29. 530069232 Kit--Rope
30. 530016432 Screw
31. 530042095 Spring--Starter
32. 530016080 Screw
33. 530057868 Baffle
34. 530058786 Assy--Oil Vent
35. 530057236 Assy--Oil Cap w/ret.
36. 530057880 Handguard
37. 530016416 Spring--Handguard
38. 545011803 Assy--Chassis (Incl.
4,5,6,7,9,15,16,17,18,
20,34,35,37,41,51, )
39. 530071893 Kit--Chainbrake
40. 530016432 Screw
41. 530016133 Bolt--Bar
42. 530057910 Plate--Bar
43. 530015917 Nut--Bar
44. 545012003 Assy--Clutch Cover
45. 952051338 Accy--18” Chain
46. 952044926 Accy--18” Bar
47. 530016432 Screw
48. 530016443 Screw
49. 530059480 Assy--Rear Iso. Spring
50. 530015906 Screw
51. 530059479 Assy--Front Iso. Spring
52. 530057878 Handle--Front
53. 530016432 Screw
54. 530071945 Kit--Clutch Washer
(Incl. 10,12)
55. 530057924 Assy--Oil Pick Up
56. 530071891 Kit--Oil Pump
(Incl. 57,58,59)
57. 530016064 Screw
58. 530057931 Assy--Oil Pump
59. 530037820 Gear--Worm
=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL) K
1
