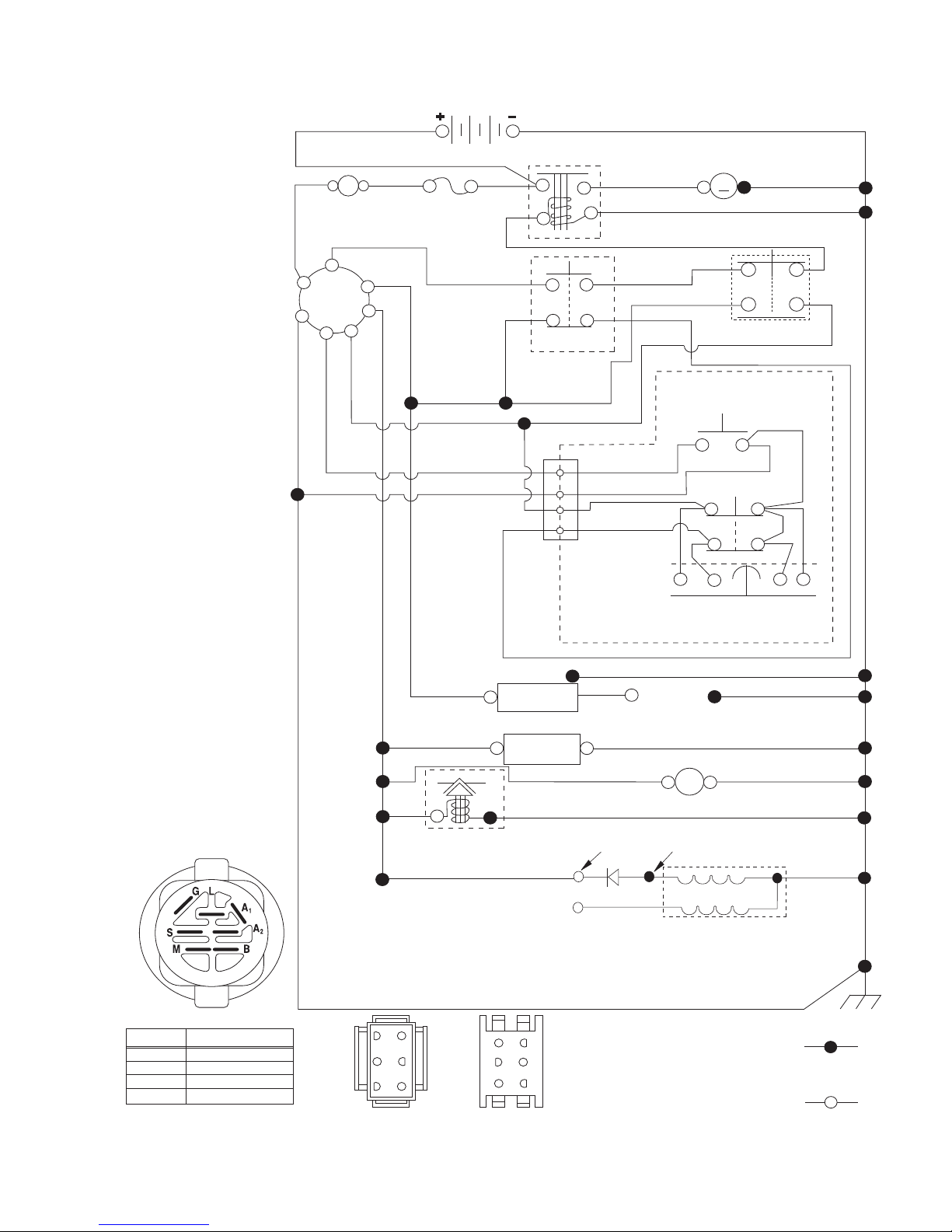

TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
SCHEMATIC
M
FUSE
STARTER
SOLENOID
BATTERY
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
S
M
B
G
L
2
3
1
6
A2
A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH18
IGNITION SWITCH
CIRCUIT
POSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
ATTACHMENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK /WHITE
BLUE
BLUE BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
DER
RED
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(OPTIONAL)
12V
BLACK
A
AMMETER
(OPTIONAL)
RED
ALTERNATOR
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR
BRIGHTEST.

4

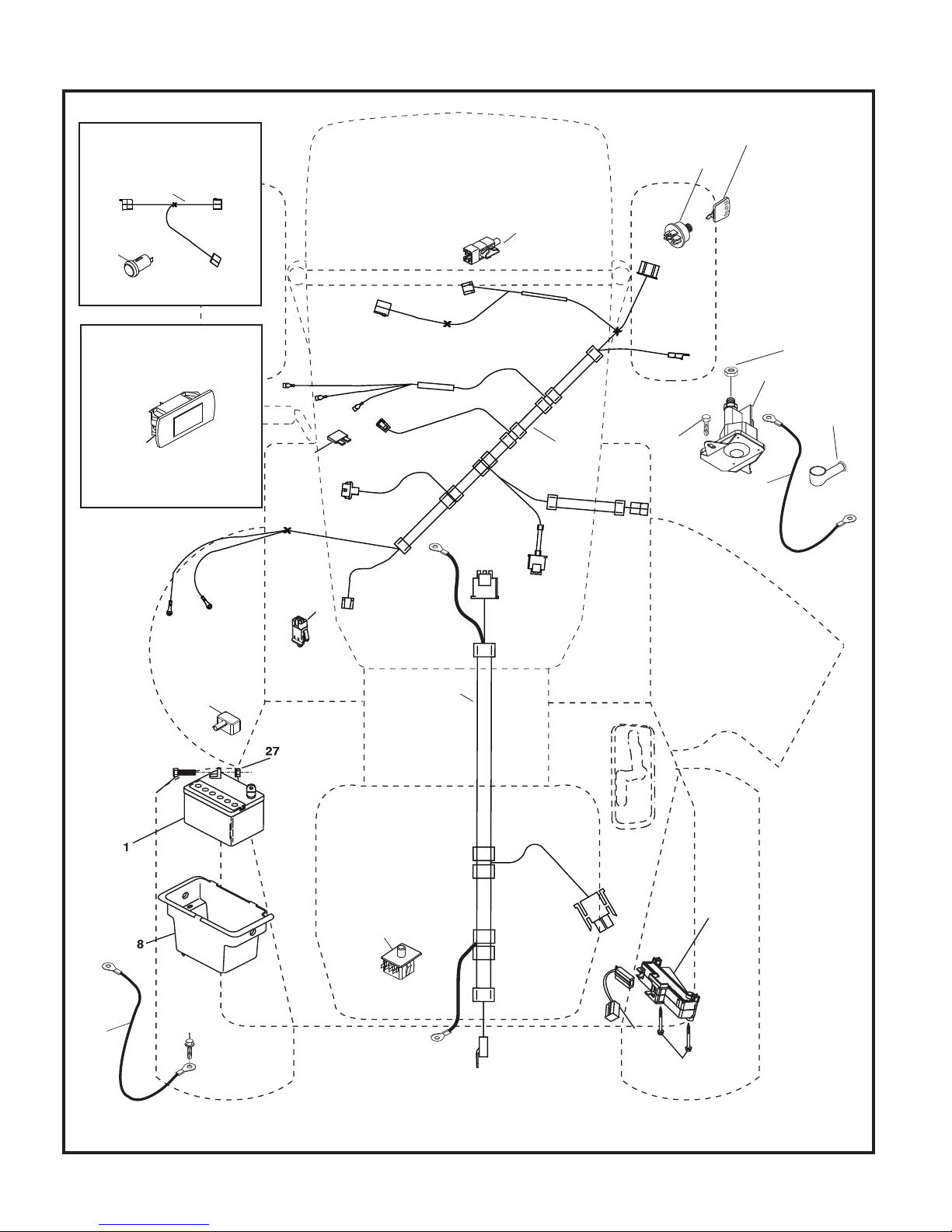

TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
ELECTRICAL
30
33
41
42
26
43
27
40
71
16
87
25
T31K
90
28
55
With 12V Outlet Option
59
103
With Service Minder Option
4646
94
92
29
93
2

5
TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 144924 Battery
2 74760412 Bolt Hex Hd 1/4-20 unc x 3/4
8 193228 Box Battery
16 176138 Switch Interlock
25 412894 Cable Starter Battery 6 Ga. BL/Red 14.5
26 175158 Fuse
27 73510400 Nut Keps Hex 1/4-20 unc
28 198885 Cable Ground 18" Rear Battery Blk 6 Ga.
29 192749 Switch Seat
30 193350 Switch Ign
33 411933 Key/Chain
40 401098 Harness Ign
41 17720408 Screw 1/4-20 unc x 1/2
42 131563 Cover Terminal Red
43 192507 Solenoid
55 17060512 Screw 5/16-18 x 3/4
71 400449 Harness Ign. Chass.
87 197802 Switch Interlock Clutch
90 400725 Cover Terminal
92 196615 Harness Pigtail Reverse Switch
93 192540 Screw Plastic 10-14 x 2.0
94 191834 Modual Reverse ROS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6
Chassis-tex_ALPHA_1
37
181 194
194
36
162
181
196
287
138
182
176
175
177
176
5
176
176
180
52
217
58
189
189
189
189
189
152
228
228
194
68
68
68
68
183
183
236
236
34
235
235
68
213
218
68
130
151
137
14
18
TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
CHASSIS

7
5 197783X428 Dash
14 187559X428 Hood
18 433994X428 Grille
34 196125 Plate Engine
36 17060512 Screw 5/16-18 x 3/4
37 414872X505 Fender
52 73680500 Nut Lock 5/16-18
58 412280 Drawbar Upper
68 17490508 Screw Thdrol 5/16-18 x 1/2
130 416358 Screw #10 x 0.750
137 184921 Bumper Hood
138 193224X428 Cupholder
151 187568 Bracket Pivot
152 199535 Shield Browning/Debris
162 142432 Screw Hex Wsh Hi-Lo 1/4 x 1/2
175 193243 Crossmember
176 400776 Screw 10-24 x 5/8 Wshd Qdrx
177 195228 Bushing Steering
180 414685 Chassis
181 193102X428 Bushing Mtg. Fender Crgo.
182 193057 Dash Lower
183 74520520 Bolt 5/16-18 x 1-1/4
189 17000512 Screw 5/16-18 x 3/4
194 73900500 Nut Lock Hex Flange 5/16-18
196 414579 Console Asm. Deck Lift
213 74760512 Bolt 5/16-18 x 3/4
217 409167 Rod Pivot Hood
218 196395 X-Piece Hood Stop
228 195161 Stud Fastener
235 406129 Spacer Fender
236 73930500 Nut Center Lock 5/16-18
287 17600406 Screw 1/4-20 x 3/8
- - - 193640X428 Plug Switch Light
TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
CHASSIS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION

8
56
29
232
233 165166
64
188
17
195
125
161
35
175
192
134
192
157
141
140
139
23
178
174
176
22
15
15
203
184
167
160
160
42
159
159
166
155
61
202
drive-tex_peerless_fender_39
116
193
2
73 26
158
1
2
37
205 33
1
221
186
189
49
187
50
51
52
51
190
70
74
183
287
185
172
172
125
125
160
TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
DRIVE

9
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - Transaxle, Peerless 203-569
2 123583X Key Square
15 19131316 Washer 13/32 x 13/16 x 16 Ga.
17 197297 Spring, Brake
22 197660 Rod Shift
23 106933X Knob
26 197455 Spring Brake RTN
29 197267 Rod, Brake
33 12000001 Ring E
35 197722 Rod, Brake, Park
37 121749X Washer 25/32 x 1-1/4 x 16 Ga.
42 8883R Cover, Foot Pedal
49 72110614 Bolt
50 194327 Pulley Idler Flat
51 73900600 Lock Nut 3/8-16
52 194326 Idler V-Groove
56 138255 V-Belt, Drive
61 165999 Pulley Transaxle
64 196200 Shaft Asm. Pedal Brake Control
70 429581X428 Console
73 74490544 Bolt 5/16-18 Gr. 5
74 142432 Screw 1/4 x 1/2
116 73900500 Nut Lock Hex Flange 5/16-18
125 17000512 Screw 5/16-18 x 3/4
134 197857 Arm Shift
139 74550412 Bolt 1/4-20 unf Gr. 8 w/Patch
140 10040400 Washer Lock Hvy Helical 1/4
141 19091210 Washer 9/32 x 3/4 x 10 Ga.
155 12000028 Ring Retainer
157 105701X Washer Plate Shf
158 194352 Keeper T/A
159 76020412 Pin Cotter 1/8 x 3/4
160 169484 Retainer Clip
161 105709X Spring, Return, Clutch
165 196212 Busing Shaft Brake Hand Control
166 429164 Nut Push .625
167 405257 Latch Brake Parking
172 197657 Strap Torque LH
174 197289 Nut Push
175 197858 Shaft Asm Shift
176 196214 Arm Clevis Rod Shift
178 197456 Spring Shift
183 137057 Spacer, Axle
184 198403X505 Handle Parking Brake
185 72110622 Bolt
186 194321 Spacer Retainer
187 19133210 Washer
188 194323 Link Clutch Ground Drive
189 194317 Bellcrank Ground Drive
190 194318 Keeper Bellcrank Ground Drive
192 150360 Nut Lock Center 1/4-28
193 17060512 Screw 5/16-18 x 3/4
195 197332 Bracket Brake Rod
202 197859 Link Shift
203 19111116 Washer 11/32 x 11/16 x 16 Ga.
205 121748X Washer 25/32 x 1-5/8 x 16 Ga.
221 403187 Retainer Spring Clip Handle
232 74780716 Bolt 7/16-14 x 1 Gr. 5
233 405296 Washer Serrated
287 421648 Keeper Pulley T/A
TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
DRIVE
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION

10
21
20
OPTIONAL EQUIPMENT
Spark Arrester
29
18
15
37
28
engine-tex_BS_30
12
42
85
9
90
69 2
79
84
45
1
97
96
122

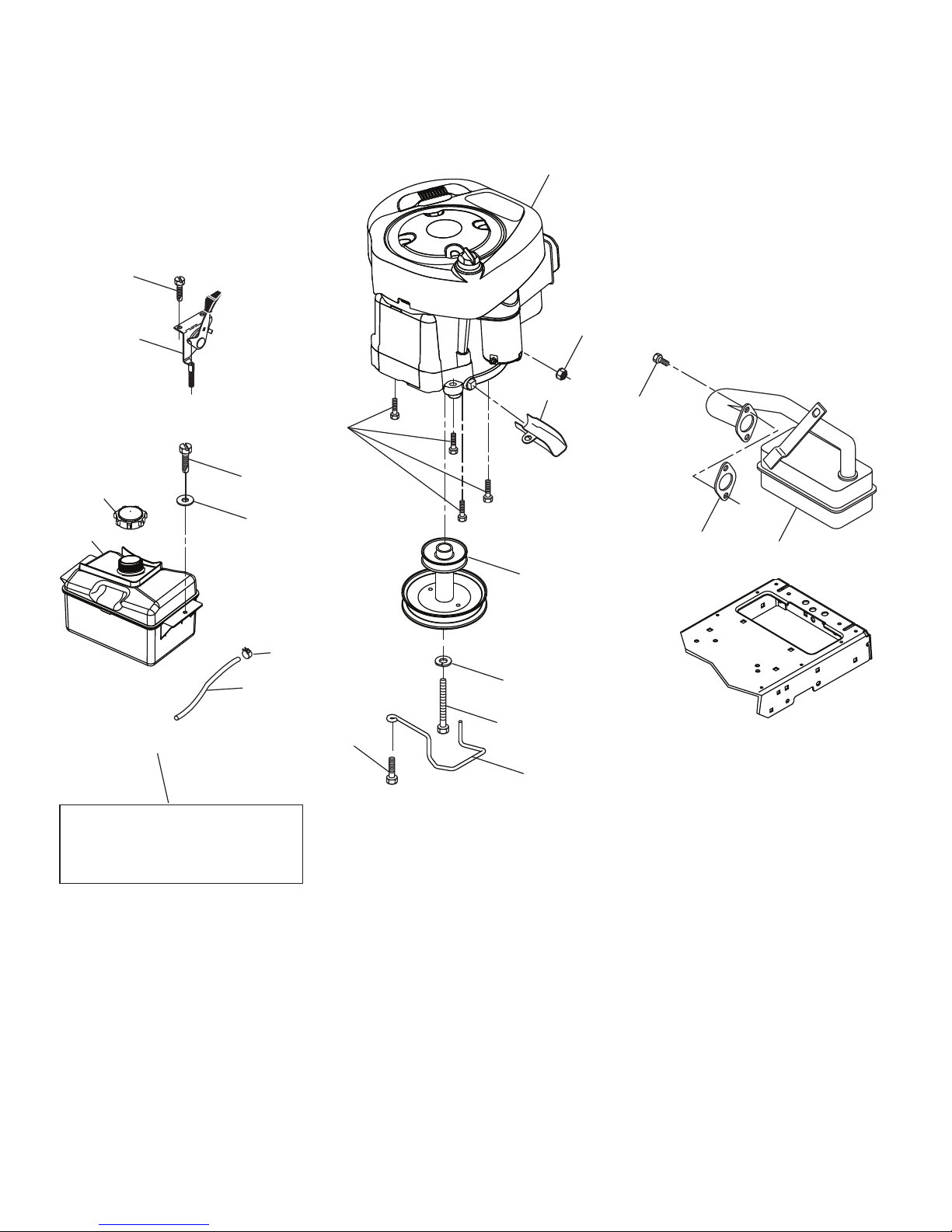

TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
ENGINE

11
TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - Engine Briggs Model No.
219807-0389-B1
2 179758 Muffler
9 194319 Keeper Belt Engine
12 140186 Pulley Engine
15 407545 Tank Fuel 1.5
18 430220 Cap
20 170545 Control Throttle
21 416358 Screw #10 x 0.750
28 401137 Fuel Line
29 137180 Spark Arrester Kit
37 123487 Clamp Hose
42 10040700 Washer Lock 7/16
45 73510400 Nut Keps Hex 1/4-20 unc
69 165291 Gasket
79 192334 Screw 5/16 - 18 x .75
84 17060620 Screw 3/8-16 x 1-1/4
85 71170764 Bolt Hex 7/16-20 x 4 Gr. 5
90 17000616 Screw 3/8-16 x 1
96 19091416 Washer 9/32 x 7/8 x 16 Ga.
97 17670412 Screw 1/4-20 x 3/4
122 421922 Extension Drain Oil
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive
Engineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained
and corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower
values are derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambi-
ent operating conditions and engine-to-engine variability. Given both the wide array of products on which engines are
placed and the variety of environmental issues applicable to operating the equipment, the gas engine will not develop
the rated gross power when used in a given piece of power equipment (actual “on-site” or net power). This difference is
due to a variety of factors including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor,
fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-
engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher
rated power for this Series engine.

12
TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
STEERING
61
steering-tex_STDHRS_10
19
60
59
58
5
62
15
14
13
13
53
8
70
68
69
16
28
28
13
22
64
4
15
14
35
6
74
9
8
74
7
9
87
67
67
66
74
74
6
2
63
63
57
63
1
21
71
72
33
45
20
26

13
1 414803X428 Wheel, Steering
2 418168 Axle Asm., Front
4 416845 Spindle Asm., LH
5 416846 Spindle Asm., RH
6 6266H Washer Thrust 0.75 x 1.23
7 121748X Washer 25/32 x 1-5/8 x 16 Ga.
8 12000029 Ring, Clip #T5304-75
9 121232X Cap, Spindle
13 121749X Washer 25/32 x 1-1/4 x 16 Ga.
14 10040600 Washer Lock 3/8
15 73540600 Nut, Crown Lock 3/8-24 unf
16 429374 Shaft Steering
19 194729 Plate Steering
20 198375X428 Boot, Steering
21 186737 Adapter, Wheel Steering
22 420537 Support, Strg. Lower
26 414854X428 Insert, Wheel Steering
28 17000612 Screw 3/8-16 x 3/4
33 10040500 Washer Lock 5/16
35 194732 Gear, Sector Plate
45 19113812 Washer 11/32 x 2-3/8 x 12 Ga.
53 188967 WasherHardened.793x1.637x.060
57 407465 Bracket Upstop
58 194747 Bolt Shoulder Sector Pivot CFM
59 194748 Washer Thrust Sector Steering
60 73971000 Nut Flange Lock 5/8-11
61 194740 Draglink, LH
62 194741 Draglink, RH
63 17000512 Screw 5/16-18 x 3/4
64 199849 Retainer Clip Spring Steering
66 71020748 Bolt Hex Fghd 7/16-14 x 3 Serr
67 194737 Bushing PM Front Axle
68 73900700 Nut Lock Flange 7/16-14 Gr. 5
69 199162 Washer 1.5 x .505 x .118
70 417065 Bracket Deck Susp. Front
71 190752 Shaft Ext. Steering
72 428982 Bolt 5/16-18 x 4 w/Patch
74 3366R Bearing
TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
STEERING
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION

14
TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 421554X471 Rim Asm Front
4 421652 Tube Front (Service Item Only)
5 123410X Tire F T
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel Only)
8 104757X421 Cap Axle Blk 1 50 x 1 00
9 106230X Tire R T
10 7154J Tube Rear (Service Item Only)
11 421533X471 Rim Asm 8" Rear Service
- - 144334 Sealant, Tire (10 oz. Tube)
1 408813 Decal Engine HP
2 433818 Decal, Fender RH/LH
3 431983 Decal Hood
6 431912 Decal Warning, Keep Hand Away
7 431986 Decal Replacement Parts
8 411658 Decal Fender Warn S/F
9 425112 Decal Fender Logo
11 431982 Decal Ins Strg Whl
14 421543 Decal V-Belt Schematic
20 145005 Decal Bat Dan/Psn
- - 193226X428 Pad Footrest LH
- - 193227X428 Pad Footrest RH
3
2
2
3
9
20
14
1
7
11
6
14
8

15
2
6
6
1
14 10
37
37
21
21
42
19
3
5
16
15
12
17
13
7
8
8
7
8
8
seat-tex_knob_1
1 403017 Seat
2 180166 Bracket Pivot Fender
3 140675 Strap, Asm Fender
5 145006 Clip Push-In Hinged
6 73800600 Nut, Lock w/Ins. 3/8-16 unc
7 124181X Spring, Seat Cprsn
8 171877 Bolt 5/16-18 unc x 3/4 w/Sems
10 199180 Pan, Seat
12 199370 Bracket Seat Mounting
13 121248X Bushing Snap
14 72050412 Bolt 1/4 - 20 X 1-1/2
TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
SEAT
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
15 134300 Spacer Split
16 123740X Spring CPRSN Plate SW 1.310 Ga.
17 123976X Nut Lock 1/4 Gr.5
19 199372 Knob Seat
21 171852 Bolt, Shoulder 5/16-18
37 73800500 Nut, Lock 5/16-18 unc
42 199371 Washer Cup Seat

16
671
38
2
4
3
33
34
35
36
2631
39
30
29
1
28
5
17
43
18
19
20
21
25
24
22
23
11
11 11
26
20
32
9
10 11
12
14
15
16
13
8
tex-deck_SRD_1_r1
27
40
42
42
41
38
TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
MOWER DECK
70
7
7
37
67
152

17
TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
MOWER DECK
1 419272 Deck Weldment 30"Srd
2 195161 Stud Fastner w/'d'anti-Rotatio
3 73900500 Nut Lock Hex Flange 5/16 - 18
4 417645 Bracket Clutch Cable
5 17000510 Bolt 5/16-18
6 418863 Arm Susp Mower Rear Srd
7 416358 Screw #10 x 0.750 BOS Thread
8 420252 Arm Idler 30"Srd
9 199092 Spacer Retainer
10 17000616 Screw 3/8 - 16 X 1 Smgml Tap/R Blk
11 137729 Screw Thd Roll 1/4 - 20 X 5/8
12 199470 Arm Brake Mower 38" RH Tex
13 72110612 Bolt Carr Sh 3/8 - 16 X 1 - 1/2 Gr5
14 156085 Keeper Belt Idler
15 146763 Pulley Idler V-Groove Dim 4.25
16 73900600 Nut Lock FlG 3/8 - 16 unc
17 400234 Nut Flange Lock Top
18 187690 Washer Spacer Mandrel
19 110485X Bearing Ball Mandrel
20 173984 Screw Thd Roll Dod Pt Hex
21 416910 Keeper Belt Mandrel 30"
22 193198 Pulley Idler Flat Unplated
23 17490628 Screw Thdrol 3/8 - 16 X 1-3/4
24 19132012 Washer 13/32 X 1 - 1/4 X 12 Ga
25 420253 Keeper Belt 30"Srd
26 420255 Cover Mandrel Mwr 30"Black
27 419271 Drive, Belt
28 417344 Deflector
29 420895 Hinge Pin
30 197026 Spring Torsion
31 110452X Nut Push
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
32 401872 Spring Return Deck 38/46"
33 187281 Housing Mandrel 4pt Service
34 192872 Shaft Asm Mndrl N/Greaseable 38
35 419274 Blade Mower Bagging Srd
36 193003 Bolt/Washer Asm 7/16 - 20 unf
37 19131316 Washer 13/32 x 13/16 x 16 Ga.
38 196539 Bolt Shoulder
39 105304X Cap Sleeve
40 419270 Keeper Belt Engine LH
41 419265 Keeper Belt Engine RH
42 17000612 ScrewHexwshTHDR3/8-16x3/4BL
43 416877 Pulley Mandrel 6 5 Pd 30"
67 198398X505 Handle clutch cable
70 198332 Clutch Asm. Manual
71 17670608 Screw 3/8-16 x 1/2
152 408714 Manual Clutch Cable
- - 192870 Mandrel Assembly (Includes Hous-
ing, Shaft Assembly, And Bearing
Only -Pulley/Nut/Washer And
Blade Bolt/Washers Not Included)
- - 431888 Replacement Mower Complete

18
2 422027 Shaft Asm.,Cross Lift
3 195231 Lever Asm., Lift RH
7 196492X428 Grip, Lever
10 196314 Spring Torsion
87 194209 Pin Cotter 7/16 Bow Tie Lock
88 410710 Spring Lift Assist
89 19191912 Washer Clear Zinc
90 194208 Pin Cotter 5/16 Bow Tie Lock
91 195181 Link Lift Susp Mower Rear
TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05
MOWER LIFT
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
97 17000612 Screw 3/8-16 x .75 Smgml Tap/R.Z
98 195264 Link Lift Susp. Front Mower
100 73930600 Nut Centerlock 3/8 -16 unc
101 407003 Link Asm Lift Fixed
113 19171912 Washer 17/32 x 1-3/16 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
7
3
87
10
88
2
113
90
87
98
97
97
lift-tex_11_r1
91
101*
89 87
100
*Key 91 may be substituted for Key 101
