REPAIR PARTS MANUAL
MODEL:
PPH23B48
LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan-pro.com
WARNING:
READ THIS MANUAL AND FOLLOW ALL
WARNINGSANDSAFETYINSTRUCTIONS.
FAILURETODOSOCANRESULTINSERI-
OUS INJURY.
IMPORTANT MANUAL DO NOT THROW AWAY
427119 02.06.09 SR Printed in the U.S.A.
03076

2
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
whenorderingrepairparts. Theillustrationsmayormaynotrepresenttheactualassemblies;therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “Tractor”
• MODEL NUMBER - “ PPH23B48 (96042008100) ”
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC ................................................................................................................3
ELECTRICAL............................................................................................................4-5
CHASSIS ..................................................................................................................6-7
DRIVE........................................................................................................................8-9
ENGINE.................................................................................................................10-11
STEERING............................................................................................................12-13
SEAT..........................................................................................................................14
DECALS.....................................................................................................................15
MOWER DECK.....................................................................................................16-17
MOWER LIFT.............................................................................................................18
WARRANTY...............................................................................................................19

3
NOTES
M
FUSE
STARTER
SOLENOID
BATTERY
ELECTRIC CLUTCH
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
REGULATOR
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
LIGHT
SWITCH
HEADLIGHTS
STATOR
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF EQUIPPED)
JUNCTION
CONNECTOR
PTO SWITCH
(DISENGAGED)
SM
B
GL
2
3
1
6
A2
A1
M
6
3
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
9-16AMPDC@3600 RPM
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH12
IGNITION SWITCH
CIRCUIT
POSITION
OFF B+A1
RUN/OVERRIDE
B+S+A1
START
M+G+A1
B+A1
RUN
“MAKE”
L+A2
POWER OUTLET
(OPTIONAL)
12V
A
AMMETER
(OPTIONAL)
BLACK
BLACK /WHITE
ORANGE
RED
BROWN
BLUE
BLUE
BLACK
BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
RED
RED
RED
RED
WHITE
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
B
A
G
H
D
FC
E
PTO SWITCH
B
A
H
D
C
E
BLUE BLACK
TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81
SCHEMATIC

4
TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81
ELECTRICAL
8
1
99
100
91
227
90
28
55
26
43
41
24
27
25
30 33
22
79 21
40
71
34
With Service Minder Option
4646
With 12V Outlet Option
59
103
16
42
T11S
102
29
105

5
TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 163465 Battery
2 74760412 Bolt Hex Head 1/4-20 x 3/4
8 186491 Box Battery
16 176138 Switch Interlock Push-In
21 183759 Harness Socket Light w/4152J
22 4152J Bulb Light
24 400253 Cable Battery
25 412894 Cable Starter
26 175158 Fuse
27 73510400 Nut Keps Hex 1/4-20 unc
28 145491 Cable, Ground
29 401545 Switch, Seat
30 193350 Switch, Ign
33 411935 Key/Chain
34 110712X Switch Light / Reset
40 401104 Harness Ign. Dash
41 17720408 Screw Thd Cut 1/4-20 x 1/2
42 131563 Cover, Terminal
43 192507 Solenoid
46 401763 Gauge Hourmeter
50 174651 Switch PTO
55 17060512 Screw Thdrol 5/16-18 x 3/4 TYTT
71 194276 Harness Ign.
79 175242 Socket Asm Bulb Twistlock
90 400724 Cover Terminal Battery
91 190270 Strap Battery Mount Front
99 17670412 Screw Hexwsh Thdrol 1/4-20 x 3/4
100 19091416 Washer 9/32 x 7/8 x 16 Ga.
102 404454 Harness Pigtail
105 407568 Switch Reverse TT Pedal Control
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6
TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81

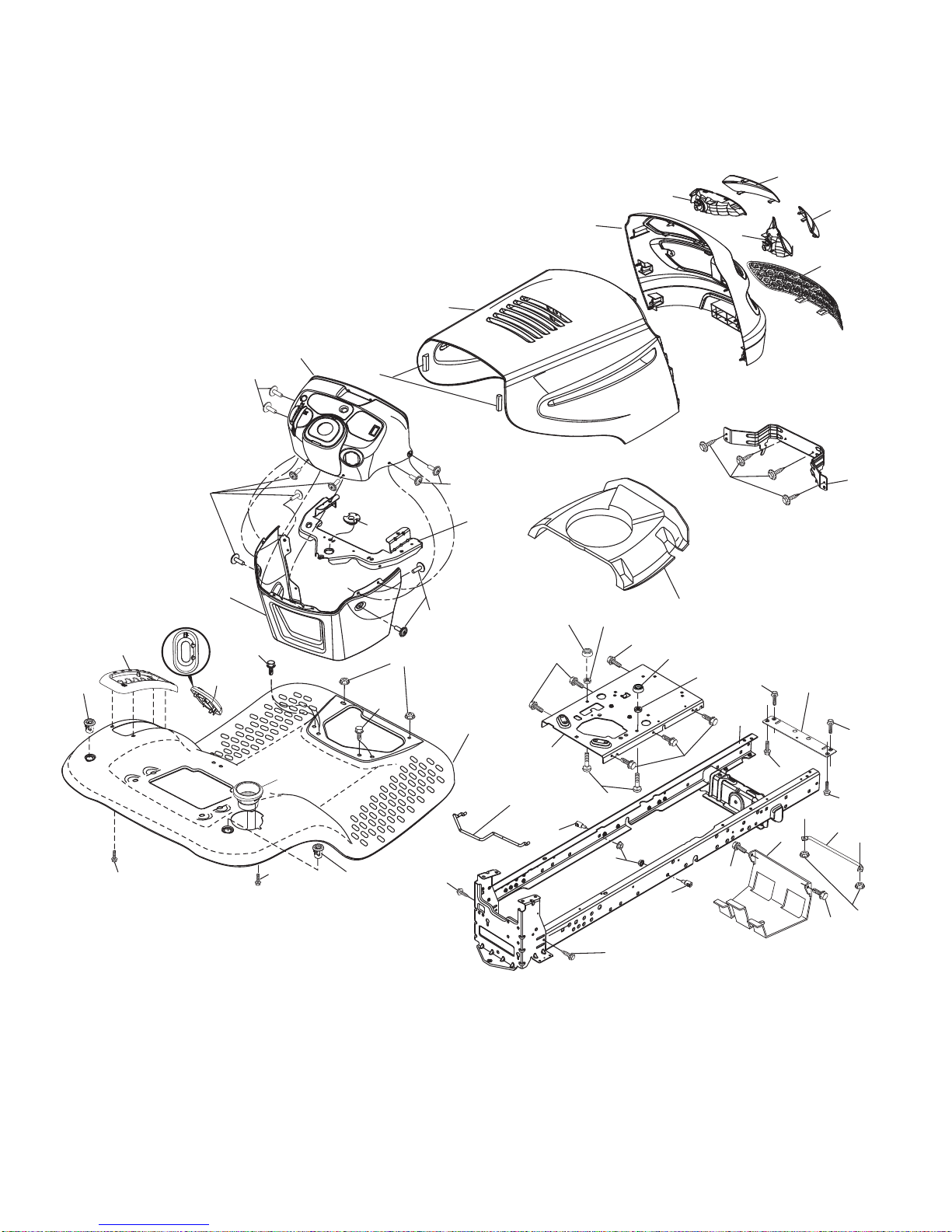

CHASSIS
68 68
68
228
228
183
194
236
236
180
68
68
213
213
52
218
34
Chassis-tex_elite-sv-pro_19
189
189
152 217
235
235
182
176
176
175
177
5
176
176 130 151
137
14
18
208
207
15
25
186
37
194
181
36
36
196
181
162
138
287
161
233
233
165
150

7
TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81
CHASSIS
KEY PART
NO. NO. DESCRIPTION
2 194263 Drawbar
5 199649X428 Dash
14 183393X428 Hood
15 183834X599 Lens Grille LH
18 183395X428 Grille
25 183835X599 Lens Grille RH
34 196125 Plate Engine
36 17060512 Screw 5/16-18 x 3/4
37 414878X417 Fender
52 73680500 Nut Lock 5/16-18
68 17490508 Screw THDROL 5/16-18 x 1/2
130 416358 Screw #10 x 0.750 BOS Thread
137 184921 Bumper Hood
138 193224X428 Cupholder
150 189350 Duct Heat Hood
151 407807 Bracket Pivot
152 199535 Shield Browning/Debris
161 193229X428 Window Fuel
162 142432 Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc
165 196826 Bracket Support Tank
175 193243 Crossmember
176 400776 Screw 10-24 x 5/8 Wshd Qdrx
177 195227 Bushing Steering
180 195457 Chassis
181 193102X428 Bushing Mtg. Fender Crgo.
182 193057 Dash Lower
183 74780520 Bolt Fin Hex 5/16-18 x 1-1/4
186 183829X428 Insert Grille
189 17000512 Screw 5/16-18 x 3/4
194 73900500 Nut Lock Hex Flange 5/16-18
196 414579 Console Asm. Deck Lift
207 183833 Bezel RH
208 183832 Bezel LH
213 74760512 Bolt 5/16-18 x 3/4
217 409167 Rod Pivot Chassis
218 196395 X-Piece Hood Stop
228 195161 Stud Fastener
233 196539 Bolt Shoulder
235 406129 Spacer Fender
236 73930500 Nut Center lock 5/16-18 unc
287 17600406 Screw Hex Washead 1/4-20 x 3/8
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

8
TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81

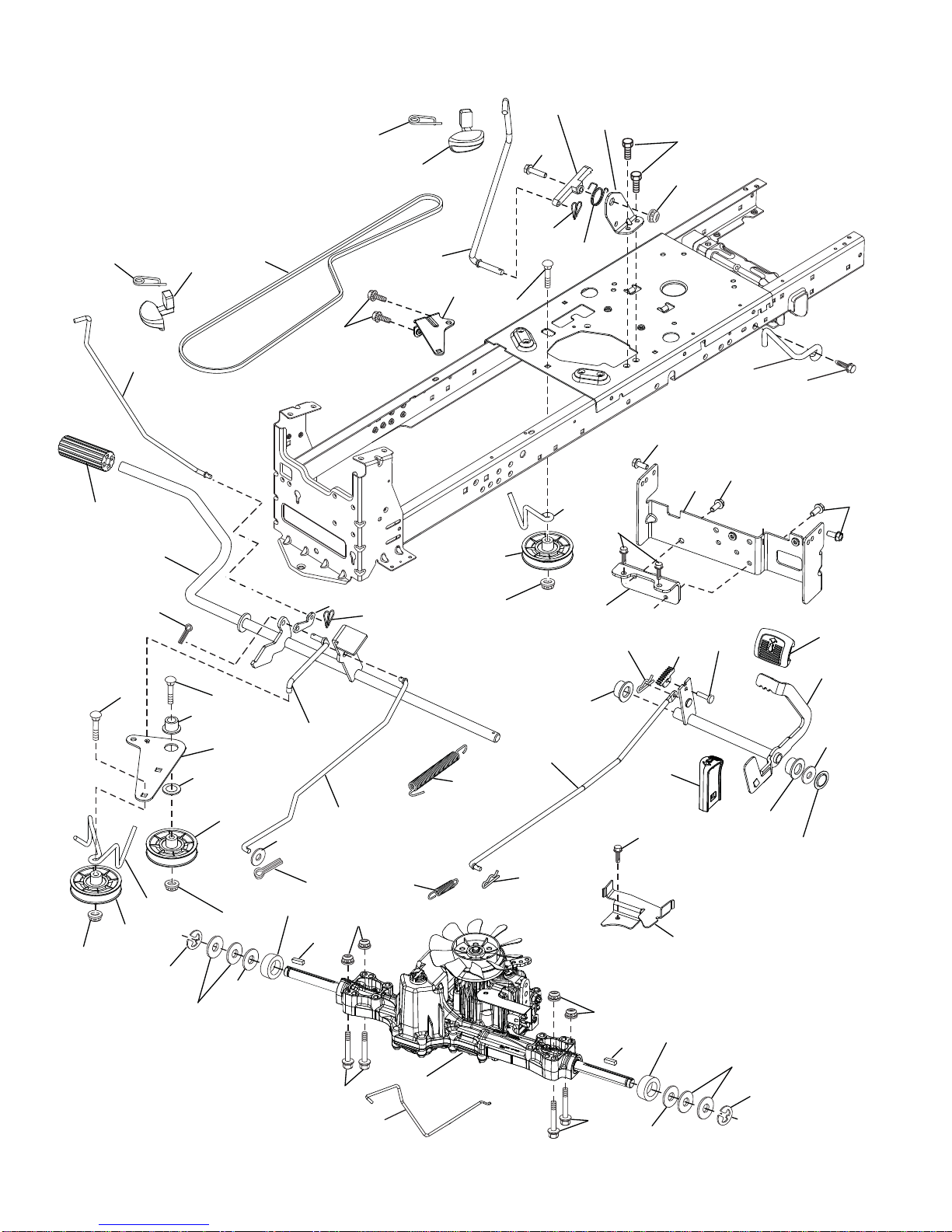

DRIVE
52
51
170
171
225
125
drive-tex_K46_pedal_28
2
2
73
73 33
205
1
116
33
230
230
183
183
205
116
56
213
221
160
206
26
207
209
92 125
116
64
188
161
167
160
42
29
15
159
159
35
184
221
186
189
49
187
50
51
52
51
190
185
125
226
125
125
80 125
208
210
214
125
215
153
166
211
211
222
17
163
153
99
216
143
197
196

9
TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81
DRIVE
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
1 - - - - - - Transaxle, Tufftorq K46BT (Order
PartsfromTransaxleManufacturer)
2 123583X Key
15 19131316 Washer 13/32 x 13/16 x 16 Ga.
17 413678 Spring, Brake
26 199679 Spring Return Cruise
29 403806 Rod, Brake
33 12000001 Ring E
35 197722 Rod, Brake, Park
42 8883R Cover, Foot Pedal
49 72110614 Bolt
50 194327 Pulley Idler Flat
51 73900600 Lock Nut 3/8-16
52 194326 Idler V-Groove 910" Offset
56 130969 V-Belt, Drive
64 197865 Shaft Asm. Pedal Brake Control
73 74490544 Bolt Hex 5/16-18 x 3.75
80 410024 Strap Torque
92 74760520 Bolt Fin Hex 5/16-18 unc x 1.25
99 415742 Rod Spring Bypass
116 73900500 Nut Lock Hex Flange 5/16-18
125 17000512 Screw 5/16-18 x 3/4
143 17490508 Screw 5/16-18 x 1/2
153 4497H Retainer Spring
159 76020412 Pin Cotter 1/8 x 3/4
160 169484 Retainer Clip
161 105709X Spring, Return, Clutch
163 401034 Rod Pedal Control
166 197290 Nut Push .625
167 405257 Latch Brake Parking
170 194322 Keeper Belt Centerspan
171 72110616 Bolt
183 137057 Spacer Axle
184 198403X505 Handle Parking Brake
185 72110622 Bolt
186 194321 Spacer Retainer
187 19133210 Washer
188 194323 Link Clutch Ground Drive
189 194317 Bellcrank Ground Drive
190 194318 Keeper Bellcrank Ground Drive
196 17000616 Screw 3/8-16 x 1
197 195804 Link Clutch Anti-Rotation
205 121748X Washer 25/32 x 1-5/8 x 16 Ga.
206 197867 Bracket Mount Latch Cruise
207 197868 Latch Control Cruise
208 197869 Gear Sector Control Cruise
209 400769 Rod Control Cruise
210 400980 Rockr Asm. Pdeal Control
211 120183X Bearing Nylon
213 400799 x428 Knob control Cruise
214 421263 Pad Pedal Forward
215 197301 x428 Pad Pedal Reverse
216 196131 Bracket Pulley Idler
221 403187 Retainer Spring Clip Handle
222 79212010 Washer 21/32 x 1-1/4 10 Ga.
225 403319 Keeper Belt Transaxle
226 401564 Bracket Mount Torque
230 188967 Washer Harden .793 x 1.637 x 060
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

10
TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81

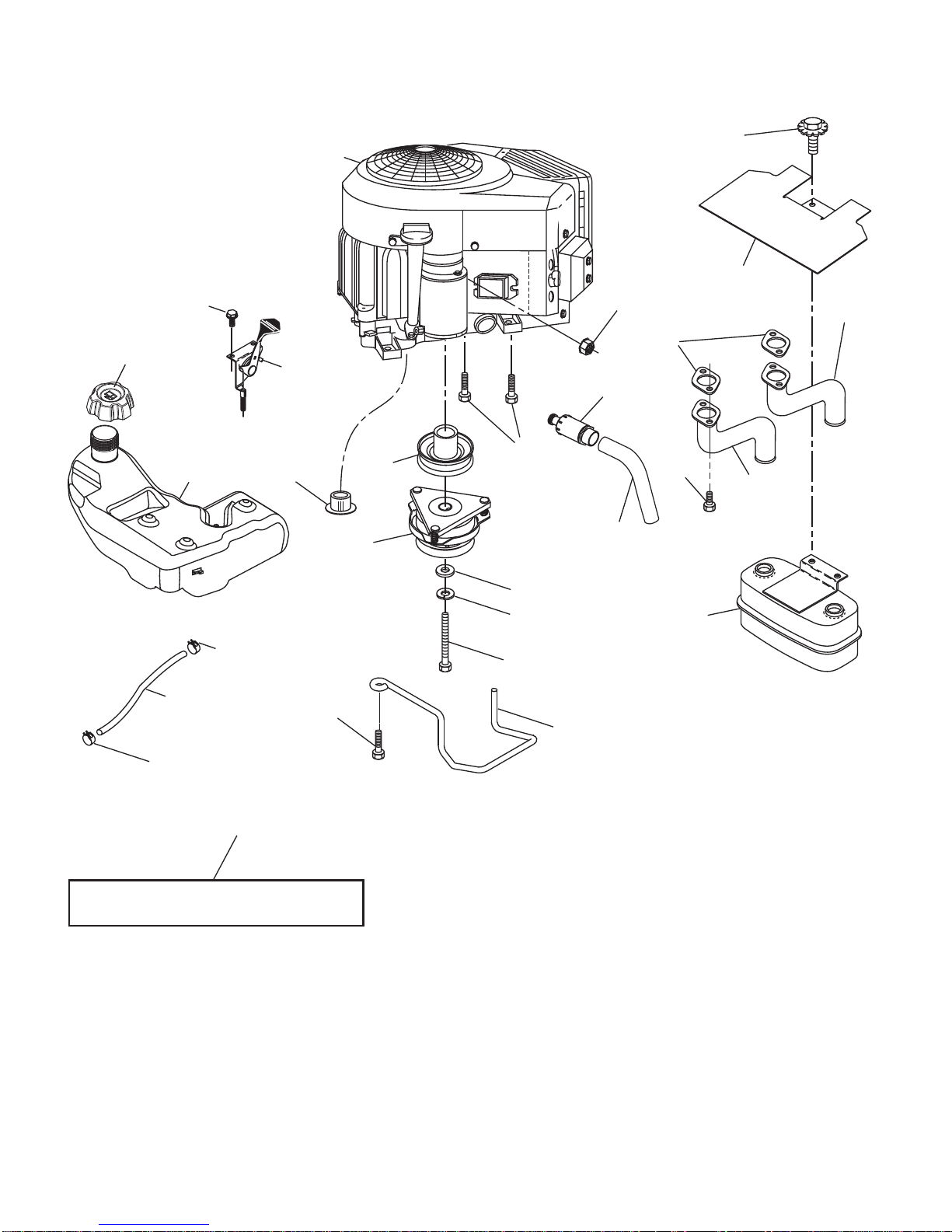

ENGINE
1
84
12
11
41
42
85
29
SPARK ARRESTER KIT
45
18
15
37
28
37
21
20
62
71
70
79
69
87
2
engine-tex_bs-2cyl_18
81
82
9
90
91

11
TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - Engine Briggs Model No.
445577
2 149723 Muffler
9 194320 Keeper Belt Engine
11 400008 Clutch Electric
12 405097 Pulley Engine
15 400021 Tank Fuel 3.0
18 195951 Cap Asm
20 421473X428 Control Throttle
21 416358 Screw #10 x 0.750 BOS Thread
28 401135 Fuel Line
29 137180 Spark Arrester Kit
37 123487X Clamp Hose
41 126197X Washer 1-1/2 x 15-32 x .250
42 10040700 Washer Lock 7/16
45 73510400 Nut Keps Hex 1/4-20 unc
62 146629 Shield Heat Muffler
69 165391 Gasket
70 159955 Exhaust Tube RH
71 160589 Exhaust Tube LH
79 183906 Screw Socket Head 5/16-18 x 1
81 148456 Tube Drain Oil Easy
82 181654 Plug Drain Oil
84 17060620 Screw 3/8-16 x 1-1/4
85 173937 Bolt Hex 7/16-20 x 4 x 5 Ga.-1.5
87 171877 Bolt 5/16-18 x 3/4
90 17000616 Screw 3/8-16 x 1
91 187495 Bushing
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engi-
neers) code J11940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and
corrected in accordance with SAE J1995 (Revision 2002-5). Actual gross engine power will be lower and is affected by,
among other things, ambient operating conditions and engine-to-engine variability. Given both the wide array of prod-
ucts on which engines are placed and the variety of environmental issues applicable to operating the equipment, the
gas engine will not develop the rated gross power when used in a given piece of power equipment (actual “on-site” or
net horsepower). This difference is due to a variety of factors including, but not limited to, accessories (air cleaner, ex-
haust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature,
humidity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton
may substitute an engine of higher rated power for this Series engine.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll
free number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723

12

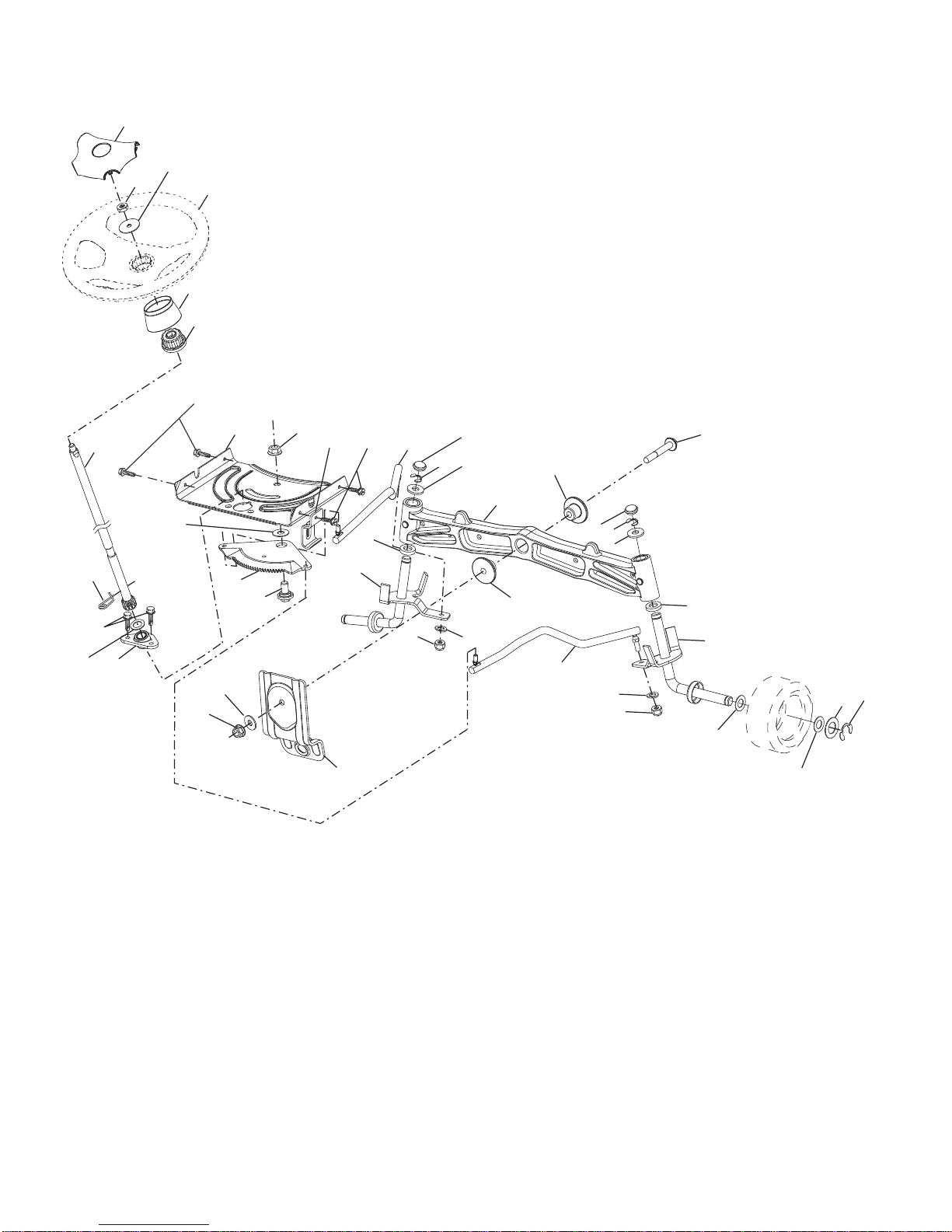

TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81
STEERING ASSEMBLY
6
5
13
13
53 8
9
9
8
8
7
7
62
4
35
19
63
57
60
59
58
70
68
69
67
67
66
15
15
14
14
61
2
6
steering-tex_LEGND2_6
16
28
13 22
64
21
51
26
1
45
63
20

13
TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 414803X428 Wheel, Steering
2 195968 Axle Asm., Front
4 403087 Spindle Asm., LH
5 403088 Spindle Asm., RH
6 6266H Bearing, Race Thrust Harden
7 121748X Washer 25/32 x 1-5/8 x 16 Ga.
8 12000029 Ring, Klip #T5304-75
9 121232X Cap, Spindle
13 121749X Washer 25/32 x 1-1/4 x 16 Ga.
14 10040600 Washer, Lock Hvy Hlcl Spr 3/8
15 73540600 Nut, Crown Lock 3/8-24 unf
16 408219 Shaft Steering
19 194729 Plate Steering
20 199743X428 Boot, Steering
21 186737 Adapter, Wheel Steering
22 194845 Bushing, Strg. Blk
26 414854X428 Insert, Wheel Steering
28 17000612 Screw 3/8-16 x 3/4
35 194732 Gear, Sector Plate
45 19183812 Washer9/16IDx2-3/8OD12GZIN
51 73940800 Nut Hex Jam Toplock 1/2-20 unf
53 188967 WasherHardened.793x1.637x.060
57 197246 Bracket Upstop
58 194747 Bolt Shoulder Sector Pivot CFM
59 194748 Washer Thrust Sector Steering
60 73971000 Nut Flange Lock 5/8-11
61 194740 Draglink LH
62 194741 Draglink, RH
63 17000512 Screw 5/16-18 x 3/4
64 199849 Retainer Clip Spring Steering
66 71020748 Bolt Hex Fghd 7/16-14 x 3 Serr
67 194737 Bushing PM Front Axle
68 73900700 Nut Lock Flange 7/16-14 Gr. 5
69 199162 Washer 1.5 x .505 x .118
70 196197 Bracket Deck Susp. Front
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

14
TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81
SEAT ASSEMBLY
1 406623 Seat
2 180166 Bracket Pivot Fender
3 140675 Strap, Asm Fender
6 73800600 Nut, Lock w/Ins. 3/8-16 unc
7 124181X Spring, Seat Cprsn
8 171877 Bolt 5/16-18 uncx 3/4 w/Sems
10 196977 Pan, Seat
21 171852 Bolt, Shoulder 5/16-18
37 73800500 Nut, Lock 5/16-18 unc
40 197661 Handle Slide Seat
41 198200 Spring Latch Seat
43 74760612 Bolt Fin Hex 3/8-16 unc x 3/4
44 19133812 Washer 13/32 x 2-3/8 x 12Ga.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
8
8
seat-tex_6.5SL_1_r1
44
43

15
TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
1
1 59192 Cap, Valve, Tire
2 65139 Stem, Valve
3 106732X428 Rim Assembly, Front
4 59904 Tube, Front
5 106222X Tire, Front
6 278H Fitting, Grease
7 9040H Bearing, Flange
8 104757X428 Cap, Axle (Front Wheel Only)
9 138468 Tire, Rear
10 7152J Tube, Rear
11 106108X428 Rim Assembly, Rear
- - 144334 Sealant, Tire (10 oz. Tube)
3
2
1 426940 Decal, Hood RH
2 426941 Decal, Hood LH
3 427113 Decal, Side Panel
4 426942 Decal, Fender
5 408841 Decal, Engine
6 411658 Decal, Fender
8 170563 Decal, Warning
9 145005 Decal, Battery Dnge/Poi
11 426685 Decal, Replacement
6
12 408949 Decal, Fender Side LH
13 426943 Decal, Steering Wheel
14 198785 Decal, Mower Schematic
- - 400981X428 Pad, Footrest, RH
- - 166960 Decal, Bypass
- - 193226X428 Pad, Footrest, LH
- - 427118 Manual, Operator's (Eng/French)
- - 427119 Manual, Parts
3
13
9
5
14
8
11
4

16
TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81
MOWER DECK
241
242
47
7
50
46
32
33
31
30
1
33
52
48
43
54
97
33
49
39
185
46
46
6
21
122
114
98
31
32
25 26
24
27
194
113
17
21
49
187
190
188
190
187
120
117
116
189
21
18
13
14
15
22
20
11
8
29
48_Deck_tex_22_r2
12
16 19

17
TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81
MOWER DECK
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 197216X417 Deck Weldment Mower
2 178345 Plug Hole Mandrel
6 197248 Cover Mandrel LH
7 199102 Cover Mandrel RH
8 193003 Blot/Washer Asm 7/16-20 unf
11 180054 Blade High Lift
- - 173921 Blade Mulching
12 404851 Rod Anti-Sway
13 187291 Shaft Asm. Mandrel
14 187281 Housing, Mandrel
15 110485X Bearing, Ball, Mandrel
16 19131312 Washer 13/32 x 13/16 x 12 Ga.
17 72110505 Bolt 5/16-18 x 5/8
18 72140505 Bolt RdHd 5/16-18 unc x 5/8
19 194208 Pin Cotter 5/16 Bow Tie Lock
20 174378 Baffle Vortex
21 73680500 Nut, Crownlock 5/16-18 unc
22 174493 Stripper Mandrel
24 105304X Cap Sleeve
25 178102 Spring, Torsion
26 110452X Nut, Push
27 180655X428 Deflector Shield
29 131491 Rod, Hinge
30 173984 Screw, Thdroll Washer Head
31 426210 Spacer Mandrel
32 153532 Pulley, Mandrel
33 400234 Nut, Flg. Top Lock
39 197380 Pulley, Idler
43 196065 Arm, Idler
46 137729 Screw, Thdroll. 1/4-20 x 5/8
47 197242 Belt Deck Drive
48 193197 Pulley Idler
49 73900600 Nut, Lock Flg. 3/8-16 unc
50 17490636 Screw TT 3/8-16 x 2-1/4
52 197379 Pulley Idler Clutching
54 72110612 Bolt Carr. Sh 3/8-16 x 1-1/2 Gr. 5
97 178515 Washer Hardened
98 196105 Spring Drive
113 72110508 Bolt Rdhd Sqnk 5/16-18 x 3/4
114 197451 Rod Tension Relief
116 193406 Bolt, Shoulder
117 174873 Gauge Wheel
120 19132012 Washer 13/32 x 1-1/4 x 12 Ga.
122 187557 Bushing Tension Relief
185 73900700 Nut Lock Flange 7/16-14 Gr. 5
187 195161 Stud Fastener w/"D" Anti-Rotation
188 73900500 Nut Lock Hex Flange
189 195185 Arm Susp. Mower Rear
194 72140716 Bolt Carr Sqnk 7/16-24 x 2
241 152927 Screw
242 415598 Port Washout
- - 416405 Cooupling Quick Connect
- - 187292 Mandrel Assembly (Includes hous-
ing, shaft assembly, and bearing
only - pulley/nut/washer and blade
bolt/washers not included)
- - 427105 Replacement Mower, Complete

18
TRACTOR - MODEL NO. PPH23B48 (96042008100), PRODUCT NO. 960 42 00-81
MOWER LIFT
7
3
87
10 88
2
89
90
87
98
97
97
91
lift-tex_3
91
89
87
89
87
2 195223 Shaft Asm., Lift
3 195231 Lever Asm., Lift RH
7 196492X428 Grip, Lever
10 196314 Spring Torsion
87 194209 Pin Cotter 7/16 Bow Tie Lock
88 410710 Spring Lift Assist
89 19191912 Washer Clear Zinc
90 194208 Pin Cotter 5/16 Bow Tie Lock
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
91 195181 Link Asm. Lift Rear
97 17000612 Screw 3/8-16 x .75 R.Z
98 195264 Link Lift Susp. Front Mower

19
LIMITED WARRANTY
The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materi-
als and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or
replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due
to materials or workmanship. This Warranty is subject to the following limitations and exclusions.
1. This warranty does not apply to the engine, transaxle/transmission components, battery (except as noted below) or com-
ponents parts thereof. Please refer to the applicable manufacturer's warranty on these items.
2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchas-
er. Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser un-
less such return is requested by the manufacturer.
3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery which we find
to be defective in manufacture, during the first ninety (90) days of ownership. After ninety (90) days, we will exchange the
Battery, charging you 1/12 of the price of a new Battery for each full month from the date of the original sale. Battery must
be maintained in accordance with the instructions furnished.
4. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of original
purchase.
5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained in ac-
cordance with the instructions furnished. This Warranty does not apply to any product which has been subjected to altera-
tion, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.
6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments, standard
hardware and normal maintenance.
7. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.
Should you have any unanswered questions concerning this Warranty, please contact:
giving the model number, serial number and date of purchase of your product and the name and address of the authorized
dealer from whom it was purchased.
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRAN-
TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas
do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above limi-
tations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which
vary from locale to locale.
This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975.
In Canada contact:
HOP
5855 Terry Fox Way
Mississauga, Ontario
L5V 3E4
HOP
Outdoor Products Customer Service Dept.
1030 Stevens Creek Road
Augusta, GA 30907 USA
