Poulan Pro Pro 96042006000 User manual

REPAIR PARTS MANUAL
MODEL:
PB22H54BF
LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan-pro.com
WARNING:
Read this Manual and follow all Warnings
and Safety Instructions. Failure to do so can
result in serious injury.
IMPORTANT MANUAL DO NOT THROW AWAY
PRINTED IN THE U.S.A.
417921 REV. 3 07-03-08 SBW
03076

2
TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
7
1
1 59192 Cap, Valve, Tire
2 65139 Stem, Valve
3 106228X421 Rim Assembly, Front
4 8134H Tube, Front
5 106230X Tire, Front
6 278H Fitting, Grease
7 9040H Bearing, Flange
8 104757X421 Cap, Axle (Front Wheel Only)
9 184708 Tire, Rear
10 7152J Tube, Rear
11 400404X421 Rim Assembly, Rear
- - 144334 Sealant, Tire (10 oz. Tube)
3
15
2
1 402355 Decal, Hood RH
2 402357 Decal, Hood LH
3 408796 Decal, Side Panel
4 172740 Decal, Fender
5 418286 Decal, Engine
6 411658 Decal, Fender Operator's
7 402526 Decal, Lower Dash
8 170563 Decal, Warning
9 145005 Decal, Battery Danger/Poison
10 408948 Decal, Fender RH
6
11 417168 Decal, Replacement
12 408949 Decal, Fender LH
13 172743 Decal, Steering Wheel
14 198785 Decal, Mower Schematic
15 178502 Decal, Caution
- - 166960 Decal, Bypass
- - 193279X428 Pad, Foot Pedal Control
- - 193101X428 Pad, Footrest, LH
- - 417920 Manual, Operator's (Eng/French)
- - 417921 Manual, Parts
3
13
9
5
14
8
11
4
7
12
10

3
NOTES
M
FUSE
STARTER
SOLENOID
BATTERY
ELECTRIC CLUTCH
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
REGULATOR
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
LIGHT
SWITCH
HEADLIGHTS
STATOR
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF EQUIPPED)
JUNCTION
CONNECTOR
PTO SWITCH
(DISENGAGED)
SM
B
G
L
2
3
1
6
A2
A1
M
6
3
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
9-16AMPDC@3600 RPM
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH12
IGNITION SWITCH
CIRCUIT
POSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1
START
M+G+A1
B+A1
RUN
“MAKE”
L+A2
POWER OUTLET
(OPTIONAL)
12V
A
AMMETER
(OPTIONAL)
BLACK
BLACK /WHITE
ORANGE
RED
BROWN
BLUE
BLUE
BLACK
BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
RED
RED
RED
RED
WHITE
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
B
A
G
H
D
FC
E
PTO SWITCH
B
A
H
D
C
E
BLUE BLACK
TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60

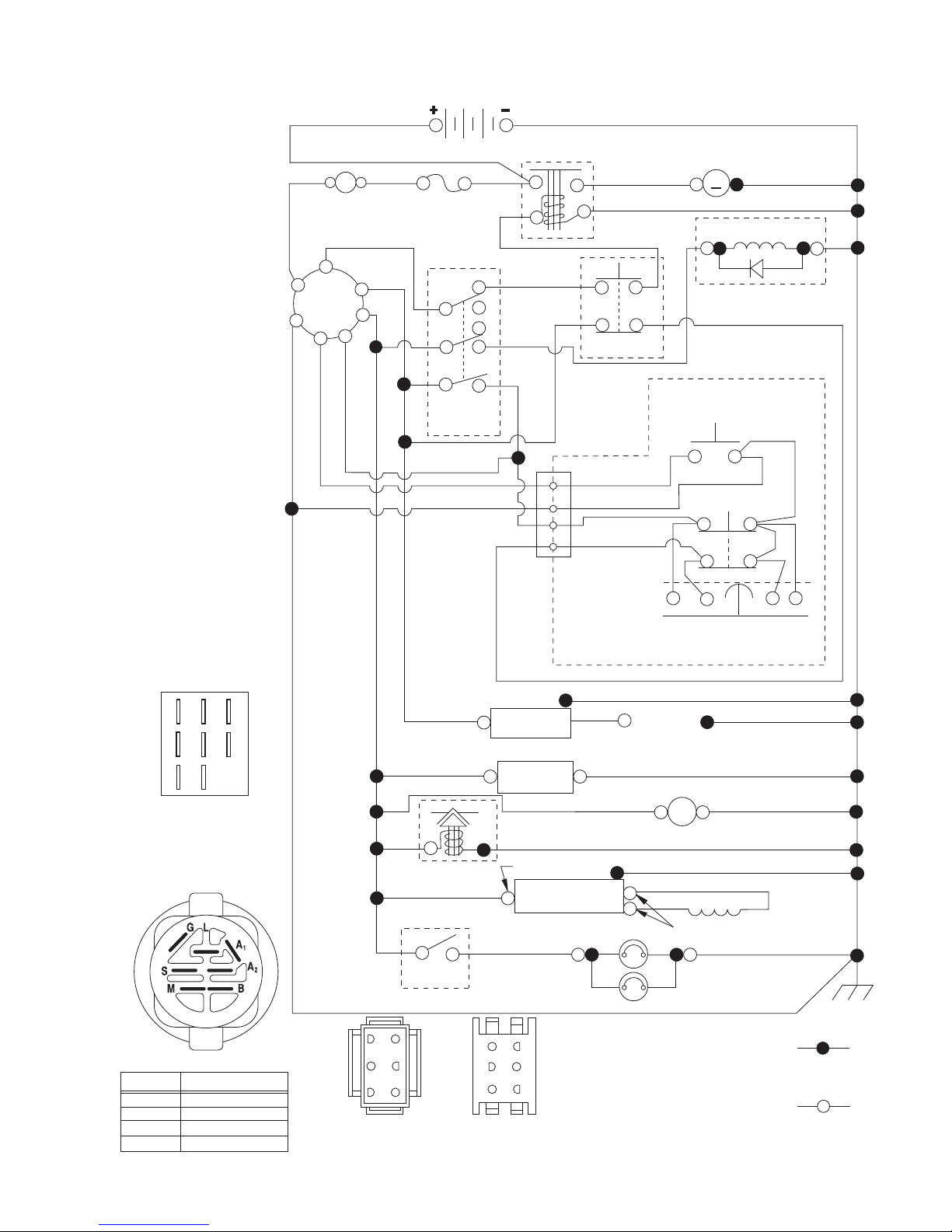

SCHEMATIC

4
TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60
ELECTRICAL
8
1
99
100
91
227
90
28
55
26
43
41
24
27
25
30
33
22
79 21
101
40
71
34
With Service Minder Option
4646
With 12V Outlet Option
59
103
16
42
T11S_r1
102
29
105

5
TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 163465 Battery
2 74760412 Bolt Hex Head 1/4-20 x 3/4
8 186491 Box Battery
16 176138 Switch Interlock Push-In
21 175688 Harness Socket Light w/4152J
22 4152J Bulb Light
24 400253 Cable Battery
25 198893 Cable Starter
26 175158 Fuse
27 73510400 Nut Keps. Hex 1/4-20 unc
28 145491 Cable, Ground
29 401545 Switch, Seat
30 193350 Switch, Ign.
33 411935 Key/Chain
34 110712X Switch Light/Reset
40 401104 Harness Ign. Dash
41 17720408 Screw Thd. Cut 1/4-20 x 1/2
42 131563 Cover, Terminal
43 192507 Solenoid
46 401763 Gauge Hourmeter
50 174653 Switch PTO
55 17490512 Screw Thdrol. 5/16-18 x 3/4 TYTT
71 194276 Harness Chassis
79 175242 Socket Asm. Bulb Twistlock
90 400724 Cover Terminal Battery
91 190270 Strap Battery Mount Front
99 17670412 Screw Hex Wsh. Thdrol. 1/4-20 x 3/4
100 19091416 Washer 9/32 x 7/8 x 16 Ga.
101 198317 Pigtail
102 404454 Harness Pigtail K46 TEX ROS
105 407568 Switch Reverse TT Pedal Control
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6
TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60

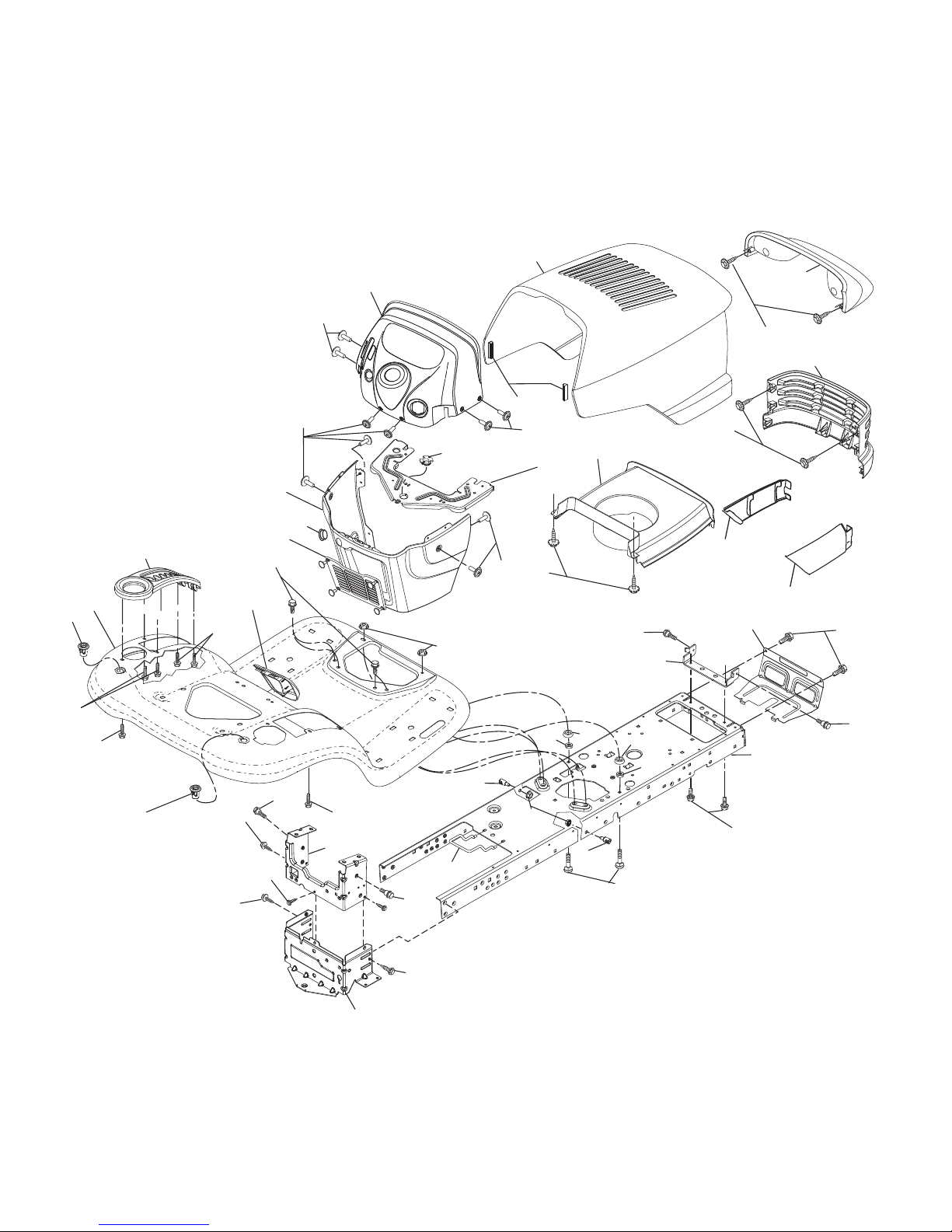

CHASSIS
14
153
148
130
130
122
37
181
181
182
176
176
175
194
36
236
68
183
188
165
152 159
139
139
150
180
18
5
161
177
196
162
176
176
Chassis-tex_Stealth II PL_2
162
222
222
205
206
178
235
236 235
228
194
228
195
2
58
159
189
189
159 233
233

7
TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60
CHASSIS
KEY PART
NO. NO. DESCRIPTION
2 412282 Drawbar Lower
5 195102X428 Dash
14 175260X428 Hood
18 175289X428 Grille
36 17060512 Screw 5/16-18 x 3/4
37 400009X428 Fender
58 412281 Drawbar Upper
68 17490508 Screw 5/16-18 x 1/2
122 192512 Screw WSHD Hex 10-32 x 5/8
130 416358 Screw #10 x 0.750 BOS Thread
139 171873 Bolt Shoulder 5/16 - 18
148 164655 Bumper Hood
150 175351 Duct Heat
152 194329 Shield Browning/Debris
153 161840 Lens Bar
159 17000612 Screw Hex Wsh. Thdrol. 3/8-16 x 3/4
161 193097X428 Window Fuel
162 142432 Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc
165 194330 Bracket Support Tank
175 193236 Cross Member
176 400776 Screw 10-24 x 5/8 Wshd. Qdrx.
177 195227 Bushing Steering
178 195651 Cargo Asm. Net
180 194260 Chassis
181 193102X428 Bushing Mtg. Fender Crgo.
182 192551 Dash Lower
183 74780520 Bolt Fin. Hex 5/16-18 x 1-1/4
188 194316 Bracket Pickoff Hood
189 17000512 Screw 5/16-18 x 3/4
194 73900500 Nut Lock Hex Flange 5/16-18
195 401556X428 Plug Hole Dash
196 410585 Console Asm. Deck Lift
205 169847X428 Skirt Hood RH
206 169848X428 Skirt Hood LH
222 137729 Screw Thrdrol. 1/4-20 x 5/8
228 195161 Stud Fastener
233 196539 Bolt Shoulder
235 406129 Spacer Fender
236 73930500 Nut Lock 5/16-18
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

8
TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60
DRIVE
231
51
170
171
225
125
2
2
73
73
33
205
1
116
33
230
230
183
183
205
116
7
9
7
9
56
213
221
160
206
26
207
209
92 125
116
64
188
161
35
184
167
160
42
159
221 74
186
189
49
187
50
51
52
51
190
185
163
153
208
210
214
80
125
125
125
226
125
215
153
166
211
222
29
159
15
17
99
224
197
196
Drive-tex_K46_pedal_4

9
TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60
DRIVE
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
1 414006 Transaxle, Tufftorq K46BN
(Order Parts from Transaxle
Manufacturer)
2 186211 Key
7 199844 Hub Asm.
9 140080 Bolt Hub Wheel
15 19131316 Washer 13/32 x 13/16 x 16 Ga.
17 413678 Spring, Brake
26 199679 Spring Return Cruise
29 403806 Rod, Brake
33 12000001 Ring E
35 197275 Rod, Brake, Park
42 8883R Cover, Foot Pedal
49 72110614 Bolt
50 194327 Pulley Idler Flat
51 73900600 Lock Nut 3/8-16
52 194326 Idler V-Groove 910" Offset
56 130969 V-Belt, Drive
64 197865 Shaft Asm. Pedal Brake Control
73 74490544 Bolt Hex 5/16-18 Gr. 5
74 142432 ScrewHexWsh.HILO1/4x1/2unc
80 410024 Strap Torque
92 74760520 Bolt Fin Hex 5/16-18 unc x 1.25
99 415742 Rod Bypass
116 73900500 Nut Lock Hex Flange 5/16-18
125 17000512 Screw 5/16-18 x 3/4
153 4497H Retainer Spring
159 76020412 Pin Cotter 1/8 x 3/4
160 169484 Retainer Clip
161 105709X Spring, Return, Clutch
163 401034 Rod Pedal Control
166 197290 Nut Push .625
167 405257 Latch Brake Parking
170 413430 Keeper Belt Centerspan
171 72110622 Bolt
183 400424 Spacer Axle
184 195361X505 Handle Parking Brake
185 72110620 Bolt
186 194321 Spacer Retainer
187 19133210 Washer
188 194323 Link Clutch Ground Drive
189 194317 Bellcrank Ground Drive
190 194318 Keeper Bellcrank Ground Drive
196 17000616 Screw 3/8-16 x 1
197 199769 Link Clutch Anti Rotation
205 121748X Washer 25/32 x 1-5/8 x 16 Ga.
206 197867 Bracket Mount Latch Cruise
207 197868 Latch Control Cruise
208 197869 Gear Sector Control Cruise
209 199466 Rod Control Cruise
210 197860 Rocker Asm. Pedal Control
211 120183X Bearing Nylon
213 195352X428 Knob Control Cruise
214 197302X428 Pad Pedal Forward
215 197301X428 Pad Pedal Reverse
221 403187 Retainer Spring Clip Handle
222 79212010 Washer 21/32 x 1-1/4 10 Ga.
224 193099X428 Console Toolbox
225 403319 Keeper Belt Transaxle
226 401564 Bracket Mount Torque
230 188967 Washer Harden .793 x 1.637 x 060
231 407287 Idler V-Groove
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

10
1
84
84
29
SPARK ARRESTER KIT
84
45
18
15
37
28
37
22
21
20
62
71
70
79
69
87
2
engine-tex_bs-2cyl_2
81
82
12
11
41
42
90
85
9
91
31
TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60

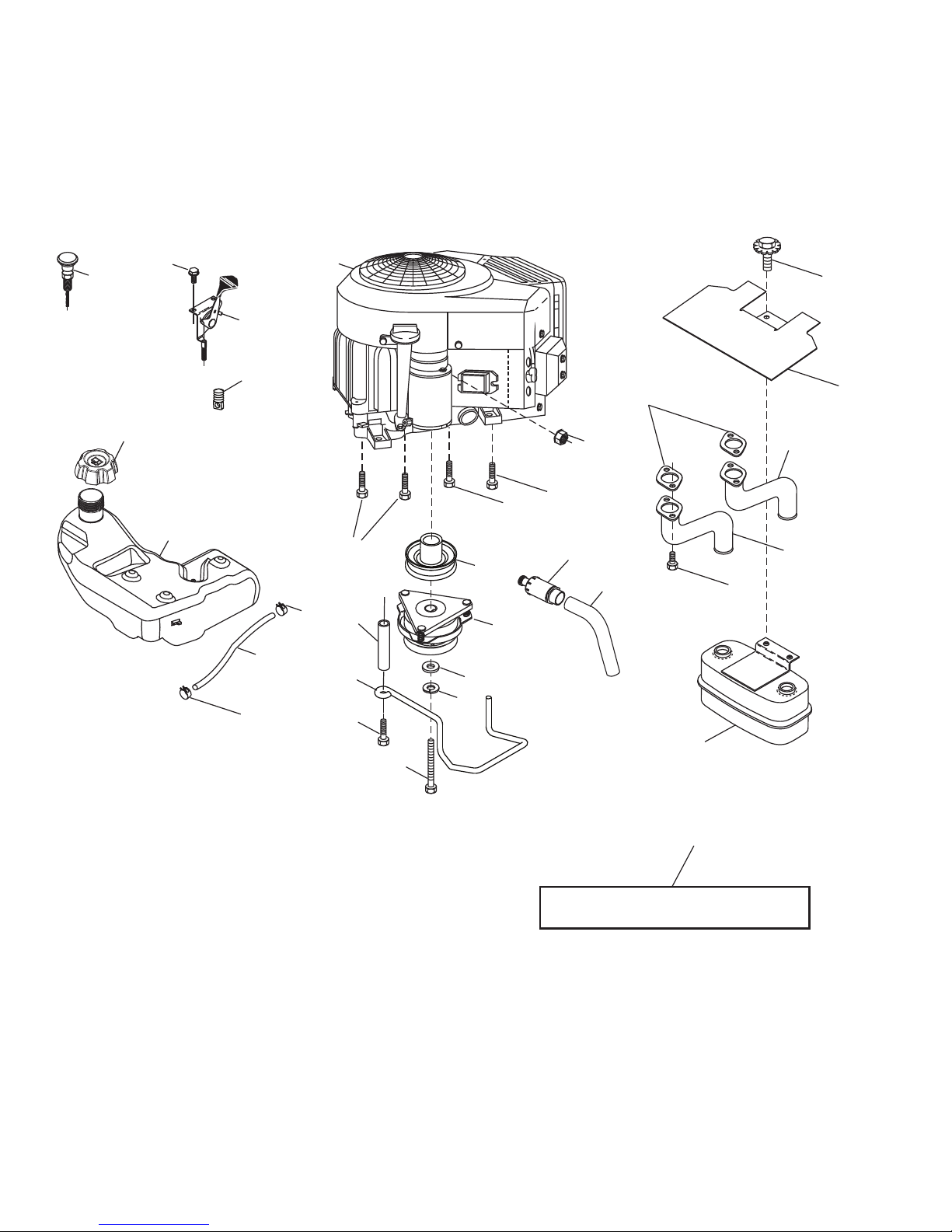

ENGINE

11
TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60
ENGINE
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 - - - - - - Engine Briggs Model No.
40H777
2 149723 Muffler
9 194320 Keeper Belt Engine
11 179335 Clutch Electric
12 194343 Pulley Engine
15 193499 Tank Fuel
18 195951 Cap Asm.
20 175437X421 Control Throttle
21 416358 Screw #10 x 0.750 BOS Thread
22 187767X428 Control Choke
28 401135 Fuel Line
29 137180 Spark Arrester Kit
31 145006 Clip Push-In Hinged
37 123487X Clamp Hose
41 126197X Washer 1-1/2 OD x 15/32 ID x .250
42 10040700 Washer Lock 7/16
45 73510400 Nut Keps Hex 1/4-20 unc
62 146629 Shield Heat Muffler
69 165391 Gasket
70 160589 Exhaust Tube LH
71 159955 Exhaust Tube RH
79 183906 Screw Socket Head 5/16-18 x 1
81 148456 Tube Drain Oil Easy
82 181654 Plug Drain Oil
84 17060620 Screw 3/8-16 x 1-1/4
85 179953 Bolt Hex 7/16-20 x 3.75 Gr. 5
87 198239 Bolt 5/16-18 x 1
90 17000616 Screw 3/8-16 x 1
91 187495 Bushing 1.375 OD
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive
Engineers) code J11940 (Small Engine Power & Torque Rating Procedure), and rating performance has been ob-
tained and corrected in accordance with SAE J1995 (Revision 2002-5). Actual gross engine power will be low-
er and is affected by, among other things, ambient operating conditions and engine-to-engine variability. Given both
the wide array of products on which engines are placed and the variety of environmental issues applicable to op-
erating the equipment, the gas engine will not develop the rated gross power when used in a given piece of power
equipment (actual “on-site” or net horsepower). This difference is due to a variety of factors including, but not lim-
ited to, accessories (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.), application limitations, am-
bient operating conditions (temperature, humidity, altitude), and engine-to-engine variability. Due to manufactur-
ing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this Series engine.

12

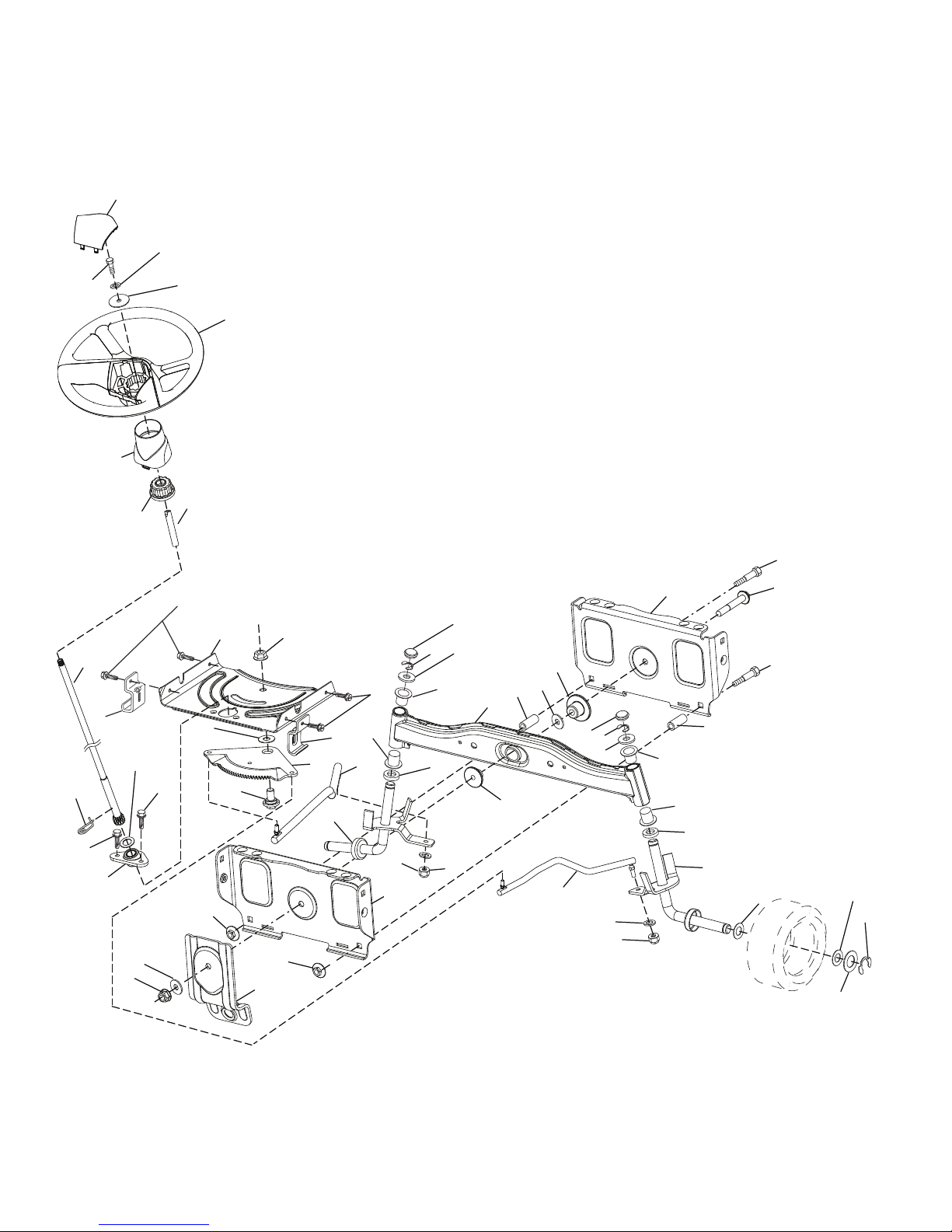

TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60
STEERING ASSEMBLY
55
9
9
8
8
7
7
35
19
63
57
60
59
58
67
54
67
78
66
54
65
61
55
2
steering-tex_LEGND2_5
6
5
13 13
53
8
62
4
50
50
70
65
68
69
15
15
14
14
6
16
28
28
13
22
64
71
21
26
1
20
45
33
72
74
74
74
74
63
57

13
KEY PART
NO. NO. DESCRIPTION
1 186093X428 Wheel, Steering
2 195968 Axle Asm. Front
4 403089 Spindle Asm. LH
5 403090 Spindle Asm. RH
6 6266H Bearing, Race Thrust Harden
7 121748X Washer 25/32 x 1-5/8 x 16 Ga.
8 12000029 Ring, Clip #T5304-75
9 121232X Cap, Spindle
13 121749X Washer 25/32 x 1-1/4 x 16 Ga.
14 10040600 Washer, Lock Hvy. Hlcl. Spr. 3/8
15 73540600 Nut, Crown Lock 3/8-24 unf
16 408219 Shaft Steering
19 194729 Plate Steering
20 195626X428 Boot, Steering
21 186737 Adapter, Wheel Steering
22 194845 Bushing, Strg. Blk.
26 186095X428 Insert, Wheel Steering
28 17000612 Screw 3/8-16 x 3/4
35 194732 Gear, Sector Plate
45 19113812 Washer 11/32 ID x 2-3/8 OD x 12 Ga.
50 73900600 Nut Lock 3/8-16 unc
51 73940800 Nut Hex Jam Toplock 1/2-20 unf
53 188967 Washer Hardened .793 x 1.637 x .060
54 74760636 Bolt Hex 3/8-16 unc x 2-1/4
55 197636 Spacer Brace Axle
57 197246 Bracket Upstop
58 194747 Bolt Shoulder Sector Pivot CFM
59 194748 Washer Thrust Sector Steering
60 73971000 Nut Flange Lock 5/8-11
61 194740 Draglink, LH
62 194741 Draglink, RH
63 17000512 Screw 5/16-18 x 3/4
64 199849 Retainer Clip Spring Steering
65 194734 Brace Axle Front
66 71020748 Bolt Hex Fghd. 7/16-14 x 3 Serr.
67 194737 Bushing PM Front Axle
68 73900700 Nut Lock Flange 7/16-14 Gr. 5
69 199162 Washer 1.5 x .505 x .118
70 196197 Bracket Deck Susp. Front
78 57079 Washer Thrust .515 x .750 x .033
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60
STEERING ASSEMBLY

14
TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60
SEAT ASSEMBLY
1 406623 Seat
2 180166 Bracket Pivot Fender
3 140675 Strap, Asm. Fender
6 73800600 Nut, Lock w/Ins. 3/8-16 unc
7 124181X Spring, Seat Cprsn.
8 171877 Bolt 5/16-18 unc x 3/4 w/Sems.
10 196977 Pan, Seat
21 171852 Bolt, Shoulder 5/16-18
37 73800500 Nut, Lock 5/16-18 unc
40 197661 Handle Slide Seat
41 198200 Spring Latch Seat
43 74760612 Bolt Fin. Hex 3/8-16 unc x 3/4
44 19133812 Washer 13/32 x 2-3/8 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
seat-tex_6.5SL_3
44
43
8
8
6

15
TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60
MOWER LIFT
7
3
87
10 88
2
89
90
87
98
97
97
91
lift-tex_3
89
87
89
87
2 195223 Shaft Asm., Lift
3 195230 Lever Asm., Lift RH
7 196492X421 Grip, Lever
10 196314 Spring Torsion
87 194209 Pin Cotter 7/16 Bow Tie Lock
88 410710 Spring Lift Assist
89 19191912 Washer Clear Zinc
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
90 194208 Pin Cotter 5/16 Bow Tie Lock
91 403407 Link Lift Susp. Mower Rear
97 17000612 Screw 3/8-16 x .75 Smgml. Tap/R.Z
98 195264 Link Lift Susp. Front Mower

16
TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60
MOWER DECK
47
7
49
46
32
33
31
30
133
52
52
43
196
97
33
192
49
34
39
185
46
46
6
21
122
114
98
31
32
25 26
24
27
58
60
59
18
21
194
113
49
187
190
184
190
187
50
120
117
116
21
18
189
21
18
13
14
15
11
8
29
mower_deck 54-tex_6_r1
12
16 19
198

17
TRACTOR - MODEL NO. PB22H54BF (96042006000), PRODUCT NO. 960 42 00-60
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 195632X421 Deck Weldment Mower
6 196066 Cover Mandrel LH
7 197181 Cover Mandrel RH
8 174365 Bolt 7/16 Asm. Blade
11 187256 Blade Discharge/Bagging
12 404851 Rod-Anti Sway
13 187291 Shaft Asm. w/Lower Bearing
14 187281 Housing, Mandrel
15 110485X Bearing, Ball, Mandrel
16 19131312 Washer 13/32 x 13/16 x 12 Ga.
18 72140505 Bolt 5/16 - 18 x 5/8
19 194208 Pin Cotter 5/16 Bow Tie Lock
21 73680500 Nut, Crownlock 5/16-18 unc
24 105304X Cap Sleeve
25 178102 Spring, Torsion
26 110452X Nut, Push
27 187257X428 Deflector Shield
29 131491 Rod, Hinge
30 173984 Screw, Thdrol. Washer Head
31 187690 Washer, Spacer Mower Vented
32 153535 Pulley, Mandrel
33 400234 Nut, Flg. Top Lock
34 73680600 Nut Crownlock 3/8-16 unc
39 197380 Pulley, Idler 4.50 HUB
43 196065 Arm, Idler
46 137729 Screw, Thdrol. 1/4-20 x 5/8
47 196103 V-Belt, Mower
49 73900600 Nut, Lock Flg. 3/8-16 unc
50 72110616 Bolt Rdhd. Sqnk. 3/8-16 unc x 2
52 197379 Pulley Idler
58 187342 Baffle Right
59 187344 Baffle Left
60 187607 Baffle Center
97 178515 Washer Hardened
98 196105 Spring Drive
113 72110508 Bolt Rdhd. Sqnk. 5/16-18 x 3/4
114 187556 Rod Tension Relief
116 193406 Bolt, Shoulder
117 174873 Gauge Wheel
120 19132012 Washer 13/32 x 1-1/4 x 12 Ga.
122 187557 Bushing Tension Relief
184 73900500 Nut Lock Hex Flange 5/16-18
185 73900700 Nut Lock Flange 7/16-14 Gr. 5
187 195161 Stud Fastener w/"D" Anti-Rotation
189 195185 Arm Susp. Mower Rear
190 196539 Bolt Shoulder
192 198468 Keeper Belt Idler
194 72140716 Bolt Carr. Sqnk. 3/8-16 x 2-1/4
196 72140620 Bolt Rdhd. Sqnk.
3/8-16 x 2-1/2 Gr. 5
198 17670608 Screw Thdrol. 3/8-16 x 1/2
- - 187292 Mandrel Asm. Service (Includes
Key Nos. 13-15 and 33)
- - 197701 Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

18

17
TRACTEUR - NO. DE MODÈLE PB22H54BF(96042006000),NO. DE PRODUIT 960 42 00-60
CARTER DE TONDEUSE
NO. NO
DE DE
RÉF. PIÈCE DESCRIPTION
1 195632X421 Ensemble du carter
6 196066 Couvercle de mandrin C.G.
7 197181 Couvercle de mandrin C.D.
8 174365 Boulon 7/16
11 187256 Lame décharge/Toile à sac
12 404851 La tringle d'aucun osciller
13 187291 Ensemble de l’arbre
14 187281 Carter du mandrin
15 110485X Roulement à billes
16 19131312 Rondelle 13/32 x 13/32 x 12 Ja.
18 72140505 Boulon 5/16-18 x 5/8
19 194208 Épingle de goupille fendue
21 73680500 Écrou 5/16-18 unc
24 105304X Chapeau de manchon
25 178102 Ressort de torsion
26 110452X Écrou
27 187257X428 Déflecteur de décharge
29 131491 Tige de charnière
30 173984 Vis H
31 187690 Rondelle
32 153535 Poulie de mandrin
33 400234 Écrou
34 73680600 Écrou 3/8-16 unc
39 197380 Poulie du tension 4.50 HUB
43 196065 Bras du galet-tendeur
46 137729 Vis 1/4-20 x 5/8
47 196103 Courroie d'entraînement
48 177968 Poulie du galet-tendeur
49 73900600 Écrou frein 3/8-16 unc
50 72110616 Boulon 3/8-16 unc x 2
52 197379 Poulie du galet-tendeur
58 187342 Droite de Cloison
59 187344 Cloison Laissée
60 187607 Centre de Cloison
97 178515 Rondelle
98 196105 Ressort de retenue
113 72110508 Boulon 5/16-18 x 3/4
114 187556 Tige
116 193406 Boulon
117 174873 Support des roues
120 19132012 Rondelle 13/32 x 1-1/4 x 12 Ja.
122 187557 Douille
184 73900500 Écrou frein H 5/16-18
185 73900700 Écrou frein 7/16-14 Cat. 5
187 195161 Tenon
189 195185 Bras de suspension arrière
190 196539 Boulon
192 198468 Garde, oisif de ceinture
194 72140716 Boulon 3/8-16 x 2-1/4
196 72140620 Boulon 3/8-16 x 2-1/2 Cat. 5
198 17670608 Vis 3/8-16 x 1/2
- - 187292 Ensemble de mandrin (Y compris les nos.
de réf. 13-15 et 33)
- - 197701 Ensemble du carter de tondeuse complet
REMARQUE: Toutes les dimensions de composant sont don-
nées en pouces É.-U. --1 pouce = 25,4 mm.
