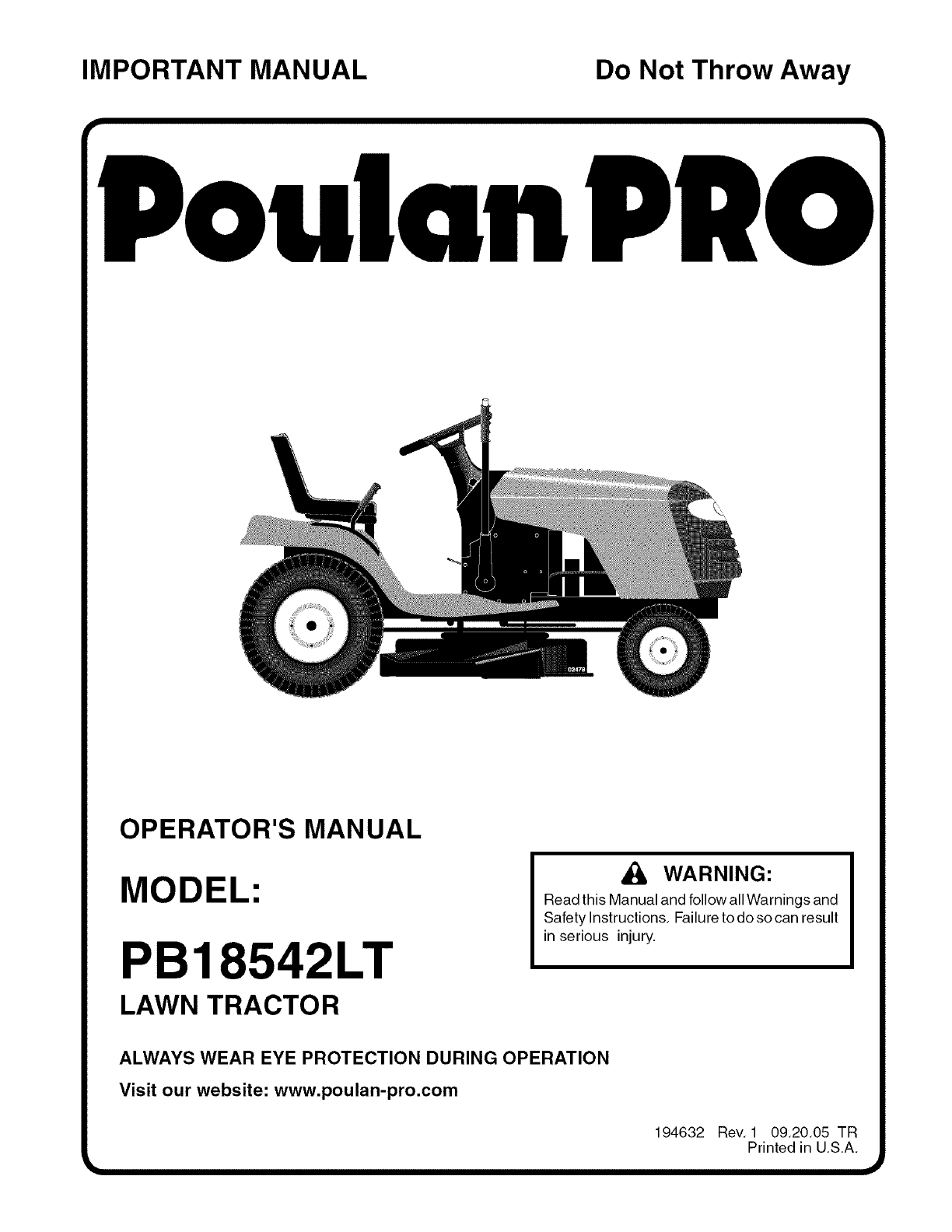

IMPORTANT MANUAL Do Not Throw Away
OPERATOR'S MANUAL
MODEL:
PB 18542 LT
LAWN TRACTOR
WARNING:
Read this Manual and follow all Warnings and
Safety Instructions, Failure to do socan result
in serious injury.
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan-pro.com
194632 Rev, 1 09,20,05 TR
Printed in U,S,A,

SAFETY RULES
Safe Operation Practices for Ride-On Mowers
IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS FAILURE
TOOBSERVETHE FOLLOWINGSAFETY INSTRUCTIONSCOULD RESULTINSERIOUS INJURYOR DEATH
• Donotoperate machine without the entire grass catcher,
WARNING: In order to prevent acci-
dental starting when setting up, trans-
porting, adjusting or making repairs,
always disconnect spark plug wire
and place wire where it cannot contact
spark plug.
I _ WARNING: Do not coast down a hill I
I
in neutral, you may lose control of the I
tractor.
&WARNING: Tow only the attachments
that are recommended by and comply
with specifications of the manufacturer
of your tractor. Use common sense
when towing. Operate only at the low-
est possible speed when on a slope.
Too heavy of a load, while on a slope,
is dangerous. Tires can lose traction
with the ground and cause you to lose
control of your tractor.
WARNING
Engine exhaust, some of its constituents, and cer-
tain vehicle components contain or emit chemicals
known to the State of California tocause cancer and
birth defects or other reproductive harm.
WARNING
Battery posts, terminals and related accessories
contain lead and lead compounds, chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm. Wash hands
after handling.
I. GENERAL OPERATION
• Read, understand, and follow all instructions on the
machine and in the manual before starting.
• Do not put hands or feet near rotating parts or under
the machine Keep clear of the discharge opening at
all times.
• Only allow responsible adults, who are familiar with the
instructions, to operate the machine
• Clear the area ofobjects such as rocks,toys, wire, etc.,
which could be picked up and thrown by the blades.
• Be sure the area is clear of bystanders before operat-
ing. Stop machine if anyone enters the area
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary
Always look down and behind before and while back-
ing
• Never direct discharged material toward anyone. Avoid
discharging material against a wall or obstruction Ma-
terial may ricochet back toward the operator. Stop the
blades when crossing gravel surfaces. 2
discharge guard, or other safety devices in place and
working
• Slow down before turning
• Never leave a running machine unattended Always
turn off blades, set parking brake, stop engine, and
remove keys before dismounting
• Disengage blades when not mowing. Shut off engine
and wait for all parts to come to a complete stop before
cleaning the machine, removing the grass catcher, or
unclogging the discharge guard
• Operate machine only in daylight or good artificial
light
• Do not operate the machine while under the influence
of alcohol or drugs.
• Watch for traffic when operating near or crossing road-
ways.
• Use extra care when loading or unloading the machine
into a trailer or truck.
• Always wear eye protection when operating ma-
chine.
• Data indicates that operators, age 60 years and above,
are involved in a large percentage of riding mower-re-
lated injuries. These operators should evaluate their
ability to operate the riding mower safely enough to
protect themselves and others from serious injury.
• Follow the manufacturer's recommendation for wheel
weights or counterweights.
• Keep machine free of grass, leaves or other debris
build-up which can touch hot exhaust /engine parts
and burn. Do not allow the mower deck to plow leaves
or other debris which can cause build-up to occur.
Clean any oil or fuel spillage before operating or
storing the machine. Allow machine to cool before
storage.
II. SLOPE OPERATION
Slopes are a major factor related to loss of control and
tip-over accidents, which can result in severe injury or
death. Operation on all slopes requires extra caution If
you cannot back up the slope or if you feel uneasy on it,
do not mow it
• Mow up and down slopes, not across
• Watch for holes, ruts, bumps, rocks, or other hidden
objects Uneven terrain could overturn the machine
Tall grass can hide obstacles.
• Choose a low ground speed so that you will not have
to stop or shift while on the slope.
• Do not mow on wet grass. Tires may lose traction.
Always keep the machine in gear when going down
slopes. Do not shift to neutral and coast downhill
• Avoid starting, stopping, or turning on a slope. If the
tires lose traction, disengage the blades and proceed
slowly straight down the slope
• Keep all movement on the slopes slow and gradual.
Do not make sudden changes in speed or direction,
which could cause the machine to roll over
• Use extra care while operating machine with grass
catchers or other attachments; they can affect the
stability of the machine Do no use on steep slopes
• Do not try to stabilize the machine by putting your foot
on the ground
• Do not mow near drop-offs, ditches, or embankments.
The machine could suddenly roll over ifa wheel is over
the edge or if the edge caves in.

SAFETY RULES &
Safe Operation Practices for Ride-On Mowers
III. CHILDREN
Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the machine and the mowing activity. Never assume that
children will remain where you last saw them,
• Keep children outof the mowing areaand inthe watchful
care of a responsible adult other than the operator.
• Be alert and turn machine off if a child enters the
area.
• Before and while backing, look behind and down for
small children.
• Never carry children, even with the blades shut off,They
may fall off and be seriously injured or interfere with
safe machine operation, Children who have been given
rides in the past may suddenly appear in the mowing
area for another ride and be run over or backed over
by the machine.
• Never allow children to operate the machine.
• Use extra care when approaching blind corners, shrubs,
trees, or other objects that may block your view of a
child,
IV. TOWING
• Tow only with a machine that has a hitch designed for
towing. Do not attach towed equipment except at the
hitch point,
• Follow the manufacturer's recommendation for weight
limits for towed equipment and towing on slopes.
• Never allow children or others in or on towed equip-
ment.
• On slopes, the weight of the towed equipment may
cause loss of traction and loss of control.
• Travel slowly and allow extra distance to stop,
V. SERVICE
SAFE HANDLING OF GASOLINE
Toavoid personal injury or property damage, use extreme
care in handling gasoline, Gasoline isextremely flammable
and the vapors are explosive,
• Extinguish all cigarettes, cigars, pipes, and other
sources of ignition,
• Use only approved gasoline container,
• Never remove gas cap oradd fuel with the engine run-
ning. Allow engine to cool before refueling,
• Never fuel the machine indoors.
• Never store the machine or fuel container where there
isan open flame, spark, or pilot light such as onawater
heater or other appliances,
• Never fill containers inside a vehicle or on a truck or
trailer bed with plastic liner, Always place containers
on the ground away from your vehicle when filling,
• Remove gas-powered equipment from thetruck ortrailer
and refuel it on the ground, If this is not possible, then
refuel such equipment with a portable container, rather
than from a gasoline dispenser nozzle.
• Keep the nozzle in contact with the rim of the fuel tank
or container opening atall times untilfueling iscomplete,
Do not use a nozzle lock-open device,
• If fuel is spilled on clothing, change clothing immedi-
ately.
• Never overfill fuel tank. Replace gas cap and tighten
securely.
GENERAL SERVICE
• Never operate machine in a closed are,
• Keep all nuts and bolts tight to be sure the equipment
is in safe working condition.
• Never tamper with safety devices, Check their proper
operation regularly,
• Keep machine free of grass, leaves, or other debris
build-up. Clean oil or fuel spillage and remove any fuel-
soaked debris, Allow machine to cool before storing.
• If you strike a foreign object, stop and inspect the
machine. Repair, if necessary, before restarting.
• Never make any adjustments or repairs with the engine
running.
• Check grass catcher components and the discharge
guard frequently and replace with manufacturer's rec-
ommended parts, when necessary,
• Mower blades are sharp, Wrap the blade or wear
gloves, and use extra caution when servicing them.
• Check brake operation frequently. Adjust and service
as required.
• Maintain or replace safety and instruction labels, as
necessary,
• Be sure the area is clear of bystanders before operat-
ing, Stop machine if anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary,
Always look down and behind before and while back-
ing,
• Never carry children, even with the blades shut off,They
may fall off and be seriously injured or interfere with
safe machine operation. Children who have been given
rides in the past may suddenly appear in the mowing
area for another ride and be run over or backed over
by the machine,
• Keep children out ofthe mowing area and inthe watchful
care of a responsible adult other than the operator,
• Be alert and turn machine off if a child enters the
area,
• Before and while backing, look behind and down for
small children.
• Mow up and down slopes (15° Max), not across,
• Choose a low ground speed so that you will not have
to stop or shift while on the slope.
• Avoid starting, stopping, or turning on a slope. If the
tires lose traction, disengage the blades and proceed
slowly straight down the slope,
• If machine stops while going uphill, disengage blades,
shift into reverse and back down slowly.
• Do not turn on slopes unless necessary, and then, turn
slowly and gradually downhill, if possible.

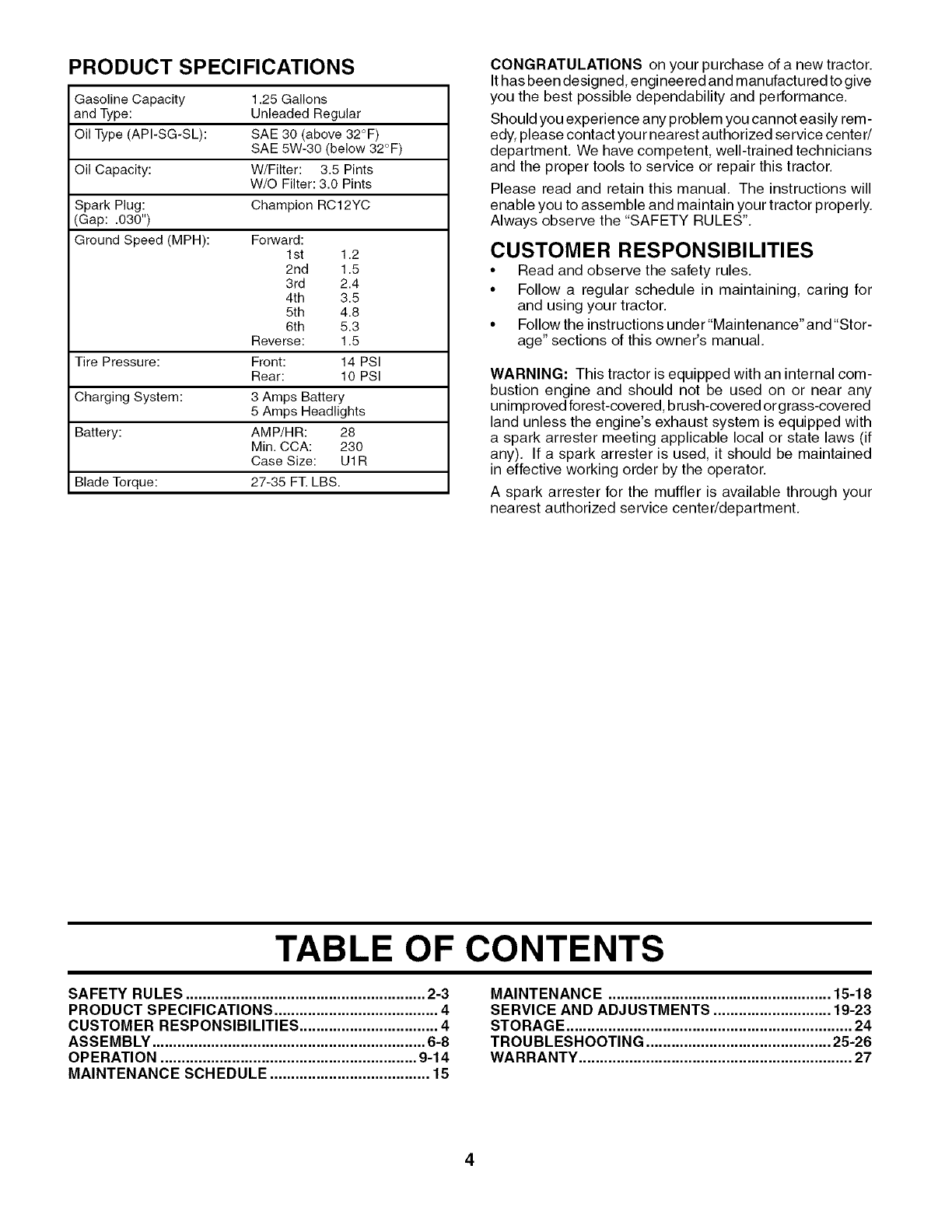

PRODUCT SPECIFICATIONS
Gasoline Capacity 1.25 Gallons
and Type: Unleaded Regular
Oil Type (API-SG-SL): SAE 30 (above 32°F)
SAE 5W-30 (below 32°F)
Oil Capacity: W/Filter: 3.5 Pints
W/O Filter: 3.0 Pints
Spark Plug: Champion RC12YC
(Gap: .030")
Ground Speed (MPH): Forward:
1st 1.2
2nd 1.5
3rd 2.4
4th 3.5
5th 4.8
6th 5.3
Reverse: 1.5
Tire Pressure: Front: 14 PSI
Rear: 10 PSI
Charging System: 3 Amps Battery
5 Amps Headlights
Battery: AMP/HR: 28
Min. CCA: 230
Case Size: U1R
Blade Torque: 27-35 FT. LBS.
CONGRATULATIONS on your purchase of a new tractor.
Ithas been designed, engineered and manufactured togive
you the best possible dependability and performance.
Should you experience any problem you cannot easily rem-
edy, please contact your nearest authorized service center/
department, We have competent, well-trained technicians
and the proper tools to service or repair this tractor.
Please read and retain this manual, The instructions will
enable you to assemble and maintain your tractor properly.
Always observe the "SAFETY RULES",
CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules,
• Follow a regular schedule in maintaining, caring for
and using your tractor.
• Follow the instructions under "Maintenance" and "Stor-
age" sections of this owner's manual.
WARNING: This tractor is equipped with an internal com-
bustion engine and should not be used on or near any
unimproved forest-covered, brush-covered orgrass-covered
land unless the engine's exhaust system is equipped with
a spark arrester meeting applicable local or state laws (if
any), If a spark arrester is used, it should be maintained
in effective working order by the operator.
A spark arrester for the muffler is available through your
nearest authorized service center/department,
TABLE OF CONTENTS
SAFETY RULES ......................................................... 2-3
PRODUCT SPECIFICATIONS ....................................... 4
CUSTOMER RESPONSIBILITIES ................................. 4
ASSEMBLY ................................................................. 6-8
OPERATION ............................................................. 9-14

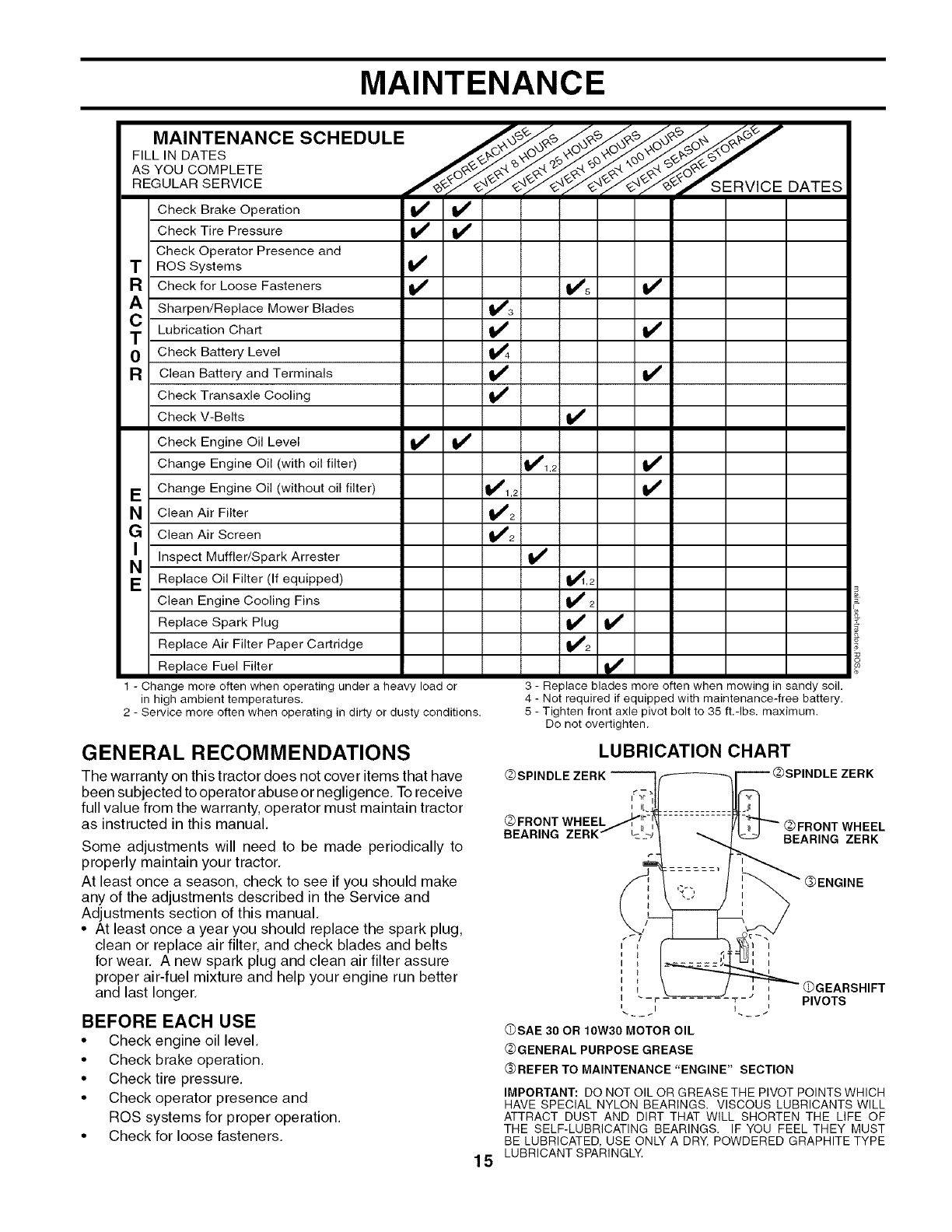

MAINTENANCE SCHEDULE ...................................... 15
MAINTENANCE ..................................................... 15-18
SERVICE AND ADJUSTMENTS ............................ 19-23
STORAGE .................................................................... 24
TROUBLESHOOTING ............................................ 25-26
WARRANTY ................................................................. 27
4

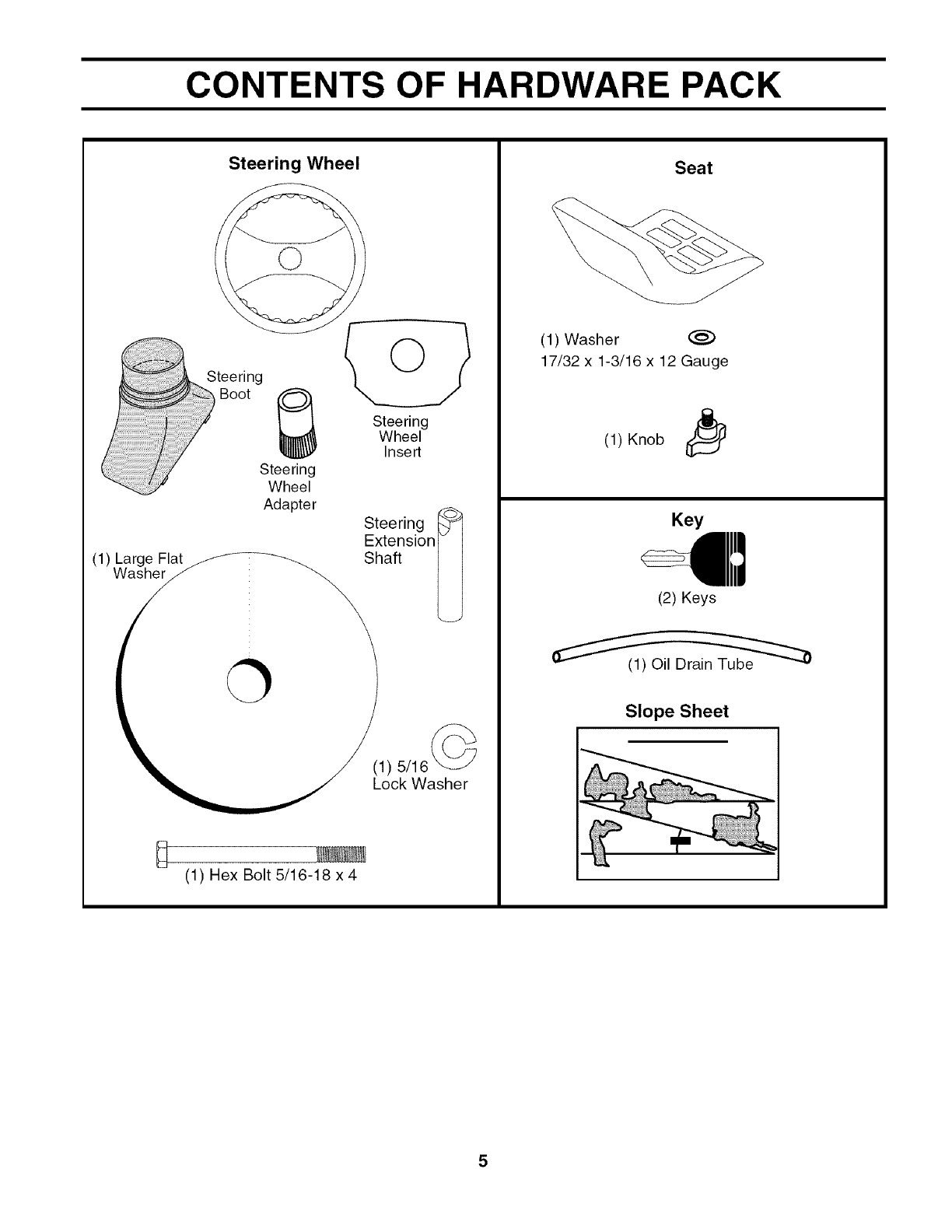

CONTENTS OF HARDWARE PACK
(1) Large Flat
Washer
Steering Wheel
Steering
Wheel
Adapter
(1) Hex Bolt 5/16-18 x 4
©
Steering
Wheel
Insert
Steering l
Extension
Shaft
(1) 5/16 (_
Lock Washer
Seat
(1) Washer @
17/32 x 1-3/16 x 12 Gauge
(1) Knob I_
Key
(2) Keys
Slope Sheet

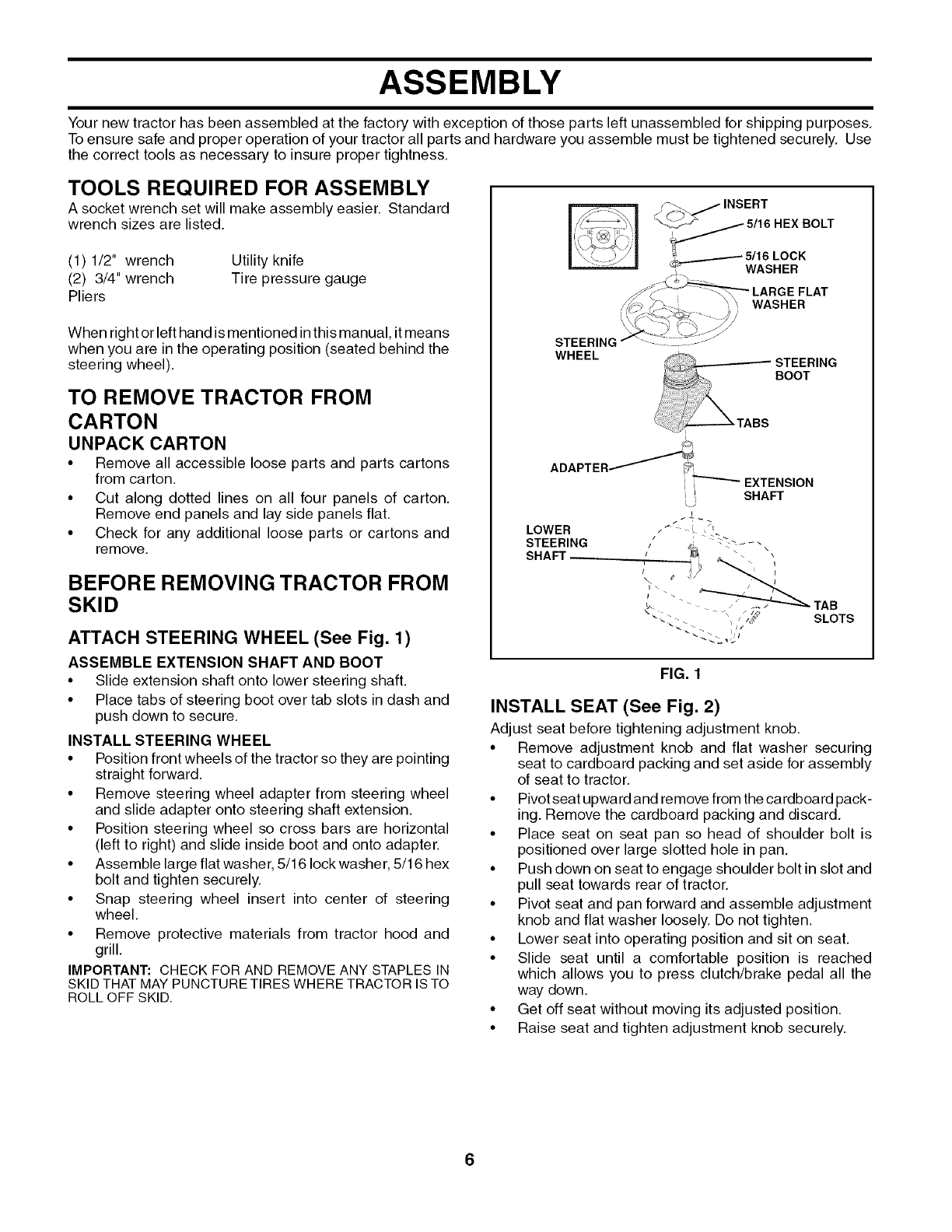

ASSEMBLY
Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes,
To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely, Use
the correct tools as necessary to insure proper tightness
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly easier Standard
wrench sizes are listed
(1) 1/2" wrench
(2) 3/4" wrench
Pliers
Utility knife
Tire pressure gauge
When right or left hand is mentioned in this manual, it means
when you are in the operating position (seated behind the
steering wheel),
TO REMOVE TRACTOR FROM
CARTON
UNPACK CARTON
• Remove all accessible loose parts and parts cartons
from carton,
• Cut along dotted lines on all four panels of carton,
Remove end panels and lay side panels flat
• Check for any additional loose parts or cartons and
remove,
BEFORE REMOVING TRACTOR FROM
SKID
ATTACH STEERING WHEEL (See Fig. 1)
ASSEMBLE EXTENSION SHAFT AND BOOT
• Slide extension shaft onto lower steering shaft
• Place tabs of steering boot over tab slots in dash and
push down to secure,
INSTALL STEERING WHEEL
• Position front wheels of the tractor so they are pointing
straight forward
• Remove steering wheel adapter from steering wheel
and slide adapter onto steering shaft extension
• Position steering wheel so cross bars are horizontal
(left to right) and slide inside boot and onto adapter
• Assemble large flat washer, 5/16 lockwasher, 5/16 hex
bolt and tighten securely
• Snap steering wheel insert into center of steering
wheel,
• Remove protective materials from tractor hood and
grill,
IMPORTANT: CHECK FORAND REMOVEANY STAPLESIN
SKIDTHATMAYPUNCTURETIRESWHERETRACTORISTO
ROLLOFF SKID
LARGE FLAT
WASHER
STEERING
WHEEL STEERING
BOOT
LOWER
STEERING
SHAFT ....
EXTENSION
SHAFT
=
//t
I_ \\ \
, 9 _'_ "
"TAB
"-. , ,4_ SLOTS
FIG. 1
INSTALL SEAT (See Fig. 2)
Adjust seat before tightening adjustment knob
• Remove adjustment knob and flat washer securing
seat to cardboard packing and set aside for assembly
of seat to tractor
• Pivotseat upward and remove from the cardboard pack-
ing Remove the cardboard packing and discard
• Place seat on seat pan so head of shoulder bolt is
positioned over large slotted hole in pan
• Push down on seat to engage shoulder bolt in slot and
pull seat towards rear of tractor,
• Pivot seat and pan forward and assemble adjustment
knob and flat washer loosely Do not tighten
• Lower seat into operating position and sit on seat
• Slide seat until a comfortable position is reached
which allows you to press clutch/brake pedal all the
way down,
• Get off seat without moving its adjusted position,
• Raise seat and tighten adjustment knob securely,
6

ASSEMBLY
SHOULDER
BOLT
FLAT WASHER
ADJUSTMENTKNOB
FIG. 2
CHECK BATTERY (See Fig. 3)
•Lift seat pan to raised position,
• If this battery is put into service after month and year
indicated on label (label located between terminals)
charge battery for minimum of one hour at 6-10 amps.
(See "BATTERY" in MAINTENANCE section of this
manual for charging instructions),
SEAT PAN
LABEL
NOTE: You may now roll or drive your tractor off the skid,
Follow the appropriate instruction below to remove the
tractor from the skid,
TO ROLL TRACTOR OFF SKID (See Op-
eration section for location and function of
controls)
• Press lift lever plunger and raise attachment lift lever
to its highest position,
• Release parking brake by depressing clutch/brake
pedal,
• Place gearshift lever in neutral (N) position.
• Roll tractor forward off skid,
• Remove banding holding deflector shield up against
tractor,
TO DRIVE TRACTOR OFF SKID (See Op-
eration section for location and function of
controls)
_,WARNING: Before starting, read, understand and follow
all instructions in the Operation section of this manual, Be
sure tractor is in a well-ventilated area. Be sure the area in
front of tractor is clear of other people and objects,
• Be sure all the above assembly steps have been com-
pleted.
• Check engine oil level and fill fuel tank with gasoline,
• Sit on seat in operating position, depress clutch/brake
pedal and set the parking brake,
• Place gear shift lever in neutral (N) position,
• Press lift lever plunger and raise attachment lift lever
to its highest position,
• Start the engine,After engine has started, move throttle
control to idle position,
• Depress clutch/brake pedal into full "BRAKE" position
and hold. Move gearshift lever to 1st gear.
• Slowly release clutch/brake pedal and slowly drive
tractor off skid,
• Apply brake to stop tractor, set parking brake and place
gearshift lever in neutral position.
• Turn ignition key to "OFF" position.
Continue with the instructions that follow,
FIG. 3

ASSEMBLY
CHECK TIRE PRESSURE
The tires on your tractor were overinflated at the factory
for shipping purposes, Correct tire pressure is important
for best cutting performance.
• Reduce tire pressure to PSI shown in "PRODUCT
SPECIFICATIONS" section of this manual.
CHECK DECK LEVELNESS
For best cutting results, mower housing should beproperly

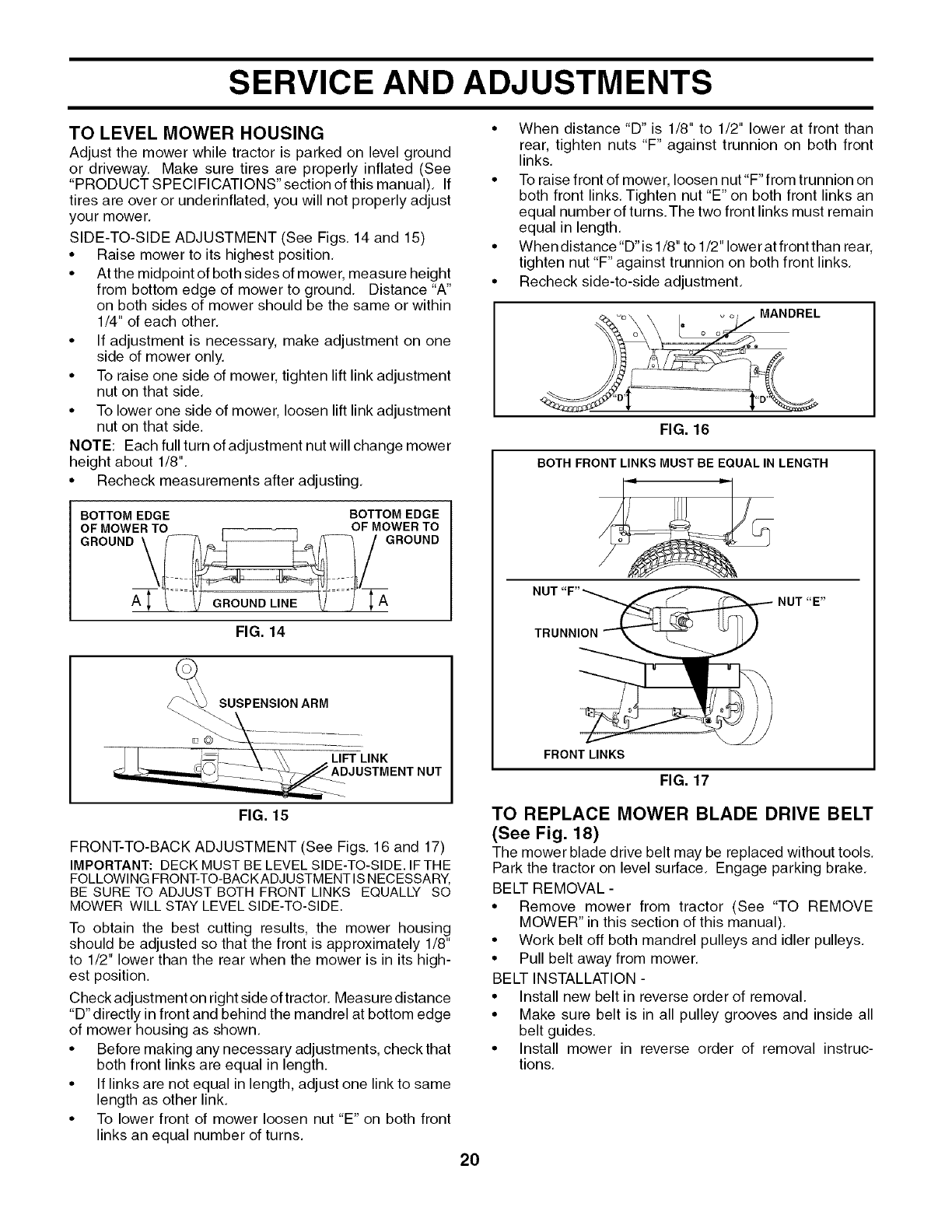

leveled. See "TO LEVEL MOWER HOUSING" inthe Service
and Adjustments section of this manual,
CHECK FOR PROPER POSITION OF ALL
BELTS
See the figures that are shown for replacing motion and
mower blade drive belts in the Service and Adjustments
section of this manual, Verify that the belts are routed
correctly.
CHECK BRAKE SYSTEM
Afteryou learn how to operate your tractor,check to see that
the brake is properly adjusted, See "TO ADJUST BRAKE"
in the Service and Adjustments section of this manual,
,/CHECKL IS T
BEFORE YOU OPERATE YOUR NEW TRACTOR, WE
WISH TO ASSU RETHATYOU RECEIVE THE BEST PER-
FORMANCE AND SATISFACTION FROM THIS QUALITY
PRODUCT.
PLEASE REVIEW THE FOLLOWING CHECKLIST:
,/ All assembly instructions have been completed.
,/ No remaining loose parts in carton,
,/ Battery is properly prepared and charged, (Minimum
1 hour at 6 amps),
,/ Seat is adjusted comfortably and tightened securely.
,/ All tires are properly inflated. (For shipping purposes,
the tires were overinflated at the factory),
,/ Be sure mower deck is properly leveled side-to-side/
front-to-rear for best cutting results, (Tires must be
properly inflated for leveling),
,/ Check mower and drive belts, Be sure they are routed
properly around pulleys and inside all belt keepers,
,/ Check wiring. See that all connections are still secure
and wires are properly clamped,
WHILE LEARNING HOWTO USEYOURTRACTOR, PAY
EXTRA ATTENTION TO THE FOLLOWING IMPORTANT
ITEMS:
,/ Engine oil is at proper level,
,/ Fuel tank is filled with fresh, clean, regular unleaded
gasoline,
,/ Become familiar with all controls, their location and
function. Operate them before you start the engine,
,/ Be sure brake system is in safe operating condition.
,/ Be sure Operator Presence System and Reverse Op-
eration System (ROS) are working properly (See the
Operation and Maintenance sections in this manual).
8

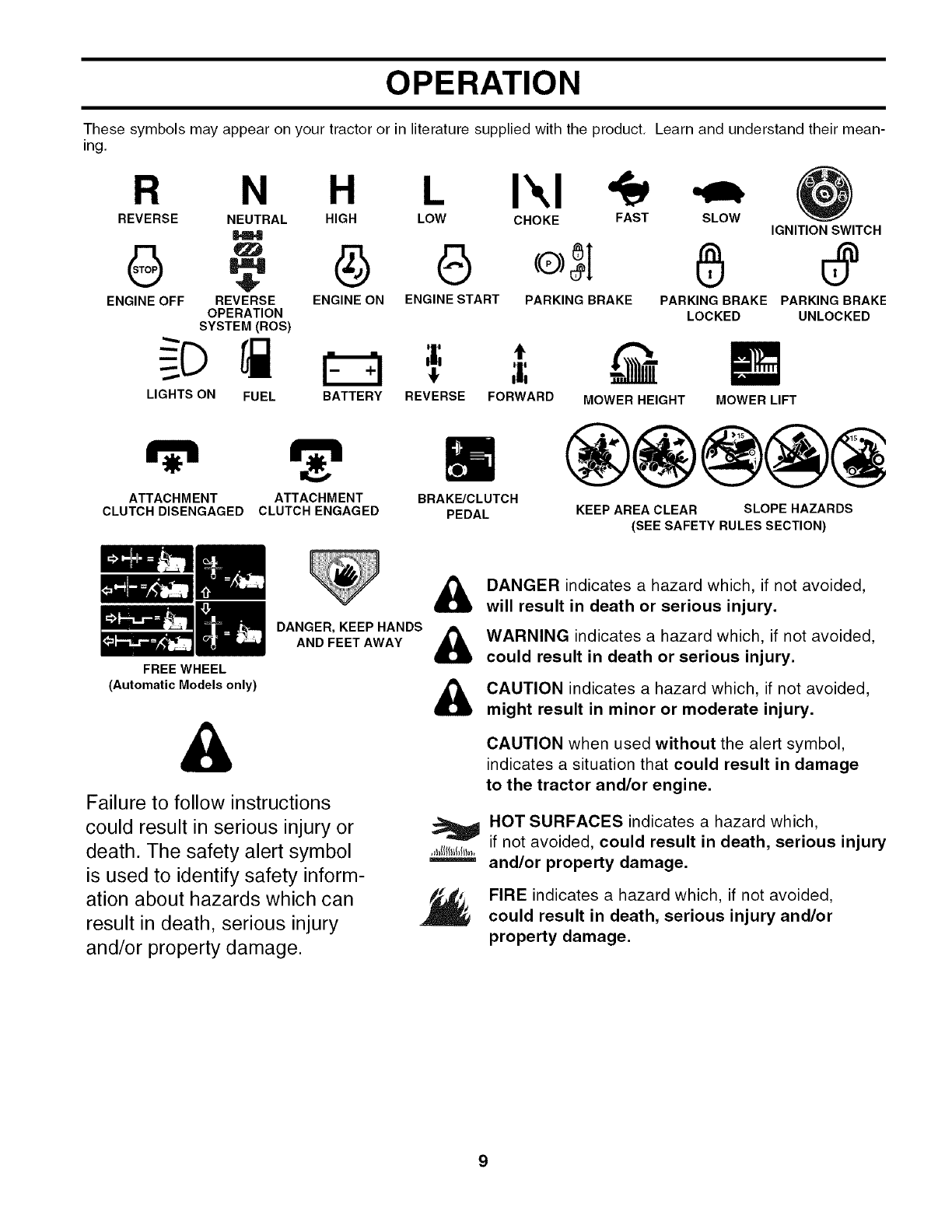

OPERATION
These symbols may appear on your tractor or in literature supplied with the product, Learn and understand their mean-
ing, R N LI\l
CHOKE FAST
REVERSE NEUTRAL HIGH LOW SLOW IGNITION SWITCH
ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE
OPERATION LOCKED UNLOCKED
SYSTEM (ROS)
rl
LIGHTS ON FUEL BATTERY REVERSE FORWARD MOWER HEIGHT MOWER LIFT
m
ATTACHMENT
CLUTCH DISENGAGED
FREE WHEEL
(Automatic Models only)
ATTACHMENT
CLUTCH ENGAGED BRAKE/CLUTCH
PEDAL KEEP AREA CLEAR SLOPE HAZARDS
(SEE SAFETY RULES SECTION)
DANGER, KEEP HANDS
AND FEET AWAY
&
Failure to follow instructions
could result in serious injury or
death. The safety alert symbol
is used to identify safety inform-
ation about hazards which can
result in death, serious injury
and/or property damage.
,_l_{lfl_;ltl,,
DANGER indicates a hazard which, if not avoided,
will result in death or serious injury.
WARNING indicates a hazard which, if not avoided,
could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided,
might result in minor or moderate injury.
CAUTION when used without the alert symbol,
indicates a situation that could result in damage
to the tractor and/or engine.
HOT SURFACES indicates a hazard which,
if not avoided, could result in death, serious injury
and/or property damage.
FIRE indicates a hazard which, if not avoided,
could result in death, serious injury and/or
property damage.

OPERATION
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR
Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments.
Save this manual for future reference.
ATTACHMENT
CLUTCH LEVER IGNITION
SWITCH POSITION
LIFT LEVER
PLUNGER
THROTTLE/CHOKE ATTACHMENT
LIFT LEVER
CLUTCH/BRAKE
PEDAL oHEIGHT
ADJUSTMENT
INDICATOR
-PARKING
BRAKE
GEAR SHIFT
LEVER
Our tractors conform to the safety standards of the American National Standards Institute.
ATTACHMENT CLUTCH LEVER - Used to engage the
mower blades, or other attachments mounted to your
tractor.
ATTACHMENT LIFT LEVER - Used to raise, lower, and
adjust the mower deck or other attachments mounted to
your tractor.
CLUTCH/BRAKE PEDAL - Used for declutching and brak-
ing the tractor and starting the engine.
GEARSHIFT LEVER - Selects the speed and direction
of the tractor.
IGNITION SWITCH - Used for starting and stopping the
engine.
LIFT LEVER PLUNGER - Used to release attachment lift
lever when changing its position.
LIGHT SWITCH - Turns the headlights on and off.
PARKING BRAKE - Locks clutch/brake pedal into the
brake position,
REVERSE OPERATION SYSTEM (ROS) "ON" POSI-
TION - Allows operation of mower deck or other powered
attachment while in reverse,
THROTTLE/CHOKE CONTROL - Used for starting and
controlling engine speed,
10

OPERATION
The operation of any tractor can result in foreign objects thrown into the eyes, which can result
in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or
performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles
or standard safety glasses.
HOW TO USE YOUR TRACTOR
TO SET PARKING BRAKE (See Fig. 5)
Your tractor is equipped with an operator presence sens-
ing switch. When engine is running, any attempt by the
operator to leave the seat without first setting the parking
brake will shut off the engine.
• Depress clutch/brake pedal into full "BRAKE" position
and hold.
• Place parking brake lever in "ENGAGED" position and
release pressure from clutch/brake pedal. Pedal should
remain in "BRAKE" position. Make sure parking brake
will hold tractor secure.
ATTACHMENT CLUTCH
LEVER "ENGAGED"
POSITION
THROTTL_ IGNITION KEY
CHOKE
CONTROL "DISENGAGED"
POSITION
PARKING BRAKE
"BRAKE"
POSITION POSITION
CLUTCH/BRAKE PARKING BRAKE
PEDAL "DRIVE" "DISENGAG ED"
POSITION POSITION
LEVER
FIG. 5
STOPPING (See Fig. 5)
MOWER BLADES -
• To stop mower blades,move attachment clutch lever
to "DISENGAGED" position.
GROUND DRIVE -
• To stop ground drive, depress clutch/brake pedal into
full "BRAKE" position.
• Move gearshift lever to neutral (N) position.
ENGINE -
• Move throttle control between half and full speed (fast)
position.
NOTE: Failure to move throttle control between half and
full speed (fast) position, before stopping may cause engine
to "backfire".
• Turn ignition key to "OFF" position and remove key.
Always remove key when leaving tractor to prevent
unauthorized use.
• Never use choke to stop engine.
IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY
POSITION OTHERTHAN "OFF" WILL CAUSETHE BATTERY
TO BE DISCHARGED, (DEAD).
NOTE: Under certain conditions when tractor is standing
idle with the engine running, hot engine exhaust gases may
cause "browning" of grass. Toeliminate this possibility, al-
ways stop engine when stopping tractor on grass areas.
CAUTION: Always stop tractor com-
pletely, as described above, before leav-
ing the operator's position; to empty
grass catcher, etc.
TO USE THROTTLE CONTROL (See Fig. 5)
Always operate engine at full throttle.
• Operating engine at less than full throttle reduces the
battery charging rate.
• Full throttle offers the best bagging and mower perfor-
mance.
TO MOVE FORWARD AND BACKWARD
(See Fig. 5)
The direction and speed of movement is controlled by the
gearshift lever.
• Start tractor with clutch/brake pedal depressed and
gearshift lever in neutral (N) position.
• Move gearshift lever to desired position.
• Slowly release clutch/brake pedal to start move-
ment.
IMPORTANT: BRING TRACTOR TO A COMPLETE STOP
BEFORE SHIFTING OR CHANGING GEARS. FAILURE
TO DO SO WILL SHORTEN THE USEFUL LIFE OF YOUR
TRANSAXLE.
TO ADJUST MOWER CUTTING HEIGHT
(See Fig. 5)
The position of the attachment lift lever determines the
cutting height.
• Grasp lift lever.
• Press plunger with thumb and move lever to desired
position.
The cutting height range is approximately 1-1/2 to 4".
The heights are measured from the ground to the blade tip
with the engine not running. These heights are approximate
and may vary depending upon soil conditions, height of
grass and types of grass being mowed.
• The average lawn should be cut to approximately 2-1/2
inches during the cool season and to over 3 inches
during hot months. For healthier and better looking
lawns, mow often and after moderate growth.
• For best cutting performance, grass over 6 inches
in height should be mowed twice. Make the first cut
relatively high; the second to desired height.
11

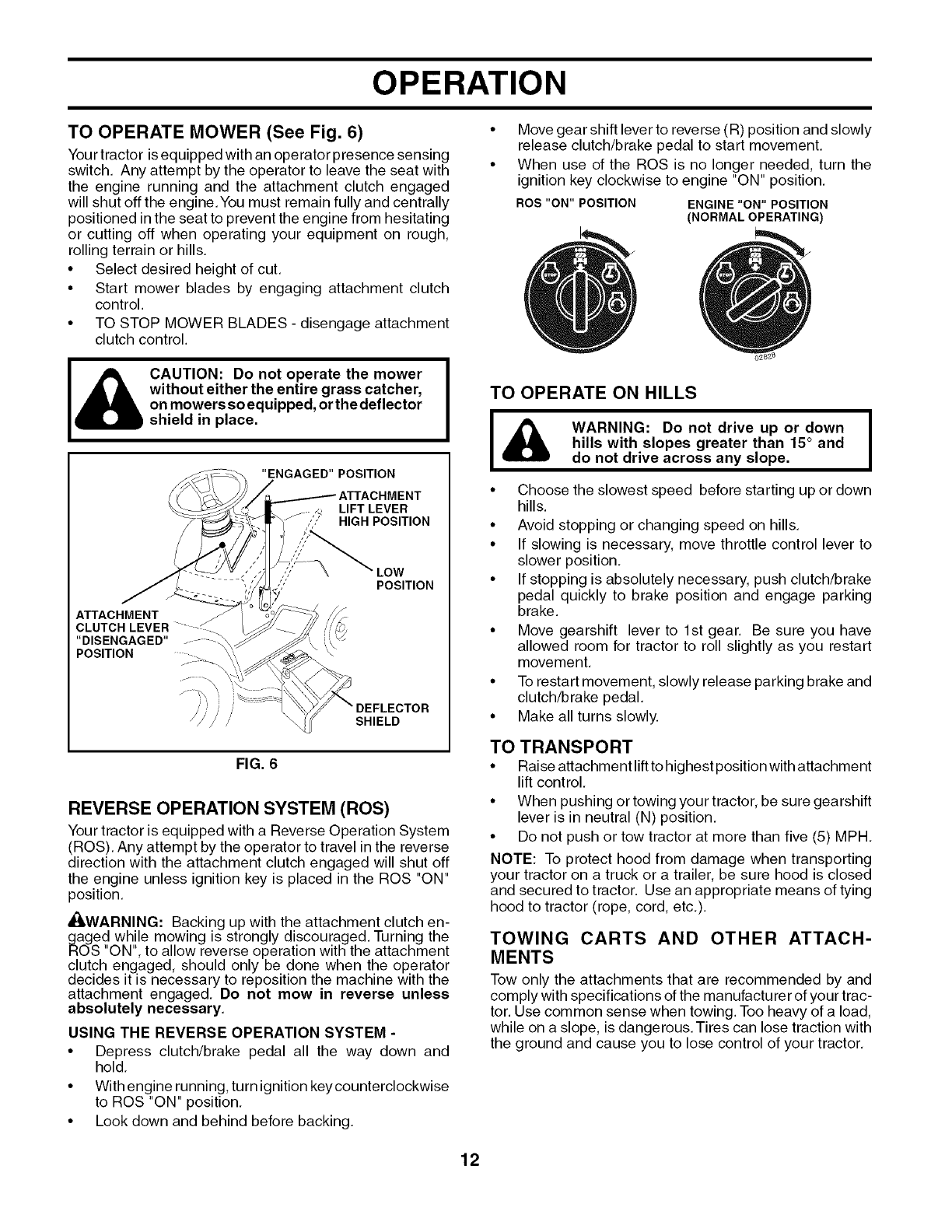

OPERATION
TO OPERATE MOWER (See Fig. 6)
Your tractor isequipped with an operator presence sensing
switch, Any attempt by the operator to leave the seat with
the engine running and the attachment clutch engaged
will shut off the engine,You must remain fully and centrally
positioned in the seat to prevent the engine from hesitating
or cutting off when operating your equipment on rough,
rolling terrain or hills,
• Select desired height of cut,
• Start mower blades by engaging attachment clutch
control.
• TO STOP MOWER BLADES - disengage attachment
clutch control.
CAUTION: Do not operate the mower
without either the entire grass catcher,
on mowers soequipped, or thedeflector
shield in place.
"ENGAGED" POSITION
LIFT LEVER
HIGH POSITION
ATTACHMENT
CLUTCH LEVER
"DISENGAGED"
POSITION -_
f-- -\\ i,
/ /
LOW
POSITION
SHIELD
FIG. 6
REVERSE OPERATION SYSTEM (ROS)
Your tractor is equipped with a Reverse Operation System
(ROS), Any attempt by the operator to travel in the reverse
direction with the attachment clutch engaged will shut off
the engine unless ignition key is placed in the ROS "ON"
position,
Aqh,WARNING: Backing up with the attachment clutch en-
gaged while mowing is strongly discouraged, Turning the
ROS "ON", to allow reverse operation with the attachment
clutch engaged, should only be done when the operator
decides it is necessary to reposition the machine with the
attachment engaged, Do not mow in reverse unless
absolutely necessary,
USING THE REVERSE OPERATION SYSTEM -
• Depress clutch/brake pedal all the way down and
hold,
• With engine running, turn ignition key counterclockwise
to ROS "ON" position,
• Look down and behind before backing,
Move gear shift lever to reverse (R) position and slowly
release clutch/brake pedal to start movement.
When use of the ROS is no longer needed, turn the
ignition key clockwise to engine "ON" position,
ROS "ON" POSITION ENGINE "ON" POSITION
(NORMAL OPERATING)
TO OPERATE ON HILLS
I_lb WARNING: Do not drive up or down
hills with slopes greater than 15°and
do not drive across any slope,
• Choose the slowest speed before starting up or down
hills.
• Avoid stopping or changing speed on hills.
• If slowing is necessary, move throttle control lever to
slower position,
• If stopping is absolutely necessary, push clutch/brake
pedal quickly to brake position and engage parking
brake.
• Move gearshift lever to 1st gear. Be sure you have
allowed room for tractor to roll slightly as you restart
movement,
• To restart movement, slowly release parking brake and
clutch/brake pedal,
• Make all turns slowly.
TO TRANSPORT
• Raise attachment lift tohighest position with attachment
lift control,
• When pushing or towing your tractor, be sure gearshift
lever is in neutral (N) position.
• Do not push or tow tractor at more than five (5) MPH,
NOTE: To protect hood from damage when transporting
your tractor on a truck or a trailer, be sure hood is closed
and secured to tractor. Use an appropriate means of tying
hood to tractor (rope, cord, etc,).
TOWING CARTS AND OTHER ATTACH-
MENTS
Tow only the attachments that are recommended by and
comply with specifications of the manufacturer of your trac-
tor. Use common sense when towing. Too heavy of a load,
while on a slope, is dangerous,Tires can lose traction with
the ground and cause you to lose control of your tractor,
12

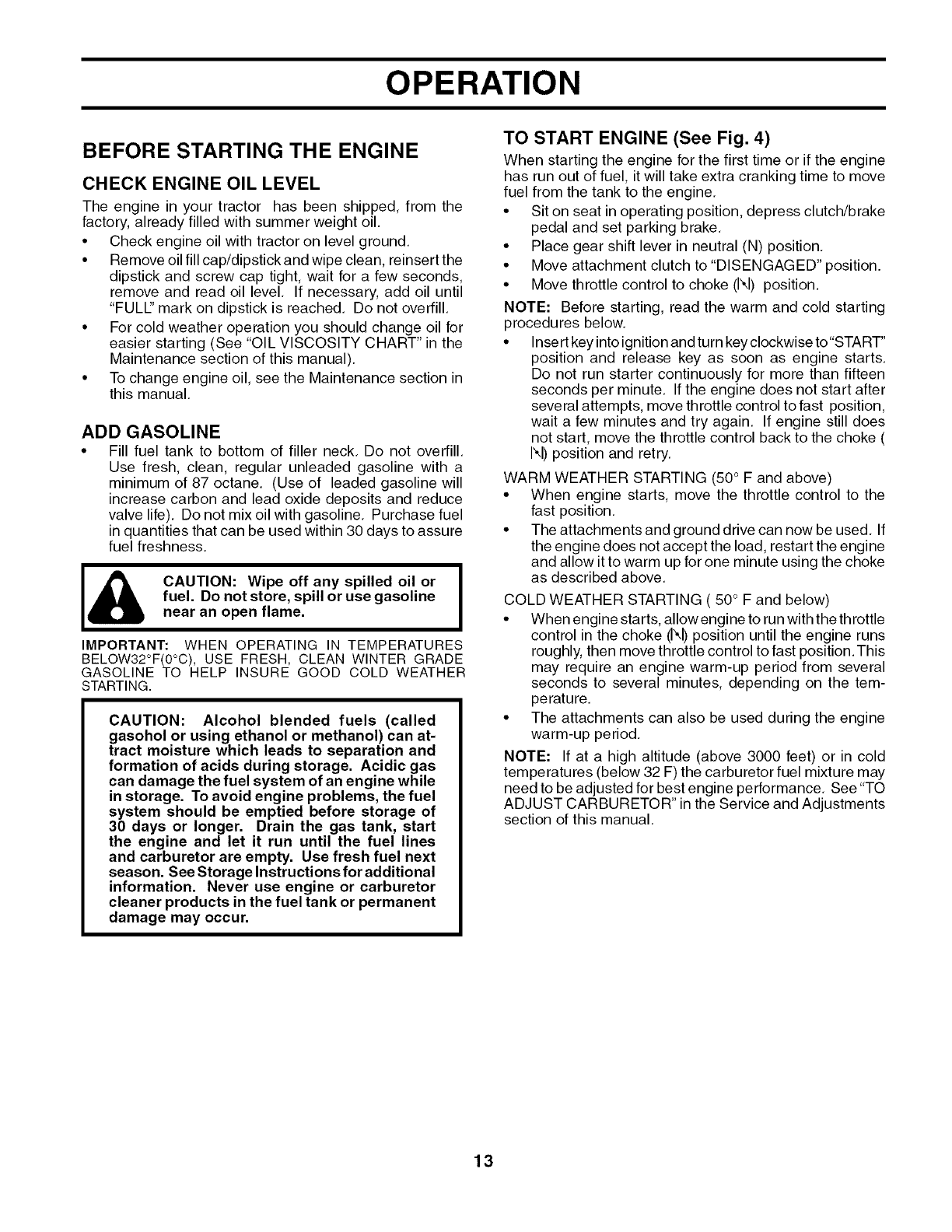

OPERATION
BEFORE STARTING THE ENGINE
CHECK ENGINE OIL LEVEL
The engine in your tractor has been shipped, from the
factory already filled with summer weight oil
•Check engine oil with tractor on level ground
• Remove oil fill cap/dipstick and wipe clean, reinsert the
dipstick and screw cap tight, wait for a few seconds,
remove and read oil level If necessary add oil until
"FULl' mark on dipstick is reached Do not overfill
• For cold weather operation you should change oil for
easier starting (See "OIL VISCOSITY CHART' in the
Maintenance section of this manual)
• To change engine oil see the Maintenance section in
this manual
ADD GASOLINE
• Fill fuel tank to bottom of filler neck Do not overfill
Use fresh, clean, regular unleaded gasoline with a
minimum of 87 octane (Use of leaded gasoline will
increase carbon and lead oxide deposits and reduce
valve life) Do not mix oil with gasoline Purchase fuel
in quantities that can be used within 30 days to assure
fuel freshness
i& CAUTION: Wipe off any spilled oil or I
=
fuel. Do not store, spill or use gasoline I
near an open flame.
IMPORTANT: WHEN OPERATING IN TEMPERATURES
BELOW32°F(0°C) USE FRESH CLEAN WINTER GRADE
GASOLINE TO HELP INSURE GOOD COLD WEATHER
STARTING
CAUTION: Alcohol blended fuels (called
gasohol or using ethanol or methanol) can at-
tract moisture which leads to separation and
formation of acids during storage. Acidic gas
can damage the fuel system of an engine while
in storage. To avoid engine problems, the fuel
system should be emptied before storage of
30 days or longer. Drain the gas tank, start
the engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel next
season. See Storage Instructions for additional
information. Never use engine or carburetor
cleaner products in the fuel tank or permanent
damage may occur.
TO START ENGINE (See Fig. 4)
When starting the engine for the first time or if the engine
has run out of fuel, it will take extra cranking time to move
fuel from the tank to the engine
• Sit on seat in operating position, depress clutch/brake
pedal and set parking brake
• Place gear shift lever in neutral (N) position
• Move attachment clutch to "DISENGAGED' position
• Move throttle control to choke (1_1)position
NOTE: Before starting read the warm and cold starting
procedures below
• Insert key intoignition and turn keyclockwise to"START'
position and release key as soon as engine starts
Do not run starter continuously for more than fifteen
seconds per minute If the engine does not start after
several attempts, move throttle control to fast position
wait a few minutes and try again If engine still does
not start, move the throttle control back to the choke (
I",1)position and retry
WARM WEATHER STARTING (50° F and above)
• When engine starts, move the throttle control to the
fast position
• The attachments and ground drive can now be used If
the engine does not accept the load, restart the engine
and allow it to warm up for one minute using the choke
as described above
COLD WEATHER STARTING ( 50° F and below)
• When engine starts, allow engine to runwith the throttle
control in the choke (1\1)position until the engine runs
roughly then move throttle control to fast position This
may require an engine warmup period from several
seconds to several minutes, depending on the tem
perature
• The attachments can also be used during the engine
warmup period
NOTE: If at a high altitude (above 3000 feet) or in cold
temperatures (below 32 F) the carburetor fuel mixture may
need to be adjusted for best engine performance See "TO
ADJUST CARBURETOR' in the Service and Adjustments
section of this manual
13

OPERATION
MOWING TIPS
• Mower should be properly leveled for best mowing per-
formance, See "TO LEVEL MOWER HOUSING" in the
Service and Adjustments section of this manual,
• The left hand side of mower should be used for trim-
ming.
• Drive so that clippings are discharged onto the area
that has been cut, Have the cut area to the right of the
machine, This will result in a more even distribution of
clippings and more uniform cutting,
• When mowing large areas, start byturning tothe rightso
that clippings will discharge away from shrubs, fences,
driveways, etc. After one or two rounds, mow in the
opposite direction making left hand turns until finished
(See Fig. 7).
ff
(
FIG. 7
• If grass is extremely tall, it should be mowed twice to
reduce load and possible fire hazard from dried clip-
pings. Make first cut relatively high; the second to the
desired height.
• Do not mow grass when it is wet. Wet grass will plug
mower and leave undesirable clumps, Allow grass to
dry before mowing.
•Always operate engine at full throttle when mow-
ing to assure better mowing performance and proper
discharge of material, Regulate ground speed by se-
lecting a low enough gear to give the mower cutting
performance as well as the quality of cut desired,
• When operating attachments, select a ground speed
that will suit the terrain and give best performance of
the attachment being used,
14

MAINTENANCE
F,'', O TES
AS YOU COMPLETE
REGULAR SERVICE J_%_'_ql=_',/Irl= DATES
f vr" Vr" vr" _r" _r" _r" vf .......
Check Brake Operation _ _,
Check Tire Pressure
Check Operator Presence and
TROS Systems Vp
RCheck for Loose Fasteners I_ II_s I_
ASharpen/Replace Mower Blades V'3
C LubricationOhart _ I_
0Check Battery Level
RClean Battery and Terminals I_
Check Transaxle Cooling I_
Check V-Belts I[_
Check Engine Oil Level If if
Change Engine Oil (with oil filter) _1_1, 2 _1_
EChange Engine Oil (without oil filter) 1_1,2
N Clean Air Filter 1_2
G Clean Air Screen 1_2
Inspect Muffler/Spark Arrester t,,'
E Replace Oil Filter (If equipped) 1_1,2
Clean Engine Cooling Fins tf 2
Replace Spark Plug I_ I1_
Replace Air Filter Paper Cartridge V'2
Replace Fuel Filter
1 - Change more often when operating under a heavy load or
in high ambient temperatures.
2 - Service more often when operating in dirty or dusty conditions.
3 - Replace blades more often when mowing in sandy soil.
4 - Not required if equipped with maintenance-free battery.
5 - Tighten front axle pivot bolt to 35 ft.-lbs, maximum.
Do not overtighten.
GENERAL RECOMMENDATIONS
The warranty on this tractor does not cover items that have
been subjected to operator abuse or negligence. Toreceive
full value from the warranty, operator must maintain tractor
as instructed in this manual.
Some adjustments will need to be made periodically to
properly maintain your tractor.
At least once a season, check to see if you should make
any of the adjustments described in the Service and
Adjustments section of this manual.
• At least once a year you should replace the spark plug,
clean or replace air filter, and check blades and belts
for wear. A new spark plug and clean air filter assure
proper air-fuel mixture and help your engine run better
and last longer.
BEFORE EACH USE
• Check engine oil level.
• Check brake operation.
• Check tire pressure.
• Check operator presence and
ROS systems for proper operation.
• Check for loose fasteners.
15
LUBRICATION CHART
@SPINDLE ZERK I_ I
@FRONT WHEEL _,,,_2-_
BEARING ZERK _ i=_J
1
I
I
i
_____ _____ @SPINDLE ZERK
............. _-_,b_'*" @ FRONT WHEEL
..... _EARING ZERK
I "1
_ @GEARSHIFT
-" _ PIVOTS
i
@SAE 30 OR 10W30 MOTOR OIL
@GENERAL PURPOSE GREASE
(_)REFER TO MAINTENANCE "ENGINE" SECTION
IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS WHICH
HAVE SPECIAL NYLON BEARINGS. VISCOUS LUBRICANTS WILL
ATTRACT DUST AND DIRT THAT WILL SHORTEN THE LIFE OF
THE SELF-LUBRICATING BEARINGS. IF YOU FEEL THEY MUST
BE LUBRICATED, USE ONLY A DRY, POWDERED GRAPHITE TYPE
LUBRICANT SPARINGLY.

MAINTENANCE
TRACTOR
Always observe safety rules when performing any main-
tenance,
BRAKE OPERATION
If tractor requires more than five (5) feet to stop at highest
speed in highest gear on a level, dry concrete or paved
surface, then brake must be checked and adjusted. (See
"TO ADJUST BRAKE" in the Service and Adjustments
section of this manual),
TIRES
• Maintain proper air pressure inall tires (See"PRODUCT
SPECIFICATIONS" section of this manual).
• Keep tires free of gasoline, oil, or insect control chemi-
cals which can harm rubber,
• Avoid stumps, stones, deep ruts, sharp objects and
other hazards that may cause tire damage.
NOTE: To seal tire punctures and prevent flat tires due to
slow leaks, tire sealant may be purchased from your local
parts dealer, Tire sealant also prevents tire dry rot and
corrosion.
OPERATOR PRESENCE SYSTEM AND REVERSE OP-
ERATION SYSTEM (ROS)
Be sure operator presence and reverse operation systems
are working properly. If your tractor does not function as
described, repair the problem immediately.
• The engine should not start unless the brake pedal is
fully depressed, and the attachment clutch control is
in the disengaged position.
CHECK OPERATOR PRESENCE SYSTEM
• When the engine is running, anyattempt bythe operator
to leave the seat without first setting the parking brake
should shut off the engine,
• When the engine is running and the attachment clutch
is engaged, any attempt by the operator to leave the
seat should shut off the engine,
• The attachment clutch should never operate unless
the operator is in the seat,
CHECK REVERSE OPERATION (ROS) SYSTEM
• When the engine is running with the ignition switch in
the engine "ON" position and the attachment clutch
engaged, any attempt by the operator to shift into
reverse should shut off the engine.
• When the engine is running with the ignition switch in
the ROS "ON" position and the attachment clutch en-
gaged, any attempt by the operator to shift into reverse
should NOT shut off the engine,
ROS "ON" POSITION ENGINE "ON" POSITION
(NORMAL OPERATING)
BLADE CARE
For best results mower blades must bekept sharp, Replace
bent or damaged blades.
CAUTION: Useonlya replacement blade
approved by the manufacturer of your
tractor. Using a blade not approved
by the manufacturer of your tractor is
hazardous, could damage your tractor
and void your warranty.
BLADE REMOVAL (See Fig. 8)
• Raise mower to highest position to allow access to
blades.
• Remove blade bolt, lockwasher and flat washer securing
blade.
• Install new or resharpened blade with trailing edge up
towards deck as shown.
IMPORTANT: TO ENSURE PROPER ASSEMBLY, CENTER
HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL
ASSEMBLY.
• Reassemble blade bolt, lock washer and flat washer
in exact order as shown.
• Tighten blade bolt securely (27-35 Ft. Lbs. torque).
IMPORTANT: BLADE BOLT IS HEATTREATED. IF BOLT NEEDS
REPLACING, REPLACE ONLYWITH APPROVE BOLT SHOWN
IN THE REPAIR PARTS.
TRAILING BLADE
EDGE UP _CENTER
HOLE
MANDREL
ASSEMBLY
STAR
TO SHARPEN BLADE (See Fig. 9)
NOTE: We do not recommend sharpening blade - but if
you do, be sure the blade is balanced,
Care should be taken to keep the blade balanced, An un-
balanced blade will cause excessive vibration and eventual
damage to mower and engine,
• The blade can be sharpened with a file or on a grind-
ing wheel, Do not attempt to sharpen while on the
mower,
•To check blade balance, you will need a 5/8" diameter
steel bolt, pin, or a cone balancer. (When using a
cone balancer, follow the instructions supplied with
balancer.)
NOTE: Do not use a nail for balancing blade. The lobes of
the center hole may appear to be centered, but are not,
16

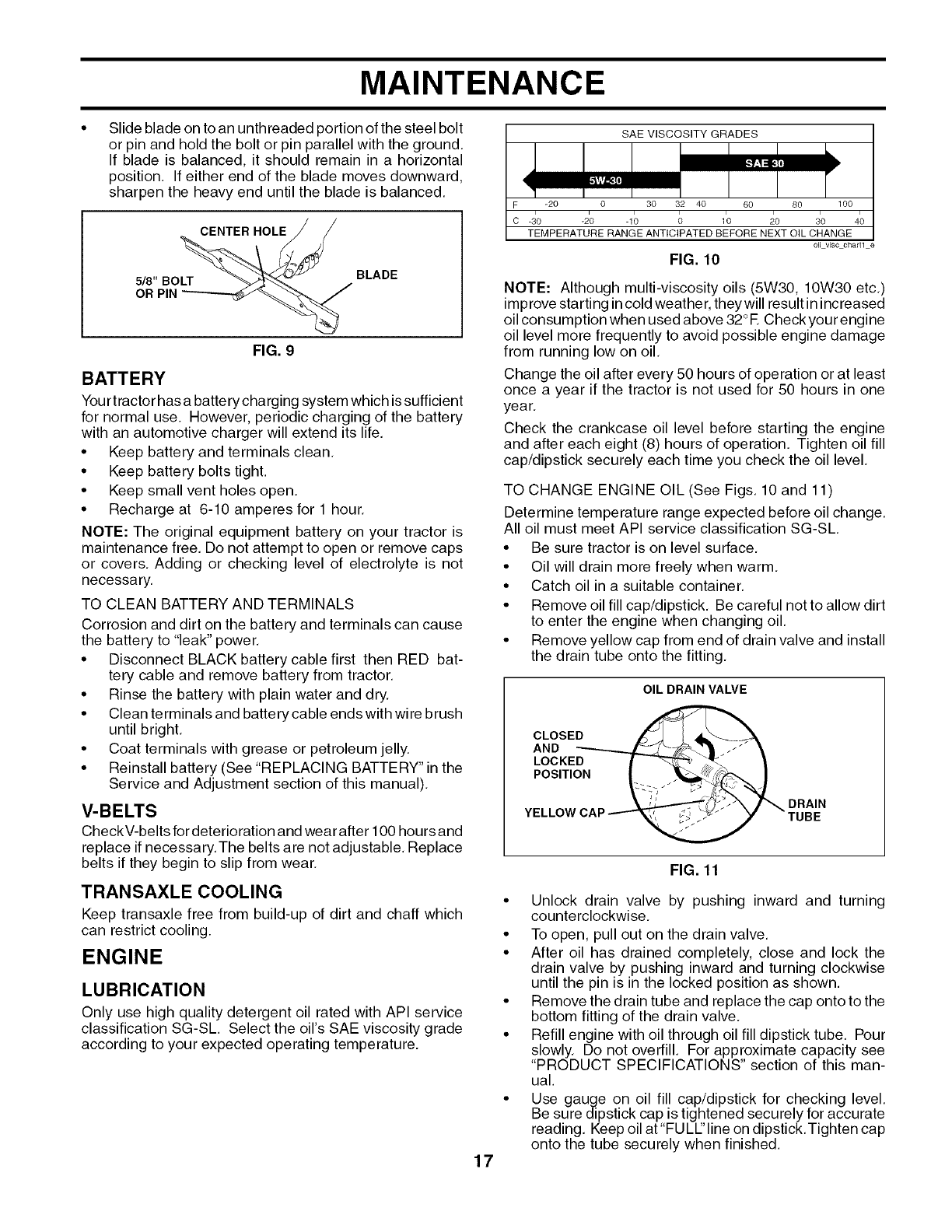

MAINTENANCE
• Slide blade on to an unthreaded portion ofthe steel bolt SAEVISCOSITYGRADES
or pin and hold the bolt or pin parallel with the ground,
If blade is balanced, it should remain in a horizontal
position. If either end of the blade moves downward,
sharpen the heavy end until the blade is balanced,
Emm
5,8,,Bo .B'ADE
OR PIN
FIG. 9
BATTERY
Yourtractor hasa battery charging system which issufficient
for normal use. However, periodic charging of the battery
with an automotive charger will extend its life,
• Keep battery and terminals clean,
• Keep battery bolts tight.
• Keep small vent holes open,
• Recharge at 6-10 amperes for 1 hour,
NOTE: The original equipment battery on your tractor is
maintenance free, Do not attempt to open or remove caps
or covers, Adding or checking level of electrolyte is not
necessary,
TO CLEAN BATTERY AND TERMINALS
Corrosion and dirt on the battery and terminals can cause
the battery to "leak" power,
• Disconnect BLACK battery cable first then RED bat-
tery cable and remove battery from tractor,
• Rinse the battery with plain water and dry.
• Clean terminals and battery cable ends with wire brush
until bright,
• Coat terminals with grease or petroleum jelly.
• Reinstall battery (See "REPLACING BATTERY" in the
Service and Adjustment section of this manual),
V-BELTS
CheckV-belts for deterioration and wear after 100 hours and
replace if necessary, The belts are not adjustable, Replace
belts if they begin to slip from wear.
TRANSAXLE COOLING
Keep transaxle free from build-up of dirt and chaff which
can restrict cooling.
ENGINE
LUBRICATION
Only use high quality detergent oil rated with API service
classification SG-SL. Select the oil's SAE viscosity grade
according to your expected operating temperature.
F -20 0 30 32 40 60 80 100
c -_0 -20 -1; ; ;0 _0 10 4;
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
oilvEsc chart1 e
FIG. 10
NOTE: Although multi-viscosity oils (5W30, 10W30 etc,)
improve starting incold weather, they will result in increased
oil consumption when used above 32°E Checkyour engine
oil level more frequently to avoid possible engine damage
from running low on oil,
Change the oil after every 50 hours of operation or at least
once a year if the tractor is not used for 50 hours in one
year,
Check the crankcase oil level before starting the engine
and after each eight (8) hours of operation, Tighten oil fill
cap/dipstick securely each time you check the oil level,
TO CHANGE ENGINE OIL (See Figs, 10 and 11)
Determine temperature range expected before oil change,
All oil must meet API service classification SG-SL
• Be sure tractor is on level surface,
• Oil will drain more freely when warm,
• Catch oil in a suitable container.
• Remove oil fill cap/dipstick, Be careful not to allow dirt
to enter the engine when changing oil,
• Remove yellow cap from end of drain valve and install
the drain tube onto the fitting,
OIL DRAIN VALVE
17
FIG. 11
• Unlock drain valve by pushing inward and turning
counterclockwise,
• To open, pull out on the drain valve.
• After oil has drained completely, close and lock the
drain valve by pushing inward and turning clockwise
until the pin is in the locked position as shown.
• Remove the drain tube and replace the cap onto to the
bottom fitting of the drain valve.
• Refill engine with oil through oil fill dipstick tube. Pour
slowly. Do not overfill. For approximate capacity see
"PRODUCT SPECIFICATIONS" section of this man-
ual.
• Use gauge on oil fill cap/dipstick for checking level.
Be sure dipstick cap is tightened securely for accurate
reading. Keep oil at"FULl "line on dipstick.Tighten cap
onto the tube securely when finished.

MAINTENANCE
CLEAN AIR SCREEN
Air screen must be kept free of dirt and chaff to prevent
engine damage from overheating, Clean with a wire brush
or compressed air to remove dirt and stubborn dried gum
fibers,
AIR FILTER
Your engine will not run properly using a dirty air filter.
Service air cleaner more often under dusty conditions. See
Engine Manual.
ENGINE OIL FILTER
Replace the engine oil filter every season or every other
oil change if the tractor is used more than 100 hours in
one year,
MUFFLER
Inspect and replace corroded muffler and spark arrester
(if equipped) as it could create a fire hazard and/or dam-
age,
SPARK PLUGS
Replace spark plugs at the beginning of each mowing sea-
son or after every 100 hours of use, whichever comes first,
Spark plug type and gap setting is shown in "PRODUCT
SPECIFICATIONS" section of this manual,
IN-LINE FUEL FILTER (See Fig. 12)
The fuel filter should be replaced once each season. If fuel
filter becomes clogged, obstructing fuel flow to carburetor,
replacement is required.
• With engine cool, remove filter and plug fuel line sec-
tions,
• Place new fuel filter in position in fuel line with arrow
pointing towards carburetor,
• Be sure there are no fuel line leaks and clamps are
properly positioned.
• Immediately wipe up any spilled gasoline,
CLAMP CLAMP
FUEL
FILTER
FIG. 12
CLEANING
• Clean engine, battery, seat, finish, etc, of all foreign
matter,
• Keep finished surfaces and wheels free of all gasoline,
oil, etc,
• Protect painted surfaces with automotive type wax,
We do not recommend using a garden hose or pressure
washer to clean your tractor unless the engine and trans-
mission are covered to keep water out,Water in engine or
transmission will shorten the useful life of your tractor, Use
compressed air or a leaf blower to remove grass, leaves
and trash from tractor and mower,
18

SERVICE AND ADJUSTMENTS
_ARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUST-
MENTS:
Depress clutch/brake pedal fully and set parking brake.
Place gearshift lever in neutral (N) position.
• Place attachment clutch in "DISENGAGED" position.
• Turn ignition key to "STOP" and remove key.
•Make sure the blades and all moving parts have completely stopped.
•Disconnect spark plug wire from spark plug and place wire where it cannot come in contact
with plug.
TRACTOR
TO REMOVE MOWER (See Fig. 13)
Mower will be easier to remove from the right side of trac-
tor,
• Place attachment clutch in "DISENGAGED" position.
• Move attachment lift lever forward to lower mower to
its lowest position,
• Roll belt off engine pulley,
• Remove small retainer spring, and remove clutch spring
off pulley bolt.
• Remove large retainer spring, slide collar off and push
housing guide out of bracket.
• Disconnect anti-swaybar from chassis bracket by re-
moving retainer spring,
• Disconnect suspension arms from rear deck brackets
by removing retainer springs,
• Disconnect front links from deck by removing retainer
springs.
• Raise lift lever to raise suspension arms, Slide mower
out from under tractor.
IMPORTANT: IF AN ATTACHMENT OTHERTHAN THE MOWER
DECK IS TO BE MOUNTED ON THE TRACTOR, REMOVE THE
FRONT LINKSAND HOOKTHECLUTCH SPRING INTOSQUARE
HOLE IN FRAME.
TO INSTALL MOWER (See Fig. 13)
• Raise attachment lift lever to its highest position.
• Slide mower under tractor with deflector shield to right
side of tractor,
• Lower lift lever to its lowest position.
• Connect front links to mower deck and secure with
retainer springs,,
• Connect suspension arms to rear deck brackets and
secure with retainer springs,
• Connect anti-swaybar to chassis bracket and secure
with retainer spring,
• Push clutch cable housing guide into bracket, slide col-
lar onto guide and secure with large retainer spring.
• Place flat washer and clutch spring on idler pulley bolt
and secure with small retainer spring.
• Install belt onto engine pulley,
CLUTCH SPRING,
FLAT
SMALL RETAINER SPRING
CLUTCH SPRING
FRONT LINK
RETAINER
RETAINER SPRINGS
(BOTH SIDES)
HOUSING GUIDE RETAINER
SPRING BRACKET DEFLECTOR SHIELD
FIG. 13
19

SERVICE AND ADJUSTMENTS
TO LEVEL MOWER HOUSING
Adjust the mower while tractor is parked on level ground
or driveway Make sure tires are properly inflated (See
"PRODUCT SPECIFICATIONS section of this manual) If
tires are over or underinflated you will not properly adjust
your mower
SIDETOSIDE ADJUSTMENT (See Figs 14 and 15)
• Raise mower to its highest position
• At the midpoint of both sides of mower measure height
from bottom edge of mower to ground Distance "A
on both sides of mower should be the same or within
1/4 of each other
• If adjustment is necessary make adjustment on one
side of mower only
• To raise one side of mower, tighten lift link adjustment
nut on that side
• To lower one side of mower loosen lift link adjustment
nut on that side
NOTE: Each full turn ofadjustment nut will change mower
height about 1/8
• Recheck measurements after adjusting
BOTTOM EDGE BOTTOM EDGE
OF MOWER TO OF MOWER TO
GROUND __/ GROUND
FIG. 14
SUSPENSION ARM
LIFT LINK
FIG. 15
FRONTTOBACK ADJUSTMENT (See Figs 16 and 17)
IMPORTANT: DECK MUST BE LEVEL SIDETOSIDE IF THE
FOLLOWING FRONT TO BACKADJUSTMENT IS NECESSARY
BE SURE TO ADJUST BOTH FRONT LINKS EQUALLY SO
MOWER WILL STAY LEVEL SIDETOSIDE
To obtain the best cutting results the mower housing
should be adjusted so that the front is approximately 1/8
to 1/2 lower than the rear when the mower is in its high
est position
Check adjustment on right side of tractor Measuredistance
"D directly in front and behind the mandrel at bottom edge
of mower housing as shown
• Before making any necessary adjustments, check that
both front links are equal in length
• If links are not equal in length adjust one link to same
length as other link
• To lower front of mower loosen nut "E on both front
links an equal number of turns
When distance 'D is 1/8" to 1/2 lower at front than
rear tighten nuts 'F against trunnion on both front
links
• To raise front of mower, loosen nut 'F from trunnion on
both front links Tighten nut "E on both front links an
equal number of turnsThe two front links must remain
equal in length
• Whendistance"Disl/8tol/21oweratfrontthanrear,
tighten nut 'F against trunnion on both front links
• Recheck sidetoside adjustment
MANDREL
FIG. 16
BOTH FRONT LINKS MUST BE EQUAL IN LENGTH
TRUNNION
NUT "E"
FRONT LINKS
FIG. 17
TO REPLACE MOWER BLADE DRIVE BELT
(See Fig. 18)
The mower blade drive belt may be replaced without tools
Park the tractor on level surface Engage parking brake
BELT REMOVAL
• Remove mower from tractor (See 'TO REMOVE
MOWER in this section of this manual)
• Work belt off both mandrel pulleys and idler pulleys
• Pull belt away from mower
BELT INSTALLATION
• Install new belt in reverse order of removal
• Make sure belt is in all pulley grooves and inside all
belt guides
• Install mower in reverse order of removal instruc
tions
20
