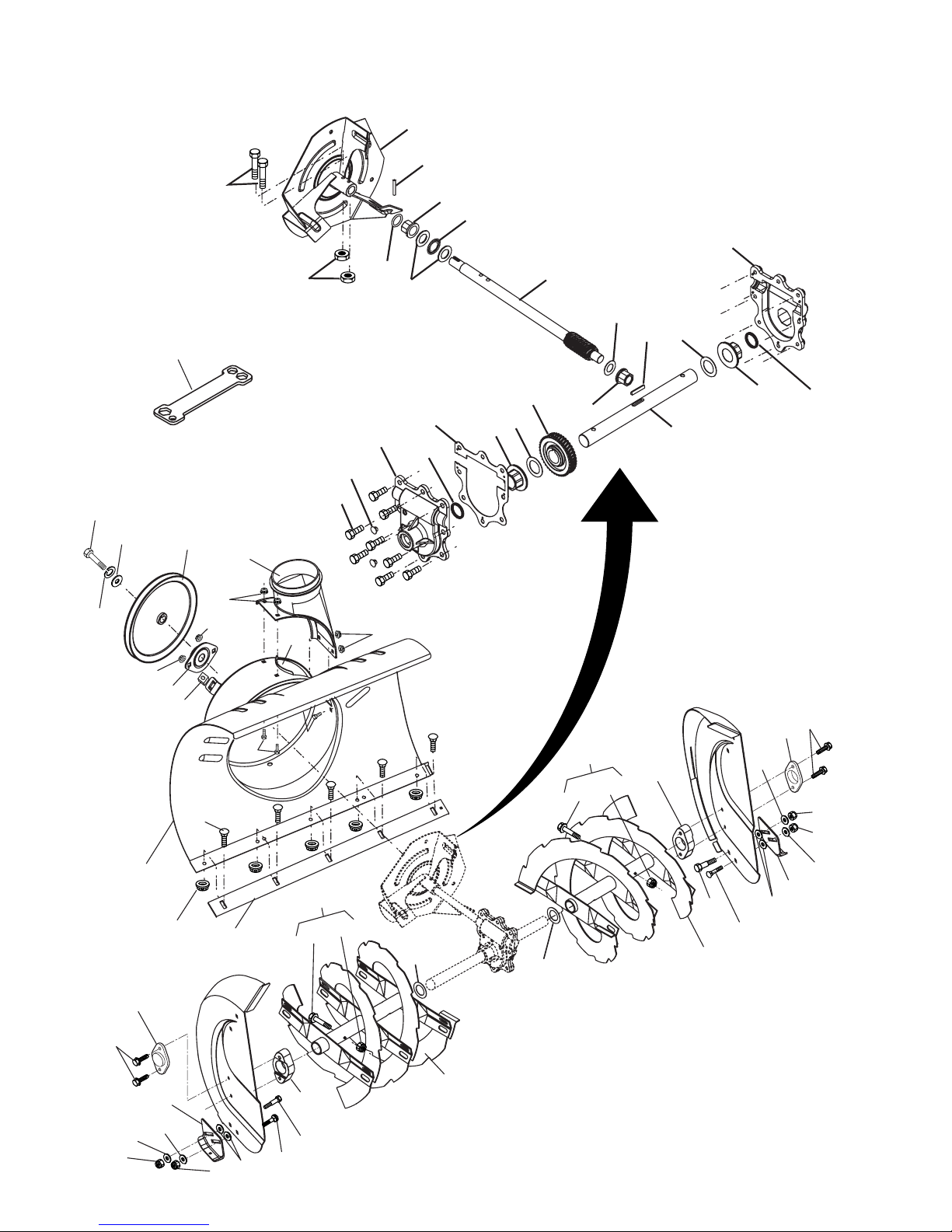

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO. 10530SBE (96195000101), PRODUCT NO. 961 95 00-01
22
18
21
53
19
28 19
55
28 19
55
54
54
6
6
5
6
6
9
12
77
8
611 27 27
30
26
25
24
23
20
31
25
24
26
2329 21
53
19
20
18
10
13
4
14
16
15
36
37
50
47
42
44 27
43
46
38
45
27
43
42
41
40
39
34
32
49
19
48
51
3335
56

21
KEY PART
NO. NO. DESCRIPTION
4 532 19 10-79 Pulley, Impeller
5 532 18 89-09 Bearing Assembly, Flange
6 532 15 53-77 Nut, Hex Flange 5/16-18
7 532 18 03-55 Bolt, Flat Head, Carriage 5/16-18 x 5/8
8 872 27 05-05 Bolt, Carriage 5/16-1 8 x 5/8
9 532 17 88-20 Nut, Cage 3/8-16
10 532 18 81-91 Housing, Auger
11 532 18 40-98 Bar, Scraper
12 532 18 40-95 Bracket, Corner Discharge
13 532 17 53-22 Base, Discharge Chute
14 819 11 15-07 Washer, Flat
15 810 04 05-00 Washer, Lock 5/16
16 874 95 05-12 Screw, Hex Head 5/16-18 x 3/4
18 532 17 95-82 Screw, Hex Head 5/16 x 1
19 873 80 04-00 Nut, Hex Lock 1/4-20
20 873 80 05-00 Nut, Hex Lock 5/16-18
21 532 15 54-15 Washer, Flat 5/16
22 532 18 40-94 Skid Plate, RH
23 532 17 92-46 Washer, Nylon, Friction
24 872 27 05-06 Bolt, Carriage 5/16-18 x 3/4
25 532 18 56-00 Bolt, Shoulder 1/4-20
26 532 18 81-70 Bearing Retainer, Plastic
27 532 17 46-97 Washer, Thrust, 1"
28 532 19 20-90 Bolt, Shear
29 532 18 40-93 Skid Plate, LH
30 532 19 95-30 Auger Assembly, RH
31 532 19 95-29 Auger Assembly, LH
32 532 17 46-99 O-Ring
33 532 17 47-00 Bushing, Flange 3/4
34 532 17 46-81 Washer, Thrust 3/4
35 532 17 46-84 Bearing, Thrust 3/4
36 532 17 46-60 Shaft, Impeller
37 532 17 46-83 Washer, Thrust 5/8
38 532 17 46-86 Bushing, Flange 5/8
39 532 15 00-78 Screw, Hex Head 5/16-18 x 3/4
40 532 08 64-47 Plug, Case
41 532 17 46-88 Housing, Gearbox, RH
42 532 17 46-98 Seal, Oil
43 532 17 47-01 Bushing, Flange, 1"
44 532 18 92-82 Key, Square 1/4 x 1/4 x 7/8
45 532 17 46-59 Gear, Worm
46 532 17 46-57 Shaft, Auger
47 532 17 46-87 Housing, Gearbox, LH
48 532 18 41-05 Impeller Assembly
49 874 78 04-26 Screw, Hex Head 1/4-20 x 1-5/8
50 532 17 53-11 Gasket, Gearbox
51 532 18 42-05 Pin, Roll 3/16 x 1-1/8
53 532 18 79-25 Bearing, Auger
54 532 05 38-47 Washer, Flat 1/4
55 532 18 82-43 Kit, Shear (Contains 6 each of Key Numbers 19 and 28)
56 532 18 06-84 Multi-Wrench
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO. 10530SBE (96195000101), PRODUCT NO. 961 95 00-01
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your lawn mower and void your warranty.

22
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO. 10530SBE (96195000101), PRODUCT NO. 961 95 00-01
3
2
1
2
6
19
2
2
26
28
27
27
25 20
29
31
30
7
4
5
6
8
8
16
18
17
10
14
3
13
15
9
21
11
12
22
23
22
23

23
KEY PART
NO. NO. DESCRIPTION
1 532 18 33-34 Knob, Lever
2 817 50 10-10 Screw #10-24 x 5/8
3 532 17 86-74 Control Assembly, Deflector
4 873 80 06-00 Nut, Lock 3/8-16
5 819 13 13-16 Washer, Flat 3/8
6 532 17 86-59 Control Assembly, Chute Rotater
7 532 18 40-89 Support, Pivot
8 532 15 00-78 Screw, Hex Head 5/16-18 x 3/4
9 532 18 45-05 Spring, Deflector
10 532 17 98-29 Bolt, Shoulder
11 532 17 92-46 Washer, Flat 1/4
12 873 80 04-00 Nut, Lock 1/4-20
13 872 25 05-05 Bolt, Carriage 5/16-18
14 873 80 05-00 Nut, Lock 5/16-18
15 532 18 41-12 Chute Assembly
16 532 18 41-13 Deflector Assembly
17 532 17 91-45 Seal, Deflector
18 532 12 84-15 Rivet, Blind
19 532 18 33-33 Knob, Speed Control Lever
20 872 27 05-06 Bolt, Carriage 5/16-18 x 3/4
21 532 15 54-15 Washer, Flat 5/16
22 874 04 10-24 Screw #10-24 x 1-1/2
23 532 19 24-49 Control Assembly, Power Steering
25 532 15 53-77 Nut, Lock 5/16-18
26 532 19 88-75 Lever Assembly, Speed Control
27 532 16 96-75 Retainer, Hairpin
28 532 18 04-45 Rod, Upper, Speed Control
29 532 18 77-16 Rod, Lower, Speed Control
30 532 19 27-10 Clamp, Clean-Out Tool
31 532 19 21-99 Tool, Clean-Out
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO. 10530SBE (96195000101), PRODUCT NO. 961 95 00-01
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your lawn mower and void your warranty.

24
REPAIR PARTS HANDLES
SNOW THROWER - MODEL NO. 10530SBE (96195000101), PRODUCT NO. 961 95 00-01
32
31
32
30
31
12
10
11
13
15
15
12
16
17
16
23
22
27
41
27
22
17
11
15
15
14
38 39
40
37
33 35
35
34
34
42
43
44
45
46
46
7
6
36
2
5
5
3
1
4
4
4
4
3
8
28
28
9
18
19
20
21
26
24
24
25
5
5

25
KEY PART
NO. NO. DESCRIPTION
1 532 18 41-10 Lever, Auger Control, RH
2 532 18 41-09 Lever, Traction Drive Control, LH
3 532 19 96-39 Nut, Cage 1/4-20
4 532 17 88-88 Bushing, Flange
5 532 16 96-75 Retainer, Hairpin
6 532 19 96-40 Screw, Hex Head
7 532 17 86-52 Rod, Interlock
8 532 19 95-76 Arm, Impeller Rod
9 532 19 95-75 Arm, Traction Rod
10 532 19 95-31 Panel, Control
11 874 78 05-24 Screw, Hex Head 5/16-18 x 1-1/2
12 874 78 05-28 Screw, Hex Head 5/16-18 x 1-3/4
13 532 18 41-07 Handle Tube, LH
14 532 18 41-08 Handle Tube, RH
15 873 80 05-00 Nut, Lock 5/16-18
16 819 13 13-16 Washer, Flat 3/8
17 532 17 88-99 Knob, Handle
18 532 18 45-94 Rod, Auger Control
19 532 19 30-81 Rod, Traction Control
20 532 18 04-28 End, Control Rod
21 873 35 05-00 Nut, Hex, Jam 5/16-18
22 872 12 06-18 Bolt, Carriage 3/8-16 x 2-1/4
23 532 18 40-87 Handle Tube, Lower
24 532 18 04-47 Sleeve, Spring
25 532 18 09-26 Spring, Traction Drive
26 532 17 86-69 Spring, Auger Control
27 871 21 06-16 Screw, Hex Head 3/8-16 x 1
28 532 17 53-31 Bushing, Pivot Lever
30 532 18 29-06 Console, Panel
31 532 17 52-62 Screw, Hex Head, Tapping #10-24 x 1-1/4
32 532 18 44-71 Screw, Hex Head, Tapping #10-24 x 1/2
33 532 19 95-77 Latch, Interlock
34 532 18 35-18 Bolt, Shoulder
35 532 06 80-38 Nut, Lock 1/4-20
36 532 17 88-31 Spring, Torsion
37 532 19 38-85 Spring, Interlock
38 532 17 86-66 Headlight, Halogen (Includes Bulb)
- - 532 40 16-20 Bulb, Halogen
39 532 17 86-68 Bezel, Headlight
40 532 18 09-64 Harness, Headlight (Halogen)
41 532 17 88-90 Nut, Cage 3/8-16
42 532 19 95-78 Lever, Interlock
43 532 19 96-38 Rod, Latch, Interlock
44 532 19 63-38 Rod, Arm, Interlock
45 532 70 02-79 Clip
46 532 17 92-46 Washer, Friction
REPAIR PARTS HANDLES
SNOW THROWER - MODEL NO. 10530SBE (96195000101), PRODUCT NO. 961 95 00-01
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your lawn mower and void your warranty.

26

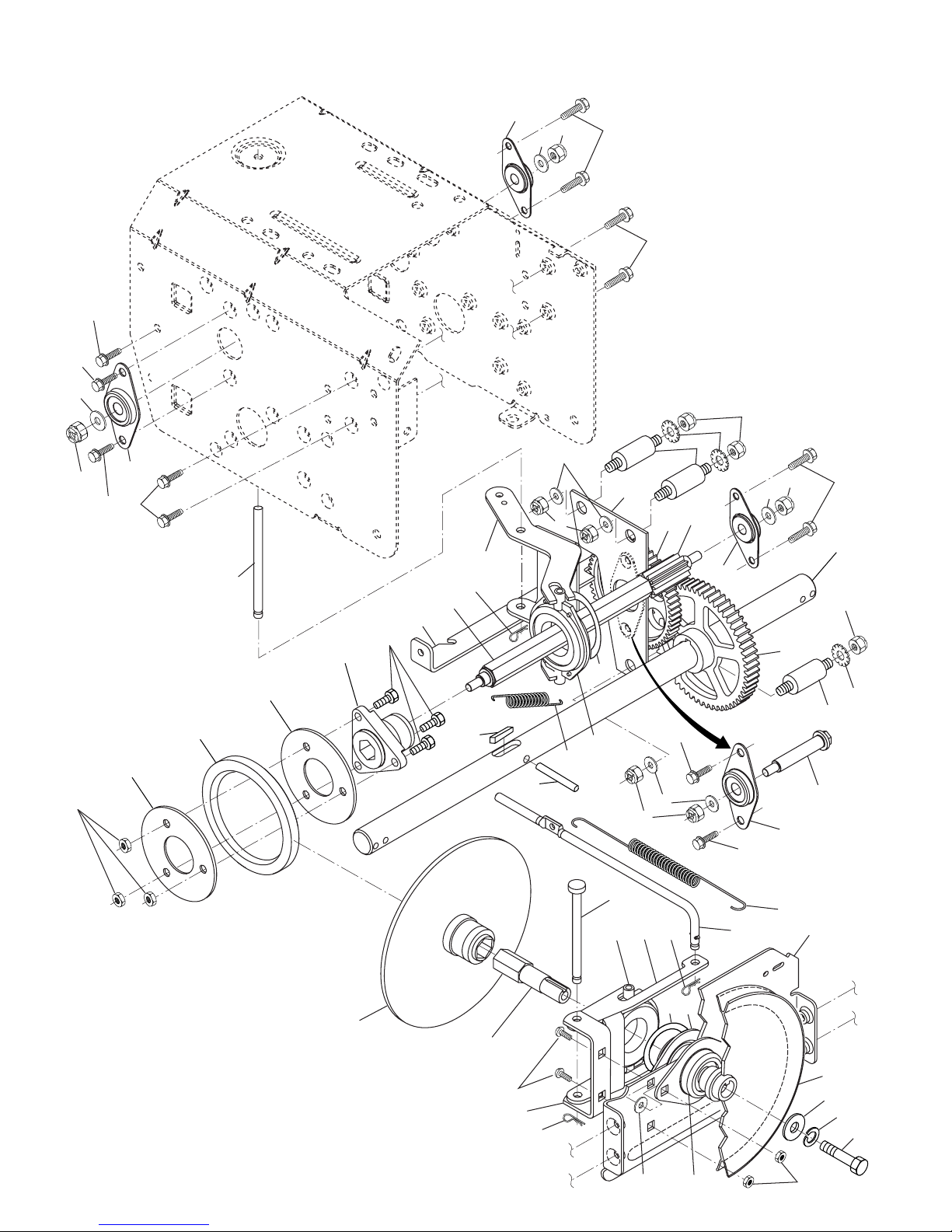

REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO. 10530SBE (96195000101), PRODUCT NO. 961 95 00-01
4
4
4
1
2
5
3
5
1
2
3
1
20
21
17
19
18
18
7
7
2
2
2
24
23
12
32
27
44
22
16
15
2
4
4
13
1
2
5
3
42
42
3
5
8
910
6
3
41
14
43
11
35
33
15
41
22 34
29
22
31
26
25
28
30
40
39
38
36
37
33

27
KEY PART
NO. NO. DESCRIPTION
1 532 14 63-15 Screw, Hex Head 5/16-18 x 3/4
2 873 80 05-00 Nut, Lock 5/16-18
3 532 15 54-15 Washer, Flat
4 817 49 05-08 Screw, Hex Head 5/16-18 x 1/2
5 532 18 00-17 Bearing, Flange
6 532 18 01-34 Shaft, Auxiliary
7 532 17 92-70 Spacer, Plate
8 532 19 29-07 Plate, Auxiliary
9 532 18 00-82 Gear, Intermediate (12/58)
10 532 18 00-65 Gear, Pinion
11 532 18 77-14 Rod, Clutch
12 532 18 00-66 Shaft, Long, Hex
13 532 17 88-07 Pin, Pivot
14 532 18 40-80 Lever, Shifter / Wheel
15 532 17 53-44 Trunnion Bearing Assembly
16 532 18 78-57 Bracket, Pivot, Shift
17 532 17 98-31 Ring, Rubber Wheel
18 532 19 95-09 Plate, Rubber Wheel
19 873 93 05-00 Nut, Lock 5/16-18
20 532 17 86-13 Hub, Rubber Wheel
21 874 76 05-14 Screw, Hex Head 5/16-18 x 7/8
22 532 08 51-79 Retainer, Hairpin
23 532 18 01-35 Spring, Bias
24 532 18 00-81 Gear, Axle (58 Teeth)
25 532 17 86-95 Pin, Pivot Lever
26 532 19 77-63 Plate Assembly, Drive
27 532 17 86-21 Shaft, Axle
28 532 19 77-64 Shaft, Short Hex
29 532 18 40-77 Lever, Shifter Plate
30 532 18 40-76 Bracket, Shifter Support
31 872 27 05-05 Bolt, Carriage 5/16-18 x 5/8
32 532 18 92-82 Key, Square
33 532 18 89-09 Bearing, Flange
34 532 18 40-75 Plate, Drive Mounting
35 532 18 25-04 Spacer, Bearing
36 532 19 10-80 Pulley, Traction Drive
37 532 15 53-77 Nut, Lock 5/16-18
38 819 11 15-07 Washer, Flat
39 810 04 05-00 Washer, Lock 5/16
40 874 95 05-12 Screw, Hex Head 5/16-18 x 3/4
41 812 00 00-12 Ring, Retaining
42 811 05 05-00 Washer, Lock, External Tooth 5/16
43 532 17 90-95 Spring, Return
44 532 18 42-06 Pin, Roll
REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO. 10530SBE (96195000101), PRODUCT NO. 961 95 00-01
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your lawn mower and void your warranty.

28

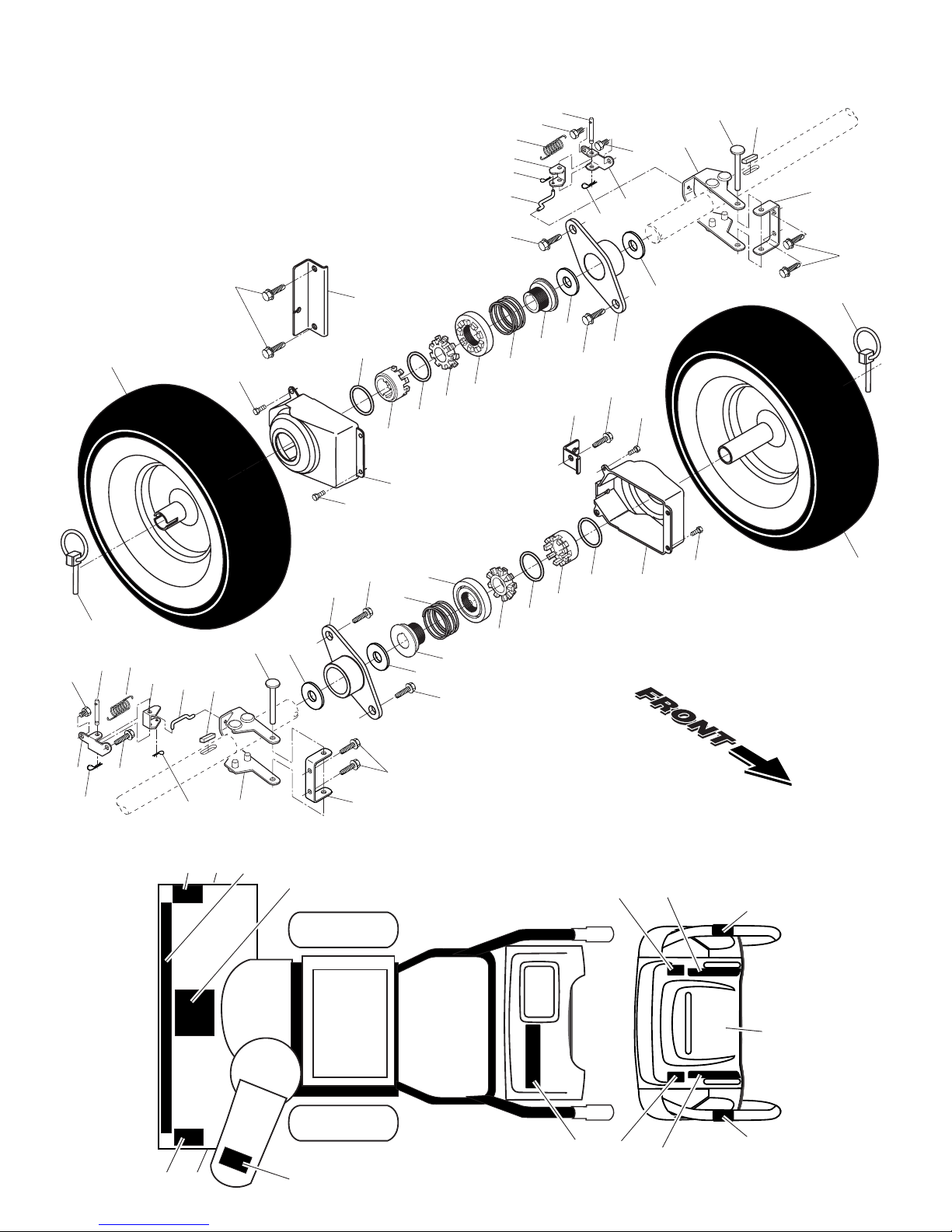

REPAIR PARTS CHASSIS / ENGINE / PULLEYS
SNOW THROWER - MODEL NO. 10530SBE (96195000101), PRODUCT NO. 961 95 00-01
6
19 17
10 21
22
23
2
1
3
4
67
8
9
12
13
15
27
26
25
24
18
7
6
20
14
47
47
48
46
40
44
49
50
51
52
35
55
34
33
32
38
36
41
6
37
39
42
43
11
53
54
11
44
45
41
30
29
31
31
58
16
10
21
28
57
6
11

29
KEY PART
NO. NO. DESCRIPTION
1 532 18 10-44 Spring, Traction Idler
2 532 18 05-22 Pulley, Idler (2-1/4)
3 - - - Engine, Tecumseh, Model Number
LH358SA (For engine service and
replacement parts, call Tecumseh
Products at 1-800-558-5402)
4 874 78 05-20 Screw, Hex Head 5/16-18 x 1-1/4
6 532 05 92-89 Washer, Flat
7 873 93 05-00 Nut, Jam, Lock 5/16-18
8 532 17 53-30 Pin, Idler Pivot
9 532 17 90-92 V-Belt, Traction Drive
10 810 04 05-00 Washer, Lock 5/16
11 817 49 05-08 Screw, Hex Head 5/16-18 x 1/2
12 532 17 92-59 Impeller Arm / Pad Assembly
13 532 08 51-79 Retainer, Hairpin
14 532 17 88-28 Spring, Brake
15 532 18 35-33 V-Belt, Impeller Drive
16 532 19 23-06 Screw, Hex Head 3/8-16 x 1-1/4
17 532 18 48-04 Arm, Idler
18 874 78 05-24 Screw, Hex Head 5/16-18 x 1-1/2
19 532 17 53-31 Bushing, Idler Pivot
20 532 18 05-23 Pulley, Idler (2-3/4)
21 874 61 05-16 Screw, Hex Head 5/16-18 x 1
22 532 17 93-71 Spacer, Engine Pulley
23 532 18 04-78 Pulley, Engine, Traction Drive
24 532 17 91-57 Pulley, Engine, Impeller Drive
25 532 06 27-35 Washer, Flat 3/8
26 532 85 02-63 Washer, Lock, Helical 3/8
27 532 85 10-84 Screw, Hex Head 3/8-24 x 1-3/8
28 532 15 54-52 Guide, Belt
REPAIR PARTS CHASSIS / ENGINE / PULLEYS
SNOW THROWER - MODEL NO. 10530SBE (96195000101), PRODUCT NO. 961 95 00-01
KEY PART
NO. NO. DESCRIPTION
29 532 19 22-13 Belt Cover Assembly
(Includes Toolbox Cover)
30 532 17 88-30 Cover, Toolbox
31 817 49 04-08 Screw, Hex Head 1/4-20 x 1/2
32 532 17 92-56 Bolt, Shoulder 5/16-18
33 532 18 78-53 Bellcrank Shifter
34 532 18 04-01 Screw, Hex Head 1/4-28 x 3/4
35 532 19 57-67 Arm, Auger Control
36 873 80 05-00 Nut, Lock 5/16-18
37 532 18 40-86 Bellcrank
38 532 18 71-01 Link, Speed Control
39 532 19 21-10 Trunnion, Pivot Bracket
40 532 17 88-90 Nut, Cage 3/8-16
41 532 70 02-79 Hairpin, Cotter 3/32 x 1/2
42 532 17 90-65 Pin, Pivot Bracket
43 532 18 40-85 Bracket, Bellcrank
44 871 21 06-16 Screw, Hex Head
45 532 18 40-74 Pivot Bracket, Impeller Idler Arm
46 532 18 40-84 Pan, Frame Bottom
47 871 02 05-12 Screw, Hex Head 5/16-18 x 3/4
48 532 18 11-56 Nut, Speed 5/16-18
49 532 18 40-73 Frame Assembly
50 532 18 80-02 Plate, Frame End
51 532 19 95-14 Shaft, Auger Control
52 532 05 70-79 Washer, Hardened
53 532 19 22-75 Roller
54 532 19 21-47 Ring, Crescent
55 812 00 00-02 E-Ring
57 811 05 05-00 Washer, Lock, External Tooth 5/16
58 532 18 38-54 Power Cord
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your lawn mower and void your warranty.

30
REPAIR PARTS WHEELS / DECALS
SNOW THROWER - MODEL NO. 10530SBE (96195000101), PRODUCT NO. 961 95 00-01
7
32
30
32
30
15
18
17
19
13
20
11
27
27
19
16
20
11
14
15 12
13
18
14
12
4
4
31
34
34
2
8
3
21
33
22
23
24
25
26
28
28
29
10
10
4
4
34
34
28
28
26
29 25
24
23
22
33
21
34
34
9
1
2
3
10
5
3
4
2
10 7
6
8
9
11
12
1
113
13

31
KEY PART
NO. NO. DESCRIPTION
1 532 19 95-01 Wheel Assembly, 16", Power Steering, LH
2 532 15 54-43 Pin, Klik 1/4
3 532 19 21-09 Cover, Power Steering
4 532 18 44-71 Bolt, Shoulder #10-24 x 5/8
7 871 21 06-16 Capscrew, Hex Head, Flanged 3/8-16 x 1
8 532 18 78-59 Bracket, Steering Cable, RH
9 532 18 78-58 Bracket, Steering Cable, LH
10 817 60 04-06 Screw, Hex Head 1/4-20 x 3/8
11 817 49 05-08 Screw, Hex Head 5/16-18 x 1/2
12 532 19 57-49 Link, Steering Lever
13 532 18 78-60 Yoke, Steering
14 532 18 20-15 Pin, Steering Lever
15 532 19 95-18 Bellcrank
16 532 19 95-12 Bracket Assembly, LH Steering
17 532 19 95-11 Bracket Assembly, RH Steering
18 532 18 18-47 Pin, Steering Bellcrank
19 532 08 51-79 Retainer, Hairpin
20 532 18 41-97 Bracket, Steering
21 532 19 21-26 Driver, Wheel
22 532 18 24-66 Ring, Wire Retainer
23 532 18 76-22 Lobe, Wheel
24 532 19 49-41 Slide, Clutch
25 532 17 91-39 Spring, Clutch Slide
26 532 19 49-40 Lobe, Axle
27 532 18 92-82 Key, Square
28 532 17 46-97 Washer, Thrust (1")
29 532 17 98-30 Bearing, Axle
30 532 19 38-85 Spring, Return
31 532 19 95-20 Wheel Assembly, 16", Power Steering, RH
32 532 70 02-79 Clip, Retainer
33 812 00 00-45 Ring, Retaining
34 532 14 63-15 Screw, Hex Head 5/16-18 x 5/8
KEY PART
NO. NO. DESCRIPTION
1 532 18 10-38 Decal, Danger
2 532 19 13-78 Decal, Husqvarna
3 532 18 10-34 Decal, Danger, Deflector
4 532 18 10-41 Decal, Danger
5 532 19 87-38 Decal, Husqvarna, 10530SB
6 532 18 10-32 Decal, Instruction
7 532 15 57-98 Decal, Traction Lever
8 532 15 58-00 Decal, Auger Lever
9 532 18 10-36 Decal, Speed Control
10 532 18 37-29 Decal, Remote Deflector
11 532 18 39-07 Decal, LH Trigger
12 532 18 39-05 Decal, RH Trigger
13 532 15 57-94 Decal, Husqvarna, Crown
- - 532 19 15-54 Decal, Lowe's Service (not shown)
- - 532 40 03-22 Owner’s Manual
REPAIR PARTS WHEELS / DECALS
SNOW THROWER - MODEL NO. 10530SBE (96195000101), PRODUCT NO. 961 95 00-01
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your lawn mower and void your warranty.
