Power Max PM91001 User manual

Multi-Function Automobile
Emergency JUMP START
Versatile
Mobile power Emergency Compact
Multi-Function Automobile
Emergency JUMP START
supply lighting
Product Instruction
For PM91001
Series 12V
Carstart

1
1. WARNING
Please read this instruction carefully before you
make any operation on your vehicle. This device
contains battery product that may cause personal
injuries. If you are uncertain or have questions
about this device, please call 1-888-832-3557 THIS
IS FOR 12V SYSTEM ONLY, DAMAGES CAUSE
BY IMPROPER USE WILL SOLELY BE USER’S
RESPONSIBILITIES.
Do not crank start your vehicle for more than 5
second, or longer. This will damage your vehicle
starting system and over heat the JUMP START
battery. As a precaution, please allow JUMP
START to rest for 30 second, before starting
your vehicle.
•Do not use the device in the rain or wet conditions. Unit is not
waterproofs. The functionality of device might be affected.
•Keep the device away from where the children can access.
Never attempt to alter or disassemble the product. If there is
a problem with the product please contact your dealer for
furtherassistance.
•Do not allow metal to come in contact with the battery poles.
It may spark or short-circuit the battery and cause an
explosion.
•Stop using the jumpstart when you hear the alarm or cannot
turn on the JUMPSTART. The reason may be from:
① The jumpstart device voltage is less than 9V - Charge the
jumpstart to prevent batteryfailure.
②The device temperature is higher than 140˚F (55˚C) -Cool
the jumpstart to at least 104˚F (40˚C) or below.
③ The jumpstart is connected backwards, incorrectly
connected or short connected. Correct it before start
•If Vehicle battery is less than 2V, there is no safety check to
prevent incorrect polarity hook up.
MUST READ:
Before using the JUMPSTART, read and follow the
instructions carefully. Also pay close attention to
the cautionary statements on the vehicle battery
and any other equipment.
MUST NOT DO:
NOTE:
As a safety measure, there is NO VOLTAGE present
at the clamp ends. The product automatically detects
when it is hooked up correctly to a battery, LCD
displays the voltage of vehicles battery if the
voltage is within 4V~14.2V. Only when JUMP START
button is pressed, the power will be delivered to the
clamps.

2
3
HYD-SERIES 8
5 6 7
10
Charge Input (12V/1A)
6 Light Mode Selector
2.
PRODUCT FUNCTIONS AND FEATURES
3.SPECIFICATIONS
Battery Type
Li-Polymer
Charging
110-220VAC Charger OR 12VDC IN CAR Charger
Outputs
Peak Amps:
700A
12VDC 6A Output (with 8A overloadprotection)
19VDC 3.5A Output (with 4A overloadprotection)
USB - 5VDC, 2.1A
High Intensity LED 1W
Weight
0.8Kg (1.76LB)
Product Size
7.08〃x3.54〃x1.49〃( 180mm x 90mm x 38mm )
12V/6A Out For OBD II
19V/3.5A Output
Jump Start Button
8 LCD Display
Features
• Jump starts your car dead battery under emergency situation.
Up to 8 cylinder 5 L vehicles
•Reverse polarity alarm warning, Built-in short circuit protection,
low voltage protection and over-temperature protection.
•A 12V/6A DC power outlet with overload protection provides
power for car memory saver (OBD II) and other 12V devices. (If
equipped)
•A 19V/3.5A DC power outlet with overload protection provides
power for most laptop computers with correct Barrel connector.
(If equipped)
•Charge with a 12V/1A AC charger and optional 12V/1A DC
•A USB 5V/2.1A provides power for small electrical appliances
(iPhone , iPad, ANDROID, PDAetc.)
•High intensity LED light can be used for emergency lighting and
emergency flashing.
•LCD display shows the both Jump start power level and car lead-
acid battery status with voltage test functions.
•Spark proof design: Once the car engine has successfully been
ignited, this JUMP START product will cut off the output power
USB Output (5V/2.1A) 9
Power Button ON/OFF
LED Work Light
Booster Cable Connector
within 2s
•Auto off mode: after turn on, if the unit is not in use, the main
power of the device will automatically shut off after 1 minute.
10

4
5
4.USING THE “BOOSTER” FUNCTION WARNING
Ensure that you are using this on a 12 VOLT SYSTEM ONLY,
otherwise the battery could explode. Please strictly follow
the following steps, otherwise, it could cause damage to
the jumpstart, the vehicle or personal injury and death!

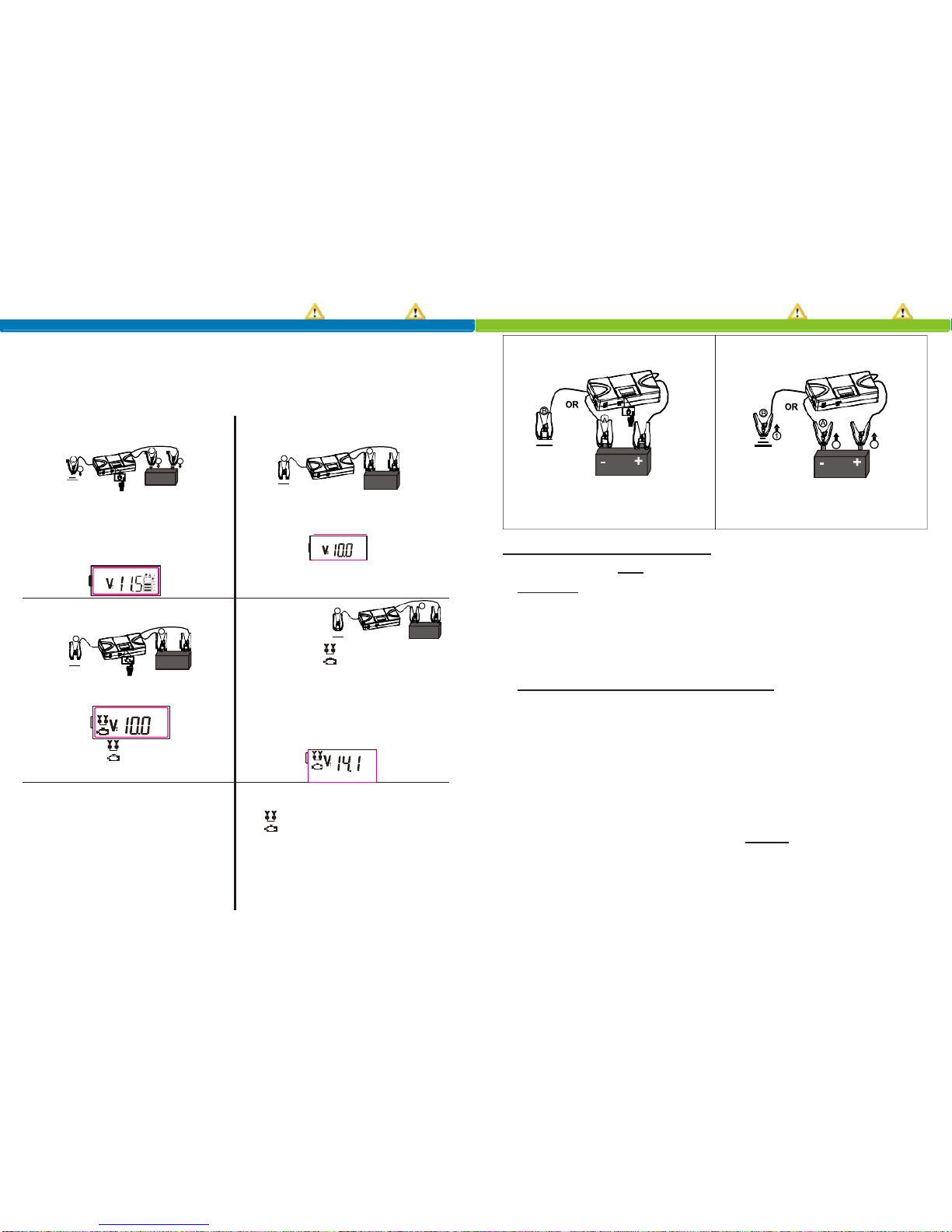

USING JUMP START OPERATION STEPS
4.
USING THE “BOOSTER” FUNCTION WARNING
Understand your JUMPSTART
①Turn ignition to ON and ensure all onboard electronics is off.
②DO NOT allow both (RED & BLACK) clamps to contact each
others.
③If clamps are hooked up in wrong polarity, safety alarm will
activate. Onboard relay will be disabled for safety and no
power will be provided.
④Only use on vehicles with a 12V system.
⑤If JUMPSTART is used under cold weather (< -25˚C), you may
require to start car a few times more than normal.
⑥Under low temperature (< -10˚C/14˚F),performance of LiPo
battery is deeply affected. After a few attempts to generate
Power should warm up the Jump Start, make it work again
⑦If car doesn't start; wait 1 minutes before attempting to restart.
If car can't start more than 5 times, STOP and seek other help.
⑧Disconnect both clamps immediately once car starts.
⑨After each use, always recharge the JUMPSTART battery fully.
There is no power at the output ports during charging.
Step 5 Step 6
Once car started successfully Remove the clamps
Ground
Ground
1 2
Once car started, press power Make sure the Jump start is off, then
button to turn off the JUMP START ① First to remove the black clip (-)
power.
② Next to remove the red clip (+)
Step 1
Press Power button
OR B
A 21
2 -+
Ground
LCD displays the voltage and capacity
of device battery, must be >11.5V for
best results. Firmly insert the end of
the cable into the JUMP START. (First
time use might feel some resistance to
be pushed in all the way.)
Step 2
Hookup the car battery
OR B
A
- +
Ground
Put the black clip (-) terminal attach to
the battery negative post or chassis
ground, put the red clip (+) terminal
attach to the battery negative post.
* Alarm will beep if polarity is wrong.
** If car battery is completely dead, Go
to Step 3B.
Step 3A
Ready to crank the car
OR B
A
- +
Ground
Press JUMP START button to initiate
boost function.
-
＋
Indication: the
-
＋is highlight
Go to Step 4A
Step 4A OR B
A
Starting the car
-+
Ground
-
＋
Make sure the is highlighted and
battery status > 11.5V. Start the car
and should see 14.1V as indicated. If
start failed, repeat Step 3A process
again. Seek other help if start process
has been repeated > 5 times. pushed
in all the way.)
-
＋
Step 3B
This applies to DEAD battery (<4V)
situation ONLY.
Hold & press JUMP START button
for 3 sec to initiate “phantom"
polarity check. If polarity is wrong,
the alarm will sound.
Go to Step 4B
Step 4B
Safety check will take up 30 sec long
-
＋
the will flash continuously; then
Power will be ready for starting.
Correct the polarity if it is wrong. If
start failed, repeat Step 3B process
again. Seek help if start process has
been repeated > 5 times.

6
7
5. CHARGING USING AC OR DC CHARGER CAUTION
1.Charge viaACbattery charger
①Connect AC battery charger to
Device’s 12V DC inlet
②Attach the AC battery charger to
AC mains, the charge of device
will commence automatically
2. Charge via DCAdaptor
①Connect the DC adaptor to the
devices 12V DC inlet.
②Attach the DC adaptor to car l
ighter socket. Charge will
Commence automatically
3.Charging Indications
Please refer to the table of LCD indications as below for
showing the charge status and battery capacity. Once
charging is completed, LCD will lighted up.
LCD indications battery voltage Battery Capacity
①Use only the brand certified charger included with your
jumpstart to recharge. Non-standard products will shorten
the life of the battery, void the warranty and might post other risks.
②Charge your JUMPSTART battery for 8 hours before using
for the first time.
③Recharge the jumpstart battery after each use if possible,
and thereafter, at least every 6months
6. USINGTHE5V12V19VDCOUTPUTPOWERSOURCES
Turn on power button, all output sources 5/12/19V are ready to go.
Note: (if not connected or didn’t function, please call 888-8323557)
①The maximum power of the 12V and 19V are 75W. If the power of
your appliance is more than 75W, the socket output will shut down
automatically.
②The maximum power of the 5V is 15W. If the power of your
appliance is more than 15W, the USB output will shut down
automatically.
7. USING THE LED WORK LIGHT
①Press power on button.
②Toggle the light switch button once to turn on the LED. Push again
the LED slow flash, push again the LED produce rapid flash, final
push the LED will turn off.
8. USING THE VOLTAGE TEST FUNCTION
①Press power on button.
②Ensure engine is OFF.
③The clamps connected with battery of vehicle, the ‘V’ of LCD will
flash. Voltage at the LCD is the car battery current status.
9. MAINTENANCE
①Always inspect the JUMPSTART before use to ensure the cables
are in perfect condition and the clamps are clean and free from
corrosion.
②Keep your JUMPSTART clean by wiping with a damp cloth. DO
NOT use solvents as a cleaning agent.
③Recharge your JUMPSTART every 6 months for FULLbattery.
12.3V~12.6V
100%
11.9V~12.2V
80%
11.5V~11.8V
60%
11.0V~11.4V
40%
10.0V~10.9V
20%

8
9
OBD II Connectors
ACAdapter
Phone Connectors
10. PERFORMANCE AT-17.5˚C TO15˚C
①Table 1: Gasoline CAR
11. ACCESSORIES(if equipped)
SERIES
Model
No.
Gasoline
3 CYL(≤1.2L)
4 CYL(≤2.7L)
6 CYL(≤3.5L)
8 CYL(≤5.0L)
Dead
Battery
50% Full
Battery
Dead
Battery
50% Full
Battery
Dead
Battery
50% Full
Battery
Dead
Battery
50% Full
Battery
18000
√√
√√
√√
√√
√√
√√
√√
√√
15000
√√
√√
√√
√√
√√
√√
√
√√
12000
√√
√√
√√
√√
√
√√
-
-
②Table 2: Diesel CAR
Carrying Case
Alligator Clamps 12V DC Car Charger Laptop Connectors
Notes:
Device has sufficient power to crank car engine by itself.
Device may have adequate power to crank the car engine depends on
the car battery and environment conditions.
Device DOES NOT have enough power to crank the car engine.
1. Battery status "DEAD or 50% FULL" listed in the table above is referred as
the vehicle's ownbattery.
2. Testresults are measured under SATP condition, 25 ℃& 1 atm.
SERIES
Model
No.
Diesel
4 CYL(≤2L)
6 CYL(≤3L)
8 CYL(≤5L)
Dead
Battery
50% Full
Battery
Dead
Battery
50% Full
Battery
Dead
Battery
50% Full
Battery
18000
√√
√√
√
√√
-
√
15000
√√
√√
-
√
-
-
12000
√
√√
-
-
-
-

10
11
12.ANSWERS FOR COMMON PROBLEMS
Q: How much time will it takes to charge the JUMP START?
A: First initial charge is suggested to be 8 hours. After that in a normal
situation, 3-5 hours should charge up completely. The JUMP
START will shut down the charging circuit once it is fully charged
(LCD will lighted up) , so you will never over charge the device.
Q: How to charge the JUMP START device?
A: You can either charge it with AC adapter from the wall outlet. The
adapter is a universal unit from 110 -240V 50/60 Hz. Or you may
have an additional optional 12V car adapter as an accessory.
Q: Car won't start, it seems there is no power provided from
JUMP START.
A: Make sure polarities are aligning correctly. Make sure there is more
than 11.5V battery power indicated on the LCD. Make sure you
press the "JUMP START" button, otherwise, there will be no power
transfer to the car. If JUMP START has been stored under
extreme cold weather conditions, allow it to reach to a warmer
temperature by starting your car for a few times.
Q: Will the unit blow up if I short circuit the RED and BLACK
terminal together?
A: NO absolutely NOT! Unlike other products in the market place,
the JUMP START has a built-in polarity safety circuit to shut itself
down for your extra protection.
Q: My car battery has zero power and JUMP START does not
pass polarity test!
A: If you car battery has absolutely no power (<4V), you need to
override the JUMP START safety polarity check circuit in order to
send power to the car. First, make sure you put the correct polarity
terminal onto to the battery, then hold and press the “JUMP
START" button for 3 second, this will allow the unit to by passing
the polarity test. Wait for another 30 second, then the power will
flow into the car battery and get ready to jump start.
Q: I have tried to boost a vehicle but not successful. The JUMP
START is now disabled with no LED work light or 5V USB
power.
A: In case of this situation, you might have triggered the safety
protection circuit for the DC outputs and this locked out all output
power functions. To unlock and reset the unit; simply charge the
unit with AC plug or DC car charger (if so equipped). The unit
should take charge in a few minutes and return to a normal state.
For any reason if this does restart, please contact factory or your
authorized distributor.
13. STATEMENT OF LIMITED WARRANTY
Our company warrants that each device 1) is free from defects in
materials and workmanship and 2) conforms to our company's official
Published Specifications which are available on request. The
warranty period for the device starts on original date of purchased;
one(1) year parts and labor for the entire unit except for the battery
which has a six(6) months warranty. The date on your invoice or
sales receipt is the date of purchased unless our company or your
reseller informs your otherwise. Unless our company specifies
otherwise, these warranties apply only in the country or region in
which you purchased the device.
THESE WARRANTIES ARE YOUR EXCLUSIVE WARRANTIES AND
REPLACE ALL OTHER WARANTIES OR CONDITIONS, EXPRESS
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, SOME STATES OR
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF EXPRESS
OR IMPLIED WARANTIES, SO THE ABOVE EXCLUSION MAY NOT
APPLY TO YOU. IN THE EVENT, SUCH WARRANTIES ARE
LIMITED IN THE DURATION TO THE WARRANTY PERIOD. NO
WARRANTIES APPLY AFTER THAT PERIOD. SOME STATES OR
JURISDICATIONS DO NOT ALLOW LIMITATIONS ON HOW LONG
AN IMPLIED WARRNATY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TOYOU.
This warranty does not cover the following:
·failure resulting from misuse, accident, modification, unsuitable
physical or operating environment, or improper maintenance by
you.
·failure caused by a product for which our company is not
responsible; and
·any non our company approved products.
The warranty is voided by removal or alternation of identifications
labels on the device or its parts.
This warranty does cover the following:
·any manufacture defects that are under normal operation
circumstance.
For warranty claims or repair, please contact your local reseller or
authorized distributor. Or simply call 888-832-3557

14. WARRANTY CERTIFICATE
Record the following information for safe keeping.
Product model
Purchase date
Dealer name
Dealer address
Dealer phone no.
Dealer email
Cause of failure
User name
User phone no.
User address
User email
This material is printed on recycledpaper.
12
M001E-B
