PowerAcoustik STAX-1200/4 User manual

S53075.indd 1 12/31/08 11:35:17 AM

2
amplifiers
bamF series

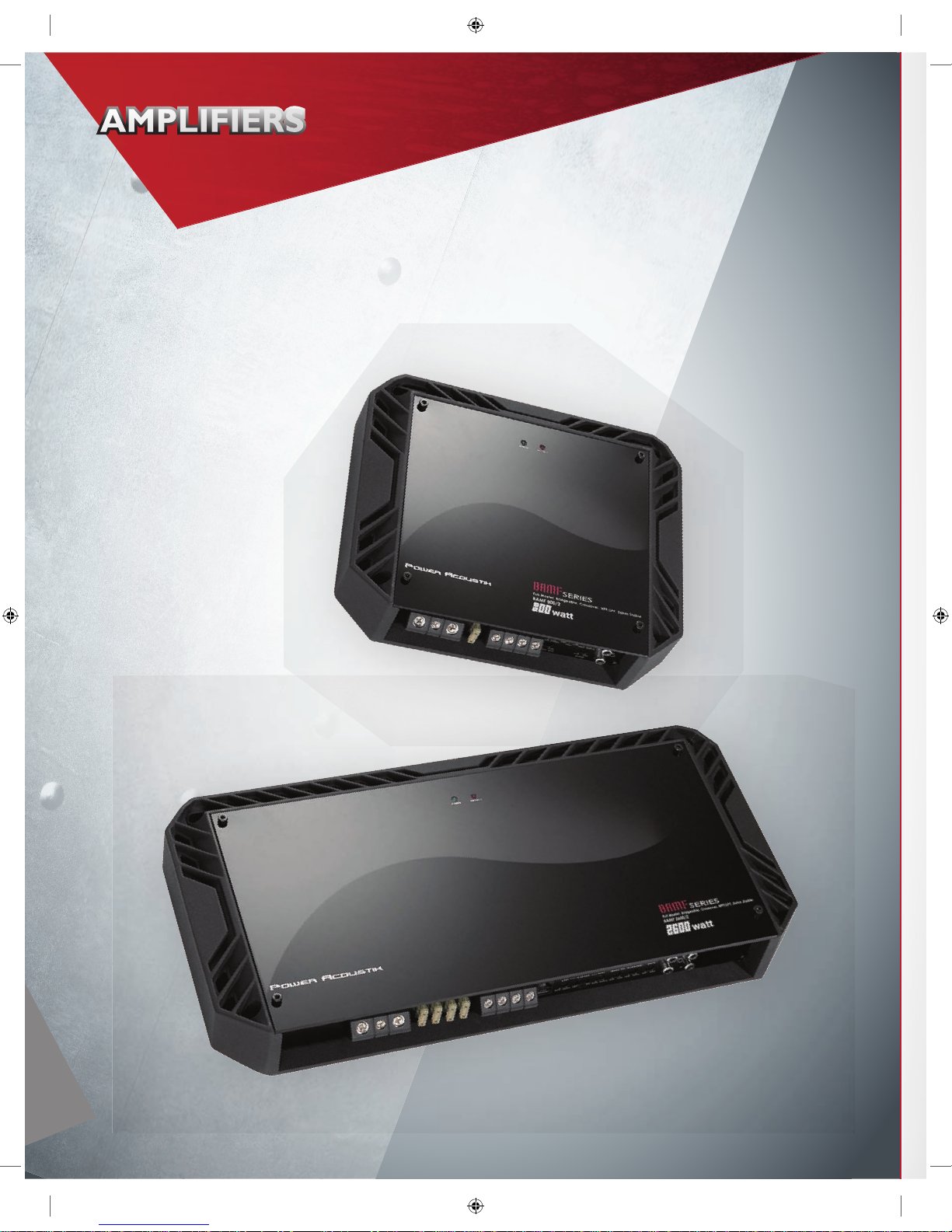

Sometimes you have to call them like you see them; these full MOSFET ampli-
fiers will tear-up your ride and bring out your inner beast. You won’t have one seal
left in your car to keep water out!
This is a (B)ad (A)_ _ (M)other (F)letcher
S53075.indd 2 12/31/08 11:35:27 AM

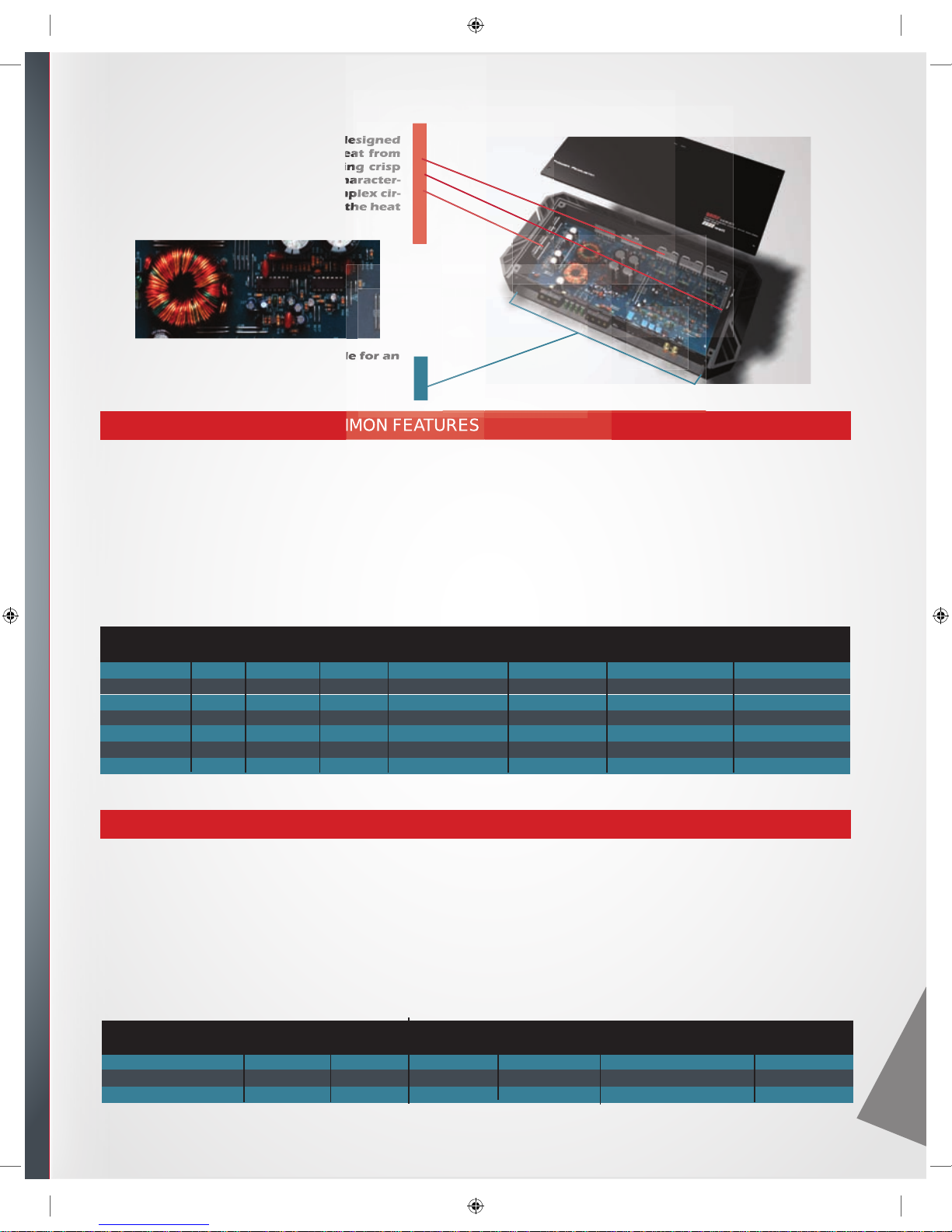

This Die-cast aluminum heat sink is designed
to dissipate massive amounts of heat from
the MOSFET drivers, while delivering crisp
clean sound with warm rich bass character-
istics. We have to tie-down this complex cir-
cuit board on three sides to spread the heat
evenly.
All your connections are on one side for an
extremely simple installation.
This Die-cast aluminum heat sink is designed
to dissipate massive amounts of heat from
the MOSFET drivers, while delivering crisp
clean sound with warm rich bass character
istics. We have to tie-down this complex cir
cuit board on three sides to spread the heat

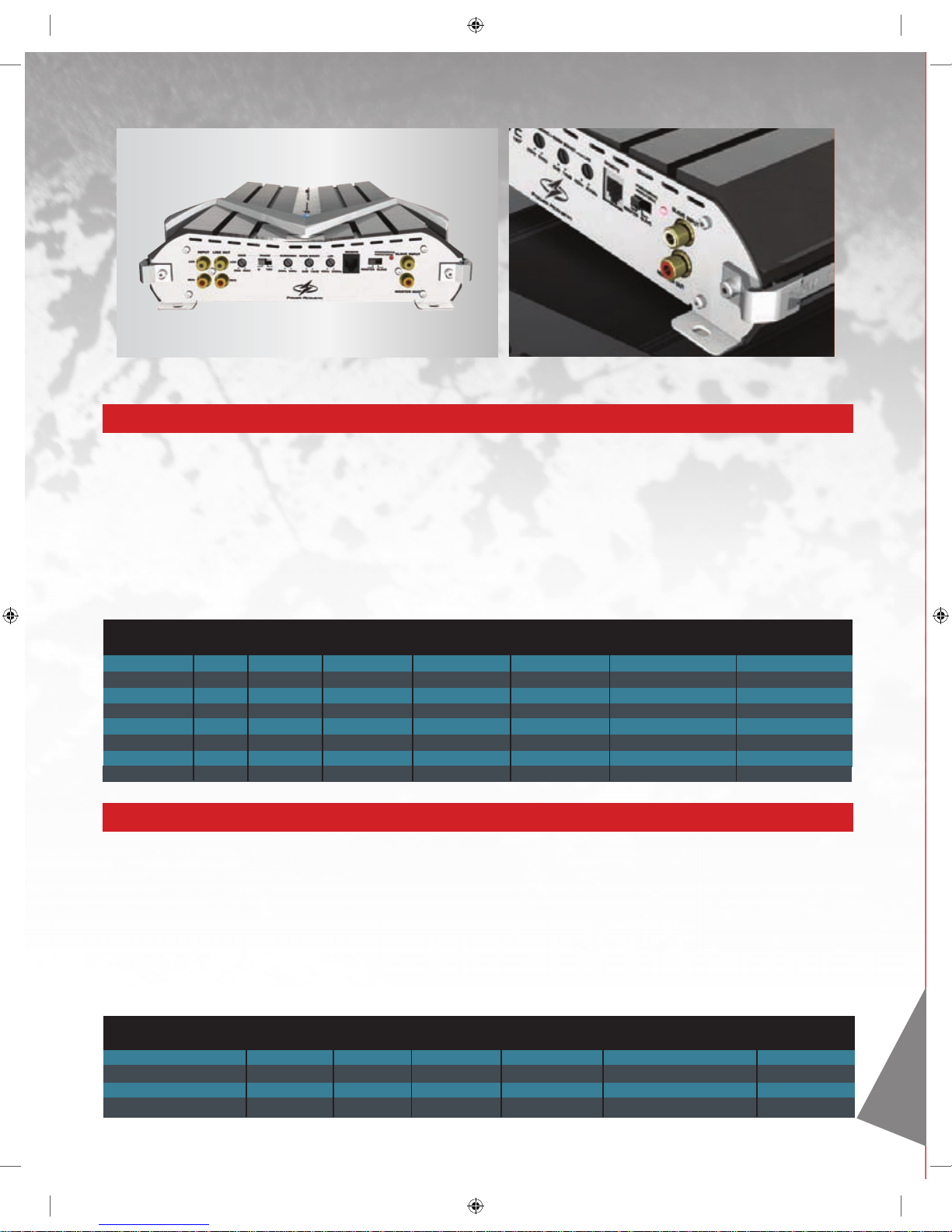

CLASS D SERIES COMMON FEATURES
CLASS A/B SERIES COMMON FEATURES
This Die-cast aluminum heat sink is designed
to dissipate massive amounts of heat from
the MOSFET drivers, while delivering crisp
clean sound with warm rich bass character
istics. We have to tie-down this complex cir
cuit board on three sides to spread the heat
This Die-cast aluminum heat sink is designed
to dissipate massive amounts of heat from
the MOSFET drivers, while delivering crisp
clean sound with warm rich bass character
istics. We have to tie-down this complex cir
cuit board on three sides to spread the heat
This Die-cast aluminum heat sink is designed
to dissipate massive amounts of heat from
the MOSFET drivers, while delivering crisp
clean sound with warm rich bass character
-
istics. We have to tie-down this complex cir
-
cuit board on three sides to spread the heat
3
amplifiers
bamF series
• Jet Black Texture Coat Finish
• All MOSFET Transistor Amplifier
• Pulse Width Modualtion Circuitry
• Three-way Protection Circuitry (short, thermal & overload)
• 1 Ohm Load Stable
• Bridged Synchronization (strap amps together for double power!)
• Low Pass & Subsonic Filters
• Pre-Amp Outputs
• Dash Mount Remote Gain Control
• 200mV-6V Low Level Inputs
• Variable 12dB 40-200Hz LPF
• Variable 12dB 20-50Hz Subsonic Filter
• Variable 0-18dB 45Hz Bass Boost
• Frequency Response: 15-150Hz
• Signal-to-Noise Ratio: 100dB
• Total Harmonic Distortion: .5%
• 1800Phase Switch
• Direct Input 4 ga. Power & 8 ga. Speaker Terminals
• JetBlackTextureCoatFinish
• AllMOSFETTransistorAmplifier
• PulseWidthModualtionCircuitry
• Three-WayProtectionCircuitry(short,thermal&overload)
• 2OhmStereo,4OhmBridgedStable
• Tri-ModeCapable
• SelectableHi/Full/LowPassCrossovers
• Pre-AmpOutputs(ex.1200/4)
• DashMountRemoteGainControl(2ch.models)
• 200mV-6VLowLevelInputSensitivity
• Variable12dB30-250HzLPF
• Variable12dB50-500HzHPF
• Variable0-12dB45HzBassBoost
• Variable12dB15-50HzSubsonicFilter(ex.800/2&4ch.model)
• FrequencyResponse:10Hz-30kHz
• Signal-to-NoiseRatio:97dB
• TotalHarmonicDistortion:.02%
• 4ga.Power&8ga.SpeakerTerminals
Sphere amps
Sometimes you have to call them like you see them; these full MOSFET ampli-
fiers will tear-up your ride and bring out your inner beast. You won’t have one seal
left in your car to keep water out!
This is a (B)ad (A)_ _ (M)other (F)letcher
No. RMS@4Ω RMS@2Ω Bridged@4Ω MAXPower Length:(in) BassKnob
Chs. (watts) (watts) (watts) (watts) (2.125”hx8.25”w) Included
BAMF800/2 2 2x150 2x180 1x360 800 10.125” No
BAMF1250/2 2 2x220 2x280 1x560 1,250 11.375” Ye s
BAMF1800/2 2 2x300 2x380 1x760 1,800 13.75” Yes
BAMF2200/2 2 2x370 2x450 1x900 2,200 15” Yes
BAMF2600/2 2 2x450 2x540 1x1,080 2,600 16.875” Yes
BAMF1200/4 4 4x100 4x125 2x250 1,200 11.875” No
BAMF1600/4 4 4x150 4x180 2x360 1,600 13.75” No
No. RMS@4Ω RMS@2Ω RMS@1Ω MAXPower Length:(in) BassKnob
Chs. (watts) (watts) (watts) (watts) (2.125”hx8.25”w) Included
BAMF2000/1D 1 600 900 1,200 2,000 11.375” Ye s
BAMF4000/1D 1 1,200 1,700 2,200 4,000 13.75” Yes
BAMF5500/1D 1 1,700 2,500 3,200 5,500 16.875”Yes
All your connections are on one side for an
COMMON FEATURES
All your connections are on one side for an
S53075.indd 3 12/31/08 11:35:30 AM

4
amplifiers

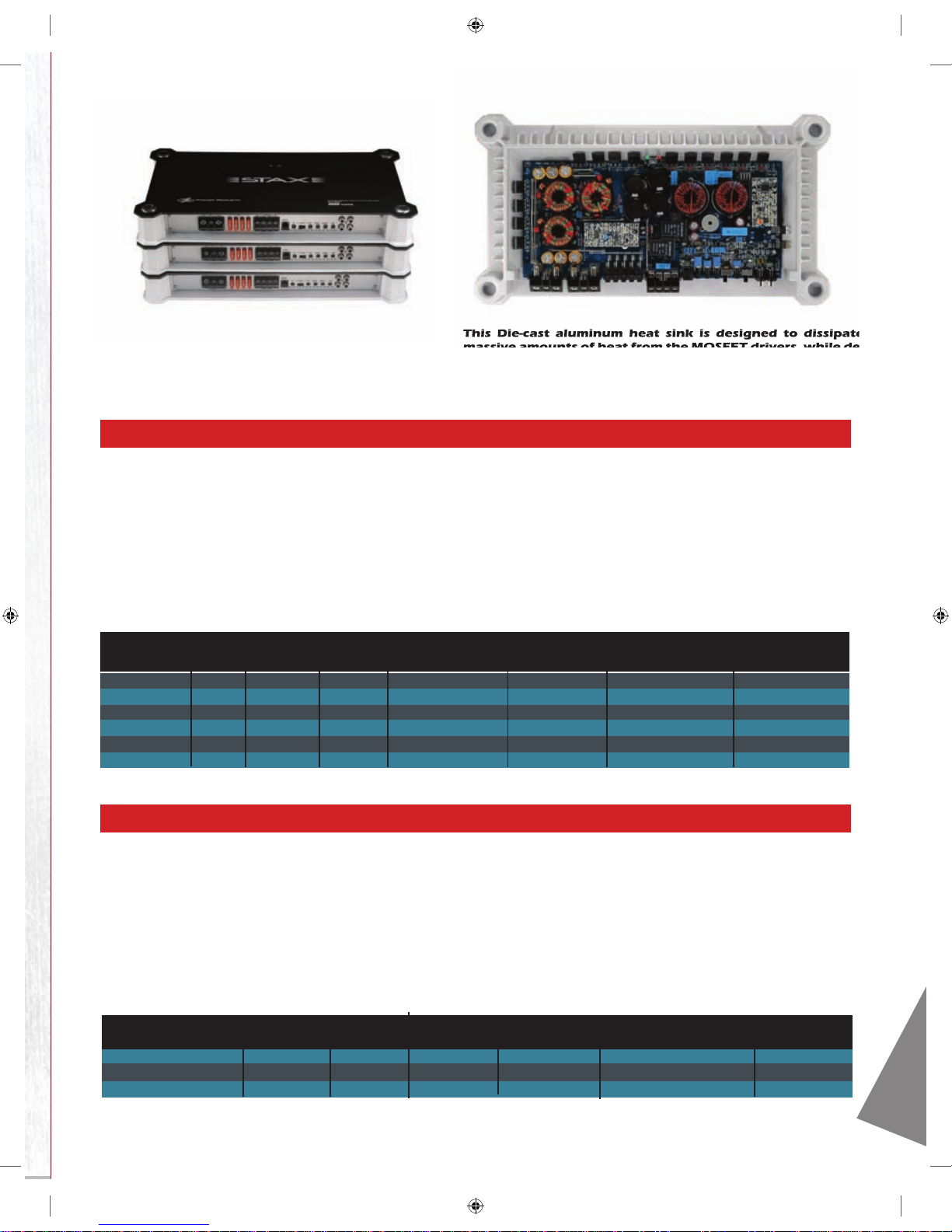

sTaX series
remote dash mounT

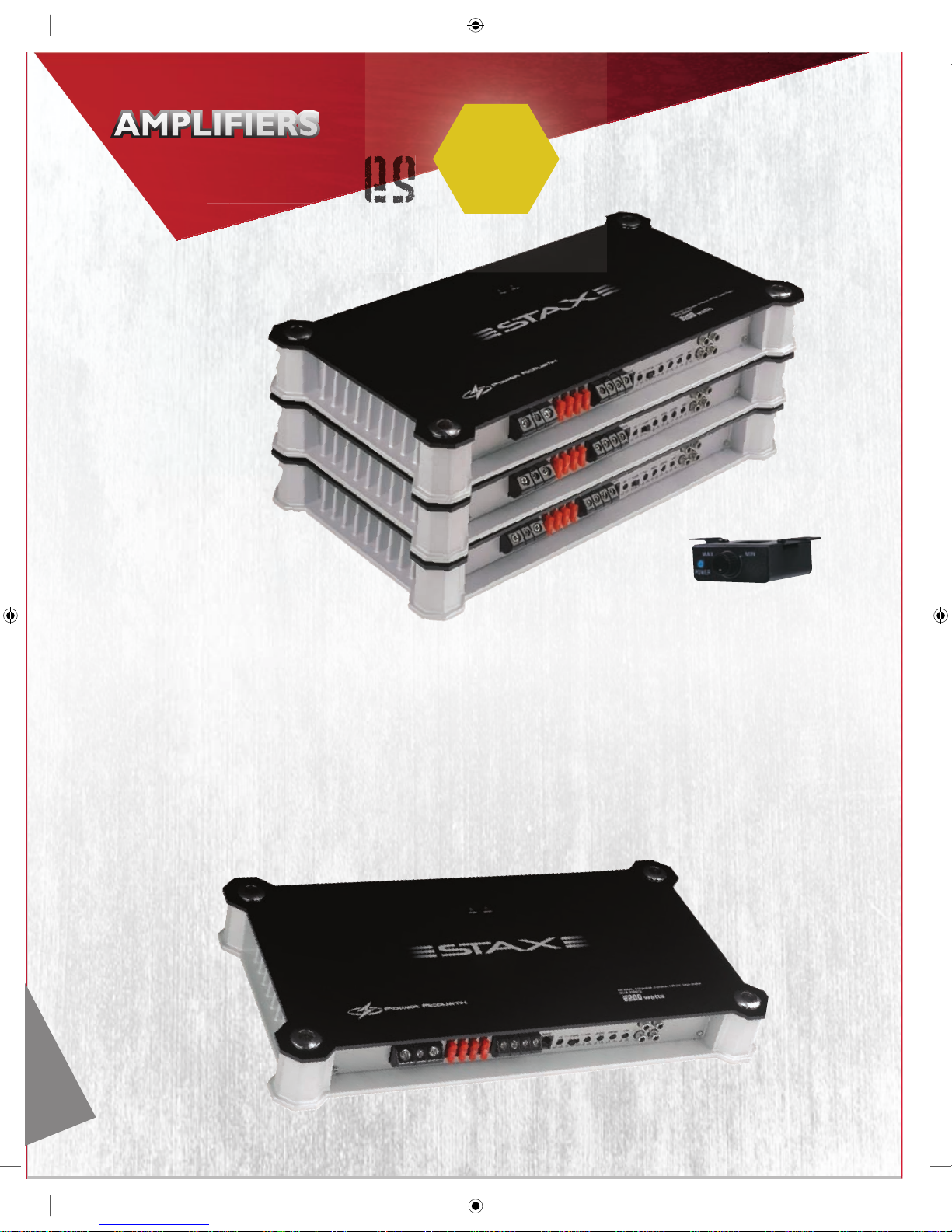

It’s tough to cram every desirable feature into one amplifiers series. The STAX
accomplished this. Heat-efficient vertical cooling fins work better than hori-
zontal fins on this cast heatsink. All control are conveniently located on one
side making installations ultra clean. The black acrylic top is reverseable so
the wiring can be in front or in back. To make these amps even cooler, there
are three 4 channels, three 2 channels and three monoblocks. There are also
3 sizes of chassis, one of each size which are all stackable! Any way you slice
it, the new STAX amps got it all…
X series
X series
X series
X series
NEW
S53075.indd 4 12/31/08 11:35:36 AM

This Die-cast aluminum heat sink is designed to dissipate
massive amounts of heat from the MOSFET drivers, while de-
livering crisp clean sound with warm rich bass characteris-
tics. We have to tie-down this complex circuit board on three
sides to spread the heat evenly.
CLASS D SERIES COMMON FEATURES
2/4 Channel Common Features
5
amplifiers
sTaX series
remote dash mounT
• BrilliantSilverTextureCoatFinish
• RegulatedPWMPowerSupply
• Three-wayProtectionCircuitry(short,thermal&overload)
• 1OhmLoadStable
• BridgedSynchronization(strapampstogetherfordoublepower!)
• LowPass&SubsonicFilters
• Pre-AmpOutputs
• DashMountRemoteGainControl
• 200mV-6VLowLevelInputs
• Variable12dB40-200HzLPF
• Variable12dB20-50HzSubsonicFilter
• Variable0-18dB 45HzBassBoost
• FrequencyResponse:15-150Hz
• Signal-to-NoiseRatio:100dB
• TotalHarmonicDistortion:.5%
• 1800Phase Switch
• Direct Input 4 ga. Power & 8 ga. Speaker Terminals
• StackableChassisforMultipleAmplifierApplications
• BrilliantSilverTextureCoatFinish
• MOSFETPowerSupplyTransistors
• PulseWidthModualtionCircuitry
• Three-WayProtectionCircuitry(short,thermal&overload)
• 2OhmStereo,4OhmBridgedStable
• Tri-ModeCapable
• SelectableHi/Full/LowPassCrossovers
• Pre-AmpOutputs(ex.1200/4)
• DashMountRemoteGainControl(2ch.models)
• 200mV-6VLowLevelInputSensitivity
• Variable12dB30-250HzLPF
• Variable12dB50-500HzHPF
• Variable0-12dB45HzBassBoost
• Variable12dB15-50HzSubsonicFilter(2ch.models)
• FrequencyResponse:10Hz-30kHz
• Signal-to-NoiseRatio:97dB
• TotalHarmonicDistortion:.02%
• 4ga.Power&8ga.SpeakerTerminals
No. RMS@4Ω RMS@2Ω Bridged@4Ω MAXPower Length:(in) BassKnob
Chs. (watts) (watts) (watts) (watts) (2”hx9”w) Included
STAX1250/2 2 2x220 2x280 1x560 1,250 SizeA12.375” Yes
STAX1800/2 2 2x300 2x380 1x760 1,800 SizeB14.75” Yes
STAX2200/2 2 2x370 2x450 1x900 2,200 SizeC17.875” Yes
STAX1200/4 4 4x100 4x125 2x250 1,200 SizeA12.375” No
STAX1600/4 4 4x150 4x180 2x360 1,600 SizeB14.75” No
STAX2300/4 4 4x200 4x250 2x500 2,300 SizeC17.875” No
No. RMS@4Ω RMS@2Ω RMS@1Ω MAXPower Length:(in) BassKnob
Chs. (watts) (watts) (watts) (watts) (2.125”hx8.25”w) Included
STAX2000/1D 1 600 900 1,200 2,000 SizeA12.375” Yes
STAX4000/1D 1 1,200 1,700 2,200 4,000 SizeB14.75” Yes
STAX5500/1D 1 1,700 2,500 3,200 5,500 SizeC17.875” Yes
All your connections are on one side for
an extremely simple installation.
S53075.indd 5 12/31/08 11:35:40 AM
This Die-cast aluminum heat sink is designed to dissipate
massive amounts of heat from the MOSFET drivers, while de

6
amplifiers
GOTHiC series
remote dash mounT
When something works so well, outperforms the competition, and has done this
for 10 years, you don’t mess with it! All ya gotta do is just make it look awesome
again for current times. What else can we say, Gothic amps are stickin’ and kick-
in’!
C series
C series
C series
C series
NEW
S53075.indd 6 12/31/08 11:35:49 AM

CLASS D SERIES COMMON FEATURES
CLASS A/B SERIES COMMON FEATURES
7
amplifiers
GOTHiC series
• GunmetalGreyAnodizedFinishw/ChromeAccents
• MOSFETPowerSupplyTransistors
• PulseWidthModulationCircutry
• Three-wayProtectionCircuitry(short,thermal&overload)
• 1OhmLoadStable
• BridgedSynchronization(strapampstogetherfordoublepower!)
• LowPass&SubsonicFilters
• Pre-AmpOutputs
• DashMountRemoteGainControl
• 200mV-8VLowLevelInputs
• Variable12dB40-200HzLPF
• Variable12dB20-50HzSubsonicFilter
• Variable0-18dB45HzBassBoost
• FrequencyResponse:15-150Hz
• Signal-to-NoiseRatio:100dB
• TotalHarmonicDistortion:.5%
• 1800PhaseSwitch
• Direct4ga.Power&8ga.SpeakerTerminals
• GunmetalGreyAnodizedFinishw/ChromeAccents
• MOSFETPowerSupplyTransistors
• PulseWidthModulationCircutry
• Three-WayProtectionCircuitry(short,thermal&overload)
• 2-ohmStereo,4-ohmMonoStable
• Tri-ModeCapable
• SelectableHi/Full/LowPassCrossovers
• 200mV-8VLowLevelInputs
• Pre-AmpOutputs
• DashMountRemoteGainControl(2ch.models)
• Variable12dB50-500HzHPF(2ch.models)
• Variable12dB40-250HzHPF(800&4ch.models)
• Variable12dB30-500HzLPF(2ch.models)
• Variable12dB40-250HzLPF(800&4ch.models)
• Variable0-24dB45HzBassBoost(2ch.models)
• Variable0-18dB45HzBassBoost(800&4ch.models)
• Variable12dB30-175HzSubsonicFilter(2ch.models)
• FrequencyResponse:10Hz-30kHz
• Signal-to-NoiseRatio:98dB
• TotalHarmonicDistortion:.02%
• 4ga.Power&8ga.SpeakerTerminals
No. RMS@4Ω RMS@2Ω Bridged@4Ω MAXPower Length:(in) BassKnob
Chs. (watts) (watts) (watts) (watts) (3”hx10.625”w) Included
OVN2-600 2 2x95 2x120 1x240 600 8.125” No
OVN2-800 2 2x150 2x180 1x360 800 10.875” Yes
OVN2-1250 2 2x220 2x280 1x560 1,250 12.875” Yes
OVN2-1800 2 2x300 2x380 1x760 1,800 14.875” Yes
OVN2-2200 2 2x370 2x450 1x900 2,200 20.375” Yes
OVN4-840 4 4x80 4x95 2x190 840 10.875” No
OVN4-1200 4 4x100 4x125 2x250 1,200 12.875” No
OVN4-1600 4 4x150 4x180 2x360 1,600 18” No
No. RMS@4Ω RMS@2Ω RMS@1Ω MAXPower Length:(in) BassKnob
Chs. (watts) (watts) (watts) (watts) (3”hx10.625”w) Included
OVN1-2000D 1 600 900 1,200 2,000 10.875” Yes
OVN1-3000D 1 900 1,300 1,700 3,000 12.875” Yes
OVN1-4000D 1 1,200 1,700 2,200 4,000 14.875” Yes
OVN1-5500D 1 1,700 2,500 3,200 5,500 19.125” Yes
S53075.indd 7 12/31/08 11:35:57 AM

remote dash mount
bass knob control
8
amplifiers

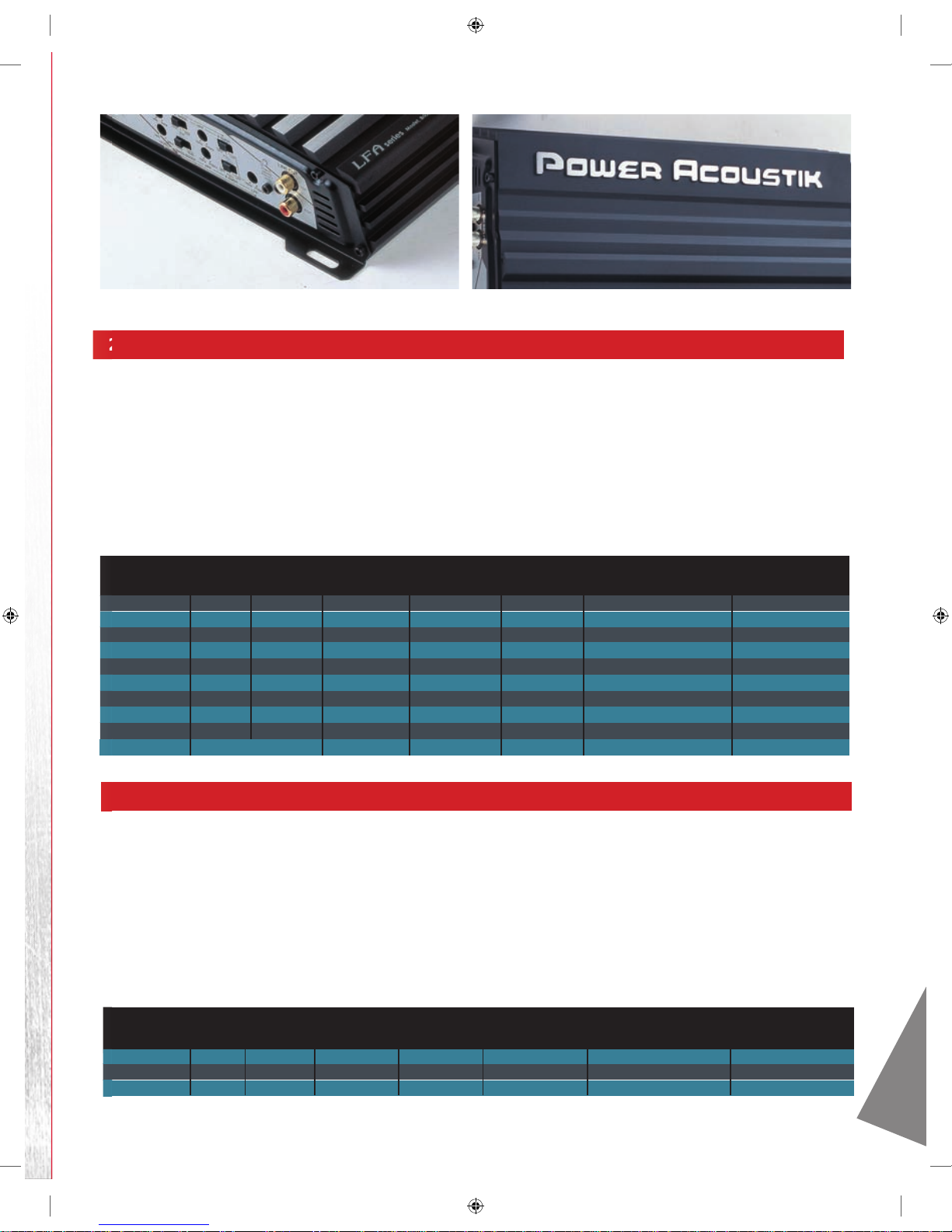

lFa series

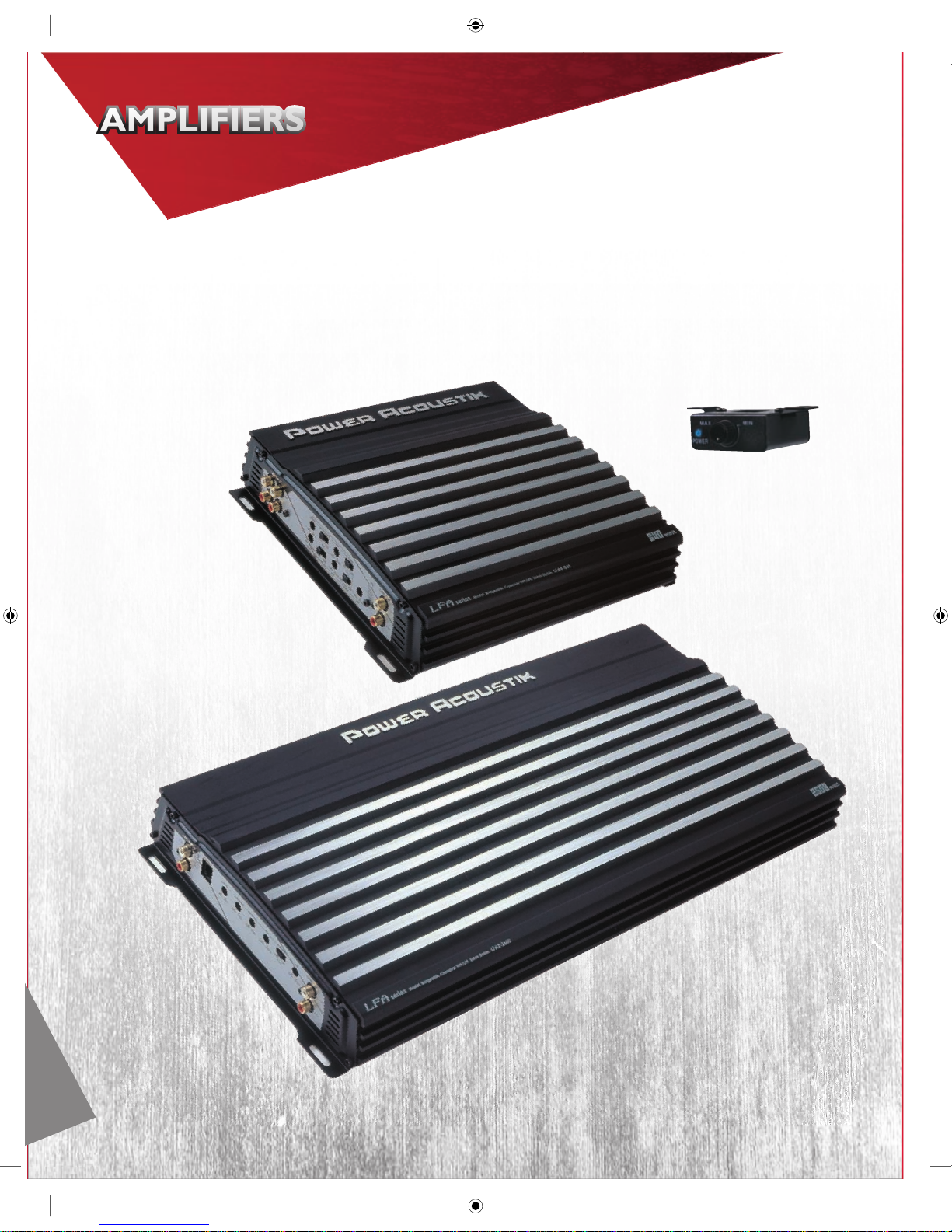

Back in Black, and l-o-o-o-o-king good!
You will notice a stark contrast with the diamond cut ribs and feathered edges
against a satin Jet Black heat sink with stylized sloping end panels and platinum
colored connections.
Don’t forget, these are Power Acoustik amps so they are (L)oud (F)reeking (A)mpli-
fiers
S53075.indd 8 12/31/08 11:36:04 AM

New Hyper Bass
2/4 Channel Common Features
• HairlineSatinBlackAnodizedFinish
• RegulatedPWMPowerSupply
• Three-wayProtectionCircuitry
• 1OhmLoadStable
• BridgedSynchronization(strapampstogetherfordoublepower!)
• LowPass&SubsonicFilters
• Pre-AmpOutputs
• DashMountRemoteGainControl
• 200mV-8VLowLevelInputs
• Variable12dB40-200HzLPF
• Variable12dB30-175HzSubsonicFilter
• Variable0-18dB45HzBassBoost
• FrequencyResponse:15-150Hz
• Signal-to-NoiseRatio:100dB
• TotalHarmonicDistortion:.5%
• 1800PhaseSwitch
• Direct4ga.Power&8ga.SpeakerTerminals
• Direct0ga.PowerTerminal(LFA1-5500D)
CLASS D Common Features
No. RMS@4Ω RMS@2Ω RMS@1Ω MAXPower Length:(in) BassKnob
Chs. (watts) (watts) (watts) (watts) (2.375”hx10.25”w) Included
LFA1-2000D 1 600 900 1,200 2,000 10.75” Yes
LFA1-4000D 1 1,200 1,700 2,200 4,000 14.75” Ye s
LFA1-5500D 1 1,700 2,500 3,200 5,500 17.875” Yes
eMBOSSED LOGO
2/4 Channel Common Features
remote dash mount
bass knob control
9
• 2/4ChannelCommonFeatures
• HairlineSatinBlackAnodizedFinish
• MOSFETPowerSupplyTransistors
• PulseWidthModulationCircutry
• Three-wayProtectionCircuitry
• 2-ohmStereo,4-ohmMonoStable
• Tri-ModeCapable
• SelectableHi/Full/LowPassCrossovers
• 200mV-8VLowLevelInputs
• Pre-AmpOutputs
• DashMountRemoteGainControl(2ch.models)
• 2or4ChannelInputSellection(4ch.models)
• Variable12dB30-500HzLPF(2ch.models)
• Variable12dB40-250HzLPF(4ch.models)
• Variable12dB50-500HzHPF(2ch.models)
• Variable12dB40-250HzHPF(4ch.models)
• Variable0-24dBBassBoost(2ch.models)
• Variable0-18dBBassBoost(4ch.models)
• Variable12dBSubsonicFilter30-175Hz(2ch.models)
• FrequencyResponse:10Hz-30kHz
• Signal-to-NoiseRatio:97dB
• TotalHarmonicDistortion:.02%
• 4ga.Power&8ga.SpeakerTerminals
No. RMS@4Ω RMS@2Ω Bridged@4Ω MAXPower Length:(in) BassKnob
Chs. (watts) (watts) (watts) (watts) (2.375”hx10.25”w) Included
LFA2-420 2 2x80 2x95 1x190 420 6.875” No
LFA2-600 2 2x95 2x120 1x240 600 8” No
LFA2-800 2 2x150 2x180 1x360 800 10.75” Yes
LFA2-1250 2 2x220 2x280 1x560 1,250 12.75” Yes
LFA2-1800 2 2x300 2x380 1x760 1,800 19” Yes
LFA2-2200 2 2x370 2x450 1x900 2,200 20.25” Yes
LFA2-2600 2 2x450 2x540 1x1,080 2,600 21” Yes
LFA4-840 4 4x80 4x95 2x190 840 10.25” No
LFA4-1200 4 4x100 4x125 2x250 1,200 12.75” No
LFA4-1600 4 4x150 4x180 2x360 1,600 14.75” No
S53075.indd 9 12/31/08 11:36:08 AM

10
amplifiers
Class d series
Class a/b series
remote dash mount
bass knob control
CLASS AB/D SERIES COMMON FEATURES
• MOSFETPowerSupplyTransistors
• PulseWidthModulationCircutry
• Three-WayProtectionCircuitry(short,thermal&overload)
• 2-ohmStereo,4-ohmMonoStable(A520)
• Tri-ModeCapable(A520)
• SelectableHi/Full/LowPassCrossovers(A520)
• 200mV-8VLowLevelInputs
• Pre-AmpOutputs
• DashMountRemoteGainControl(mono-blockmodel)
• Variable12dB40-250HzHPF(2ch.model)
• Variable12dB40-250HzLPF(2ch.models)
• Variable12dB40-250HzLPF(mono-blocks)
• Variable0-18dB45HzBassBoost
• Variable12dB15-40HzSubsonicFilter(2ch.models)
• FrequencyResponse:10-30kHz(2ch.model)
• FrequencyResponse:15-150Hz(2ch.model)
• Signal-to-NoiseRatio:98dB
• TotalHarmonicDistortion:.02%(.50%mono-blocks)
• 4ga.Power&8ga.SpeakerTerminals
 No. MAXPower RMS@1Ω Bridged@4Ω RMS@2Ω RMS@4Ω Length:(in)
Chs. (watts) (watts) (watts) (watts) (watts) (2.25"hx11.125"w)
A520-2HP 2 520 - 1x300 2x150 2x125 11”
A1000DB 1 1,000 - - 800 450 10.5”
A1800DB 1 1,800 1,400 - 1,100 600 12.875”
A2400DB 1 2,400 1,800 - 1,400 900 15.25”
A3000DB 1 3,000 2,300 - 1,800 1,100 18”
S53075.indd 10 12/31/08 11:36:22 AM
