PowerAcoustik PTID-8940NBT User manual

Operating manual
7" Wide Touch Screen
In-Dash Fully Motorized TFT Monitor /DVD/AM/FM
Bluetooth Function

1
SAFETY INFORMATION
PLEASE READ COMPLETELY AND BECOME FAMILIAR WITH THE CONTENTS
OF THIS MANUAL BEFORE INSTALLATION AND OPERATION OF THIS UNIT,
AND KEEP IT CAREFULLY FOR FUTURE REFERENCE.
This unit is a class 1 laser product. The laser beam may cause hazardous
radiation if exposure to laser system directly. Do not attempt to disassemble the
unit personally.
This unit has been designed and manufactured to assure personal safety. Improper
use can result in electric shock or fire hazard. The safeguards incorporated in this
unit protect you if you observe the following procedures for installation, use and
servicing. This unit doesn't contain any parts that can be repaired by the user. If the
unit requires maintenance, contact an authorized service center.
Warnings
-Do not expose the product to rain, water or excessive moisture. This could cause
electrical shorts, fire or other damage.
-This product is designed to operate with a 12 volt DC, negative ground battery
system. Use the proper power supply.
-The monitor is operated automatically. Do not push in or pull out the monitor or try to
reverse the monitor manually! Do not attempt to adjust the monitor angle upward or
downward manually. It will cause damage to the Monitor Mechanism Structure.
-Do not impact the monitor with a hard object. It may cause permanent damage.
-Do ground all equipments and works in order to avoid causing damage to the unit
by electrostatic discharges.
-The user who handles this product takes all necessary precautions to avoid ESD
(Electro-Static Discharge) failures.
-Do not attempt to install or service your unit by yourself. Installation or servicing of
the unit by persons without training and experience in electronic equipment and
automotive accessories may be dangerous and could expose you to the risk of
electric shock or other hazards.

2
Cautions:
To reduce the risk of fire or electric shock, and annoying interference, use only the
recommended accessories.
While driving, keep the volume level low enough to be aware of road and traffic
conditions.
Parking in direct sunlight can produce very high temperatures inside your vehicle.
Give the interior a chance to cool down before starting playback.
Do not use any chemical solvent, cleaning agent or corrosive detergent to clean
away dirt on the surface of the TFT monitor screen. It may cause irreversible damage.
Small black and shiny dots inside the liquid crystal panel are normal for liquid
crystal product.
In extremely cold temperatures, the movement of the picture may be slow and the
picture may be dark, but this is not a malfunction. The unit will work normally once
reach its operating temperature.
Do not use and store the unit in dusty, high temperature and high humidity
environments.
Do not use the unit immediately when you bring it from cold to warm place. Fast
growing temperature, may cause moisture condensing which influence the unit for
certain time.
NOTE:
This user's manual only for reference.
Modifying rights are reserved.
Modifications are subject to change without notice.

3
FEATURES
- Fully Motorized Screen Telescopes Out And Up Including Front To Back Angling
- Drop Down Detachable Front Panel For Invisible DVD Insertion Slot
- Electronic Touch Screen Functions Include DVD, Radio, USB, & MP-3/4
- Front Panel Display When The Monitor Is Closed
- Electronic Touch Screen Functions Include OSD Functions
- DVD/DVD-RW/CD/CD-R/CD-RW/MP-3/MP-4/Divx
- Menus Can Be Displayed On Screen Via OSD (Fourteen Languages)
- 30-Second Electronic Anti-shock Mechanism
- Accessory iPod Input Connection (Cable Not Included)
- USB Mini Input For Mp-3 Music, Divx, Xvid & Mp-4 Movies
- IR Repeater For External Remote Eye
- Antenna Trigger Wire
- Amplifier Trigger Wire
- Brake Screen Safety Trigger
- AM/FM With 30 Pre-sets (18/FM - 12AM)
- Auto Store Pre-set Scan
- 4-Channel High Power 50 X 4 Channels (Mosfet Power)
- Dual RCA Outputs (Front & Rear)
- Sub Woofer Selectable Frequency Outputs (80, 120, 160Hz)
- Variable Sub Woofer Volume Control
- 1-Auxiliary Video Input For Back-up Camera
- 1-A/V In For Secondary Source Input
- 1-RCA Video Output
- LO/DX And Stereo Mono Selector Switch
- Electronic (Bass, Treble, Volume, Balance, Fader)
- Pre-set EQ Functions (Rock, Pop, Classic, Jazz, User)
- Digital Clock
- DVD, PAL/NTSC Selectable
- USA/EUROPE Frequency Stepping
- Resolution: 1440 X 234
- Panel Brightness: 350 NIT
- ISO/DIN
- Full Function Remote Control
- Last Position DVD Memory
- Bluetooth Function
- Improved Graphic User Interface

4
TABLE OF CONTENTS
Safety Information…………………………………………….………………………….1
Features…………………………………………………………….……………………… 3
Table of Contents…………………………………….………….………………………....4
Accessories………………………………………….…….………………………………..5
Unit Installation………………………………………….….……………………………….6
Unit Removal…………………………………………….…….…………………………....8
Wiring Connection…………………………………………..……………………………...9
Front Panel………………………………………………………..………………………12
Remote Control…………………………………………………………………………….16
Basic Operation…………………………………………………………………………….21
Touch Screen Operations………………………………………………….……………..23
Touch Screen Calibrate……………………………………….……………………..23
Main Menu…………………………………………………….………………………24
Radio Operations………………………………………………….……………….…25
DVD Operations………………………………………………….……………….…..28
USB Operations………………………………………………….………………..…30
Bluetooth Operations …………..…………………………………….………………31
iPod Operations…………………………………………………….……………..…39
AV IN Operations……………………………………………………………………42
AUX IN Operations……………………………………………………………………43
CDC Operations…………………………………………………….………….……44
System Setup………………………………………………………………….……46
DVD Setup Menu…………………………………………………………….………..….50
Trouble shooting………………………….…………………………………….….…...…55
Specifications…………………………………………………………………………......58
Disc Notes………………………………………………………………………………...59

5

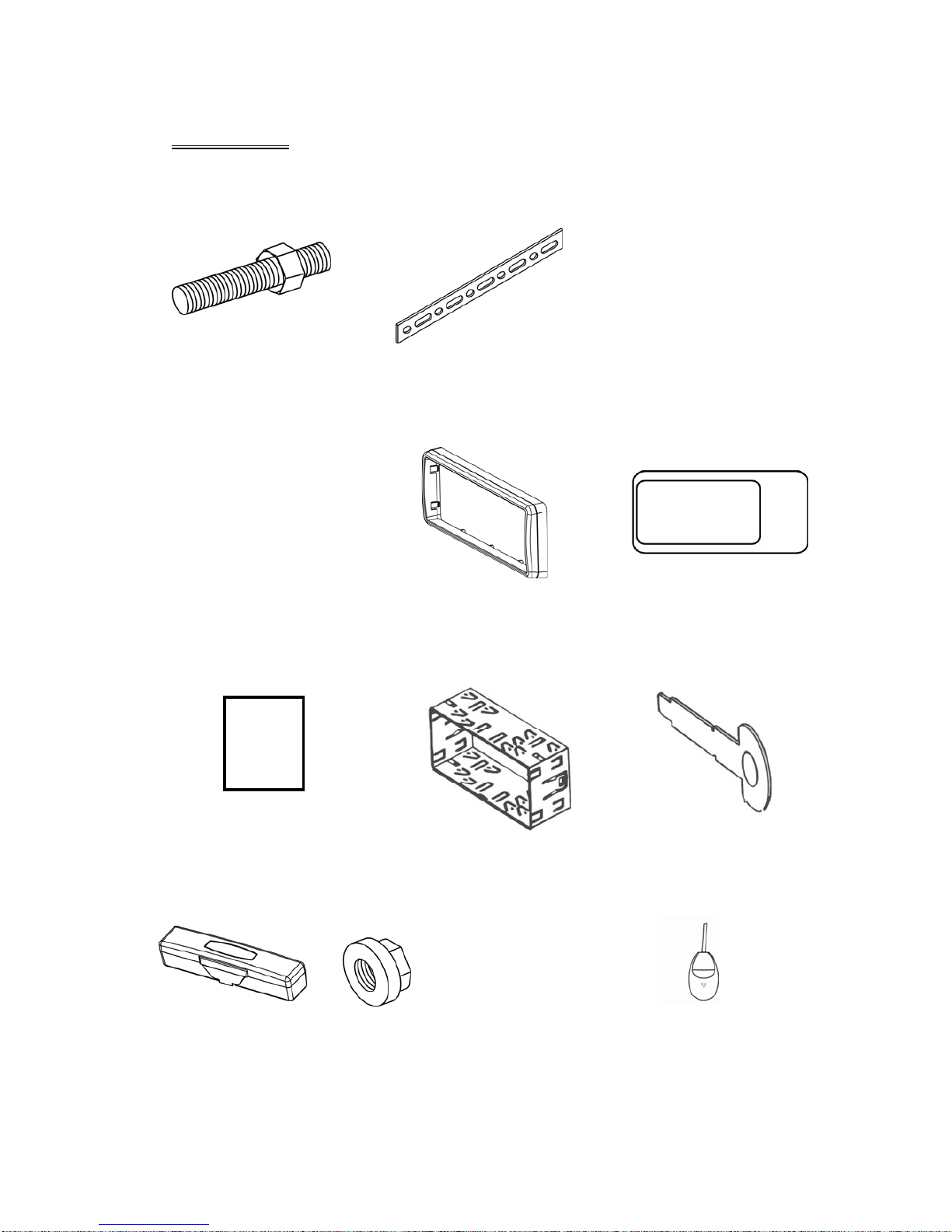

ACCESSORIES
Bolt SteelBarx1 M5X5Screwsx4
ConnecterWirex1 TrimBezelx1 RemoteControlx1
Operational Manual x 1 Mounting Sleeve x 1 Keys x 2
Boxx1 NutM5x1 AUX Cable x 1 External Microphone x 1
1 2 3
4 5 6
7 8 9
10 11 12 13

6
UNIT INSTALLATION
Please read all of the instructions before beginning the installation. Recommend
having your unit installed by a professional installation shop.
Tools and Supplies:
You will need these tools and supplies to install your unit:
- Torx type, flat-head and Philips screwdrivers
- Wire cutters and strippers
- Tools to remove existing radio (screwdriver, socket wrench set or other tools)
- Electrical tape
- Crimping tool
- Volt meter/test light
- Crimp connections
- 16 gauge wire for power connections
- 8 gauge speaker wire
Warnings:
Choose the mounting location where the unit will not interfere with the safe driving
conditions.
Install the unit where it does not get in the driver's way and can not injure the
passenger if there is a sudden stop, like an emergency stop.
Avoid installing the unit where it would be subject to high temperature, such as from
direct sunlight, or from hot air, from the heater, or where it would be subject to dust,
dirt or excessive vibration.
Cautions:
Before finally installing the unit, connect the wiring temporarily and make sure it is all
connected up properly, the unit and the system work properly.
Use only the parts included with the unit to ensure proper installation. The use of
unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or other
modifications of the vehicle.
If installation angle exceeds 30 degrees from horizontal, the unit might not give its
optimum performance.

7
● Securing the Unit to the Mounting Bracket.
Installation Method
1. Install the front panel into the unit.
2. Bend the claws outward for tight fit, if necessary. Install the Mounting Box into the
dashboard, tighten the unit in place.
3. Install the Frame to the unit.

8
UNIT REMOVAL
1. Detach the front panel.
2. Insert the keys that supply to the unit at both sides of the unit (shown as illustrated)
until pull the keys to make it possible to remove the unit from the dashboard.

9
WIRING CONNECTION
Cautions:
-To prevent short circuits, remove the key from the ignition and disconnect the
terminal of the battery.
-Make the proper input and output cable connections for each unit.
-Connect the wiring harness cables in the following order: ground wire, battery wire,
ignition wire.
-Reconnect the terminal of the battery.
-Do not connect the yellow wire of this product directly to the battery terminal.
-Do remember to connect the red wire of this product to the ACC. of the ignition key
switch. Failure to do may result in draining off the battery charge prematurely.
-If the fuse blows, first make sure that the cables have not caused a short circuit, then
replace the old fuse with new one with the same rating.
-Do not let unconnected cables or terminals touch the metal on the car or other
conductor.
-To prevent short circuits, do not remove the caps form unused terminals or from the
ends of the unconnected cables.
-After the monitor unit is installed, check whether the brake lamps, blinkers, wiper, etc.
on the vehicle are working properly. If not, please make sure they are proper installed.
-Insulate unconnected wires with vinyl tape or other similar material.
Disconnecting the Battery
To prevent a short circuit, be sure to turn off the ignition and remove the negative (-)
battery cable prior to installation.
Reconnecting the Battery
When wiring is complete, reconnect the battery negative terminal.
Warning:
Be sure to use the correct type and amperage Fuse to avoid damaging the unit.
Fuse of the Battery wire in Main Unit: 1 amp;
Fuse of the ACC wire in Main Unit: 1 amp;

10

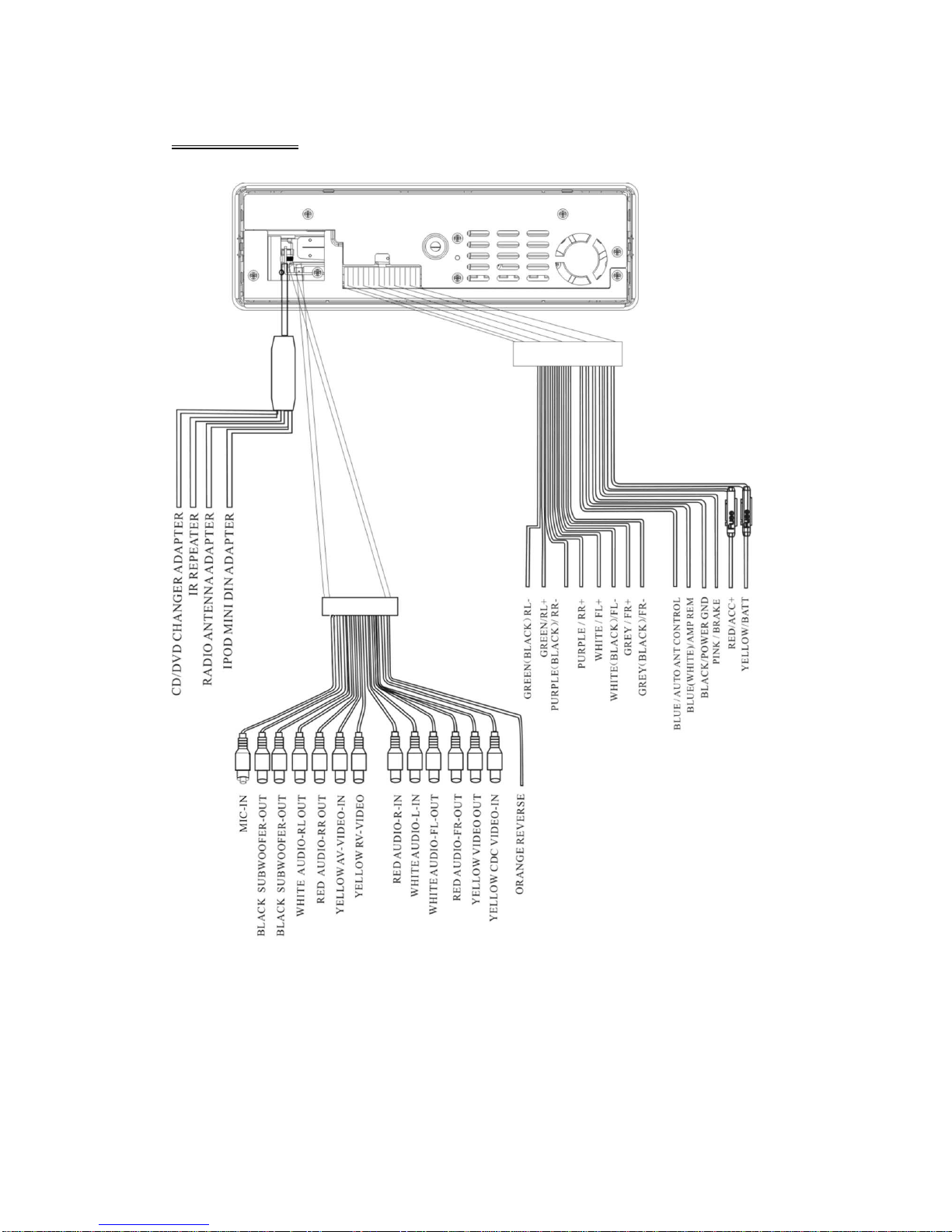

Wiring Diagram
NOTE:
1, Plug the external microphone input into the MIC-IN jack for Bluetooth.
2, Please separate Battery Units before setting products to prevent from fire and
electric shock. Mounting the antenna near to a radio antenna will result in noise. In
this case, consult your dealer concerning mounting location.

11
Wiring Diagram

12

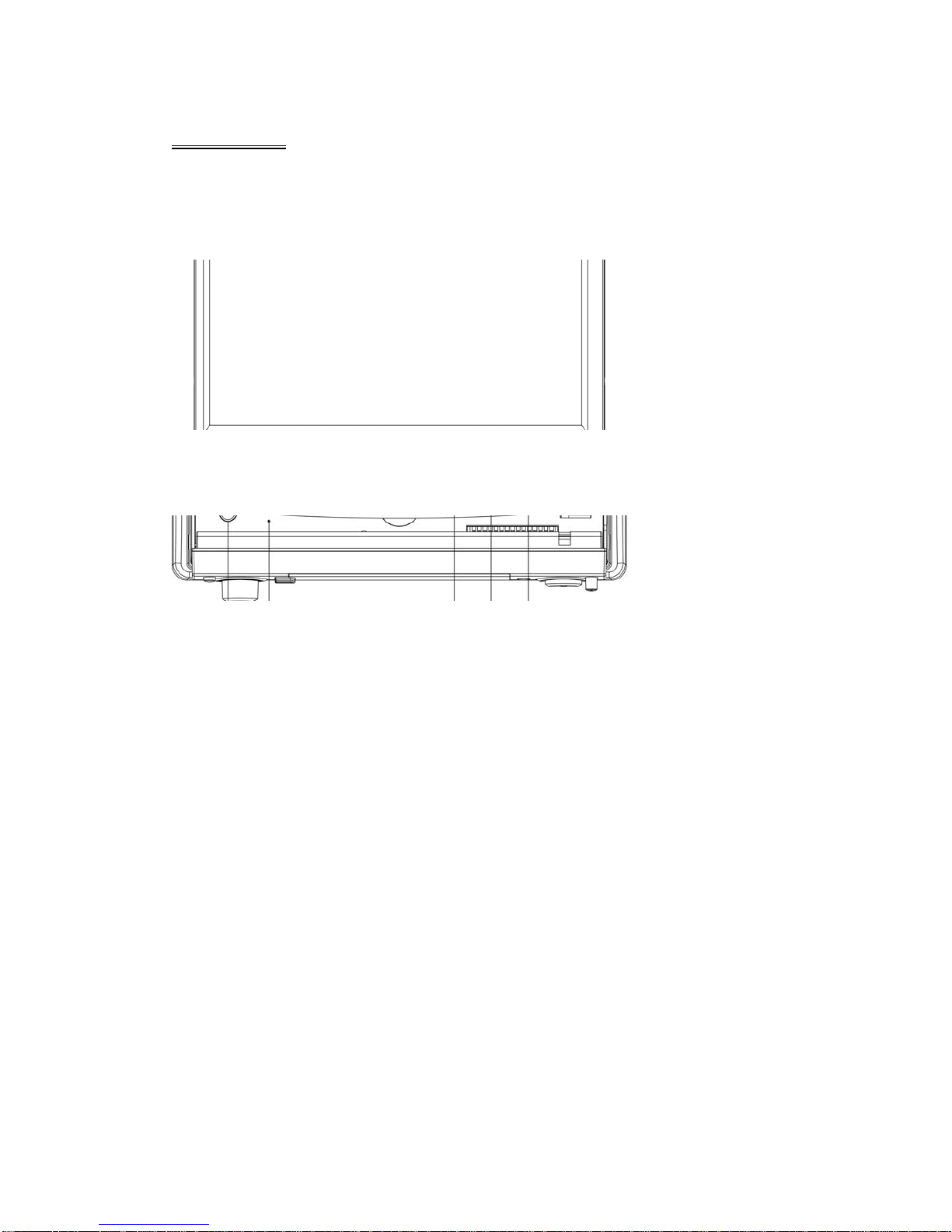

FRONT PANEL
1. ANGLE - 11. MINI USB
2. ANGLE + 12. LEFT / UP / RIGHT / DOWN / ENTER / BAND
3. EJECT 13. REL
4. OPEN / CLOSE 14. EJECT
5. POWER / SOURCE 15. RESET
6. VOLUME / MENU / SEL 16. OUT
7. PLAY / PAUSE 17. IN
8. MUTE 18. SYSTEM
9. CALL / TRANSFER 19. AUX IN
10. REMOTE 20. MIC

13
1. [ANGLE -] / 2. [ANGLE +]
Adjust the view angle of the monitor to choose the best displaying effect.
1- Continual angle adjustment
Hold on pressing the [ANGLE +] / [ANGLE -] buttons to adjust the angle of TFT
monitor upward / downward by continual increasing / decreasing.
2- Single step angle adjustment
Press the [ANGLE +] / [ANGLE -] buttons to adjust the angle of TFT monitor upward /
downward by singly increasing / decreasing.
3. [EJECT]
When flip down the front panel, press to eject / load a disc.
4. [OPEN] / [CLOSE]
When unit power off, press the [OPEN] button to turn unit on and the monitor will
spread out and turn around to the last angle position.
When unit power on, press to open / close the Monitor.
1- Open the TFT Monitor
Press the [OPEN] button, the monitor will spread out and turn around to the last angle
position.
2- Close the TFT Monitor
Press the [CLOSE] button, the monitor will turn downward and completely retract in.
5. [POWER/SOURCE]
Press the [POWER/SOURCE] button to turn the unit ON;
Hold on pressing the button to turn the unit OFF.
When the unit in turned ON, press the [POWER/SOURCE] button to toggle between
the different modes as following:
RADIO – DVD – USB – IPOD – CDC – AV IN – AUX – BLUETOOTH – RADIO
NOTE:
The unit could be switched to DVD Mode if disc inside;
The unit could be switched to USB Mode if Mini USB connected;
The unit could be switched to IPOD Mode if iPod connected;
6. [VOL/MENU/SEL]
Rotate the button clockwise / anticlockwise to increase / decrease the volume.
Press the button vertically to return the main menu.
Hold on pressing the button vertically to enter the EQ setting as following:
USER – POP – CLASSIC – ROCK – JAZZ – USER
7. [MUTE]
Press the [MUTE] button to switch off the sound; press it again to resume to the

14
previous volume level.
8. [CALL/TRANSFER]
Press to call a number or to receive a cell phone call.
When talking the phone, touch the icon to transfer the call between the unit and your
cell phone.
9. [ ll]
Press to pause playback when playing; press again to continue playing.
10. REMOTE
Infrared Remote Receiver.
11. MINI USB
Connect an USB device to play the songs, pictures, videos in USB.
12. [LEFT] / [UP] / [RIGHT] / [DOWN] / [ENTER] / [BAND]
Under the DVD Setup menu:
Press the [∨] / [∧] buttons to move the cursor upward / downward to select item.
Press the [<] / [>] buttons to move the cursor leftward / rightward to select item.
Press vertically to confirm the operation.
Under RADIO Mode:
Press the [<] / [>] buttons to switch the stored stations.
Hold on pressing the [<] / [>] buttons to fast seeking the next available channel by
decreasing / increasing the tuning frequency; seeking will stop by pressing any button.
Press the [∨] / [∧] buttons to decrease / increase the frequency step by step.
Hold on pressing the [∨] / [∧] buttons to fast seeking by decreasing / increasing the
tuning frequency; seeking will stop when loose the button.
Press vertically to switch the FM/AM wave band as following:
FM1 - FM2 - FM3 - AM1- AM2 - FM1
13. REL
Press to flip down the front panel.
14. [EJECT]
When flip down the front panel, press to eject / load a disc.
15. [RESET]
Press to reset the unit.
16. [OUT] / 17. [IN]
Press the [OUT] / [IN] buttons to move the monitor forward / backward by singly step.
There are 4 steps to move the monitor forward / backward totally.
18. [SYSTEM]

15
Press to enter / exit the System Parameter Setup menu.
19. AUX IN
Connect an audio device to this jack to listen to the device through your car speakers.
20. MIC
Microphone.
FRONT PANEL DISPLAY
1. EQ Indicator:
It turns on to indicate the POP/CLASSIC/JAZZ/ROCK when corresponding setup.
It turns off when custom setup.
2. Disc Icon:
It rotates when playing disc under the DVD Mode.
3. Main Display Area:
Display the information such as working mode, characters, playback time & number of
track, radio frequency etc.
4. LOUD Icon:
It displays when the LOUD function on.
It disappears when the LOUD function off.
5. ST Icon:
It displays when the STEREO function on.
It disappears when the STEREO function off.
6. Disc Type Indicator:

16
It turns on to indicate DVD, CD, VCD, and MP3 when playing corresponding discs.

17
REMOTE CONTROL
1. POWER/SOURCE 13. PREVIOUS 25. SYSTEM
2. MUTE 14. SLOW / END CALL 26. F.FWD
3. NUMBER BUTTONS 15. TITLE/PBN 27. RIGHT(Seek up)
4. MENU/* 16. ZOOM/CALL 28. STOP
5. AUDIO/# 17. SUBTITLE / PBP 29. D.ANGLE
6. LOUD/EQ 18. OPEN/CLOSE/P.ANGLE 30. PLAY / PAUSE
7. UP (Tune up) 19. SETUP 31. NEXT
8. LEFT (Seek Down) 20. VOLUME+ 32. A-B / PHONE PAIR
9. ENTER / BAND 21. VOLUME- 33. REPEAT / PHONE
10. PROGRAM 22. DISPLAY 34. PAL / NTSC / AP
11. DOWN(Tune Down) 23. PBC / AST / CLEAR 35. STEREO / MP
12. RANDOM / TRANSFER 24. F.REV

18
1. [POWER/SOURCE]
Same functions as key on front panel.
2. [MUTE]
Press the [MUTE] button to switch off the sound; press it again to resume to the
previous volume level.
3. [NUMBERS 0~9]
For 1~6, press these buttons to store the current radio station or recall the stored
station under the Radio Mode.
For 0~9, press these buttons to select the tracks, and input the number code.
4. [MENU]
Press to return to the boot menu when playing DVD disc.
5. [AUDIO]
Press to select dialogue language when playing DVD disc.
Press to select left audio channel, right audio channel or stereo when playing VCD
disc.
6. [LOUD/EQ]
Press to adjust the EQ setting as following:
USER – POP – CLASSIC – ROCK – JAZZ – USER
Hold on pressing to turn the LOUD function on / off.
7. [∧] / 8. [<] / 11. [∨] / 27. [>] Direction Key
Under the DVD Setup menu:
Press the [∨] / [∧] buttons to move the cursor upward / downward to select item.
Press the [<] / [>] buttons to move the cursor leftward / rightward to select item.
Under RADIO Mode:
Press the [<] / [>] buttons to switch the stored stations.
Hold on pressing the [<] / [>] buttons to fast seeking the next available channel by
decreasing / increasing the tuning frequency; seeking will stop by pressing any button.
Press the [∨] / [∧] buttons to decrease / increase the frequency step by step.
Hold on pressing the [∨] / [∧] buttons to fast seeking by decreasing / increasing the
tuning frequency; seeking will stop when loose the button.
9. [BAND/ENTER]
In RADIO mode, press the [BAND] button to switch the wave band as following:
FM1 – FM2 - FM3 - AM1- AM2 - FM1
In DVD mode, press the [ENTER] button to confirm the Setup Menu.

19
10. [PROGRAM]
Press to enter / exit the PROGRAM Function when playing the VCD, CD, MP3 disc.
12. [RANDOM/TRANSFER]
Press to turn RAMDOM function on / off when playing CD / VCD disc (PBC OFF).
When talking the phone, press to transfer the call between the unit and your cell phone.
13. [PREVIOUS]
Press to skip to play the pervious track.
14. [SLOW/END CALL]
Press to activate slow motion playback. (DVD Mode only)
Press to reject or hang up a call.
15. [TITLE/PBN]
Press to enter the title menu when playing DVD disc.
Press to enter the next page of phone number list in phonebook.
16. [ZOOM/CALL]
Press to magnify the picture display when play DVD, VCD disc.
Press to call a number or to receive a cell phone call.
17. [SUB-T/PBP]
Press to select the subtitle language when playing DVD disc.
Press to enter the previous page of phone number list in phonebook.
18. [OPEN/CLOSE/P.ANGLE]
Same functions as key on front panel.
19. [SETUP]
Press to enter the DVD SETUP menu.
20. [VOL+] / 21. [VOL-]
Press to increase / decrease the volume.
22. [DISPLAY]
Press to display current playback information when playing DVD disc.
23. [PBC/AST/CLEAR]
Press to select the PBC function on / off when playing VCD disc.
Hold on pressing to seek radio station / TV channel automatically under RADIO / TV
Modes.
Press to cancel or clear the numbers you have input.
