Powerfix Profi 1500000194 User manual

IAN 107405
BUNSEN BURNER
1500000194
BUNSEN BURNER
Operation and Safety Notes BUNSENŮV HOŘÁK Pokyny k obsluze a bezpečnostní upozornění
BUNSENOV HORÁK
Pokyny na obsluhu a bezpečnostné pokyny

GB / IE Operation and Safety Notes Page 5
CZ Pokyny k obsluze a bezpečnostní upozornění Strana 17
SK Pokyny na obsluhu a bezpečnostné pokyny Strana 29

A
E
C
B
1
5
2
3
D
4

04
Important!
Please read these operating instructions carefully to familiarise yourself
with the product. Keep these instructions for future reference. In case the
user changes, the operating instructions must also be passed on to the new
user.
Table of contents
Symbols used..........................................................................................................................................................................................05
1. Introduction......................................................................................................................................... 05
2. Safety instructions.......................................................................................................................... 05
Safety instructions ...............................................................................................................................................................................05
Scope of use............................................................................................................................................................................................08
3. Technical specifications................................................................................................................ 09
Features........................................................................................................................................................................................................09
Technical specifications for mod. No. 1500000194 .........................................................................................09
4. Before using the appliance....................................................................................................... 09
Cartridge selection.............................................................................................................................................................................09
Fitting the cartridge (Fig. A, B, C, D)..................................................................................................................................10
5. Operation / use.................................................................................................................................11
Replacing the cartridge..................................................................................................................................................................11
Checking for gas leaks................................................................................................................................................................... 12
6. Maintenance and repair..............................................................................................................12
General maintenance...................................................................................................................................................................... 12
Cleaning...................................................................................................................................................................................................... 12
Storage and transportation conditions............................................................................................................................. 12
Recycling..................................................................................................................................................................................................... 13
7. Warranty ...............................................................................................................................................13

05

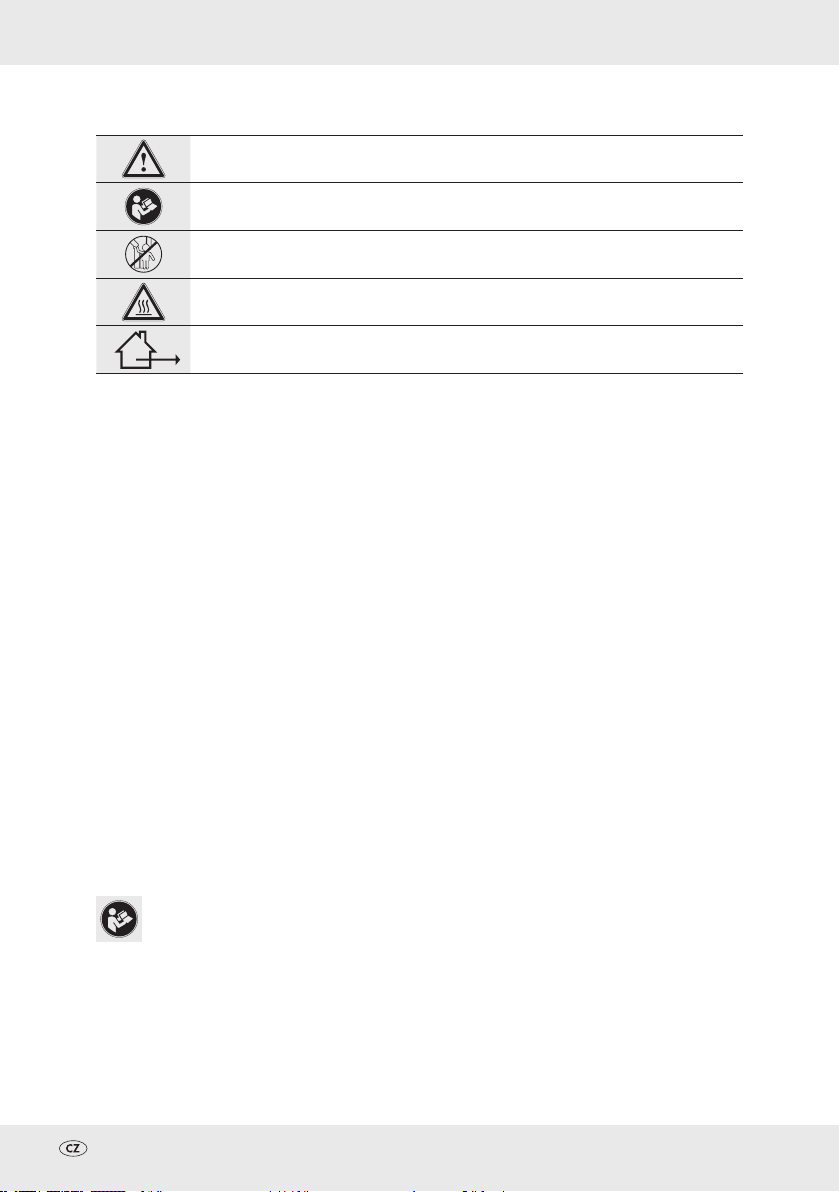

Follow the warning and safety instructions!
Read the operating manual
Keep out of the reach of children
Caution hot!
may only be used outside or in well ventilated rooms
Symbols used
Congratulations on the purchase of your new device. You have chosen a high quality
product with this purchase. These operating instructions are part of this product. They contain
important instructions for safety, use and disposal of the product. Please familiarise yourself
with all operating and safety instructions before using the product. Use the product only as
described and for the said range of applications. If the product is passed on to a third party,
please provide all documents to the third party along with the product.
1. Introduction
Important: Please read this instruction manual carefully to
familiarize yourself with the equipment before connecting it to the
gas tank. Keep this manual in order to be able to read it again.
Failure to observe the instructions in the manual can lead to serious injury and may
invalidate the guarantee.
Safety instructions
2. Safety instructions

06
- The appliance and the accessories should not be modified. Repairs
may only be carried out by an authorised workshop or by a qualified person.
- This appliance should only be used in well-ventilated areas.
In doing so, the national regulations are applicable
• for combustion air supply and
• for preventing the accumulation of dangerous quantities of non-combusted gas
- Keep the appliance away from sources of ignition such as heat
sources, open flames, debris or inflammable substances. Keep
the appliance away from inflammable substances. Keep at least 0.5 meters of
distance to the sides of and 1 metre above the appliance.
- If gas escapes from the appliance (smell of gas), take it outdoors
immediately to a well-ventilated location away from sources of
ignition where the leak can be safely detected and repaired. If you
wish to check for leaks on your appliance, do it outside. Never check
for leaks using a flame; always use a soapy solution!
- Gas cartridges must not be removed until completely empty.
- Disposable cartridges may only be used once; it is highly dangerous to
attempt to refill them.
- Keep the appliance out of the reach of children at all times.
- Use the appliance only for the purpose for which it was designed
and never for any other use.
- Do not expose cartridges to temperatures exceeding 50°C (122°F).
- Avoid inhaling the gas from the cartridge or any smoke produced
when using the appliance.
- When using the appliance use protective goggles in accordance
with the relevant legislation and protective clothing free from any
grease stains. Always work on a re-proof, clean surface.
- At all times the cartridges and the appliance must be stored upright
in a safe, dry place well away from any sources of heat.
- Always bear in mind that working with highly inflammable gas is
inherently dangerous; do not allow familiarity with the appliance to lead to
moments of carelessness.
BEFORE FITTING THE CARTRIDGE
- Never fit cartridges to the appliance without reading the operating
instructions beforehand.
- Check the appliance for signs of damage. Never use a damaged
appliance.
- Always keep the appliance in a vertical position.

07
- Ensure that the gas regulator is closed.
- Ensure that the rubber seal (part no. 5) is intact.
- Gas containers may only be changed in a well ventilated location,
preferably outside, away from any sources of ignition, such as
naked flames, ignition flames, electrical devices and away from
other people.
- Never smoke when handling cartridges.
- Fit cartridges in an upright position or on a stable surface.
- To prevent leaks once the cartridge has been perforated it is
forbidden to unscrew the cartridge holder until the gas has been completely used
up.
USING THE APPLIANCE
- Never use an appliance which is damaged or which leaks. Never use
the device if the seal is is damaged or worn.
- After fitting a new cartridge to a cold appliance the shape of the flame
may vary for a short period of time before returning to normal.
- Never leave the appliance running unsupervised.
- Always close the gas regulator after using the appliance.
- Turn off the gas regulator immediately if it performs unusually
during operation.
- It is normal for the bottom of the cartridges to cool down after
prolonged periods of operation.
- CAUTION: Accessible parts may become very hot. Keep young
children away from the appliance. Remember that when the appliance
is being used its parts heat up and can cause burns. This applies even if the
appliance is only used for short periods of time.
Before removing the cartridge
- Allow the appliance to cool down completely before disassembly,
storage or packing up.
- Ensure that the gas regulator is closed.
- Always keep the appliance in an upright position.
- Disassemble and pack /store the appliance only when it has cooled
down completely.
- Never use the device if the seal is is damaged or worn. Do not remove
the cartridge until it is completely empty. To remove it, open the gas regulator
slightly, check that no gas escapes and shake the appliance to ensure that the
cartridge contains no liquid.

08
Scope of use
This appliance is designed for heating or melting appropriate substances. The appliance
must be used in accordance with the instructions contained in this manual and may not be
used for any other purpose. Use of the product for any other purpose and / or modification
of the product counts as misuse and can be highly dangerous.
- Gas containers may only be changed in a well ventilated location,
preferably outside, away from any sources of ignition, such as
naked flames, ignition flames, electrical devices and away from
other people.
- Discard used cartridges at a recycling facility.
WHAT TO DO IN CASE OF LEAKS
- Do not use the appliance, turn it off immediately and take it
outdoors. Do not leave the appliance unsupervised until all the gas has
escaped. Contact a service agent or discard at an appropriate facility.

09
Features
3. Technical specications
Nozzle
Air supply regulating ring
Gas regulator (+ large flame, - small flame)
Cartridge holder
Valve with pin and rubber seal
3
1
4
2
5
Gas category / type: Direct pressure butane
Rated power / consumption: 0.5 kW / 36 g/h
Nozzle diameter: 0.15 mm
Gas cartridge: This appliance shall only be used with the ‘WALTER
UNIVERSALGAZ cartridge no. 3.5950’ or with other type
200 cartridges acc. to EN 417. It can be dangerous to
connect the burner to other types of gas cylinder.
Usage: This appliance may only be used outdoors or in a well
ventilated areas
Technical specifications for mod. No. 1500000194
Cartridge selection
4. Before using the appliance
Use only cartridges recommended by the manufacturer. The use of any other cartridges
can be dangerous. This appliance shall only be used with the ‘WALTER UNIVERSALGAZ
cartridge no. 3.5950’ or with other type 200 cartridges acc. to EN 417. It can be
dangerous to connect the burner to other types of gas cylinder.

10
Caution!
Read the safety instructions prior to fitting the gas cartridge,
especially the section "Before fitting the cartridge".
CAUTION!
To prevent leaks once the cartridge has been perforated it is
forbidden to unscrew the cartridge holder until the gas has
been completely used up.
Fitting the cartridge (Fig. A, B, C, D)
• Fit the cartridge outdoors or in a well-ventilated room, well away from any sources of heat
(Fig. A).
• Only use cartridges as described above.
• Position the cartridge holder vertically on a stable surface.
• Insert the cartridge in an upright position into the cartridge holder.
• Ensure that the rubber seal is intact in the appliance housing.
• Ensure that the gas regulator is closed (Fig. C).
• Hold the cartridge holder and screw the appliance into the cartridge holder (Fig. D).
• Check for leakages. To do this, hold the appliance with a gas cartridge fitted under water
for at least two minutes. Bubbles indicate a leakage.
• If gas escapes from the appliance (smell of gas or bubbles in the leak test), take the
appliance outdoors immediately to a well-ventilated location away from sources of ignition
where the leak can be safely detected and repaired. Never check for leaks using a flame;
always use a soapy solution! Keep the appliance under close observance until the leaked
gas has dissipated completely.
• Check whether the gas is being released properly by briefly opening the regulator.
