Powerfix Profi PBMP 30 A1 User manual

DRILL PUMP PBMP 30 A1
DRILL PUMP
Operating instructions
POMPĂ PENTRU MAŞINA DE
GĂURIT
Instrucţiuni de utilizare
PUMPA ZA BUŠILICU
Upute za upotrebu
IAN 86584
BOHRMASCHINENPUMPE
Bedienungsanleitung
ΑΝΤΛΙΑ ΗΛΕΚΤΡΙΚΟΥ
ΤΡΥΠΑΝΙΟΥ
Οδηүίες χρήσης

GB/CY Operating instructions Page 1
HR Upute za upotrebu Stranica 11
RO Instrucţiuni de utilizare Pagina 21
GR/CY Οδηүίες χρήσης Σελίδα 31
DE/AT/CH Bedienungsanleitung Seite 41
Before reading, unfold the page containing the illustrations and familiarise
yourself with all functions of the device.
Prije nego što pročitate tekst, otvorite stranicu sa slikama i upoznajte se na
osnovu toga sa svim funkcijama uređaja.
Înainte de a citi instrucţiunile, priviţi imaginile şi familiarizaţi-vă cu toate funcţiile
aparatului.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικει-
ωθείτε με όλες τις λειτουργίες της συσκευής.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen
Sie sich anschließend mit allen Funktionen des Gerätes vertraut.

A
B

- 1 -
GB/CY
CONTENT PAGE
Introduction 2
Safety instructions 2
Intended Usage 3
Technical Data 3
Items supplied 4
Overview of the appliance 4
Assembly material required 4
Assembly and connection 5
Disassembly of the drive shaft 7
Utilisation 8
Cleaning and care 8
Disposal 9
Declaration of conformity 9
Importer 9
Warranty and Service 10
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 1

- 2 -
Introduction
Congratulations!
With your purchase you have decided in favour of a quality product. Familiarise
yourself with the product before taking it into use. To do this, read the following
operating instructions attentively. Use the product only as described and only
for the specified areas of application. Retain these instructions for future refe-
rence. In addition, pass these documents on, together with the product, to any
future owner.
Safety instructions
To avoid the risk of accidents and damage to the
appliance:
• Operate the pump ONLY when it is secured by the supplied mounting
against jolting, twisting and canting.
• Check the pump for a faultfree condition before ever taking it into use.
The pump may not be used if it shows signs of damage.
The drive shaft of the pump does not allow itself to be turned by hand.
This does not indicate that the pump is defective.
• Use only hoses certified as being able to withstand a pressure of at least
3 bars (44 psi).
• Check the plug-in connectors on the hoses for firm seating.
• Take steps to ensure that the fluid being pumped cannot come into contact
with the electric drill during pumping. Should it nonetheless occur, imme-
diately remove the power plug.
• Avoid the intake of coarse dirt, otherwise the pump could be damaged.
If needs be, use a filter on the suction hose.
GB/CY
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 2

- 3 -
GB/CY
• This appliance is not intended for use by children or other individuals whose
physical, sensorial or intellectual abilities prevent safe usage of the appli-
ance should they not receive support or supervision in the correct operati-
on of the appliance. Children should be supervised to ensure that they do
not play with the appliance.
Intended Usage
This pump is intended for ...
– standard commercial right/left rotating electric drills with a 43 mm Euro-
spindle and a gear-wheel rim chuck/quick-release chuck or drill chuck
with SDS fitting, up to rotation speed of 3400 rpm,
– the pumping of cold or up to 40°C warm fluids, such as non-potable or
dirty water from fish tanks or ponds.
This pump is NNOOTTintended for ...
– the pumping of flammable, explosive, poisonous or caustic liquids or
foodstuffs.
– for industrial or commercial applications.
Technical Data
Capacity: max. 2,4 m3/h
Hose connection: 3/4” (19 mm)
Pressure: max. 3 bar
Delivery height: max. 30 m
Suction height: max. 3 m
Temperature of the fluid being pumped: max. 40°C
Dry run time: max. 12 seconds
Rotation speed: max. 3400 rpm
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 3

- 4 -
Items supplied
- Pump
- Short drive shaft
- Long drive shaft
- Clamp fixing
- Mounting
- Open-ended spanner
- Storage box for the drive shafts and open-ended spanner
- This operating manual
Overview of the appliance
Figure A:
qPump
wDrive shaft of the pump
eShort drive shaft (suitable for gear-wheel/quick-release chuck)
rLong drive shaft (suitable for a drill chuck with SDS fitting)
tClamp fastening
yMounting
Figure B:
uElectric drill (not supplied)
iRecess for chuck key
oConnection for suction hose
aConnection for pressure hose
Assembly material required
- Philips-type screwdriver
- Flat-headed screwdriver
- Open-ended spanner (supplied)
GB/CY
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 4

- 5 -
GB/CY
Assembly and connection
Assemble the mounting ywith the clamp fastening tonto a work surface,
as shown in figure B.
Alternatively, the mounting ycan also be secured to a work surface
with screws (assembly material not supplied).
When using a gear-wheel chuck and the short drive
shaft e...
Screw the short drive shaft eonto the drive shaft wof the pump q.
Insert the electric drill uwith the chuck into the mounting y.
Now push the pump qonto the mounting yso that the drive shaft e
projects into the chuck and the pins of the mounting yare located in the
reception holes on the pump q.
Now tighten the chuck with the chuck key through the recess iso firmly
that the pump qcan no longer release itself from the mounting y.
Tighten the cross-headed screw on the mounting yfirmly, so that the drill
ucannot jolt around.
Attach the suction hose to the connection oand the pressure hose to the
connection a. Pay heed to the direction of flow detailed on the
pump q.
When using a quick-release chuck and the short drive
shaft e...
Secure the short drive shaft einto the chuck.
Insert the electric drill u, with the pre-assembled drive shaft ein the
chuck, into the mounting y.
Securely tighten the cross-head screw on the mounting yso that the drill u
is being firmly held.
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 5

- 6 -
Now push the pump qonto the mounting yso that the drive shaft e
projects into the thread of the drive shaft w, and the pins of the mounting
yare located in the reception holes on the pump q.
Let the drill ustart to run in a clockwise rotation and at low revolutions
and then guide the pump qstraight onto the drive shaft e. The drive
shaft eis thereby secured to the pump q.
Attach the suction hose to the connection oand the pressure hose to the
connection a. Pay heed to the direction of flow detailed on the
pump q.
When using a chuck with SDS fitting and the long drive
shaft r...
Attach the long drive shaft rinto the chuck.
Insert the electric drill u, with the pre-assembled drive shaft rin the
chuck, into the mounting y.
Tighten the cross-headed screw on the mounting yfirmly, so that the drill u
cannot jolt around.
Now push the pump qonto the mounting yso that the drive shaft r
projects into the thread of the drive shaft wand the pins of the mounting
yare located in the reception holes on the pump q.
Allow the electric drill uto run with a clockwise rotation and low revoluti-
ons and guide the pump qstraight on to the drive shaft r. With this the
drive shaft rwill be fixated onto the pump q.
Attach the suction hose to the connection oand the pressure hose to the
connection a. Pay heed to the direction of flow detailed on the
pump q.
GB/CY
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 6

- 7 -
GB/CY
Disassembly of the drive shaft
Disassembly of the short drive shaft e
Wheel rim chuck
Open the chuck with the chuck key through the recess iand then remove
the pump qfrom the mounting y.
Unscrew the short drive shaft eby using a cross-headed screwdriver and
the open-ended spanner from the pump q.
Quick-release chuck
Using the open-ended spanner through the recess i, counter screw the
drive shaft wof the pump q.
Allow the electric drill uto run with an anti-clockwise rotation and low re-
volutions. The drive shaft eis thereby released from the pump q.
Remove the pump qfrom the mounting y.
Remove the drive shaft efrom the chuck.
Disassembly of the long drive shaft r
Chuck with SDS fitting
Using the open-ended spanner through the recess, icounter screw the
drive shaft wof the pump q.
Allow the electric drill uto run with an anti-clockwise rotation and low
revolutions. With this the drive shaft rwill be released from the pump q.
Remove the pump qfrom the mounting y.
Remove the drive shaft rfrom the chuck.
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 7

- 8 -
Utilisation
Attention!
The pump is self priming. If the pump qdoes not start to suck up within 12
seconds, turn the drill uoff immediately to avoid seizure. For this same rea-
son, do not allow the pump qto commence suction if the pressure hose on
the discharge side is closed.
Place the open end of the suction hose into the liquid that is to be pumped.
The suction hose may not be longer than 3 m. Ensure that the suction hose
does not pull in air.
If the pump qdoes not commence suction, fill the hose with some water
and then lift it so that the liquid runs before the pump.
Allow the drill u, now the pump q, to start-up – but not without supervision,
so that you can react quickly in the event of danger. Absolutely ensure
that the electric drill uis rotating to the right, as with normal drilling.
Should the rotation speed of the electric drill ube adjustable, you can
use this to regulate the discharge flow.
Turn the drill off immediately after the container is empty.
Cleaning and care
Clean the pump qwith a dry or lightly moistened cloth only. To avoid damage
to the plastic surfaces, do not use solvents or abrasive cleaning agents.
The pump is maintenance free.
GB/CY
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 8

- 9 -
GB/CY
Disposal
Do not dispose of the appliance in your normal domestic waste.
Dispose of the appliance through an approved disposal centre or at your
community waste facility. Observe the currently applicable regulations. In
case of doubt, please contact your waste disposal centre.
Dispose of all packaging materials in an environmentally friendly
manner.
Declaration of conformity
We, Kompernaß Handelsgesellschaft GmbH, Burgstraße 21, D-44867 Bochum
declare under our sole responsibility that this product complies with all requi-
rements of the Machinery Directive: 2006/42/EC.
Type/Appliance Designation: Powerfix Profi Plus Drill Pump PBMP 30 A1
Serial number: IAN 86584
Year of manufacture: 11/2012
Bochum, dated 06.11.2012
Semi Uguzlu, Quality Manager
Importer
KOMPERNASS GMBH
BURGSTRASSE 21
44867 BOCHUM, GERMANY
www.kompernass.com
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 9

- 10 -
Warranty and Service
The warranty for this appliance is for 3 years from the date of purchase. The
appliance has been manufactured with care and meticulously examined be-
fore delivery. Please retain your receipt as proof of purchase. In the event of
a warranty claim, please make contact by telephone with our Service Depart-
ment. Only in this way can a post-free despatch for your goods be assured.
The warranty covers only claims for material and manufacturing defects, but
not for transport damage, for wearing parts or for damage to fragile compo-
nents, e.g. buttons or batteries. This product is for private use only and is not
intended for commercial use. The warranty is void in the case of abusive and
improper handling, use of force and internal tampering not carried out by our
authorized service branch. Your statutory rights are not restricted in any way
by this warranty.
The warranty period will not be extended by repairs made under warranty.
This applies also to replaced and repaired parts. Any damage and defects
extant on purchase must be reported immediately after unpacking the appli-
ance, at the latest, two days after the purchase date. Repairs made after the
expiration of the warranty period are subject to payment.
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: [email protected]
Service Ireland
Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak))
E-Mail: [email protected]
Service Cyprus
Tel.: 8009 4409
E-Mail: [email protected]
IAN 86584
CY
IAN 86584
IAN 86584
GB/CY
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 10

- 11 -
SADRŽAJ STRANA
Uvod 12
Sigurnosne upute 12
Upotreba u skladu sa namjenom 13
Tehnički podaci 13
Obim isporuke 14
Pregled uređaja 14
Potreban materijal za montažu 14
Montaža i priključak 15
Demontaža pogonskog nastavka 17
Uporaba 18
Čišćenje i održavanje 18
Zbrinjavanje 19
Izjava konformiteta 19
Uvoznik 19
Jamstvo i servis 20
HR
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 11

- 12 -
Uvod
Srdačno čestitamo!
Vašom kupnjom ste se odlučili za visokovrijedan proizvod. Prije prvog puštanja
u pogon se upoznajte sa proizvodom. U tu svrhu pažljivo pročitajte slijedeće
upute za rukovanje. Proizvod koristite isključivo na opisani način i u navedenim
područjima primjene. Ove upute dobro sačuvajte. Svu dokumentaciju u slučaju
predaje proizvoda trećim osobama priložite i takođe predajte.
Sigurnosne upute
Da biste izbjegli opasnost od nezgode i oštećenje
uređaja:
• Sa pumpom radite samo onda, kada je ona pomoću priloženog držača
osigurana od udaranja, uvrtanja ili zaglavljivanja.
• Prije svake uporabe prekontrolirajte besprijekorno stanje pumpe.
Pumpa ne smije biti korištena, ako postoje vidljiva oštećenja.
Pogonska osovina pumpe ne može biti okrenuta ručno.
To ne ukazuje na defekt pumpe.
• Koristite isključivo crijeva, koja su otporna na tlak od 3 bara ili više.
• Kontrolirajte čvrstoću položaja bajonet-spojeve na crijevima.
• Pobrinite se za to, da tekućine ne mogu dospjeti do bušilice, sa kojom
pogonite pumpu. Ukoliko se to dogodi, odmah izvucite mrežni utikač.
• Izbjegavajte usisavanje grubih nečistoća, jer u protivnom može doći do
oštećenja pumpe. Po potrebi koristite filtar na usisnom crijevu.
• Ovaj uređaj nije prikladan za djecu ili druge osobe, čije fizičke, senzorične
ili mentalne sposobnosti bez pomoći ili nadzora ne dopuštaju sigurnu
uporabu. Djeca trebaju biti pod nadzorom, kako bi bilo osigurano da se
ne mogu igrati uređajem.
HR
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 12

- 13 -
Upotreba u skladu sa namjenom
Ova pumpa je predviđena za ...
– uobičajene ručne bušilice sa desnim/lijevim smjerom okretanja sa Euro-za-
tezačem dimenzije 43 mm i zupčastim/brzoprihvatnim prstenom ili zate-
začem sa SDS-prihvatom, te sa brojem okretaja do 3400 o/min,
– za pumpanje hladnih tekućina ili tekućina temperature do 40 °C, kao
na primjer uporabne ili otpadne vode iz akvarija ili jezeraca.
Ova pumpa nniijjeepredviđena ...
– za pumpanje zapaljivih, eksplozivnih, otrovnih ili agresivnih tekućina,
niti za pumpanje namirnica.
– za industrijske ili gospodarske namjene.
Tehnički podaci
Transportna količina: maks. 2,4 m3/h
Priključak crijeva: 3/4” (19 mm)
Pogonski tlak:
Transportna visina: maks. 30 m
Usisna visina : maks. 3 m
Temperatura transportne
tekućine: maks. 40°C
Vrijeme suhog pogona: maks. 12 sekundi
Broj okretaja: maks. 3400 U/min
HR
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 13

- 14 -
Obim isporuke
- Pumpa
- Pogonski nastavak kratki
- Pogonski nastavak dugi
- Steznik za učvršćenje
- Držač
- Viličasti ključ
- Kutija za čuvanje pogonskih nastavaka i viličastih ključeva
- Ove upute za uporabu
Pregled uređaja
Slika A:
qPumpa
wPogonska osovina pumpe
ePogonski nastavak kratki (prikladno za zatezače sa zupčastim prstenom/
brzoprihvatne zatezače)
rPogonski nastavak dugi (prikladan za SDS-prihvat)
tStezni učvršćivač
yDržač
Slika B:
uBušilica (nije sadržana u obimu isporuke)
iUtor za smještanje ključa zatezača
oPriključak usisnog crijeva
aPriključak tlačnog crijeva
Potreban materijal za montažu
- Križni odvijač
- Običan odvijač
- Viličasti ključ (sadržan u obimu isporuke)
HR
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 14

- 15 -
Montaža i priključak
Montirajte držač ysa steznim učvršćenjem tna radnoj ploči, na način
prikazan na slici B.
Alternativno držač ymože biti sa vijcima montiran na radnoj ploči
(materijal za montažu nije sadržan u obimu isporuke).
U slučaju uporabe zatezača sa zupčastim prstenom i
kratkog pogonskog nastavka e...
Zavrtanjem pričvrstite kratki pogonski nastavak ena pogonskoj osovini w
pumpe q.
Postavite bušilicu usa steznikom u držač y.
Sada gurnite pumpu qtako na držač y, da pogonski nastavak e
zahvata steznik bušilice, a klinovi držača ystoje u prihvatnim otvorima
na pumpi q.
Okrenite steznik bušilice sa ključem kroz utor itako čvrsto, da se pumpa q
više ne može iz držača yosloboditi.
Zavrnite križni vijak na držaču y, tako da bušilica une može udarati.
Priključite usisno crijevo na priključnom mjestu oi tlačno crijevo na
priključnom mjestu a. Pritom obratite pažnju na protočni smjer
naveden na pumpi q.
U slučaju uporabe brzoprihvatnog zatezača i kratkog
pogonskog nastavka e...
Učvrstite kratki pogonski nastavak eu zatezaču.
Umetnite bušilicu u, sa predmontiranim pogonskim nastavkom eu
zatezaču, u držač y.
Zavrnite križni vijak na držaču yčvrsto, da ne može doći do udarnih
pokreta bušilice u.
HR
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 15

- 16 -
Gurnite pumpu qtako na držač y, da pogonski nastavak estrši u na-
voj pogonske osovine w, a klinovi držača ybudu umetnuti u prihvatnim
otvorima pumpe q.
Pokrenite bušilicu usa desnim okretnim smjerom i niskim brojem okretaja
i pođite pumpom qravno na pogonski nastavak e. Pogonski nastavak
eće time biti pričvršćeni na pumpi q.
Spojite priključno crijevo preko priključka o, a tlačno crijevo sa priključ-
kom a. Pritom obratite pažnju na protočni smjer naveden na
pumpi q.
Ukoliko koristite zatezač sa SDS-prihvatom i dugi
pogonski nastavak r...
Učvrstite dugi pogonski nastavak ru stezniku bušilice.
Umetnite bušilicu u, zajedno sa predmonitranim pogonskim nastavkom r
u stezniku u držač y.
Zavrnite križni vijak na držaču y, tako da bušilica une može udarati.
Sada gurnite pumpu qtako na držač y, da pogonski nastavak rzah-
vata navoj pogonske osovine w, a klinovi držača ystoje u prihvatnim ot-
vorima pumpe q.
Pustite da bušilica usa okretajima u desnu stranu krene i stavite pumpu
qravno na pogonski nastavak r. Pogonski nastavak rće na taj način
biti pričvršćen na pumpi q.
Priključite usisno crijevo na priključnom mjestu oi tlačno crijevo na
priključnom mjestu a. Pritom obratite pažnju na protočni smjer
naveden na pumpi q.
HR
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 16

- 17 -
Demontaža pogonskog nastavka
Demontaža kratkog pogonskog nastavka e
Zatezač sa zupčastim prstenom
Otvorite steznik sa ključem preko utora ii izvadite pumpu qiz držača y.
Odvrnite kratki pogonski nastavak euz pomoć običnog odvijača i viličastog
ključa sa pumpe q.
Brzoprihvatni zatezač
Pomoču viličastog ključa kroz utor ikontrirajte pogonsku osovinu w
pumpe q.
Pustite bušilicu u, da se okretanjem u lijevu stranu sa niskim brojem okre-
taja pokrene. Pogonski nastavak eće time biti odvojen od pumpe q.
Izvadite pumpu qiz držača y.
Izvadite pogonski nastavak eiz zatezača.
Demontaža dugog pogonskog nastavka r
Zatezač sa SDS-prihvatom
Pomoću viličastog ključa kroz utor ikontrirajte pogonsku osovinu w
pumpe q.
Pustite bušilicu uda se okretanjem u lijevu stranu sa niskim brojem okretaja
pokrene. Pogonski nastavak rće tako biti odvojen od pumpe q.
Izvadite pumpu qiz držača y.
Izvadite pogonski nastavak riz steznika.
HR
IB_86584_PBMP30A1_LB7.qxd 05.12.2012 16:43 Uhr Seite 17
Other manuals for PBMP 30 A1
1
Table of contents
Languages:
Other Powerfix Profi Water Pump manuals
Popular Water Pump manuals by other brands

Becker

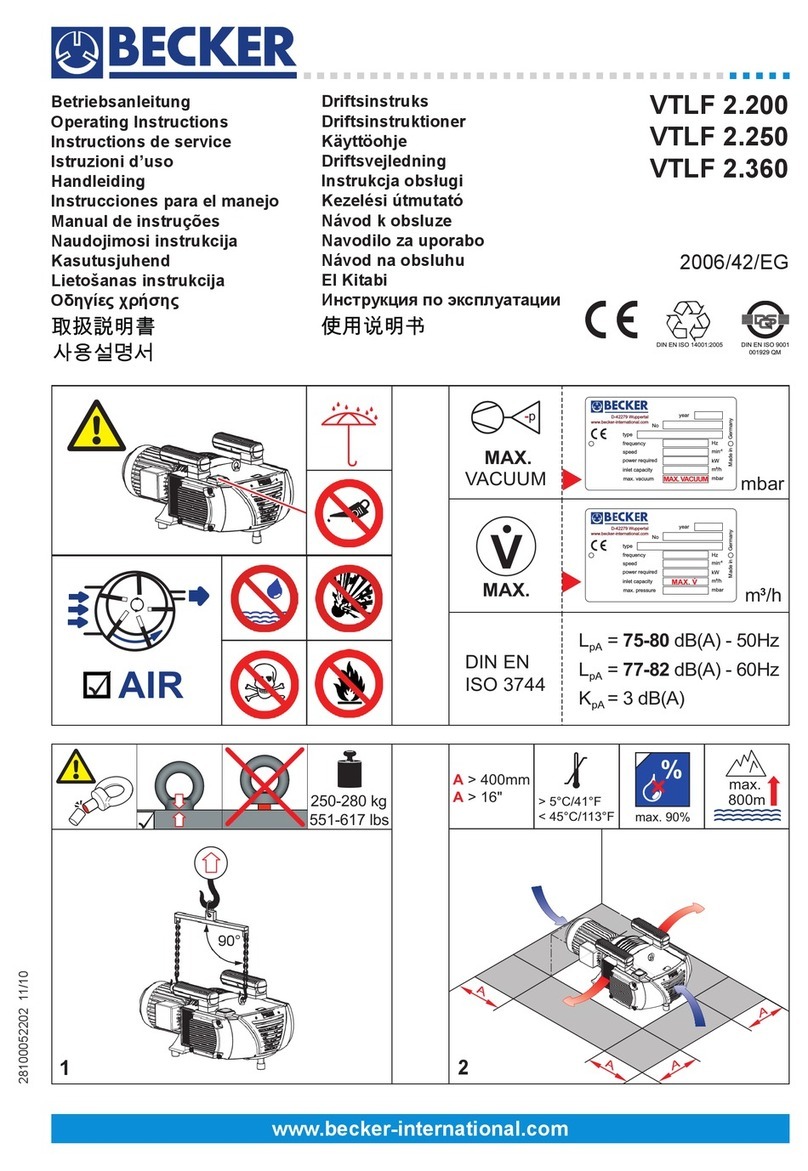

Becker VTLF 2.250 operating instructions

Pentair
Pentair Hydromatic SP40 Series Installation and operation manual

Urban Utilities

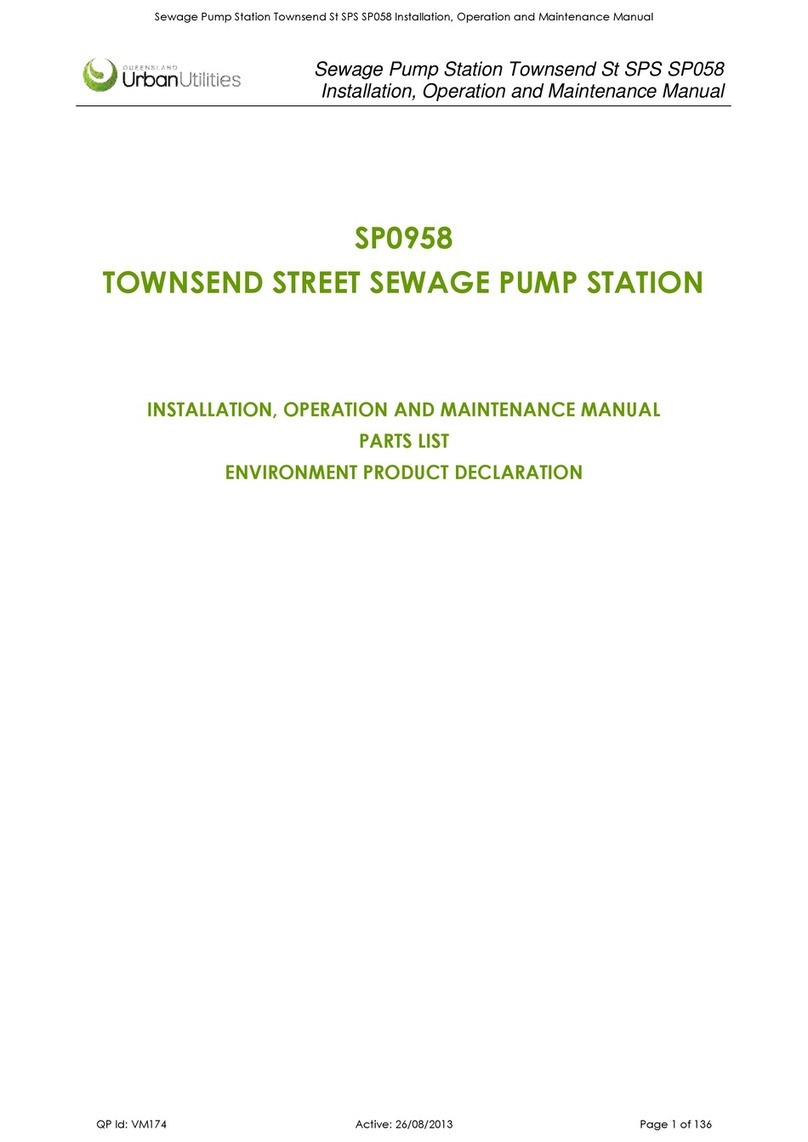

Urban Utilities SP0958 Installation, operation and maintenance manual

ITT
ITT Goulds Pumps 3610 Installation, operation and maintenance manual

Kennedy
Kennedy PHG240 instruction manual

laguna
laguna MaxDrive Series user manual
