PPS Viper 150-E User manual

OWNER’S MANUAL
Viper 150-E Dirt Bike
No one under the age of 16 should operate this Dirt bike without adult supervision. Parents
should consider child’s age, size, maturity and ability before allowing to ride.
Max. Weight Limit: 250lbs. (113kg)
Always wear a helmet; It could save your Life!
This manual should be considered as a permanent part of the vehicle and should remain with
the vehicle when resold or otherwise transferred to a new user or operator. The manual
contains important safety information and instructions which should be read carefully before
operating the vehicle.
Please obtain, review, and follow the municipal, provincial and government acts and
regulations pertaining to owning and operating an off-road vehicle.

Congratulations on your purchase of the Ricky Power Sports LLC. Viper 150-E Dirt
Bike. Your bike is warranted to be free of manufacturing defects in the material and
workmanship for a period of 90 days from the date of purchase. During the warranty
period Ricky Power Sports LLC. will at its option, repair, provide replacement parts or
replace your Ricky Power Sports LLC. Viper Dirt bike at no charge. This warranty
does not cover normal wear items or damage caused by neglect or misuse of the
product.
Engine Warranty –90 days
Frame Warranty –90 days
Warranty is void if:
Frame is bent or broken due to abuse
Wheels are bent or broken
Fender bent or broken due to abuse
Any sign of impact, accident, jumping, spin-outs or roll over.
Ricky Power Sports LLC. is not liable for any damage claim or liability claim person
or otherwise resulting from the operation of this product in any way.
Should you experience a problem with your vehicle, please call Ricky Power Sports
LLC. .customer service line toll free at 1- 844-250-2199. You will be instructed how
to proceed.
A COPY OF THE SALES RECEIPT IS REQUIRED.
WARNING
This manual should be considered as a permanent part of the
vehicle and should remain with the vehicle when resold or
otherwise transferred to a new user of operator. The manual
contains important safety information and instructions which
should be read carefully before operating the vehicle.

1
TABLE OF CONTENTS
NOTICE TO USER’S............................................................................................. 2
SAFE OPERATION............................................................................................... 3
PRE-RIDE CHECKLIST ......................................................................................... 3
SAFTY GEAR ...................................................................................................... 4
LOCATION OF WARNING LABELS......................................................................... 5
MAIN DATA........................................................................................................ 5
PARTS & SUBASSEMBLES.................................................................................... 7
OPERATION ....................................................................................................... 8
FUEL VALVE ....................................................................................................... 8
ENGINE STARTING ............................................................................................. 9
BREAKING IN THE ENGINE................................................................................ 10
SWITCHES ON RIGHT HANDLEBAR.................................................................... 11
GEAR SHIFTING ............................................................................................... 11
CHECK-UPS, ADJUSTMENT AND MAINTENANCE.................................................. 12
CHANGING THE OIL, CLEANING OIL FILTER SCREEN .......................................... 13
CHECK-UP OF SPARK PLUG ............................................................................... 13
VALVE INSPECTION.......................................................................................... 14
CHECKING & CLEANING THE AIR FILTER ........................................................... 14
ADJUSTING THE THROTTLE CABLE.................................................................... 15
ADJUSTING THE CARBURETOR.......................................................................... 15
INSPECTION OF FRONT HYDRAULIC DISK BRAKE............................................... 16
CLUTCH ADJUSTMENT ...................................................................................... 17
ADJUSTMENT OF CHAIN ................................................................................... 18
GREASING PROCEDURES TO THE DRIVING CHAIN ............................................. 18
TROUBLESHOOTING......................................................................................... 19
FUEL SUPPLYING CHECK................................................................................... 19
IGNITION SYSTEM CHECK................................................................................. 20
VEHICLE WASHING........................................................................................... 21
INSTRUCTIONS FOR STORAGE.......................................................................... 21
RESUMPTION OF SERVICE AFTER STORAGE....................................................... 22
TABLE OF TORQUE OF FASTENERS.................................................................... 22
RESUMPTION OF SERVICE ................................................................................ 23
INSPECTION AND MAINTENANCE ...................................................................... 23
BATTERY ......................................................................................................... 23
MAINTENANCE SCHEDULE ................................................................................ 26
SERIAL NUMBER LOCATION .............................................................................. 27
WIRE DIAGRAM................................................................................................ 28
RICKY POWER SPORTS, LLC. –EMISSION CONTROL SYSTEM WARRANTY............ 28

2
NOTICE TO USER’S
Please read this manual and follow all instructions carefully. To emphasize special information, the
symbol and the words WARNING or CAUTION have some special meanings. Pay great
attention to the messages.
WARNING
Indicates a potential hazard that could result in death or injury.
CAUTION
Indicates a potential hazard that could result in vehicle damage.
NOTE: Indicating special information which is to make maintenance easier or
instructions clearer.
WARNING and CAUTION are arranged like this:
WARNING -or-CAUTION
The first part will identify a POTENTIAL HAZARD.
The second part will describe WHAT COULD HAPPEN if you ignore the WARNING or CAUTION.
The third part will describe HOW TO AVOID THE HAZARD.
This user’s manual contains important safety and maintenance information.
Read it carefully before riding. Failing to follow the warnings contained in this manual could result
in INJURY or DEATH.
It is important that this manual remain with the vehicle when you transfer it to another user or
owner.
All information, illustrations, photographs and specifications contained in this manual are based on
the latest product information available at the time of publication. Due to improvements or other
changes, there will be some discrepancies in this manual. We reserve the right to make product
changes at any time, without notice and without incurring any obligation to make the same or
similar changes to the vehicle previously built or sold.

3
SAFE OPERATION
A pre-operation check must be conducted before starting the engine.
This check will insure safety, prevent mishaps, and prevent damage to components.
It is strongly suggested that all operators take a certified motorcycle rider’s course prior to
operating the vehicle.
Full attention is required during driving; paying close attention to the following points to avoid any
injury to you by other motorized vehicles:
·Do not drive too close to other vehicles.
·Never carry a passenger. This dirt bike is for one operator only.
·Never operate this dirt bike at night. Night is defined as the period of time 30 minutes before
sunset to 30 minutes after sunrise.
·Driving at high speeds is the cause of many accidents; do not drive at a speed that the actual
situation does not permit.
·Always avoid operating this dirt bike on paved surfaces, including; sidewalks, paths, parking
lots, driveways, streets, roads, and highways.
Never operated this or any Off-Road Vehicle on a public street, road or highway where motor
vehicles are in operation.
PRE-RIDE CHECKLIST
1. Engine oil level
a) Check for leaks
b) Tighten filler cap securely.
c) Add oil if required.
2. Fuel level
a) Add fuel as necessary.
b) Do not overfill (no fuel in the filler neck).
c) Do not mix oil with gas.
d) Replace cap tightly.
e) Do not refuel a hot engine. Allow engine to cool before adding fuel.
3. Warning decals
a) Make sure all warning decals are legible and securely attached.
b) Replace as necessary.
4. Tires
a) Ensure that both tires are in safe riding condition.
b) Properly inflate both tires. We recommend that you inflate the front tire to 15 psi and the rear
tire to 20 psi. Do not exceed 32 psi.
5. Drive chain
a) Check condition and tension.
b) Lubricate and adjust tension as necessary.
6. Throttle
a) Check for smooth operation. Make sure the throttle “snaps” back to idle.

4
b) Check for frayed cable or damaged cable housing. Replace damaged cable.
c) Check for mud, debris and ice in the throttle cable/mechanism.
Clean out any contamination.
SAFTY GEAR
A DOT approved motorcycle helmet is the most important part of you safety gear. A DOT
approved motorcycle helmet can help prevent a serious head injury. Choose a helmet that fits
snugly. Motorcycle dealers can help in selecting a good quality helmet which fits properly.
WARNING
Operating this Dirt bike without WARNING an approved DOAT motorcycle helmet, eye protection,
and protective clothing could be hazardous.
Operating without an approved DOT motorcycle helmet or eye protection increases your chances
of severe head injury or death in an accident. Operating without protective clothing also increases
your chances of severe injury in as accident.
Always wear an approved DOT motorcycle helmet which fits properly. Always wear eye protection
(goggles or face shield). You should also wear gloves, boots, long sleeve shirt or jacket, and long
pants.
You should wear eye protection when you ride. If a rock or a branch hits your eyes, you could be
severely injured. Wear goggles or a face shield.
Wear proper clothing when you ride. The proper clothes can protect you from injury. Wear a good
pair of gloves, strong boots that are over the ankle, long pants, and a long sleeve shirt.

5

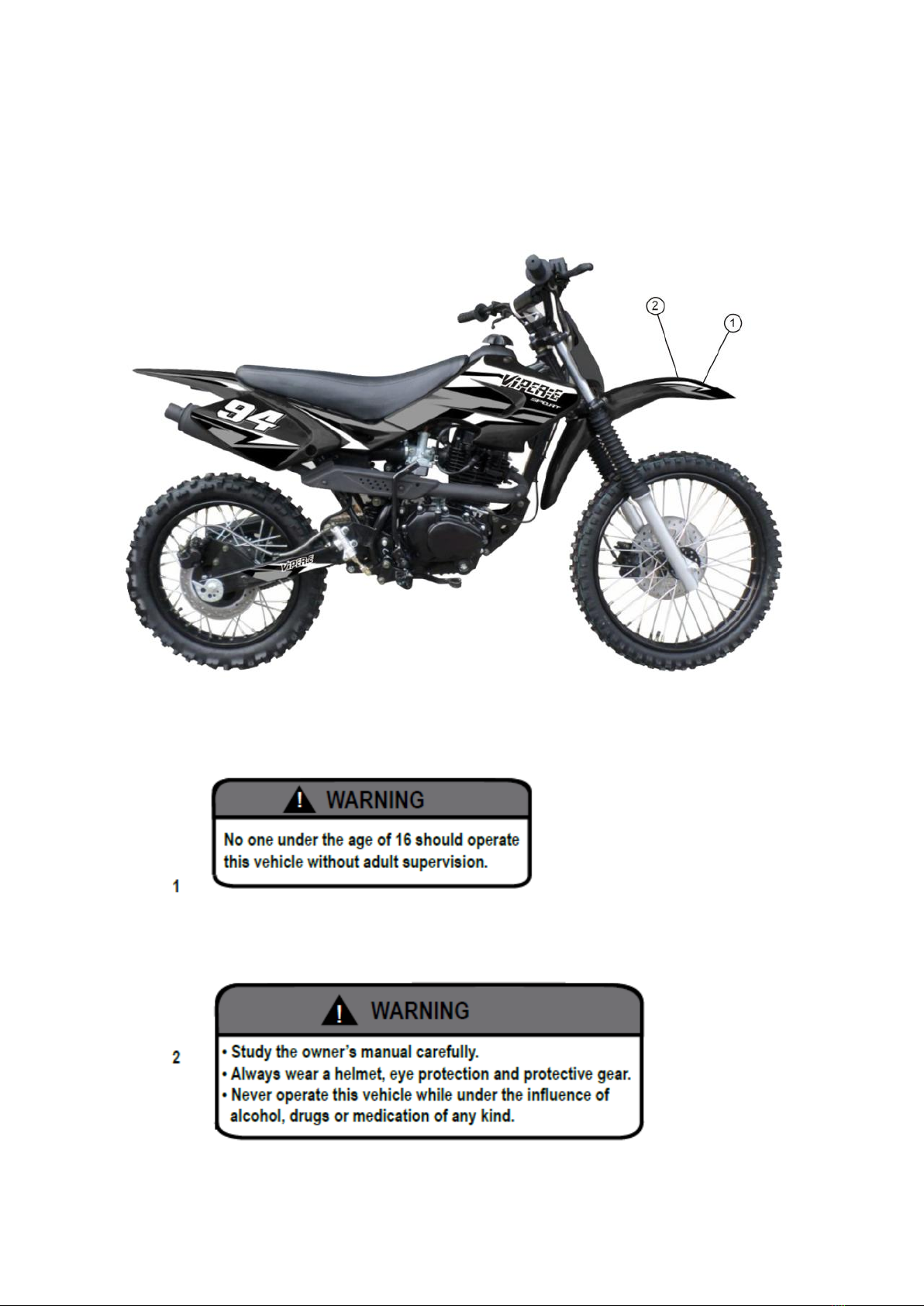

LOCATION OF WARNING LABELS
Read and follow all of the warnings labels on your Dirt bike. Make sure you understand all the
labels. Keep the labels on the Dirt bike. Do not remove them for any reason. If a label come off or
become difficult to read, you should get a replacement by contacting Ricky Power Sports LLC.

6
MAIN DATA
DESCRIPTION
DATA
DESCRIPTION
DATA
Overall length
1540mm
Cylinder bore x stroke
62mm x 49.5mm
Overall width
640mm
Compression ratio
9.0 : 1
Overall height
880mm
Related Power
8.0Kw/8500rpm
Wheelbase
1270mm
Related torque
10.0N.m/6500rpm
Curb mass
92Kg
Idle speed
1500±150 r/min
Payload
113Kg
Displacement of cylinder
149cc
Ground Clearance
230mm
Spark plug
D8RTC (Torch)
Gap:0.6~0.8mm
Max speed
80Km/h
Front wheel
70/100-19
Transmission
5 gear mesh
Rear wheel
90/100-16
Capacity of fuel tank
6.0L
Ignition means
C.D.I.
Oil capacity
1.0L
Brake
Front: Disc
Rear: Disc
Lubrication method
Pressure, splash
Clutch
Manual / wet

7

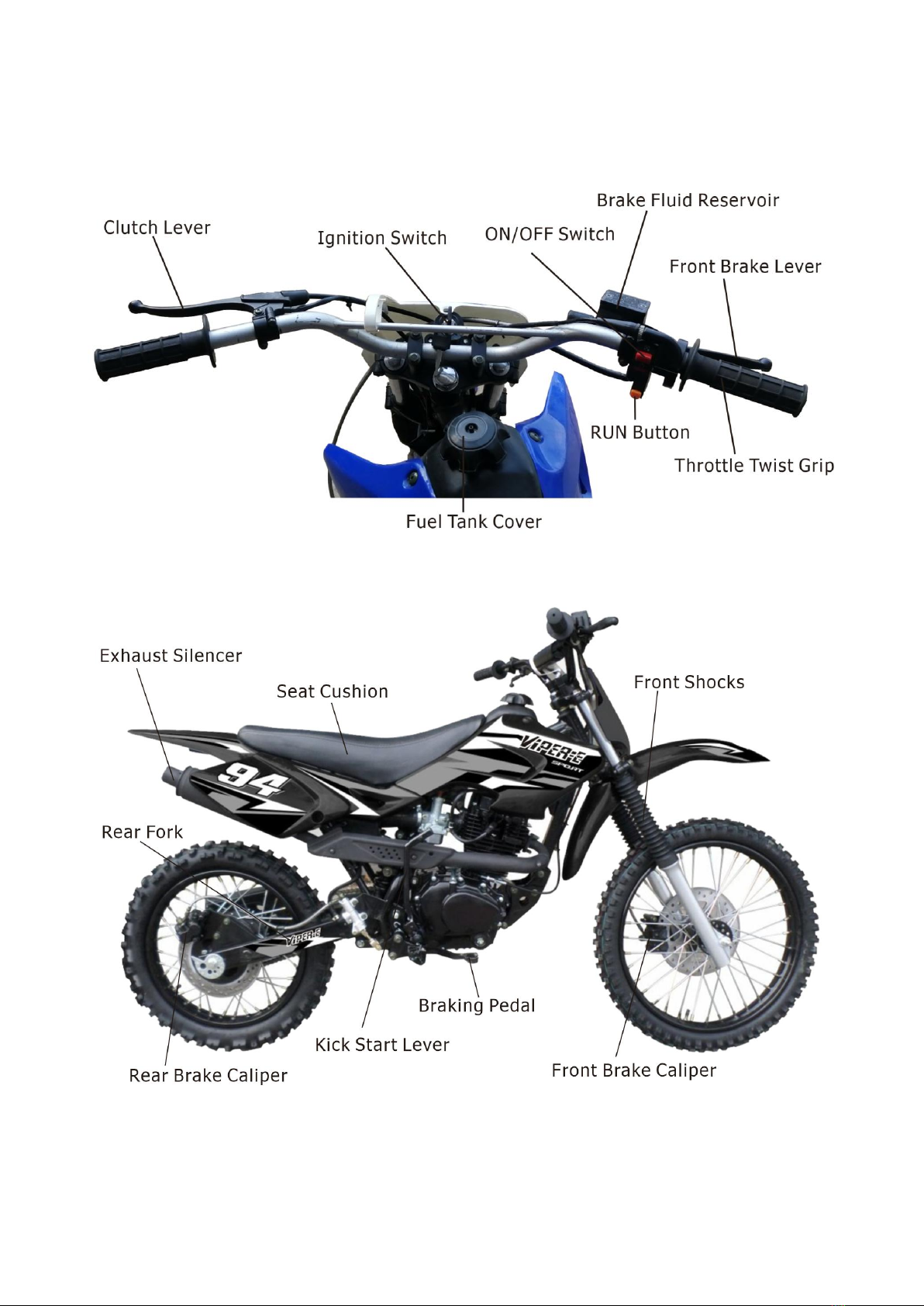

PARTS & SUBASSEMBLES
Viper

8
OPERATION
FUEL VALVE
Fuel filling
The capacity of the fuel tank is 6.0L. Unscrew the gas cap by turning it counter clockwise and
carefully fill the tank with unleaded gasoline through the opening. DO NOT MIX GAS AND OIL
TOGETHER, THIS IS A 4-STROKE ENGINE. Replace the gas cap by carefully aligning the threads
on the cap and the tank and turning the cap clock wise. Wipe any spilled fuel from the dirt bike
using a cloth and dispose of the cloth properly. DO NOT SMOKE OR REFUEL THE VEHICLE NEAR
OPEN FLAMES OR NEAR HEATING UNITS.
ONLY REFUEL THE VEHICLE IN OPEN AREAS TO REDUCE THE LIKELIHOOD OF THE BUILD UP OF
GASOLINE FUMES.
Operation of the fuel valve (the valve under the fuel tank)
ON: With the handle of the fuel valve at “ON” position, the fuel supply will flow to the carburetor.
OFF: With the handle of the fuel valve at “OFF” position, the fuel supply will not flow to the
carburetor.
RES: If fuel level in the fuel tank becomes too low for engine to stay running while fuel valve is at
“ON” position, turn fuel valve to “RESERVE”. Turning fuel valve to “RESERVE” will allow engine to
begin using reserve fuel supply.
You will need to re-fuel as soon as possible. There is approximately 1L of fuel left in tank when
fuel valve is placed at “RESERVE”. Once re-fueled, turn fuel valve back to the “ON “ Position

9
ENGINE STARTING
CAUTION
Verify oil level prior to starting.
Starting the engine with low or no oil will damage the engine.
WARNING
Never start the engine in a closed place as the exhausted gas from the vehicle contains toxic
carbon monoxide.
Starting procedures
Insert key hexagon into the groove turning anti-clockwise to
“OPEN”。
Insert key into ignition, turn to “ON” position.
Make sure the transmission is in the “NEUTRAL” position.
Turn the engine stop switch to “RUN”.
Turn fuel valve to “ON”.
If you are restarting a warm engine, follow procedure for High
Air Temperature.
Normal Air Temperature : 10º-35ºC (50º-95ºF)
DO NOT OPEN CHOKE
1) Slightly open throttle
2) Start engine
Low Air Temperature : 10ºC (50ºF) or below
1) Follow Normal Air Temperature procedures 1-2.
2) After RPM’s pick up, open the choke to keep fast idle.
3) Keep warming the engine until it responds to the throttle when choke is closed.
NOTICE:
Extensive use of the choke can cause damage to the piston and cylinder wall.
Fast idling for more than 5 minutes at Normal Air Temperature can cause exhaust pipe
discoloration.
To start a cold engine:
1. Pull up the choke lever of the carburetor (to close the choke).
2. Start the engine with kick lever.
3. Slightly turn the throttle twist grip to increase the speed of the engine so as to warm up the
engine.
4. Turn the carburetor choke bar downward to fully open the choke when the engine is sufficiently
warmed up.

10
CAUTION
Unnecessarily increasing RPM’s to a high level while the dirt bike is in neutral is harmful to the
engine.
Flooded Engine
The engine may be flooded with extra gasoline, if it does not start after several attempts. Try the
following to clear a flooded engine:
1) Turn the engine stop switch to the “OFF” position.
2) Close the choke lever.
3) Open the throttle completely.
4) Push and hold in the start button for 5 seconds.
5) Wait 10 seconds and turn the engine stop switch to the “RUN” position.
Next, follow the High Air Temperature starting procedures.
Procedures for stopping the engine:
1. Release the throttle twist grip to slow down the engine.
2. Shift to the neutral position.
3. Set the ignition switch key to position.
4. Set the fuel valve handle to “OFF” position.
CARBURETOR DAMPER SWITCH
When starting the whole vehicle, close the
carburetor damper switch (see Figure 1); After
starting, continue to refuel the throttle for 1 to 2
minutes or after the engine temperature rises by
45 °, the idle speed is stable, and then open the
carburetor damper switch (see Figure 2).
BREAKING IN THE ENGINE
The first 600 Miles of operation should be considered the “Break-in” period and special attention
shall be paid to the following points:
1. Take special care not to increase the RPM’s of the engine while climbing steep slopes. Never
drive your dirt bike continuously for more than 50km (30 miles) without increasing and
decreasing the throttle.
2. The engine shall be warmed up for 3-5 minutes prior to operation so all components are
lubricated sufficiently.
3. The driving speed shall not be over 40 kmph (25 MPH) maximum during the first 500 km (300
miles) of operation and not over 65 kmph (40 MPH) maximum during the remaining 500 km
(300 miles) of the “Break-In” period.

11
SWITCHES ON RIGHT HANDLEBAR
Ignition switch
The ignition switch is Located on the right handlebar.
When the switch is turned to (off) position, the engine will not start. If the engine is
running and the Off button is pushed the engine will turn off.
When the switch is turned to (on) position, the engine can start by using
the kick start lever.
GEAR SHIFTING
Reduce throttle before shifting. Never increase the
throttle while shifting gears.
Pull in the clutch lever, located on the left hand
grip.
Depress the Shift lever to place the gear in 1st, lift up the lever to shift to 2nd, 3rd, 4th and 5th.
Do not place your foot on the gear-shifting pedal while operating the dirt bike to avoid clutch
damage caused by accidental gear shifting.
Shifting sequence
(1) 1st gear
(N) Neutral
(2) 2nd gear
(3) 3rd gear
(4) 4th gear
(5) 5th gear

12
Points for Attention during Drive
1. To warm the engine let engine idle. Do not rev the engine to prevent damage to the engine
components.
2. The clutch will wear out quickly if the dirt bike is operated with the clutch in a semi-engaged
position.
3. Shift to the low speed gears when you feel that there is insufficient power to climb hills or
continue forward.
4. Do not use the front brake only or coast using the neutral gear especially when descending or
driving at a high speed.
5. Decrease the throttle when braking.
CHECK-UPS, ADJUSTMENT AND MAINTENANCE
Checking the Oil
Check the engine oil each time prior to operating the dirt bike.
The oil level should be between the upper and lower lines of the oil sight gauge located on the
right cover of the crankcase. The level can also be checked on the dip stick.
1. Set the motorcycle on level ground, look at the sight gauge for current oil level. Remove the oil
gage plug, wipe the oil gage rod clean and then insert the gage plug into the crankcase again
to check the oil level. There is no need to completely install the oil gage plug in the crankcase
fill hole.
2. Add lubricating oil up to the upper line when needed, but do not overfill.
3. Finally screw on the oil gage plug tightly.
Lubricating Oil Recommended
The lubricating oil is an important factor
affecting the performance and service life of
the engine. Please refer to the chart for the
correct grade of engine oil based on the
environmental conditions in your area. Do not
use any other type of oil other than what is
recommended in the chart. DO NOT MIX OIL
WITH THE GASOLINE.
Lubricating oils of different viscosity shall be
employed in different regions and at different
temperatures.

13

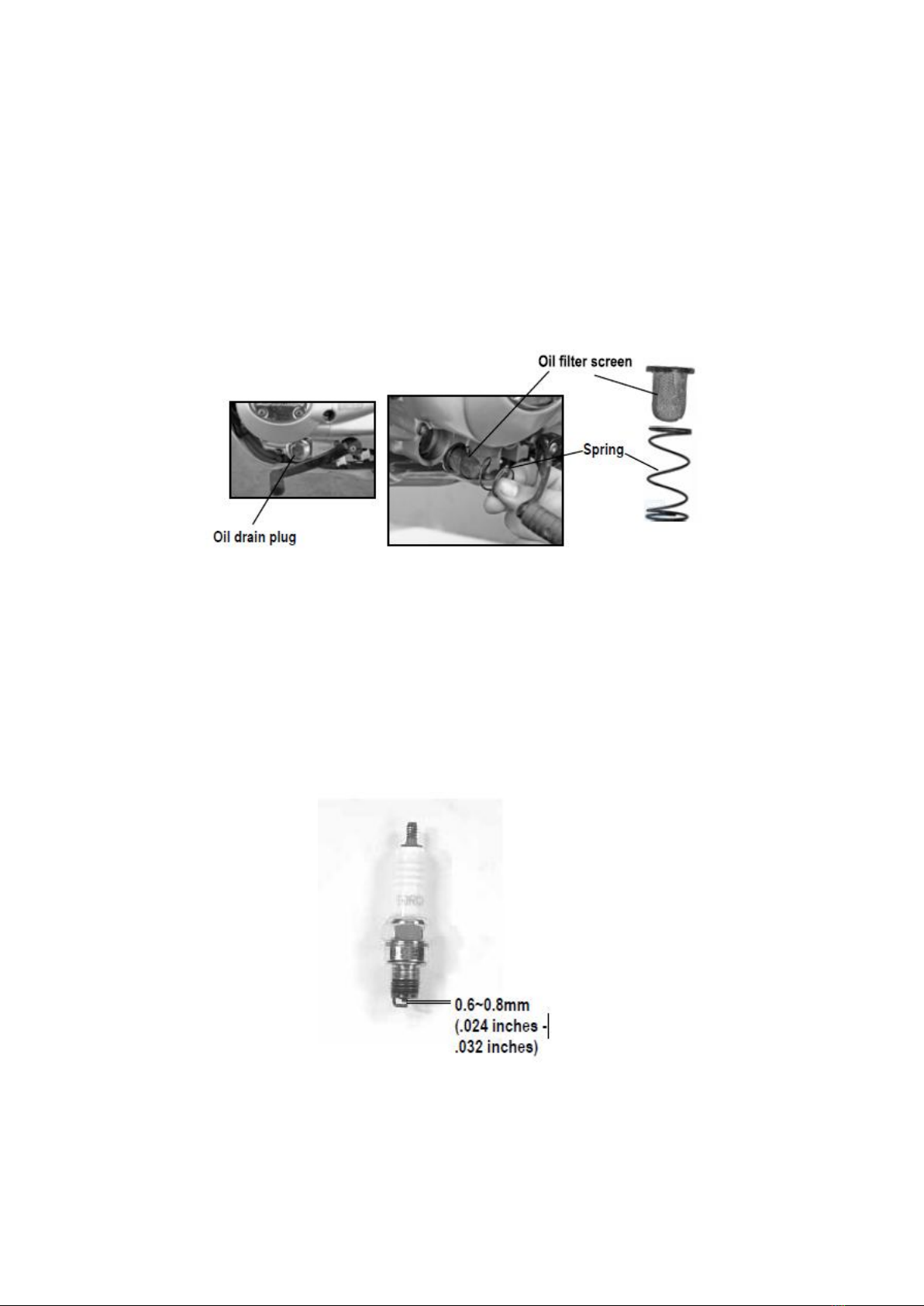

CHANGING THE OIL, CLEANING OIL FILTER SCREEN
1. of the engine and let the oil drain into an approved collection container.
DO NOT PERFORM THIS PROCEDURE WHILE THE ENGINE IS HOT.
SERIOUS BURNS COULD RESULT FROM CONTACT WITH HOT OIL.
2. Dispose of the used oil properly. For proper disposal procedures, contact your local oil recycling
center.
3. Clean oil screen and spring with solvent.
4. Clean and replace the oil drain plug making sure it is secure.
oil in the engine by using the oil gauge plug and/or sight gauge.
CHECK-UP OF SPARK PLUG
1. Remove the cap of spark plug and screw off the spark plug using the plug wrench.
2. Clean the spark plug all around or replace it if it is corroded or there is too much deposit on it.
3. Regulate the gap of the spark plug to 0.6-0.8mm. (.024 inches - .032 inches)
The spark plug of the designated type should be used. The applicable type of spark plug: D8RTC
(Torch) or equivalent

14
VALVE INSPECTION
Refer to maintenance schedule in this owner’s manual for valve adjustment inspection intervals .
Valve clearance should be:
Intake: 0.02-0.03mm
Exhaust: 0.03-0.05mm
The engine will make excess noise if the gap is too large in air valve. If gap is too small valve
operation will be hindered which could result in valve malfunction and failure. Therefore, air valve
gap must be checked periodically.
If you have the proper tools and are mechanically proficient, instructions on adjusting the valve
clearance are given in the service manual. If assistance is needed please contact Ricky Power
Sports LLC. to find your local service center.
CHECKING & CLEANING THE AIR FILTER
Air filter is located under left side plastic cowling. Cowling will
need to be removed.
Take the air filter out and check to see if it is dirty or torn.
Remove foam element and wash with water and allow it to dry
per instructions below.
Apply a few drops of machine oil. Squeeze it with a dry cloth to
remove excess oil.
Recommended oil: SAE 15W-40
CAUTION
The air filter element must be intact or the engine will suck in dust and dirt, resulting in a shorter
service life of the engine.
Water should be prevented from entering into the filter when washing the vehicle.
The filter element shall be cleaned gently without twisting to prevent it from cracking. Never
wash it with gasoline or any acid, alkaline or organic volatile oil to avoid its aging, which will
result in reducing the effect of the air filter oil to catch particles before they enter the engine.
Replace the element with a new one if it is broken or cracked.

15
ADJUSTING THE THROTTLE CABLE
Make sure the throttle works normally.
Check if the throttle twist grip has the required free operating movement.
The required free operating movement: 2-6mm (0.078 inches - 0.24 inches) If the grip cannot be
moved freely, turn the adjusting nut located on top of the throttle twist grip to ensure proper
operating movement.
After adjustment, start the engine and check for the operating movement again. Repeat the
adjustment if necessary until the desired operating movement is obtained.
ADJUSTING THE CARBURETOR
Adjusting procedures of idling speed:
1. Support the vehicle by a stand.
2. Adjust the idling speed by the special
designed tool to 1500 ±150r/min.
CAUTION
Do not try to correct a malfunctioning carburetor by adjusting the idling speed. If the carburetor
is not functioning properly, it should be repaired by a service center.
Adjust idling speed only when the engine is warmed up or 10 minutes after operation.

16
INSPECTION OF FRONT HYDRAULIC DISK BRAKE
1. Inspect the front disk brake caliper for leakage. If brake fluid leaks, the safety of riding could
be affected.
2. Inspect the brake hose for cracks, and the joint for leakage.
3. Check the brake fluid level in the brake fluid reservoir, if level is at or below the LOWER mark,
inspect brake pads for wear and hydraulic system for leaks.
4. To add brake fluid, unscrew the 2 screws on top of the bake fluid container. Add DOT3 or
DOT4 brake fluid. Do not mix brake fluid types.
FRONT HYDRAULIC DISK BRAKE INSPECTION REAR HYDRAULIC DISK BRAKE INSPECTION
1. Inspect the rear disk brake caliper for leakage. If brake fluid leaks, the safety of riding could be
affected.
2. Inspect the brake hose for cracks, and the joint for leakage.
3. Check the brake fluid level in the brake fluid reservoir, if level is at or below the LOWER mark,
inspect brake pads for wear and hydraulic system for leaks.
4. To add brake fluid, unscrew cap on top of brake fluid container. Add DOT3 or DOT4 brake fluid.
Do not mix brake fluid types.

17
CLUTCH ADJUSTMENT
To adjust the clutch lever play:
1. Remove the adjuster cover (slide back on cable).
2. Loosen adjuster nut and move adjuster in or out
to obtain the correct play.
3. Tighten adjuster nut
4. Recheck the clutch lever free distance.
Readjust it if it is not within the correct limits.
To adjust the clutch:
1. Loosen adjuster nut and move adjuster in or out
to obtain the correct tension.
2. Tighten adjuster nut
3. Recheck the clutch lever free distance.
Readjust it if it is not within the correct limits.

18
ADJUSTMENT OF CHAIN
1. When chain adjustment is needed, loosen rear axle nut .
2. Turn the chain adjusting brackets on the left and right sides to adjust the tension of the chain
and to align the marking of the chain adjuster with the engraved lines in the similar position on
both sides.
3. Tighten rear axle nut by a torque of 50-60Nm (37-44 ft.lb.).
4. Repetitively check the tension of the chain.
GREASING PROCEDURES TO THE DRIVING CHAIN
1. Shut off the engine
2. Add light amounts of machine oil or chain grease to the driving chain.
(Too much machine oil or chain grease may cause splattering to occur.)
Attention:
The chain should be replaced when the adjusting limit has reached it’s maximum.
