Precision Consumer Products Belanova PCPG-CF-4130AH-BN User manual
Item #70100401BN
70100301BL
PCPG-CF-4130AH-MBK
Model #PCPG-CF-4130AH-BN
1-866-237-9983
Questions, problems, missing parts? Before returning to the store,
call Precision Consumer Products Group
THANK YOU
We appreciate the trust and condence you have placed in Precision Consumer Products Group through the purchase of this ceiling fan. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Precision Consumer Products Group !
USE AND CARE GUIDE
Belanova 52" (HUGGER MODEL)
CEILING FAN
Table of Contents ..................................
Safety Information .................................
Warranty .........................................
Pre-installation ....................................
Installation .......................................
Assembly ........................................
Operation ........................................
Care and Cleaning .................................
Troubleshooting ...................................
2
Table of Contents
2
2
3
3
6
7
14
15
15
READ AND SAVE THESE INSTRUCTIONS
To reduce the risk of electric shock, ensure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70” and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lb (15.9 kg)
or less. Use only UL Listed outlet boxes marked “FOR FAN
SUPPORT.”
The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box and ungrounded conductor on the other side of the
outlet box.
All set screws must be checked and retightened where
necessary before installation.
1.
2.
3.
4.
5.
6.
7.
8.
9.
WARNING: To reduce the risk of electrical shock or re, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not bend
the blade arms (also referred to as anges), when installing
the brackets, balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to an outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
Safety Information
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: PCPG-CF-4130AH-BN, PCPG-CF-4130AH-MBK
Company Name: Precision Consumer Products Group
Company Address:
11024 Balboa Boulevard •Suite 1710 Granada
Hills, CA 91344
Pre-Installation
SPECIFICATIONS
TOOLS REQUIRED
Warranty
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
52 in. Low
High 120
Fan size Watts RPM CFMSpeed Volts Amps N.W.
0.19
0.45
9.40
54.10
66
166
1336
3698
6.6 kg
(14.52 lb)
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of 15 years after the date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace
with a comparable or superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as
proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident,
misuse, improper installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this
warranty does not cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type
give their longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be
considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty.
We hereby disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the
extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Please contact 1-866-237-9983 for further assistance.
3
4

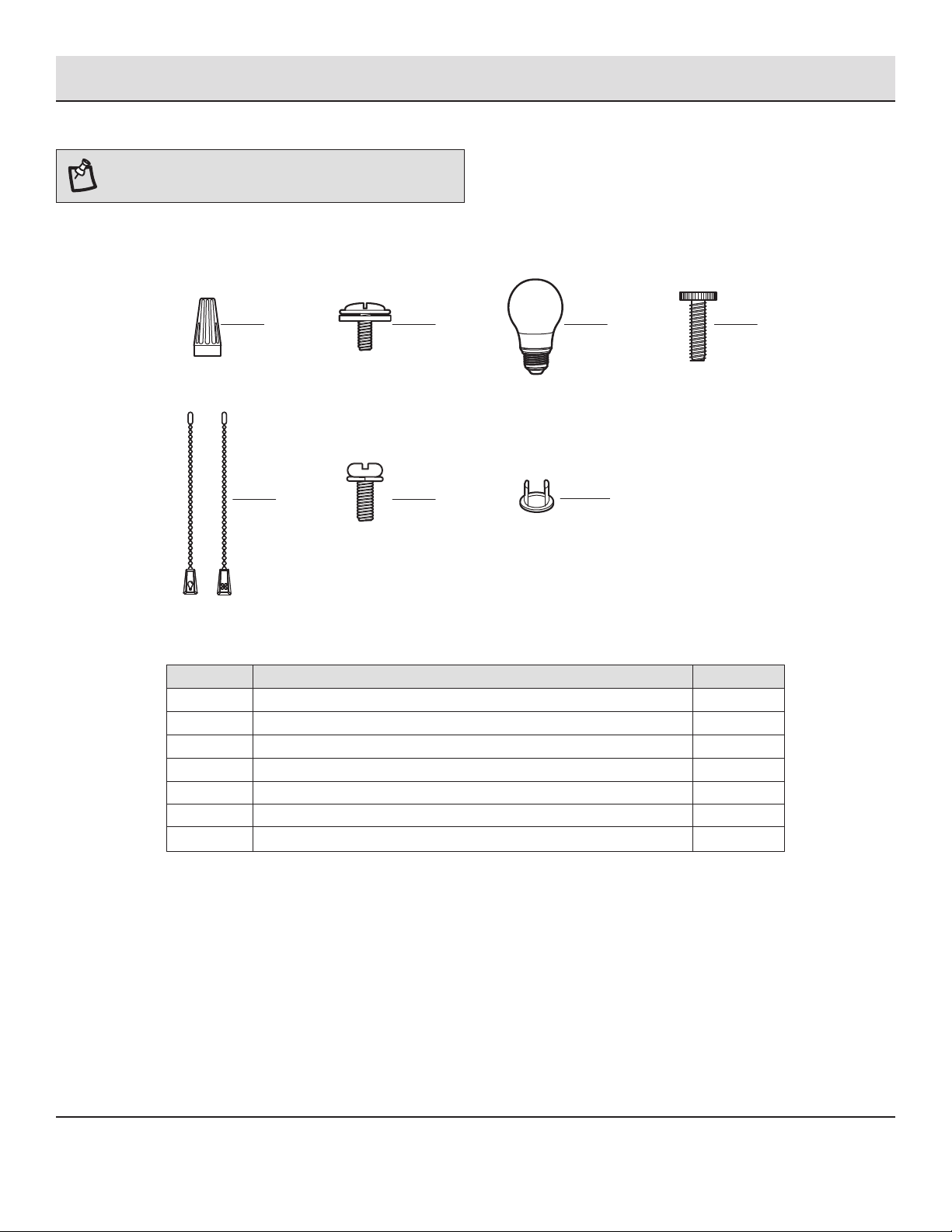

NOTE: Hardware not shown to actual size.
AA
BB
CC
DD
EE
FF
GG
Plastic wire nut
Blade attachment screw and ber washer
9 Watt LED bulb
Thumbscrews (spare)
Pull chain and fob
Mounting bar screw with lock washer
Plastic plug
Part Description
3
16
2
1
2
5
1
Quantity
HARDWARE INCLUDED
Pre-Installation (continued)
AA
EE FF
DDBB CC
GG
Part
E
F
G
Description
Blade arm
Light kit
Glass shade
Quantity
5
1
1
Part
A
B
C
D
Quantity
1
1
1
5
Description
Mounting plate
Fan motor assembly
Motor housing
Blade
A
B
C
F
G
PACKAGE CONTENTS
Pre-Installation (continued)
D
E
Please contact 1-866-237-9983 for further assistance.
6
If your ceiling fan does not have an existing UL Listed mounting
box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box (not included) directly to the building
structure. Use appropriate fasteners and materials (not
included). The outlet box and its bracing must be able to fully
support the weight of the moving fan (at least 35 lb). Do not
use a plastic outlet box.

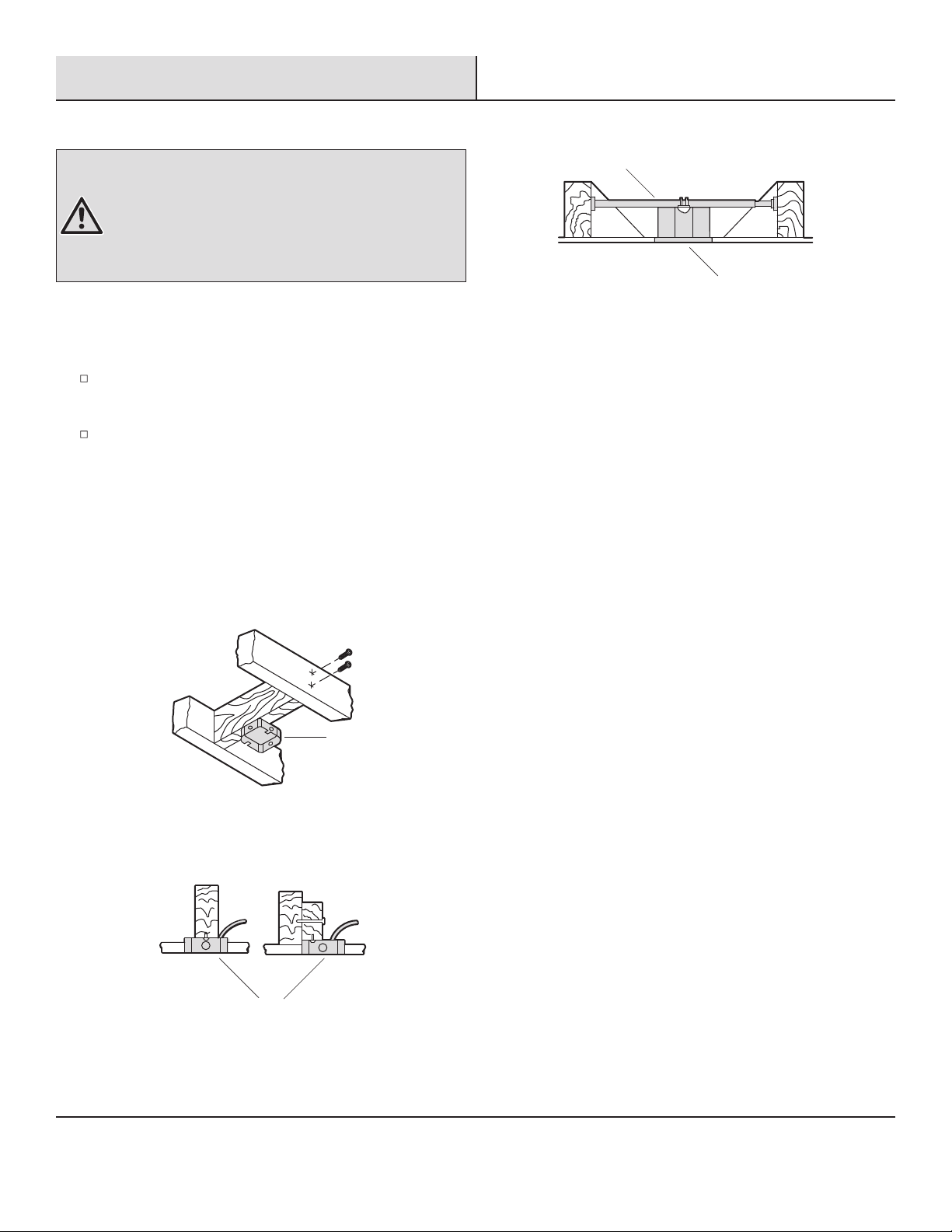

The illustrations below show three different ways to mount the
outlet box (not included).
To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar (not included) as
shown above.
Outlet Box
Outlet Box
Hanger Bar
Outlet Box
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
MOUNTING OPTIONS
Installation
Assembly — Hanging the Fan
1Attaching the mounting plate to the
electrical box
Hanging the fan from the mounting
plate
2
Carefully lift the fan motor assembly (B) and insert the T
section of the mounting bar (II) into the slot in the mounting
plate (A).
MOUNTING PLATE REMOVAL:
In the event that the mounting plate need to be removed,
loosen the screws provided with the outlet box (Do not remove),
Press down the spring locking mechanism (HH) then slide
the mounting plate (A) to detach from the outlet box.

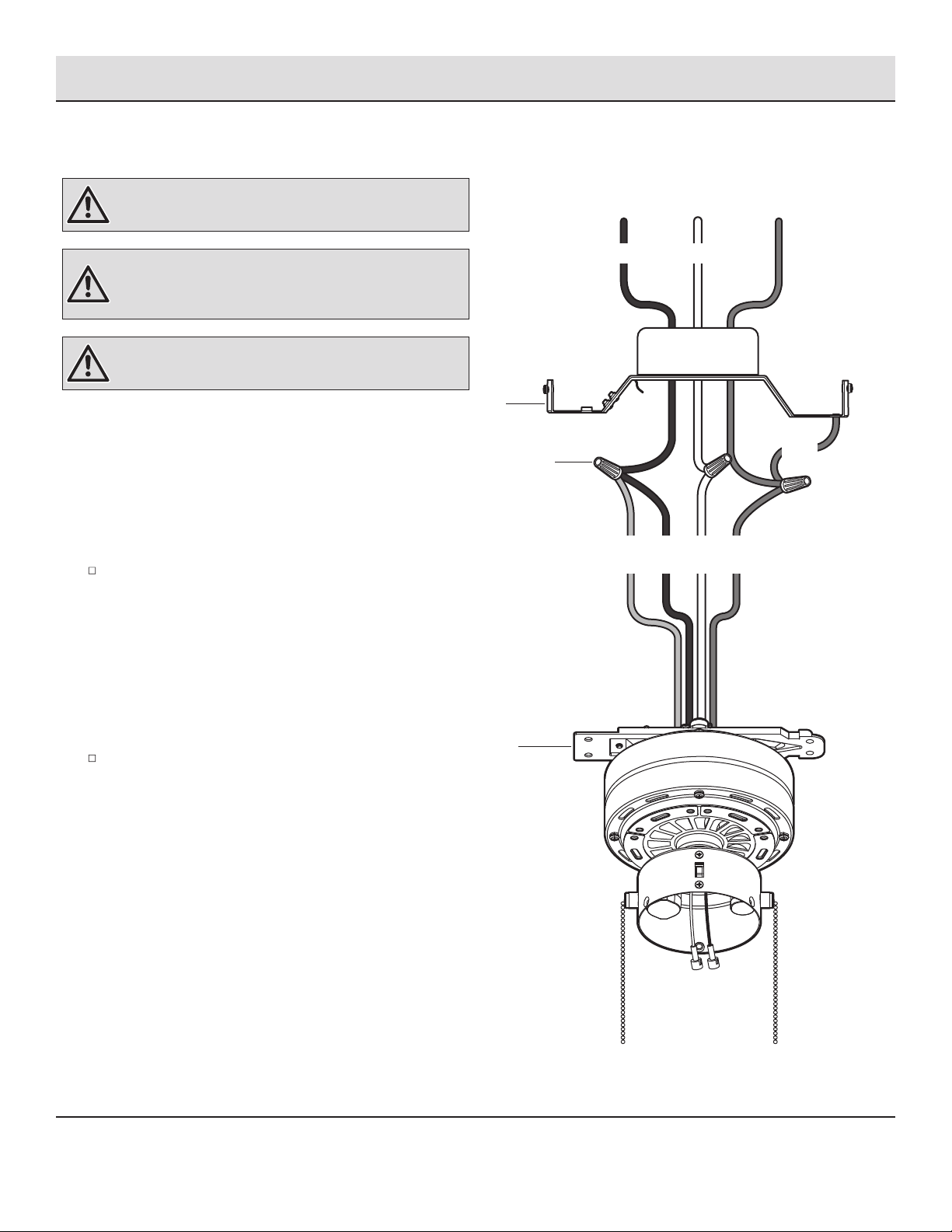

Pass the 120-volt supply wires through the center hole in the
mounting plate (A).
Attach the mounting plate (A) to the outlet box (not included)
by sliding the mounting plate (A) over the screws provided
with the outlet box. Make sure the spring of the spring locking
mechanism (HH) is against the edge of the screw. Ensure
the mounting plate (A) is tight and secured.
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
7
A
Outlet Box
HH
A
B
II
Please contact 1-866-237-9983 for further assistance.
8
Assembly — Hanging the Fan (continued)
3a Making the electrical connections
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
WARNING: To reduce the risk of re or electric shock, do
not use this fan with any solid-state speed control device.
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
Make wire connections as follows, using the wire nuts (AA).
From Fan To Outlet Box
Black + Blue wires ---------- Black wire (Hot)
White wire ------------------- White wire (Neutral)
Green wires* ---------------- Green or bare wire (Ground)
* There are two green grounding leads: one from the mounting plate
(A) and one from the mounting bar (II).
Turn the wire nut connections upward, spreading them apart
so the green (ground) and white wires will be on one side and
the black and blue wires will be on the other side.
AA
NeutralHot
Black
Ground
conductor
White
A
II
Blue
Black
White
Green
Outlet Box
Green
Ground
conductor
Assembly — Hanging the Fan (optional)
3b Single Switch Connections
Dual Switch Connections
3c
On a single switch the fan and light can be turned on or off
together. Make wire connections as follows, using the wire
nuts (AA). Wall switch not included.
From Fan To Outlet Box
Black + Blue Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
AA
SINGLE SWITCH
Neutral
AC IN
Black
White
AA
Neutral
Ground
conductor
White
AC IN
Black
Red
DUAL SWITCH
Blue
Black
Green
White
Green
AA
Outlet Box
Blue
Black
Green
White
Green
On a dual switch the fan and light can be turned on or off
separately. Make wire connections as follows, using the wire
nuts (AA). Wall switch not included.
From Fan To Outlet Box
Black Wire (for Fan) --------- Black Wire (Hot #1)
Blue Wire (for Light) --------- Red Wire (Hot #2 but may be in
a color other than black, white
or green)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
9
Outlet Box
Please contact 1-866-237-9983 for further assistance.
Assembly — Hanging the Fan (continued)
4Finishing the fan installation Attaching the motor housing to the
mounting plate
5
Carefully lift the motor housing (C) onto the mounting plate (A),
properly align the holes and tighten the motor housing (C)
with the four screws and lock washers (JJ) supplied.
Swing the motor assembly (B) up into position under the
mounting plate (A). Secure the mounting bar (II) to the
mounting plate (A) with the screws and lock washers (FF)
provided.
10
A
A
C
FF
II
FF
JJ
B
Assembly — Attaching the Fan Blades
Attaching the blades to the blade
arms
Attach the blades (D) to the blade arms (E) using the
three blade attachment screws and ber washers (BB).
Insert a blade attachment screw and ber washer (BB)
into the blade arm (E), but do not tighten.
Repeat for the two remaining screws and ber washers
(BB).
Tighten each screw securely starting with the center
screw. Make sure the blade (D) is straight.
Repeat these steps for the remaining blades.
Fastening the blade assemblies to the
motor
Fasten the blade assemblies to the fan motor assembly (B)
by lining up the slots (KK) of the motor with the tabs (LL) on
the blade arms (E).
Tighten the two blade arm screws with lock washers (MM)
already installed in the blade arms (E).
Repeat this procedure for the remaining blade arms (E).
WARNING: To reduce the risk of personal injury, do not bend
the blade arms (E) while installing, balancing the blades (D), or
cleaning the fan. Do not insert foreign objects between rotating
fan blades (D).
E
B
6 7
11
BB
E
D
MM
LL
D
KK
Please contact 1-866-237-9983 for further assistance.
NOTE: your fan blades are reversible. Select the blade side
nish which best accentuates your decor.
Remove the three light kit mounting screws (NN) from the
light kit (F) and keep these screws.
While holding the light kit (F) under your fan motor assembly
(B), locate two single white and blue wires in the switch
housing labeled "FOR LIGHT". Make the polarized plug
connections:
White to white
Blue to black
Thread the pull chain through the pull chain hole (OO) in the
light kit and carefully push all wires back into the switch
housing. Install the light kit (F) onto the switch housing with
the three light kit mounting screws (NN) provided. Be sure
to tighten all screws.
Install two 9 watt LED bulbs (CC) (included).
Assembly — Installing the Light Kit
8Attaching the light kit to the switch
housing and installing the light bulbs Mounting the glass shades
9
12
CAUTION: Before starting the installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
Mount the glass shade (G) to the light kit (F) by unscrewing
partially the thumbscrews (DD) on the light kit (F). Then insert
the glass shade (G) and gently tighten the thumbscrews (DD)
by hand evenly to the glass shade (G). DO NOT OVERTIGHTEN.
NN
B
F
OO
CC
F
G
DD
13
Disassemble the switch housing cover (PP) from the light kit.
You can keep the light kit for future use.
Attach the plastic plug (GG) to the switch housing cover (PP).
Install the switch housing cover (PP) to the switch housing
with light kit mounting screws (NN) provided.
Assembly — Installing the Light Kit (continued)
Installing the fan without the light
kit (optional)
10
CAUTION: Before starting the installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
NN
PP
GG
Please contact 1-866-237-9983 for further assistance.
14

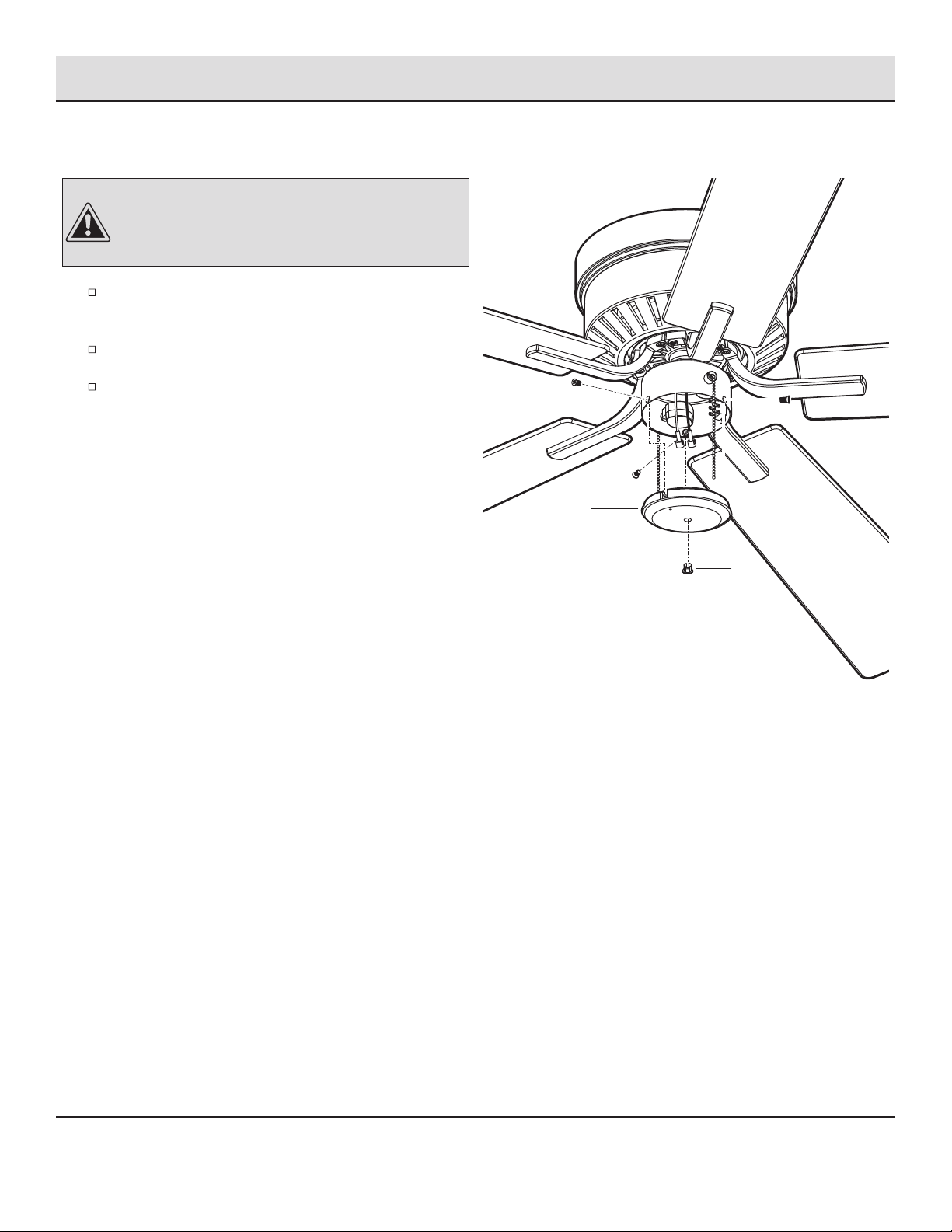

Installation
Attach the two pull chains and fobs (EE) to the pull chains located on
the switch housing (QQ). Turn on the power and check the operation
of the fan.
The reverse switch is located on the surface of the switch housing.
This switch controls directions: forward (switch down) or reverse
(switch up).
The pull chain controls the fan speed as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off.
Speed settings for warm or cool weather depend on factors such
as the room size, ceiling height, and numbers of fans.
To turn the light kit on or off, pull the chain and fobs (EE) that is
attached to the switch housing (QQ).
Operation
PULL CHAIN OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves
warm air off the ceiling. This allows you to set your heating unit
on a cooler setting without affecting your comfort.
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
EE
EE
Reverse switch
QQ
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade to the motor hub are tight.
Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this time.
If using the ceiling light kit, make sure the glassware is secured tightly.
Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting bracket
and outlet box.
Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and measure
from the center of the selected blade to the point on the ceiling. Rotate the fan until the next blade is
positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in.
Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s
natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling.
Clean your fan periodically. Use only a soft brush or lint-free cloth to avoid scratching the nish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing.
(Optional) Apply a light coat of furniture polish to the wood blades.
(Optional) Cover small scratches with a light application of shoe polish.
Do
Care and Cleaning
Use water when cleaning. Water could damage the motor, or the wood, or possibly cause an electrical shock.
Apply oil to your fan or motor. The motor has permanently-lubricated sealed ball bearings.
Do not
Troubleshooting
Problem Solution
The fan will not start.
The fan sounds noisy.
The fan wobbles.
Please contact 1-866-237-9983 for further assistance.
Questions, problems, missing parts? Before returning to the store,
call Precision Consumer Products Group
1-866-237-9983
Retain this manual for future use.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This manual suits for next models
3
Table of contents
