OWNERS MANUAL

Dear Customer,
Thank you for your purchase of a Two-Rock amplifier from Premier
Builders Guild.
As a discerning guitarist, you know the road to great tone begins with
great components.
Our Classic Design, carefully selected parts and hand-built approach
combine to make an extremely versatile instrument.
Please take the time to read this manual. We hope it will answer any
questions that you may have.
We extend a warm welcome to you as a member of a select group of
musicians who have chosen a Two-Rock amplifier.
Important Safety Instructions
1. Read these instructions
2. Keep these instructions
3. Heed all warnings
4. Follow all instructions
5. Do not use this apparatus near water
6. Clean only with dry cloth
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions
8. Do not install near any heat sources such as radiators, heat registers, plugs, and the point
where they exit from the apparatus
9. Protect the power cord from being walked on or pinched particularly at plugs and the point
where they exit from the apparatus
10. Only use attachments/accessories specified by the manufacturer
11. Unplug this apparatus during lightning storms or when unused for long periods of time
12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped
13. CAUTION: To disconnect the unit completely from the MAINS, unplug the unit. Turning the
power switch off does not disconnect the unit completely from the MAINS.

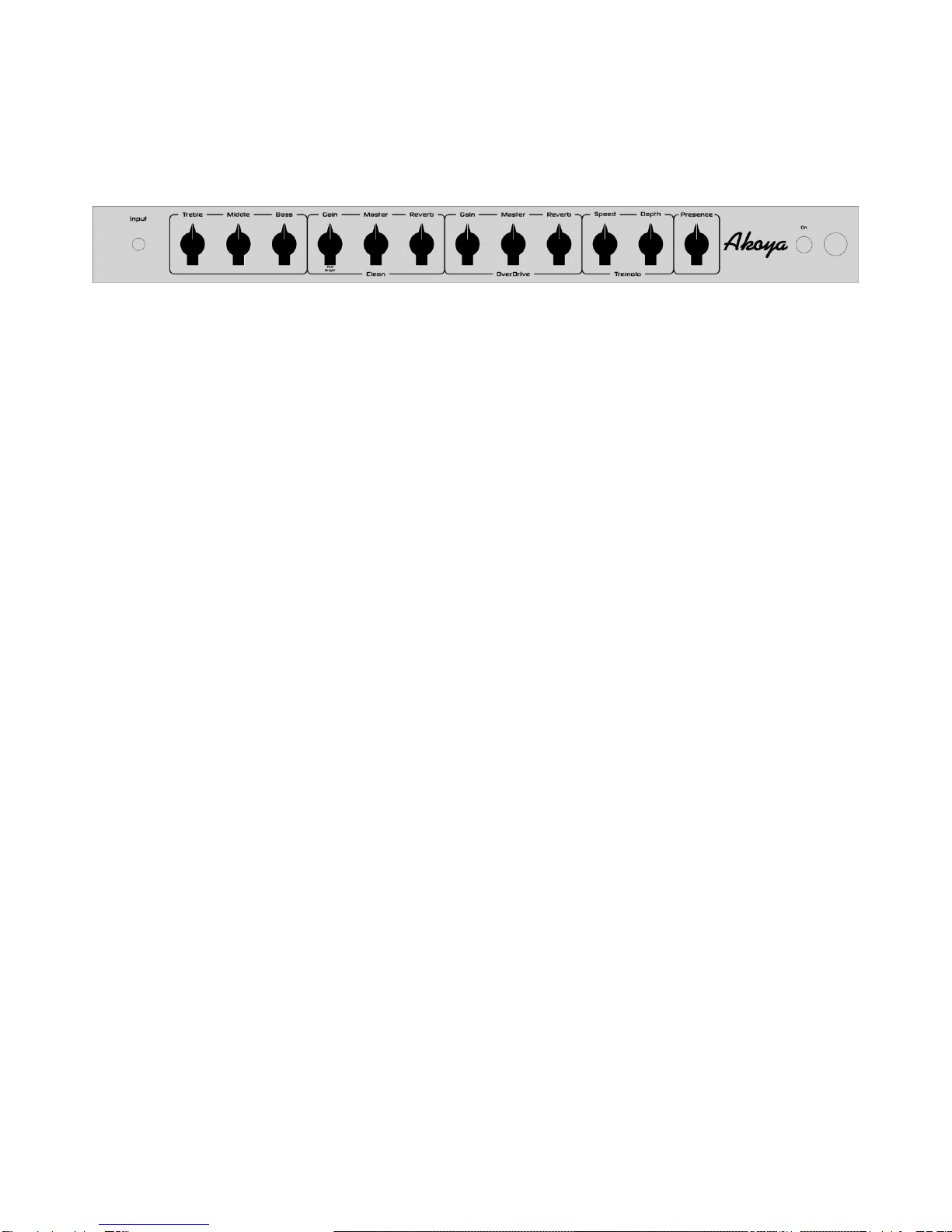

Front Panel Functions
1. Input Jack- High impedance input to the amplifier. Plug in your instrument here.
2. Treble Control- Adjusts the high frequency response. In the full counter-clockwise position,
high frequencies are bypassed to ground. In the full clockwise position, high frequencies are
allowed to pass to the input gain stage.
3. Middle Control –Adjusts the mid-range response. In the full counter-clockwise position, the
tone will be somewhat “scooped” of mid-range response, emphasizing the highs and lows. In the
full clockwise position, mid-range frequencies are allowed to pass to the input gain stage.
4. Bass Control- Adjusts the bass response. In the full counter-clockwise position, low
frequencies are cut. In addition, the response of the treble and mid-range controls is greatly
reduced. In the full clockwise position, low frequencies are allowed to pass to the next gain stage.
5. Clean Gain- Adjusts the overall gain of the amplifier. Start with this control in the 12 o’clock
position. Keep in mind that the amount of gain set here determines the signal level feeding the
lead channel. Low gain settings of this control will require higher lead gain settings for the same
amount of overdrive.
Bright Pull- Boosts the high frequency response. This is most effective when the input
gain is set at 12 o’clock or lower. The effect is less dramatic as the input gain control is
adjusted past the 12 o’clock position.
6. Clean Master Volume- Adjusts the output level of the amplifier. Both the clean and overdrive
output is controlled by this level. This level will also control how much signal is passed to any
pedal that is inserted into the effects loop.
7. Clean Reverb - The reverb return control mixes the reverb effect signal with the dry signal. At
full counterclockwise rotation, the reverb effect is defeated.
8. OverDrive Gain- Adjusts the input level (gain). The input gain cascades into this control. This
level can be set to match the input gain or can be set higher for more saturated gain levels.
9. OverDrive Master- Adjusts the output level.

10. OverDrive Reverb Return - The reverb return control mixes the reverb effect signal with the
dry signal. At full counterclockwise rotation, the reverb effect is defeated.
11. Tremolo Speed- Adjusts the rate of the tremolo circuit
12. Tremolo Intensity- Adjusts the amount of tremolo that is being created.
13.Presence Control- Adjusts the contour of high-frequency response. The high-frequency
response will increase as you advance the control clockwise.
14.Stand-by Switch- Should be in the “Off” or “stand-by” position when you apply power to the
unit. After a few seconds, place the switch in the “On” position to use the amplifier. You may
leave the unit “powered up” and place this switch in the “stand-by” position to mute the output.
15.Indicator Lamp- This lamp will illuminate when the power switch is in the “up” position,
indicating the unit is receiving A/C power

Rear Panel Functions
1. A/C Input- Connects the amplifier to A/C power via the power cord supplied. Unless otherwise
specified, your amplifier is designed to operate on 120 volts A/C, 60 cycles.
2. Fuse- See Fuse Chart
3. AC Power Switch- Turns power on.
.
4. Speaker Output Jacks- Multiple impedance ¼” jacks for speaker hookup. NEVER OPERATE
YOUR AMPLIFIER WITHOUT A PROPER SPEAKER LOAD CONNECTED. Be sure to match
the impedance of your cabinet with the impedance (output) of the amplifier.
5. Effects Loop - The effects loop is a passive insertion point. Any effects inserted into loop will
be run in series after the preamp and before the power section. Any effect should have buffers on
the input and output section to correctly match the signal leaving and coming back. The Master
volume controls how much signal is sent to the send.
Effect Send- Use this jack to send the amplifiers signal to outboard effects
Effect Return- Use this jack to connect the output of your effects to the amplifier.
6. OverDrive Switch- Enables Overdrive
7. Tone Boost Switch- Enables Tone Boost. The Tone Boost is a secondary EQ setting that
increases gain and mid-range. It will affect the control aspect of the Tone Controls. This can be
used on both Clean and Overdrive Channels.
8. Tremolo Switch- Enables Tremolo
9. S/N- Your serial number is located here. We strongly suggest that you record this number and
have it handy in case you need service, or in the event that your amp is lost, stolen, or damaged.
10. Footswitch Jack- The footswitch connects here. Uses a 4 pin XLR style cable. The
clean/overdrive, tone boost, and tremolo functions can be activated via the footswitch. The
Switches need to be in the down position for the footswitch to operate properly.

Fuse Chart
Fuse Chart: All Fuses are 3AG Type 250 Volt, SLO-BLO
100V 120V 220/230/240
22 Watt: 2amp 2amp 1amp
35 Watt: 2.5amp 2.5amp 1amp
40 Watt: 2.5amp 2.5amp 1.6amp
50 Watt: 2.5amp 2.5amp 1.6amp
100 Watt: 3.2amp 3.2amp 2.5amp
FOOTSWITCH
Overdrive - Switches amp into overdrive mode.
Boost - Switches amp into a tone stack bypass mode.
Tremolo- Switches the tremolo on.

(Tube Complement)
V1- 12AX7, Input stage & Gain
V2- 12AX7, Overdrive stage
V3- 12AX7, Reverb Driver
V4- 12AX7, Mixing amplifier
V5- 12AX7. Phase Inverter
V6- 12AX7WA, Tremolo Circuit
V7- V8- 6L6WGC-STR, Output
V9- V10- 5AR4, Dual Tube Rect

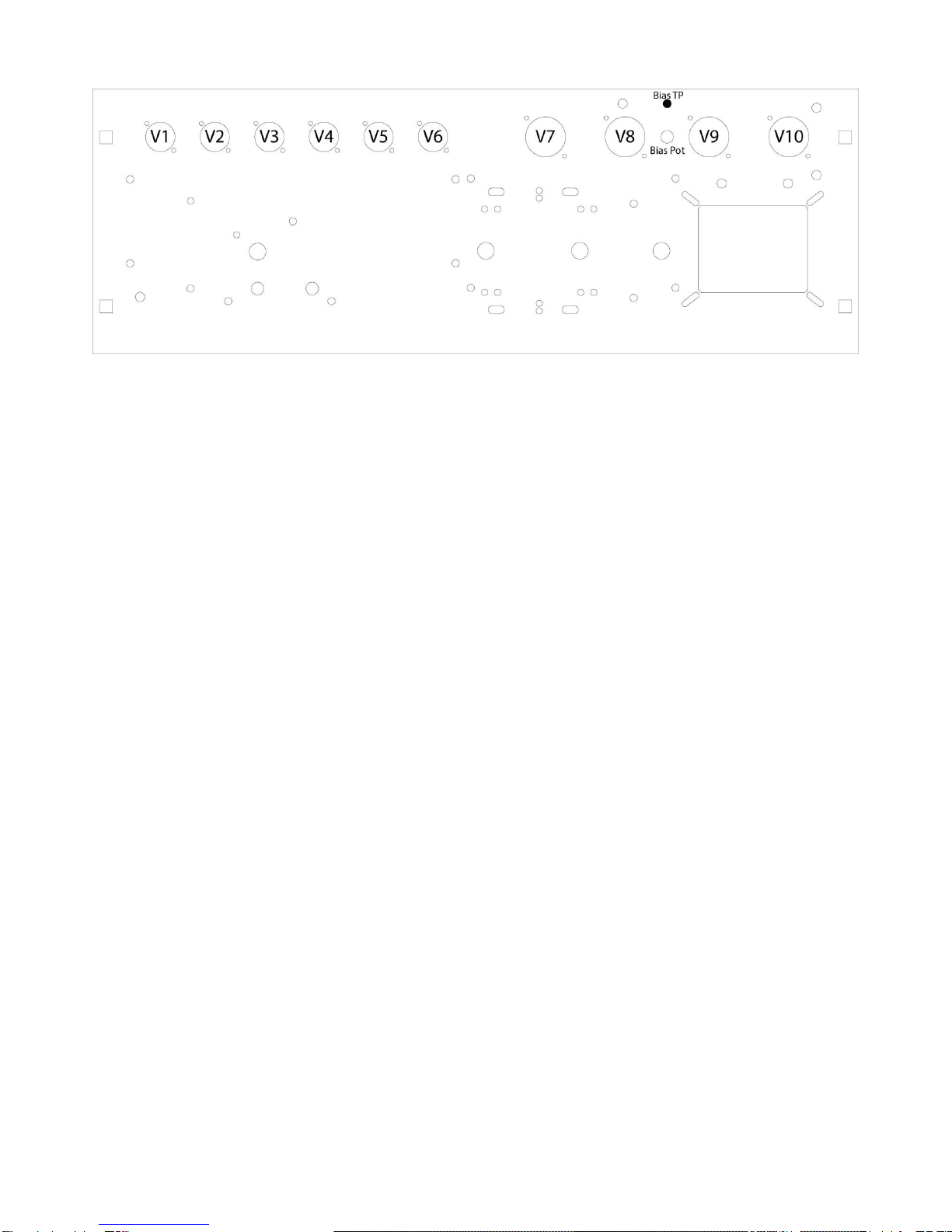

Each fine production tube is tested and matched to our exacting specifications. External bias
adjustment and test points are located on the chassis near the output tube sockets. A digital
voltmeter and small screwdriver are required for bias adjustment.
BIAS ADJUSTMENTS:
Power up unit and connect proper speaker load.
Set master volumes and effects return controls to zero.
DO NOT apply any signal to the input during the biasing procedure!
Take unit off standby and allow a few seconds for the circuit to stabilize.
Set voltmeter to Millivolt scale (or lowest volt scale 60 millivolts=.060 volts.)
With meter grounded to chassis and + probe at test point, measure voltage.
A reading of 0.064 to 0.070 volts is normal for 50 Watt amplifiers with (2) 6L6’s. A reading of 0.12
to 0.13 volts is normal for 100 Watt amplifiers with (4) 6L6’s. If not in this range, adjust by turning
bias screw SLOWLY a small amount. Do not set above .070, doing so can cause tube failure in
some brands.
Keep in mind that tubes vary in quality, and some tubes can handle upwards of 40 ma each (a
reading at the test point of .080!) However, to be on the safe side, use the above as a guide.
WARNING! No user serviceable parts inside! Refer to qualified service person only.
LINE CORD- For your safety, connect to grounded A/C receptacle only.

amplifiers are brought to you by Premier Builders Guild.
We know your new amplifier will provide many hours of enjoyment
and inspiration in the years to come. This manual is a resource for some of your
questions. Please contact us with any other questions or comments that you may
have. We look forward to hearing from you!
PHONE: [phone]-TONE (8663) (M-F 9am-5pm PST)
FAX: [phone]
ADDRESS: Two-Rock
619 Martin Avenue, Suite 6
Rohnert Park, CA 94928
SERVICE: [e-mail]
WEB: www.two-rock.com
PRECAUTIONS:
DO NOT expose to rain or any other moisture.
DO NOT use cleaning solvents. Wipe exterior with a clean, dry
cloth only.
Refer servicing to a qualified service technician.

This is a product of
PREMIER BUILDERS GUILD
619 MARTIN AVENUE, SUITE 6
ROHNERT PARK, CA 94928
707-584-8663
www.two-rock.com
SERIAL NUMBER: _____________________________
