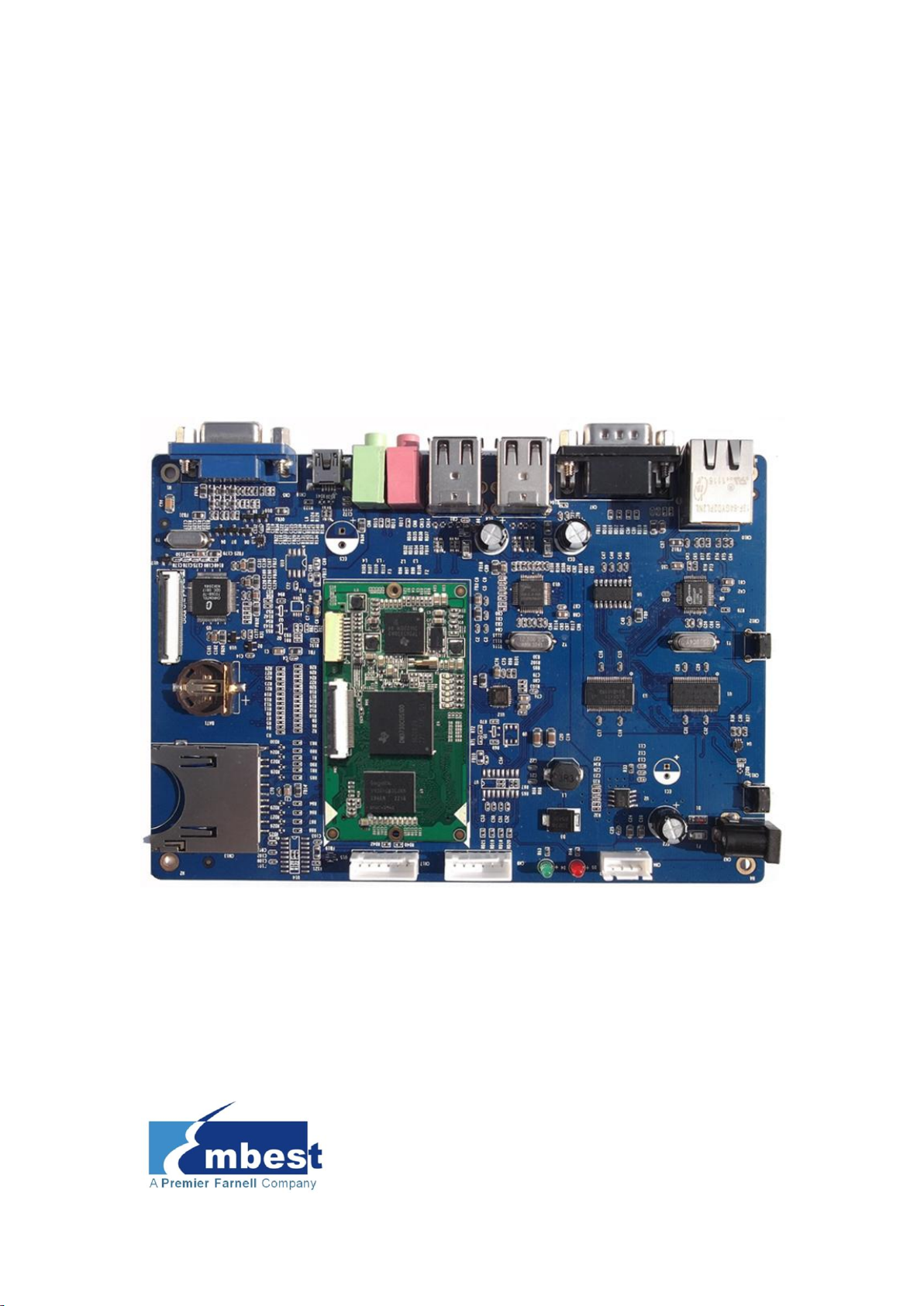

Premier Farnell Embest SBC8140 User manual

SBC8140
Single Board Computer
Quick Start Guide
Version 1.1
22nd Jan 2014

Copyright Statement:
SBC8140 and its related intellectual property are owned by
Shenzhen Embest Technology Co., Ltd.
Shenzhen Embest Technology has the copyright of this document
and reserves all rights. Any part of the document should not be
modified, distributed or duplicated in any approach and form
without prior written permission issued by Embest Technology Co.,
Ltd.
Revision History:
Version
Date
Description
1.0
20/03/2013
Original Version
1.1
22/01/2014
Localisation

Table of Contents
1 Product Overview .............................................................. 1
1.1 Introduction....................................................................1
1.2 Kit Contents....................................................................1
1.3 Default Specifications.......................................................2
2 Preparations...................................................................... 3
2.1 Hardware Connections and Buttons....................................3
2.2 Setting Up HyperTerminal.................................................4
3 Linux Operating System .................................................... 8
3.1 Updating and Booting from an SD Card ..............................8
3.2 Updating and Booting from NAND Flash..............................9
4 WinCE Operating System ................................................. 11
4.1 Updating SD Card and Booting from It .............................11
4.2 Updating and Booting from NAND Flash............................13
Appendix 1: ESD Precautions & Handling Procedures......... 14
Appendix 2: Technical support & Warranty ........................ 15
2.1 Technical support service................................................15
2.2 Maintenance service clause .............................................16
2.3 Basic guidelines for protection and maintenance of LCDs ....17
2.4 Value Added Services.....................................................18

Page | 1
1Product Overview
1.1 Introduction
The SBC8140 is a Single Board Computer designed by Embest using the
MINI8510 processor card as the CPU core board. The MINI8510 is built
around the DM3730 microcontroller featuring 256MByte DDR SDRAM,
512MByte NAND Flash, RTC, LEDs, Camera interface and a 10-pin JTAG
interface on board. It is connected with the SBC8140 expansion board
through two 1.27mm space 2x45-pin dip connectors. The SBC8140
expansion board utilises many of other features of the DM3730 through
headers and connectors including serial ports, USB Host, OTG, Ethernet,
Audio In/Out, Keyboard, LCD/Touch Screen interface, VGA, SD card, etc.
The board targets those applications requiring high definition video or
large-scale data processing such as:
2D/3D game console products,
Portable media devices,
High-end industrial equipment,
Medical devices,
Intelligent home systems.
1.2 Kit Contents
SBC8140
Cross-over serial cable (DB9 to DB9)
5V/2A power adapter
DVD-ROM
Optional LCD screen (available in 4.3”480x272 or 7”800x480)

Page | 2
1.3 Default Specifications
The SBC8140 does not have an on board RTC battery by default
The SBC8140 has a Linux2.6.32 system in NAND Flash by default
The SBC8140 boots from NAND Flash by default; pressing and
holding the BOOT button (button CN12) before connecting power
can force it to boot from an SD card;

Page | 3
2Preparations
2.1 Hardware Connections and Buttons

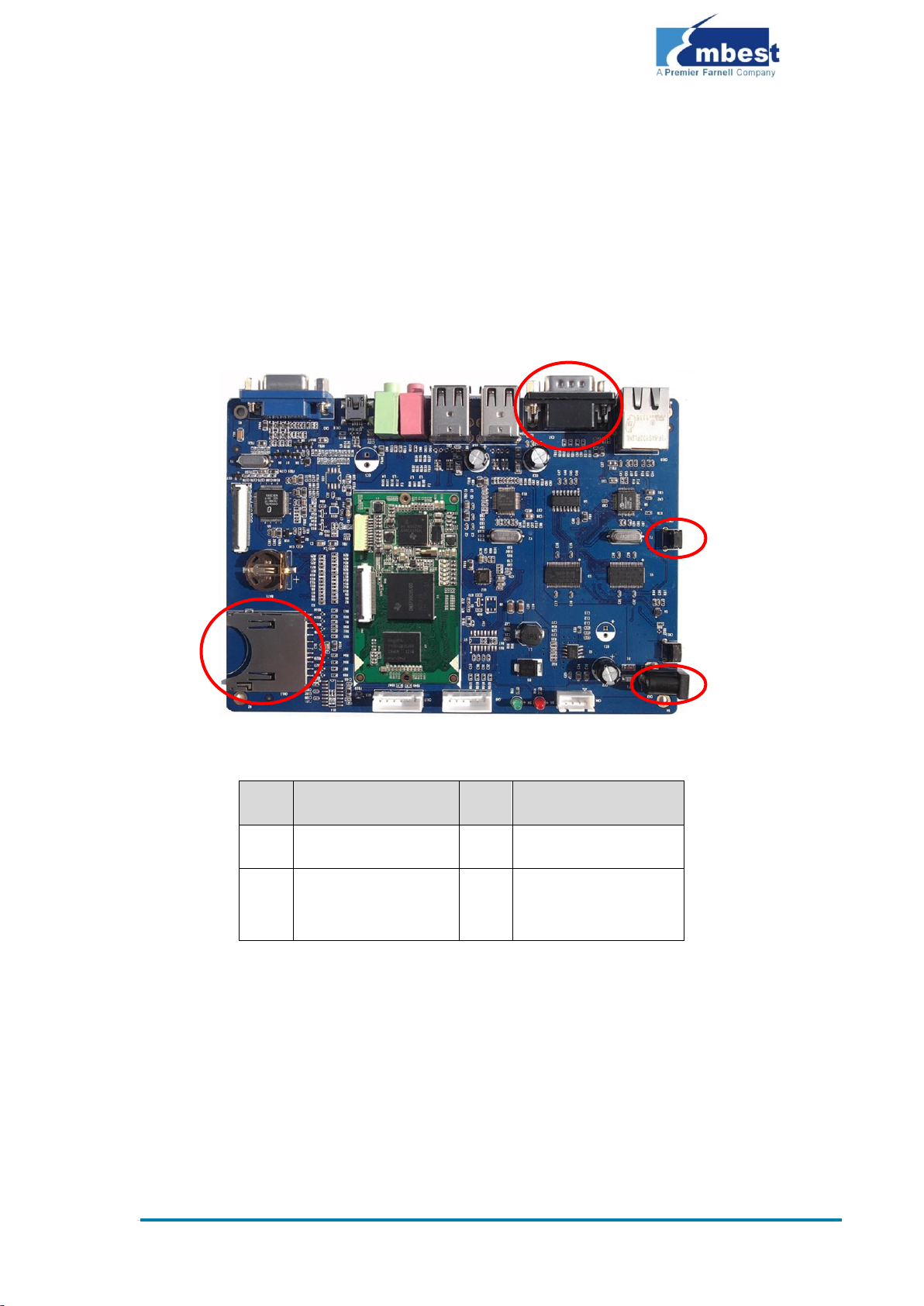

The hardware connection points and button locations can be found in the
diagram below:
Figure 1: Hardware connections
No.
Description
No.
Description
1
SD card slot
3
BOOT button
2
Serial cable interface
4
Power adapter
interface
1
2
3
4

Page | 4
2.2 Setting up HyperTerminal
This section contains instructions for setting up HyperTerminal on a
system running Windows XP.
HyperTerminal is not included on windows Vista, 7 or 8. It can be
downloaded for these versions from
http://www.hilgraeve.com/hyperterminal/
1. Click:
Start
Programs
Accessories
Communications
HyperTerminal
On your PC’s desktop;
Figure 2: Launching HyperTerminal

Page | 5
2. Enter a name in the Name field and select an icon as below,
and then click OK;
Figure 3: Create a new HyperTerminal
3. Select the port to be used and click OK;
Figure 4: Select Port

Page | 6
4. Configure the port you selected as shown in the following
window, and then click OK;
Figure 5: Configure Port
5. HyperTerminal has been set up successfully.
Figure 6: HyperTerminal is Connected

Page | 7
Note:
HyperTerminal is not included on windows Vista, 7 or 8. It can be downloaded
for these versions from http://www.hilgraeve.com/hyperterminal/
Of course you can also use other serial communications software, just pay
attention to the properties of the serial port.

Page | 8
3Linux Operating System
This chapter will introduce how to update an SD card and NAND Flash, and
boot a Linux system from them respectively.
3.1 Updating and Booting from an SD Card
1. You can download the HP USB Disk Storage Format Tool 2.0.6
from:
http://www.embest-tech.com/resource/download/HP-USB-Disk-S
torage-Format-Tool.rar
And use it to format an SD card; the figure shown below is the tool’s
interface;
Figure 7: Format SD Card

Page | 9
2. Select FAT32 in the File system drop-down menu, and then
click Start to format the SD card.
Note:
The HP USB Disk Storage Format Tool will erase any partitions on the TF card.
Use other format tool may cause the failure of the TF card booting
3. Copy all the files under X:\linux\image\ to an SD card (where X
is the label of your DVD drive), and then insert it into the
SBC8140 and power on the system;
4. When the following information is shown in the HyperTerminal
window, the system has booted up successfully; now enter root
to log into the Linux system;
SBC8100_PLUS login: (enter“root”)
Note:
By default the SBC8140 boots from NAND Flash; pressing and holding the
BOOT button before connecting power will force it to boot from the SD card.
By default, the system supports a 4.3”screen. If you need to use another
display mode, please refer to the SBC8140 User Manual to change the display
mode and type boot under u-boot mode to continue the boot-up process.
3.2 Updating and Booting from NAND Flash
Updating image files in the NAND Flash requires the help of u-boot.
Regardless of whether there is data in the NAND Flash, image files can be
updated by running u-boot from an SD card.
1. Use the HP USB Disk Storage Format Tool 2.0.6 to format an SD
card to the FAT or FAT32 filesystem;

Page | 10
2. Copy the files MLO, u-boot.bin, x-load.bin.ift_for_NAND,
flash-uboot.bin, uImage and ubi.img from \linux\image on the
DVD-ROM to the SD card;
3. Insert the SD card into the SBC8140 and power it on; when the
information on the serial interface shows a countdown in
seconds, press any key on your PC’s keyboard to enter u-boot
mode;
Hit any key to stop autoboot: 0 (press any key to enter u-boot mode)
4. Type run updatesys and press the Enter key to start the
system update;
5. When the LEDs on the kit start to blink, the update is
completed; please remove the SD card and reboot the system;

Page | 11
4WinCE Operating System
This chapter will introduce how to update an SD card and NAND Flash then
boot the Linux system from them respectively.
4.1 Updating SD Card and Booting from It
1. Please refer to step 1 in section 3.1 to format an SD card, and
then Copy the files MLO, EBOOTSD.nb0 and NK.bin from
X:\WINCE600\image\ (where X is label of your DVD drive) to
the SD card;
2. Insert the SD card into the SBC8140 and power it on while
pressing and holding the BOOT button (refer to Figure 1 to find
the button); When you see the terminal information counting
down in seconds, press the Space key on your PC’s keyboard to
enter the eboot menu.
Hit any key to stop autoboot: 0 (press Space key to enter eboot menu)
1）Type ain the following eboot menu;
-----------------------------------------------------------
---------------------
Main Menu
-----------------------------------------------------------
---------------------
[1] Show Current Settings
[2] Select Boot Device
[3] Select KITL (Debug) Device
[4] Network Settings
[5] SDCard Settings
[6] Set Device ID
[7] Save Settings
[8] Flash Management
[9] Enable/Disable OAL Retail Messages
[a] Select Display Resolution
[0] Exit and Continue
Selection:a

Page | 12
2）Select a proper display mode in the following menu according to
your display device;
-----------------------------------------------------------
---------------------
Select Display Resolution
-----------------------------------------------------------
---------------------
[1] LCD 480x272 60Hz //4.3-inch LCD display, default device
[2] DVI 640x480 60Hz
[3] DVI 640x480 72Hz
[4] LCD 800x480 60Hz //7-inch LCD display
[5] DVI 800x600 60Hz // LVDS display
[6] DVI 800x600 56Hz
[7] VGA 1024x768 60Hz // VGA display
[8] DVI 1280x720 60Hz
[0] Exit and Continue
Selection (actual LCD 480x272 60Hz):4
3）Type 7and yin the following menu to save settings, and then
type number 0to continue booting the system;
Main Menu
-----------------------------------------------------------
---------------------
[1] Show Current Settings
[2] Select Boot Device
[3] Select KITL (Debug) Device
[4] Network Settings
[5] SDCard Settings
[6] Set Device ID
[7] Save Settings
[8] Flash Management
[9] Enable/Disable OAL Retail Messages
[a] Select Display Resolution
[0] Exit and Continue
Selection:0

Page | 13
The WinCE system is updated and booted up successfully after the booting
process is completed.
Note:
By default the SBC8140 boots from NAND Flash; pressing and holding the
BOOT button before connecting the power can make it boot from the SD card.
4.2 Updating and Booting from NAND Flash
1. Please refer to the step 3.11 in section 3.1 to format an SD
card; After the SD card has been formatted, copy the files MLO,
EBOOTSD.nb0, EBOOTNAND.nb0, NK.bin and XLDRNAND.nb0
from X:\WINCE600\image\ (where X is the label of your DVD
drive) to the SD card, and then rename EBOOTNAND.nb0 to
EBOOTND.nb0.
2. Insert the SD card into the SBC8140, and then power it on while
pressing and holding the BOOT button; when you see the
terminal information counting down in seconds, press the
Space key to enter the eboot menu;
3. Type 8in the eboot menu to enter the flash management
menu;
4. Type a, band cto program the XLDR, EBOOT and the NK image
file into flash;
5. Type 0to go back to main menu, and then type 2and 4to boot
from NAND Flash;
6. Type ain the main menu to select a display mode, and then
type 7and yto save the changes;
7. Remove the SD card from the SBC8140 and reboot it; the
system will boot up from NAND Flash;

Page | 14
Appendix 1: ESD Precautions &
Handling Procedures
Please note that the board comes without any case/box and all
components are exposed. Therefore, extra attention must be paid to ESD
(electrostatic discharge) precautions. To effectively prevent electrostatic
damage, please follow the steps below:
Avoid carpets in cool, dry areas. Leave development
kits in their anti-static packaging until ready to be
installed.
Dissipate static electricity before handling any system components
(development kits) by touching a grounded metal object, such as
the system unit unpainted metal chassis.
If possible, use antistatic devices, such as wrist straps and floor
mats.
Always hold an evaluation board by its edges. Avoid touching the
contacts and components on the board.
Take care when connecting or disconnecting cables. A damaged
cable can cause a short in the electrical circuit.
Prevent damage to the connectors by aligning connector pins before
you connect the cable. Misaligned connector pins can cause damage
to system components at power-on.
When disconnecting a cable, always pull on the cable connector or
strain-relief loop, not on the cable itself.
Warning:
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.

Page | 15
Appendix 2: Technical support &
Warranty
Embest Technology Co., Ltd. established in March of 2000, is a global
provider of embedded hardware and software. Embest aims to help
customers reduce time to market with improved quality by providing the
most effective total solutions for the embedded industry. In the rapidly
growing market of high end embedded systems, Embest provides
comprehensive services to specify, develop and produce products and help
customers to implement innovative technology and product features.
Progressing from prototyping to the final product within a short time frame
and thus shortening the time to market, and to achieve the lowest
production costs possible. Embest insists on a simple business model: to
offer customers high-performance, low-cost products with the best quality
and service.
2.1 Technical support service
Embest provides one year of free technical support for all products. The
technical support service covers:
Embest embedded platform products software/hardware materials
Assistance to customers with regards to compiling and running the
source code we offer.
Troubleshooting problems occurring on embedded
software/hardware platforms if users have followed the instructions
provided.
Judge whether a product failure exists.
The situations listed below are not covered by our free technical support
service, and Embest will handle the situation at our discretion:
Customers encounter issues related to software or hardware during
their development process

Page | 16
Issues occur when users compile/run the embedded OS which has
been modified by themselves.
Customers encounter issues related to their own applications.
Customers experience problems caused by unauthorised alteration
of our software source code
2.2 Maintenance service clause
1. Product warranty will commence on the day of sale and last 12
months provided the product is used under normal conditions
2. The following situations are not covered by the warranty,
Embest will charge service fees as appropriate:
Customers fail to provide valid proof of purchase or the product
identification tag is damaged, unreadable, altered or inconsistent
with the product.
Products are subject to damage caused by operations inconsistent
with their specification;
Products are subject to damage in either appearance or function due
to natural disasters (flood, fire, earthquake, lightning strike or
typhoon) or natural aging of components or other force majeure;
Products are subject to damage in appearance or function due to
power failure, external forces, water, animals or foreign materials;
Products malfunction due to disassembly or alteration of
components by customers, or repair by persons or organizations
unauthorized by Embest Technology, or alteration from factory
specifications, or configured or expanded with components that are
not provided or recognized by Embest Technology;
Product failures due to the software or systems installed by
customers, inappropriate software settings or computer viruses;
Products purchased from unauthorized merchants;

Page | 17
Embest Technology takes no responsibility for fulfilling any warranty
(verbal or written) that is not made by Embest Technology and not
included in the scope of our warranty.
3. Within the period of warranty, the cost for sending products to
Embest should be paid by the customer. The cost for returning
the product to the customer will be paid by Embest. Any
returns in either direction occurring after the warranty period
has expired should be paid for by the customer.
4. Please contact technical support with any repair requests.
Note:
Embest Technology will not take any responsibility for products returned
without the prior permission of the company.
2.3 Basic guidelines for protection and
maintenance of LCDs
1. Do not use finger nails or other hard sharp objects to touch the
surface of the LCD
2. Embest recommends purchasing specialist wipes to clean the
LCD after long time use, avoid cleaning the surface with
fingers or hands as this may leave fingerprints or smudges.
3. Do not clean the surface of the screen with unsuitable
chemicals
Note:
Embest do not supply a maintenance service for LCDs. We suggest the
customer immediately checks the LCD once in receipt of the goods. In the
event that the LCD does not run or shows no display, the customer should
inform Embest within 7 business days of delivery.
