UFP-280 LCD Mount Adapter
Installation Instructions Page - 1 -
UFP-280 LCD Mount Adapter Installation Instructions

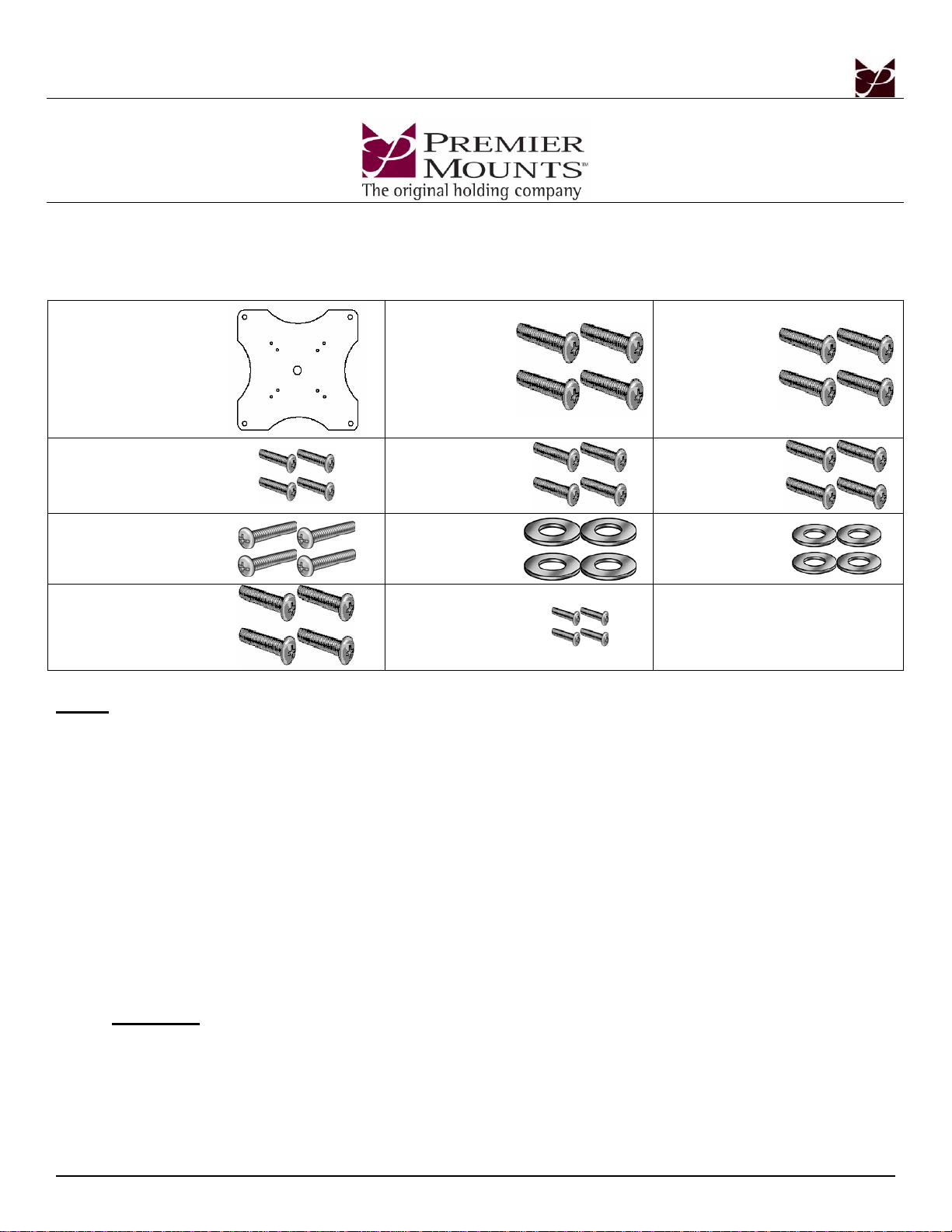

Parts List
Mounting Bracket
(Qty 1).
M6 x 30mm
Phillips Head
Screw
(Qty 4)
M6 x 12mm
Phillips Head
Screw (Qty 4)
M4 x 16mm
Phillips Head Screw
(Qty 4)
M4 x 20mm
Phillips Head
Screw
(Qty 4)
M5 x 12mm
Phillips Head
Screw (Qty 4)
M5 x 16mm
Slotted Head Screw
(Qty 4)
M5 Flat Washer
(Qty 4)
M4 Flat
Washer
(Qty 4)
M6 x 20mm
Phillips Head Screw
(Qty 4)
M4 x 6mm
Phillips Head
Screw
(Qty 4)
NOTE: The hardware used for your application will vary. Please use the appropriate hardware from the list
above.
NOTE: The mount that is shown in these installation instructions is for instructional purposes only.
The purchased mount may vary in appearance.
UFP-280 Installation
The UFP-280 LCD Mount Adapter can be used with any VESA 75 x 100 model.
1. Invert the monitor and place it on a soft and flat surface.
2. Secure the UFP-280 to the back of the monitor by using the appropriate mounting hardware (please see
Parts List).
3. Secure the UFP-280 Adapter plate to the end of the mount that was purchased. Use the M4 x 6mm
Phillips Head screws (4ea).
4. When complete, secure the display with the provided display hardware (supplied).
CAUTION: Do not over tighten the screws to the monitor. Failure to do so could result in damaging
the threads and monitor.

UFP-280 LCD Mount Adapter
Page - 2 - Installation Instructions
NOTE: Unless purchased, the mount shown above is being used for illustration purposes only.
Figure 1. UFP-280 Installation
Figure 2. Mount Installation
Monitor
UFP-280
Mounting
Screws
UFP-280
Monitor
Mounting
Holes
Mounting Screws (4ea)
