Premier Range T-60cm-OVEN-SS Assembly Instructions

T-60cm-OVEN-SS
T-60cm-OVEN-CM
T-60cm-OVEN-BL

USERINSTRUCTIONS
GENERAL WARNINGS
Read carefully all the instructions contained in this booklet. It provides you with important
information regarding the safe installation, use and maintenance of the appliance as well as useful
advice for getting the best out of your oven. Keep this booklet in a safe place for future reference.
After removing the packing, check that the appliance is not damaged in any way.
Be careful not to leave the packing materials (plastic sheeting, expanded polystyrene etc.) where
children can get at them, as they can be dangerous.
IMPORTANT: do not use the oven door handle to move the appliance, such as to remove it
from the packaging
ATTENTION
The oven is an appliance which, for its nature, becomes hot, especially in correspondence of
the glass door.
It is therefore a good rule that children do not approach the oven when it is functioning,
particularly when the grill in used.
The first time you switch the oven on, acrid smelling smoke may appear. This is caused by the heating
of the adhesive used on the insulation panels surrounding the oven. There is nothing unusual about
this. If it happens, simply wait until the smoke disappears before putting any food in the oven. Never
roast or bake on the oven base.
Safety is a good habit to get into
Ƽ This appliance is designed for non-professional, household use and its functions must not be
changed.
Ƽ The electrical system of this appliance may be used safely only when it is correctly connected to
an efficient earthing system in compliance with the safety standards currently in effect.
Ƽ The manufacturer will not be held liable for any damages that might arise out of incorrect
installation or improper, incorrect or unreasonable use of the appliance.
The following items are potentially dangerous, and therefore, appropriate measures must be taken to
prevent children and the disabled from coming into contact with them:
-Controlsandtheapplianceingeneral;
-Packaging(bags,polystyrene,nails,etc.);
- The appliance immediately after use of the oven or grill due to the heat generated;
-Theappliancewhennolongerinuse(potentially dangerous parts must be made safe).
Avoid the following:
- Touching the appliance with wet parts of the body;
- Using the appliance when barefoot;
-Pullingontheappliance or the supply cord to unplug it from the electrical outlet;
- Obstructing the ventilation or heat dissipation slots;
- Allowing power supply cords for small appliances to come into contact with the hot parts of
the appliance;
-Exposingtheappliancetoatmospheric agents (rain, sun);
- Using the oven for storage purposes;
2

-Using flammable liquids near the appliance;
-Using adaptors, multiple sockets and/or extension cords;
-Attempting to install or repair the appliance without the assistance of qualified personnel.
WARNING- Accessible pa r t s w i l l b e c o m e h o t w h e n i n u s e . To a v o i d b u r n s a n d s c a l d s c h i l d ren
should be kept away
During use the appliance becomes hot, Care should be taken to avoid touching heating elements
inside the oven.
Qualified personnel must be contacted in the following cases:
-Installation (following the manufacture’s instructions);
-When in doubt about operating the appliance;
-Replacing the electrical outlet when it is not compatible with the plug for the appliance.
Service Centres authorized by the manufacturer must be contacted in the following cases:
-If in doubt about the soundness of the appliance after removing it from the packaging;
-If the power supply cord has been damaged or needs to be replaced;
-If the appliance breaks down or functions poorly; ask for original spare parts.
It is a good idea to do as the following:
-Only use the appliance to cook food, nothing else;
-Check the soundness of the appliance after it has been unpacked;
-Unplugged the appliance from the electrical mains if it is not functioning properly and before
cleaning or performing maintenance;
-When the appliance is not used for an extended period of time, unplugged the appliance and
close the gas cock (it present);
-Use cooking gloves to place cookware in the oven or when removing it;
-Always grasp the oven door in the centre because the ends may be hot due to the escape of
hot air;
-Make sure that the control knobs are on the Āoāsetting when the appliance is not in use;
-Unplug the appliance when you decide not to use the appliance any longer.
Ƽ The manufacturer may not be held responsible for any damage due to: incorrect installation,
improper, incorrect and irrational use.
SPECIFICATION
The ovens are designed to operate with a monophase alternating current of 220-240V 50Hz. anyway,
before the installation of the appliance, we suggest you to check always these specifications on the
rating label applied on the outside rear part.
Powers absorbed in accordance with models Accessories according to models
Oven lower heating el. 1200Watt Oven inside heating el. 1900 Watt synchromotor 4 Watt
Oven upper heating el. 1000Watt Total grill heating el. 1000+1900 Watt Shaded motor (back) 25 Watt
Oven light 15Watt Circle heating el. 2100Watt Shaded motor (top) 15Watt
Overall dimensions for oven volume: width 436mm-height 315mm-depth 410mm=56liters
3

INDICATOR LIGHTS
The indicator lights situated above the control panel go on and off when the heating elements are
inserted or removed. During the thermostatic functioning of the oven, the neon light remains on until
the pre-chosen temperature is reached and when it goes out, this is a sign that the temperature has been
reached. When the oven cools, the thermostat determines the re-insertion of the heating elements with
consequent re-lighting of the indicator lights. In models the internal oven light, which is always on
when any function is in operation, is considered as an operation, is considered as an operating warning
light.
INSTALLINGTHEAPPLIANCE
Important: Unplug your oven before performing installation or maintenance!
Installation should be carried out according to the instructions by a professionally qualified person.
The manufacturer declines all responsibility for
any damage to persons, animals or things due to a
wrong installation.

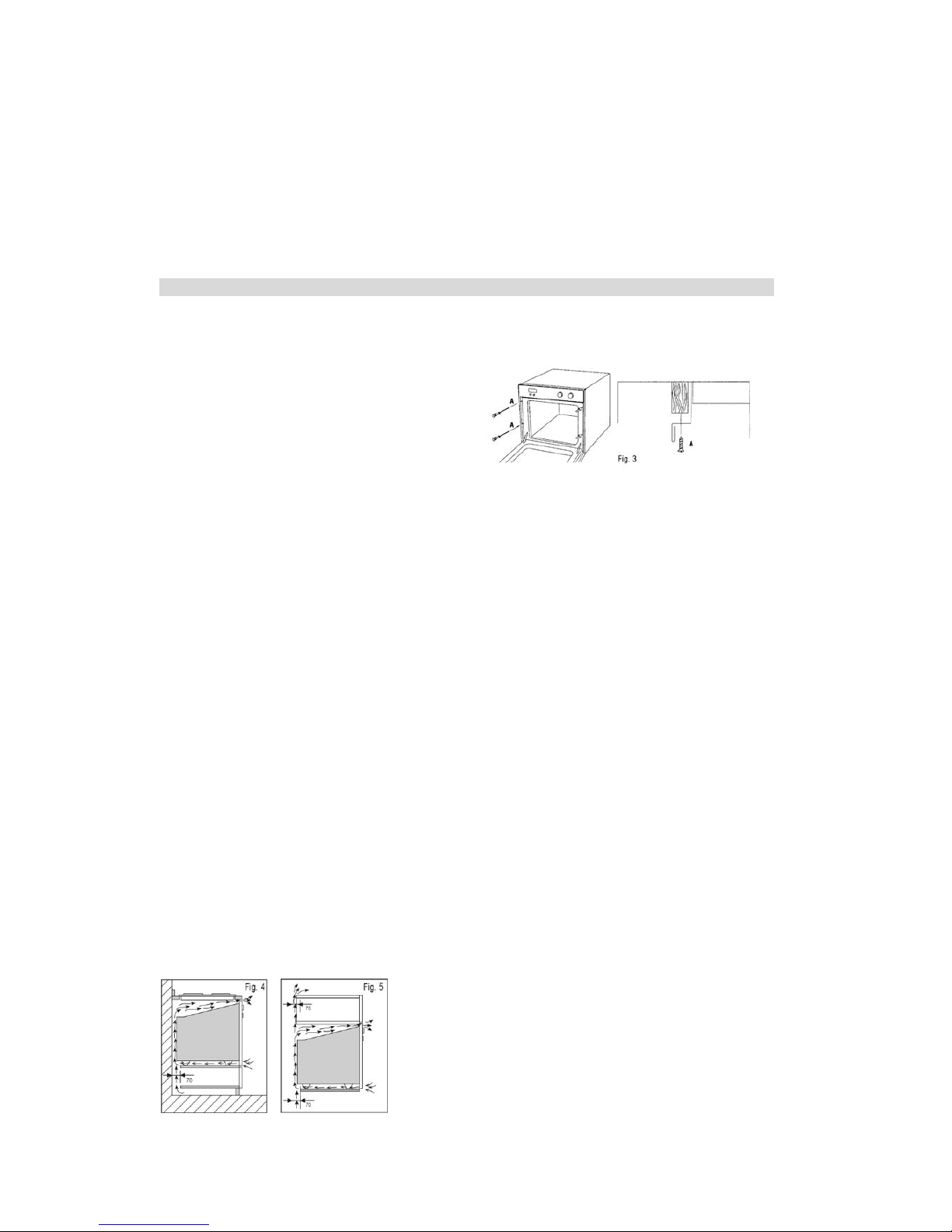

FITTING THE APPLIANCE
Fit the appliance into its surround (beneath a
work-top or above another appliance) by inserting
screws into the 4 holes that can be seen in the frame of the oven when the door is open.
For the most efficient air circulation, the oven should be fitted according to the dimensions shown in
fig. 1-2 of page 6.
The rear panel of the cabinet must be removed so that air can circulate freely. The panel to which the
oven is fitted should have a gap of at least 70 mm at the rear.
NB: where ovens are to be matched with hobs, it is essential to follow the instructions contained
in the booklet supplied with the other appliance.
IMPORTANT
During use the appliance becomes hot, Care should be taken to avoid touching heating elements
inside the oven.
Accessible parts may become hot during use. Young children should be kept away.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since
they can scratch the surface, which may result in shattering of the glass.
For a built-in oven to work well the cabinet must be of the right type.
The panels of the adjoining furniture should be heat resistant. Particularly when the adjoining furniture
is made of veneered wood, the adhesives should be able to withstand a temperature of 120ć. Plastic
materials or adhesive which cannot withstand this temperature will become deformed or unstuck.
To comply with safety regulations, once the appliance has been fitted it should not be possible to make
contact with the electrical parts.
All parts which offer protection should be fixed in such a way that they cannot be removed without the
use of a tool.
4
Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric
shock.

5

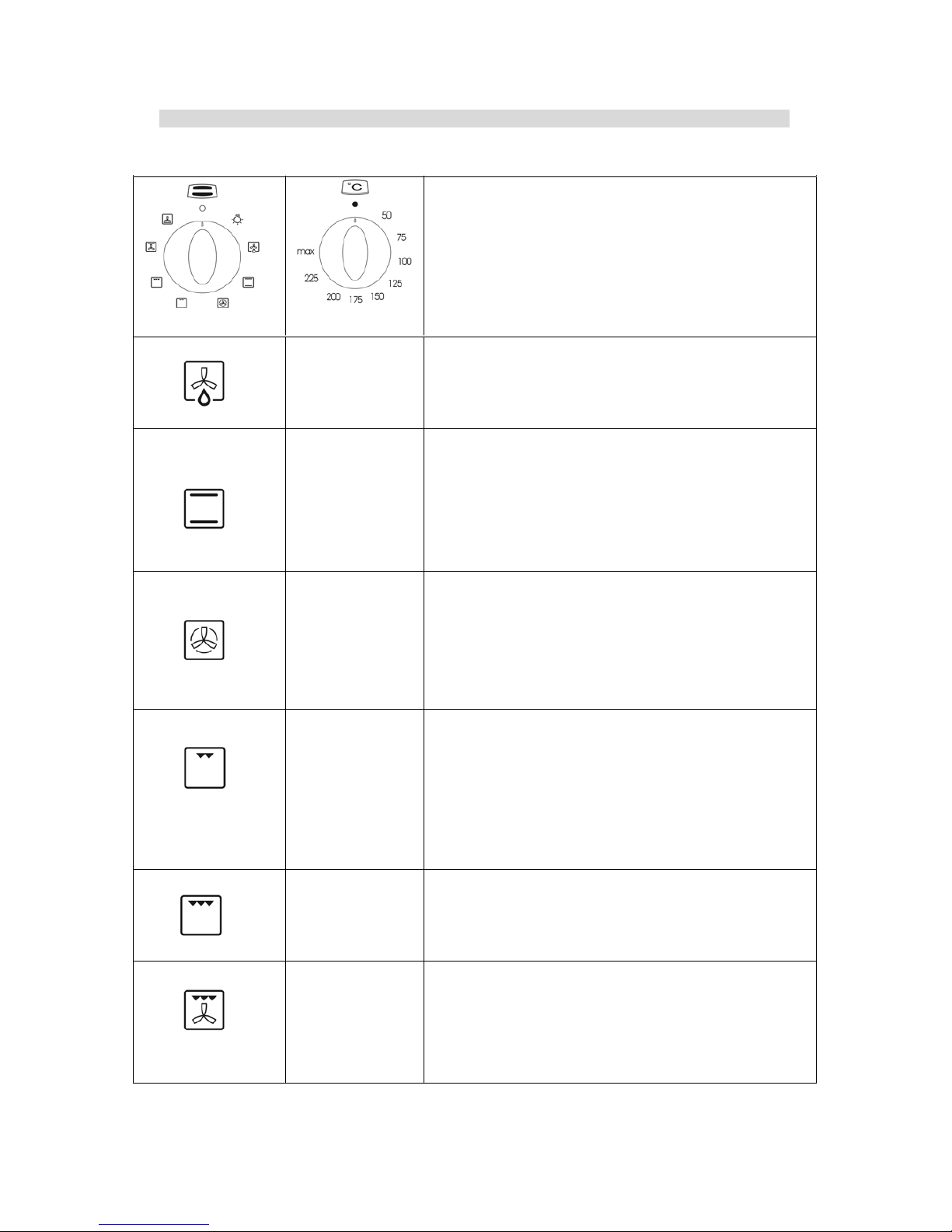

MULTIFUNCTIONAL OVENS 8 FUNCTIONS
N.B.: All functions will start after selecting the temperature with the thermostat knob.
SELECTOR KNOB THERMOSTAT
N.B.: All functions will start after selecting the oven
temperature with the thermostat knob.
The oven is fitted with:
za lower heating element;
zan upper heating element, which according to the
cooking mode can be used for grilling or baking.
zA circular heating element, which surrounds the fan.
50 - MAX
Defrosting with fan
The air at ambient temperature is distributed inside the oven
for defrosting food more quickly and without proteins
adulteration.
50 - MAX
Natural convection
Both the lower and upper heating elements operate together.
This is the traditional cooking, very good for roasting joints,
ideal for biscuits baked apples and crisping food. You obtain
very good results when cooking on a shelf adjusting the
temperature between 50 and MAXć
50 - MAX
Fan oven
Both the fan and the circular heating element operate
together. The hot air adjustable between 50 and MAXćis
evenly distributed inside the oven. This is ideal for cooking
several types of food (meat, fish) at the same time without
affecting taste and smell. It is indicated for delicate pastries.
50 - MAX
Medium grill
It is indicated for grilling and gratinating small quantities of
traditional food. This function can b eused with closed door
for very short times (5-10 minutes). For longer times, this
function must always be used with half-open door and
control protection in position (see fig. 10-10b).
50 - MAX
Total gri ll
It is indicated for grilling and gratinating traditional food.
This function must always be used with half-open door and
control protection in position (see fig. 10-10b).
50 - MAX
Fan assisted total grill
The air which is heated by the grill heating element is
circulated by the fan and so helps to distribute the heat
between 50 and 200 ć. This function can be used for
sterilizing glass jars.
6

50 - MAX
Lower heating element + fan
The air which is heated by the lower heating element is
circulated by the fan and so helps to distribute the heat
between 50 and 200 ć. This function can be used for
sterilizing glass jars.
Fig.6 Fig.7

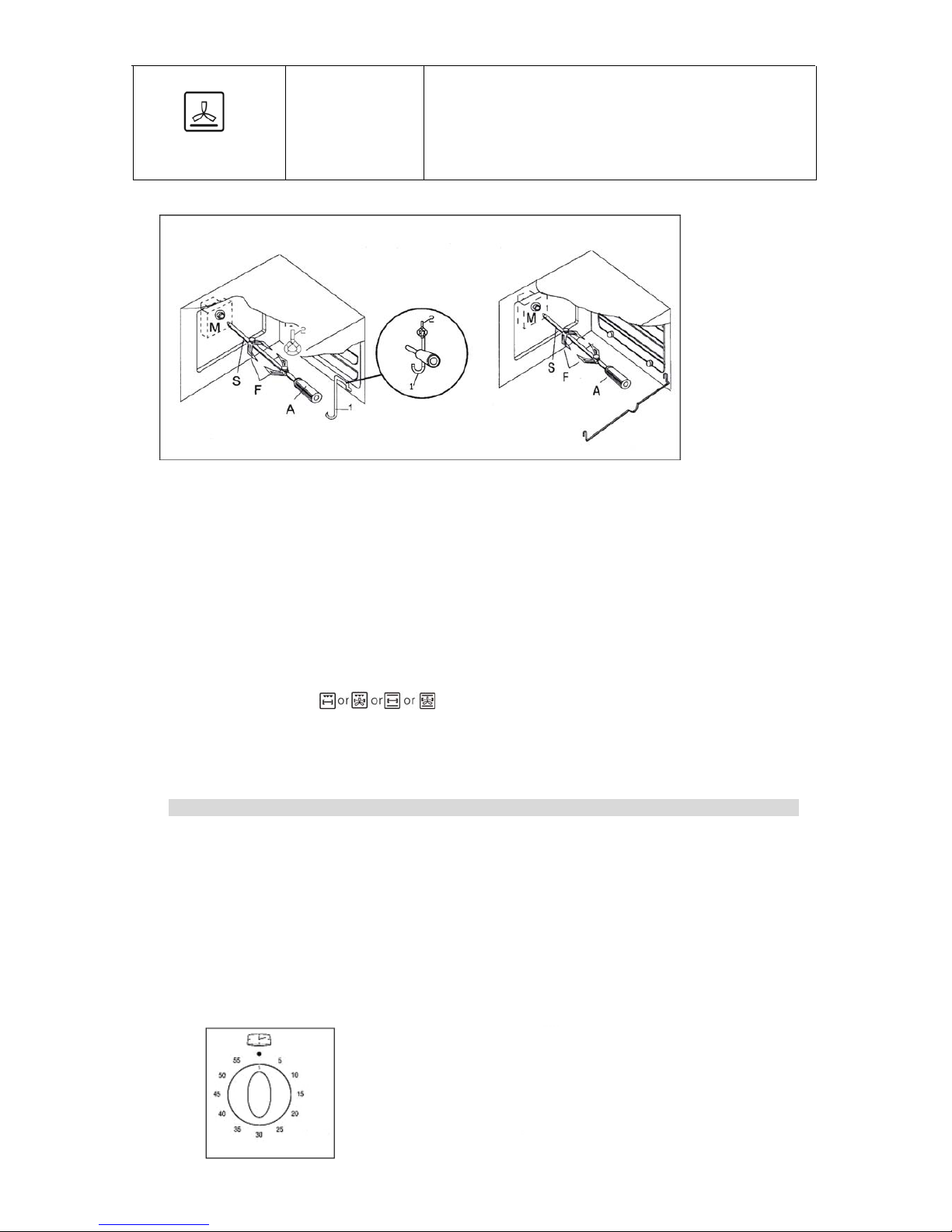

Using the turnspit
In the “CONVECTIONAL OVEN” models, the turnspit can be used in combination with the grill. After fitting the food
on to the spit S, block it with the two forks F. then proceed as follows:
-Fit the knobs protection as shown in (fig. 6)
-Position the spit support as shown in (fig.7)
-Fit the end of the spit into the motor M at the back of the oven (fig. 7).
-Fit the support into the circular groove in the spit.
-Unscrew and remove handle A.
-Place the oven tray with a little water on the lowest shelf of the oven.
-Turn the knob to position to start up the motor.
-Partially close the oven door (fig. 6b).
-When the cooking time is up, screw the handle on the spit and remove everything from the oven. If necessary, use
an oven glove to avoid any burn.
INSTRUCTIONS FOR USE OF CONTROL DEVICES
Timers
Our ovens can be fitted with different types of timers:
MINUTES COUNTERS
Turn the knob clockwise to set the desired cooking time.
The minutes minder can be adjusted from 1 to 60 minutes (Fig. 8)
A sound signal will inform you that the chosen time is up.
Fig.8
7

How to keep Your Oven in Shape
This appliance is for household use only, don’t use it outdoors!
Important: Unplug your oven before cleaning, or performing maintenance!
To extend the life of your oven, it must be cleaned frequently, keeping in mind that:
ƼDo not uses steam equipment to clean the appliance.
Ƽ To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or
other liquid or sprinkle water to clean the appliance!
Ƽ Don’t clean the appliance when it still hot! The inside and external surface of the oven should
preferably be cleaned by damp cloth when it is cooled down.
Ƽ Wash all accessories in hot sudsy water or in a dishwasher, wipe dry with a paper or cloth towel.
Ƽ If you use your oven for an extended period of time, condensation may form. Dry it using a soft
cloth.
Ƽ There is a rubber seal surrounding the oven opening which guarantees its perfect functioning.
Check the condition of this seal on a regular basis. If necessary, clean it and avoid using abrasive
products or objects to do so. Should it become damaged, please contact your nearest After-sales
Service Centre. We recommend you avoid using the oven until it has been repaired.
Ƽ Never line the oven bottom with aluminium foil, as the consequent accumulation of heat could
compromise the cooking and even damage the enamel.
Ƽ Clear the glass door using damp cloth and dry it with a soft cloth.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of the glass.
Replacing the Lamp in the Oven
Ƽ Unplug your oven!
Ƽ Unscrew the glass cover attached to the lamp holder;
Ƽ Unscrew the lamp and replace it with another high-temperature lamp (300 ć) with the
following characteristics:
- Voltage: AC220V-240V
-Wattage:15W
-Socket:E14
Ƽ Remount the glass cover and reconnect the appliance to the power supply.
WARNI N G : Ensure that the appliance is unplugged before replacing the lamp to avoid the possibility
of electric shock.
Warning: Do not operate appliance with damaged cord or plug or after the apliance
malfunctions, or has been damaged in any manner, return appliance to the nearest Authorized
Service Center for exanmination. Repair, or adjustment!
8

USEFUL NOTES FOR COOKING
In the following table, some indicative hints for cooking:
FAULTS CAUSES REMEDIES
The upper crust is dark
and the lower part too
pale
Not enough heat from the
bottom
-Usethenaturalconvection position
-Usedeepercaketins
-Lowerthetemperature
-Putthecakeonalowershelf
The lower part is dark
and the upper crust too
pale
Excessive heat from the
bottom
-Usethenaturalconvection position
-Uselowersidetins
-Lowerthetemperature
- Put the cake on a higher shelf
The outside is too
cooked and the inside
not cooked enough
Too high temperature - Lower the temperature and increase
the cooking time
The outside is too dry
even though of the right
color
Too low temperature - Increase the temperature and reduce
the cooking time.
Protective kit
During operation, the oven glass door and adjacent parts of the appliance become hot. Make sure,
therefore, that children do not touch the appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
For greater safety, an additional child-safety device is available from our Head Office and our
Authorised Service Centres (see enclosed list). When ordering this, please give the code:
BAB-followed by the appliance model. The model is stamped on the plate which is visible on the front
part of the oven upon opening the door.

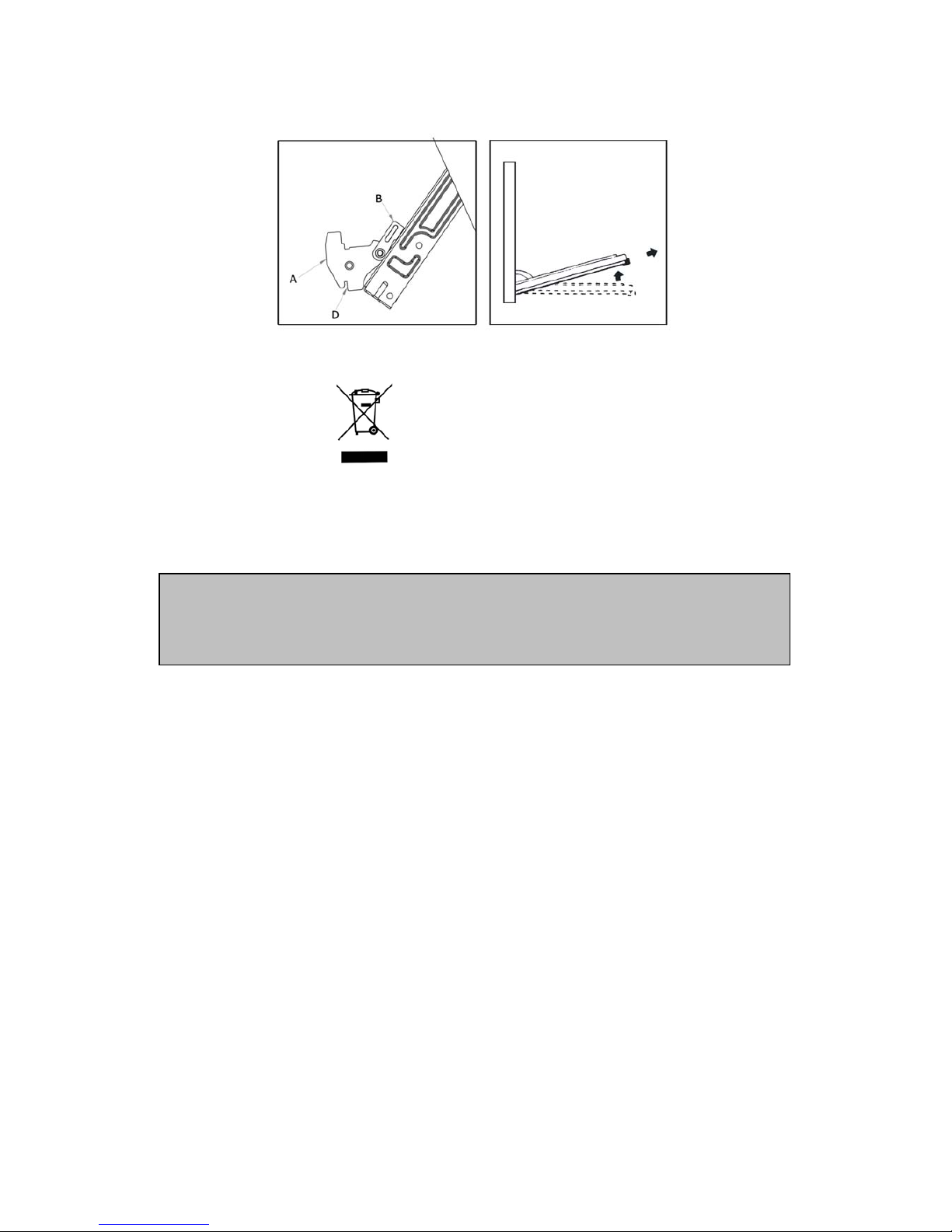

Disassembling/assembling the oven door
To make it easier to clean the inside of your oven, the oven door can be removed, by proceeding as
follows (fig. 11):
ƽ Open the door completely and lift the 2 levers “B” (fig.11-1);
ƽ Now, shutting the door slightly, you can lift it out by pulling out the hooks “A” as shown in figure
2.
To reassemble the door:
ƽ With the door in a vertical position, insert the two hooks “A” into the slots;
ƽ Ensure that seat “D” is hooked perfectly onto the edge of the slot (move the oven door
backwards and forward slightly);
9

ƽ Keep the oven door open fully, unhook the 2 levers “B” downwards and then shut the door again.
Fig.11-1 Fig.11-2
This product must not be disposed together with the domestic waste. This product has to be disposed
at an authorized place for recycling of electrical and electronic appliances.
By collecting and recycling waste, you help save natural resources, and make sure the product is
disposed in an environmental friendly and healthy way.
Important: if you decide not to use the oven any more, it should be made inoperable by cutting
the power supply cable, after unplugging it from the power supply. Disused appliances can be a
safety risk as children often play with them. For this reason it is advisable to make the oven safe.
10
