Premier Range A83 User manual

 
COOKER HOOD
For the User
Ɣ Your safety
Ɣ Description
Ɣ Instructions for use
For the Installer
Ɣ Safety information
Ɣ Installation
Ɣ Troubleshooting
For Model A83

 

 
Contents
From the manufacturer…………………………………………………………………………1
FOR THE USER
1. Your safety
Warning ……………………………………………………………………………………………1
Installation………………………………………………………………………………………2
During use………………………………………………………………………………………2
Cleaning, Maintenance & Service……………………………………………………2
Electric Cord……………………………………………………………………………………3
2. Description
Main parts………………………………………………………………………………………3
Ducted or Re-circulating mode………………………………………………………4
Speed Control…………………………………………………………………………………4
3. Instructions for use
Touch Control Panel……………………………………………………………………4
Cleaning & Maintenance…………………………………………………………………5
4. Installation…………………………………………………………………………………………5
Dimension chart………………………………………………………………………………7
FOR THE INSTALLER
5. Safety Information…………………………………………………………………………8
6. Troubleshooting………………………………………………………………………………9


From the Manufacturer
Please read this user manual carefully before attempting to operate the appliance and
store it in a safe place for future reference.
This appliance and its packaging are produced by processes that minimize waste and
respect the environment.
Please help us to continue this effort to protect the environment by using the appli-
ance efficiently and dispose of the packaging in a responsible manner.
FOR THE USER
1. Your safety
PLEASE READ THIS SECTION THOROUGHLY BEFORE AT-
TEMPTING TO OPERATE THE APPLIANCE
1. There shall be adequate ventilation of the room when the range hoods is used at
the same time as appliances burning gas or other fuels (not applicable to appliances
that only discharge the air back into the room).
2. There is a fire risk if cleaning is not carried out in accordance with the instructions.
3. Do not flambé under the range hood.
4. The air must not be discharged into a flue that is used for exhausting fumes from
appliances burning gas or other fuels (not applicable to appliances that only discharge
the air back into the room.
5. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
the have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
6. Air exhausted must be accordant with local laws.
7. Accessible parts may become hot when used with cooking appliances.
Warning
1



9
6. Troubleshooting
SymptomsPossible CauseAction
Doesn’t start No electrical supply 
Check that the main switch is
turned on
Check that the plug is con-
nected
Poor airflow
Aluminum grease filters
clogged
Clean the filters and replace
when dry
Charcoal grease filters
clogged
Replace charcoal filters with
new sets
Motor running but
no airflowButterfly valve jammedContact technician
Motor cuts after a
few minutes
High temperature safety
device activated
The kitchen is not sufficiently
ventilated
The hood is installed too
near the cooking stove
The hood must be at least
65cm from stove
Strong cooking
smell
Charcoal filters are not
installed
Charcoal filters must be in-
stalled in re-circulating mode
Oil cup missing or not
installed
Remove aluminum filter and
replace oil cup
Aluminium grease filter
saturated
Wash the aluminium grease
filters
Whirring soundForeign object in contact
with fan bladeContact technician
Oil dripping onto
stove

Installation
This appliance must be installed or repaired by a qualified technician only.
It is dangerous to modify any part of this appliance.
The manufacturer declines all responsibility in case of failure to adopt proper safety
measures.
Ensure the location in which this appliance is installed has good, permanent ventila-
tion.
In ducted mode, there must be one or more permanent air inlet. The air collected must
not be discharged into a duct used to blow off smoke from other appliances fed with
electricity.
The distance between the bench to the lower part of the hood must not be less than
65cm.
Use an electrical connector with earth that is correct for your location.
Check that the voltage in your area correspond to the appliance as indicated on the
rating label.
Do not connect the hood to a duct that carries combustion fumes (e.g. fireplace).
During use
This product is designed for household use only and should never be used for com-
mercial applications.
After use, always ensure that all controls are in the "OFF" position.
When frying with a gas flame, take particular care not to allow the oil or grease in the
pan to catch fire.
Cleaning, Maintenance & Service
Clean the grease filters often (at least once monthly). Heavy oil deposits is a fire haz-
ard. Hood surface should be cleaned with soft cloth and non-corrosive detergent.
Important: Never attempt to repair this appliance by yourself. Always refer to qualified
Service Technicians.
2


For your safety, insist on original parts.
Always switch off the electricity and unplug the connection before conducting mainte-
nance or cleaning.
Electric Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects.
If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
2. Description

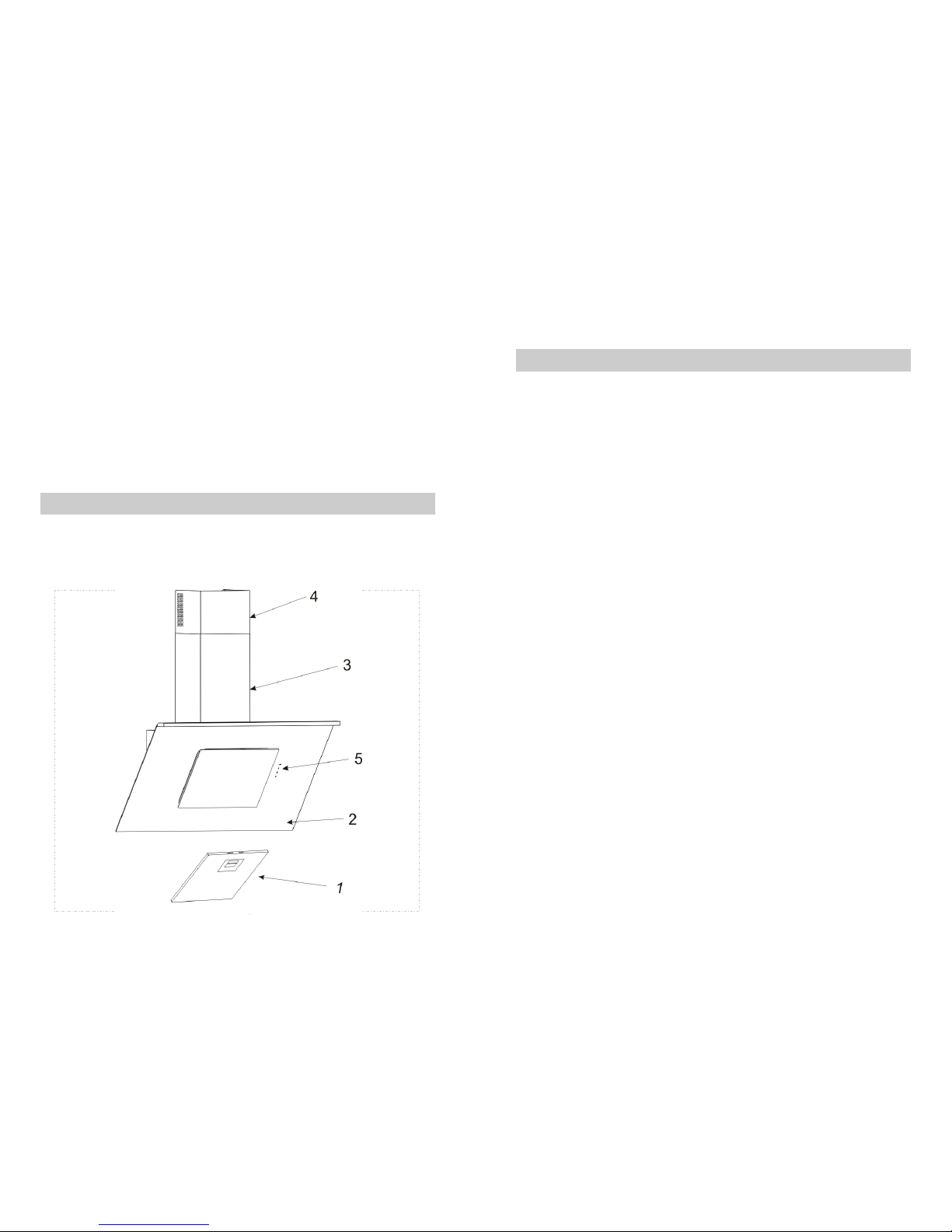

1.Aluminum Filter 2.Canopy 3.Main flue
4.Extension flue 5.Touch control
3
Main parts

FOR THE INSTALLER
5. Safety Information
8
REMOVAL OR MODIFICATIONS TO THE APPLIANCE, ELECTRIC
WIRE OR PLUG, VOIDS THE WARRANTY.


Leveling Device
When mounting the hood on the wall ,the level can be adjusted by turning the two
screws on the motor housing.
7

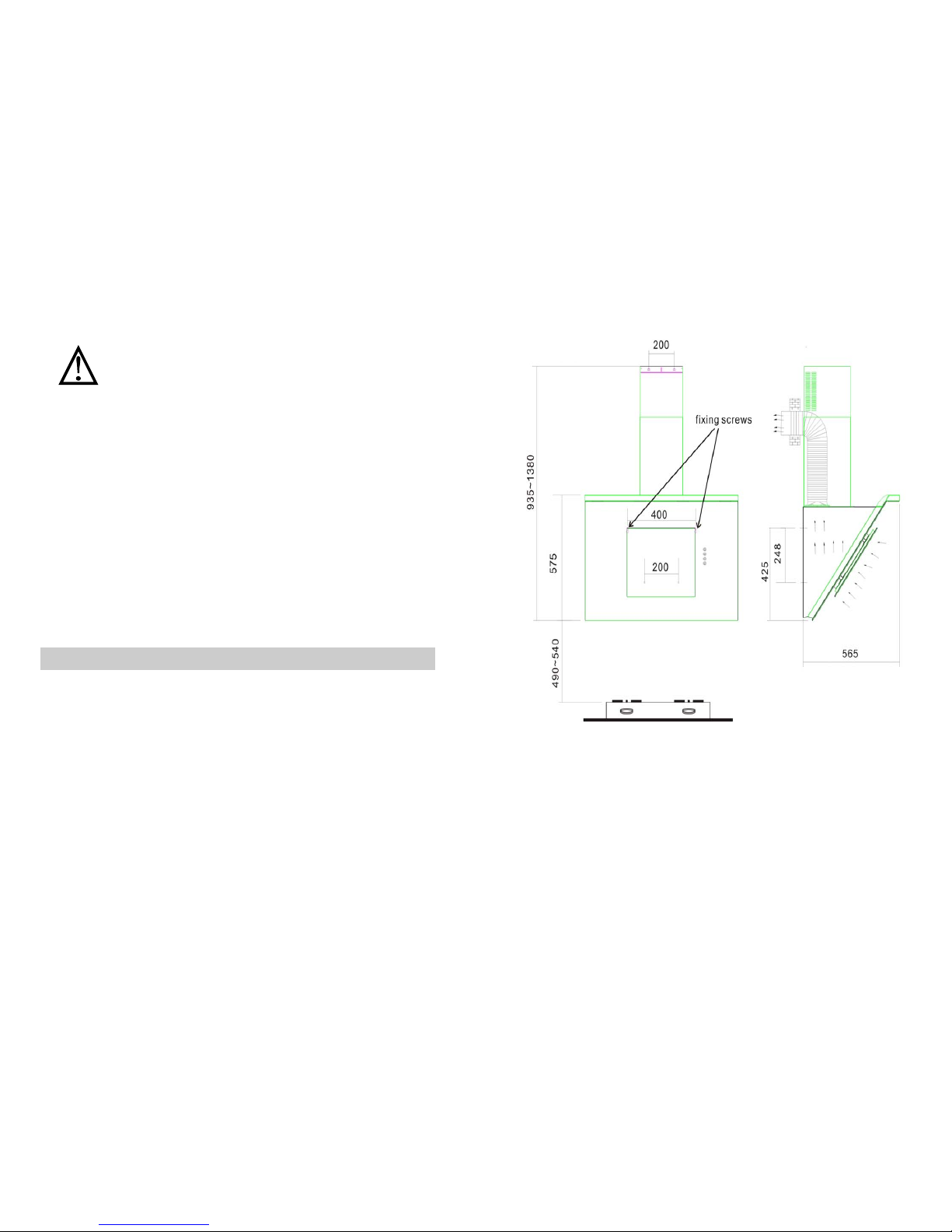

Dimension chart

Ducted or Re-circulating mode
Depending on your requirement, this appliance can be configured to operate in the
ducted or re-circulating modes.
DUCTED MODE: Fire proof ducting system of 150mm diameter vent the fumes
through a suitable outlet. In the ducted mode, only the aluminum grease filters are
installed.
RECIRCULATING MODE: Fumes are filtered for grease and odour through the alumi-
num grease filters and the charcoal filters respectively and re-introduced into the
kitchen environment. In re-circulating mode, both the aluminum grease filters and the
charcoal filters should be installed.
Speed Control
The hood is equipped with a 3 or 4 speed mechanical/electronic control.
Use the low speed for simmering, medium speed for light cooking. Use the high speed
for frying or heavy cooking.
3. Instructions for use
4
Touch Control Panel
turbo setting
filter service indicator
programmer ventilation 15
minutes per hour
delay shut off in 15 minutes
longtouch
touchfor3seconds
shorttouchmiddle speed setting
low speed setting

turn on/off lamp
high speed setting

Cleaning & Maintenance
SURFACES:
Wash with warm soapy water and a soft sponge. Never use abrasive detergent,
scouring pads, steel wool or solvents on any part of this appliance as this will cause
irreparable damage.
ALUMINIUM GREASE FILTERS:
Wash in the dishwashers or soak the panels in a degreasing agent for an hour, then
rinse off and dry before re-installing.
CHARCOAL FILTERS:
(only in re-circulating model): Charcoal cannot be reused. They must be replaced with
the appropriate types once a year or depending on the frequency of appliance usage.
For this appliance to function effectively, regular maintenance is a must.
Clogged filters restrict airflow and may cause the motor to overheat.
4. Installation
Use suitable bolts to mount the appliance on a secure surface.
The minimum distance between the bench top and the lowest part of the hood must
be not less than 65cm.
The location of the installation must have permanent openings for ventilation.
Regulations concerning the discharge of air have to be fulfilled.
It is strongly recommended that the hood be installed right over the exhaust air from
cooking.
It is better not to install the outlet of the pipe in the wind direction, which can prevent
the exhaust air from flowing backwards.
Fasten the components for the exhaust outlet with screws. To ensure good ejection of
exhaust air, the pipe must not be bended for too many times.
5
REMOVAL OR MODIFICATIONS TO THE APPLIANCE,
ELECTRIC WIRE OR PLUG, VOIDS THE WARRANTY
The four hob elements were used the appliance at most.
Every hood has two fixing screws to firmly fix the hood in its place.
6
