Premier Ammbusher AD720 User manual

SKID STEER LOADER
AMMBUSHER
BRUSH CUTTER
MODEL: AD720, AD720C
OPERATOR’S MANUAL
SERIAL NUMBER: ____________________
WARNING! AVOID INJURY OR DEATH!
READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE
INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT!

TABLE OF CONTENTS
Letter to the Owner
…………………………………………………....
2
Warranty Policy
…………………………………………………....
3
Warranty Registration Form
…………………………………………………....
4-5
Safety Information
…………………………………………………....
6-7
Hook-Up Procedures
…………………………………………………....
8
To Remove Brush Cutter Attachment
…………………………………………………....
8
Operating Instructions
…………………………………………………....
8
Repair and Maintenance
…………………………………………………....
9-12
Bill of Materials
…………………………………………………....
13

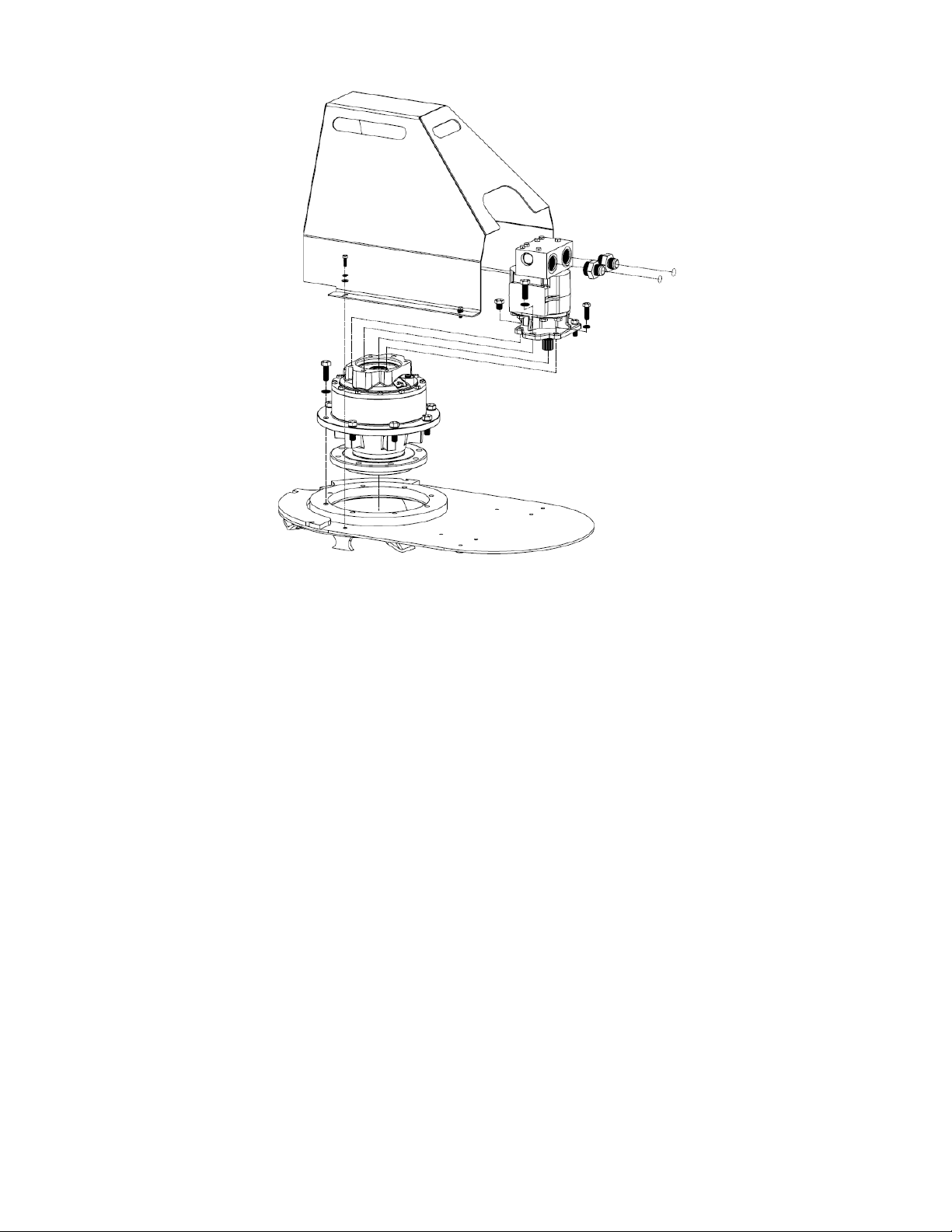

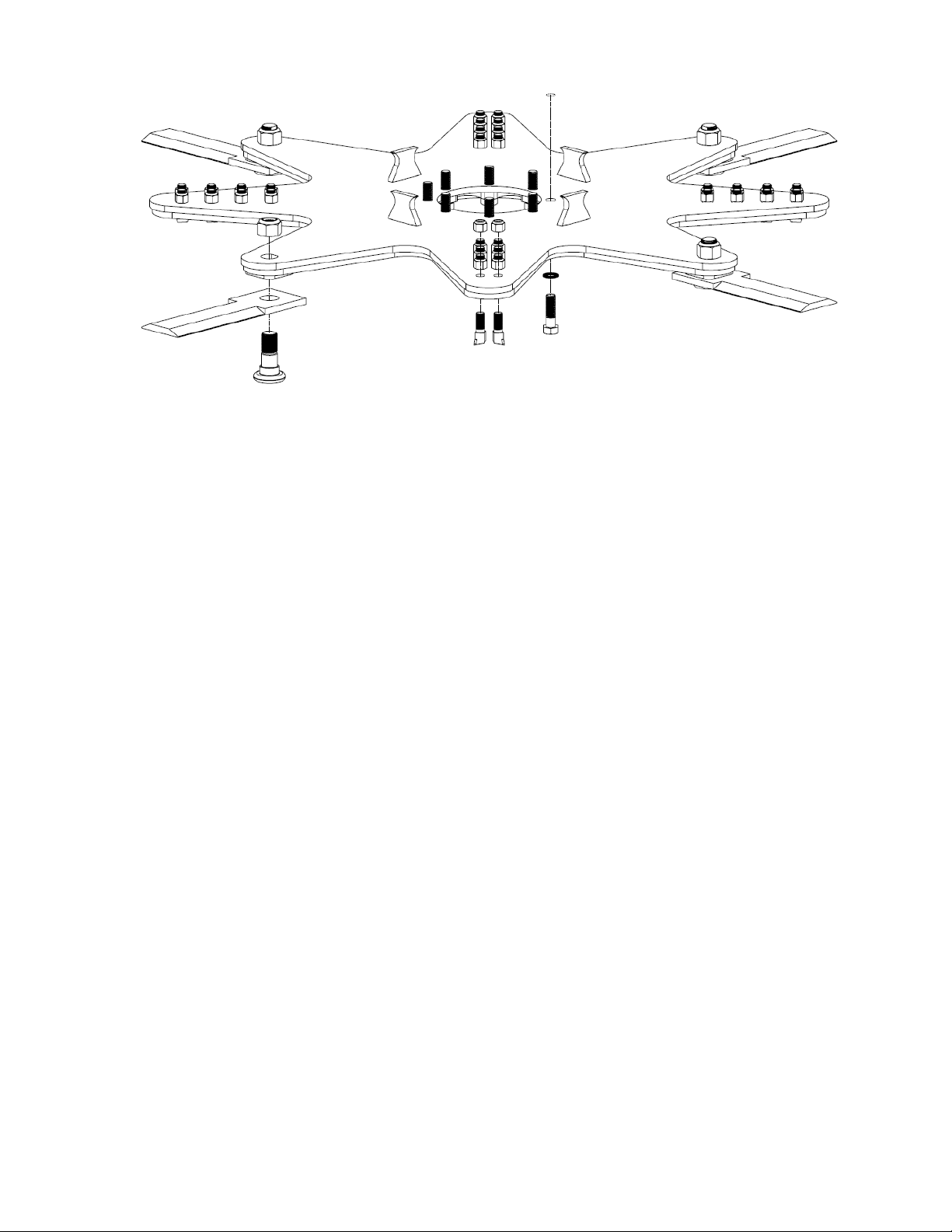

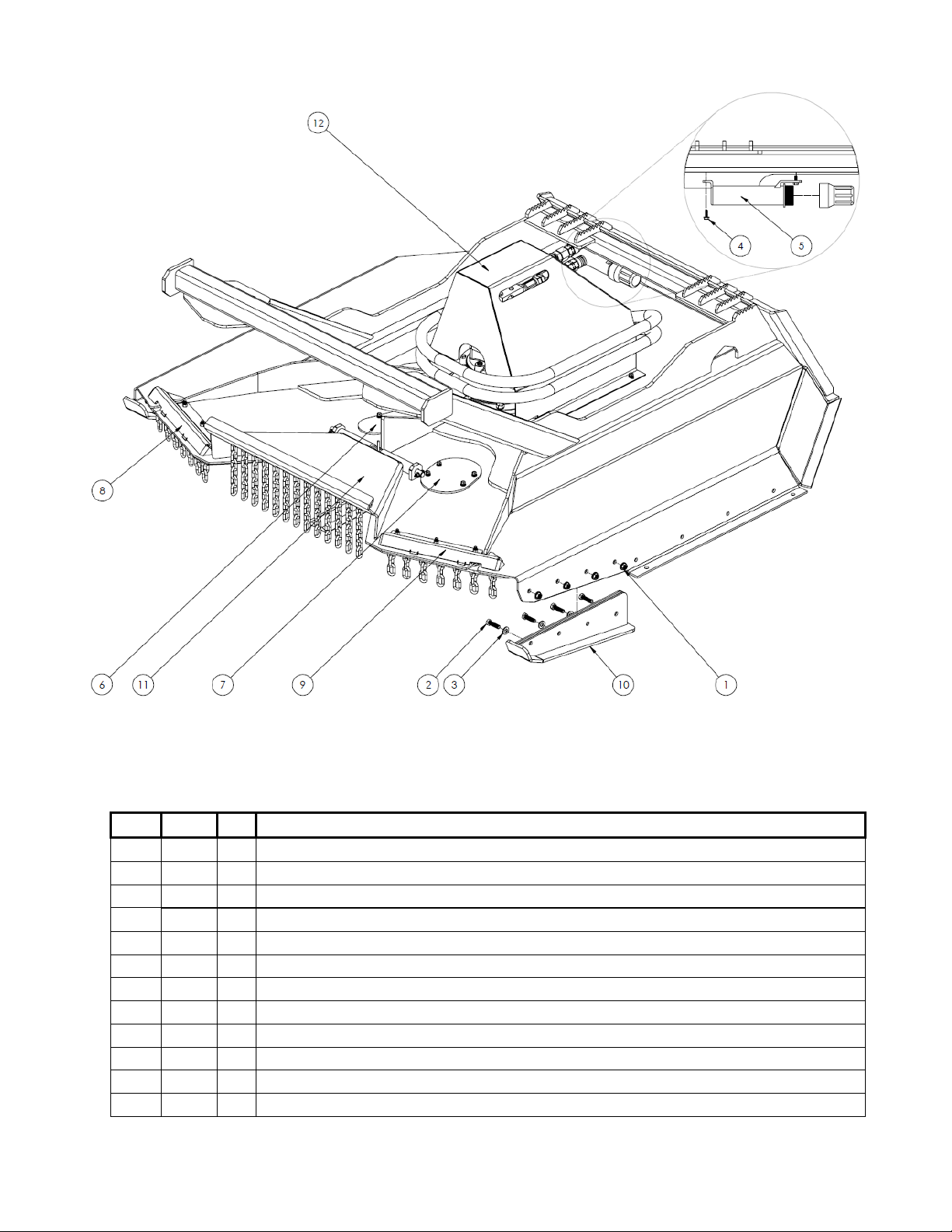

Parts List Diagrams
…………………………………………………....
14-18

Congratulations on the purchase of your
PREMIER Ammbusher Brush Cutter
You have invested in a quality piece of equipment, backed by people with years of experience.
Your new PREMIER Ammbusher Brush Cutter is designed and built to cut nearly all types of
brush, grasses, shrubs, and small trees over a variety of terrains. When attached to a skid
loader, it is highly maneuverable for close cutting in tight areas.
But only by proper installation, operation, and maintenance can you expect to receive the
dependable performance and long life for which the attachment was designed. This manual
contains important information regarding the installation, operation, safe use, care and
maintenance of your PREMIER Ammbusher Brush Cutter. Please be sure that all operators
study this manual carefully and keep it on file for future reference. Don’t forget to send in your
owners registration form.
After reading this manual, if you have any questions about your PREMIER Ammbusher Brush
Cutter, please contact us immediately as follows:
Toll Free:
[phone]
Local:
[phone]
Fax:
[phone]
Web:
www.premierattach.com
E-Mail:
[email protected]
Premier strives to provide superior products and the highest level of customer service. If you have
any suggestions on how we can improve for the future, we would appreciate hearing from you.
Thank you for putting your trust in PREMIER.
Premier Attachments, Inc.
2707 Lofty Drive
Fort Wayne, IN 46808
2

PREMIER AMMBUSHER
BRUSH CUTTER
WARRANTY POLICY
Model #______________________________ Serial #_______________________________
PREMIER warrants its products to be free from defects in material or workmanship for a warranty period as
stated below.
AD720 BRUSH CUTTER: 12 Months
The warranty period begins on the date of purchase by the original purchaser.
Warranty Performance
To make a claim under this warranty, contact the dealer purchased from, who will then obtain written return
authorization from PREMIER. All warranty returns must be accompanied by a PREMIER Return Authorization.
Remedy
During the applicable warranty period, PREMIER at its option, will repair or replace, free of charge, any product
determined by it to be defective. Such repair or replacement shall take place at a location designated by PREMIER.
Exclusions From Warranty Coverage
1. To qualify for warranty performance the complete unit must be available for PREMIER’s inspection in its
original “failed” condition.
2. There is no warranty against failures caused by or related to alterations or modifications made without
the express written consent of PREMIER.
3. This warranty does not cover damage to the motor and/or gearbox from pressure spikes due to improper
hydraulic system application.
4. This warranty does not cover disassembly of components, i.e., spindles, gearboxes, motors which
voids component warranty.
5. Under no circumstances shall PREMIER be responsible for the cost of labor for field replacement or repair, nor
for damage caused by accident, misapplication, abuse, misuse, operator error, or environmental elements.
6. This warranty does not apply to parts subject to normal wear, such as Blades nor to damage caused by the
failure to perform recommended maintenance or to replace worn parts.
7. Under no circumstances shall PREMIER be obligated for the cost of any repair or replacement by
anyone other than Premier Auger, without its express written consent.
Limitations And Exclusions
This warranty is in lieu of all other warranties written or oral, express or implied, statutory or otherwise arising
by operation of law, including any warranty of merchantability or fitness for purpose.
The liability of PREMIER arising out of the supplying of any product covered by this warranty contract, negligence or
otherwise shall not in any case exceed the cost of parts or labor required to rebuild or replace such defective
product, together with the transportation costs attributable thereto. Upon the expiration of the applicable warranty
period herein specified, all such liability shall terminate.
This warranty constitutes the entire warranty of PREMIER, and no oral representations, warranties or guarantees
by any agent of PREMIER or the seller shall be binding on PREMIER, and no part of this warranty may be modified
or extended except upon the express written consent of PREMIER.
Improvements
PREMIER continually strives to improve our products. PREMIER reserves the right to make changes or additions to
any product without incurring any obligation whatsoever to make such changes or additions to products previously
sold.
3

Cut on dotted line
PREMIER
WARRANTY REGISTRATION
DATE PURCHASED_____________________________
MODEL NO.___________________________________ SERIAL#________________________________
OWNER INFORMATION
OWNER’S NAME_____________________________________ PHONE___________________________
COMPANY NAME_____________________________________________________________________________
ADDRESS___________________________________________________________________________________
CITY____________________________________________ STATE/PROVIDENCE __________________
ZIP CODE__________________________________ COUNTRY__________________________________
DEALER INFORMATION
DEALER SALESMAN________________________________ PHONE__________________________
DEALER NAME _____________________________________________________________________________
ADDRESS___________________________________________________________________________________
CITY____________________________________________ STATE/PROVIDENCE __________________
ZIP CODE__________________________________ COUNTRY__________________________________
INSTALLATION & APPLICATION INFORMATION
This PREMIER Ammbusher Brush Cutter Attachment will be mounted on:
SKID STEER MAKE (Brand)_______________________ MODEL_________________________________
APPLICATION_______________________________________________________________________________
This PREMIER Ammbusher Brush Cutter has been accepted in good condition and I have been instructed by the
dealer to read and understand the entire Operator’s Manual for proper installation, proper and safe operation,
preventative maintenance, service, warranty, and all other information covered in the Operator’s Manual. I also
understand that all operators must read and understand the entire Operator’s Manual.
OWNER’S SIGNATURE_______________________________________ DATE______________________
DEALER’S SIGNATURE_______________________________________ DATE______________________
THIS PAGE MUST BE RETURNED WITHIN 10 DAYS OF PURCHASE TO VALIDATE WARRANTY
MAIL TO: PREMIER
2707 Lofty Drive
Ft. Wayne, IN 46803

#1 - Fold down here 
From:
________________________________ Place
________________________________ Postage
Here
________________________________
PREMIER
2707 Lofty Drive
Fort Wayne, IN 46808
#2 - Fold up here 
#3 - Tape or seal here 

SAFETY INFORMATION
TO THE OPERATOR
It is the responsibility of all operators to read and understand this entire manual before installing, operating or
servicing the PREMIER Ammbusher Brush Cutter. Pay particular attention to cautions, warnings and safe operating
procedures. Be a safe and qualified operator. Operate your equipment with care and good judgment and see to it
that it is properly maintained.
SAFETY DECALS
WORN, DAMAGED OR ILLEGIBLE SAFETY DECALS MUST BE REPLACED. New safety decals can be ordered
from Premier. Safety decals for Premier Ammbusher Brush Cutters are ordered and packaged in sets only.
SAFETY INSTRUCTIONS
DISCHARGE DANGER LABEL
The PREMIER Brush Cutter discharges materials out the front. When cutting
with the PREMIER Brush Cutter, never discharge material toward bystanders
nor allow anyone near the machine while in operation.
When cutting near bystanders is unavoidable, do not operate the cutter without Front
Deflector Chains in place, and do not cut in the direction of bystanders. Bystanders
must be at least 75 ft (23M) away when operating.
Clear the work area of objects (fencing, rocks, bottles, wire, etc.) which might be
picked up and thrown.
Always use a shatterproof cab door for your loader or the 3/8” thick safety door when
cutting brush. This is not only to protect you from thrown objects, but primarily to
prevent overhanging or protruding objects such as rebar, tree limbs, or other objects
from entering the cab and causing operator injury.
Disengage power to the PREMIER Brush Cutter and shut the loader engine OFF
before leaving the operators cab.
Shut the PREMIER Brush Cutter down and the loader engine OFF before performing
any inspection or maintenance to the cutter.
NEVER place hands or feet under the Brush Cutter deck or near any moving parts when
unit is running. Always keep clear of front discharge area when operating Brush Cutter.
CAUTION LABEL
If this label is on your machine, it means your machine is not equipped to
operate with hi-flow loaders. Use on hi-flow loaders will cause premature
motor failure. PREMIER is not responsible for damage incurred to the
hydraulic motor due to hi-flow usage.
HYDRAULIC LEAK WARNING LABEL
The PREMIER Ammbusher Brush Cutter has been designed to reduce the
likelihood of hydraulic system leakage. Each Brush Cutter’s hydraulic system
is tested and inspected prior to shipping. However, over time, any hydraulic
system may develop fluid leaks, and very small leaks may produce high-
pressure discharge flows capable of causing injury should skin come in
contact with such discharge.
6

SAFETY INFORMATION
(continued)
Do not raise the back of the PREMIER Brush Cutter (nearest operator) over 2 feet off the ground. Never
expose yourself or a bystander to the rotating blades.
When driving the loader to and from the worksite, carry the PREMIER Brush Cutter as low as possible to the
ground to avoid the possibility of tipping forward.
Do not carry passengers on the PREMIER Brush Cutter.
Never leave the PREMIER Brush Cutter unattended in a raised position.
The loader and PREMIER Brush Cutter should be stopped and inspected for damage after striking a foreign
object, and the damage should be repaired before restarting and continuing cutting.
Cut only in daylight or good artificial light.
Keep all nuts, bolts and screws tight, and be sure the equipment is in a safe working condition.
Check the blade mounting bolts for proper tightness at frequent intervals.
When working under the PREMIER Brush Cutter, always securely block it up. If attached to your loader,
visually inspect your lock-on pins to make sure the Brush Cutter is locked onto your loader. Remember, the
PREMIER Ammbusher Brush Cutter weighs more than 1600 lbs.
Reduce speed on slopes and make turns gradually to prevent tipping or loss of control. Exercise caution
when changing direction on slopes.
Stay alert for drop-offs or holes in the terrain.
Use caution when walking on the Brush Cutter deck. The deck can be slick when wet.
Never drive your skid loader with your PREMIER Brush Cutter raised more than 2 feet. Children are small.
Be aware of their presence and ALWAYS make sure you can see what you are cutting.
7

HOOK-UP PROCEDURES
NOTE: BECAUSE OF THE DIFFERENCES IN ATTACHMENT MOUNTING METHODS AMONG THE VARIOUS
BRANDS OF SKID STEER LOADERS, IT IS IMPORTANT TO CONSULT YOUR SKID STEER OWNERS
MANUAL FOR THE PROPER ATTACHMENT MOUNTING METHOD.
1. Pull up and connect the Brush Cutter to your loader.
2. Secure locking levers. NOTE: Do not attempt to operate attachments with damaged or disengaged lock pins.
3. Connect (2) hydraulic hoses.
TO REMOVE BRUSH CUTTER ATTACHMENT
NOTE: BECAUSE OF THE DIFFERENCES IN ATTACHMENT MOUNTING AND REMOVAL METHODS
AMONG THE VARIOUS BRANDS OF SKID STEERS, IT IS IMPORTANT TO CONSULT YOUR SKID STEER
OWNERS MANUAL FOR THE PROPER ATTACHMENT REMOVAL METHOD.
1. Lower the PREMIER Brush Cutter to ground level.
2. Stop the engine, release hydraulic pressure in hoses and disconnect auxiliary hoses.
3. Release the locking levers and disengage the loader mounting plate.
OPERATING INSTRUCTIONS
The PREMIER Ammbusher Brush Cutter is capable of cutting trees and vegetation of varying height up to 7” in
diameter. Designed to make your loader more versatile, the PREMIER Ammbusher Brush Cutter is intended to
perform these functions without the front of the mower deck being raised to a vertical height greater than 3
feet.
As an additional safety feature, the PREMIER Ammbusher Brush Cutter is designed with a front-edge chain
curtain. This is provided to reduce the likelihood of discharged objects. Always use a safety door on the front of
your loader to provide the operator an additional level of protection from both overhanging objects (such as tree
limbs) and the potential of discharged objects.
1. Start the Brush cutter with the loader running slightly above idle. Engage the loader hydraulics and gradually
throttle up to the desired RPM. Maintaining a constant RPM, along with a slower travel speed, will increase your
cutting efficiency.
2. Raise the back of the Brush Cutter (nearest the operator) 4 or 5 inches off the ground. This is necessary for
material to clear from under the cutting deck. Rotate the Brush Cutter front up or down so that the skid rails
are 1 - 2 inches off the ground. The Brush Cutter deck will be sloping front-down (away) from the operator.
This is the optimum method for cutting close to the ground.
Never drive your loader with the Brush Cutter raised more than 2 feet or tilted to the point that your
view is obstructed. Always make sure you can see what you are cutting.
Never operate the Brush Cutter in populated areas, or where thrown objects could injure persons or
damage property. Safety chains MUST be installed.
Never raise the back of the Brush Cutter more than 2 feet off the ground. Never expose yourself or anyone else
to the rotating blades. If you can see the rotating blades when operating the unit, the back of the Brush Cutter
is raised too high.
3. When cutting large brush, operate the PREMIER Ammbusher Brush Cutter in the following manner:
Slowly drive into the tree and allow the front spring door to open up as you bend the tree with the push bar.
This allows the blades to cut the tree off. The tree can now be mulched by rotating the front up, driving forward
several feet, rolling the front down onto the tree and back-dragging. Keep in mind that, although you can cut
larger trees, the operational life of the attachment may be shortened.
8

REPAIR AND MAINTENANCE
PART “A”

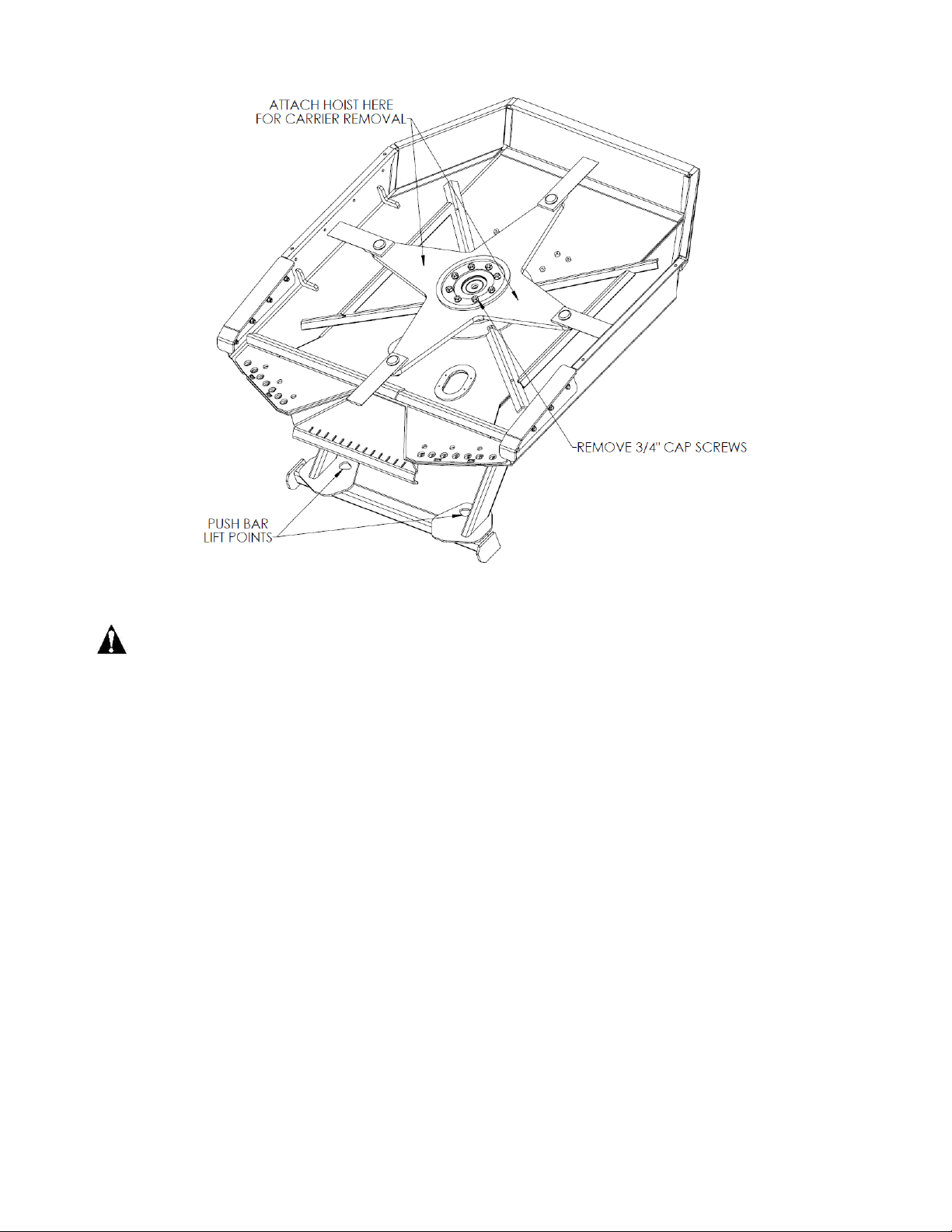

BLADE CARRIER REMOVAL
This operation should be performed by an authorized dealer or qualified technician. The blade carrier
weighs approximately 250 pounds. Should it unexpectedly shift during removal, it could result in
personal injury. An overhead hoist with the appropriate lifting capacity is recommended for this
operation.
1. Set the Brush Cutter flat on the ground. Turn the skid loader engine off to disconnect the hydraulic
hoses from the loader. Then, safely disconnect the Brush Cutter from the loader.
2. Attach the hoist to the two lifting points on the push bar.
3. Lift the front of the Brush Cutter, allowing it to lay back upside down, while blocking and bracing the rear
of the Brush Cutter to protect the motor cover and hydraulics.
4. Block the Brush Cutter to ensure that it is stable.
5. Attach the hoist to two opposite arms on the blade carrier and apply very light tension. This is a safety
precaution to be taken before removing the cap screws.
6. Remove the (8) cap screws and (8) washers that secure the blade carrier to the drive flange, and lift the
blade carrier with the hoist.
PART “B”
BLADE CARRIER INSTALLATION
1. With the brush cutter laying upside down and blocked up for stability, attach a hoist to the blade
carrier and lift into place. Align the holes on the blade carrier to the holes on the drive flange.
2. Reinstall the (8) cap screws and (8) washers, securing the blade carrier to the drive flange. A permanent
threadlocker should be applied to the cap screws before installation.
3. Attach the hoist to the lifting points on the push bar.
4. Lift with the hoist to set the Brush Cutter back on the ground in its normal position.
9

REPAIR AND MAINTENANCE
PART “C”
REMOVAL AND INSTALLATION PROCEDURE FOR REPLACING BLADES
Note: This step is the same for both the standard and carbide blade carrier. (Carbide carrier shown above)
1. Set the brush cutter flat on the ground. Turn the skid loader engine off to disconnect the hydraulic hoses from
the loader. Then, safely disconnect the Brush Cutter from the loader.
2. Remove the blade service door to expose the access hole in the deck.
3. Lift the front door weldment and secure it with a strap. Then, rotate the blade carrier until the blade-attaching
nut is aligned in the access hole.
4. From the top of the deck, insert a socket through the access hole onto the blade nut and remove it. The blade
and blade bolt should drop to the ground.
5. Replace or sharpen the blade. Also inspect and replace any damaged blade bolt. ALL blade nuts must be
replaced once they have been removed.
6. Reinstall by aligning the blade with the bolt thru-hole. Install the bolt from the bottom-up and tighten the nut
through the access hole on the top of the deck.
7. Repeat the above process on all 3 remaining blades.
NOTE: Only use genuine PREMIER Ammbusher replacement parts. Blades should be replaced in
pairs on opposite sides of the carrier to maintain balance.
PART “D”
INSTALLING OR REPLACING CARBIDE STUMP GRINDING TEETH
Note: This step only applies to the carbide blade carrier (shown above).
1. Set the Brush Cutter flat on the ground. Turn the skid loader engine off to disconnect the hydraulic hoses from
the loader. Then, safely disconnect the Brush Cutter from the loader.
2. Remove the carbide tooth service door to expose the access hole in the deck.
3. Lift the front door weldment and secure it with a strap. Then, rotate the blade carrier until the tooth
holders are aligned in the access hole of the Brush Cutter deck.
4. From the top of the deck, insert a socket through the access hole onto one of the (8) carbide tooth nuts and
remove. Repeat on the other (7) nuts and remove the carbide teeth from the blade carrier.
5. From the bottom of the blade carrier, insert the threaded end of a carbide tooth through the holder and secure
it with a lock nut. Note: The carbide teeth should be oriented with the cutting edges facing outward.
6. Rotate the blade carrier to the next row of carbide teeth and repeat the above steps. It is recommended that
all teeth in all positions be installed in order to help keep the carrier balanced.
10

REPAIR AND MAINTENANCE
PART “E”
MOTOR REMOVAL
1. Set the Brush Cutter flat on the ground. Turn the skid loader engine off to disconnect the hydraulic hoses
from the loader. Then, safely disconnect the Brush Cutter from the loader.
2. Remove the motor cover.
3. Lay rags over the T-fitting ends connected to the motor’s straight fittings and slowly disconnect them. There
will be some hydraulic fluid leakage. Then, remove the straight fittings from the motor.
4. Remove the (6) cap screws and (4) washers holding the motor to the bearing hub.
5. Carefully lift the motor out of the bearing hub. Note the orientation of the motor for future reassembly.
6. To reinstall the new motor, perform the above steps in reverse order. Be sure to apply a permanent
threadlocker to the cap screws before tightening.
PART “F”
BEARING HUB REMOVAL
1. Set the Brush Cutter flat on the ground. Turn the skid loader engine off to disconnect the hydraulic hoses
from the loader. Then, safely disconnect the Brush Cutter from the loader.
2. Remove the blade carrier. Follow the instructions on Blade Carrier Removal in Part “A” of this manual.
3. Remove the motor. Follow the instructions on Motor Removal in Part “E” of this manual.
4. Remove the (8) cap screws and (8) washers holding the bearing hub to the mounting ring on the deck of the
Brush Cutter. Lift the bearing hub off of the mounting ring, using caution not to spill the oil from inside the
bearing hub.
5. To reinstall the bearing hub, perform the above steps in reverse order. Be sure to apply a permanent
threadlocker to the cap screws before installation. After bolting the bearing hub in place, add the
appropriate amount of gear lubricant. Refer to Part “G” of this manual for proper lubrication.
6. Refer to Part “E” and Part “B” of this manual for reinstallation of the motor and blade carrier, respectively.
11

REPAIR AND MAINTENANCE
PART “G”
CHANGING OIL IN THE BEARING HUB
NOTES:
It is recommended that an oil pump is used for the removal of the old oil from the bearing hub.
The proper oil level is approximately 2” from the top of the plug hole on the bearing hub housing. Be careful
not to overfill.
1. Set the Brush Cutter flat on the ground. Turn the skid loader engine off to disconnect the hydraulic hoses
from the loader. Then, safely disconnect the Brush Cutter from the loader.
2. Remove one of the plugs on the top of the bearing hub.
3. Insert the oil extraction hose into the bearing hub and remove all the oil from the bearing hub. Place the
used oil in an appropriate waste oil container for proper disposal.
4. After the used oil has been removed from the bearing hub, refill it to the proper level. The bearing hub oil
capacity is approximately 2.50 US quarts of a GL-5, 80-90W gear lubricant.
5. Reinstall the plug.
PART “H”
REMOVING HYDRAULIC HOSES
Safety Note: There may be pressure in the hydraulic lines. Wear safety glasses and gloves when performing
this operation.
1. Set the Brush Cutter flat on the ground. Turn the skid loader engine off to disconnect the hydraulic hoses
from the loader. Then, safely disconnect the Brush Cutter from the loader.
2. Remove the motor cover.
3. Remove the hose holders restraining the hoses to the bulkhead weldment.
4. Connect the (2) quick-connect ends of the hoses together. Place the attached quick-connect ends of the
hoses lower than the motor. This will reduce the amount of oil leakage during removal.
5. Lay rags over the hose fittings, then slowly unscrew the hose ends from the T-fitting connected to the
manifold.
6. Drain the hoses into a receptacle for proper disposal of oil
12

BILL OF MATERIALS
PART #
QTY.
PART DESCRIPTION
61095
1
1/4” F Pipe x #6 90F JIC x 16” Hose
40005
8
1/2” Crown Lock Flange Nut
61127
1
D-Series Shuttle Valve Brush Cutter, SHV25
40015
8
3/8”-16 Top Lock Nut
65026
1
Model 8 Flange Output, AD 1:1, 8T2C1400F5Z
40055
16
5/16” Split Lock Washer
84339
14
5/16" Chain, 4-Link Length
40067
8
3/4” Nord-Lock Washer
84363
4
1-1/8” Blade Nut
40070
2
1/4”-20 x 1-1/2” HHCS, Grade 5
84365
4
Blade Bolt, BB10
40072
2
1/4" Crown Lock Nut, Grade 5
84516
4
1/4" Flat Washer, Grade 5
40074
10
5/8" Nord-Lock Washer
85161
2
5/16" x 3/4" Self-Tap SC-HWSLTCS
40075
16
5/16"-18 x 1" HHCS, Grade 5
85225
4
DL-66 Blade
40076
16
5/16" Flat Washer, Grade 5
85267
1
Torsion Spring, Door
40078
10
5/8"-11 x 1-3/4" HHCS, Grade 8
85371
1
Mini Manual Holder 70111
40082
8
3/4”-10 x 2-1/2” HHCS, Grade 8
85374
85375
MDH 20 Motor
MDH 25 Motor
40084
2
1/2”-13 x 3/4” HHCS, Grade 5
85376
85461
1
MDH 30 Motor
MDH 35 Motor
40087
4
Cotter Pin, 1/16" x 1-3/8" Long
85377
85462
MDH 40 Motor
MDH 45 Motor
40088
6
3/8" x 1-1/4" Carriage Bolt
85493
2
1/2" Nord-Lock Washer
41004
2
3/8" Flat Washer, Grade 5
87517
1
AC/AD Door Chain Bar
41028
3
6-32 X 1/2", MMC #93310A148
87525
1
AC/AD Door Hinge Pin
45006
2
1/2”-13 x 1-1/2” HHCS, Grade 5
87529
1
AC/AD Carbide Tooth Service Door
45008
8
1/2"-13 x 1-3/4" HHCS, Grade 5
87530
1
AC/AD Blade Service Door
45011
8
1/2" Flat Washer, Grade 5
87551
13
5/16" Chain, 7-Link Length
61006
61043
1
Quick Coupler, 1/2" FF Female
Quick Coupler, 3/4" FF Female
87579
1
AC/AD Chain Bar Cover, Right
61007
61044
1
Quick Coupler, 1/2" FF Male
Quick Coupler, 3/4" FF Male
87580
2
AC/AD Side Chain Bar
61077
2
AC Adaptor, #16F x #12MB
87586
1
AC/AD Chain Bar Cover, Left
61078
1
AC Bulkhead Fitting, #6M JIC x #6M JIC
88115
2
AD Skid Shoe Weldment
61082
1
AC Hydraulic Pressure Gauge
88116
1
AC/AD Door Weldment
61086
2
#20MB x #16M JIC Fitting
88121
1
AC/AD Hood Weldment
61087
2
#16F x #16F x #16F Tee Fitting
*88123*
1
AD Blade Carrier Weldment
61088
2
#16M JIC x #6M JIC Fitting
88124
1
AD Brush Cutter Bulkhead Weldment
61089
2
#16M JIC x #16M JIC Fitting
61090
2
#6M JIC x 1/4” M Pipe Fitting
AD720C PARTS
61092
2
1” x 116” Hose, #16 90F JIC x #16MB
40069
32
5/8"-18 Crown Lock Nut, Grade 8
61093
1
#6F JIC x #6 90F JIC x 16” Hose
87542
32
AC Carbide Tooth
61094
1
#6F JIC x #6 90F JIC x 24” Hose
*88129*
1
AD Carbide Blade Carrier Weldment (replaces 88123)
13

PARTS LIST DIAGRAMS
Figure A: Full Assembly
REF. #
PART #
QTY.
PART DESCRIPTION
1
40005
8
1/2" Crown Lock Flange Nut
2
45008
8
1/2"-13 x 1-3/4" HHCS, Grade 5
3
45011
8
1/2" Flat Washer, Grade 5
4
85161
2
5/16" x 3/4" Self-Tap SC-HWSLTCS
5
85371
1
Mini Manual Holder 70111
6
87529
1
AC/AD Carbide Tooth Service Door
7
87530
1
AC/AD Blade Service Door
8
87579
1
AC/AD Chain Bar Cover, Right
9
87586
1
AC/AD Chain Bar Cover, Left
10
88115
2
AD Skid Shoe Weldment
11
88116
1
AC/AD Door Weldment
12
88121
1
AC Hood Weldment
14

Figure B: Blade Carrier (Standard)
Figure C: Blade Carrier (Carbide)
REF. #
PART #
QTY.
PART DESCRIPTION
1
40067
8
3/4” Nord-Lock Washer
2
40082
8
3/4”-10 x 2-1/2” HHCS, Grade 8
3
84363
4
1-1/8” Blade Nut
4
84365
4
Blade Bolt, BB10
5
85225
4
DL-66 Blade
6B
88123
1
AD Blade Carrier Weldment
6C
88129
1
AD Carbide Blade Carrier Weldment
7
40069
32
5/8"-18 Crown Lock Nut, Grade 8
8
87542
32
AC Carbide Tooth
15

Figure D: Bearing Hub & Motor
REF. #
PART #
QTY.
PART DESCRIPTION
1
40055
4
5/16” Split Lock Washer
2
40074
10
5/8" Nord-Lock Washer
3
40075
4
5/16"-18 x 1" HHCS, Grade 5
4
40076
4
5/16" Flat Washer, Grade 5
5
40078
10
5/8"-11 x 1-3/4" HHCS, Grade 8
6
40084
2
1/2”-13 x 3/4” HHCS, Grade 5
7
45006
2
1/2”-13 x 1-1/2” HHCS, Grade 5
8
61086
2
#20MB x #16M JIC Fitting
9
65026
1
Model 8 Flange Output, AD 1:1, 8T2C1400F5Z
85374
85375
MDH 20 Motor
MDH 25 Motor
10
85376
85461
1
MDH 30 Motor
MDH 35 Motor
85377
85462
MDH 40 Motor
MDH 45 Motor
11
85493
2
1/2" Nord-Lock Washer
12
88121
1
AC/AD Hood Weldment
A B
**Connects to reference lines in Figure E**
16

Figure E: Bulkhead Assembly & Hose Kit
REF. #
PART #
QTY.
PART DESCRIPTION
1
40055
4
5/16” Split Lock Washer
2
40075
4
5/16"-18 x 1" HHCS, Grade 5
3
40076
4
5/16" Flat Washer, Grade 5
4
41028
3
6-32 X 1/2", MMC #93310A148
5
61006
61043
1
Quick Coupler, 1/2" FF Female
Quick Coupler, 3/4" FF Female
6
61007
61044
1
Quick Coupler, 1/2" FF Male
Quick Coupler, 3/4" FF Male
7
61077
2
AC Adaptor, #16F x #12MB
8
61078
1
AC Bulkhead Fitting, #6M JIC x #6M JIC
9
61082
1
AC Hydraulic Pressure Gauge
10
61087
2
#16F x #16F x #16F Tee Fitting
11
61088
2
#16M JIC x #6M JIC Fitting
12
61089
2
#16M JIC x #16M JIC Fitting
13
61090
2
#6M JIC x 1/4” M Pipe Fitting
14
61092
2
1” x 116” Hose, #16 90F JIC x #16MB
15
61093
1
#6F JIC x #6 90F JIC x 16” Hose
16
61094
1
#6F JIC x #6 90F JIC x 24” Hose
17
61095
1
1/4” F Pipe x #6 90F JIC x 16” Hose
18
61127
1
D-Series Shuttle Valve Brush Cutter, SHV25
19
88124
1
AD Brush Cutter Bulkhead Weldment
A B
**Connects to reference lines in Figure D**
17

Figure F: Back Section
REF. #
PART #
QTY.
PART DESCRIPTION
1
40015
8
3/8”-18 Top Lock Nut
2
40055
8
5/16” Split Lock Washer
3
40070
2
1/4"-20 x 1-1/2" HHCS, Grade 5
4
40072
2
1/4" Crown Lock Nut, Grade 5
5
40075
8
5/16"-18 x 1" HHCS, Grade 5
6
40076
8
5/16" Flat Washer, Grade 5
7
40087
4
Cotter Pin, 1/16" x 1-3/8" Long
8
40088
6
3/8" x 1-1/4" Carriage Bolt
9
41004
2
3/8" Flat Washer, Grade 5
10
84339
14
5/16" Chain, 4-Link Length
11
84516
4
1/4" Flat Washer, Grade 5
12
85267
1
Torsion Spring, Door
13
87517
1
AC/AD Door Chain Bar
14
87525
1
AC/AD Door Hinge Pin
15
87529
1
AC/AD Carbide Tooth Service Door
16
87530
1
AC/AD Blade Service Door
17
87551
13
5/16" Chain, 7-Link Length
18
87579
1
AC/AD Chain Bar Cover, Right
19
87580
2
AC/AD Side Chain Bar
20
87586
1
AC/AD Chain Bar Cover, Left
21
88116
1
AC/AD Door Weldment
18
