Service Tips
Symptoms
Solution
BEFORE CALLING FOR SERVICE,HAVE YOU
ON SYMPTOMS ANDSOLUTIONS?
Try different channel,if OK,probably station trouble Check aerial connectiions on back of set
No picture,no sound
Poor sound,picture OK
Poor picture,sound OK
Weak picture
Blurred picture
Double image
Lines in picture
Distorted picture
Weak reception on some channels
Horizontal bars
Picture rolls vertically
Poor colour
No colour

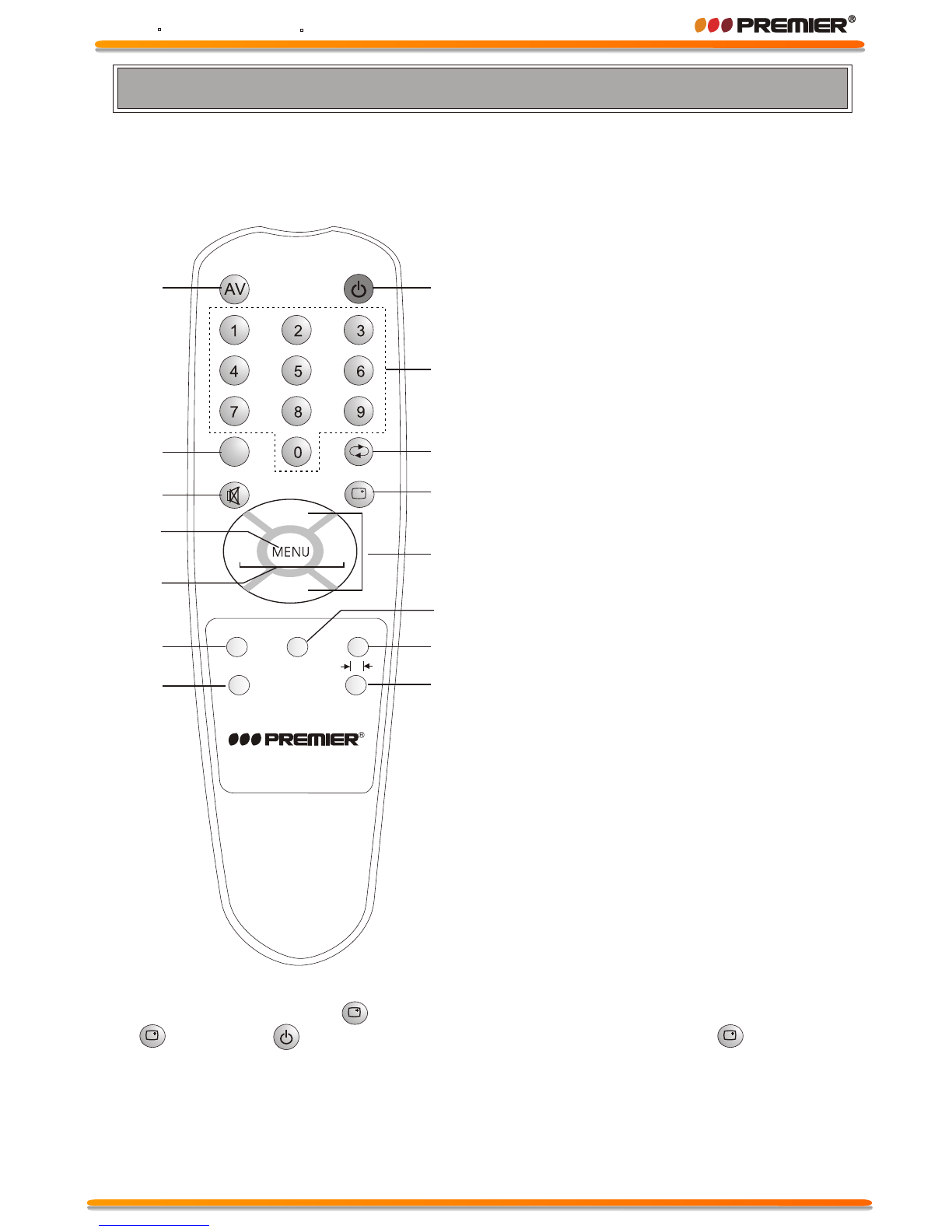

Misoperation of Remotecontrol
No Remote control
On screen DisplayControl outside thescreen
Check aerial for broken wires Re-orient aerial(if indoor type) Probably local interference,such as an appliance
Adjust fine tuning control Adjust brightness control Adjust contrast control
Check if station is broadcasting colour
Adjust colour control
Check if system switch is correct Check if on/off switch is on Check Batteries in Remote control

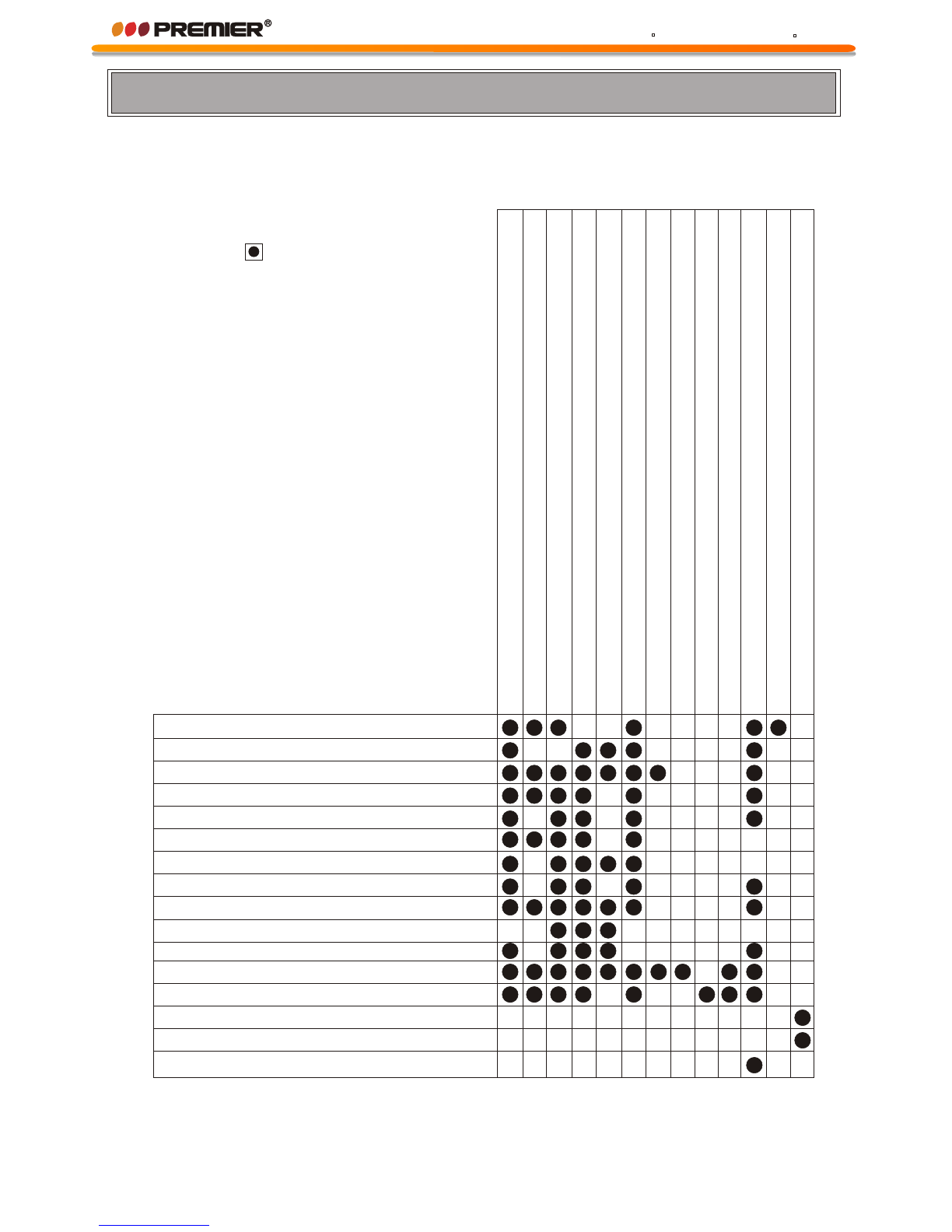

CHECKED( )THE FOLLOWING CHART
CTV-4016SR
INSTRUCTION MANUAL
COLOR TELEVISION
21
DEAR CUSTOMER
In order to achieve the best performance of your product, please read this instruction manual carefully before using,
and keep it for future reference.
If you need extra support, please write to [email protected]
multi-system
multi-system

WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM

Precaution
1. Read theseinstructions.
2. Keep theseinstructions.
3. Heed allwarnings.
4. Follow allinstructions.
5. Do notuse this apparatusnear water, the apparatus shall not be exposedto
dripping or splashing and that no objects filled with liquids, such as vases, shall
be placed onthe apparatus.
6. Clean only with dry cloth.
7. Do notinstall this apparatusin windtight places such as the wall-unit. Do notblock
any ventilation openings.
8. Do notinstall near anyheat sources such as radiators, heat registers,
stoves, or otherapparatus (including amplifiers)that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. Agrounding type
plug has two blades and a third grounding prong. The wide blade orthe third prong
are provided foryour safety. If the provided plug does not fitinto your outlet,
consult an electricianfor replacement ofthe obsolete outlet.
10. Protect the power cordfrom being walkedon or pinchedparticularly at plugs,
convenience receptacles, andthe point wherethey exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods
of time.
14. Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Batteries shall not be exposed to excessive heat such as sunshine,
fire or the like.
Used batteries shouldnot be throwninto the garbage can, please
leave them atan appropriate depot.
CAUTION
Where the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
CAUTION
These servicing instructionsare for useby qualified service
personnel only. To reduce therisk of electric shock, donot perform
any servicing other than that contained in the operating instructions
unless you are qualified to do so.
CAUTION
Battery Installation(Remote Control Unit)

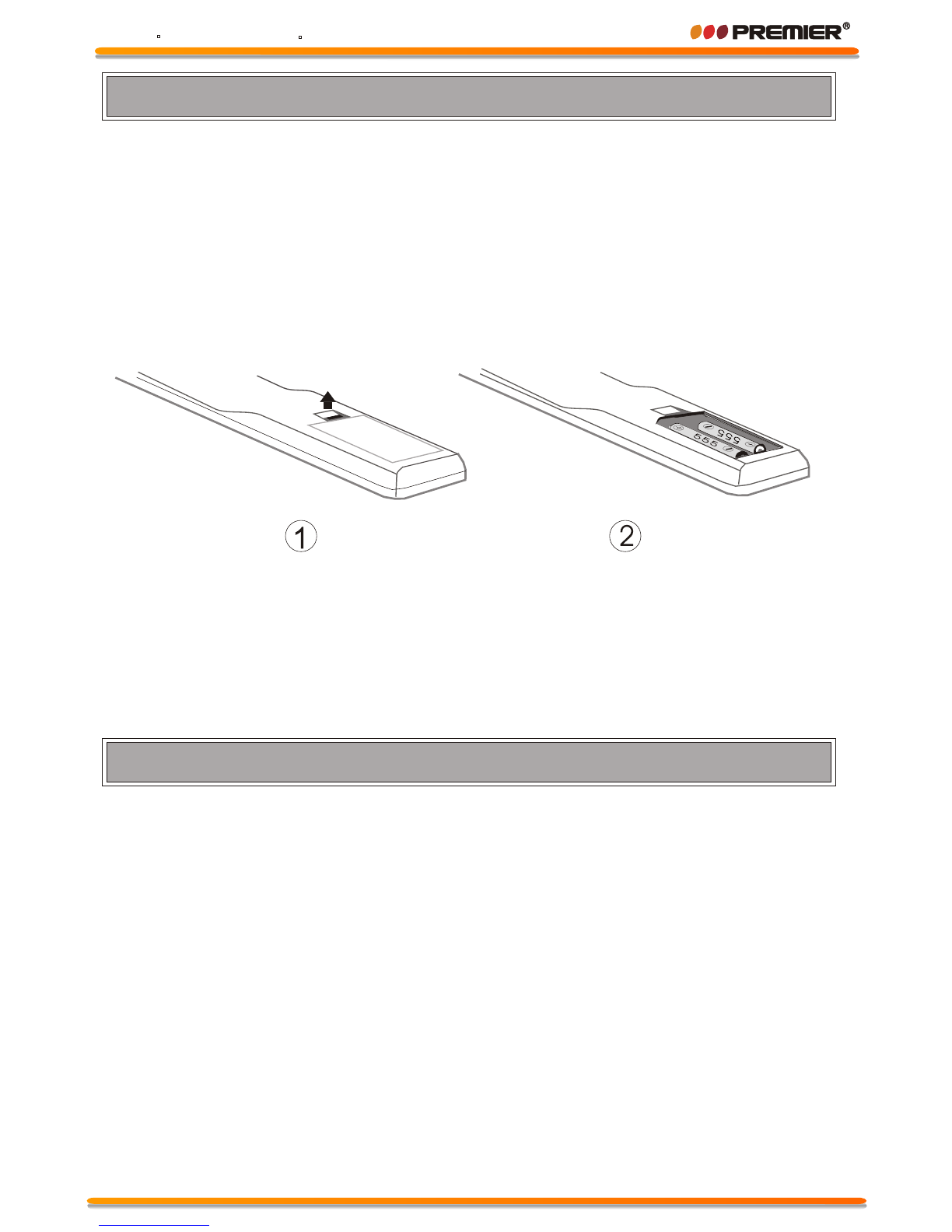

1.Remove the battery cover.
2.insert the batteries making sure the polarity(+or -)of the batteries
matches the polarity marks inside the unit.
3.Replace the battery cover.
Replace with new batteries when the TV set begins to show the following symptoms:
operation is unsteady or erratic. Sometimes the TV set does not function with Remote
control unit.
2 UM-4 AAA 1.5V
Remark:
1) Alkaline batteries recommended.
2) Remove batteries when they are exhausted or if the remote control is not to be
used for a long time.
The Causes of Interference
Incorporated in yourTV receiver are the most
up-to-date devices toeliminate interference.
Local radiation however, can create
disturbances which Visibly affect your picture.
Proper installation, agood aerial are your best
safeguards against thesedisturbances.
INTERFERENCE
Moving ripples acrossthe screen are caused
by nearby transmittingor receiving shortwave
radio equipment.
DIATHERMY
Herringbone pattern andpartial picture loss
can result fromthe operation of diathermy
equipment from anearby doctors surgery or
hospital.
SNOW
Weak TV signals from longdistant stations
result In anunsteady picture and give the
effect of falling snow. An antenna
adjustment or antennaamplifier may be
needed.
GHOST
Multiple images causedby TV signals
reflected back fromsurrounding buildings,
hills, aircraft, etc.are minimized by correct
aerial positioning.
CAR IGNITION
Nearby cars andelectrical motors can
cause small streaksacross the picture or
make the pictureroll.
WARNING:
The battery(battery orbatteries or battery pack)shall not be exposed to excessive
heat such as sunshine,fire or the like.
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Page 14
Page 1
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM

Specifications
Note: We will not notify customers particularly when there is any change happened in the
design and specification of the product. The pictures in the handbook may bear slight
differences from the real one. Please take actual products as the standard.
FEATURES
Language English
Blue screen On
Picture enhance Off
CCD On
CC mode CC1
Parental
Game
5) FEATURES MENU Function: other functions setting.
A. Using [P+]/[P-] keys,to select each item.
Using [V+]/[V-] keys,to change the value
of each item.
B.Using [P+]/[P-] keys, to select
Language .
Using [V+]/[V-] keys, Language will
change as follows:
C.Using [P+]/[P-] keys, select the"Blue screen".
Using [V+]/[V-]keys, select "On"or"Off".
D.Using [P+]/[P-] keys, select the"
Using [V+]/[V-]keys, select "On"or"Off".
E.Using [P+]/[P-] keys, to select "CCD .
Using [V+]/[V-]keys, to preset "ON"or "OFF".
F.Using [P+]/[P-] keys, to select the"C.C mode .
Using [V+]/[V-]keys, caption modewill change as follows.
G.Using [P+]/[P-] keys, to select the"GAME .
Using [V+]/[V-] keys, to enter the game.
Picture enhance".
"
"
"
English Francais Espanoc
Portugues
CC1 CC2 CC3 CC4 T1 T2 T3 T4
1. Television system
RF input: NTSC / PAL M / PAL N
Video input: NTSC / PALM / PAL N
2. Receive frequency range
US CH
181 Channels (Air+CATV)
3 Picture resolution
Horizontal 220
Vertical 320
4. Intermediate frequency
Picture IF 45.75MHz
Volume IF 41.25MHz
5. Luminance grades 8 grade
6. Sound power output 3W 2
7. Power supply AC 90-260V 50/60Hz
8. Power consumption 75W (standard status)
9. Screen size: 54cm
10. Dimension
11. Net Weight
600(W)x333(D)x441(H)mm
18.5kg
Note
All specifications are subject to change without notice.
All quality and size are approximate value.
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Page 2
Page 13
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM

Control Location
For control knobs (all panels subject to the real object), please refer
to your own TV set.
Front and Back Control Panel
Bright 75
Contrast 75
Color 50
Sharpness 50
Tint 0
1) [MENU] key
Press [MENU] key continuously, to scroll through the MENU selection,
as follows:

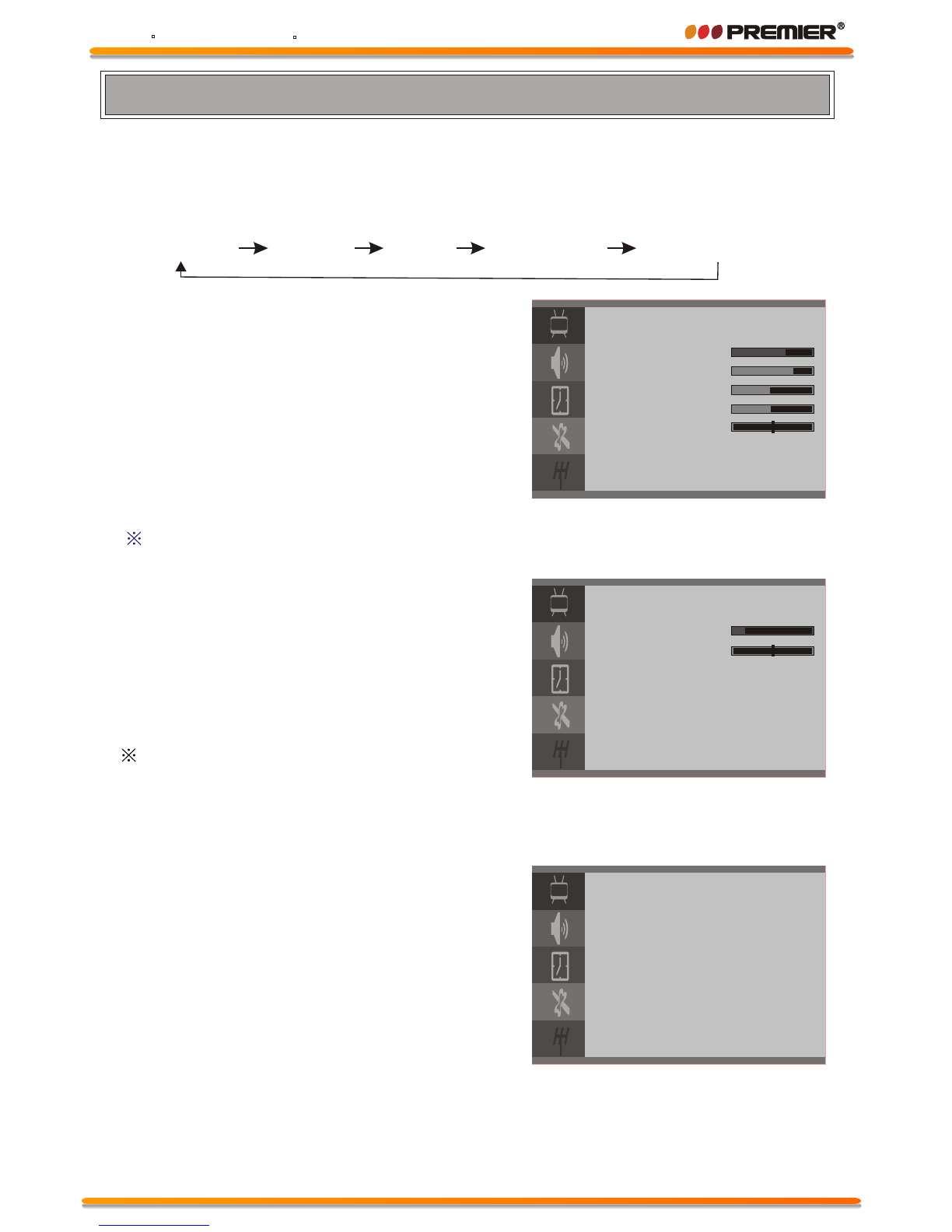

2) PICTURE MENU
A. Select each function using
[P+]/[P-] keys.
B. Each value can be controlled by
[V+]/[V-] keys.
C. Repeat any functions if required.
3) SOUND MENU
A.Select each function using
[P+]/[P-] keys.
B.Each value can be controlled
by [V+]/[V-] keys.
C.Repeat any functions if required.
Balance , AVL is option.
Menu Operation
The TINT will only appear when receiving thesignals of NTSCsystem.
PICTURE SOUND TIMER FEATURES INSTALLATION
SOUND
Volume 16
Balance 0
AVL Off
TIMER
Timer Off
Clock 11:09PM
Off time -- : --
On time -- : --
On channel 1
4) TIMER MENU Function: Timeand Timer setting.
A. Using [P+]/[P-] keys, to select
"Timer", "Clock","On time", "Off time"
or "On channel"
B. Using [P+]/[P-] keys, select "Timer".
Using [V+]/[V-] keys, channge Timer
On or Off.
C. For "Clock", "On time", "Off time"
setting.
Using [V+]/[V-] keys, select minutes
or hours.
Using [P+]/[P-] keys, set minutes or hours.
D. For "On Channel" setting.
Using [P+]/[P-] keys, select "On Channel" .
Using [V+]/[V-] keys, change On Channel number.
1. Speaker
2. Side AV In(Option)
3. AV/TV Button
4. Menu Button
5. Volume Down Button
6. Volume Up Button
7.Program Down Button
8. Program Up Button
9. Power Indicator
10. Remote Sensor
11. Power Switch
12. Speaker
13. ACpower Cord

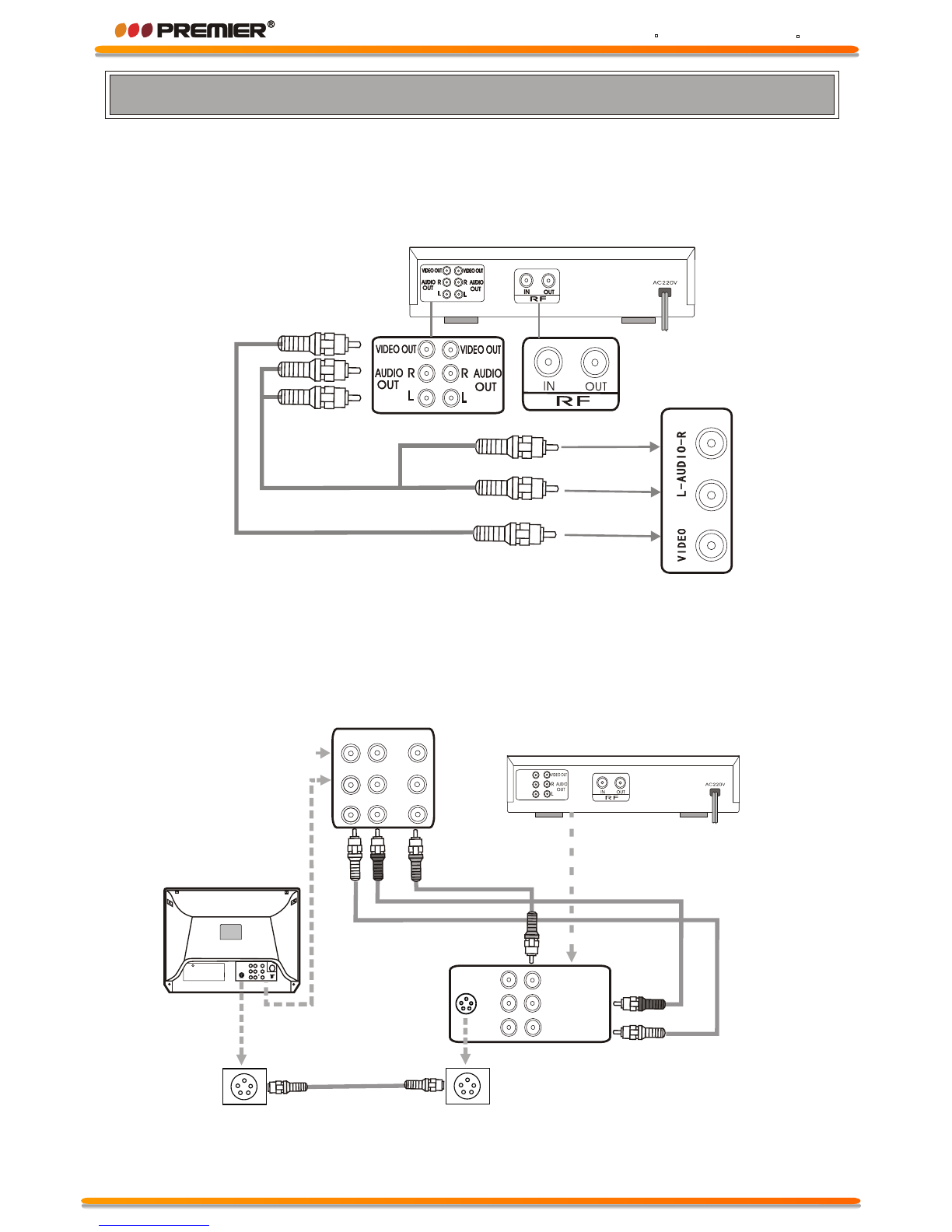

14. Audio/Video-in/out
15. Terminal Antenna(75Ohm)
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Page 12
Page 3
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
13 14 15 22
11

OPERATION INSTRUCTIONS OF PANEL
First insert powerplug and theninsert antenna or cable antenna into the socket
of antenna.
SWITCH ON AND OFF TV
When press Powerbutton, power isconnected. When pressPower button
again, power isoff. When TV is at stage ofsleep, it cannot be switchedon or
off by pressing the power button.
NOTE:
when TV isat stage ofsleep, it can be switched on or off bypressing the
sleep button onthe remote controller.
CAUTIONS:
In case thatelectricity is cutwhen watching TV, switch offthe power. If
TV is notwatched, please switchoff the power. When TV is at stage of
sleep, there isa part ofcircuit working and consuming electricity.
Operation of Function Board
Press "MENU" button and enter "Installation"
with P+/P- button selected "Auto search"
function and then press V+ or V- button starting
to search the channels automatically.
P+P-V+V-
TV/AV MENU
Automatic Search Channel
Change code
New code - - - -
Confirm - - - -
7) CCD
Select the program which is broadcasting the CCD
you want to watch. Press [CCD]key on theremote
control, "CCD On" appear on the screen and after
it disappears, the information of CCD will display
on the screen. By repeatedly pressing [CCD] key,
CCD will change between ON and OFF.
6) CHANGE PASSWORD
Select and enter "Change Code"menu,
A. Input a new PIN.
B. Input the PIN again to confirm.
CCD On
Parental
Lock Code - - - -
Lock Off
PG Rating
MPAA Rating: Off
Can. english: Off
Can. French: Off
Change code
3) PG RATING
When you select" U.S. TV",using [P+]/
[P-] keys, to move the cursor for up and
down.
Using [V+]/[V-] keys, to move the cursor
for right or left .
Using the [MENU] key, to preset view or
block.
4) MPAA RATING
When you select " MPAA RATING",Using [V+]/[V-] keys, to change setup.
5) CANADA ENGLISH AND CANADA FRENCH
When you select "Can.english" or "Canfrench" Using [V+]/[V-] keys, to
change setup.
1) SELECT VCHIP MODE
A. Press [MENU] key repeatedly to select
"FEATURES".
B. Press [P+]/[P-] keys, to select "parental".
C. Press [V+]/[V-] keys, to parental menu
appears.
PG Rating
Rating Status FV V S L D
TV-Y View
TV-Y7 View V
TV-G View V V V V
TV-PG View V V V V
TV-14 View V V V V
TV-MA View
VCHIP and CCD
2) VCHIP Password
A. Factory mode PIN is "0000", the common PIN is "4100".
B. Input the correct PIN, then can set the next items, include "PG Rating",
"MPAARating", "Can.english", "Can. French".
C. "Lock" is general lock, only when this item is on, parental mode can be
effective. When parental mode is effective, the screen is blue background
and sound is mute.
D. Using [P+]/[P-] keys, to move the cursor.
Using [V+]/[V-] keys, to select each item.
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Page 4
Page 11
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM

This TV set can be connected to videotape player, videodisc player,
video camera, game player or audio player.
NOTE:
VCD PLAYER
Front AV terminal
Connection to Other Equipment
Back AV terminal
Y
Cr
Cb
DVD PLAYER
Y
Cr
Cb
TV
L
Y
CrCb
IN
IN
OUT
V R
L
V R
Y,Cr, Cb,input (OPTION)
S-VIDEO(OPTION)
VIDEO OUT
R AUDIO
OUT
L
Video/ Audio equipment can be connected to sockets of AUDIO IN
or VIDEO IN in rear
1) Auto Search Function:
Automatic Search and Memory (ASM)
Using the [MENU] key on the front or
the [MENU] key on the Remote forASM.
A. Press [MENU] key repeatedlyto select
INSTALLATION
B. Press [P+]/[P-] keys to select Tuning
mode .
Repeatedly pressing [V+]key, signal input model will change as follows:
and select input model.
C. Press [P+]/[P-] keys to select Auto search
D. Press [V+] key, to start ASM .
2) FINE TUNING Function: Fine Tuning for current setting.
A. Using [P+]/[P-] keys, to select Channel . Using [V+]/[V-] keys, to change
Program Number.
B. Using [P+]/[P-] keys, to select Fine ture .
C. Using [V+]/[V-] keys, to adjust for best tuning.
3) SKIP Function: Use to SKIP Programs. After setting to ON , the
program will notbe selected byprogram Up/Down keys.
A. Using [P+]/[P-] keys, to select Channel . Using [V+]/[V-] keys, to change
Program Number.
B. Using [P+]/[P-]keys, to select Skip . Using [V+]/[V-] keys, toselect ON
or OFF .
Tuning Procedure
INSTALLATION
Tuning mode Air
Channel 6
Color system Auto
Skip On
AFT On
Auto search
Fine ture
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Page 10
Page 5
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Air CATV/Cable(STD) CATV/Cable(HRC) CATV/Cable(IRC)
Air CATV/Cable
This item is option.

P+
P-
V+V-
SLEEP
CALE
12) CALENDAR
By pressing thiskey, CALENDAR
will be appear.
Using [P+]/[P-] keys,to
change the year.
Using [V+]/[V-]keys, to
change the month.
13) SLEEP
Repeatedly pressing this key, sleep
timer will change as follows:
SU
5
12
19
2008 1
26
MO TU WE TH FR ST
234
78
14 15
1
10 11 9
1816 17
21
28
22
29
23
30
24
31
25
6
13
20
27
""0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 0
120
Remote Controller
2. CCD
3. Mute
8. Power/Standby
9. Direct Access Numeric Keys
10. Quick View
11. Screen Display
12. Program Up/Down
14. Sleep
15. Picture Effect
1. TV/AV Select
4. Menu
5. Sound Volume Up/Down
13. V-CHIP (OPTION)
7. Calendar
6. Scan
SCAN SLEEPV-CHIP
CALE
P
CCD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Don't mix different battery types. Take out of the batteries from the remote
for long time of no use.
CHILD LOCK FUNCTION (OPTION)
Pressing and holding ( )key for more than 5 seconds, all the keys except
( ) key and ( ) key are locked, then pressing and holding ( ) key for
more than 5 seconds, all the keys the face panel are unlocked.
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Page 6
Page 9
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
CTV-4016SR

SCAN
1) Power/Stand-By ON/OFF
With Mains status On, you can also turn off using Remote Control
Hand Unit. This status is called Stand-By mode. In this mode, You
can also turn on the TV by pressing the Program Up/Down keys on
the front controls.
The TV has an Automatic Power OFF function. With no signal condition, the
TV will automaticallyturn off after 10 minutes.
2) Program Up/Down
Press [P+] key, to change
Program Up.
Press [P-] key, to change
Program Down.
1
3) Direct Access Tuning
Using the numeric keys on
Remote Control Hand Unit,
Programs can be selected
directly.
2
4) Volume Control
Press [V+] key, for Volume Up.
Press [V- ] key, for Volume Down.
16
5) SCAN
By Pressing this key, Programs will change automatically.
Each program will be previewed for 2 seconds, and stop at
original program. Skipped programs will not be previewed.
6) TV/AV Selection
Youcan select your video
source by the [ AV] key.
AV2
AV1
3
Volume
V-CHIP
7) MUTE
By pressing this key, sound output will
be muted.
Press MUTE key again, or Volume Up,
and sound Volume willreturn.
8) Quick View
.
Program will quick back to the
previous program being watched
10
2
10) PICTURE EFFECT
By repeatedly pressing this key, picture effects
will change as follows:
11) V-CHIP
9) DISPLAY
TV / AV MODE
This key will call the program No On Screen Display.
Press again, to remove the program No On Screen Display.
Menu MODE
Pressing the DISPLAY key, current menu will exit directly.
By pressing this key, the
parental menu appears.
Standard Dynamic User Mild
Standard
Parental
Lock Code - - - -
Lock Off
PG Rating
MPAA Rating: Off
Can. english: Off
Can. French: Off
Change code
P
Control your TV
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Page 8
Page 7
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
..
P+
P-
V+V-
P+
P-
V+V-

SCAN
1) Power/Stand-By ON/OFF
With Mains status On, you can also turn off using Remote Control
Hand Unit. This status is called Stand-By mode. In this mode, You
can also turn on the TV by pressing the Program Up/Down keys on
the front controls.
The TV has an Automatic Power OFF function. With no signal condition, the
TV will automaticallyturn off after 10 minutes.
2) Program Up/Down
Press [P+] key, to change
Program Up.
Press [P-] key, to change
Program Down.
1
3) Direct Access Tuning
Using the numeric keys on
Remote Control Hand Unit,
Programs can be selected
directly.
2
4) Volume Control
Press [V+] key, for Volume Up.
Press [V- ] key, for Volume Down.
16
5) SCAN
By Pressing this key, Programs will change automatically.
Each program will be previewed for 2 seconds, and stop at
original program. Skipped programs will not be previewed.
6) TV/AV Selection
Youcan select your video
source by the [ AV] key.
AV2
AV1
3
Volume
V-CHIP
7) MUTE
By pressing this key, sound output will
be muted.
Press MUTE key again, or Volume Up,
and sound Volume willreturn.
8) Quick View
.
Program will quick back to the
previous program being watched
10
2
10) PICTURE EFFECT
By repeatedly pressing this key, picture effects
will change as follows:
11) V-CHIP
9) DISPLAY
TV / AV MODE
This key will call the program No On Screen Display.
Press again, to remove the program No On Screen Display.
Menu MODE
Pressing the DISPLAY key, current menu will exit directly.
By pressing this key, the
parental menu appears.
Standard Dynamic User Mild
Standard
Parental
Lock Code - - - -
Lock Off
PG Rating
MPAA Rating: Off
Can. english: Off
Can. French: Off
Change code
P
Control your TV
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Page 8
Page 7
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
..
P+
P-
V+V-
P+
P-
V+V-

P+
P-
V+V-
SLEEP
CALE
12) CALENDAR
By pressing thiskey, CALENDAR
will be appear.
Using [P+]/[P-] keys,to
change the year.
Using [V+]/[V-]keys, to
change the month.
13) SLEEP
Repeatedly pressing this key, sleep
timer will change as follows:
SU
5
12
19
2008 1
26
MO TU WE TH FR ST
234
78
14 15
1
10 11 9
1816 17
21
28
22
29
23
30
24
31
25
6
13
20
27
""0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 0
120
Remote Controller
2. CCD
3. Mute
8. Power/Standby
9. Direct Access Numeric Keys
10. Quick View
11. Screen Display
12. Program Up/Down
14. Sleep
15. Picture Effect
1. TV/AV Select
4. Menu
5. Sound Volume Up/Down
13. V-CHIP (OPTION)
7. Calendar
6. Scan
SCAN SLEEPV-CHIP
CALE
P
CCD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Don't mix different battery types. Take out of the batteries from the remote
for long time of no use.
CHILD LOCK FUNCTION (OPTION)
Pressing and holding ( )key for more than 5 seconds, all the keys except
( ) key and ( ) key are locked, then pressing and holding ( ) key for
more than 5 seconds, all the keys the face panel are unlocked.
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Page 6
Page 9
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
CTV-4016SR

This TV set can be connected to videotape player, videodisc player,
video camera, game player or audio player.
NOTE:
VCD PLAYER
Front AV terminal
Connection to Other Equipment
Back AV terminal
Y
Cr
Cb
DVD PLAYER
Y
Cr
Cb
TV
L
Y
CrCb
IN
IN
OUT
V R
L
V R
Y,Cr, Cb,input (OPTION)
S-VIDEO(OPTION)
VIDEO OUT
R AUDIO
OUT
L
Video/ Audio equipment can be connected to sockets of AUDIO IN
or VIDEO IN in rear
1) Auto Search Function:
Automatic Searchand Memory (ASM)
Using the [MENU] key on the front or
the [MENU] key on theRemote forASM.
A. Press [MENU] key repeatedlyto select
INSTALLATION
B. Press [P+]/[P-] keys to select Tuning
mode .
Repeatedly pressing [V+] key, signal input modelwill change asfollows:
and select input model.
C. Press [P+]/[P-] keys to select Auto search
D. Press [V+] key, to start ASM.
2) FINE TUNING Function: Fine Tuning for current setting.
A. Using [P+]/[P-] keys, to select Channel . Using [V+]/[V-] keys, to change
Program Number.
B. Using [P+]/[P-] keys, to select Fine ture .
C. Using [V+]/[V-] keys, to adjust for best tuning.
3) SKIP Function: Use to SKIP Programs. After setting to ON , the
program will notbe selected byprogram Up/Down keys.
A. Using [P+]/[P-] keys, to select Channel . Using [V+]/[V-] keys, to change
Program Number.
B. Using [P+]/[P-]keys, to select Skip . Using [V+]/[V-] keys, toselect ON
or OFF .
Tuning Procedure
INSTALLATION
Tuning mode Air
Channel 6
Color system Auto
Skip On
AFT On
Auto search
Fine ture
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Page 10
Page 5
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Air CATV/Cable(STD) CATV/Cable(HRC) CATV/Cable(IRC)
Air CATV/Cable
This item is option.

OPERATION INSTRUCTIONS OF PANEL
First insert powerplug and theninsert antenna or cable antenna into the socket
of antenna.
SWITCH ON AND OFF TV
When press Powerbutton, power isconnected. When press Power button
again, power isoff. When TV is at stage ofsleep, it cannot be switched on or
off by pressing the power button.
NOTE:
when TV isat stage ofsleep, it can be switched on or off bypressing the
sleep button onthe remote controller.
CAUTIONS:
In case thatelectricity is cutwhen watching TV, switch off the power. If
TV is notwatched, please switchoff the power. When TV is at stage of
sleep, there isa part ofcircuit working and consuming electricity.
Operation of Function Board
Press "MENU" button and enter "Installation"
with P+/P- button selected "Auto search"
function and then press V+ or V- button starting
to search the channels automatically.
P+P-V+V-
TV/AV MENU
Automatic Search Channel
Change code
New code - - - -
Confirm - - - -
7) CCD
Select the program which is broadcasting the CCD
you want towatch. Press [CCD]key on the remote
control, "CCD On" appear on the screen and after
it disappears, the information of CCD will display
on the screen. By repeatedly pressing [CCD] key,
CCD will changebetween ON and OFF.
6) CHANGE PASSWORD
Select and enter "Change Code"menu,
A. Input a new PIN.
B. Input the PIN again to confirm.
CCD On
Parental
Lock Code - - - -
Lock Off
PG Rating
MPAA Rating: Off
Can. english: Off
Can. French: Off
Change code
3) PG RATING
When you select" U.S. TV" ,using [P+]/
[P-] keys, to move the cursor for up and
down.
Using [V+]/[V-] keys, to move the cursor
for right orleft .
Using the [MENU] key, to preset view or
block.
4) MPAA RATING
When you select " MPAA RATING",Using [V+]/[V-] keys, to change setup.
5) CANADA ENGLISH AND CANADA FRENCH
When you select "Can.english" or "Can french" Using [V+]/[V-] keys, to
change setup.
1) SELECT VCHIP MODE
A. Press [MENU] key repeatedlyto select
"FEATURES".
B. Press [P+]/[P-] keys, to select "parental".
C. Press [V+]/[V-] keys, to parental menu
appears.
PG Rating
Rating Status FV V S L D
TV-Y View
TV-Y7 View V
TV-G View V V V V
TV-PG View V V V V
TV-14 View V V V V
TV-MA View
VCHIP and CCD
2) VCHIP Password
A. Factory mode PIN is "0000", the common PIN is "4100".
B. Input the correct PIN, then can set the next items, include "PG Rating",
"MPAARating", "Can.english", "Can. French".
C. "Lock" is general lock, only when this item is on, parental mode can be
effective. When parental mode is effective, the screen is blue background
and sound is mute.
D. Using [P+]/[P-] keys, to move the cursor.
Using [V+]/[V-] keys, to select each item.
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Page 4
Page 11
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM

Control Location
For control knobs (all panels subject to the real object), please refer
to your own TV set.
Front and Back Control Panel
Bright 75
Contrast 75
Color 50
Sharpness 50
Tint 0
1) [MENU] key
Press [MENU] key continuously, to scroll through the MENU selection,
as follows:
2) PICTURE MENU
A. Select each function using
[P+]/[P-] keys.
B. Each value can be controlled by
[V+]/[V-] keys.
C. Repeat any functions if required.
3) SOUND MENU
A.Select each function using
[P+]/[P-] keys.
B.Each value can be controlled
by [V+]/[V-] keys.
C.Repeat any functions if required.
Balance , AVL is option.
Menu Operation
The TINT will only appear when receiving thesignals of NTSCsystem.
PICTURE SOUND TIMER FEATURES INSTALLATION
SOUND
Volume 16
Balance 0
AVL Off
TIMER
Timer Off
Clock 11:09PM
Off time -- : --
On time -- : --
On channel 1
4) TIMER MENU Function: Timeand Timer setting.
A. Using [P+]/[P-] keys, to select
"Timer", "Clock","On time", "Off time"
or "On channel"
B. Using [P+]/[P-] keys, select "Timer".
Using [V+]/[V-] keys, channge Timer
On or Off.
C. For "Clock", "On time", "Off time"
setting.
Using [V+]/[V-] keys, select minutes
or hours.
Using [P+]/[P-] keys, set minutes or hours.
D. For "On Channel" setting.
Using [P+]/[P-] keys, select "On Channel" .
Using [V+]/[V-] keys, change On Channel number.
1. Speaker
2. Side AV In(Option)
3. AV/TV Button
4. Menu Button
5. Volume Down Button
6. Volume Up Button
7.Program Down Button
8. Program Up Button
9. Power Indicator
10. Remote Sensor
11. Power Switch
12. Speaker
13. ACpower Cord
14. Audio/Video-in/out
15. Terminal Antenna(75 Ohm)
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Page 12
Page 3
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
13 14 15 22
11

Specifications
Note: We will not notify customers particularly when there is any change happened in the
design and specification of the product. The pictures in the handbook may bear slight
differences from the real one. Please take actual products as the standard.
FEATURES
Language English
Blue screen On
Picture enhance Off
CCD On
CC mode CC1
Parental
Game
5) FEATURES MENU Function: other functions setting.
A. Using [P+]/[P-] keys,to select each item.
Using [V+]/[V-] keys,to change the value
of each item.
B.Using [P+]/[P-] keys, to select
Language .
Using [V+]/[V-] keys, Language will
change as follows:
C.Using [P+]/[P-] keys, select the"Blue screen".
Using [V+]/[V-]keys, select "On"or"Off".
D.Using [P+]/[P-] keys, select the"
Using [V+]/[V-]keys, select "On"or"Off".
E.Using [P+]/[P-] keys, to select "CCD .
Using [V+]/[V-]keys, to preset "ON"or "OFF".
F.Using [P+]/[P-] keys, to select the"C.C mode .
Using [V+]/[V-]keys, caption modewill change as follows.
G.Using [P+]/[P-] keys, to select the"GAME .
Using [V+]/[V-] keys, to enter the game.
Picture enhance".
"
"
"
English Francais Espanoc
Portugues
CC1 CC2 CC3 CC4 T1 T2 T3 T4
1. Television system
RF input: NTSC / PALM / PALN
Video input: NTSC / PAL M / PAL N
2. Receive frequency range
US CH
181 Channels (Air+CATV)
3 Picture resolution
Horizontal 220
Vertical 320
4. Intermediate frequency
Picture IF 45.75MHz
Volume IF 41.25MHz
5. Luminance grades 8 grade
6. Sound power output 3W 2
7. Power supply AC 90-260V 50/60Hz
8. Power consumption 75W (standard status)
9. Screen size: 54cm
10. Dimension
11. Net Weight
600(W)x333(D)x441(H)mm
18.5kg
Note
All specifications are subject to change without notice.
All quality and size are approximate value.
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Page 2
Page 13
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM

Precaution
1. Read theseinstructions.
2. Keep theseinstructions.
3. Heed allwarnings.
4. Follow allinstructions.
5. Do notuse this apparatusnear water, the apparatus shall not be exposedto
dripping or splashing and that no objects filled with liquids, such as vases, shall
be placed onthe apparatus.
6. Clean only with dry cloth.
7. Do notinstall this apparatusin windtight places such as the wall-unit. Do notblock
any ventilation openings.
8. Do notinstall near anyheat sources such as radiators, heat registers,
stoves, or otherapparatus (including amplifiers)that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. Agrounding type
plug has two blades and a third grounding prong. The wide blade orthe third prong
are provided foryour safety. If the provided plug does not fitinto your outlet,
consult an electricianfor replacement ofthe obsolete outlet.
10. Protect the power cordfrom being walkedon or pinchedparticularly at plugs,
convenience receptacles, andthe point wherethey exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods
of time.
14. Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Batteries shall not be exposed to excessive heat such as sunshine,
fire or the like.
Used batteries shouldnot be throwninto the garbage can, please
leave them atan appropriate depot.
CAUTION
Where the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
CAUTION
These servicing instructionsare for useby qualified service
personnel only. To reduce therisk of electric shock, do not perform
any servicing other than that contained in the operating instructions
unless you are qualified to do so.
CAUTION
Battery Installation(Remote Control Unit)
1.Remove the battery cover.
2.insert the batteries making sure the polarity(+or -)of the batteries
matches the polarity marks inside the unit.
3.Replace the battery cover.
Replace with new batteries when the TV set begins to show the following symptoms:
operation is unsteady or erratic. Sometimes the TV set does not function with Remote
control unit.
2 UM-4 AAA 1.5V
Remark:
1) Alkaline batteries recommended.
2) Remove batteries when they are exhausted or if the remote control is not to be
used for a long time.
The Causes of Interference
Incorporated in yourTV receiver are the most
up-to-date devices toeliminate interference.
Local radiation however, can create
disturbances which Visibly affect your picture.
Proper installation, agood aerial are your best
safeguards against thesedisturbances.
INTERFERENCE
Moving ripples acrossthe screen are caused
by nearby transmittingor receiving shortwave
radio equipment.
DIATHERMY
Herringbone pattern andpartial picture loss
can result fromthe operation of diathermy
equipment from anearby doctors surgery or
hospital.
SNOW
Weak TV signals from longdistant stations
result In anunsteady picture and give the
effect of falling snow. An antenna
adjustment or antennaamplifier may be
needed.
GHOST
Multiple images causedby TV signals
reflected back fromsurrounding buildings,
hills, aircraft, etc.are minimized by correct
aerial positioning.
CAR IGNITION
Nearby cars andelectrical motors can
cause small streaksacross the picture or
make the pictureroll.
WARNING:
The battery(battery orbatteries or battery pack)shall not be exposed to excessive
heat such as sunshine,fire or the like.
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Page 14
Page 1
WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM

WWW PREMIERMUNDO COMWWW PREMIERMUNDO COM
Service Tips
Symptoms
Solution
BEFORE CALLING FOR SERVICE,HAVE YOU
ON SYMPTOMS ANDSOLUTIONS?
Try different channel,if OK,probably station trouble Check aerial connectiions on back of set
No picture,no sound
Poor sound,picture OK
Poor picture,sound OK
Weak picture
Blurred picture
Double image
Lines in picture
Distorted picture
Weak reception on some channels
Horizontal bars
Picture rolls vertically
Poor colour
No colour
Misoperation of Remotecontrol
No Remote control
On screen DisplayControl outside thescreen
Check aerial for broken wires Re-orient aerial(if indoor type) Probably local interference,such as an appliance
Adjust fine tuning control Adjust brightness control Adjust contrast control
Check if station is broadcasting colour
Adjust colour control
Check if system switch is correct Check if on/off switch is on Check Batteries in Remote control
CHECKED( )THE FOLLOWING CHART
CTV-4016SR
INSTRUCTION MANUAL
COLOR TELEVISION
21
DEAR CUSTOMER
In order to achieve the best performance of your product, please read this instruction manual carefully before using,
and keep it for future reference.
If you need extra support, please write to [email protected]
multi-system
multi-system
