Premium Audio Products Mini GaN 5 User manual

Mini GaN 5 Power Amplifier
User’s Manual
Email: [e-mail]
Website: www.premium-audio.com
Premium Audio Products
The AC Switch on the bottom of this
amplifier MUST BE Correctly Set before
using this amplifier. Please carefully read
this manual before operating the amplifier!
CAUTION!

1
Contents ....................................................................................................................1
Important Safeguards ................................................................................................2
Important Information ...............................................................................................3
Setup –One ...............................................................................................................4
Setup –Two ...............................................................................................................5
Specifications..............................................................................................................6
Questions ...................................................................................................................7
Warranty ....................................................................................................................8
Thank you for your purchase. We hope this Gallium Nitride
Powered Class D Amplifier will give you hours and hours of
enjoyment as you experience the multitude of fantastic
qualities that this Gallium Nitride Amplifier provides.
CONTENTS
Our products are manufactured by us here
in the USA.
Of course, by law, because many of the chips and
electronic components we use are made in other
countries, we have to say: Made in the USA from
domestic and imported parts. We do purchase most of
the components we use from certified USA distributors.
These days, the markets are flooded with inferior
counterfeit components. We only use certified parts.

2
SAFEGAURDS
Important Safeguards
PLEASE READ CAREFULLY ALL THE FOLLOWING IMPORTANT SAFEGUARDS THAT ARE
APPLICABLE TO YOUR EQUIPMENT AND YOUR SAFETY
Before You plug this amplifier into the wall AC Socket, please be sure to check the AC
Voltage Selection Switch located on the Bottom Side of the amplifier. Use a coin,
screwdriver, or other to set this switch to the correct position for the AC Voltage for your
area. If you are unsure of the AC voltage in your area, please be sure to ask a local
electrician before you plug this into the wall socket. Choices are 110 VAC and 220 VAC.
Failing to do so can damage the amplifier and void your warranty!
Please Carefully Read this User’s Manual completely and retain it for future
reference. All safety instructions and warnings should be strictly adhered to.
Power supply cords and all connecting cables or wires should be routed so that
they are not likely to be walked on or pinched. Always use wires with adequate
ratings and safety certifications (CE, UL, etc.)
Proper ventilation is crucial for safe and reliable operation. Never place anything
on top of your amplifier that could obstruct airflow and cause the parts to overheat
and damage the amplifier. Do not use this product near water or wet areas.
WARNING!

3
INFORMATION
About Our Gallium Nitride Amplifiers
Class A has been the serious audiophile’s
gold standard for decades. Today however,
we are at the early stages of a seismic shift
towards widespread Class D audiophile
adoption. Why? Because a new type of
Class D audio is quickly approaching the
performance of Class A. Gallium Nitride
(GaN) is poised to uproot the high-end
audio world. In fact, GaN-based Class D is
much more power-efficient than
traditional, MOSFET-based Class D and
offers orders of magnitude better
performance. Performance that to many
listeners, even surpasses the quality of
Class A.
“Premium Audio Products would
like to thank you for purchasing
this very high-quality Gallium
Nitride Class D power amplifier.
We are confident that your
amplifier will be a pleasure to use
and will provide you with many
years of listening pleasure.”
Please Read
Before using this amplifier, please take
the time to carefully read and
understand this user’s manual and pay
close attention to the safety
instructions, warnings, and operating
procedures. Becoming familiar with all
the details about your amplifier will
ensure safe usage and reliable
operation. The effort you invest now
will be well rewarded as time goes by.
Please do not hesitate to contact us
with any questions.
Questions or Help?
Please contact us at:
[e-mail]

4
SETUP - ONE
WARNING NOTE: This is a Full Bridge Class D Gallium Nitride
audio amplifier and while both loudspeaker outputs are
ground-referenced, neither is connected to ground. DO NOT
CONNECT EITHER OF THESE LOUDSPEAKER OUTPUTS TO ANY
SYSTEM OR TEST EQUIPMENT GROUND!!

5
SETUP - TWO

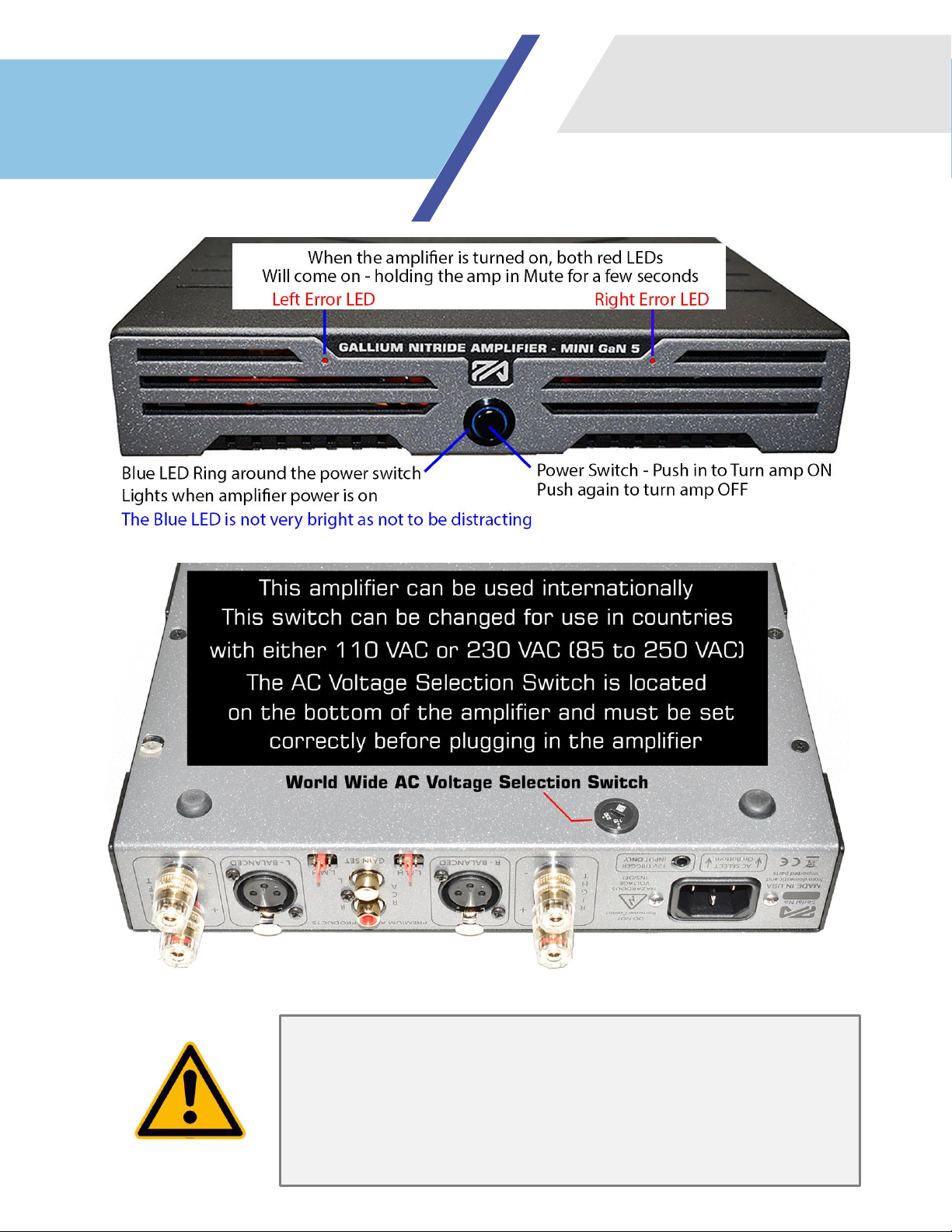

•IEC Power Cord Input –This is the AC Power Cord Input. Use Minimum 10 Amp AC Cord.
•AC Selector Switch –The AC Voltage Selector Switch is located on the bottom of the amp.
CAUTION! Be sure to set this AC Selector switch correctly before using this amplifier.
•12 Volt Trigger Input –This is a 12 Volt Trigger Input (only input). Connect a preamp or
other device with a 12V Trigger output to this 12V Trigger input, and when your preamp or
other device is turned on or off, it will also turn the amp on and off. Be sure to leave the
amplifier front power switch in the off position when using the 12V trigger input.
•Adjustable Gain Settings –Three Position Input Gain Settings. Low –Medium –and High.
Low Gain = 26db, Medium = 28db, and High = 32db. Most speakers can use the Medium
Gain (M) position. High efficiency speakers are best with the amp set at low gain (L). Low
efficiency speakers are best with amplifier set at High Gain. You can change these settings
to see what sounds best with your system… no rocket science here.
•Balanced XLR Inputs - These are the Differential Balanced XLR Inputs. The wiring is
standard for XLR inputs –Pin 1 is Ground, Pin 2 is Hot +, and Pin 3 is - Cold.
•Single Ended RCA Inputs –These are Standard Single Ended RCA Inputs. Use either XLR or
RCA inputs. Do not use XLR and RCA at the same time as they share the same signal path.
•Speaker Outputs –5-Way Gold Plated Copper Speaker Binding posts. Connect to Left and
Right side Speakers. Each side is clearly labeled. + Red = Positive and - Black = Negative.
WARNING NOTE: This is a Full Bridge Class D Gallium Nitride audio amplifier and while
both loudspeaker outputs are ground-referenced, neither is connected to ground. DO NOT
CONNECT EITHER OF THESE LOUDSPEAKER OUTPUTS TO ANY SYSTEM OR TEST
EQUIPMENT GROUND!! DO NOT LET SPEAKER WIRES TOUCH (SHORT) EACH OTHER!
•

6
Premium Audio Products Mini GaN 5 Gallium Nitride Audio Power Amplifier
SPECIFICATIONS
Power Output (8 Ω)
200 WRMS Continuous (400W Peak)
Power Output (4 Ω)
400 WRMS Continuous (500W Peak)
Power Supply
Bipolar LLC Resonant Converter
Input Impedance
Balanced XLR –100K
Single Ended RCA –100K
Audio Performance
THD+N 0.006% 8 Ω, 1 kHz, 1 W Power
THD+N 0.003% 8 Ω, 1 kHz, 5 W Power
THD+N 0.005% 8 Ω, 1 kHz, 15 W Power
THD+N 0.006% 8 Ω, 1 kHz, 50 W Power
THD+N 0.02% 8 Ω, 1 kHz, Full Power
THD+N <0.02% 8 Ω, 20 Hz-20 kHz, -9 dB
Frequency Response
20 Hz –20 kHz, ±0.5 dB
SNR/DNR
108 dB (Unweighted), 110 dB (A-weighted)
Analog Audio Inputs
Two Balanced Differential Inputs XLR Sensitivity - 2 VRMS Sensitivity
Two Unbalanced Single-ended RCA Inputs - 2 VRMS Sensitivity
AC Voltage Input
90 to 264VAC. Voltage Selectable from switch on bottom of the amplifier.
Size and Weight
Amplifier measures 9.75” Wide X 7.5” Deep X 2” Tall. Weight is 5 lbs./2.3kg
Shipping Weight –7 lbs/3kg

7
QUESTIONS
If you have any questions, need help, or assistance, please contact us. We will do
our best to get back to you right away.
Read Our Frequently Asked Questions on our website Here:
https://premium-audio.com/faq
Or Contact Us at: [e-mail]
Did You Know?
Our Gallium Nitride powered class D amplifiers
have the sonic performance of a class A
amplifier, but with an efficiency of up to 96%.
Compare this to a class A amplifier efficiency of
25 to 30%. The choice is clear.
Copyright © 2021 to Present –Premium Audio Products - All Rights Reserved

8
WARRANTY
Premium Audio Products 3 Year Warranty
SUMMARY OF WARRANTY
Premium Audio Products warrants to you, the ORIGINAL PURCHASER of each NEW Premium Audio Products
Power Amplifier for the period of Three (3) Years from the date of purchase by the original purchaser (the
"warranty period") that the new Premium Audio Products amplifier is free of defects in materials and
workmanship. We further warrant new Premium Audio Products amplifier regardless of the reason for
failure, except as excluded in this Warranty.
ITEMS EXCLUDED FROM THIS CLASS D AUDIO WARRANTY
This Premium Audio Products Warranty is in effect only for failure of a new Premium Audio Products
amplifier which occurred within the Warranty Period. It does not cover any product which has been
damaged because of any intentional or unintentional misuse, accident, or negligence. It does not cover any
loss or damage which is covered under any of your insurance contracts. This Premium Audio Products
Warranty also does not extend to the new Premium Audio Products amplifier if the serial number has been
defaced, altered, or removed, or if the product has been modified or altered in any way. The warranty also
does not cover any of our products if the warranty sticker has been removed or tampered with, or if the
amplifier has been taken apart or tampered with.
WHAT THE WARRANTOR WILL DO
We will remedy any defect, regardless of the reason for failure (except as excluded), by repair or
replacement. We will remedy the defect and ship the product from the service center or our factory within
a reasonable time after receipt of the defective product at our authorized service center or our factory. All
expenses in remedying the defect, including surface shipping costs in the United States, will be borne by us.
You must bear the expense of shipping the product between any foreign country and the port of entry in
the United States including the return shipment, and all taxes, duties, and other customs fees for such
foreign shipments.
DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES
YOU ARE NOT ENTITLED TO RECOVER FROM US ANY INCIDENTAL DAMAGES RESULTING FROM
ANY DEFECT IN THE NEW Premium Audio Products Amplifier. THIS INCLUDES ANY DAMAGE TO ANOTHER
PRODUCT OR PRODUCTS RESULTING FROM SUCH A DEFECT.
HOW TO OBTAIN WARRANTY SERVICE
You must contact us at [e-mail] for warranty service within the warranty period.
All components must be shipped in the original box. Corrective action will be taken within a reasonable
time of the date of receipt of the defective product by our authorized service center. If the repairs made
by our authorized service center are not satisfactory, notify our authorized service center immediately.
Copyright © 2021 to Present –Premium Audio Products - All Rights Reserved
