Prestige PRT55FFSL User manual

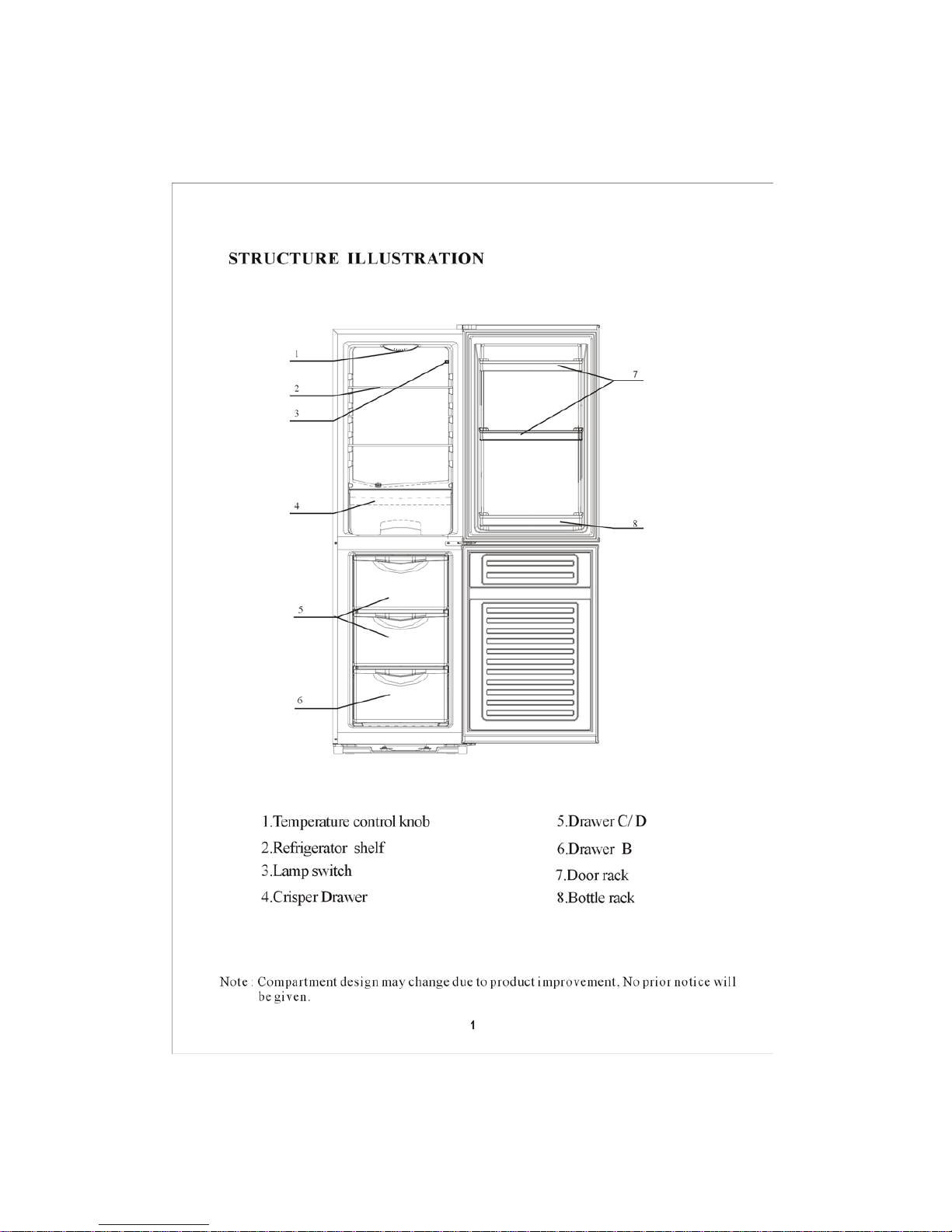

1. Structure Illustration

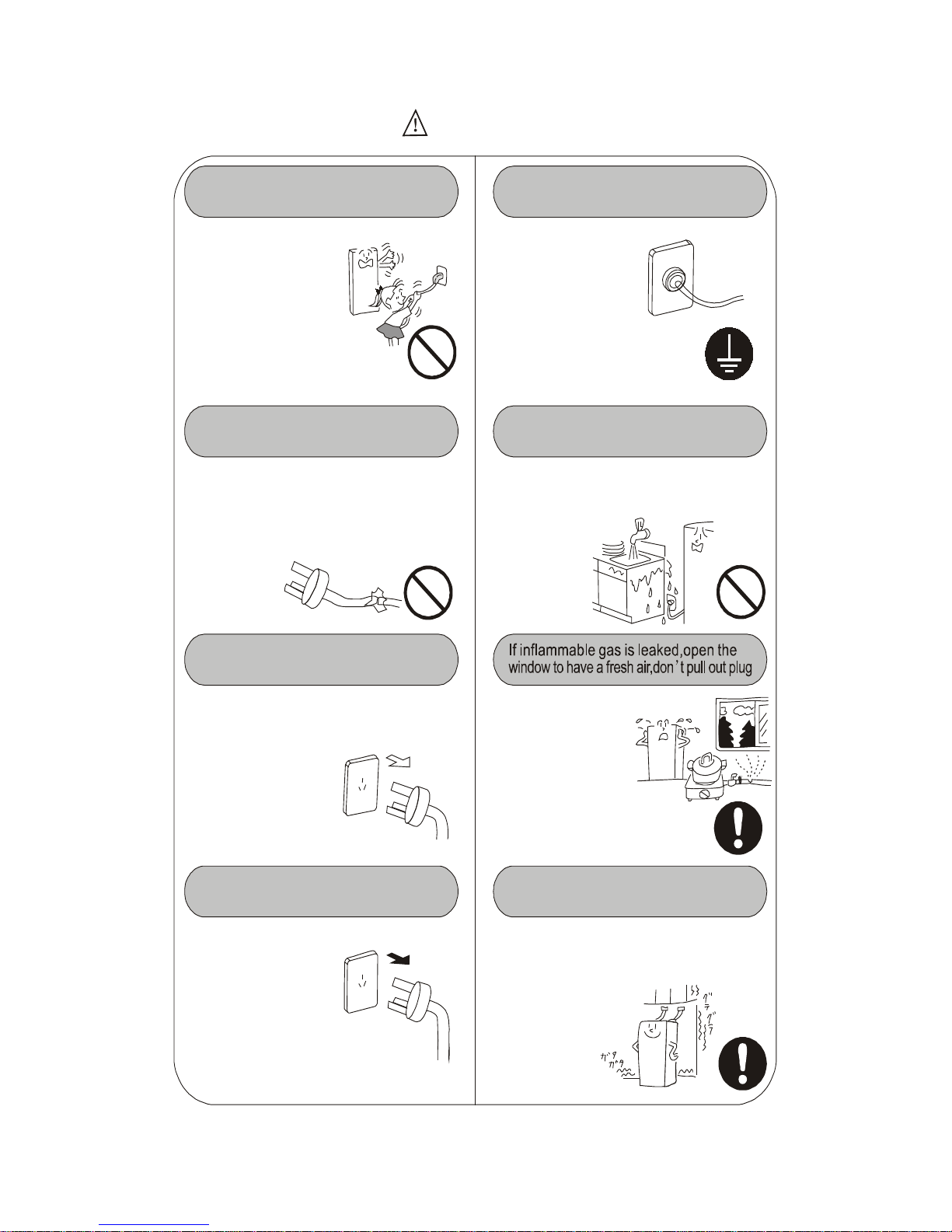

2. Cautions for safety
Points of safety
For using rightly and safety,please read the
《》 Instruction beforeuseit.
Please obey all items of Instruction for safety
while use it.
Cautions
Cautions
Attentions
Violatingthe operatinginstruction
would makedeath.
Violatingthe operatinginstruction
would make your propertylossing.
The meaning of symbols inthis book shown
inthe following table
“”
NO U sing
NO removing
Must obey while use it
Pull out theplugwhile
maintenance
Connected to the earth
NO touching
Attention
The type of preventing from electric shock is I . It hasbeen
adoptedsafeguard. Costumer cannot changetheplugand
wirewithout authorization.If thewireisdestroyed,it should
bechangedbytheservicedepartment of our company.
AC220V 10Asocket for its ownuse 、
Keep the plug and socket cleaning
No extruding the plug strengthly
No damaging the power line
The electric power of
220V must be connect-
ed the earth well . If the
wire is not long e-
nough ,the ext nsion
must beaccordingwith
thedemands.
e
Dust and bad connec-
tion might cause elec-
tric shock, even it can
makefireseriously.
Short circuit causedby
damaged plugcan make
fire.
Short circuit caused by
forcible bending,
stretching , twisting
packing, cutting the
wiremight makefire.

Cautions
No stretching the power linedirectly Be sure of connection to earth well
No using damaged wire,plug,socket
Shut off the power while maintenance
Pull out plug if there is unusual
No locating at the moist place
Fixed on the wall to resist vibration
Please the power
off with handling the
plug , damaged wire
might make fire.
shut Electric shock , explo-
sion, fire would be
happened if the unper-
fect earth line touches
to water pipe or gas
pipe.
It might cause electric
shock , electric circuit ,
even fire.
Short circuit,leakage of
electricity,firewouldbe
happened if does not
insulatewell.
Electricshock would be
happened if theplugis
not pulled out or doing
it with water.
Spark would be ap-
peared if the plug is
pulled out and it would
make burning, explo-
sion or fire.
Accident(short circuit)
would behappened if it
continues running.
Please contact to the
service department
without delay.
Refrigerator would be
destroyed if it falls
down while theearth-
quake ishappeningin
the earthquake region.

Cautions
Dont remove or repair it asyourfree
'Remove the door gasket while abandon it
Removethedoor gasket
in order to avoid that
children are trapped in-
side.
Please contact with the
service department if
you need help.
Attentions

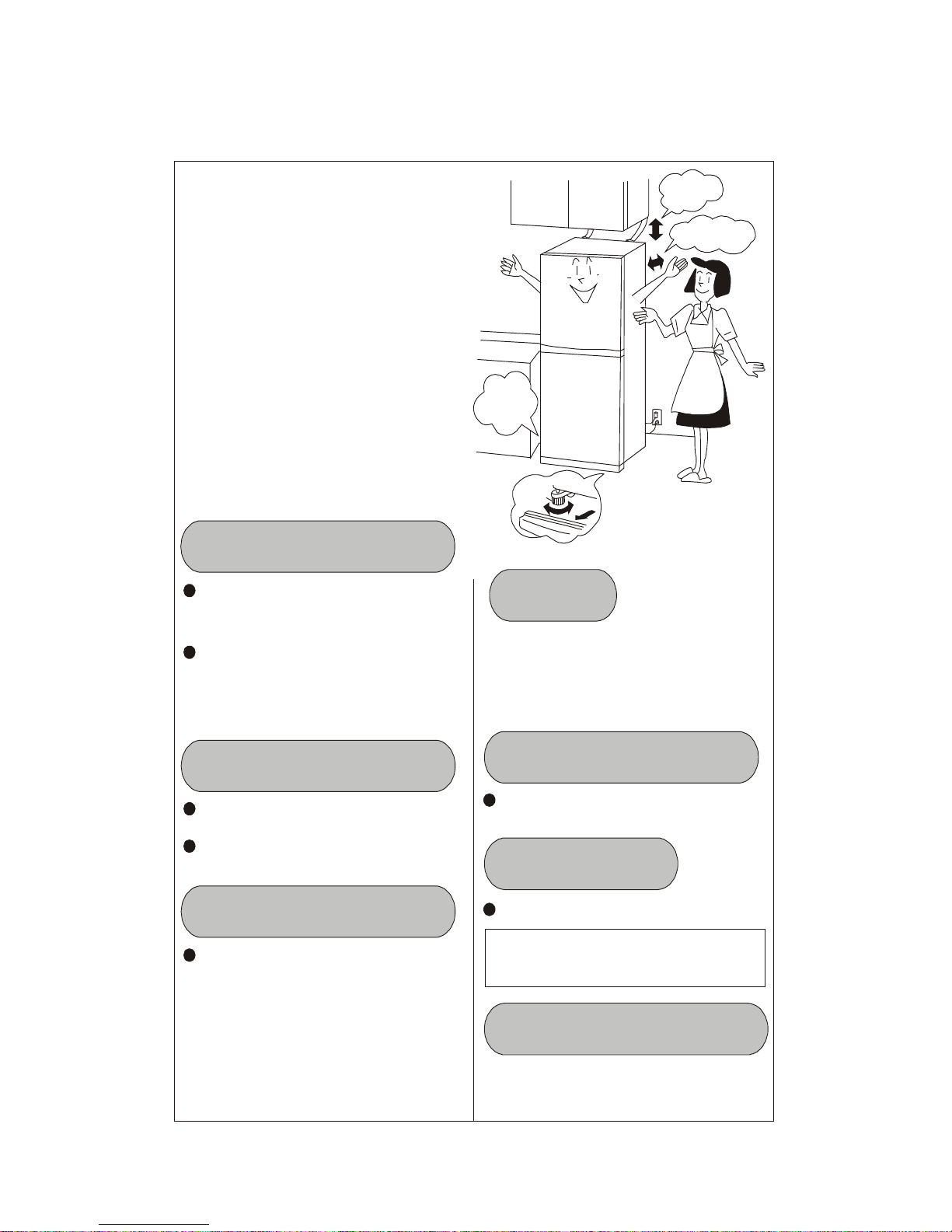

3. Installation and operation
1Placingrightly
µ ÷ Õû ½Å
Keeping proper space
Earth live
Avoiding heat and moisture
Locating firmly and horizontally
Earth terminal (triangle plug)
No earth terminal
Located at moist place specially
! Attentions
A pieceof woodshouldbeplacedfirst if there-
frigerator islocated on the carpet etc.
Theprotector of leakagecurrent should beinstalled
except theearth line . Please buy it at professional
shop.
Rotatetheadjustablefeet oneround(let thefront
feet hangin theair) and then firm the refriger-
ator horizontally(to avoid vibration and noise).
Heat,sunlightshinningdirectlywouldinfluent
coolingseriouslyand wastetheelectricenergy.
Manytroublesarecaused bymoisture.
Too small spacearound it,puttinggoodson the
top or side , and pasting on thesidemight pre-
vent heat out,wasteenergyunnecessarily.
Contactingbetween back and wall might cause
vibration and noise.
Heat radiated from the refrigerator might scald
thewall or other thingsif spaceistoosmall.
! Cautions
Theearth lineshould beconnected if the refriger-
ator is located at the moist place such as toilet,
laundryroom,basement etc.
Pleasepurchaseit to theprofessional shop.
Please connect one side of the earth line to the
earth terminal.
Someplacecannot beconnectedto :
water pipe,gaspipe,
earthlineof telephone,lightingrod.
Above 5cm
Above 5cm
Above 5cm
Adjustable
feet

3 4
2
Tear down the tape firm-
ing case Turn on the power Storing after turning on
power4~5 hours
cleaning with
humiditycloth
220V
The smell of plastic will disappear
automatically a period later.
In hot season freezing foods completely needs 24 hours.
check thecooling condition in thenext day.Somethingsuch as
ice-cream should befrozen completely.
Temperatureadjustment UsuallyinMID position
Temperature knob isto beadjusted temperature of box. The number on it can not show temperature.
Bignumber showthetemperatureof boxislowandlittlenumber show ishigh. 0 showstop.Inwinter,
usually place the knob at 4~ 6.In summer ,usually placethe knob at 4~ 1.
“”
1 Pleaseobeythestep of control;
2 Improper adjust maylead to lower temperature,higher temperatureor influenceenergyconsumption.
Caution:

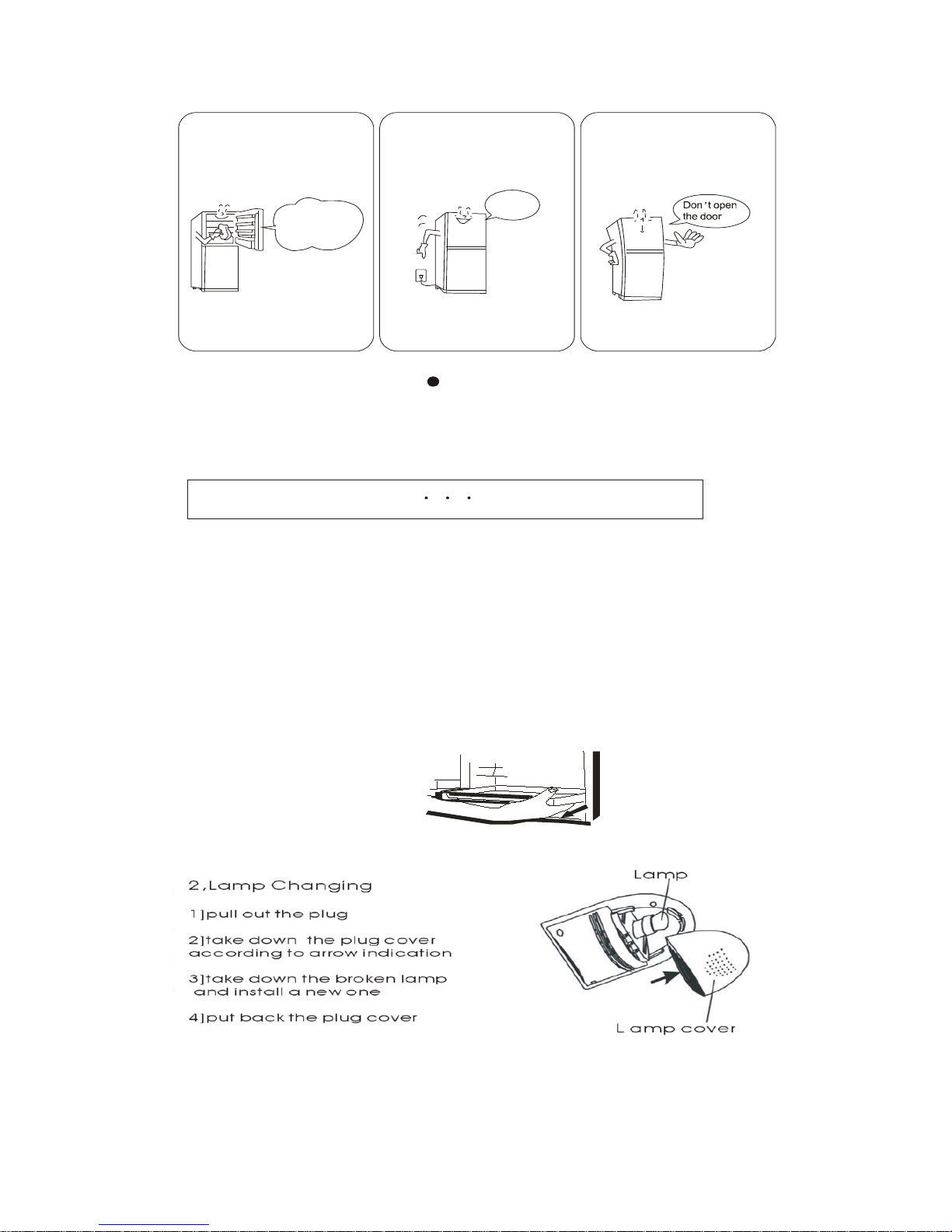

4. Installing and removing the accessories
1、Freezer compartment shelf
1) Hold the shelf, then pull it straight upward levellingly..

5. Electrical Refrigeration system
1.Electric diagram
YEL L OW/ GREEN
BL UE B R O WN
L A MP
BL UE
BLACKGRE E N
RED
NEL
PL UG
THERMOSTAT
F USE
BI MET AL SW.
F A N MOT OR
COMPRESSOR
T I ME R
PTC
t
o
L A M P S W.
TEMP.
C OMP .
HEATER
DEFROST
HEATER
GRA Y
PI NK
OVERL OAD
P ROT ECT OR
GRA Y
GRA Y
GRA Y
WH I T E
B R O WN
BLACK
BL UE
Y E L L OW
T HERMAL
F USE
CAP ACI T OR
RED
YEL L OW/ GREEN
YEL L OW/ GREEN
ORA NGE
1
2
1
2
3
4
L
C
H
2.wirediagram
3.Refrigerating Circuit

6. Maintenance
Cleaningprocedure
Cautions
Alwaysdisconnect
thepower plug.
Wipe off any oil on the
surfaces.
Soak a soft cloth in warm
water or dish abluent.
Wipeoff all abluent.
Cleaningmonthly
Back of refrigerator Ground Inspection after cleaning
10minutes
Adjust theregulate feet and let it hang in the
air,then moving it.
Clean thedust of back and ground on turn to
keep it clear.
Caution
If the power lineandplugdamaged.
Dust on the plug.
Unusual heat of plug.
If the socket becomeflexible.
If the pluginserted completely.
If the power lineandplugare damaged or
sticked dust ,it wouldcauseelectricshock or
fire.
Attention
Donot stretchhandstothebottom.
Replugginginthepower at least
10 minutes later.

7. Trouble shooting
Thetemperatureadjustment knobisin the Low poisition;
Spacearound therefrigerator isnot enough;
Thedoor hasbeenopened too frequentlyand too long;
Therefrigerator isexposed to thesunlight directly or placed near someheatingresouces;
Thereisno any clearancebetweenfoods;
Therearehot foodsinsidethecase.
Pleaseread thepointsof attention,keep away from thehot resources,don t open thedoor .put the
hot foodsin thecaseafter it iscooling,adjust theknobto Mid or High position.
Foodsfrozen in the refrigerator compartment or chilled case.
Thefandoor isopenedefficientlyor isnot in agood condition;
Thetemperatureknobisin High position;
Foodscontaining rich water and freezed easily are near the rear wall.Check the fan door frozen or
not.Troublesof sen orsor controls,adjust theknobto Mid position.
“”
’
“ ”“ ”
“”
“”
frequently
s
Iustruction troubleshooting
Oneof thefollowingconditionsmaybetrouble,it should beeliminated
Not currency;abnormal voltage;fusing;put in thepluguneffectively,Check theplugand fuse,eliminatethe
troublesanduseit till thepower isnormal.
Not efficient
●
●
Noises
Therefrigerator isnot located firmly;
Therefrigerator hasbeen struck to other objects;
Thecopper pipe hasbeenstruck each other in themechanical room;
Locatetherefrigerator at afirmlybasement andseparatethecopper pipefrom other objectsin theme-
chanical room.
Compressor cannot stopworkingautomatically
Storetoo much foodsat onesetting;
Open thedoor frequentlyor too long;
Thetemperatureknobisin High position;
“”
Foodsshould bestored in seperatebatches,don,t storetoo much foodsat onesetting;Decreasethefre-
quenceof opening thedoor and shorten thetimeof openingthedoor;Adjust theknob in refrigerator
compartment to the Mid or Low position.
Compressor cannot start
Turningon thepower . therefrigerator cannot work exceeding30seconds.pull theplugdownat once.
Reinsert theplug,if therefrigerator still don t work,pleasecontact with servicedepartment.
“ ”“ ”
’
●
●
●
●
