Primada PCR1510 User manual

ROTATABLE AIR FRYER
旋 轉 空 氣 炸 鍋 PCR1510

17
說明書 2
ZH-HK
使用中如果遇到任何問題，請聯絡我們的售後服務中心，將有專業人員為您解答
問題。
如欲更多產品資訊：www.primada.com.hk
本資料產品以實物為準，原廠保留產品更新的權利，如有變動，恕不另行通知。
感謝您的選擇！
EN
.............................................................................
......................................................
Instruction Manual
1. 3D立體加熱 - 烹調快30%；
2. 透明隔熱罩 - 清楚監測煮食情況；
3. 旋轉無油烤焗 - 健康美味；
4. 多種智能煮食模式 - 健康美味；
5. 多款煮食配件 - 適合不同烹調需要；
6. 方形時尚外觀 - 操作方便易存放；
7. 210℃ 烘烤温度 - 去油脫脂；
8. 多重安全保護 - 具備揭蓋斷電、無鍋防乾燒 、恒温控制。
產品功能及特點
旋轉空氣炸鍋
旋轉空氣炸鍋

ZH-HK
目錄
7. 食物烘烤温度和時間設置指南
1. 安全注意事項
2. 產品組成
2.1 包裝隨附物件
2.2 技術參數
4.3
..................................................................................................2
.........................................................................................................4
............................................................................................4
..................................................................................................4
.....................................................................................................7
.........................................................................................................8
...............................................................................................8
.................................................................................9
..........................................................................................10
.......................................................................................................13
......................................................................14
組件名稱
2.3
3. 電器原理圖
4. 產品使用
4.1 使用前須知
鍋蓋開合及拆裝方法
4.2
內鍋放置方法
..................................................................................................5
........................................................................................12
4.4 ...............................................................................10
烤具使用與裝拆方法
5. 烘烤食物操作方法
6. 清潔方法

ZH-HK
2
1. 安全注意事項
當使用本產品時，必須遵守以下安全保護措施及注意事項：

1. 安全注意事項
3
ZH-HK
1 2 3
456

2.1 包裝隨附物件
*
因產品持續改善，原廠保留產品更新的權利，如有變動，恕不另行通知。
2.2 技術參數
型號
工作電壓 220V AC 頻率 50Hz
額定功率
容量
温度範圍 時間範圍
PCR1510
1200W
8L
1-99(分鐘)80~210°C
2. 產品組成
PCR1510 高低兩用烤架 煎盤 炸籃
轉軸 烤雞叉 串燒針 取物夾
說明書
電源線
4
ZH-HK
產品保用證
食譜
ROTATABLE AIR FRYER
旋轉空氣炸鍋 PCR1510

2.3 組件名稱
主機
2. 產品組成
玻璃罩
爐蓋提手
爐蓋
防護罩
散熱孔
操作面板
內鍋
合蓋開關
電源線
爐體提手
爐體
熱旋風葉
環形光波管
轉軸支承孔
爐體內罩
轉軸裝配孔
內鍋
轉軸支架
透明爐罩
爐蓋板
5
ZH-HK

2. 產品組成
液晶顯示屏
控制面板
取消鍵 温度選擇鍵(℃)旋轉烘烤選擇鍵 開始鍵
時間選擇鍵
分鐘/温度增量鍵 顯示屏 分鐘/温度減量鍵
功能表選擇鍵
旋轉烘烤指示燈 風機指示燈 電源指示燈
時間顯示數碼
温度顯示數碼
功能表指燈
6
ZH-HK

3. 電器原理圖
7
ZH-HK
電源
插頭 限温器 温度保險絲 開關電源
控制器 顯示器
光
波
發
熱
管
罩
極
電
機
同
步
電
機
開
始
_
+
菜
單
選
擇
時
間
温
度
取
消

4.1 使用前須知
4. 產品使用
8
ZH-HK

9
ZH-HK
4. 產品使用
4.2 煲蓋開合及拆裝方法
合蓋時請用手握“鍋蓋手柄” (見圖5)，將鍋蓋翻到鍋體水平位置自動扣合（見圖6)。
開合爐蓋方法開蓋方法
圖1 圖2圖3圖4
合蓋方法
圖5圖6

ZH-HK
4. 產品使用
4.4 烤具使用與裝拆方法
1. 如果烤雞，請選用烤叉或烤架，使用方法如下。
烤叉裝置方法：
1
2
圖10
1
2
圖11
烤叉拆取方法：
圖9
用“取物夾”把“旋轉軸”往外輕移出一點，握住“取物夾”朝左上方取出(見圖11)。
圖7圖8
4.3 內鍋放置方法
10

ZH-HK
4. 產品使用
5. 如果烤其他食物，請選用“烤架”並
直接把食物放在“烤架”上(見圖
15)。
圖15
2. 如果烤簿餅、糕點等食物，請選用
“烤架”和“烤盤”並將食物放在
“烤盤”上(見圖12)。
圖12
圖14
4. 如果烤串燒，請選用“烤架”和“串
燒針”, 將食物穿在“串燒針”上 ,
並放在烤架上(見圖14)。
11
3. 如果烤薯條、花生、堅果等食物，請
選用“烤架”和“炸籃”並將食物放
在“炸籃”上(見圖13)。
圖13

12
ZH-HK

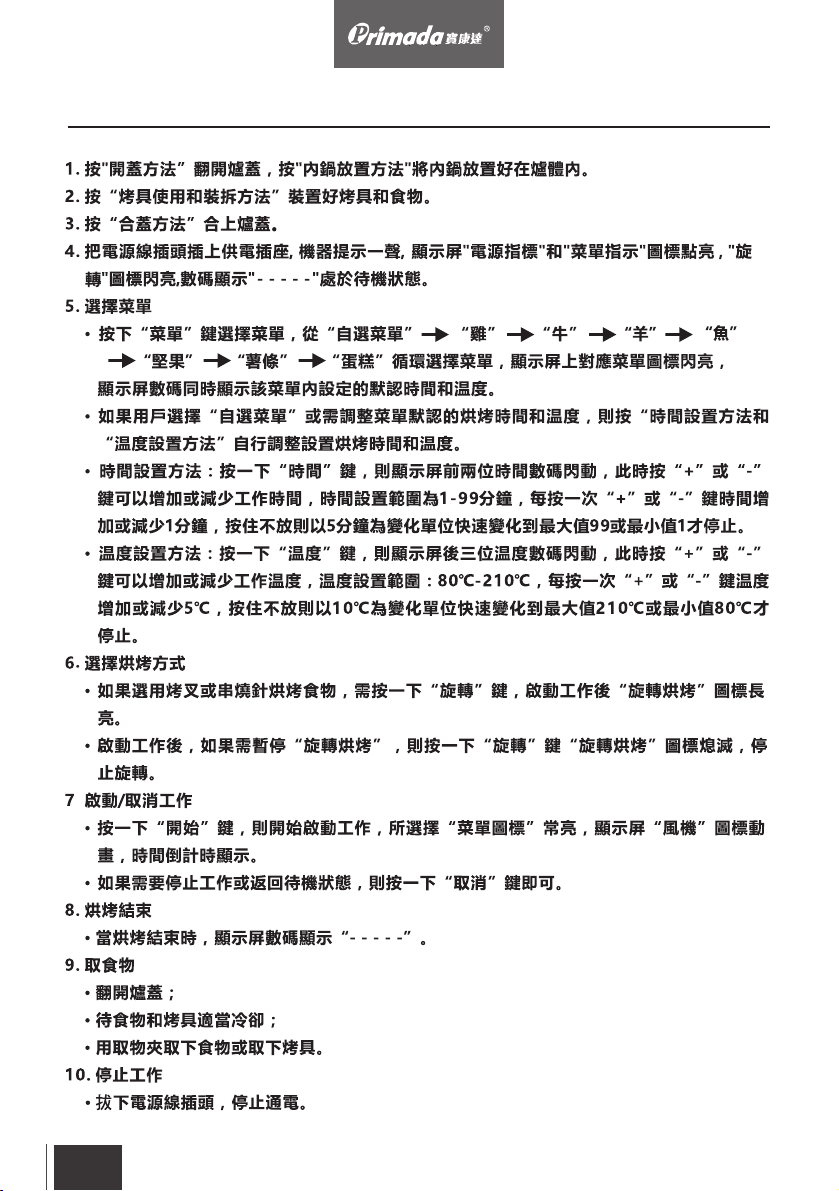

5. 烘烤食物操作方法

6. 清潔方法
13
ZH-HK

14
ZH-HK
7. 食物烘烤温度和时間設置指南
食物 參考設置時間(分鐘) 參考設置溫度(ºC) 選用烤具
雞
雞翼
香腸
扒類
肉類
串燒
魚類
蝦類
薄餅
面包
蛋糕
餅類
薯條
花生
馬鈴薯
番薯
粟米
28~33
12～17
4～9
15～20
15～20
8～13
18～23
8～13
13～18
3～8
20～25
13～18
25～30
10～15
25～30
25～30
18～23
210
210
180
210
210
200
200
200
200
200
180
200
180
180
210
210
200
烤雞叉/低烤架
串燒針
高烤架
高烤架
高烤架
串燒針
高烤架
高烤架
烤盤/高烤架
高烤架
烤盤
烤盤/高烤架
烤盤
烤盤
高烤架
高烤架
高烤架
備註：用戶根據烘烤食物體積、個人口味和烹飪經驗，自行調整設置時間和設置溫度，
以達到最佳效果。

Congratulations on the purchase of your Primada Rotatable Air Fryer! We hope
it brings you many years of satisfaction. We trust the purchase of your new
Rotatable Air Fryer will help you for fast/convenient cooking. Let you enjoy
cooking and delicious foods.
Should you encounter situations that have not been properly addressed in this
Instruction Manual, please contact our Customer Service Center where a
technician can address your specific problem or question.
For more information, please visit the official website: www.primada.com.hk
The Company reserves the right to make technological and/or design changes
to this product for continuous improvement.
Thank you for choosing!
1. Hot wind circulation, efficient cooking.
2. Transparent cover - for visual cooking.
3. Rotating baking system without oil - healthy & delicious.
4. Difference kinds of cooking mode - healthy & delicious.
5. Variety of equipment - to cope with different cooking methods.
6. Stylish square shape appearance - easy to store.
7. 210°C high temperature - easy to skim oil.
8. Multiple security design - Power turn off once open during operation, stop
operation without inner pot, thermostatic control.
Product feature and characteristic
EN

1. Important Safety Instructions
2. Package Contents and Technical Specifications
2.1 Package Contents
2.2 Technical Specifications
....................................................................17
.....................................19
.................................................................................19
.........................................................................19
....................................................................................20
....................................................................................22
....................................................................................................23
..............................................................................................23
...........................................................................24
......................25
......................................................................................27
......................................................................................................28
..................................................................................29
Product Diagram
2.3
3. Schematic Diagram
4. Operating
4.1 Before use
4.2 Lid Opening & Closing
....................................................................25
4.3 How to place the Inner Pot
4.4 Assembling and dismantling the Rotisserie Accessories
5. Cooking Operation
6. Cleaning
7. Recipes for reference
Contents
EN

1. Important Safety Instructions
1. Before switching on the product, ensure that the voltage indicated on the rating label is the
same as that in your home.
2. This product is intended for household use only, it is not intended for commercial or industrial
use.
3. Ensure the product is placed on a flat, stable, dry and heat-resistant surface when in operation.
4. Do not allow the power cord to contact with warm parts of the appliance or any other hot
surface.
5. Do not extend the power cord to operate the appliance.
6. Do not pull the power cord to unplug the power.
7. Do not place the product on or near a cooking stove.
8. Do not operate the product under wall cupboard, shelves, other overhanging objects or near
flammable materials such as blinds, curtains or wall hangings.
9. Do not operate the product in the presence of explosives and/or flammable fumes such as
petrol or kerosene.
10. Do not use any other accessories or attachments not recommended by the manufacturer.
11. Do not operate the appliance without supervision.
12. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children unless they are older than 8 and supervised.
Keep the appliance and its cord out of reach of children under 8 years old.
13. This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
14. To avoid electric shock, DO NOT immerse the cable, plug or the product main body
heater/control assembly in water or any other liquid.
15. Do not operate the product if the power cord, plug or product is damaged or if the product has
been dropped or malfunctioned. If the main cord is damaged it must only be replaced by the
manufacturer or their service representative as special tools are required.
16. To avoid risk of electric shock, do not dismantle, modify or repair the product. Any repairs must
be carried out by the manufacturer or their service representative.
17. The appliances are not intended to be operated by means of an external timer or separate
remote-control system.
18. Do not heat explosive materials directly or indirectly by product, to avoid burning or explosion.
19. Do not touch the transparent cover and lid louver, to prevent scald.
20. Do not use cloth or other items to cover the vents around the panel.
21. Do not put your face close to inner pot when opening the lid during cooking or after cooking, to
prevent scald.
22. Do not take out the inner pot directly until it is cooled down, to prevent scald.
Please always follow the basic precautions when using the appliance:
EN
17

1. Important Safety Instructions
23. Do not take the inner pot directly until it cools down, to prevent scald.
24. Before using, accessories and packaging must be taken out.
25. Please use the bottom handle when moving the product.
26. Do not place food up to the lid, leave at least 3 cm of space, otherwise may result from heating
cycle system and cooking problem.
27. After cooking, please use clamp to serve food when using rotating rotisserie forks, low rack or
high rack. Or serve until food is at a lower temperature to prevent scald.
28. Please stop using when product cannot start or transparent cover deforms or the appliance
does not perform normally, also please contact after service center.
EN
18
1 2 3
456
