Primare SP32 User manual

PRIMARE SP32
USER GUIDE
SP32

PRIMARE SP32 :: PAGE 1
Copyright and
acknowledgments
Copyright © 2008 Primare Systems AB.
All rights reserved.
Primare Systems AB
Renvägen 1
SE-352 45 Växjö
Sweden
http://www.primare.net
Issue: SP32/1
The information in this guide is
believed to be correct as of the date
of publication. However, our policy is
one of continuous development and so
the information is subject to change
without notice, and does not represent
a commitment on the part of Primare
Systems AB.
Primare is a trademark of Primare
Systems AB.
This guide was produced by
Human-Computer Interface Ltd.
http://www.interface.co.uk
Safety compliance
This product has been designed to
meet the IEC 60065 international
electrical safety standard.
This product is designed and
manufactured to meet strict quality
and safety standards. However, you
should be aware of the following
installation and operation precautions.
1. Take heed of warnings & instructions
You should read all the safety and
operating instructions before operating
this appliance. Retain this handbook
for future reference and adhere to all
warnings in the handbook or on the
appliance.
2. Water and moisture
The presence of electricity near water
can be dangerous. Do not use the
appliance near water – for example
next to a bathtub, washbowl, kitchen
sink, in a wet basement or near a
swimming pool, etc.
3. Object or liquid entry
Take care that objects do not fall
and liquids are not spilled into the
enclosure through any openings.
Liquid-filled objects such as vases
should not be placed on the equipment.
4. Ventilation
Do not place the equipment on a bed,
sofa, rug or similar soft surface, or
in an enclosed bookcase or cabinet,
since ventilation may be impeded.
We recommend a minimum distance
of 50mm around the sides and top of
the appliance to provide adequate
ventilation.
5. Heat
Locate the appliance away from naked
flames or heat producing equipment
such as radiators, stoves or other
appliances (including other amplifiers)
that produce heat.
6. Climate
The appliance has been designed for
use in moderate climates.
7. Racks and stands
Only use a rack or stand that is
recommended for use with audio
equipment. If the equipment is on a
portable rack it should be moved with
great care, to avoid overturning the
combination.
8. Cleaning
Unplug the unit from the mains supply
before cleaning.
The case should normally only require a
wipe with a soft, damp, lint-free cloth.
Do not use paint thinners or other
chemical solvents for cleaning.
We do not advise the use of furniture
cleaning sprays or polishes as they can
cause indelible white marks if the unit
is subsequently wiped with a damp
cloth.
9. Power sources
This appliance must be connected
to a mains socket outlet using the
supplied power cord. To disconnect
this apparatus from power, you must
disconnect the power cord. Make
sure the power cord is always easily
accessible.
Only connect the appliance to a power
supply of the type described in the
operating instructions or as marked on
the appliance.
This is a Class 1 device and must be
earthed.
10. Power-cord protection
Power supply cords should be routed
so that they are not likely to be walked
on or pinched by items placed upon
or against them, paying particular
attention to cords and plugs, and
the point where they exit from the
appliance.
11. Grounding
Ensure that the grounding means of
the appliance is not defeated.
12. Power lines
Locate any outdoor antenna/aerial
away from power lines.
13. Non-use periods
If the unit has a stand-by function, a
small amount of current will continue
to flow into the equipment in this
mode. Unplug the power cord of the
appliance from the outlet if left unused
for a long period of time.
14. Abnormal smell
If an abnormal smell or smoke is
detected from the appliance, turn the
power off immediately and unplug the
unit from the wall outlet. Contact your
dealer immediately.
15. Servicing
You should not attempt to service
the appliance beyond that described
in this handbook. All other servicing
should be referred to qualified service
personnel.
16. Damage requiring service
The appliance should be serviced by
qualified service personnel when:
A. the power-supply cord or the plug
has been damaged, or
B. objects have fallen, or liquid has
spilled into the appliance, or
C. the appliance has been exposed to
rain, or
D. the appliance does not appear
to operate normally or exhibits a
marked change in performance, or
E. the appliance has been dropped or
the enclosure damaged.
CAUTION: To reduce the risk of electrical shock do not
remove cover (or back). No user serviceable parts inside.
Refer servicing to qualified service personnel.
WARNING: To reduce the risk of fire or electrical shock, do not
expose this apparatus to rain or moisture.
CAUTION: In Canada and the USA, to prevent electric shock,
match the wide blade of the plug to the wide slot in the
socket and insert the plug fully into the socket.
The lightning flash with an arrowhead symbol within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated 'dangerous voltage' within the
product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
 
Important safety instructions

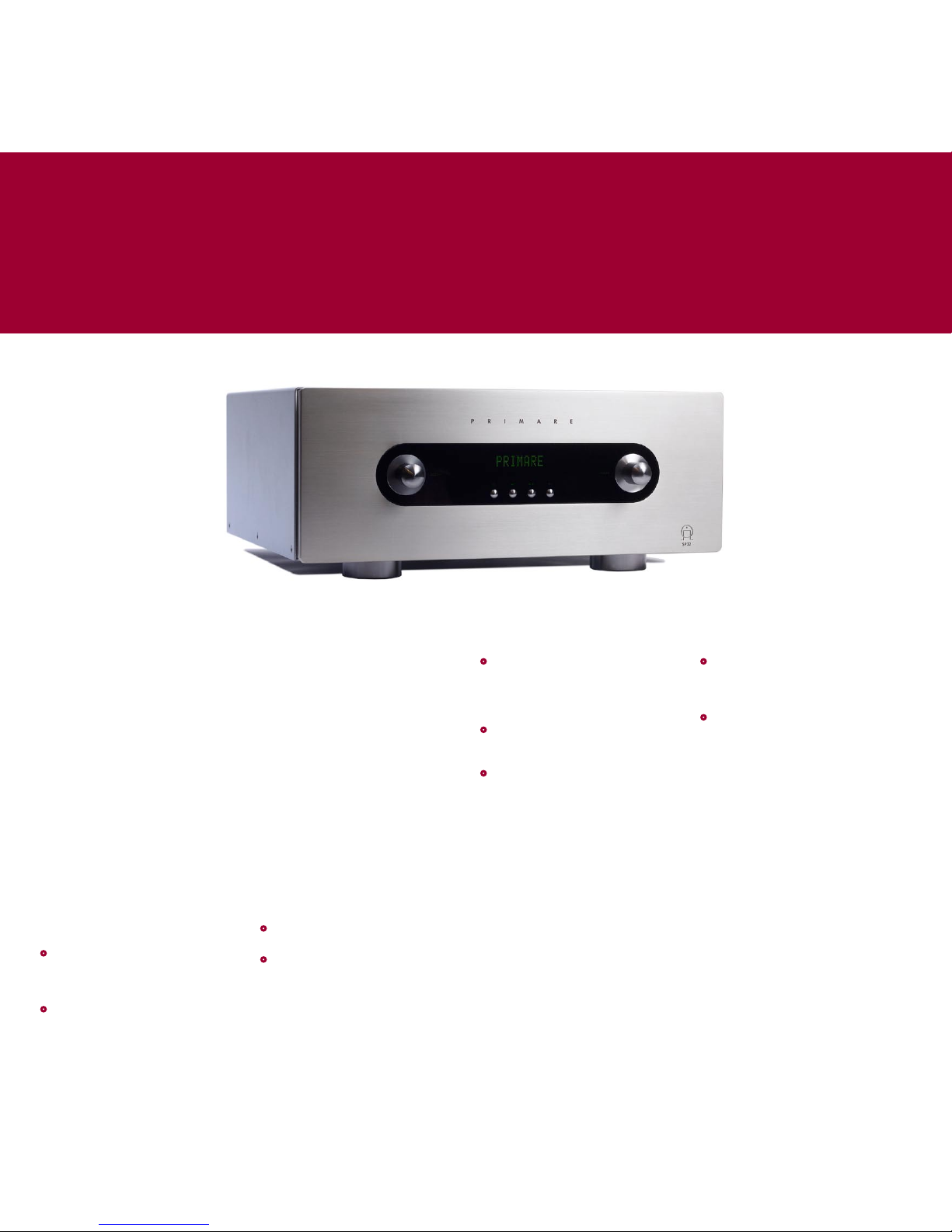

Welcome
Welcome to the Primare SP32! Your SP32 is an advanced
surround sound processor with the latest sound and video
processing, making it the ultimate choice for home theatre.
Here is how to set up your SP32 in seven simple steps:
1 Unpack the SP32
Your SP32 is supplied with the
following components:
Mains cable.
C22 remote control.
Two batteries for the remote control.
If any of these items are missing
please contact your supplier. We
recommend you retain the packaging in
case you need to transport the unit at
a later date.
2 Connect to power
amplifiers and speakers
The SP32 can drive up to seven full-
frequency channels and one subwoofer.
If your surround system does not
include a full set of speakers, the SP32
will distribute the signals from these
channels to the other channels as
appropriate in your system.
•Connect the front, centre, surround,
and surround back outputs to
the corresponding inputs on the
amplifiers.
•If your system includes a subwoofer,
connect the sub main output to the
audio input of the subwoofer.
•
•
•
3 Connect a display
While configuring your SP32 you should
connect it to your television or display
using one of the following options, so
you can use the on-screen display:
Y, Pr, Pb(Component)
S-Video
CVBS (Composite)
The SP32 also supports:
HDMI (or DVI with a suitable lead)
For more information see Video
connections , page 3.
4 Connect sources
The SP32 is supplied with 9 standard
sources already configured; see
Selecting a source , page 4.
For example, to connect a DVD player:
•Connect the component output to
Component 1 on the SP32.
•Connect the digital audio output to
digital input 4 on the SP32.
Alternatively you can configure up
to 15 sources to use the particular
combination of analogue, digital,
and video input you prefer; for more
information see Input settings , page 6.
•
•
•
•
5 Connect power
•Plug one end of the mains cable
supplied with the SP32 into the
power connector on the back panel,
and connect the other end to a wall
socket.
•Switch on the SP32, using the switch
next to the power connector on the
back panel.
•Press the Obutton to switch on the
SP32.
The button indicators will light up,
showing the function of the two
controls and four buttons on the front
panel.
6 Configure the speakers
Before using the SP32 you need to
configure it to specify the combination
of speakers you have in your surround
system. For more information see
Speaker settings , page 7.
You then need to set up the speaker
levels and speaker distances, to ensure
that the sound image is correctly
focused at the listening position. For
more information see Level settings ,
page 7, and Speaker distance , page 7.
7 Play a source
•Use the SELECTOR control on the
front panel or the Aand Vbuttons
on the remote control to select the
source.
•Use the VOLUME control on the front
panel or the +and –buttons on
the remote control to increase or
decrease the volume.
For more information about playing
sources see Selecting a source , page 4.

PRIMARE SP32 :: PAGE 3
ANALOG INPUTSDIGITAL INPUT 7
RS232
IR INPUT
HDMI ZONE2
COMPONENT
COMPOSITE VIDEO INPUTS
HDMI INPUTS VIDEO OUTPUTS COMPONENT VIDEO INPUTS
ANALOG OUTPUTS OFF ON
ANALOG OUTPUTSANALOG INPUT 10ANALOG INPUT 9
DC TRIGGER
DIGITAL OUT
DIGITAL INPUTS
AES/EBU
S-VIDEO INPUTS
Trigger
outputs
Digital
inputs
Balanced
inputs
Analogue
inputs
Analogue
outputs
Balanced
outputs
Power
Component
inputs
Video inputs Video outputs
Composite S-Video S-VideoHDMI HDMI Component
Digital
outputs

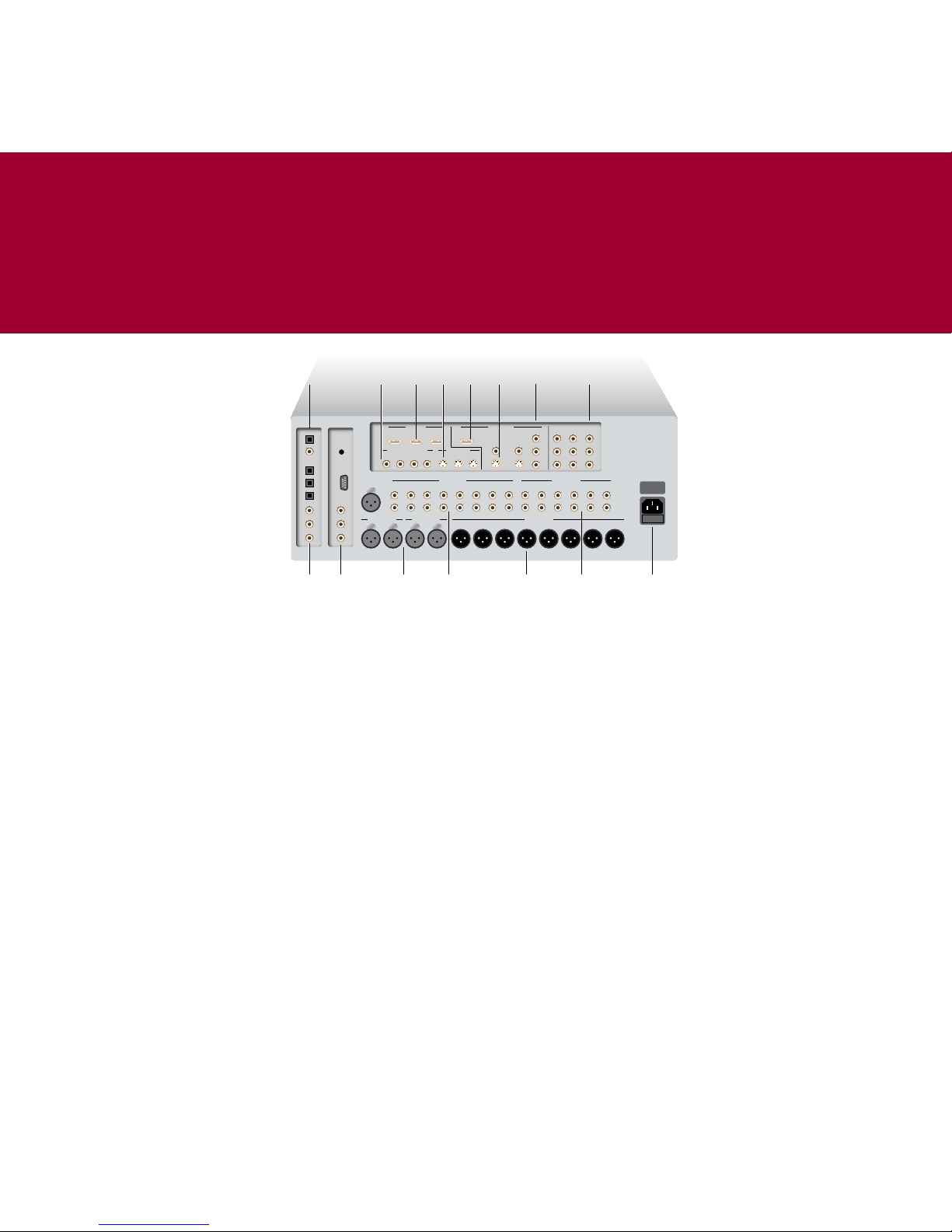

Connecting the SP32
This page shows how to connect your SP32 to other
equipment in your system.
Power
Connect the power connector on the
back panel to your power outlet using
the mains cable supplied with the
SP32.
If this cable is not suitable for your
power outlets contact your supplier for
an alternative cable.
WARNING: Always disconnect
the SP32 from the mains
power before connecting or
disconnecting any cables.
Main outputs
The SP32 provides eight discrete
analog audio outputs for connecting to
the power amplifiers and loudspeakers
in the surround system. Each output is
provided in both an unbalanced and a
balanced version.
Audio inputs
The SP32 provides a total of ten analog
inputs and seven digital inputs.
Because the SP32 is configurable, you
have total flexibility about which input
you use for each of your sources. In
addition, you can optionally use four
pairs of analog inputs for a single,
multi-channel source, such as SACD.
The SP32 is supplied with a suggested
set of sources already set up, and
you may choose to leave the inputs
assigned in this way. However, if you
prefer, you can re-assign the inputs to
sources in any way you prefer.
Digital inputs
The SP32 provides a total of seven
digital inputs: one AES/EBU digital
input, three SPDIF digital inputs, and
three optical TOSlink digital inputs.
Analog inputs
The SP32 provides eight line-level
stereo RCA inputs and two XLR inputs
for connection to a source providing
balanced outputs.
Video connections
The SP32 provides a choice of
either HDMI, component, S-Video, or
composite video connections. If your
source or monitor provides a choice
we recommend using the HDMI or
component connections, as these
provide higher quality. However, we
recommend you first connect up
and calibrate your system using the
composite connection.
Video inputs
The SP32 provides three HDMI, three
component video, three S-Video, and
four composite video inputs.
Video outputs
The SP32 provides HDMI, component
video, S-Video, and composite video
outputs. The on-screen display is
provided on all the video outputs
except HDMI.
Connecting to a television or monitor
Connect the appropriate output to your
television or display.
If your television includes a tuner
output you can use the SP32 to perform
switching between the television tuner
and your other video sources such as
DVD or Blu-ray. In this case connect the
television tuner output to the video
input corresponding to your TV source.
If your television does not provide a
tuner output you will need to switch
the television between its internal
tuner and the external video input.
Zone 2
An additional audio, S-Video, and
composite output is provided to feed
a second zone, such as a second room
system.
Record outputs
The SP32 provides two digital record
outputs, SPDIF and optical TOSlink, and
one analog RCA record output.
IR, RS232, and Triggers
The IR input allows you to connect an
external infra-red eye, for operation
of the SP32 if the front panel is
inaccessible.
The RS232 input allows an authorized
dealer to connect the SP32 to a
computer, for service and future
upgrades. For more information contact
Primare or see the Primare Audio Web
site at www.primaresystems.com.
The Trigger outputs allow the SP32 to
control external equipment, such as
power amplifiers, or a projector screen.

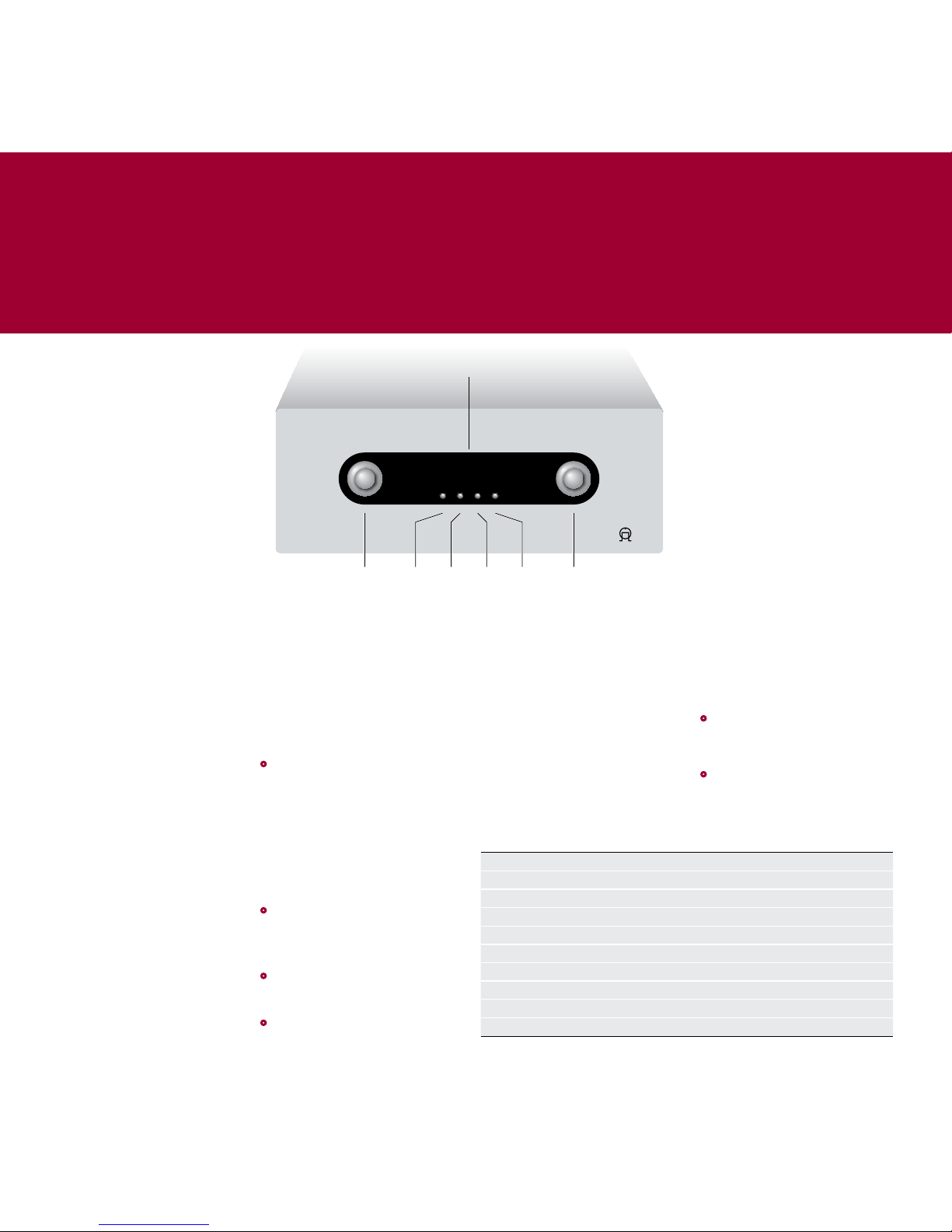

Using the SP32
This page explains how to operate your SP32, with an
explanation of the function of each of the front panel
controls.
Front panel controls
Almost all the functions of the SP32
Multi-Channel Processor can be
accessed using the two front panel
controls and four push buttons, and
information about its operation is
displayed on the front panel display:
Selector
Selects an input, or operates the on-
screen menus
Menu @
Selects the on-screen menus.
Select R
Selects the current menu option.
Level _
Selects which setting you change with
the VOLUME control.
Mute/Standby O
Press briefly to mute the sound.
Hold down to switch the SP32 to
standby.
Volume
Adjusts the volume.
Front panel display
The front panel display shows:
The processing mode; eg STEREO, or NO
LOCK if there is no signal on a digital
input.
The current source; eg DVD
The volume; eg 41 or MUTE.
To blank the front panel display
•Press the DIM button on the remote
control.
The normal display will reappear while
you adjust any settings.
Press the DIM button again to restore
the display.
Switching on and off
To switch on
•Use the switch on the back panel.
During normal operation you can leave
the SP32 switched on and in standby.
To switch to standby
•Hold down the Obutton on the front
panel or remote control.
To switch on from standby
•Press the Obutton on the front
panel or remote control.
•
•
•
Selecting a source
The SP32 allows you to define up to 15
sources. Each source can use one of the
seven digital and ten analog inputs,
and any source can be combined with
one of the video inputs. Alternatively, a
multi-channel source, called EXTERNAL
7.1, can be defined using analog inputs
5 to 8.
When the SP32 is first supplied the
nine standard sources shown below are
already set up for you.
You can simply disable any of these
sources that you do not need; see Input
settings , page 6. You can also change
any source to use different inputs,
or configure your own sources with
any name you choose and using any
particular inputs as appropriate for the
source.
To select a source
•Turn the SELECTOR control on the
front panel until the name of the
source is shown on the front panel
display.
•Alternatively, press the Aor V
buttons on the remote control to
step between sources.
%84%2.!,
3!#$
PRIMARE

SELECTOR VOLUME
  
Selector Menu LevelSelect Mute/
Standby
Volume
Display
Source Audio Video 2CH mode Description
CD Analog 9 None Bypass High quality CD player
DVD Digital 4 Component 1 Stereo DVD player
BLU-RAY HDMI 1 HDMI 1 Stereo Blu-Ray disc player
SACD External 7.1 Composite 1 N/A SACD player
SAT Digital 1 S-Video 1 PLIIX Movie Satellite receiver
DVB HDMI 2 HDMI 2 PLIIX Movie Digital satellite receiver
DVB-T Digital 2 Composite 2 PLIIX Movie Digital television receiver
VCR Analog 1 Composite 3 PLIIX Movie Video cassette recorder
Tuner Analog 2 None Bypass FM tuner

PRIMARE SP32 :: PAGE 5
Changing the volume
The SP32 allows you to vary the volume
from 0 (silence) to 99 (maximum
volume), where each step is equivalent
to 0.5dB.
To change the volume
•Rotate the VOLUME control on
the front panel, or press the +or
–buttons on the remote control.
The current volume setting is shown on
the front panel display; for example:
STEREO
DVD 41
To mute the sound
•Press the Obutton on the front
panel or the MUTE button on the
remote control.
To restore the sound to its original
volume
•Press the Oor MUTE button again.
The sound is also restored to its
original volume if you increase the
volume.
Changing the balance, center,
surround, surround back, and
subwoofer levels
You can independently change the
balance, center level, surround level,
surround back level, and subwoofer
level to alter the balance of sound in
your surround system.
Changing the balance alters the
level of both the left and right main
loudspeakers to shift the position of
the stereo image, keeping the overall
level of the sound the same. The other
adjustments change the level of the
corresponding speaker(s) without
affecting the remaining speakers in
the surround system.
To change a level
•Press the _button on the front
panel, or the BAL/ST button on the
remote control, until the display
shows the level you want to change.
The first step allows you to change the
balance of the main speakers:
0.0dB L=R 0.0dB
Subsequent steps allow you to change
the levels of the surround speakers:
CENTER 0.0dB
SUBWOOFER 0.0dB
SURROUND 0.0dB
SURR BACK 0.0dB
•Use the VOLUME control on the front
panel, or the +and –buttons on the
remote control, to adjust the value
of the level.
Each setting can be changed from
-10.0dB to +10.0dB.
After a short delay the display will
revert to the normal display.
Choosing the surround mode
The surround mode determines how
the sound is divided between the
loudspeakers in your surround system.
Each source is associated with a
default surround mode, which will be
used when you select that source, but
you can choose a different surround
mode for the source if you prefer.
For example, the standard surround
mode for the DVB source is PLIIX Movie,
since most TV broadcasts are Pro
Logic encoded, but if you are watching
a music concert you may prefer to
choose the Stereo or Bypass surround
modes, as these give a more natural
sound when listening to music.
To change the surround mode
•Press the MODE button on the
remote control to step between the
available surround modes.
The options available depend on the
source you are listening to.
Two-channel sources
If you are listening to a conventional
two-channel analog or digital source,
such as a CD, the following options are
available:
Option Description
BYPASS
(analog
sources only)
The inputs are fed
directly to the output,
with no decoding for the
most faithful possible
reproduction of stereo or
multi-channel sources.
STEREO Conventional stereo, using
just the main left and right
loudspeakers.
PLIIX Dolby’s updated Pro Logic
decoder provides 7.1
channel surround sound
from any two channel
source, with stereo
surround back channels
and full frequency range.
PLIIX CINEMA A variant of PLIIX optimised
for movie soundtracks.
PLIIX MUSIC A variant of PLIIX optimised
for music sources.
PARTY The same signal to the
front left and right,
surround left and right,
and surround back left
and right loudspeakers, if
connected and enabled.
DTS NEO:6
CINEMA
DTS Neo:6 provides up to
6.1 channel surround sound
from conventional stereo
sources, and can be used
with virtually any two-
channel analog or digital
stereo source such as CD,
tape, or TV.
DTS NEO:6
MUSIC
A version of DTS Neo:6 ideal
for stereo music sources.
Multi-channel sources
For Dolby Digital or DTS sources only
the following option is available:
Option Description
AUTO Automatically detects an
incoming digital signal and
locks onto it.
The SP32 automatically detects a Dolby
Digital or DTS input and displays Dolby
Digital on the front panel display.
If the Dolby Digital input only contains
two channels, or it is a PCM signal, the
default surround mode specified in the
INPUT SETTINGS menu is also displayed.
For more information see Input
settings , page 6.
Making recordings
The SP32 Multi-Channel Processor
allows you to make a recording of a
digital source to the two digital record
outputs, or of an analog source to the
analog record output.

Configuring the SP32
This page explains how to use the SP32 menus to configure
the operation of your SP32.
Using the menus
The MAIN MENU gives access to a series
of menus which allow you to customize
different aspects of the operation of
the SP32 using the on-screen display.
To display the MAIN MENU
•Press @on the front panel or remote
control.
To select a menu option
•Use the SELECTOR on the front panel
or the Aor Vbuttons on the remote
control to step between the menu
options.
To change the currently highlighted
option
•Use the VOLUME control on the front
panel or the <and >buttons on the
remote control to step between the
alternative values for the current
menu option.
To exit from the current menu
•Press @on the front panel or remote
control.
Exiting from the main menu returns to
normal operation of the SP32.
Input settings
The INPUT SETTINGS menu allows you to
configure any of the 15 inputs:
Option Description
STATUS ENABLED or DISABLED to
specify whether the source
can be selected from the
front panel or remote control.
ALIAS Press SELECT to edit the name
of the source. Use Aand Vto
select a character, then <or
>to edit it. Finally press @
to finish.
AUDIO The audio input used for the
source: ANALOG 1 to ANALOG
10, EXT 7.1, DIGITAL 1 to
DIGITAL 7, HDMI 1 to HDMI 3, or
NONE.
VIDEO The video input used for
the source: COMPOSITE 1 to
COMPOSITE 4, S-VIDEO 1 to
S-VIDEO 3, COMPONENT 1 to
COMPONENT 3, HDMI 1 to HDMI
3, HD BYPASS 1 to HD BYPASS
3, or NONE.
OFFSET Press <or >to vary the
sensitivity of the source
between -12.0dB to +12.0dB in
0.5dB steps.
2CH MODE The default surround mode for
two-channel sources: BYPASS,
STEREO, PLIIX MOVIE, PLIIX
MUSIC, NEO6 CINEMA, NEO6
MUSIC, or PARTY.

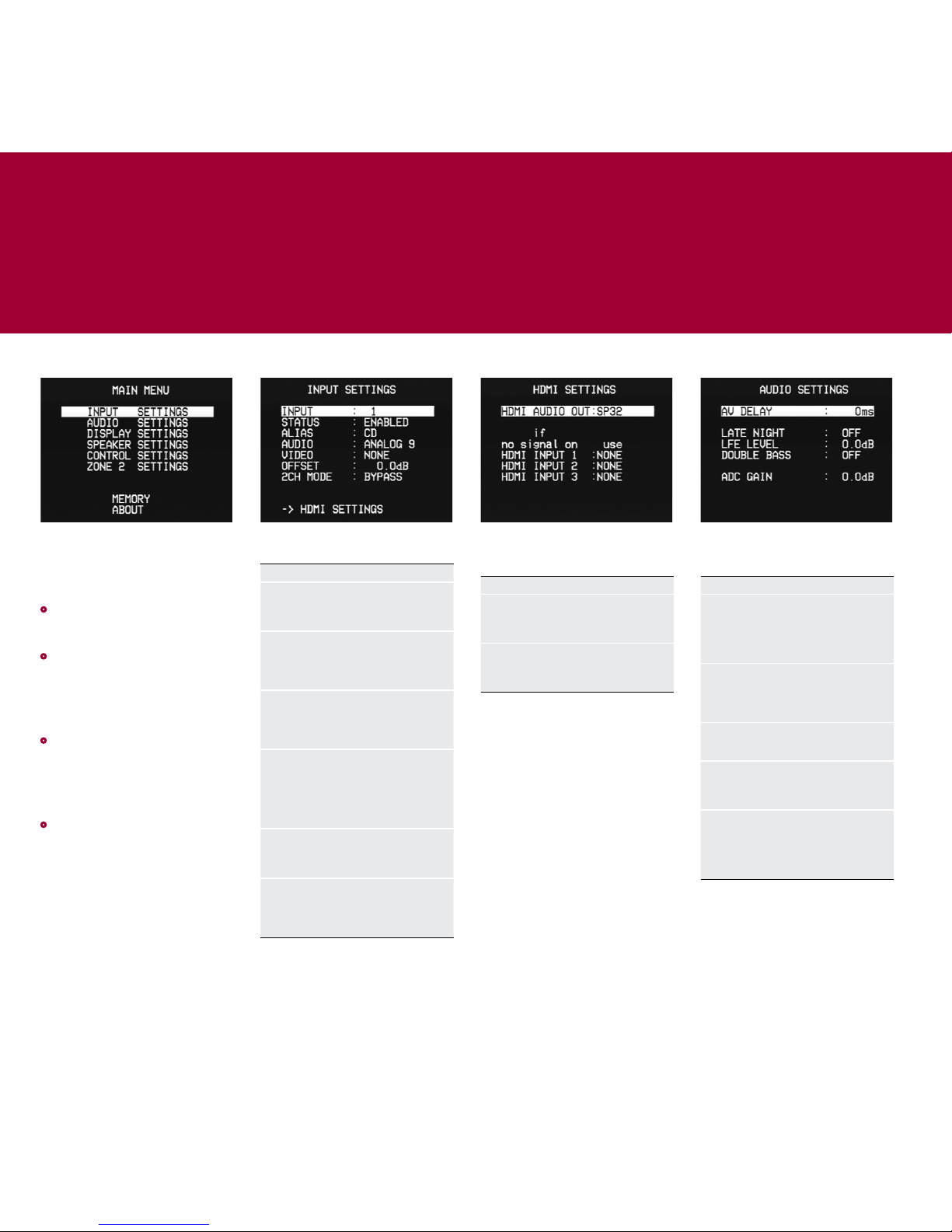

HDMI settings
The HDMI SETTINGS menu allows you to
specify how the HDMI audio channels
are handled:
Option Description
HDMI AUDIO
OUT
Set to TV if you want to pass
the HDMI audio to the TV, or
SP32 if you want the SP32 to
process the audio.
HDMI INPUT 1
HDMI INPUT 2
HDMI INPUT 3
Allows you to specify a
default source to be used
if there is no signal on the
specified HDMI input.
Audio settings
The AUDIO SETTINGS menu allows you
to specify options affecting all audio
outputs:
Option Description
AV DELAY Can be adjusted between
0ms and 140ms to
compensate for processing
delay in some video displays.
Choose the setting that gives
correct lipsync.
LATE NIGHT Set to ON to apply dynamic
range compression to
the audio, to reduce loud
transients for late night
listening.
LFE LEVEL Can be adjusted between
0.0dB and -10.0dB to reduce
the LFE level.
DOUBLE
BASS
Set to ON to copy the bass
from speakers specified as
LARGE and send this to the
subwoofer.
ADC GAIN Allows you to adjust the
threshold for automatically
setting the ADC input level.
Can be adjusted between
12.0dB (more dynamic range)
and -12.0dB (more headroom).

PRIMARE SP32 :: PAGE 7

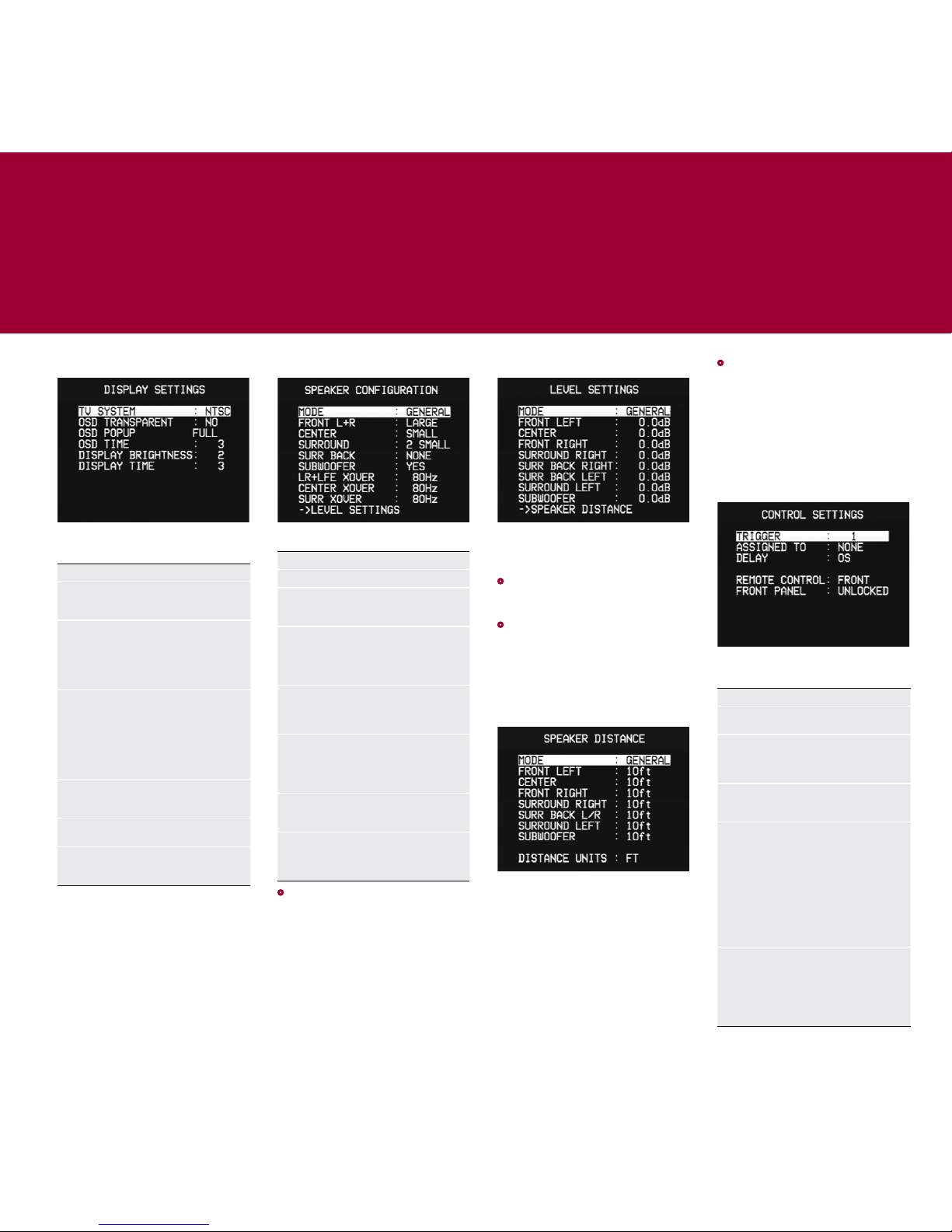

Display settings
Allows you to customise the on-screen
and front panel displays:
Option Description
TV SYSTEM Set to NTSC or PAL to specify
the native system of your
display. *
OSD
TRANSPARENT
Set to YES to allow the video
image to show through the
background of the on-screen
display, or NO to blank the
video image when the on-
screen display is displayed.
OSD POPUP Determines what
information is shown on the
OSD when changing source.
FULL shows the same
information as the front
panel display, SIMPLE shows
just the source name, and
OFF turns it off.
OSD TIME Set to 1-10 sec to determine
how long the on-screen
display stays on the screen.
DISPLAY
BRIGHTNESS
1-3 to specify the front
panel display brightness.
DISPLAY TIME Set to 1-10 sec to set the
time before the display
dims.
* You can force the OSD to PAL or NTSC
by holding down the @or _button
on the front panel while turning on the
main power switch.
Speaker settings
Allows you to set up the speakers:
Option Description
MODE See below.
FRONT L+R Select SMALL or LARGE to
specify whether the front
speakers can handle bass.
CENTER Select NONE, SMALL, or LARGE
to specify whether there
is a center speaker in the
system, and whether it is
small or large.
SURR Select NONE, SMALL, or LARGE
to specify information
about the surround
speakers.
SURR BACK Select NONE, 1/SMALL, 1/
LARGE, 2/SMALL, or 2/LARGE
to specify the number and
size of the surround back
speakers.
SUBWOOFER Select OFF or ON to specify
whether the layout should
include a subwoofer.
LR+LFE XOVER
CENTER XOVER
SURR XOVER
Allows you to define the
crossover frequency (40Hz
to 200Hz) used for the LFE,
CENTER, and SURR speakers.
•Set MODE to GENERAL, and then set
the other parameters as appropriate
for the speakers in your system.
You can then define DOLBY D, DTS, and
OTHER modes, which can be used to
add an offset to the GENERAL settings
for Dolby Digital, DTS, and 2-channel
sources respectively.
Level settings
Allows you to adjust the levels so that
the sound from each speaker is equally
loud at the listening position.
•Highlight each of the speakers in
turn; a white noise signal will be
played through the speaker.
•Use the <and >buttons on the
remote control to adjust the level.
For best results measure the level at
the listening position using a Sound
Pressure Level meter.
Speaker distance
Allows you to specify the distance
of each speaker from the listening
position, in feet or metres. The SP32
will then add delays to each channel
to ensure that the sound from each
speaker reaches the listener at the
same time.
You can also add an extra delay to the
surround speakers to make the sound
more spacious.
•Use the <and >buttons on the
remote control to adjust the
distance or delay.
In GENERAL mode you can adjust the
distance between 0 and 20 feet (0
and 6m). Setting DISTANCE UNITS to
MS shows the calculated delays and
allows you to adjust them directly.
Control settings
Allows you to configure hardware
settings of the SP32.
Option Description
TRIGGER Allows you to select one of
the three trigger outputs.
ASSIGNED TO Specifies when the current
trigger is active: NONE, POWER
ON, ZONE 2, or INPUT 1 to INPUT
15.
DELAY Allows you to specify a delay
of 0, 1, 2, or 5 secs before the
trigger is activated.
REMOTE
CONTROL
Select FRONT to use an infra-
red remote control pointer
at the front panel, or BACK to
control the SP32 using the IR
input on the back panel.
Note: After changing this
option you will not be able
to use the remote control to
control the SP32. To reset this
option operate the menus
from the front panel.
FRONT PANEL Select LOCKED to lock the
front panel; you will then
only be able to operate the
SP32 via the remote control.
Reset to UNLOCKED when you
turn off the SP32 at the back
panel.

Technical specification
Digital audio
Digital inputs.
1 balanced, 3 RCA, 3 TOS-Link.
Digital output
1 RCA, 1 TOS-Link
Frequency response
20Hz-20kHz+ 0.2dB
THD and noise
0,005% @1 kHz (AES17 filter)
Analogue audio
Analogue inputs
2 balanced, 8 RCA.
Balanced analogue inputs
Front (left and right)
Center, Sub, Surr (left and right)
Surr back (left and right)
Analogue outputs
Front (left and right)
Center, Sub, Surr (left and right)
Surr back (left and right)
Analogue record output
1 RCA (left and right)
Analog zone2 output
1 RCA (left and right)
Frequency response
10Hz-100kHz, 1dB
THD
<0.005%, 20Hz-20kHz
Signal to noise ratio
-110dB
Input impedance
47kΩ unbalanced
3kΩ balanced
Output impedance
47Ω unbalanced
47Ω balanced
Control
1 IR Input, 3 12v outputs (triggers),
1 RS232
Video
10 bit digital video conversion system
supporting NTSC/PAL, Component,
S-Video and Composite, with OSD.
Video inputs
3 HDMI, 3 Component, 3 S-Video,
4 Composite.
Video output
1 HDMI, 1 Component,
1 S-Video, 1 Composite
Video zone2 output
1 S-Video,1 Composite
Processing
Modes
Stereo
Bypass
Party
Dolby Prologic IIx Music
Dolby Prologic IIx Movie
DTS NEO:6 MUSIC
DTS NEO:6 CINEMA
Decoding formats
Dolby Digital
Dolby Digital EX
Dolby Prologic II
Dolby Prologic IIx
DTS
DTS ES
DTS Neo:6
DTS 96/24
MULTI/2 CH PCM/LPCM
Sampling rates
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz,
192kHz (AES/EBU)
General
Power consumption
Operating: <60W
Standby: <5W
Size
430 x 385 x 180mm (WxDxH)
Weight
16kg
Additional information
Using a second zone
For each input the ZONE 2 SETTINGS
menu allows you to specify an
analogue audio input and an S-Video or
composite video input to be output to
the Zone 2 outputs.
Option Description
INPUT Select one of the 15 inputs to
be configured.
AUDIO
VIDEO
Allows you to specify an
analogue audio input and an
S-Video or composite video
input to be output to the
Zone 2 outputs.
VOLUME Allows you to set the current
Zone 2 volume (0 to 99).
VOLUME
DEFAULT
Determines the default Zone
2 volume (0 to 99) when
the SP32 is turned on from
standby.
Note: Analogue inputs 9 and 10 cannot
simultaneously be used for the main
and Zone 2 sources.
RS232
The RS232 connector allows your dealer
to upgrade the firmware on your SP32,
or control the SP32 as part of a multi-
room system. Do not connect anything
to this socket unless instructed by your
dealer.
Saving installer settings
Once you have configured the SP32 you
can save the settings in a password-
protected file, and then recall them at
any time to restore the SP32 to your
custom configuration.
•Select MEMORY from the MAIN MENU.
•Select SAVE INSTALLER SETTINGS from
the MAIN MENU.
The first time you will be prompted to
set a password.
•Highlight NEW PASSWORD and press
SELECT, enter the password using
the number keys (or A, V, <, and >) on
the remote, then press @.
•Highlight CONFIRM NEW and press
SELECT, confirm the password using
the number keys (or A, V, <, and >) on
the remote, then press @.
The screen will confirm NEW PASSWORD
HAS BEEN STORED.
Now save the current settings as
follows:
•Highlight SAVE INSTALLER SETTINGS
and press SELECT.
•Press SELECT and enter the password
you have just defined.
The screen will confirm INSTALLER
SETTINGS HAVE BEEN SAVED.
Recalling installer settings
You can recall the installer settings at
any time:
•On the MEMORY menu select RECALL
INST SETTINGS.
The SP32 will restart with the new
configuration.
Performing a factory reset
If you want to restore the settings to
their default factory values you can
perform a factory reset as follows:
•On the MEMORY menu select RECALL
FACTORY SETTINGS.

Primare Systems AB :: Renvägen 1 :: SE-352 45 Växjö :: Sweden
WWW.PRIMARE.NET
