After you have reviewed the PFS-875, look inside, your will be pleased to know we are using a BGA FPGA and it
is made in the USA. This device provides many features to be crammed into one RU chassis
OK - the PFS-875 is envisioned as a product of the future. The unit is comprised of a 4 field TBC/frame
synchronizer with full transcoding on the analog inputs and a user configurable set of triple analog outputs as well
as SDI input and output. All processing is completely digital and includes a full proc amp as well as adjustable
output levels and timing.
The PFS-875 is designed as a standalone gen-lock-able frame sync with a variety of both analog and digital inputs
and outputs. The developmental was aimed to produce a broadcast quality unit as an initial offering, and then to
potentially use portions of this new platform in a variety of new products (modules for existing card frame products,
digital proc amp, etc.).
The PFS-875 provides dual standard composite and SDI timebase correction and synchronization to an external
reference. The unit will decode multiple composite standards (NTSC, NTSC-J, PAL-B,G,H,I,N). All analog inputs
are sampled with 10 bit resolution and decoded using a 3 line digital comb filter.
LINK ELECTRONICS, INC. g2137 Rust Avenue gCape Girardeau, MO 63703-7668
Phone [phone] gFAX 573 334 9255
800 SERIES
FEATURES
LINK ELECTRONICS, INC.
FRAME SYNCHRONIZER
MODEL PFS-875
Input/output Select
Menu Short-cut Button
Looping Reference Input
Color Bar Black Generator
DAC & ADC 12 Bit Processing
AES Audio Delay up to 640 mS
User and Factory Default Settings
Analog I/O Video Proc Amp Settings
SDI, CV, CAV (YUV), Y/C & S-Video I/O
Embed Audio move to a different group
Bi-Directional Digital Analog Decoder
Front Panel VFD Display for Function Set-Up
PAL/NTSC
1 Rack Unit
TBC Function
Power off Bypass
User friendly Menu System
Two AES Stereo Channels
Selectable Video Freeze
SDl Video Proc Amp Settings
Analog Video I/O Proc Amp Settings
Infinite Horizontal and Vertical Timing
Bi-Directional Digital Analog Transcoder
Audio Embedding & De-embedding
There are four video input and output formats supported
by the PFS-875; Composite Video, Component Analog
Video (YUV), Y/C (S-VHS) and SDI. The component
analog video input is YUV (SMPTE), and component
output is YUV (SMPTE/Beta-cam). The analog output
is on three BNC connectors which can be programmed
from the front panel to output all 3 composite, or
composite and Y/C, YUV SMPTE, or YUV BETA.
The PFS-875 provides dual standard composite and
SDI correction and synchronization to an external
analog reference. The synchronizer decodes multiple
composite standards (NTSC, PAL). All analog inputs
are sampled with 12-bit resolution and decoded using
a 5 line adaptive comb filter. It also has a built-in color
bar or black burst generator. The PFS-875 can also
synchronize non TBC signals from VHS tapes.
When input video is lost, the synchronizer freezes the
video or generates a test pattern. There are three ways
to freeze the video, freeze to the last known good
frame, field 1, or field 2. The test patterns that can be
generated are SMPTE color bar for NTSC, 75 % color
bar for PAL, and black burst for both.
PFS-875 has the feature to embed and de-embed two
channels of stereo AES audio. The De-embedded AES
audio is output through 2 separate BNCs on the rear
panel. Similarly, AES input for embedding can be input
through 2 separate BNCs. It has the feature of
choosing to embed the de-embedded audio and move
the audio to another group or channels. It also has the
feature of delaying the audio to match the video delay.
One of the new developments to be included in this
product is an all-digital composite NTSC/PAL encoder.
The encoding process allows for an image quality
superior to any of the off-the-shelf encoder ICs
available on the market at present, and also gives a
superior gen-lock capability. The encoder process
implements 12-bit outputs.
The PFS-875 has the feature of three built-in
processing amplifiers. One “proc. amp.” is for the
analog output allowing you to control luma,
chrominance, Sync, Burst, and Set-up levels along with
a black clip and hue phase adjustment. The second
“proc. amp.” is for the SDI output allowing you to control
luma, chrominance and set-up levels along with a black
clip. The third “proc. amp.” is for the analog input
affecting both analog and SDI outputs, which allows you
to control the luma and chrominance levels along with
hue phase adjustments.
LINK ELECTRONICS, INC. g2137 Rust Avenue gCape Girardeau, MO 63703-7668
Phone [phone] gFAX 573 334 9255

VIDEO SPECIFICATIONS
INPUTS: SDI, CV, YUV, Y/C, & S-Video:
Analog inputs: ................................... 7(CV,Y/C,YUV,&S-Video)
Composite&Ylevel: ...................................... 1Vpp,75Ω, BNC
U/Vlevel: ............................................ 0.525Vpp, 75 Ω, BNC
Clevel: .............................................. 0.624Vpp, 75 Ω, BNC
S-Video: .................................................. 4-PinMini-DIN
SerialDigitalInterface(SDI): .................0.8Vpp±10%,EQ.750”, 75 Ω, BNC
Gen-LockReference: ................................... 1Vpp,Looping BNCs
OUTPUTS: SDI, CV, YUV, & Y/C:
Analog ouputs: ................................... 3(3CV,CV&Y/C,orYUV)
Composite&Ylevel: ....................................... 1Vpp,75Ω, BNC
U/V: ........................... 0.707Vpp (Beta)/0.525Vpp (SMPTE), 75 Ω, BNC
Clevel: ............................................. 0.625Vpp, 75 Ω, BNC
SerialDigitalSDI(2BNCs): .......................... 0.8Vpp±10%,75Ω, BNC
EAV-SAV ........................................... MeetsSMPTEITU-656
SIGNAL PROCESSING:
ADC/DACEncoding/Decoding: ........................................ 12bit
Component YUV Pipeline: ............................................ 10bit
Video Range: .................................... 50to150 %, 100 % @ unity
Chroma Range: .................................. 50to150 %, 100 % @ unity
Set-Up Range: ................... -19.9to+19.9IRE/NTSC,-142 to +142 mV/PAL
Burst Amplitude: ....................... 20to50IRE/NTSC,143 to 357 mV/PAL
SyncTipAdjust: ....................... 30to60IRE/NTSC,214 to 428 mV/PAL
HorizontalTiming: ....................0to1715(NTSC)/1727(PAL) pixels (Infinite)
VerticalTiming: ....................... 0to524 (NTSC)/ 624 (PAL) lines (Infinite)
Sub-carrierTiming: ...................................... 0
o to 359o(Infinite)
HuePhase: ............................................. 0
o to 359o(Infinite)
FREQUENCY RESPONSE AND SIGNAL TO NOISE:
Frequency Response: .................................. +/-2.5dBat4.22MHz
Tilt:............................................. <1%ref.30Hzsquare wave
Hum: .................................................... >70dB,1.0Vp-p
Overshoot & Ringing: ................................................ <1%
S/NRatio: ....................................................... >65dB
DifferentialGain: .................................................... <1%
DifferentialPhase: .................................................... <2
o
K-Factor: .................................................<0.5%,2TPulse
LineRateTilt: .............................................<0.5%,2TPulse
FieldRateTilt: ..................................................... <0.1%

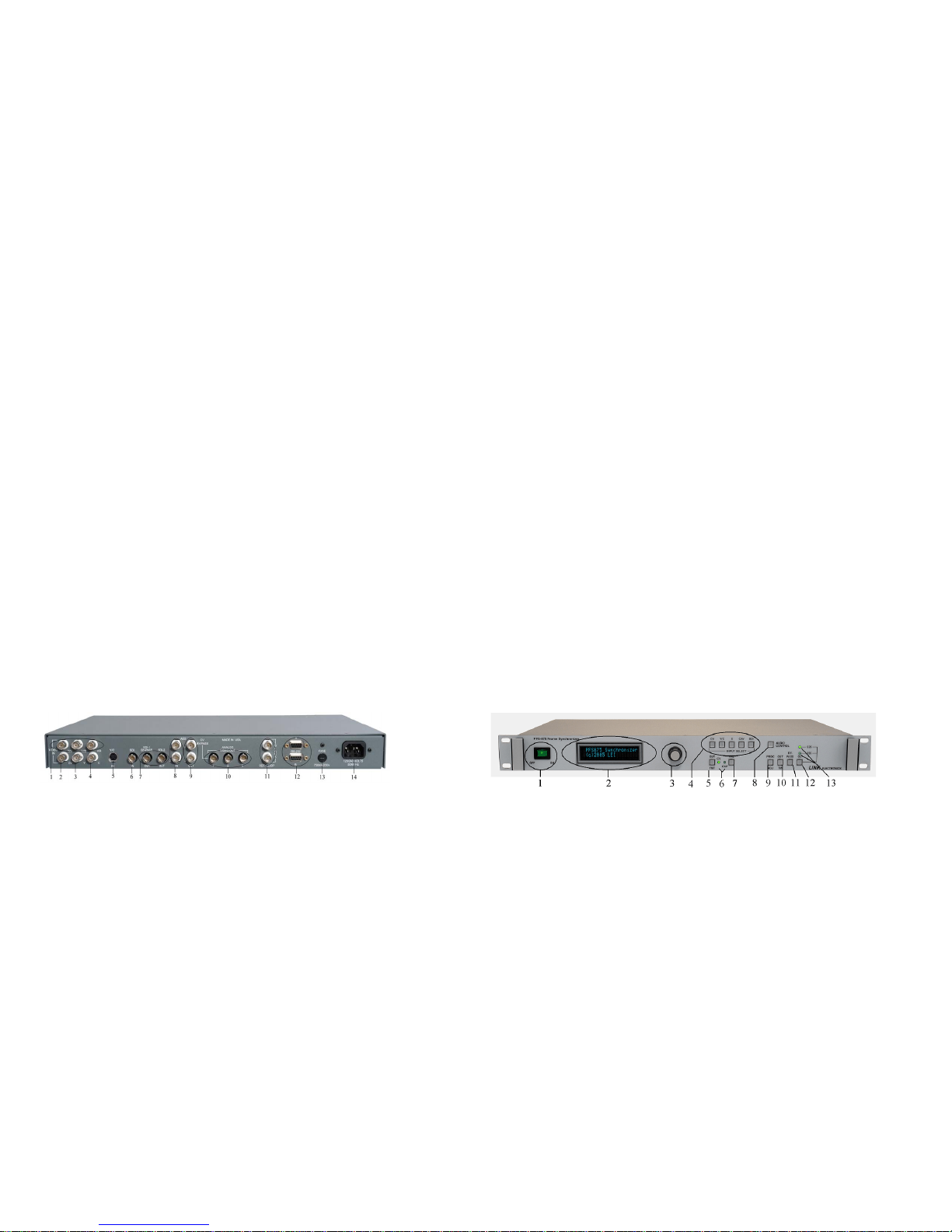

1. YUV input SMPTE levels only
2. NComposite inpu
3. Y input.
4. C input
5. S-Video input
6. SDI input
7. SDI outputs
8. AES inputs
9. AES outputs
10. Analog outputs
11. Looping reference input
12. RS-232 connectors for future use
13. Fuse holder
14. Power receptacle, 85V-AC to 260V-AC
AUDIO:
AES/EBU INPUT:
Input: ................................................. 2AES/EBU Stereo Channels
Resolution: ..................................................... 20/24-bit,48KHz
Input Type: ................................................ 1Vpp±10%,75Ω, BNC
Channel Status: ................................................ Professional S/PDIF
AES/EBU OUTPUT:
Output: ...............................................2AES/EBU Stereo Channels
Resolution: ..................................................... 20/24-bit,48KHz
OutputType:...................................................... 2,75Ω, BNCs
SDI EMBEDDED INPUT:
Input: ................................................. 2AES/EBU Stereo Channels
Resolution: ..................................................... 20/24-bit,48KHz
Connection: ................................................. BNC(SDIVideo Input)
SDI EMBEDDED OUTPUT:
Input: ................................................ 2AES/EBU Stereo Channels
Resolution: .............................................................. 24bit
SamplingRate: .......................................................... 48KHz
Connection: ............................................... BNC(SDIVideo Output)
DelayResolution: .......................................... 640 ms in steps of 80 ms
THD: ................................................................ 0.0002 %
THD+N: ............................................................. 0.0006 %
Signal to noise ratio: ..................................................... >100 dB
Channel Separation: ...................................................... 134 dB
Channel Crosstalk: ....................................................... 123 dB
PHYSICAL:
FRONT PANEL CONTROLS:
ACPower: .............................................................. On/Off
By-Pass,Gen-Lock,Freeze: ................................... Push/Push,Maintained
Input Select, Output Format, PROC ADJ: .................................... Selection
LED's: ........................................... OutputFormat,Standard Detection
VFD DISPLAY:
Characters: .............................................................. 20X2
ELECTRICAL:
Input Power: ......................................... AutoDetection90to264 V AC
Frequency: ......................................................... 47to63Hz
Power: ................................................................30Watts
MECHANICAL:
Height: .............................................................. 1.75inches
Width: ............................................................... 19Inches
Depth: ............................................................... 11Inches
Weight: ............................................................... 4.75Lbs
ENVIRONMENTAL:
OperatingTemperature: ........................................ 0
oto 50o C (ambient)
Humidity: ............................................. 10%to90%Non-condensing
1. Power Off/On Switch
2. Display, for menu selections
3. Menu Selector Knob
4. Input Selection Buttons
5. Output Format Button
6. CV & CAV LEDs
7. Freeze Button
8. Audio Control Button
9. Proc Amp Adjustment Button
10. Output Timing Button
11. Bypass Button
12. Gen-lock Button
13. 525/625 LEDs
