THE MICROWAVE
A microwave is mainly used for quickly heating, preparing and defrosting food
like vegetables, meat, fish and potatoes. In addition, it is suitable for preparing
ready-to-eat meals or a glass or bottle of (baby)milk. Using the microwave
function will accelerate the defrosting, preparing and heating process.
How does a microwave work?
• The microwave works through electromagnetic microwaves, which are
sent by a high voltage system. These microwaves have a frequency
of 2450MHz and are not ionizing. This means they do not damage
the molecules. The microwaves turn the water within the food into
heat. Besides water, also fat molecules within the food are effective to
transform radiation energy into heat.
• The microwaves are going directly through tableware, which allows the
food to heat up quickly. Vitamins and natural flavours will be preserved.
Because the microwaves remain within the device, the heating is in some
parts more intense than in others. For this reason, the microwave is
generally equipped with a glass turntable. Due to the rotating motion, the
turntable enables the energy to be divided more equally.
IMPORTANT SAFETY INSTRUCTIONS
• To reduce the risk of fire, electric shock, injury to persons
or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including
the following:
• Liquids and other foods must not be heated in sealed
containers since they are liable to explode.
• It is hazardous for anyone other than a competent person
to carry out any service or repair operation that involves
the removal of a cover which gives protection against
exposure to microwave energy.
• Only allow children to use the oven without supervision
when adequate instructions have been given so that
the child is able to use the oven in a safe way and
understand the hazards of improper use.
• Only use utensils suitable for use in microwave ovens.
• The oven should be cleaned regularly and any remaining
food should be removed.
• Read and follow the specific: "PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY".
• When heating food in plastic or paper containers, keep
an eye on the oven due to the possibility of ignition.
• If smoke is observed, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
• Do not overcook food.
• Do not use the oven cavity for storage purposes. Do not
store items, such as bread, cookies, etc. inside the oven.
• Remove wire twist-ties and metal handles from paper or
plastic containers/bags before placing them in the oven.
• Install or locate this oven only in accordance with the
installation instructions provided.
• Eggs in the shell and whole hard-boiled eggs should not
be heated in microwave ovens since they may explode,
even after microwave heating has ended.
• Use this appliance only for its intended uses as described
in manual. Do not use corrosive chemicals or vapors in
this appliance. This oven is especially designed to heat. It
is not designed for industrial or laboratory use.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
4
• Do not store or use this appliance outdoors.
• Do not use this oven near water, in a wet basement or
near a swimming pool.
• The temperature of accessible surfaces may be high
when the appliance is operating. The surfaces are liable
to get hot during use. Keep cord away from heated
surface, and do not cover any events on the oven.
• Do not let cord hang over edge of table or counter.
• Failure to maintain the oven in a clean condition could
lead to deterioration of the surface that could adversely
affect the life of the appliance and possibly result in a
hazardous situation.
• The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked before
consumption, in order to avoid burns.
• Microwave heating of beverages can result in delayed
eruptive boiling, therefore care must be taken when
handling the container.
• The appliance is not intended for use by persons
(including children) with reduced physical , sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
• Children should be supervised to ensure that they do not
play with the appliance.
• The appliances are not intended to be operated by means
of an external timer or separate remote-control system.
• Accessible parts may become hot during use. Young
children should be kept away. Steam cleaner may not be
used for cleaning.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of the
glass.
• The rear surface of appliance shall be placed against a
wall.
• Never use the microwave without the turntable shaft,
turntable ring assembly and the glass turntable.
• Make sure food and containers of food are always placed
on the glass tray for cooking.
• The appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children unless they are older than
8 and supervised.
• Keep the appliance and its cord out of reach of children
less than 8 years.
• If smoke s emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
• This appliance is intended to be used in household and
similar applications such as:
a. Staff kitchen areas in shops, offices and other working
environments.
b. By clients in hotels, motels and other residential type
environments.
c. Bed and breakfast type environments
d. Farm houses
5
• Accessible parts may become hot during use. Young
children should be kept away.
• Steam cleaner is not to be used.
• During use the appliance becomes hot. Care should be
taken to avoid touching heating elements inside the oven.
• Only use the temperature probe recommended for
this oven.(for ovens provided with a facility to use a
temperature-sensing probe.)
• WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
• The microwave oven must be operated with the
decorative door open. (for ovens with a decorative door.)
• : surface may get hot during use.
Precautions to avoid possible exposure to excessive microwave energy
• Do not attempt to operate this oven with the door open
since this can result in harmful exposure to microwave
energy. It is important not to break or tamper with the
safety interlocks.
• Do not place any object between the oven front face and
the door or allow soil or cleaner residue to accumulate on
sealing surfaces.
• If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent
person.
• If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect
the lifespan of the apparatus and lead to a dangerous
situation.
To reduce the risk of injury to persons grounding installation
• Touching some of the internal components can cause
serious personal injury or death. Do not disassemble this
appliance.
• Electric Shock Hazard Improper use of the grounding
can result in electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
• Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood
or if doubt exists as to whether the appliance is properly
grounded. If it is necessary to use an extension cord , use
only a 3-wire extension cord.
• A short power-supply cord is provided to reduce the risks
resulting from becoming entangled in or tripping over a
longer cord.
• If a long cord set or extension cord is used the marked
electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the
appliance.
• The long cord should be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on
by children or tripped over unintentionally.
Which materials are not suitable for placing in the microwave?
Not all materials can be placed in a microwave. Below shows which
materials are not suitable:
• Cookware made of porcelain and ceramics
• Non-heat-resistant bowls
• Metal bowls
• Metal racks (except the supplied rack)
• Aluminium foil
• Flammable material such as plastic, paper, plastic, textile, wood, flowers
6
or other flammable material.
• The packaging of sealed packaged foods can easily burst, which may
cause fire.
• Keep warm packages. These can be ignited.
• Metal locking strips
• Pillows filled with grain, cherry pits or gel.
• Sealed bowls and eggs. Eggs may burst due to the pressure.
If you’re not sure, you can test the material in question by following
the procedure below.
1. Fill a microwave-safe container with 1 cup of cold water (250ml) along
with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for
microwave cooking.
4. Do not exceed 1 minute cooking time.

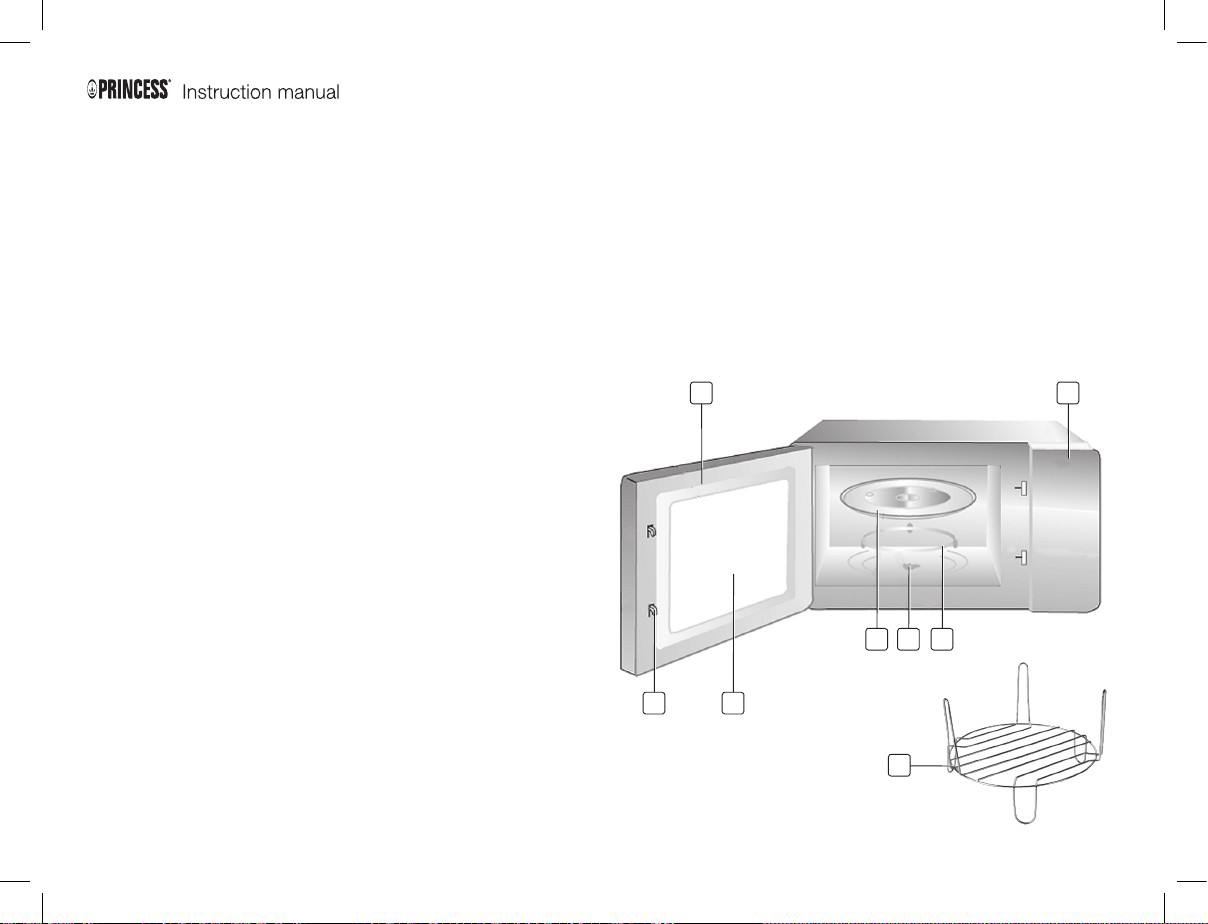

PARTS DESCRIPTION
1. Control panel
2. Turntable shaft
3. Turntable ring assembly
4. Turntable Glass tray
5. Observation window
6. Door assembly
7. Safety interlock system
8. Grill Rack (Only be used in grill function and be placed on the glass tray)
16
2 34
5
8
7
7
INSTALLATION AND CONNECTION
• Remove all packing material and accessories. Examine the oven for
any damage such as dents or a broken door. Do not install if the oven
is damaged.
• Remove any protective film, found on the microwave oven cabinet
surface.
• Do not remove the light brown Mica cover that is attached to the oven
cavity to protect the magnetron.

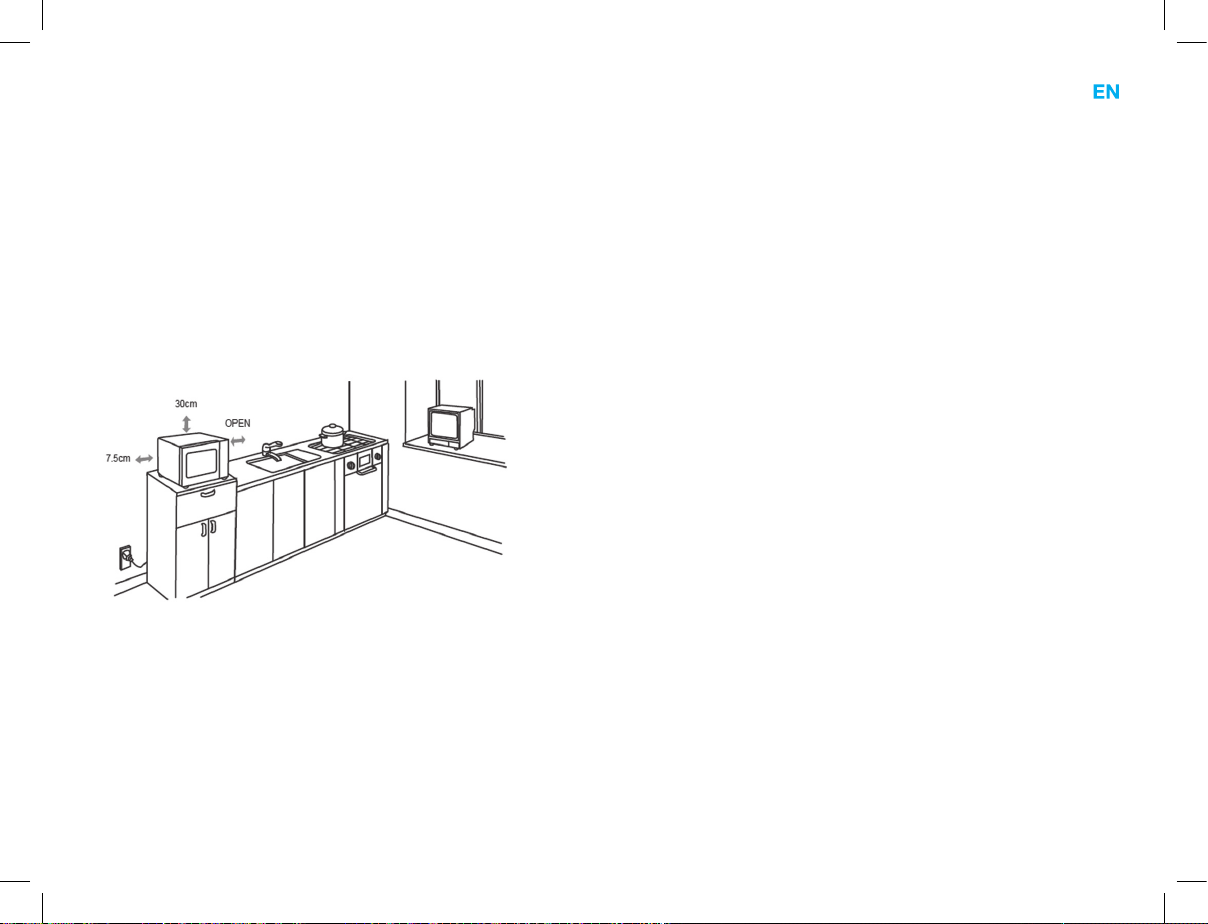

• Select a level surface that provide enough open space for the intake
and/or outlet vents.
• The minimum installation height is 85cm.
• The rear surface of appliance shall be placed against a wall. Leave a
minimum clearance of 30cm above the oven, a minimum clearance of
20 cm i s required between the oven and any adjacent walls.
• Do not remove the legs from the bottom of the oven.
• The rear surface of appliance shall be placed against a wall. A minimum
clearance of 7.5cm is required between the oven and any adjacent
walls. One side must be open. Leave a minimum clearance of 30cm
above the oven. Do not remove the feet from the bottom of the oven.
• Blocking the intake and/or outlet openings can damage the oven.
• Place the oven as far away from radios and TV as possible. Operation of
microwave oven may cause interference to your radio or TV reception.
• Plug your oven into a standard household outlet. Be sure the voltage
and the frequency is the same as the voltage and the frequency on the
rating label.
• Do not install the oven over a stove or other heat-producing appliance.
If installed near or over a heat source, the oven could be damaged and
the warranty would be void.
OPERATION INSTRUCTIONS
Clock Setting
When the microwave oven is electrified, the screen will display "0:00",
buzzer will ring once.
• Press "Clock" to select clock function, the hour figures will flash.
• Turn to adjust the hour figures, the input time should be within 0--23.
• Press "Clock", the minute figures will flash.
• Turn to adjust the minute figures, the input time should be within 0--59.
• Press "Clock" to finish clock setting. ":" will flash, and the time will light.
Note:
• If the clock is not set, it would not function when powered.
• During the process of clock setting, if you press "Stop/Clear", the oven
will go back to the previous status automatically.
Microwave Cooking
Press "Microwave" the screen will display "P100". Press "Microwave"
repeatedly or turn to choose the power you want, and "P100", "P80",
"P50", "P30" or "P10" will display for each added press. Then press
"Start/+30Sec./Confirm" to confirm, and turn to set cooking time from 0:05
to 95:00. Press "Start/+30Sec./Confirm" again to start cooking.
Example: If you want to use 80% microwave power to cook for 20 minutes,
you can operate the oven as the following steps.
• Press "Microwave" once, the screen displays "P100".
• Press "Microwave" once again or turn" " to choose 80% microwave power.
8
• Press "Start/+30Sec./Confirm" to confirm, and the screen displays "P 80".
• Turn to adjust the cooking time until the oven displays "20:00".
• Press "Start/+30Sec./Confirm" to start cooking.
Note: the step quantities for the adjustment time of the coding switch are
as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
"Microwave" Pad instructions
Order Display Microwave display power
1 P100 100%
2 P80 80%
3 P50 50%
4 P30 30%
5 P10 10%
"Grill/Combi." Pad instructions
Order Display Microwave power Grill power
1 G 0% 100%
2 C-1 55% 45%
3 C-2 36% 64%
Note: If half the grill time passes, the oven sounds twice, and this is normal.
In order to have a better effect of grilling food, you should turn the food
over, close the door, and then press "Start/+30Sec./Confirm" to continue
cooking. If no operation, the oven will continue working.
Quick Start
• In waiting state, press "Start/+30Sec./Confirm" to start cooking with
100% power, each added press will increase 30 seconds cooking time
up to 95 minutes.
• In microwave, grill, combination cooking or time defrost state, each press
of "Start/+30Sec./Confirm" can increase 30 seconds of cooking time.
• In waiting state, turn left to set cooking with 100% microwave power.
After choosing the cooking time, press "Start/+30Sec./Confirm" to start
cooking.
Defrost By Weight
• Press "Weight Defrost" once, and the oven will display "dEF1".
• Turn to select the weight of food from 100 to 2000 g.
• Press "Start/+30Sec./Confirm" to start defrosting.
Defrost By Time
• Press "Time Defrost" once, and the oven will display "dEF2".
• Turn to select the defrost time. The MAX time is 95 minutes.
• Press "Start/+30Sec./Confirm" to start defrosting. The defrost power is
P30 , and it will not be changed.
Kitchen Timer
• Press “Kitchen Timer”, screen will display 00:00, clock indicator will light.
• Turn to enter the correct time.(The maximum cooking time is 95 minutes.)
• Press "Start/+30Sec./Confirm" to confirm setting, clock indicator will be
lighted.
• When the kitchen time is reached, clock indicator will go out. The
buzzer will ring 5 times. If the clock has been set (24-hour system), the
screen will display the current time.
Note: The kitchen Time is different from 24-hour system Kitchen Timer is a
timer.
9
Auto Menu
• Turn right to choose the menu, and "A-1" to "A-8" will display, which
means pizza, meat, vegetable, pasta, potato, fish, beverage and popcorn.
• Press "Start/+30Sec./Confirm" to confirm.
• Turn to choose the default weight as the menu chart.
• Press "Start/+30Sec./Confirm" to start cooking.
Menu Weight Display
A-1
Pizza
200 g. 200
400 g. 400
A-2
Meat
250 g. 250
350 g. 350
450 g. 450
A-3
Vegetable
200 g. 200
300 g. 300
400 g. 400
A-4
Pasta
50g(with 450 ml cold water) 50
100g(with 800 ml cold water) 100
A-5
Potato
200 g. 200
400 g. 400
600 g. 600
A-6
Fish
250 g. 250
350 g. 350
450 g. 450
Menu Weight Display
A-7
Beverage
1 cup(120 ml) 1
2 cups(240 ml) 2
3 cups(360ml) 3
A-8
Popcorn
50 g. 50
85 g. 85
100 g. 100
Multi-section cooking
At most 2 sections can be set for cooking. In multi-section cooking, if one
section is defrosting, then defrosting shall be placed in the first section
automatically.
Example: If you want to defrost food for 5 minutes and then cook with 80%
microwave power for 7 minutes, operate it as the following:
• Press "Time Defrost" once, and the oven will display "dEF2".
• Turn to select the defrost time till "5:00" displays.
• Press "Microwave" once, the screen display "P100".
• Press "Microwave" once again or turn " " to choose 80% microwave
power.
• Press "Start/+30Sec./Confirm" to confirm, and the screen displays "P 80".
• Turn to adjust the cooking time till the oven displays "7:00".
• Press "Start/+30Sec./Confirm" to start cooking, and buzzer will sound
once for the first section, defrosting time counts down; buzzer will
sound once again entering the second cooking. When cooking finishes,
buzzer sounds five times.
Inquiring Function
• In states of microwave,grill and combination cooking, press
"Microwave", the current power will be displayed for 3 seconds. After 3
seconds, the oven will turn back to the former state.
10
• In cooking state, press "Clock/ Kitchen Timer" to inquire the time and
the time will display for 3 seconds.
Lock-out Function for Children
Lock: In waiting state, press "Stop/Clear" for 3 seconds, there will be a long
beep denoting entering the children-lock state and current time will display
if the time has been set, otherwise, the screen will display " ".
Lock quitting: In locked state, press "Stop/Clear" for 3 seconds, there will
be a long "beep" denoting that the lock is released.
CLEANING
• Before cleaning, unplug the appliance and wait for the appliance to cool
down.
• Clean the inside of the appliance with a damp cloth. Never use harsh
and abrasive cleaners, scouring pad or steel wool, which damages the
device.
• Clean the accessories in the usual way in soapy water.
• The door frame and seal and neighboring parts must be cleaned
carefully with a damp cloth when they are dirty.
• Never immerse the device in water or any other liquid. The device in not
dishwasher proof.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface, which may result in
shattering of the glass.
• Cleaning Tip---For easier cleaning of the cavity walls that the food
cooked can touch:
• Place half a lemon in a bowl, add 300ml(1/2 pint) water and heat on
100%microwave power for 10 minutes. Wipe the oven clean using a
soft, dry cloth.
TROUBLE SHOOTING
Normal
Microwave oven
interfering TV
reception.
Radio and TV reception may be interfered when
microwave oven operating. It is similar to the
interference of small electrical appliances, like
mixer, vacuum cleaner, and electric fan. This is
normal.
Dim oven light. In low power microwave cooking, oven light may
become dim. This is normal.
Steam accumulating
on door, hot air out
of vents.
In cooking, steam may come out of food. Most
will get out from vents. But some may accumulate
on cool place like oven door. This is normal.
Oven started
accidentally with no
food in.
It is forbidden to run the unit without any food
inside. It is very dangerous.
EN
11
WARRANTY
• This product is warrantied for 2 Years, for detailed terms, please refer
to the Warranty Card.
• Following parts are not covered by warranty:
– Knobs.
– Any broken body parts.
• Approximate life of this appliance under normal conditions is 3 Years.
For service and repairs, please call the following numbers:
United Electronics Co.
Saudi Arabia (Toll-free) 800 124 0900
ENVIRONMENT
This appliance should not be put into the domestic garbage at
the end of its durability, but must be offered at a central point for the
recycling of electric and electronic domestic appliances. This symbol on
the appliance, instruction manual and packaging puts your attention to
this important issue. The materials used in this appliance can be recycled.
By recycling of used domestic appliances you contribute an important
push to the protection of our environment. Ask your local authorities for
information regarding the point of recollection.
SUPPORT
You can find all available information and spare parts at
http://www.service.princess.info/!
12
2450
•
•
•
•
•
• •
•
•
• •
•
•
•
•
•
•
•
•
13
• •
•
•
•
• •
•
•
• •
•
•8
8 •
8 •
•
a
b
c
d•
• •
•
•
8 •
•
14
•
•
•
•
•
•
•
3 •
•
•
•
• • • • • •
•
• • • •
2501
2
3
4
15
1
2
3
4
5
6
7
8
•
•
•
•
•85
•30
20
•
•7,5
30
•
•
16
2 34
5
8
7
16
•
•
0:00
•Clock
•
0--23
•
Clock
•
0--59
•Clock
•
•Stop/Clear
P100Microwave
Microwave
P10P30P50P80P100
95:000:05
2080%
•P100Microwave
•Microwave
80%
•P 80
•
20:00
•
5 0---1
10 1---5
30 5---10
10---30
5 30---95
200 P100 1
80% P80 2
50% P50 3
30% P30 4
10% P10 5
100% 0% G 1
45% 55% C-1 2
64% 36% C-2 3
17
•
30100%
95
•
•100%
•Weight Defrost
dEF1
•2000100
•
•
dEF2
•95
•
P30
•
00:00
•95
•
•5
24
24
•A-8A-1
•
•
•
18
200 200 A-1
400 400
250 250 A-2
350 350
450 450
200 200 A-3
300 300
400 400
50 45050 A-4
100 800100
200 200 A-5
400 400
600 600
250 250 A-6
350 350
450 450
11201A-7
22402
33603
50 50 A-8
85 85
100 100
80%5
7
•
dEF2
•5:00
•P100Microwave
• Microwave
80%
•P 80
•
7:00
•
19
•
3Microwave
3
•
3
3Stop/Clear
3Stop/Clear
•
•
•
•
•
•
•
•1/2300
10100%
•
•
•
3
800 124 0900
20
This manual suits for next models
1
Table of contents
Languages:
Other Princess Microwave Oven manuals
