Pro Force PWF0102000.03 User manual

PWF0102000.03
Operator Manual
Manuel de L’opérateur
Manual del operador
pro-forceproducts.com 101-3162 3/1/11
DO NOT RETURN TO
STORE!
CALL US FIRST!
CUSTOMER HOTLINE
1-888-895-4549
FOR QUESTIONS OR
SERVICE INFORMATION
STOP
NE PAS RETOURNER AU
MAGASIN!
APPELEZ–NOUS D’ABORD!
ASSISTANCE TELEPHONIQUE
A LA CLIENTELE
1-888-895-4549
POUR L'INFORMATION DE
QUESTIONS OU SERVICE
NO LO DEVUELVA A LA
TIENDA!
¡PRIMERO LLÁMENOS!
LÍNEA DIRECTA DE ATENCIÓN
AL CLIENTE
1-888-895-4549
PARA la INFORMACION de
PREGUNTAS O SERVICIO
ARRÊT
A L T O
IMPORTANT - Please make
certain that everyone who uses
the Pro Force® Pressure Washer
thoroughly reads and under-
stands these instructions prior to
operation.
IMPORTANT - Veiller à ce que
toute personne amenée à utiliser cet
appareil de Pro Force® lise soi-
gneusement ces instructions et les
comprenne avant de procéder à son
utilisation.
IMPORTANTE - Favor de
ceciorarse de que toda persona
que use el Lavador de presión
Pro Force® lea y entienda todas
las instrucciones antes de la
operación.
®

pro-forceproducts.com
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
SERVICIO PARA LOS CLIENTES .............................19
SEGURIDAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Símbolos de seguridad .....................................19
Precauciones generales de seguridad ..........................20
CARACTERÍSTICAS DE SEGURIDAD.........................21
Válvula de descarga de calor ................................21
Dispositivo de seguridad....................................21
Apagado por bajo nivel de aceite ...........................21
Silenciador apagachispas ...................................21
ESPECIFICACIONES ........................................21
SELECCIÓN DE BOQUILLA DE PULVERIZACIÓN .............21
ANTES DE LA OPERACIÓN ..................................22
Preparación incial .........................................22
Ensamblado de manguera y pistola ...........................22
Lubricación del motor......................................22
Combustible .............................................22
CARACTERISTICAS DE MOTOR Y BOMBA ...................22
CONEXIONES DE OPERACIÓN ..............................23
Manguera de alta presión ...................................23
Conexion de agua .........................................23
INSTRUCCIONES DE OPERACIÓN ...........................23
Procedimiento de arranque..................................23
Encendido del motor.......................................23
INYECCION DE QUIMICOS ..................................23
TÉCNICAS DE LIMPIEZA....................................24
Aplicación de jabón y desgrasador............................24
Aplicación de cera ........................................24
FIN DE LA OPERACIÓN DE LIMPIEZA .......................24
MANTENIMENTO...........................................24
Conexiones ..............................................24
Boquilla.................................................24
Rejilla de agua ...........................................24
Mantenimiento del motor ...................................24
ALMACENAMIENTO ........................................25
Almacenamiento de la bomba ...............................25
Almacenamiento del motor..................................25
GARANTIA LIMITADA ......................................25
RESOLUCION DE PROBLEMAS ..............................26
LISTA DE PIEZAS Y DIAGRAMA DE PIEZAS ...............28-31
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
SERVICE CLIENTELE .......................................11
SÉCURITÉ..................................................11
Symboles utilisés .........................................11
Précautions Générales de Sécurité ............................12
MESURES DE SÉCURITÉ ....................................13
Soupape de surpression thermique............................13
Loquet de sécurité.........................................13
Arrêt suite au bas niveau d’huile .............................13
Silencieux Pare-étincelles...................................13
SPÉCIFICATIONS ...........................................13
CHOIX DE BUSE DE PULVÉRISATION ........................13
AVANT TOUTE UTILISATION ................................14
Préparation précédant la mise en marche.......................14
Montage du tuyau et du pistolet..............................14
Lubrification du moteur ....................................14
Carburant................................................14
CARACTERISTIQUES DE MOTEUR ET POMPE ...............14
RACCORDEMENTS .........................................15
Tuyau haute pression ......................................15
Racordement d’eau........................................15
UTILISATION...............................................15
Procédure de lancement ....................................15
Mise en marche du moteur..................................15
UTILISATION DE PRODUITS CHIMIQUES ....................15
TECHNIQUE DE NETTOYAGE ...............................16
Application de Savon ou de Dégraissant .......................16
Application de Cire........................................16
FIN DE L'ACTIVITÉ DE NETTOYAGE ........................16
ENTRETIEN DE L'APPAREIL ................................16
Raccords ................................................16
Ajutage .................................................16
Filtre à eau ..............................................16
Entretien du moteur .......................................16
RANGEMENT...............................................17
Rangement de la pompe ....................................17
Rangement du moteur......................................17
GARANTIE LIMITÉE ........................................17
DÉPANNAGE................................................18
LISTE DES PIÈCES ET SCHEMA DES PIÈCES ..............28-31
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
CUSTOMER SERVICE .......................................3
SAFETY ....................................................3
Safety Symbols...........................................3
General Safety Precautions..................................4
SAFETY FEATURES .........................................5
Thermal Relief Valve ......................................5
Safety Lock Off Latch .....................................5
Low Oil Shutdown ........................................5
Spark Arresting Muffler ....................................5
SPECIFICATIONS ...........................................5
SPRAY NOZZLE SELECTION.................................5
BEFORE OPERATION .......................................6
Pre-Start preparation.......................................6
Hose and Gun Assembly....................................6
Lubrication ..............................................6
Fuel ....................................................6
ENGINE AND PUMP FEATURES ..............................6
OPERATING CONNECTIONS.................................7
High Pressure Hose........................................7
Water Connection .........................................7
OPERATING INSTRUCTIONS ................................7
Start-up Procedure ........................................7
Starting the Engine ........................................7
CHEMICAL INJECTION .....................................7
CLEANING TECHNIQUES ...................................8
Application of Soap or Degreaser ............................8
Application of Wax........................................8
END OF CLEANING OPERATION.............................8
MAINTENANCE.............................................8
Connections..............................................8
Nozzle..................................................8
Water Screen.............................................8
Engine Maintenance .......................................8
STORAGE ..................................................9
Pump Storage ............................................9
Engine Storage ...........................................9
WARRANTY ................................................9
TROUBLESHOOTING .......................................10

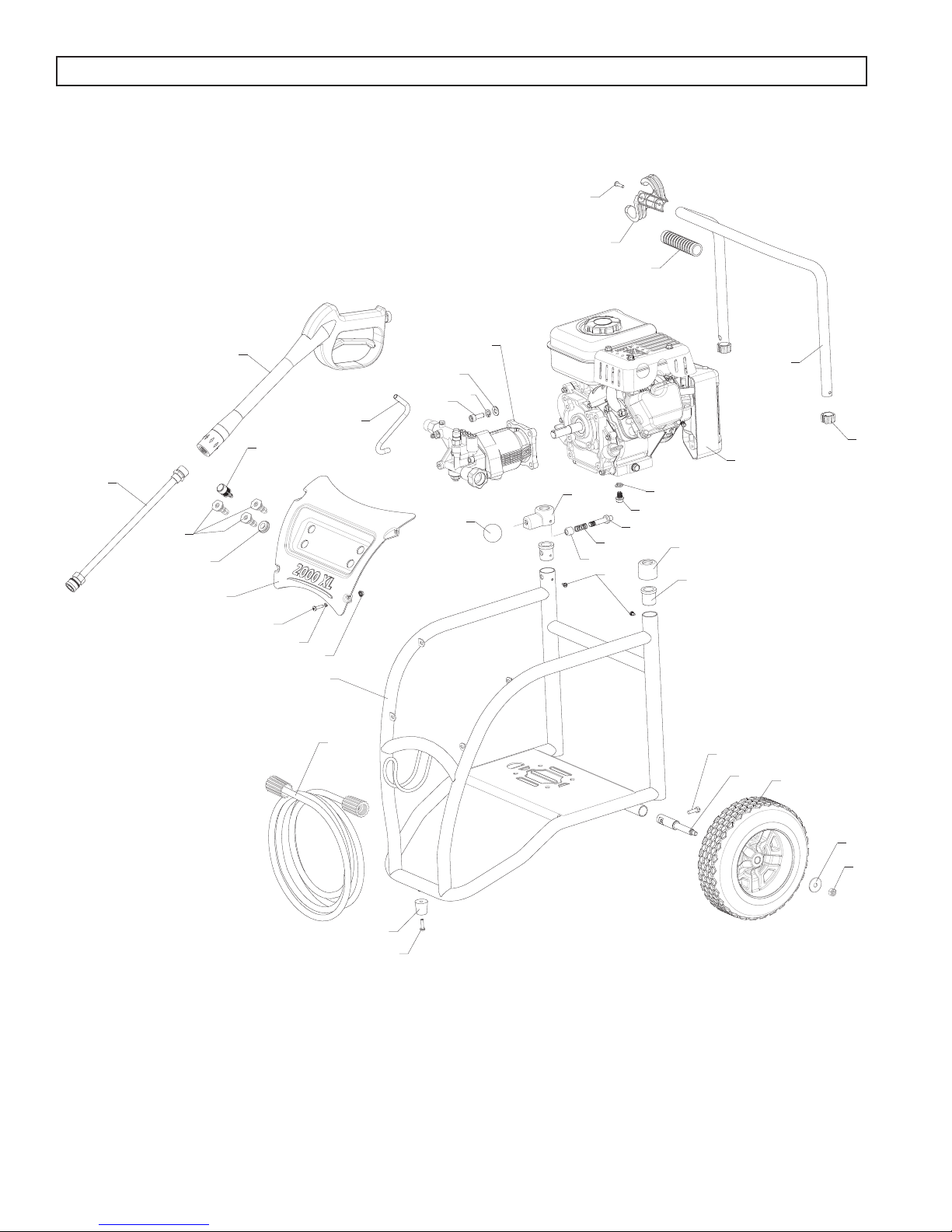

PARTS LISTAND PARTS DRAWING........................28-31
2
TABLE OF CONTENTS
TABLE DES MATIÈRES
INDICE

pro-forceproducts.com
English
3
Congratulations on purchasing a Pro Force®
Pressure Washer. Whether you are doing light
cleaning at home or are needing power to do the
tough jobs, Pro Force® pressure washers are built
to give you the power you need. By following
proper break-in procedures, using recommended
set-up and operating procedures, and performing
preventive maintenance as specified in this manual,
your Pro Force® pressure washer will serve you for
years to come.
Most important is the safety of you and those
around you. Remember that while the Pro Force®
pressure washer gives you the power you need to
complete your job, safety rules should always be
followed.
Thank you for selecting our product.
MAT Industries, LLC
Call our toll free number
1-888-895-4549
8 a.m. to 5 p.m. C.S.T.
or www.pro-forceproducts.com
to obtain warranty service information or
order replacement parts or accessories.
Please have the following information available:
1. Model Number.
2. Serial Number.
3. Date and where purchased.
4. Replacement numbers if you are ordering parts.
MAT Industries, LLC
6700 Wildlife Way
Long Grove, IL 60047
Attention: Warranty Service Department
www. pro-forceproducts.com
Safety Symbols
The following symbols are used throughout this
manual. Follow listed instructions to ensure your
safety.
NOTE: Indicates operation or maintenance
information helpful to improve performance or
operation.
CALIFORNIA PROPOSITION 65 WARNING
This product contains chemicals known to the State
of California to cause cancer, birth defects and/or
reproductive harm.
Indicates an imminently hazardous situation which, if
not avoided, will result in death or serious injury
Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation exists,
which if not avoided, may result in minor or
moderate injury or product damage.
CUSTOMER SERVICE

pro-forceproducts.com
English
The following Safety Precautions apply whenever using,
storing or servicing Pro Force® Pressure Washers or their
engines to reduce the possibility of personal injury.
Overlooking or ignoring these precautions can lead to personal
injury or product damage.
4
• Readthismanualcarefully.Knowyourequipment.
Consider applications, potential hazards and
limitations for your unit.
 • Knowyourequipment.Considertheapplications,
limitations, and the potential hazards specific to your
unit.
 • Storethepressurewasherinawellventilatedarea
with the fuel tank empty. Fuel should not be stored
near the pressure washer.
 • Neveroperateunderthesesconditions:
a. A noticeable change in engine speed.
b. A noticeable loss of pressure.
c. The engine misfires.
d. Smoke or flames are present.
e. Enclosed compartment.
f. Excessive vibration.
g. Rain or inclement weather.
 • Waterspraymustneverbedirectedtowardsany
electric wiring or directly towards the pressure
washer.
 • Donotallowthehosetocomeincontactwithhot
muffler.
 • Equipmentmustbeplacedonafirm,supporting
surface.
• Removethesparkplugorcablefromthesparkplug
to prevent accidental starting when not in use or
prior to detaching the high pressure hose.
 • Keepthepressurewashercleanandfreeofoil,mud
and other foreign matter.
 • Donotwearlooseclothing,jewelry,oranythingthat
may be caught in the engine.
 • Neverdirectsprayatpeopleorpets.
 • Neverallowchildrentooperatepressurewasherat
any time.
 • Usebothhandstocontrolthewand.
• Donottouchnozzleorwaterspraywhileoperating.
 • Wearsafetygoggleswhileoperating.
 • Onlyapprovedhosesandnozzlesshouldbeused.
 • Thetriggergunmustnotbejammedin“ON”
position during operation.
 • Nevertieknotsorkinkthehighpressurehose.
 • Allhoseconnectionsmustbeproperlysealed.
 • Priortostartingthepressurewasherincoldweather,
be sure ice has not formed in any part of the
equipment.
 • Useonlyrecommendedchemicals.
 • Outdoorsuseonly.
 • Placethepressurewasherawayfromcleaningsite
during operation.
 • Topreventaccidentaldischarge,thespraygunshould
be secured by locking trigger when not in use.
 • Donotrunthepressurewasherformorethanfive
minutes without depressing the trigger or damage to
the pump may result.
 • Checkthefuelsystemperiodicallyforleaksorsigns
of deterioration such as chafed or spongy hose, loose
or missing clamps, or damaged tank or cap. All
defects should be corrected before operation.
 • Donottouchhotmuffler.
 • Service,operateandrefuelunderthefollowing
conditions.
a. Good ventilation.
b. Refuel the pressure washer in a well lighted area.
c. Avoid fuel spills and never refuel while the
pressure washer is running.
d. Avoid an ignition source when refueling.
  e. Useleadfreefuelwithaminimumof85octane.
 • Donotsmokenearthepressurewasher.
 • Donotusedamagedhigh-pressurehoses.

5
THERMAL RELIEF VALVE
A thermal relief valve is provided to protect the pump
from overheating if the spray gun is closed for an extended
length of time or the nozzle becomes plugged. However, it is
intended to be used as a backup system and every effort
should be made to not permit the pump to heat up.
We recommend turning the pressure washer off if it will
not be used for more than five minutes. This saves wear on
the unit, reduces fuel consumption and extends the life of the
pump by avoiding heat.
SAFETY LOCK OFF LATCH
To prevent accidental discharge of high pressure water,
the safety latch on the trigger should be engaged whenever the
pressure washer is not in use. (Refer to Operating
Instructions.)
LOW-OIL SHUTDOWN
The unit is equipped with a low oil sensor. If the engine
oil level becomes lower than required, the pressure washer
will automatically shut off. (Refer to the engine manual for
this feature.) This protects your pressure washer engine from
operating without proper lubrication.
If the pressure washer engine shuts off and the oil level is
according to specification, check to see if the pressure washer
is sitting at an angle that forces oil to shift. Place on an even
surface to correct this. If the engine fails to start, the oil level
may not be sufficient to deactivate low oil level switch. Be
sure the engine is completely full of oil. See engine manual.
SPARK ARRESTING MUFFLER
THIS PRODUCT MAY NOT BE EQUIPPED WITH A
SPARKARRESTINGMUFFLER.Iftheproductwillbeused
around flammable materials, such as agricultural crops, forests,
brush, grass, or other similar items, then an approved spark
arrester should be installed and is legally required in the State
of California. The California statutes requiring a spark arrester
are Sections 13005(b), 4442 and 4443. SparkArresters are also
required on some U.S. Forest Service land and may also be
legally required under other statutes and ordinances. For more
information, contact our Customer Service Department at
1-888-895-4549 or www.pro-forceproducts.com.
Maximum Inlet Pressure ..................Upto90PSIG
RPM......................................3600 RPM
Temperature of Pumped Fluids ................Upto80°F
Inlet Ports...............................3/4”GHT(F)
Discharge Ports ................................. M22
 Yourpressurewasherhasamaintenance-freepump.
There is no need to change the pump oil.
Consult the factory for special requirements that must be
met if the pump is to operate beyond one or more of the limits
specified above.
Following this information concerning the three nozzles
provided with your pressure washer.
NOTE: The force of the spray on the surface you are
cleaning increases as you move closer to the surface.
15° High Pressure (Yellow): This is the nozzle used for
most cleaning applications. It provides narrow coverage and a
highly powerful water stream.
40° High Pressure (White): This nozzle is used for
cleaning with the widest coverage over a larger area with a
powerful water stream.
65° Low Pressure (Black): Provides low pressure spray
andawidecoverage.Usedprimarilywhenoperatingthe
chemical injector to apply chemicals.
English
pro-forceproducts.com
The pump will overheat and may be damaged, or cause
damage if allowed to circulate more that five minutes.
SAFETY FEATURES
SPRAY NOZZLE SELECTION
SPECIFICATIONS

NOTE: The engine and pump on your Pro Force®
Pressure Washer will often have improved performance
after a break-in period of several hours.
PRE-START PREPARATION
Before starting the pressure washer, check for loose or
missing parts and for any damage which may have occurred
during shipment.
HOSE AND GUN ASSEMBLY
NOTE: Align threaded connections carefully to
prevent damaging threads during assembly. Tighten
connections securely to prevent leaks during operation.
Attach the hose to the inlet of the trigger gun.
LUBRICATION
DO NOT attempt to start the pressure washer engine
without filling the engine crank case with the proper amount
and type of oil. (See the accompanying engine manual for this
information.)Yourpressurewasherenginehasbeenshipped
from the factory without oil in the engine crankcase.
Operating the unit without oil will ruin the engine.
The pump is not equipped with a dipstick or side glass
window. Check oil leaks from the pump. Pump oil is shipped
in the pump from factory.
FUEL
Fill the tank with clean, fresh unleaded automotive
gasoline. (See Figure 1). Regular grade gasoline may be used
provided a high octane rating is obtained (at least 85 pump
octane).
Gasoline is very dangerous. Serious injury may result from
fire caused by gasoline contacting hot surfaces.
Donotoverfillthetank.Keepmaximumfuellevel1/2
inch below the bottom of the filler neck. This will allow
expansion in hot weather and prevent overflow.
pro-forceproducts.com
6
English
BEFORE OPERATION
ENGINE AND PUMP FEATURES - FIGURE 1

HIGH PRESSURE HOSE
Attach the high pressure hose to the outlet connection
located on the pump. (See Figure 1, page 6).
NOTE: DO NOT use a high pressure hose from
another manufacturer.
WATER CONNECTION
Before connecting to unit, run water through the garden
hose (not supplied) to flush out any foreign matter. Check that
the screen is clean and is in the inlet of the pump. Attach
garden hose to the inlet connection located on the pump. (See
Figure 1, page 6).
NOTE: The water supply must provide a minimum of
4 g.p.m. at 40 to 80 p.s.i. or the pump will be damaged.
START-UP PROCEDURE
1. Ensure water supply is connected and turned on.
2. Release gun safety lock.
3. To allow air to escape from the hose, squeeze trigger on
the gun until there is a steady stream of water coming
from the nozzle.
4. Remove any dirt or foreign matter from the gun outlet and
the male connector of the wand.
5. Insert the nozzle wand into the gun wand and tighten the
twistfast fitting securely by hand.
STARTING THE ENGINE (See Figure 1, page 6)
1. Check oil and fuel level.
2. Adjust choke as necessary.
3. Settheengineswitchtothe“ON”position.
4. Squeeze trigger on pressure washer to release pressure
while pulling on the engine starter rope with a fast steady
pull. Pressure may otherwise build up making starting the
unit difficult.
5. As the engine warms up, open the choke to full.
1. Attach injection tube assembly to the siphon injector on
the pump. (See Figure 1, page 6).
2. Open a container of pressure washer chemical and place
next to the unit near the injection tube.
3. Visually inspect strainer at the end of the injection tube to
verify that it is not clogged.
4. Insert the injection tube into the container all the way to
the bottom.
5. Remove the high-pressure nozzle from the wand
and install the black injection nozzle. The solution will
automatically be mixed with the water and discharged
through the nozzle.
NOTE: For certain models, if the engine throttle is not in
the “fast” position, the injection of the solution
may be decreased or stopped.
If the wand or nozzle is not securely locked into place, it
could be ejected under high pressure when operating the
gun, possibly causing injury or damage.
This pressure washer is intended for use only with
liquid car wash detergents, developed specifically for
pressure washer and with mild soaps. Only use chemicals
compatible with the aluminum and brass parts of the
pressure washer. Powdered soaps may clog the injection
system. Always use chemicals according to manufacturer
directions. MAT Industries, LLC assumes no responsibility
for any damages caused by chemicals injected through this
pressure washer.
OPERATING CONNECTIONS
OPERATING INSTRUCTIONS
CHEMICAL INJECTION
7
English
pro-forceproducts.com

Cleaning Techniques
When cleaning with the pressure washer, many cleaning
tasks can be solved with water alone, but for most tasks it is
advantageous to use a detergent also. A detergent ensures a
quick soaking of the dirt allowing the high pressure water to
penetrate and remove the dirt more effectively.
Pressure washer chemicals are specially formulated to be
used with your pressure washer.
APPLICATION OF SOAP OR DEGREASER
1. ApplythesolutiontoaDRYworksurface.
On a vertical surface, apply horizontally from side to side
starting from the bottom to avoid streaking.
NOTE: Wetting the surface first is not recommended,
as it dilutes the detergent and reduces its cleaning
ability. Avoid working on hot surfaces or in direct
sunlight to minimize the chances of the chemical
damaging painted surfaces. Damage may occur to
painted surface if chemical is allowed to dry on the
surface. Hold nozzle far enough away from surface to
prevent damage to the surface.
2. Allow chemical to remain on the surface for a short time
before rinsing.
3. Rinse with clean water under high pressure. On a vertical
surface, first rinse from the bottom up, then rinse from the
top down. Hold nozzle 6 to 8 inches from the work sur
 faceata45°angleusingtheflatsprayasapeelingtool 
rather than a scrub brush.
APPLICATION OF WAX
1. Immediately after cleaning, apply pressure washer wax.
Place injection tube in container of wax.
2. Apply the wax sparingly in an even layer. Apply to wet
surfaces from the bottom up for even distribution and to
avoid streaking.
3. Remove the suction tube from the wax bottle and rinse off
the surplus wax.
NOTE: IF SURPLUS WAX IS NOT REMOVED, A
HAZY FINISH MAY RESULT.
4. Wipe dry to reduce water spotting.
End of Cleaning Operation
When you have completed use of the chemical injection
system, remove tube from container. Continue to run in low
pressure position and inject clean water through the tube and
injection system by placing end of tube in a container of clean
water. Continue to run until it is thoroughly cleaned.
CONNECTIONS
Connections on pressure washer hoses, gun and spray
wand should be cleaned regularly and lubricated with silicon
grease to prevent leakage and damage to the o-rings.
NOZZLE
Clogging of the nozzle causes the pump pressure to be too
high and cleaning is immediately required.
1. Remove the nozzle from the wand.
2. Clear the nozzle with the nozzle cleaner pin provided with
the pressure washer.
3. Flush the nozzle backwards with water.
4. Re-install the nozzle into the wand.
Restart the pressure washer and depress the trigger on the
spray gun. If the nozzle is still plugged or partially plugged,
repeat above items 1-4.
If the previous procedure does not clear the nozzle,
replace with a new nozzle.
WATER SCREEN
The pressure washer is equipped with a water inlet screen
to protect the pump. If the screen is not kept clean, it will
restrict the flow of water to the pressure washer and may
cause damage to the pump. Do not damage the screen while
removing or cleaning screen. Any foreign particles entering
the pump may damage the pump. Do not operate pressure
washer without the screen in place.
Remove the screen and back flush to remove impurities
from screen. Replace immediately.
ENGINE MAINTENANCE
During the winter months, rare atmospheric conditions
may develop which will cause an icing condition in the
carburetor. If this develops, the engine may run rough, lose
power, and may stall.
NOTE: Refer to the engine manufacturer’s manual
for service and maintenance of the engine.
A nozzle cleaner must only be used when the spray nozzle
is disconnected from the gun or personal injury could result.
CLEANING TECHNIQUES MAINTENANCE
END OF CLEANING OPERATION
pro-forceproducts.com8
English

PUMP STORAGE
If you must store your pressure washer in a location where the
temperatureisbelow32°F,youcanminimizethechanceofdamage
to your machine by utilizing the following procedure:
1. Shut off water supply and relieve pressure in the spray gun
by depressing the trigger. Disconnect the garden hose
from the pressure washer, but leave the high-pressure hose
connected.
2. Tip the unit on its side with the inlet connection pointing up.
3. Insert a small funnel (to prevent spilling) into the inlet
and pour in approximately 1/4 cup of RV antifreeze.
4. Disconnect spark plug wire.
5. Without connecting garden hose pull the recoil several
times to circulate the antifreeze in the pump system.
Continue to add antifreeze and pull the recoil until the
antifreeze is expelled when the trigger is pulled.
6. Turn the unit upright.
Another method of reducing risks of freeze damage is to drain
your pressure washer as follow:
1. Stop the pressure washer and detach supply hose and high
pressure hose. Squeeze the trigger of the discharge gun to
drain all water from the wand and hose.
2. Restart the pressure washer and let it run briefly (about 5
seconds) until water no longer discharges from the high
pressure outlet.
ENGINE STORAGE
When the pressure washer is not being operated or is being
stored more than one month, follow these instructions:
1. Replenish engine oil to upper level.
2. Drain gasoline from fuel tank, fuel line, fuel valve and
carburetor.
3. Pour about one teaspoon of engine oil through the spark
plug hole, pull the recoil starter several times and replace
the plug. Then pull the starter slowly until you feel
increased pressure which indicates the piston is on its
compression stroke and leave it in that position. This
closes both the intake and exhaust valves to prevent the
inside of the cylinder from rusting.
4. Cover the pressure washer and store in a clean, dry place
that is well ventilated away from open flame or sparks.
NOTE: We recommend always using a fuel stabilizer. A fuel
stabilizer will minimize the formulation of fuel gum deposits
during storage. The fuel stabilizer can be added to the gasoline
in the fuel tank, or into the gasoline in a storage container.
Warranty Coverage: MAT Industries, LLC (the Company)
warrants to the original retail customer in North America that it will
repair or replace, free of charge, any parts found by the Company or
its authorized service representative to be defective in material or
workmanship. This warranty covers the cost of replacement parts
and labor for defects in material or workmanship.
Not Covered:
·Transportation charges for sending the product to the Company
or its authorized service representative for warranty service, or
for shipping repaired or replacement products back to the
customer; these charges must be borne by the customer.
·Engine may be covered exclusively by a separate warranty from
the engine manufacturer as set forth in the engine Manual (if
included).
·Damages caused by abuse or accident, and the effects of
corrosion, erosion and normal wear and tear.
·Warranty is void if the customer fails to maintain and operate
the product as instructed and recommended by the Company in
the owner's manual.
·Warranty applies only if the product is used solely for consumer
applications, and does not apply if the product is used for
commercial or business applications, or as rental equipment.
·The Company will not pay for repairs or adjustments to the
product, or for any costs or labor, performed without the
Company's prior authorization.
Warranty Period: One (1) year from the date of purchase. For
warranty service, the customer must provide dated proof of purchase
and must notify the Company within the warranty period.
For warranty service: Call toll free 1-888-895-4549, or write to
MAT Industries, LLC, 6700 Wildlife Way, Long Grove, IL 60047.
EXCLUSIONS AND LIMITATIONS:THECOMPANYMAKES
NOOTHERWARRANTYOFANYKIND,EXPRESSOR
IMPLIED.IMPLIEDWARRANTIES,INCLUDING
WARRANTIESOFMERCHANTABILITYANDOFFITNESSFOR
APARTICULARPURPOSE,AREHEREBYDISCLAIMED.THE
WARRANTYSERVICEDESCRIBEDABOVEISTHE
EXCLUSIVEREMEDYUNDERTHISWARRANTY;LIABILITY
FORINCIDENTALANDCONSEQUENTIALDAMAGESIS
EXCLUDEDTOTHEEXTENTPERMITTEDBYLAW.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state. Some states do not allow
a disclaimer of implied warranties, or the exclusion or limitation of
incidental and consequential damages, so the above disclaimers and
exclusions may not apply to you.
Prior to restarting, thaw out any possible ice from the
pressure washer hoses, spray gun and wand.
STORAGE LIMITED WARRANTY
9
English
pro-forceproducts.com

PROBLEM
Engine will not start or stops while
operating.
Engine is overloaded.
Water or oil leaking from bottom of pump.
Pressure increases when gun is closed.
Engine running but pump not building
maximum pressure or has irregular
pressure.
No intake of chemicals
Trigger will not move.
Water in crankcase.
Noisy operation.
Rough/pulsating operation with pressure
drop.
High crankcase temperatures.
POSSIBLECAUSE
Low-oil shutdown.
Engineswitchnotinthe“ON”position.
Pressure build up in hose.
Nozzle partially blocked.
Excessive pressure.
A small amount of leakage is normal.
Bypass valve not operating properly.
Faucet closed
Unithasbeenstoredinfreezing
temperatures.
Inadequate water supply.
Water inlet screen clogged.
Kinkingardenhose.
Wand nozzle worn or damaged.
Air in pump.
Suction or discharge valves clogged or
worn out.
By-pass valve not operating effectively.
Injection tube not securely inserted into
unit.
Tube cracked or split.
Wrong nozzle.
Injection tube strainer clogged.
Nozzle blocked.
Dried chemicals in injector.
Gun safety lock engaged.
High humidity.
Worn seals.
Worn bearings
Air mixed with water.
Worn packing.
Inlet restriction.
Unloader.
Air mixed in water.
Wrong grade of oil.
Improper amount of oil in crankcase.
CORRECTION
Fill engine with oil.
Turnswitch“ON”.
Squeeze trigger.
Clean nozzle.
Reduce pressure by using pressure
adjustment knob
If excessive leaking occurs call the
Customer Service Department.
Call the Customer Service Department.
Open faucet.
Thaw out unit completely including hose,
gun and wand.
Provide a minimum of 4 gpm at 20 psi.
Clean screen.
Straighten hose
Replace nozzle,
Let run with gun open and wand removed
until steady stream of water is released.
Call the Customer Service Department.
Call the Customer Service Department.
Push firmly into injector.
Replace tubing.
Switch to low pressure nozzle.
Clean strainer.
Clean nozzle.
Dissolve by running warm water trough the
injection tube.
Release safety lock.
Change oil more frequently.
Call the Customer Service Department.
Call the Customer Service Department.
Check inlet lines for restrictions and /or
proper sizing.
Call the Customer Service Department.
Check system for stoppage, air leaks,
correctly sized inlet plumbing to pump.
Check unloader for proper operation.
Check inlet lines for restrictions and/or
proper sizing.
Userecommendedoil.
Adjust oil level to proper amount.
pro-forceproducts.com10
English

PARTS DRAWING / SCHEMA DES PIÈCES / DIAGRAMA DE PIEZAS
28 pro-forceproducts.com
1
2
3
4
5
6
7
8
9
10
11
6
12
13
14
15
16
17
18
19
24
23
22
21
20
25
26
27
29
30
31
6
32
33
26
34
35
36 28

29pro-forceproducts.com
PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZAS
Note A: Consult the accompanying engine manual or contact our service department for assistance.
Note B: These are standard parts available at your local hardware store.
Remarque A: Consulter le manuel du moteur inclus ou contacter notre service après-vente pour toute assistance.
Remarque B: Ces pièces sont des pièces standard disponibles dans les quincailleries.
Nota A: Consulte el manual adjunto del motor o comuníquese con nuestro departamento de servicio para recibir asistencia al
respecto.
Nota B: Estas son piezas estándar disponibles en su ferretería local.
REF. PART DESCRIPTION DESCRIPTION DESCRIPCION QTY
NO. NO.
1 E104103 Gun, Basic Pistolet, de base Pistola, Básica 1
2 E104102 Assy, Wand & Quick Assemblage, Tube Rallonge et Ensamble, Varilla y Conexión
Connect, 15.125 in. Connexion Rapide, 15,125 po Rápida, 15.125 pulg. 1
3 E104974 Kit, Nozzle, 2.5 QC, 3 Pieces Ensemble, Buse, 2,5 QC, Juego, Boquilla 2.5 Conexión
3 Pièces Rápida, 3 Piezas 1
4 E104126 Grommet, Nozzle Oeillet, Buse Ojal, Boquilla 4
5 E104835 Faceplate, PWP0102000, Plaque frontale, PWP0102000, Placa, PWP0102000, 2000XL 1
2000XL 2000XL
6 Note B Screw, M5 X 0.8 X 20, Vis à tête creuse hexagonale Tornillo, cabeza Allen redonda 7
HSBHC M5 X 0,8 X 20 M5 X 0.8 X 20
7 Note B Washer, Lock M5 Rondelle de blocage M5 Arandela, Seguridad M5 4
8 Note B Nut, M5 X 0.8 SHFN Écrou hexagonal plat M5 x 0,8 Tuerca, M5 X 0.8 SHFN 4
9 E104826 Assembly, 2000XL Frame Assemblage, Cadre 2000XL Ensamble, Marco 2000XL 1
10 E104107 Assy, Hose, 15 Foot, 20MPA Assemblage, Tuyau, 15 pieds, Ensamble, Manguera 15 pies, 1
Pressure Rating 20 MPA Pression nominale Clasificación de Presión 20MPA
11 E104246 Isolator, Foot Isolateur, Pied Aislador, Pata 1
12 Note B Nut, M8x1.25 Nyloc Écrou, Nyloc M8x1,25 Tuerca, Nyloc M8x1.25 2
13 Note B Washer, Flat M8 x 28mmOD Rondelle plate M8x28mm dia Arandela, Plana M8 x 28mmDE A 2
Finish (bright Zinc) ext fini (Zinc brillant) cabado (Zinc brillante)
14 E104833 Wheeel, 10", Solid Plastic Roue, 10 po, Plastique solide Rueda, 10", Plástico Sólido 2
15 E104832 Spud, Wheel, 2000XL Support, Roue, 2000XL Eje, Rueda, 2000XL 2
16 Note B Screw,HFH M6 X 1.0 X 20MM Vis, HFH M6 X 1,0 X 20MM Tornillo, cabeza hexagonal M6 X 2
(Yellow Zinc Dich Plate) (Zinc Jaune Plaqué Dich) 1.0 X 20MM (Placa de Zinc Amarilla)
17 E104900 Guide Upper Tube Guide Tube supérieur Guía Tubo Superior 2
18 E104901 Collar, Upper Tube Guide Collet, Guide tube supérieur Collar, Guía Tubo Superior 1
19 Note B Screw, M4 X 0.7 X 6 Vis, M4 x 0,7 x 6(mise à la terre) Tornillo, M4 X 0.7 X 6 (a tierra) 2
(Grounding) 2
20 E104898 Knob, Pull Pin Bouton, Goupille Perilla, Perno de Seguridad 1
21 E104894 Collar for Spring Pin Collet pour goupille-ressort Collar para el Perno del Resorte 1
22 E104897 Retainer, Spring Stop Bague d'arrêt, Butée de ressort Retén, Tope del Resorte 1
23 E104896 Spring, Lee, part number Ressort, Lee, numéro de pièce Resorte, Lee, número de parte 1
LC 032FF 05S LC 032FF 05S LC 032FF 05S
24 E104895 Pin with Flange Cheville avec bride Perno con Pestaña 1
25 Note B Screw,HHCS, M8 X 1.25 X Vis à tête hexagonale, M8 X 1,25 Tornillo, cabeza hexagonal, M8 X 1.25 4
12mm (Yellow Zn) X 12mm (zinc jaune) X 12mm (Amarillo Zn)
26 Note B Washer, Lock 8mm Rondelle de blocage M8 Arandela, Seguridad 8mm 8
27 Note A Assembly, Engine, 94cc, Rato Assemblage, Moteur 94 cc Rato Ensamble, Motor, 94cc, Rato 1
28 E104899 Tube End Positioner Positionneur de bout de tube Posicionador del Extremo del Tubo 2
29 E104829 Upper Handle, 2000XL Poignée du haut, 2000XL A S e i 2000X 1
0 i i é t ñ
t tu
1
32 E104101 Pump, PW16A Pompe, PW16A Bomba, PW16A 1
33 Note B Washer, Flat 8mm X 19mm Rondelle, Plate M8 X 19mm Arandela, Plana 8mm X 19mm 4
34 Note B Screw, SHC, M8 X 22mm Vis, hexagonale creuse Tornillo, cabeza Allen, M8 X 22mm
M8 X 22MM 4
35 E104141 Hose, Chemical Tuyau, Produit Chimique Manguera, Químico 1
36 E104142 Filter, Chemical Filtre, Produit Chimique Filtro, Químico 1

30 pro-forceproducts.com
PUMP / POMPE / BOMBA
PARTS DRAWING / SCHEMA DES PIÈCES / DIAGRAMA DE PIEZAS
PUMP / POMPE / BOMBA
PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZAS
REF PART NO. DESCRIPTION DESCRIPTION DESCRIPCION QTY
E104101 Pump PW16A Pompe Bomba
AE104102 Unloader Kit Jeu de Régulateur de pression Juego de Descargador
B E104103 Valves Kit Jeu de Soupapes Juego de Válvulas
CE104104 Pistons Kit Jeu de Pistons Juego de Pistóns
DE104105 Water Seals Kit Jeu de Joints l’eau Juego de Sello del agua
EE104106 Oil Seals Kit Jeu de Joints l’eau Juego de Sello del agua
FE104107 O-Rings Kit Jeu de Joints torique Juego de Anillo tórico
G E104108 Injection Stem Kit Jeu de Tige d'injection Juego de Tallo de inyección

31pro-forceproducts.com
REF PART NO. DESCRIPTION DESCRIPTION DESCRIPCION QTY
1 Seal Joint Sello 1
2 Housing Corps Compartimiento 1
3 O-Ring (14 x 1.8) Joint torique Anillo tórico 3
4 Plug Bouchon Tapón 1
5 Bearing Roulement Cojinete 1
6 Hollow shaft Arbre Túnel 1
7 Bearing Roulement Cojinete 1
8 Ring Segment Anillo 3
9 Spring Ressort Resorte 3
10 Piston Piston Pistón 3
11 O-Ring (71 x 2.65) Joint torique Anillo tórico 1
12 Housing Corps Compartimiento 1
13 Bolt M8 x 25 Boulon M8 x 25 Perno M8 x 25 3
14 Seal Joint Sello 3
15 Seal plate Plaque Placa 3
16 O-Ring (22 x 1.9) Joint torique Anillo tórico 3
17 Seal Joint Sello 3
18 Bushing Bague Buje 3
19 Washer Rondelle Arandela 3
20 Seal Joint Sello 3
21 Valve Soupape Válvula 6
22 O-Ring (8.8 x 1.9) Joint torique Anillo tórico 6
23 O-Ring (4.5 x 1.8) Joint torique Anillo tórico 2
24 Seat Siège Asiento 1
25 Ball Balle Pelota 1
26 O-Ring (10 x 1.8) Joint torique Anillo tórico 2
27 Gasket Joint Empaquetadura 1
28 Seat Siège Asiento 1
29 Gasket Joint Empaquetadura 1
30 O-Ring (8 x 1.9) Joint torique Anillo tórico 2
31 Valve Soupape Válvula 1
32 O-Ring (6 x 1.8) Joint torique Anillo tórico 1
33 Gasket Joint Empaquetadura 1
34 O-Ring (13 x 1.9) Joint torique Anillo tórico 1
35 Bushing Bague Buje 1
36 O-Ring (14 x 2) Joint torique Anillo tórico 1
37 Nut Écrou Tuerca 1
38 Spring Ressort Resorte 1
39 Nut Écrou Tuerca 1
40 Nut Écrou Tuerca 1
41 Bolt M8 x 45 Boulon M8 x 45 Perno M8 x 45 3
42 Plug Bouchon Tapón 1
43 Hose nipple Manchon fileté Niple 1
44 O-Ring (3.5 x 1.8) Joint torique Anillo tórico 1
45 Ball Balle Pelota 1
46 Spring Ressort Resorte 1
47 O-Ring (7.5 x 1.8) Joint torique Anillo tórico 1
48 Plug Bouchon Tapón 1
49 O-Ring (11.2 x 1.8) Joint torique Anillo tórico 3
50 Plug Bouchon Tapón 3
51 Thermal relief valve Thermal vestige tuyau Térmico reliquia válvula 1
52 Pump head Tête de pompe Cabeza de bomba 1
53 O-Ring (4.5 x 2.65) Joint torique Anillo tórico 1
54 Jet Jet Jet 1
55 Spring Ressort Resorte 1
56 Injector Injecteur Inyector 1
57 O-Ring (9 x 1.8) Joint torique Anillo tórico 1
58 Seat Siège Asiento 1
59 Outlet fitting Raccord de sortie Adaptador de salida 1
60 Suction fitting Raccord de succion Adaptador de succión 1
61 Suction fitting 3/4” Raccord de succion Adaptador de succión 1
62 Filter Filtre Filtro 1
PUMP / POMPE / BOMBA
PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZAS

MAT Industries LLC
6700 Wildlife Way
Long Grove, IL 60047
1-888-895-4549
© 2011 MAT Industries, LLC. All Rights Reserved. Tous droits réservés. Reservados todos los derechos.
ProForce ® is a registered trademark of / sont des marques déposées de / son marcascomerciales registradas de /
MAT Industries, LLC, Long Grove, IL 60047.
Product style and configuration may vary. La configuration et le style du produit peuvent varier. El estilo y la config-
uración del producto pueden variar.
