PR71-S 8-Outlet Component Surge Protector Setup Guide
①③②
PRODUCT FEATURES
USING YOUR SURGE PROTECTOR
1. Ensure the power is o on the devices you will be connecting to the AC outlets on the surge protector.
2. Plug the surge protector into a properly grounded AC wall outlet and turn on the surge protector.
3. Check that the PROTECTED and GROUNDED blue LEDs are illuminated. If the PROTECTED LED is not illuminated, the surge
protector is not operating properly and will not protect your connected devices. If the GROUNDED LED is not illuminated the
outlet the surge protector is connected to is not properly grounded and should not be used. Please have a licensed
electrician diagnose and troubleshoot the aected wall outlet prior to use.
4. Plug your equipment into the outlets on the surge protector and power on your devices as usual.
5. USB devices can be charged/powered by simply connecting the USB power cord to the USB ports on the surge protector.
The USB ports deliver 5V and up to 2.4amps of power.
⑤
④⑥⑦⑧
⑨⑩⑪
ELAC AMERICAS INC.
1938 N. BATAVIA ST. SUITE K
ORANGE, CA 92865
Copyright 2021 ELAC Americas Inc.

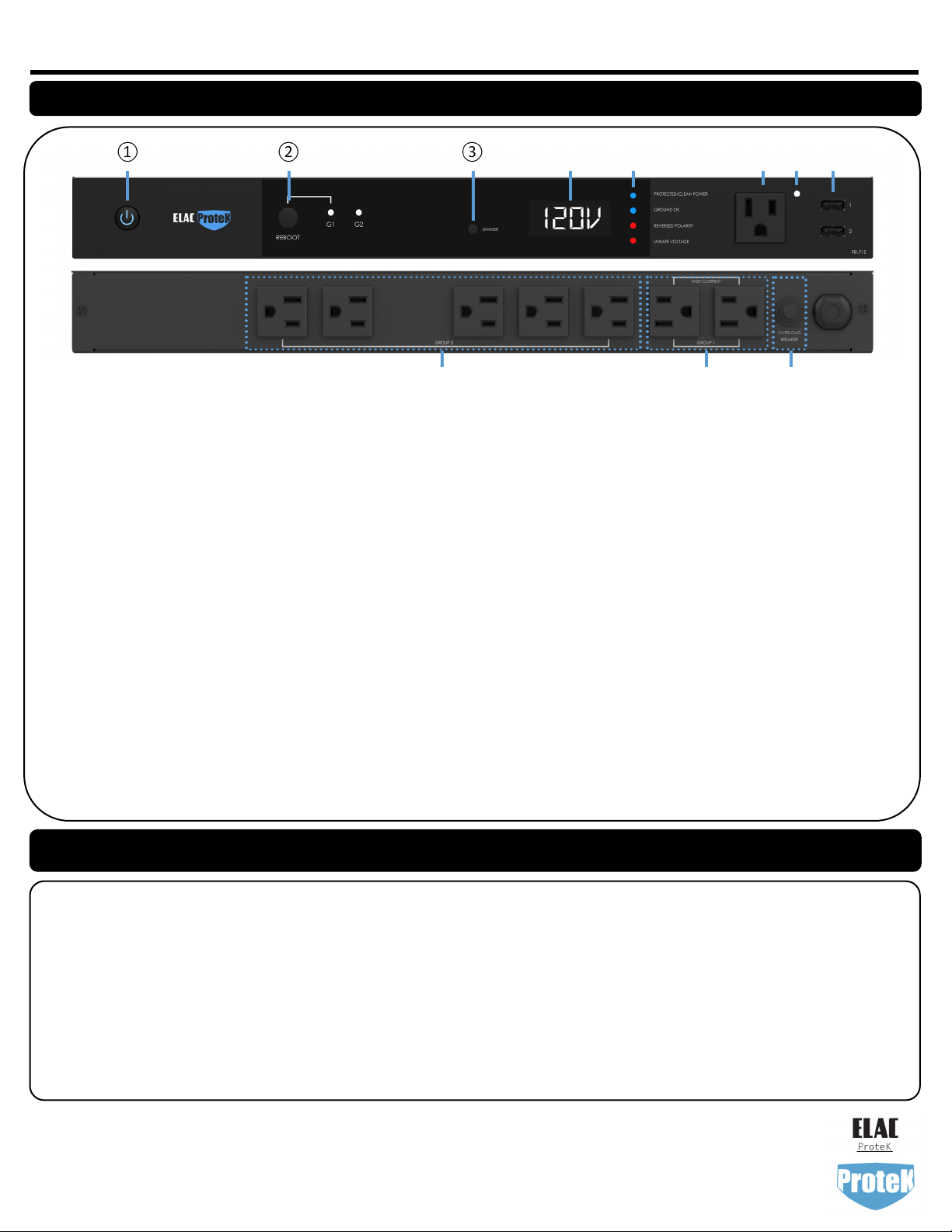

①Power Button—Press this button (.5 sec to 1 sec) to power on and
o the rear AC outlets. Press and hold for 10 seconds to factory reset
the unit.
②Reboot Button—Pressing and holding the REBOOT button for 1.5
seconds will power cycle all outlets in Group 1.
③Dimmer Button—Adjusts the brightness of the LCD and other
LEDs to 10%, 35%, 70% and 100%.
④Voltage Display—Displays the Voltage of the outlet that the surge
protector is plugged into.
⑤LED Indicators— Indicates the status of the surge protector.
• Protected / Clean Power—LED On: Outlets are Protected. LED
O: Surge Protection is not working and your connected devices
are not protected.
• Ground OK—LED On: The wall outlet is properly grounded. LED
O: The wall outlet is NOT properly grounded and a licensed
electrician should be called to resolve the problem.
• Reversed Polarity—LED O: The wall outlet polarity is correct.
LED On: Reverse polarity detected. Please contact a licensed
electrician to resolve the issue.
• Unsafe Voltage—LED O: Normal voltage detected. LED On:
Unsafe voltage detected and the surge protector will disconnect
power to your connected devices. Please consult a licensed
electrician.
⑥Front AC Outlet—This front AC outlet always on unless unsafe
voltage is detected.
⑦Front Outlet Indicator—Front AC outlet power indicator.
⑧Dual USB Charging Ports: 5V 2.4 Amp Total USB-A ports for
charging compatible devices.
⑨Group 2 AC Outlets— These 5 outlets provide 58db of EMI/RFI
filtration and are perfect for source and lower current devices.
⑩Group 1 AC Outlets—These 2 outlets are designed for high current
devices such as audio amplifiers.
⑪Overload Breaker—This breaker will trip when the surge protector
is overloaded. After resetting, please ensure the Protected/Clean
Power LED is On, if not, your surge protector needs to be replaced.

• RISK OF ELECTRIC SHOCK – Use only in dry locations and only
indoors.
• DO NOT plug into another relocatable power tap.
• DO NOT “daisy chain” surge protectors.
• DO NOT plug into 220V outlet or power source.
• DO NOT use with any aquarium equipment.
• DO NOT connect to an ungrounded outlet.
• DO NOT install this device if there is not at least 30 feet (10 meters),
or more of wire between the electrical outlet and electrical service
panel.
• This device features internal protection that will disconnect the
surge protective component at the end of its useful life
(PROTECTED LED WILL TURN OFF) , but will maintain power to the
outlet – WHICH WILL BE UNPROTECTED. If you don’t want your
equipment at risk, follow the manufacturer’s instructions for replac-
ing the device.
• DO NOT use in any circumstance that would aect the operation or
reliability of life support equipment, any medical applications, or
patient care.
SAFETY INFORMATION TECHNICAL SPECIFICATIONS
Number of AC Outlets 8
Number of USB Ports 2—5V total 2.4A
AC Outlets All 8 filtered with surge protection
Protection Modes L-N, L-G, N-G, Surge
Thermal Fuse Yes
Maximum Current 15 Amps
Line Voltage 120V @ 60Hz
Certification UL 1449, UL 1363, FCC, ICES
Max Energy Dissipation 2160 Joules
Max Spike Voltage / Current 6,000V / 144,000A
Response Time 1 Nanosecond
Filtration EMI / RFI G1: 40dB G2: 58dB
Over/Under Voltage Protection Over 135Vac / Under 95Vac
