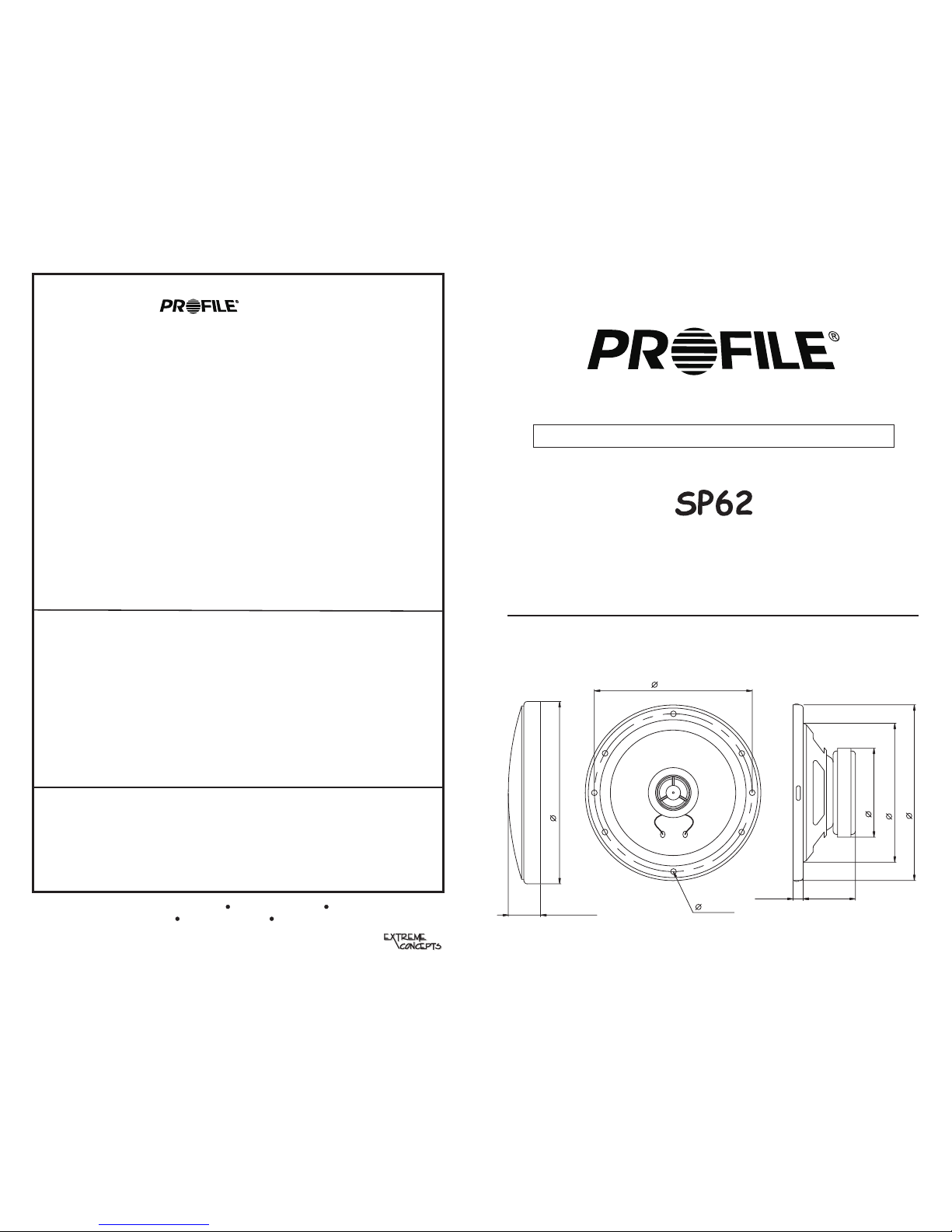

Profile Sp62 Quick start guide

2-WAY SPEAKERS

Installation Instructions / Owner's Manual

MOUNTING DEPTH: 49 (1 15/16”)

UNIT: mm (inches)

DIMENSIONS

164 (6 1/2”)

144 (5 5/8”)

5 (3/16”)

8 (5/16”) 49 (1 15/16”)

29 (1 1/8”)

80 (3 1/4”)

124 (4 7/8”)

158 (6 1/4”)

LIMITED WARRANTY

Profile Consumer Electronics, Inc. warrants this product to be free from defects in material and

workmanship for a period of One (1) year from the date of purchase by the original consumer

purchaser. If this product is proven to be defective within this one-year period, Profile will replace

it when said product is returned under instructions below, freight prepaid to Profile. This warranty

is valid only in the United States.

This warranty does not cover any expense incurred in the removal and/or reinstallation of this

product. This warranty does not cover damage caused by excess power usage than its published

power rating, accident, misuse, abuse, improper line voltage, fire, water, acts of God, or attempted

service by anyone other than Profile. This warranty does not cover broken cabinets or any other

accessories used in connection with this product or consequential damages due to a defect in the

product.

Any implied warranties, including fitness for use and merchantability, are limited in duration to the

period of the express warranty set forth above. No person is authorized to assume for Profile any

other liability in connection with the sale of the product. Profile expressly disclaims liability for

incidental and consequential damages that might be caused by this product. The remedies provided

under this warranty are exclusive and lieu of all others.

This warranty gives you specific legal rights. You may have other rights which vary from state to

state. Some states do not allow limitation on how long warranties last, so the above may not apply to

you. Additionally, some states do not allow the exclusion to limitation of consequential or incidental

damages, so the above limitation or exclusion may not apply to you.

To Obtain Warranty Service:

1) Return defective speaker(s) back to the purchased store for an exchange before

attempting to send products to Profile.

2) If you failed to obtain warranty service from the purchased store, send defective

speaker(s) freight prepaid to Profile including the following:

!Sales receipt showing date and place purchased by an original owner, an

evidence that the unit is within the Warranty period.

!Your clear return shipping address and a daytime phone number.

Send to: Profile Consumer Electronics, Inc.

Speaker Exchange Dept.

15060 Shoemaker Ave.

Santa Fe Springs, CA 90670

* Please allow 2~3 weeks for an exchange, which includes transit times.

RECORD THE DATE AND PURCHASE LOCATION FOR FUTURE REFERENCE.

Model No. __________________ Purchase Date __________________

Purchased From ________________________

KEEP THIS INFORMATION AND YOUR SALES RECEIPT IN A SAFE PLACE.

2002 PROFILE CONSUMER ELECTRONICS

SP62 MANUAL REV 02.28.02

100000 - 022802

Manual By

www.extremeconcepts.com

PROFILE CONSUMER ELECTRONICS, INC. 15060 SHOEMAKER SANTA FE SPRINGS, CA 90670

TEL: (562)404-9393 FAX: (562)404-9433 WWW.PROFILEUSA.COM

INTRODUCTION

PARTS LIST

TEMPLATE

GRILLES

SPEAKER WIRES

LENGTH: 3m (9’ 10”)

RETAINING CLIPS

MOUNTING

SCREWS

SIZE: 4 x 20mm

SP62

Speaker ...............................................................61/2"2-Way

WooferCone...........................................................TreatedPaper

Tweeter .....................................................................1"

Surround .......................................................................Foam

MaximumInputPower ......................................................120Watts

NominalInputPower.................................................5~40WattsRMS

Impedance....................................................................4Ohms

MagnetWeight.................................................................12Oz.

Sensitivity................................................................91dB/W/m

FrequencyResponse ...................................................50~20,000Hz

Piezo

SPECIFICATIONS

Congratulations on your purchase of a Profile state-of-the-art speakers. Your selection of a

Profile car audio product indicates a true appreciation of fine musical reproduction. Whether

adding to an existing system or including your Profile speakers in a new system, you are certain

to notice immediate performance benefits.

Before mounting the speakers, select a location that allows for at least 49mm (1 15/16”) of

mounting depth. The speaker inside the door must not come in contact with the window when

rolled down. Additionally, the speaker should be out of the way of window cranks and door

handles allowing for normal operation.

INSTALLATION

IMPORTANT!: THE LARGER HOLE ON

THE CLIP SHOULD BE ON THE FRONT

SIDE OF THE PANEL AND THE SMALLER

SPILT HOLE SHOULD BE ON THE BACK

SIDE OF THE PANEL.

CUT OUT SPEAKER MOUNTING AREA

THEN DRILL SCREW HOLES USING

3.3mm (5/32”) BIT.

INSERT RETAINING CLIP OVER HOLE

IN DOOR PANEL.

USE THE ENCLOSED TEMPLATE

TO MARK THE CUT OUT AREA

AND DRILL HOLES. IF HOLE

EXISTS SKIP TO STEP .

TO RADIO OR AMPLIFIER

BLACK

STRIPED WIRE

SOLID

COLOR WIRE

CONNECT SPEAKERS.

MOUNT SPEAKERS AND SNAP ON GRILLES.

IF YOU ARE MOUNTING SPEAKERS IN THE

VEHICLE’S FACTORY LOCATIONS, GRILLES

ARE NOT NEEDED.

124mm (4 7/8”)

3.3mm (5/32”)
