ProGear Walk To Fit User manual

3060.4-072216

SERVICE -------------------------------------------------------------------------2
LABEL PLACEMENT---------------------------------------------------------- 3
IMPORTANT SAFETY INSTRUCTION----------------------------------- 4
OVERVIEW DRAWING ------------------------------------------------------ 8
PART LIST -----------------------------------------------------------------------9

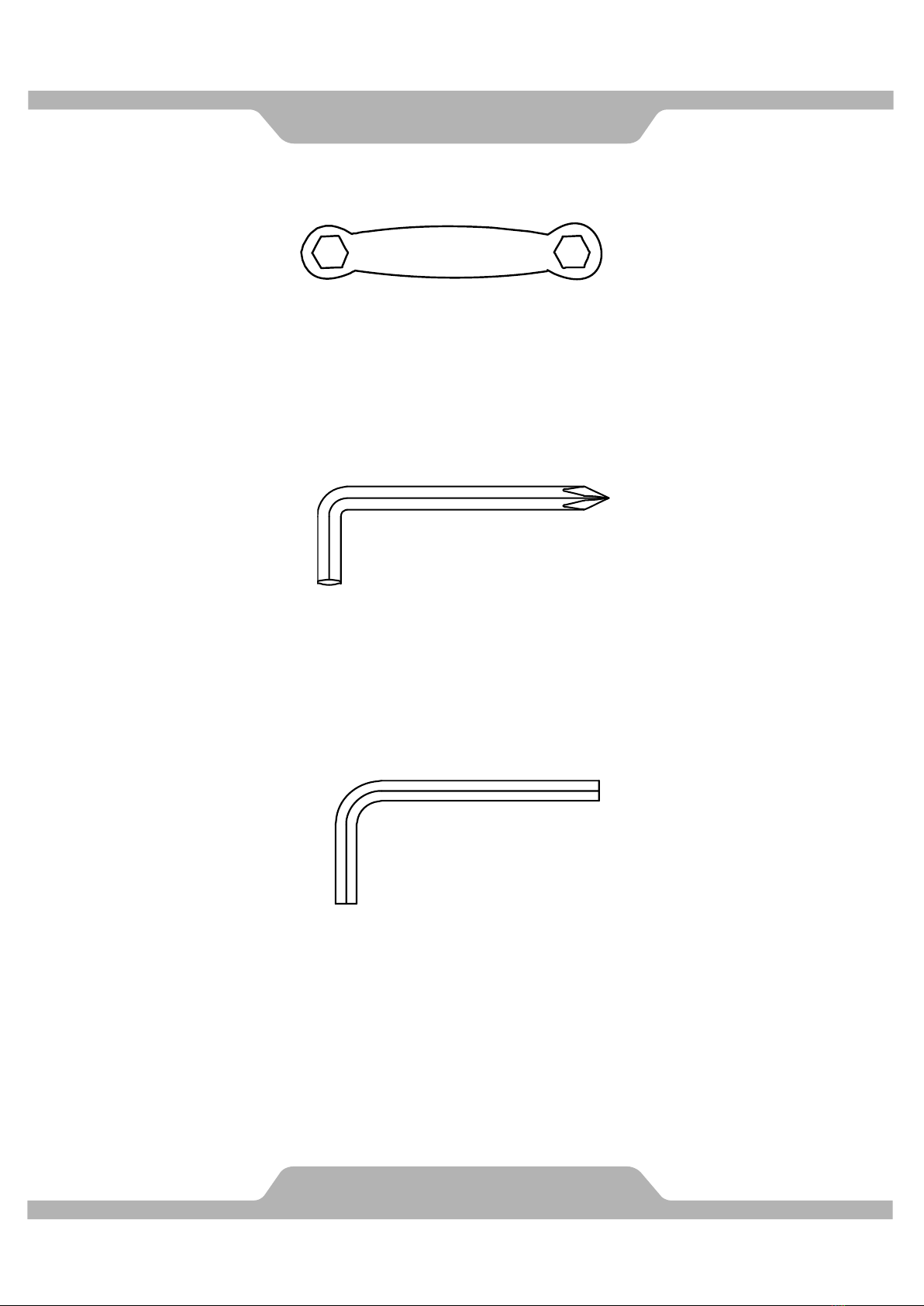

TOOLS ---------------------------------------------------------------------------11

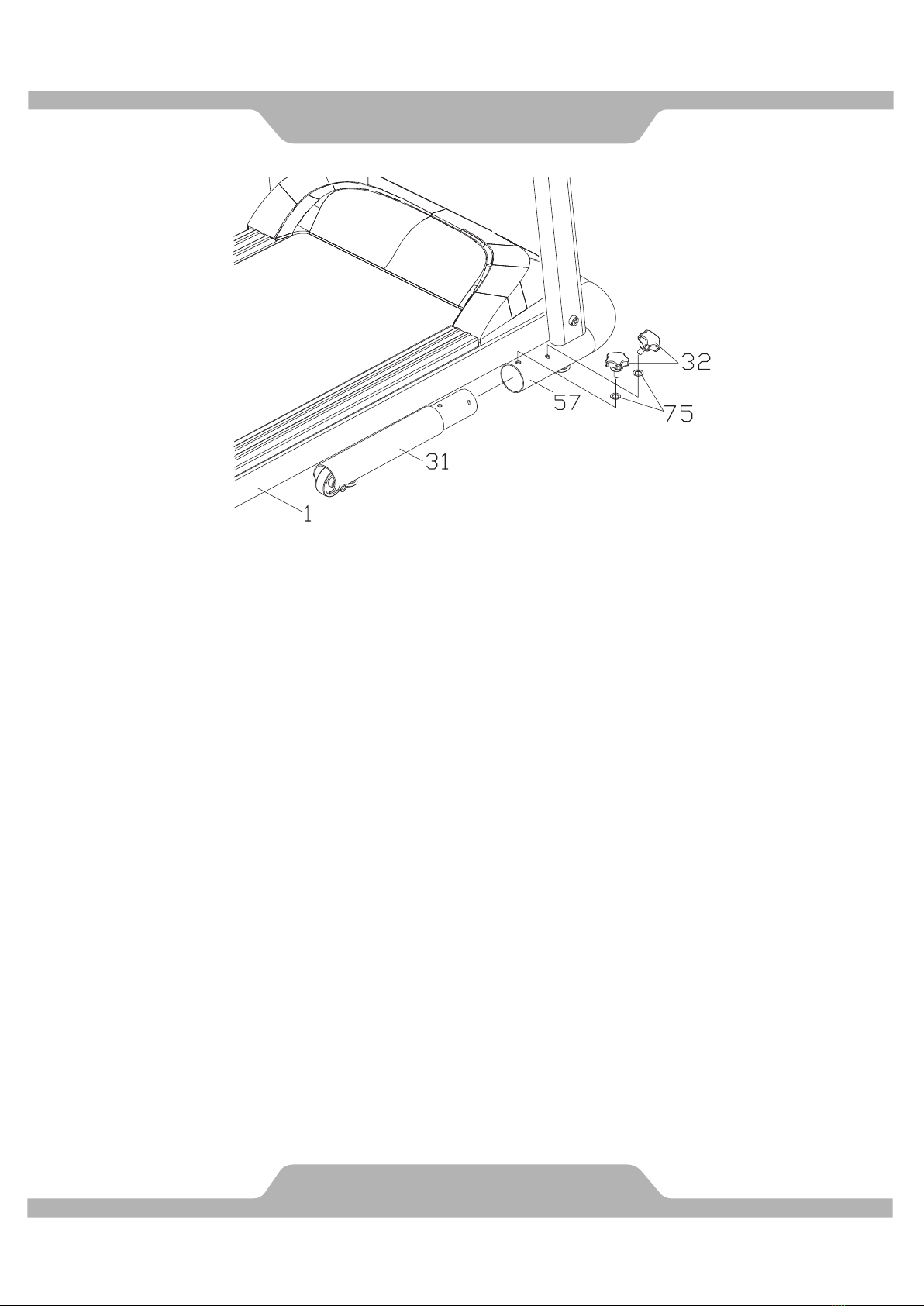

ASSEMBLY ----------------------------------------------------------------------12
COMPUTER ---------------------------------------------------------------------15
STORAGE ----------------------------------------------------------------------- 17
ADJUSTMENTS ----------------------------------------------------------------18
LUBRICATION ------------------------------------------------------------------20
MAINTENANCE & TROUBLE SHOOTING ----------------------------- 21
WARRANTY -------------------------------------------------------------------- 24
PARTS REQUEST FORM --------------------------------------------------- 25
TABLE OF CONTENTS
1

IMPORTANT: FOR NORTH AMERICA ONLY
For damaged or defective products, questions, replacement parts or any
other needed service support, please contact our customer service
department (8:00 AM - 5:00 PM Pacific Standard Time, Daily) by below
methods:
For Best Service Email:
[e-mail]
Website:
www.paradigmhw.com
Toll-Free:
1-844-641-7920
Please have the following information ready when requesting for service:
Your name
Phone number
Model number
Serial number
Part number
Proof of Purchase
For damaged or defective products please contact our customer service
before returning to the store.
* Emailing us with the information above will be the best method to
receive a response during peak business hours.
**Response time may vary.
Paradigm Health & Wellness, Inc.
1189 Jellick Ave.
City of Industry, CA 91748, USA
SERVICE
2

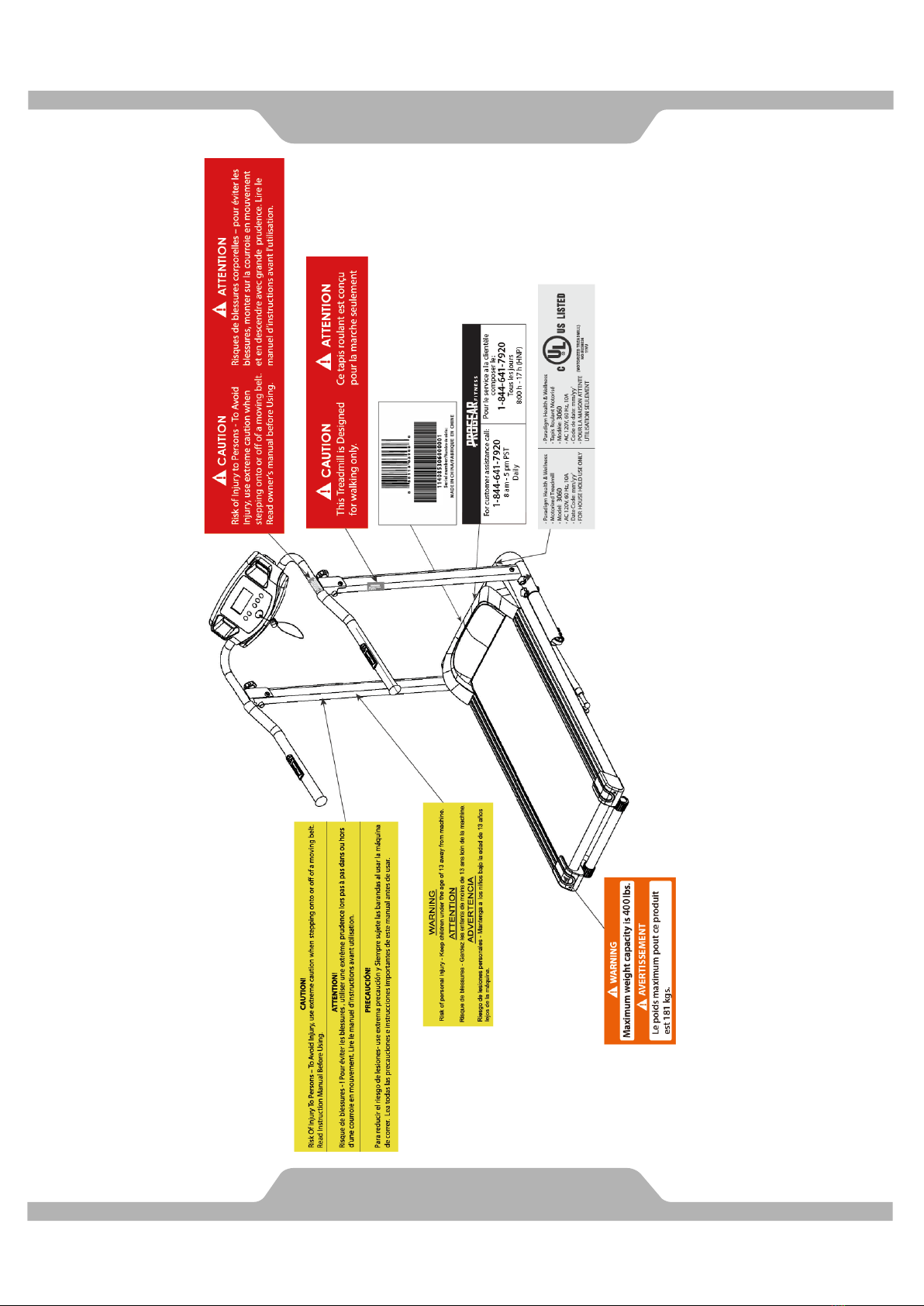

LABEL PLACEMENT
3

IMPORTANT SAFETY INSTRUCTION
Basic precautions should always be followed, including the following safety
instructions when using this treadmill: Read all instructions before using this
treadmill.
DANGER:To reduce the risk of electric shock, please read the following:
Always unplug the treadmill from the electrical outlet immediately after using
and before cleaning, assembling, or servicing.
NOTE: Failure to follow these instructions may lead to personal injury and
cause damage to the treadmill.
WARNING: To reduce the risk of burns, fire, electric shock or injury to
any persons, please read the following:
Never leave the treadmill unattended when plugged in. Disconnect by
turning off the master power switch, and unplugging from outlet when not in
use and before putting on or taking off parts.
Use this appliance only for its intended use as described in this manual. Do
not use attachments not recommended by the manufacturer.
Never operate this treadmill if it has a damaged cord or plug, or if it is not
working properly. If it has been dropped or damaged, or been exposed to
water, do not use and consult an Authorized Service Representative at
1-844-641-7920.
Do not attempt any maintenance or adjustments other than those described in
this manual. Should any problems arise, discontinue use and consult an
Authorized Service Representative.
Never operate the appliance with the air openings blocked. Keep the air
openings free of lint, hair, and the like.
Do not use the treadmill outdoors.
Do not pull the treadmill by its power cord or use the cord as a handle.
Keep children and pets away from the equipment while in use. This machine
is designed for adults only. This appliance is not intended for use by persons
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Keep children
under the age of 13 away from this machine.
IMPORTANT SAFETY INSTRUCTION
4

Do not operate where aerosol (spray) products are being used or where
oxygen is being administered.
Keep Dry - do not operate in a wet or moist condition. Save these instructions.
Do not operate the treadmill near a blanket. Excessive heating can occur
and cause fire, electrical shock, or injury to user.
Keep electrical cord away from heated surfaces.
Never insert any object into any opening.
Keep the treadmill on a solid, level surface with the minimum safety area
clearance of 2000mm x 1000mm of the treadmill. Be sure the area around
the treadmill remains clear during use and has adequate clearance.
This treadmill is for household use only.
Only one person should be on the treadmill while in use.
Wear comfortable and suitable clothing when using the treadmill. Do not use
the treadmill barefoot, in only socks or in sandals, always wear athletic shoes.
Never wear loose clothing because it could run the risk of getting caught in the
treadmill.
Always hold on to the handrails while using the treadmill.
Always make sure the storage latch is in place when folding and moving the
treadmill.
Do not leave children who are under 12 year-old unsupervised near or on the
treadmill.
To disconnect, turn all controls to the off position, then remove plug from
outlet.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance.
Pull up the Safety Tether Key for emergency stop. Reinstall the Safety Tether
Key onto the Computer Console. Press the START/STOP button to begin
exercise again.
Maximum Weight Capacity is 400 lbs / 181 kgs.
This treadmill is designed for WALKING only.
CAUTION: Risk of Injury to Persons –To Avoid Injury, use extreme caution
when stepping onto or off of a moving belt. Read Instruction Manual Before Using.
Note: It is the obligation of the owner to review and explain these safety
precautions to all users of this treadmill
5
IMPORTANT SAFETY INSTRUCTION

WARNING: Connect the treadmill to a properly grounded outlet
only. See grounding instructions.
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or break down,
grounding provides a path of least resistance for electric current reducing the
risk of electric shock. * This treadmill is equipped with a cord having
equipment grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
DANGER:Improper connection of the treadmill grounding
conductor can result in the risk of electric shock. Check with a qualified
electrician, if you are in doubt as to whether the product is properly grounded. Do
not modify the plug provided with the treadmill. If it will not fit your outlet, have a
properly grounded outlet installed by a qualified electrician.
This product is for use on a nominal 120 volt circuit and has a grounding
plug that looks like the plug illustrated in sketch A in Figure 1.
Make sure that the product is connected to an outlet having the same
configuration as the plug. No adapter should be used with this product.
Figure 1
IMPORTANT SAFETY INSTRUCTION
6

This unit must be plugged into a nominal 120 volt, which has a grounding.
Keep hands clear of all moving parts. Never place hands, feet under the
treadmill.
Do not use the treadmill on a carpet that is greater than 1/2 inch in height.
Before using the treadmill, check that the belt is aligned and centered on the
walking deck and all visible fasteners on the treadmill are sufficiently tightened
and secure.
WARNING: Before beginning any exercise program consult your
physician. This is especially important for the persons who are over 35 years old
or who have pre-existing health problems. Read all instructions before using any
fitness equipment. We assume no responsibility for personal injury or property
damage sustained by or through the use of this product. Do not operate this
exercise equipment without properly fitted guards, as the moving parts can present
risk of serious injury to young children.
CAUTION:Read all instructions carefully before operating this product.
Retain this Owner’s Manual for future reference.
7
IMPORTANT SAFETY INSTRUCTION

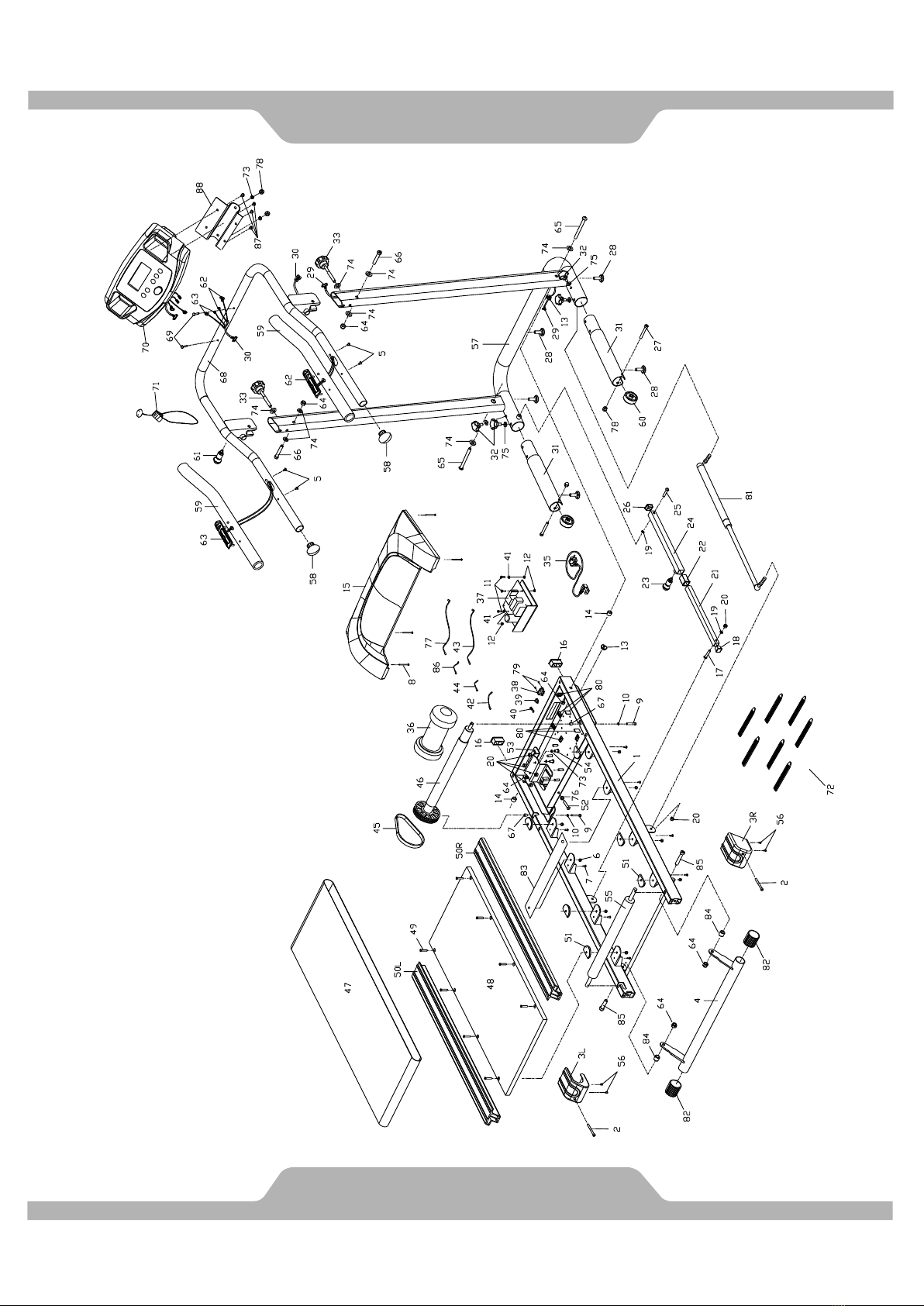

OVERVIEW DRAWING
8

Part #
Description
Qty
Part #
Description
Qty
001
Main Frame
1
025
Bolt (M8x40mm)
1
002
Rear Roller Adjustment Bolt
(M8x70mm)
2
026
Safety Tube B Square End
Cap (□25.4)
1
003R
Rear Right End Cap
1
027
Bolt (M8x60mm)
2
003L
Rear Left End Cap
1
028
Adjustable Leveler
(M10xØ 28x40)
5
004
Incline Adjuster
1
029
Sensor Cable I (1750mm)
1
005
Self-Tapping Screw (ST3x20mm)
4
030
Sensor Cable II (980mm)
1
006
Nylon Nut (M6)
8
031
Stabilizer Tube (Ø 50.8x450)
2
007
Self-Tapping Screw (M4x16mm)
10
032
Stabilizer Knob
(M8xØ 40xØ 10.5x15.5mm)
4
008
Self-Tapping Screw (M4x50mm)
4
033
Handlebar Knob
(M10xØ 50x108)
2
009
Bolt (M6x40mm)
2
035
Power Cord
1
010
Spring Washer (M6)
2
036
Motor
1
011
Bolt (M4x12mm)
3
037
Power Control Board
(97100-3)
1
012
Nut (M4)
3
038
Power Cord Socket (CH-411)
1
013
Wire Cap (Ø 6x21x10)
2
039
Switch, AC Power (R11-16A)
1
014
Spacer (Ø 18xØ 10.5x31mm)
2
040
Fuse Box (R3-9 15A)
1
015
Motor Cover
1
041
Washer (M4)
2
016
Rectangular End Cap (□25x50)
2
042
Wire for Fuse Box (120mm)
1
017
Bolt (M8x35mm)
1
043
Wire for Power Control Board
(480mm)
1
018
Safety Tube A Square End Cap
(□20)
1
044
Wire for Power Switch
(80mm)
1
019
Nylon Washer (M8)
2
045
Belt (180J5)
1
020
Nylon Nut (M8)
6
046
Front Roller (Ø 40x599)
1
021
Safety Tube A (F20x330mm)
1
047
Walking Belt (2140x508x1.6)
1
022
Bushing (F23xF20.3x42)
1
048
Walking Deck (557.6x940x18)
1
023
Spring Knob (Ø 8xØ 22x71)
1
049
Bolt (M6x33mm)
8
024
Safety Tube B (F25.4x1.5x340)
1
050R
Right Side Rail
1
PART LIST
9

Part #
Description
Qty
Part #
Description
Qty
050L
Left Side Rail
1
070
Computer
1
051
Deck Bumper (48x32x5)
6
071
Safety Tether Key
(SD-7934-1)
1
052
Bolt (M8x45mm)
1
072
Sensor Bracket
1
053
Motor Bracket
1
073
Spring Washer (M8)
2
054
Bolt (M8x12mm)
2
074
Washer (M10)
8
055
Rear Roller (Ø 40x599)
1
075
Washer (Ø 21xØ 8.5x1.8t)
4
056
Screw (M4x8mm)
4
076
Nut (M8)
1
057
Stabilizer (820.8x283x1091)
1
077
Wire (400mm)
1
058
Handlebar End Cap
(Ø 41xØ 28.5x40)
2
078
M8 Nut Cap
2
059
Foam Grip (Ø 30xØ 37x537)
2
079
Bolt (M3x10mm)
2
060
Transport Wheel (Ø 8.5xØ 50x23)
2
080
Binding Wire Plate 20x20x7
7
061
Short Knob (Ø 8xØ 20x36)
1
081
Gas Spring
1
062
Hand Pulse Sensor and Speed
Button with Wires (1150MM 3P)
1
082
Incline Adjuster Cover Ø 50
2
063
Hand Pulse Sensor and Mode /
On Off Button with Wires
(1150MM 3P)
1
083
Support Board
1
064
Nylon Washer (M10)
6
084
Spacer Ø 16xØ 11x15.5mm
2
065
Bolt (M10x100mm)
2
085
Bolt (M10x40mm)
2
066
Bolt (M10x50mm)
2
086
Earth Lead (120mm)
1
067
Spacer (Ø 13.5xØ 8.5x24mm)
2
087
Bolt (M5x8mm)
4
068
Handlebar (692x793x161)
1
088
Console Bracket
1
069
Square neck screw
2
PART LIST
10

TOOLS
11
S6 Allen Wrench 1PCS
Screw Head Allen Wrench
5mm 1pcs
Ring Spanner 1 pcs

Step 1
Place the treadmill in the upright position and then place one hand on the rear end
of Main Frame (1) and use your other hand to pull out the Spring Knob (23).
Lower the Main Frame (1) down from the rear of treadmill until the Spring Knob (23)
"pops" down into the locked position.
TO PREVENT INJURY PLEASE MAKE SURE YOU HAVE A FIRM HOLD WHEN
SETTING DOWN THE DECK.
Remove four Stabilizer Knobs (32) and four Ø 21xØ 8.5x1.8t Washers (75) from the
right and left sides of the Stabilizer (57). Then install both Stabilizer Tubes (31) to
the Stabilizer (57) by inserting both Stabilizer Tubes (31) into the Stabilizer (57),
using four Stabilizer Knobs (32) and four Ø 21xØ 8.5x1.8t Washers (75) that were
removed.
ASSEMBLY
12

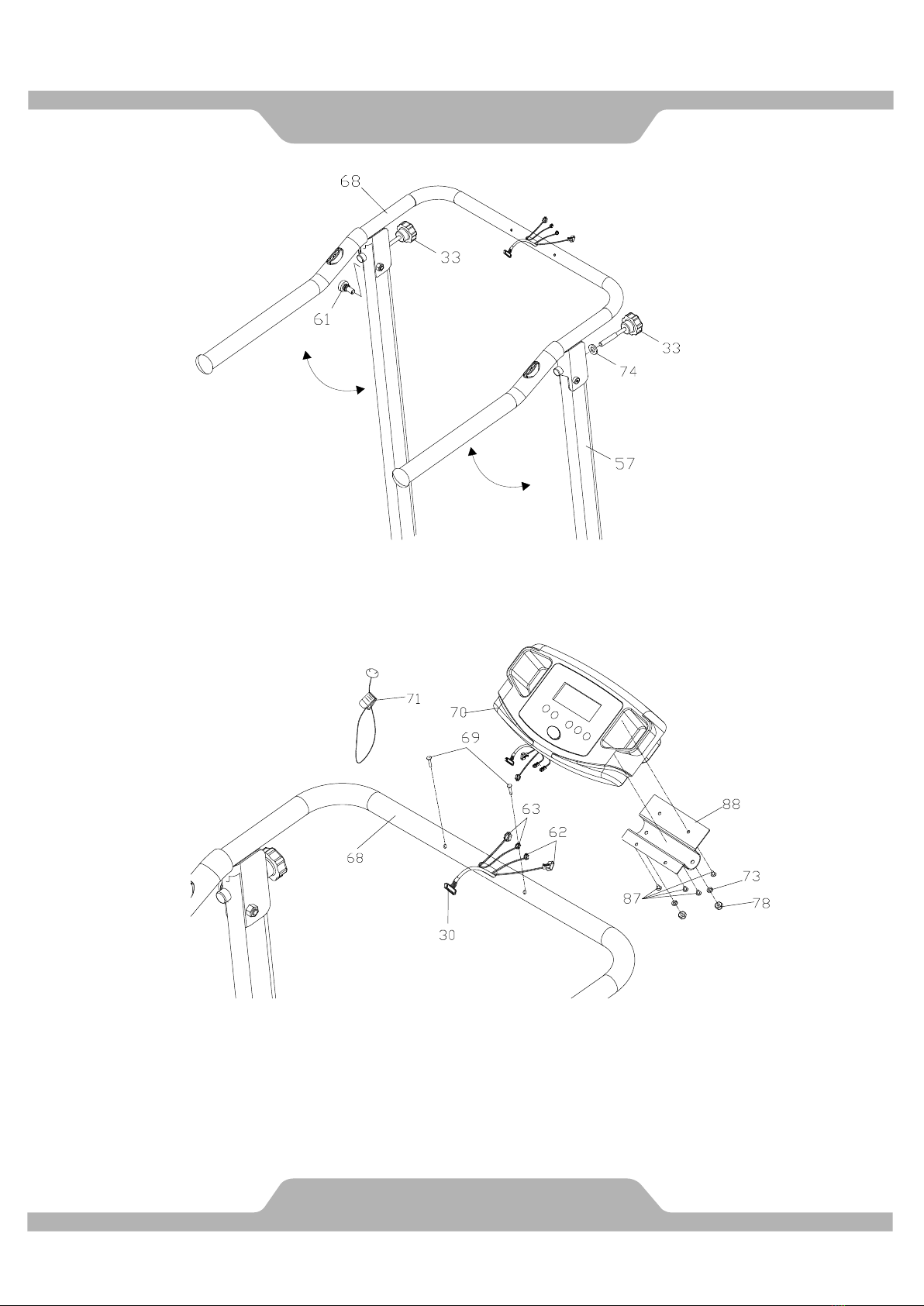

Step 2
Pull the Short Knob (61) and then lift the Handlebar (68) all the way up. Tighten
the Handlebar (68) to the Stabilizer (57) with two Handlebar Knobs (33) and two
M10 Washers (74).
Step 3
Attach the Console Bracket (88) onto the Handlebar (68) and tighten with two
Square Neck Screws (69), Spring Washers (73) and Nut Caps (78) by Ring
Spanner provided.
Attach both the Computer (70) onto the Console Bracket (88) tighten with four
Bolts (87).
Place the Safety Tether Key (71) onto the Computer (70).
ASSEMBLY
13

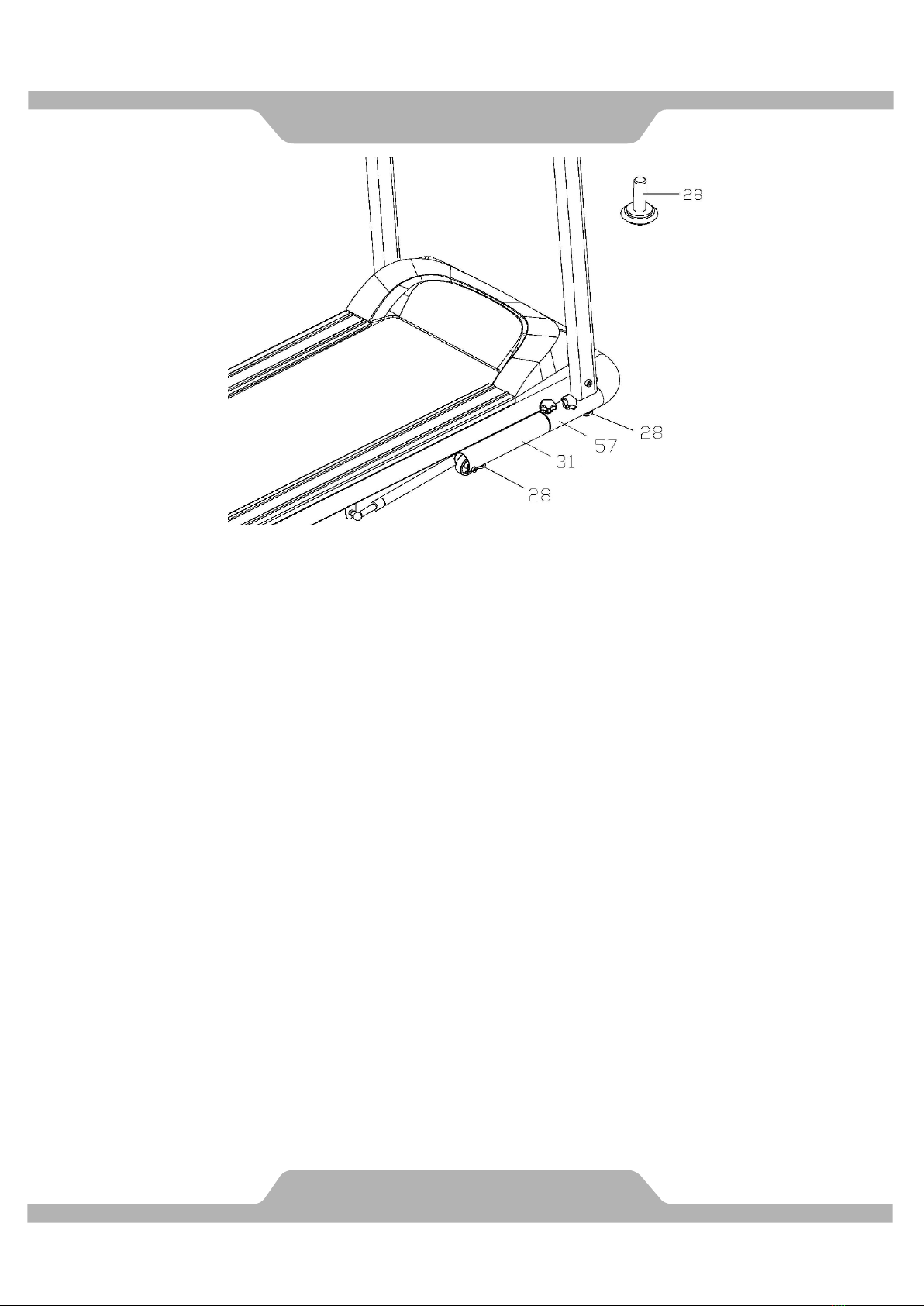

Step 4
There are five Adjustable Levelers (28) on the bottom of both Stabilizer Tubes (31)
and Stabilizer (57). Turn the Adjustable Leveler (28) as needed to level the
treadmill.
ASSEMBLY
14

Quick Start:
Flip the Master Power Switch that is located at the front of the treadmill to the ON
position. The treadmill will self-test for 2 seconds on startup and then the speed
setting will show up after a 2 second long beep. Before beginning a workout
session ensure that the Safety Tether Key is properly placed onto the Computer
Console and the Safety Clip is securely attached to an article of your clothing.
Always begin the treadmill standing on the side rails, not on the belt.
Press the START button to start exercise. The belt will start moving with
an initial speed of 0.4 MPH. The SPEED window will display your current speed
during training, the treadmill’s speed range is from 0.4 MPH to 4.0 MPH. The
PULSE window will display your current heart rate 10 seconds after you grip the
handlebar hand pulse sensors with both of your hands before or after exercising.
The split window of TIME will display in your elapsed workout TIME. The split
window of DISTANCE will display your cumulative DISTANCE. The split
window of CALORIES will display your total CALORIES burned during your
workout. During training, you may press the STOP button to stop the treadmill
running at any time, press the START button to start the treadmill running again.
You may pull out the safety tether key to stop the treadmill running.
Button Functions:
START: Press the START button to start the treadmill running.
STOP: Press the STOP button to stop the treadmill running.
MODE: Press MODE button to select each function (TIME, DISTANCE, or
CALORIES) for target pre-setting.
FAST: To make upward adjustments for pre-setting target training time, distance,
or calories.
SLOW: To make backward adjustments for pre-setting target training time,
distance, or calories.
COMPUTER
15

Computer Functions:
TIME: Displays your elapsed workout time in minutes and seconds. Press the
START button to start exercise. To set TIME press the MODE button ONCE until
you see the TIME begin blinking. Press the FAST or SLOW button to change the
time, each time you press the FAST button TIME should increase 1 minute and
SLOW button TIME should decrease 1 minute. The pre-set target time range is
from 05:00-99:00. Once you pre-set target time, press the START button to start
exercising. The walking belt starts moving at a speed of 0.4 MPH. TIME starts
counting down from pre-set target time to 05:00 per 1 minute backward. When
the pre-set target time counts down to 0:00, the treadmill will stop operation
automatically.
DIST (DISTANCE):
Displays the accumulative distance traveled during workout. Press the START
button to start exercise. To set DISTANCE press MODE button TWO TIMES to
start exercise, until you see the DISTANCE begin blinking. Press the FAST or
SLOW button to change the DISTANCE, each time you press the FAST button
DISTANCE should increase 0.1 mile and SLOW button DISTANCE should
decrease 0.1 mile. The walking belt starts moving at speed of 0.4 MPH. You may
press the FAST or SLOW button on the computer console to increase or
decrease walking distance during exercise. You may also pre-set target
distance in STOP mode before training. The pre-set target distance range is from
0.50 to 99.90 miles. Once you pre-set target distance, press START button to
start exercising. Distance starts counting down from pre-set target distance to
0.50. Once the pre-set target distance counts down to 0.00, the treadmill stops
operation automatically.
CAL (CALORIES): Displays the total accumulated calories burned during
workout. (This data is a rough guide for comparison of different exercise
sessions and should not be used in medical treatment). Press the START button
to start exercise. To set CAL press MODE button THREE TIMES to start exercise,
until you see the CAL begin blinking. Press the FAST or SLOW button to change
the CAL, each time you press the FAST button CAL should increase 10CAL and
SLOW button CAL should decrease 10CAL. The pre-set target calories range is
from 20 to 9900 CAL.
PULSE: The PULSE window will display your current heart rate 10 seconds after
you grip the hand pulse sensors with both your hands before or after exercise. To
ensure the pulse readout is precise, please always grip the hand pulse sensors
with two hands instead of just with one hand when you try to test your heart rate
figures and please do not test your heart rate while you are doing exercise.
COMPUTER
16

FOLDING THE TREADMILL
For your convenience, the treadmill can be folded up and placed in a storage
area.
To fold the treadmill place one hand on the rear end of main frame and use your
other hand to pull out the Spring Knob, then lift the main frame up until the Spring
Knob "pops" down into the locked position as shown in figure A.
Release both Handlebar Knobs as shown in figure B.
Pull out the Short Knob and then push the Handlebar all the way down.
Insert both Handlebar Knobs back to the Stabilizer as shown in figure C.
The figure D shows the treadmill in the folded position. Now the treadmill is ready
to be stored.
IMPORTANT: TO PREVENT INJURY PLEASE MAKE SURE YOU HAVE A
FIRM HOLD WHEN LIFTING UP OR SETTING DOWN THE DECK.
STORAGE
17
Spring Knob
A
Handlebar Knob
B
C
Short Knob
Handlebar

Belt Adjustment:
The belt is adjusted at the factory; it may come loose during transportation and/or
from use. After prolong use of the treadmill, the belt will stretch out. If the belt
is shifting to the left, turn on the main power switch of treadmill and let the belt run
at the speed of 1-1.5 MPH. Using the Allen wrench provided, turn the left rear
roller adjustment bolt 1/4 turn in the clockwise direction. You should see the belt
start to correct itself by moving back toward the center. Repeat the above
procedure until the belt is properly centered. If the belt is shifting to the right, turn
on the main power switch of treadmill and let the belt run at the speed of
1-1.5 MPH. Using the Allen wrench provided, turn the right rear roller adjustment
bolt 1/4 turn in the clockwise direction. You should see the belt start to correct
itself by moving back toward the center. Repeat the above procedure until the
belt is properly centered. If the belt is slipping during use, turn off and unplugged
the treadmill. Using theAllen wrench provided, turn both left and right rear roller
adjustment bolts 1/4 turn in the clockwise direction for the same amount, then turn
on the main power switch of treadmill and let the belt run at the speed of
1-1.5 MPH. You should now walk on to the belt to determine if the belt is still
slipping. Repeat the above procedure until the belt no longer slips.
18
ADJUSTMENTS
