Progress - NAVIA PN6280
Evaluation Board
User Manual
V1.0
RUSSIA
2019

PN6280_EVB User Manual
Copyright © JSC NIIMA PROGRESS and NAVIA LLC
1
Notice
Some features of the product and its accessories described herein rely on the software installed, capacities
and settings of local network, and therefore may not be activated or may be limited by local network
operators or network service providers. Thus, the descriptions herein may not exactly match the product or
its accessories which you purchase. JSC NIIMA PROGRESS and NAVIA LLC reserve the right to change
or modify any information or specifications contained in this manual without prior notice and without any
liability.
Copyright
This document contains proprietary technical information which is the property of JSC NIIMA PROGRESS
and NAVIA LLC. Copying of this document and giving it to others and the using or communication of the
contents thereof, are forbidden without express authority. Offenders are liable to the payment of damages.
All rights reserved in the event of grant of patent or the registration of a utility model or design. All
specification supplied herein are subject to change without notice at any time.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE
LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDINGBUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS MANUAL.TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO
EVENT SHALL JSC NIIMA PROGRESS AND NAVIA LLC BE LIABLE FOR ANY SPECIAL, INCIDENTAL,
INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA,
GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE
FORSEEABLE OR NOT.
PN6280_EVB User Manual
PN6280 开发板用户手册
GSM/GPRS/WCDMA Series
Version：V1.0
Date：2019-06-01
GSM/GPRS/WCDMA 系列
Version：V1.2
Date：2016-11-01

PN6280_EVB User Manual
Copyright © JSC NIIMA PROGRESS and NAVIA LLC
2
Content
1. Introduction............................................................................................................................................3
2. Functional Introduction..........................................................................................................................5
2.1 Power Supply......................................................................................................................................5
2.2 RESET Key.........................................................................................................................................5
2.3 PWRKEY Switch.................................................................................................................................6
2.4 PCM Switch.........................................................................................................................................6
2.5 Force Download Key...........................................................................................................................6
2.6 Interface Section .................................................................................................................................7
2.6.1 UART Interfaces...........................................................................................................................7
2.6.2 SIM Card ......................................................................................................................................7
2.6.3 USB Interface...............................................................................................................................8
2.7 Antenna Interface................................................................................................................................8
3. Safety Information .................................................................................................................................9

PN6280_EVB User Manual
Copyright © JSC NIIMA PROGRESS and NAVIA LLC
3
1. Introduction
Progress –Navia PN6280_EVB is designed for valuation and test Progress –Navia PN6280 module
to help developers debug and test PN6280 module. The following figure and label show the main
functions of PN6280_EVB. This article will describe the various parts of its functions in later chapters.
Figure 1 PN6280_EVB TOP

PN6280_EVB User Manual
Copyright © JSC NIIMA PROGRESS and NAVIA LLC
4

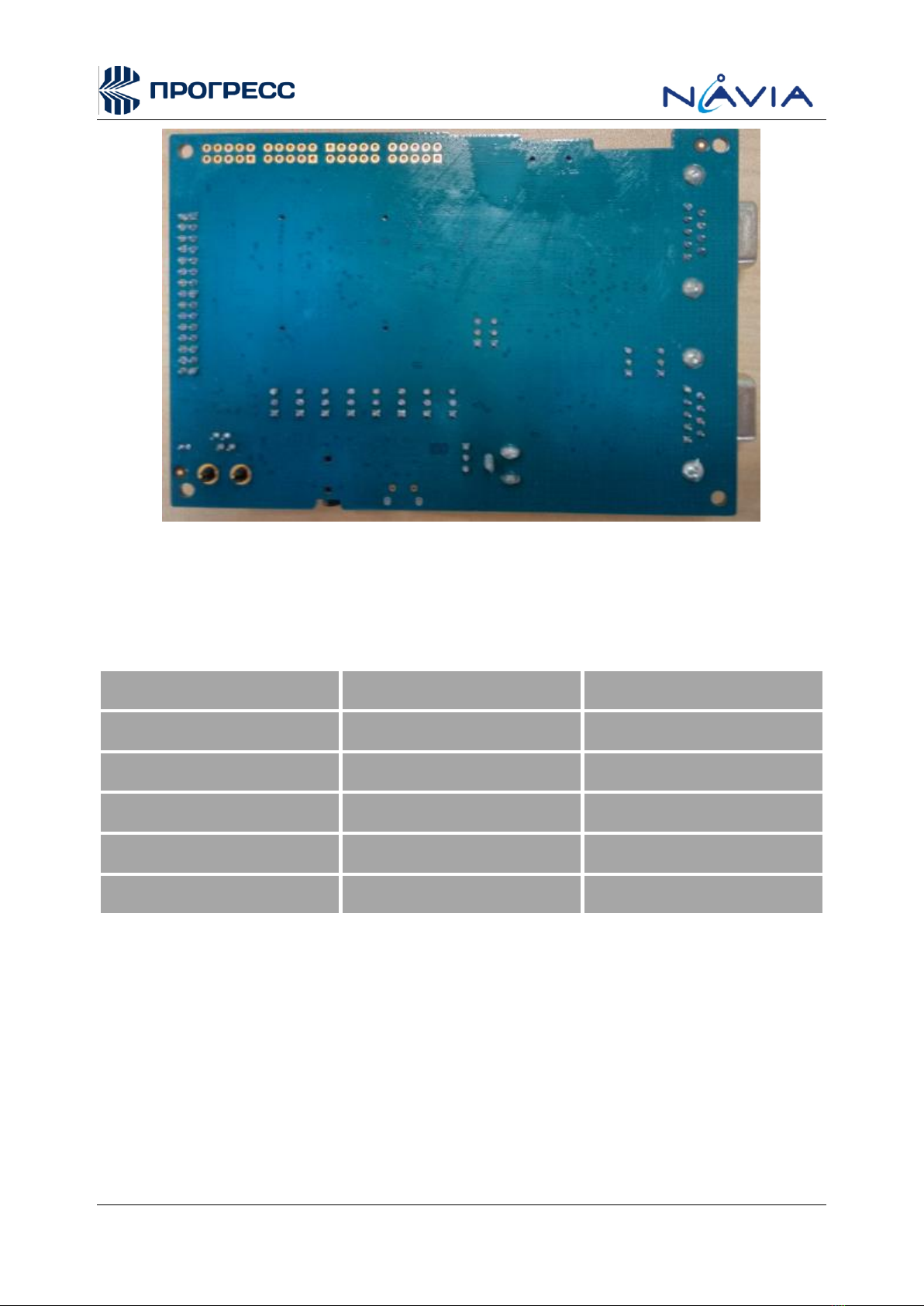

Figure 2 PN6280_EVB BOT
Table 1 Label introduction
1．GND
2．DC3.8V
3．POWER Switch
4．DC5V
5．RESET Key
6．UART0
7．MIC
8．SPK
9．PCM Switch
10．PWRKEY Switch
11．5Pin Micro USB
12．PN6280 Module
13．SIM Card
14．RF Antenna port
15．Download Key
16．UART1
17．UART1 Switch

PN6280_EVB User Manual
Copyright © JSC NIIMA PROGRESS and NAVIA LLC
5
2. Functional Introduction
2.1 Power Supply
PN6280_EVB provides two kinds of power supply: 5V DC adapter power supply and 3.8V DC power
supply. Customers can switch by controlling power switch. As shown in the figure below:
Figure 3 PN6280_EVB DC 5V adapter interface and power switch
Figure 4 PN6280_EVB 3.8V power supply interface
2.2 RESET Key
Pressing the RESET Key can restart the module.

PN6280_EVB User Manual
Copyright © JSC NIIMA PROGRESS and NAVIA LLC
6

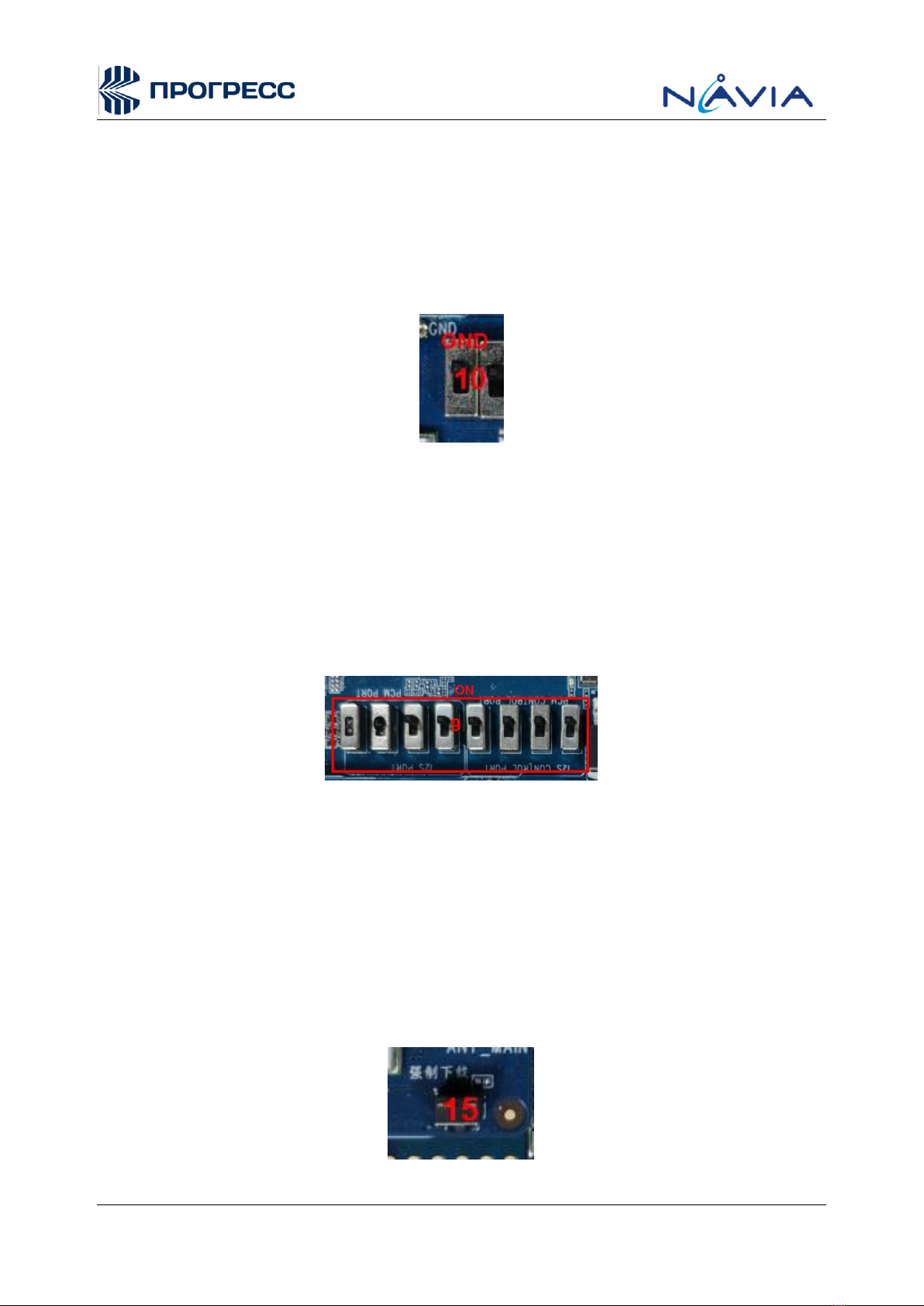

Figure 5 RESET key
2.3 PWRKEY Switch
When the PERKEY switch is turn to low level (GND), the module will boot on normally.
Figure 6 PWRKEY switch
2.4 PCM Switch
When using PCM digital audio, please turn switch(9) to ON state.
Figure 7 PCM switch
2.5 Download Key
When making a software upgrade, press and hold the download key until the download tool reading a
red progress bar starts.

PN6280_EVB User Manual
Copyright © JSC NIIMA PROGRESS and NAVIA LLC
7
Figure 8 Download key
2.6 Interface Section
2.6.1 UART Interfaces
PN6280_EVB have two UART interfaces: UART0 and UART1. The UART0 is non-synchronous
communication interface. The UART1 is as the end of the AP module debug interface. When using
UART1, you need to turn switch(17) to the ON state.
PN6280_EVB will be converts the COMS 1.8V level into a standard RS232 level through serial level
converter chip. Users can connect PC or other terminal equipment through UART for serial
communication. UART0 supports 115200 baud rate default. UART1 supports 921600 baud rate
default.

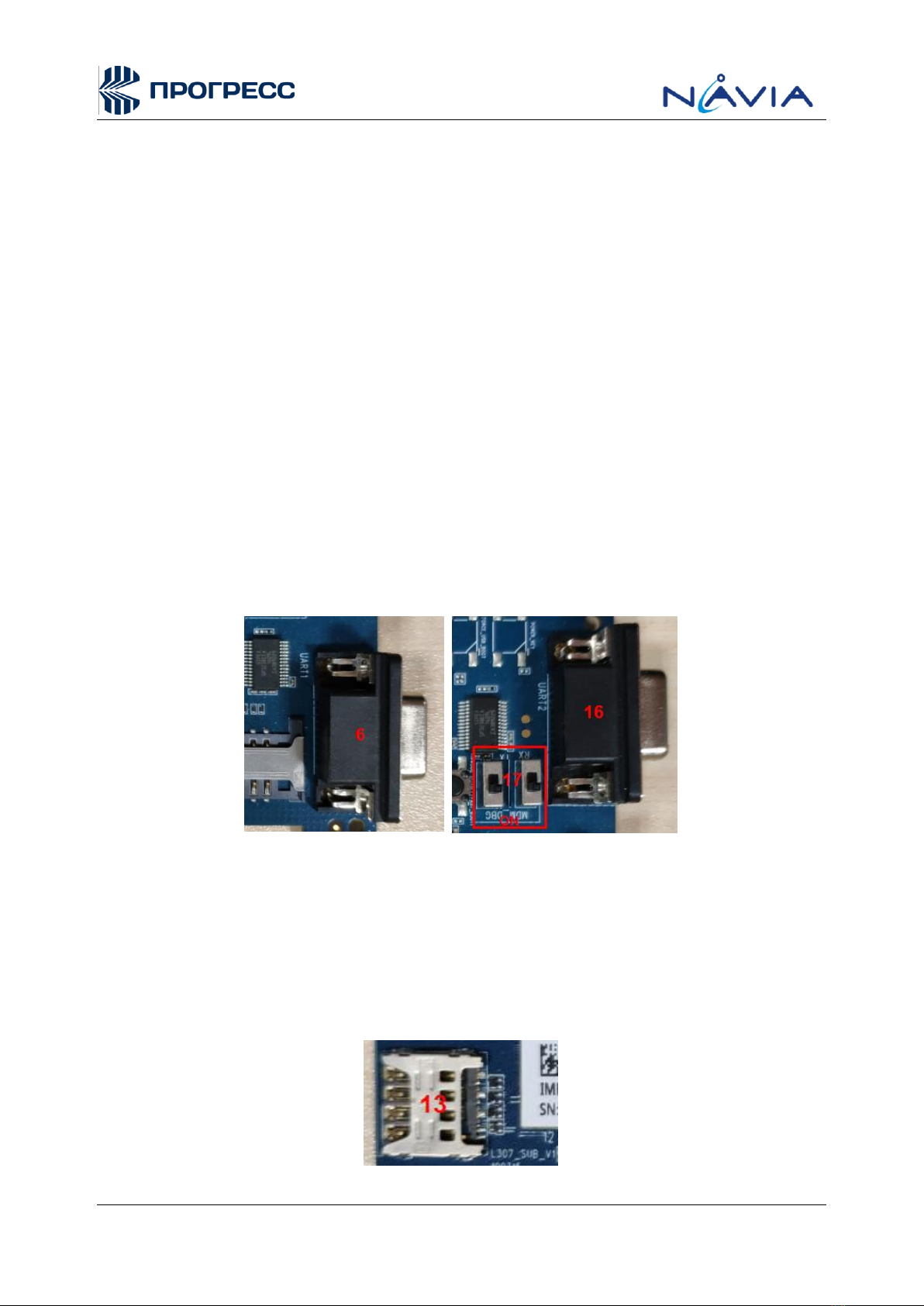

Figure 9 PN6280 UART interface
2.6.2 SIM Card
The PN6280_EVB provide one SIM interface, can automatically identify 1.8V and 3V SIM card.

PN6280_EVB User Manual
Copyright © JSC NIIMA PROGRESS and NAVIA LLC
8
Figure 10 SIM card
2.6.3 USB Interface
PN6280_EVB has a Micro USB port, can use for USB download, grip module logs and virtual serial
mode to send AT commands.
Figure 11 USB interface
2.7 Antenna Interface
The development board provides an Antenna Interface, GSM/WCDMA common Antenna Interface
(ANT_MAIN)。
Figure 12 Antenna interface

PN6280_EVB User Manual
Copyright © JSC NIIMA PROGRESS and NAVIA LLC
9
3. Safety Information
For the reasonable usage of the module, please comply with all these safety notices of this page. The
product manufacturers should send followed safety information to user, operator or product’s spec.
The devices using the module may disturb some electronic equipment. Put the
module away from the phone, TV, radio and automation equipment to avoid the
module and the equipment to interfere with each other.
Shut down the mobile device or change to flying mode before boarding. TheUsing
of wireless appliances in an aircraft is forbidden to avoid the interference, or else
cause to unsafe flying, even violate the law.
In hospital or health care center, switch off the mobile devices. RF interference
may damage the medical devices, like hearing-aid, cochlear implant and heart
pacemaker etc.
Mobile devices can’t guarantee to connect in all conditions, like no fee or with an
invalid SIM card. When you need emergent help, please remember using
emergency calls and make sure your device power on in an area with well signal.
Put the module away from inflammable gases. Switch off the mobile device when
close to gas station, oil depot, chemical plant etc.
The module is not water proof. Please don’t use the module in the area with high
humidity like bathroom, which will decelerate the physical performance, insulation
resistance and mechanical strength.
Non-professionals can’t teardown the module which will damage it. Refer to the
specification or communicate the related staffs to repair and maintain it.
Please switch on the module before cleaning. The staffs should be equipped with
anti-ESD clothing and gloves.
The users and product manufacturers should abide by the national law of wireless modules and
devices. If not, JSC NIIMA PROGRESS and NAVIA LLC will not respond the related damages.
